XCMG XE15

2016 XCMG XE15

1/9

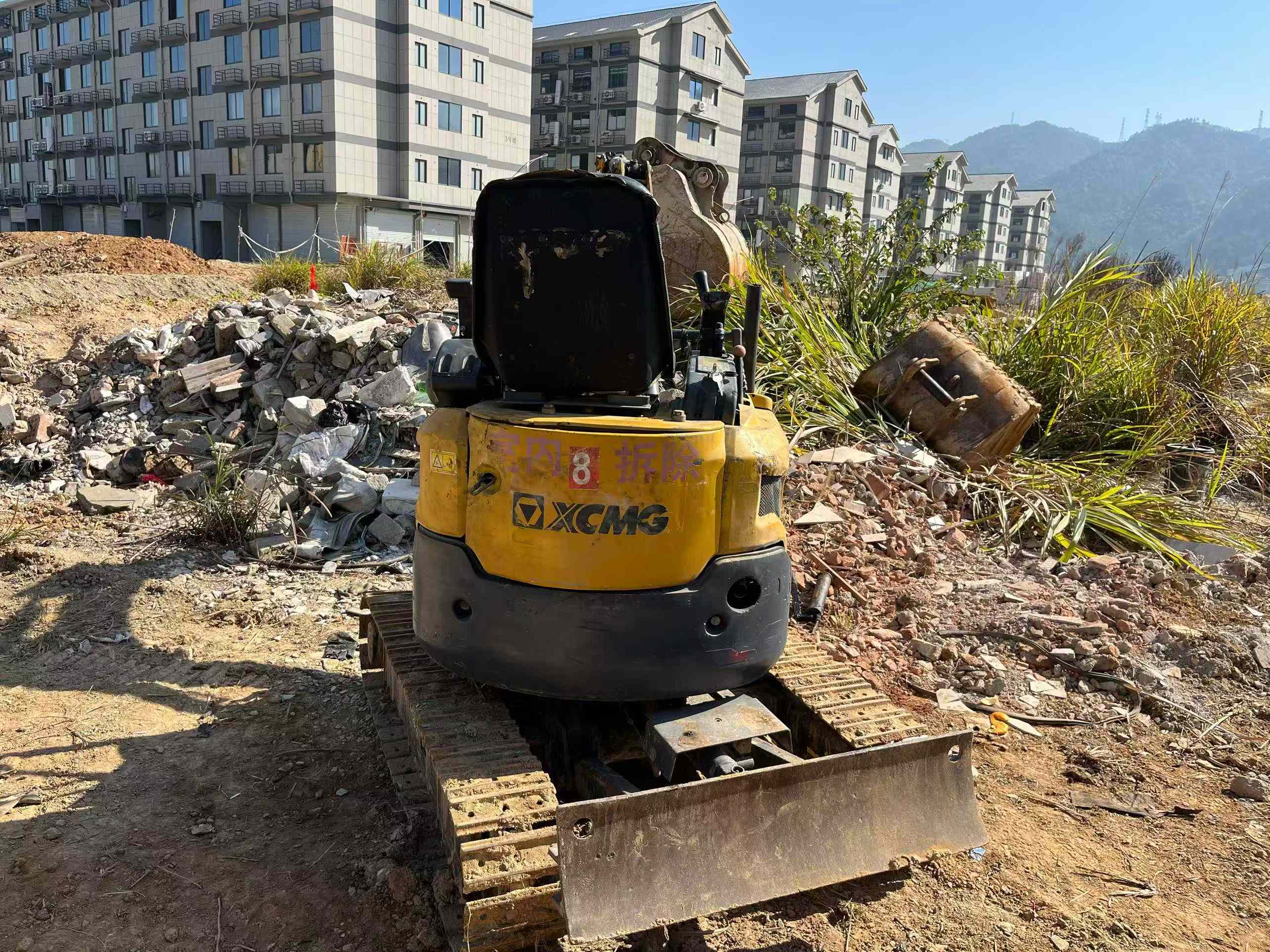

Used XCMG XE15 Excavator 2016 Model / 1

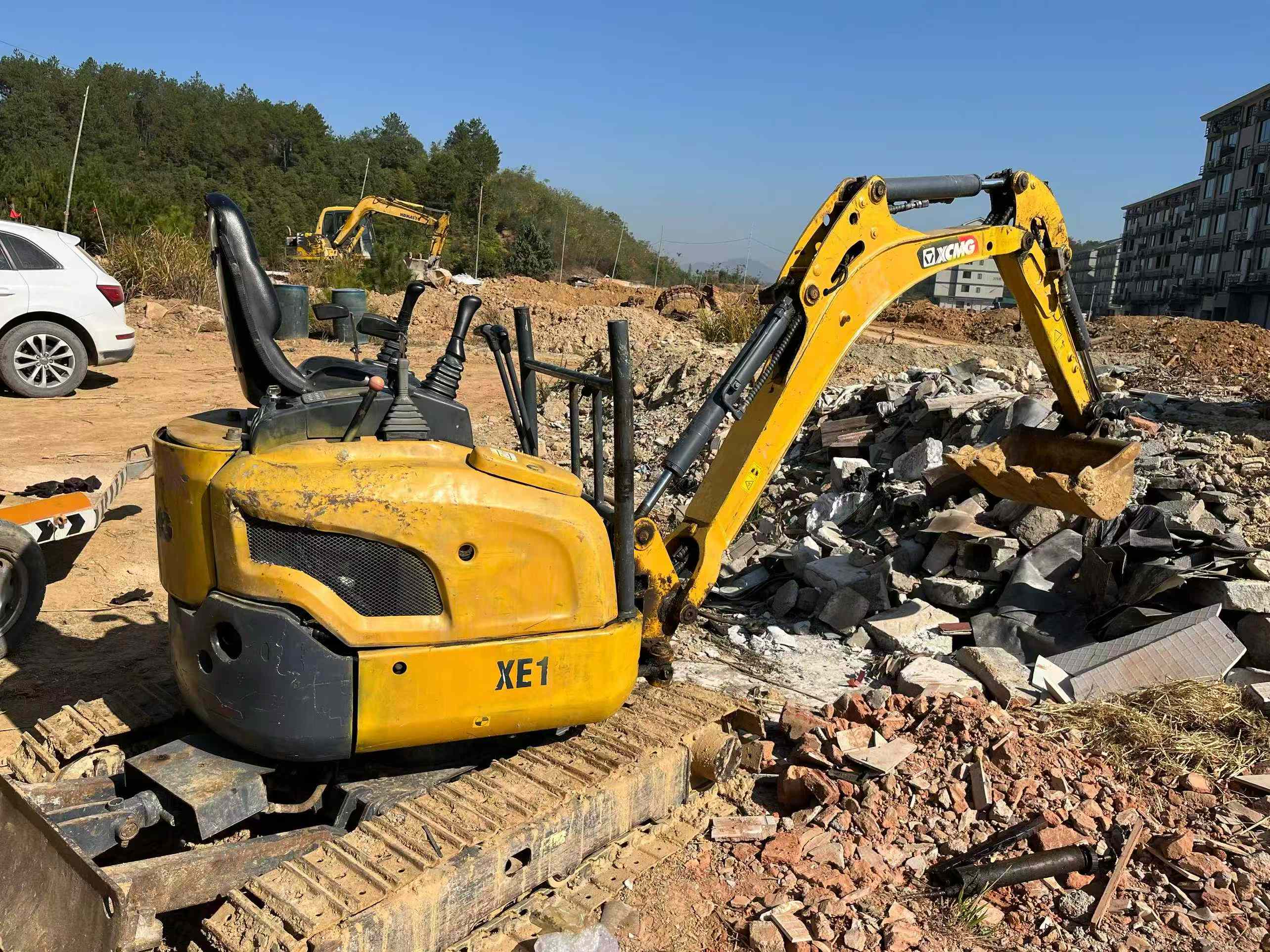

Used XCMG XE15 Excavator 2016 Model / 2

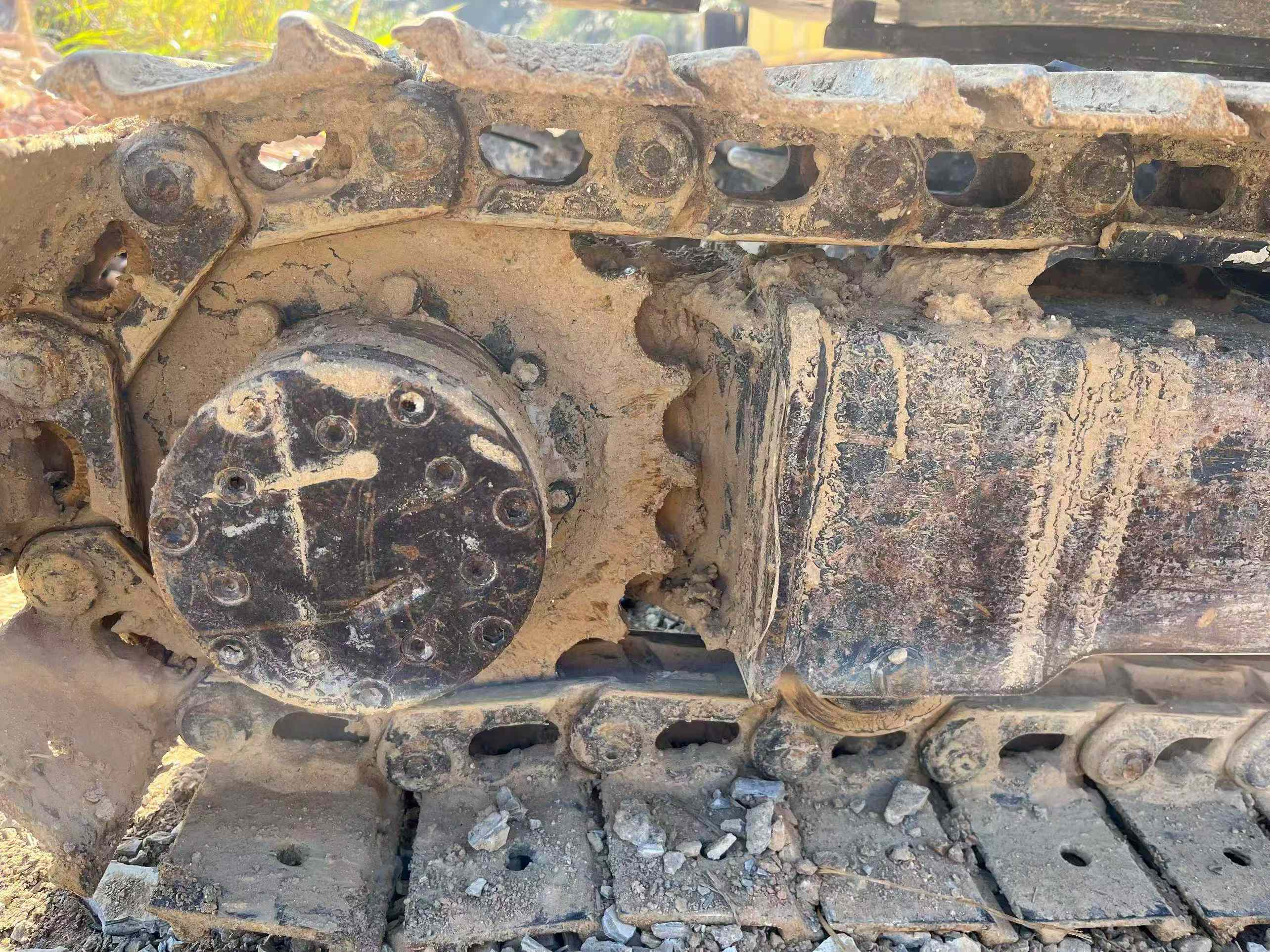

Used XCMG XE15 Excavator 2016 Model / 3

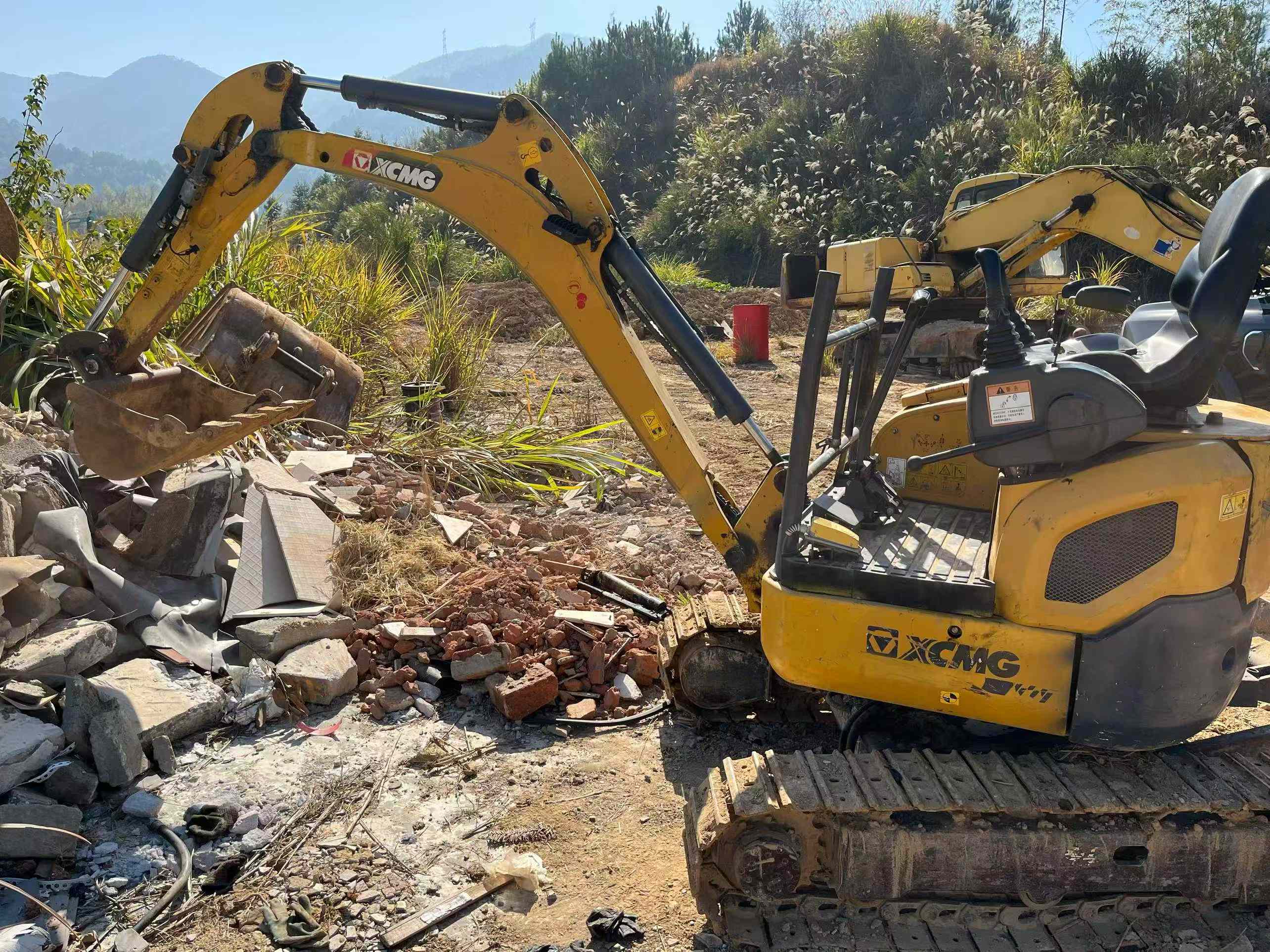

Used XCMG XE15 Excavator 2016 Model / 4

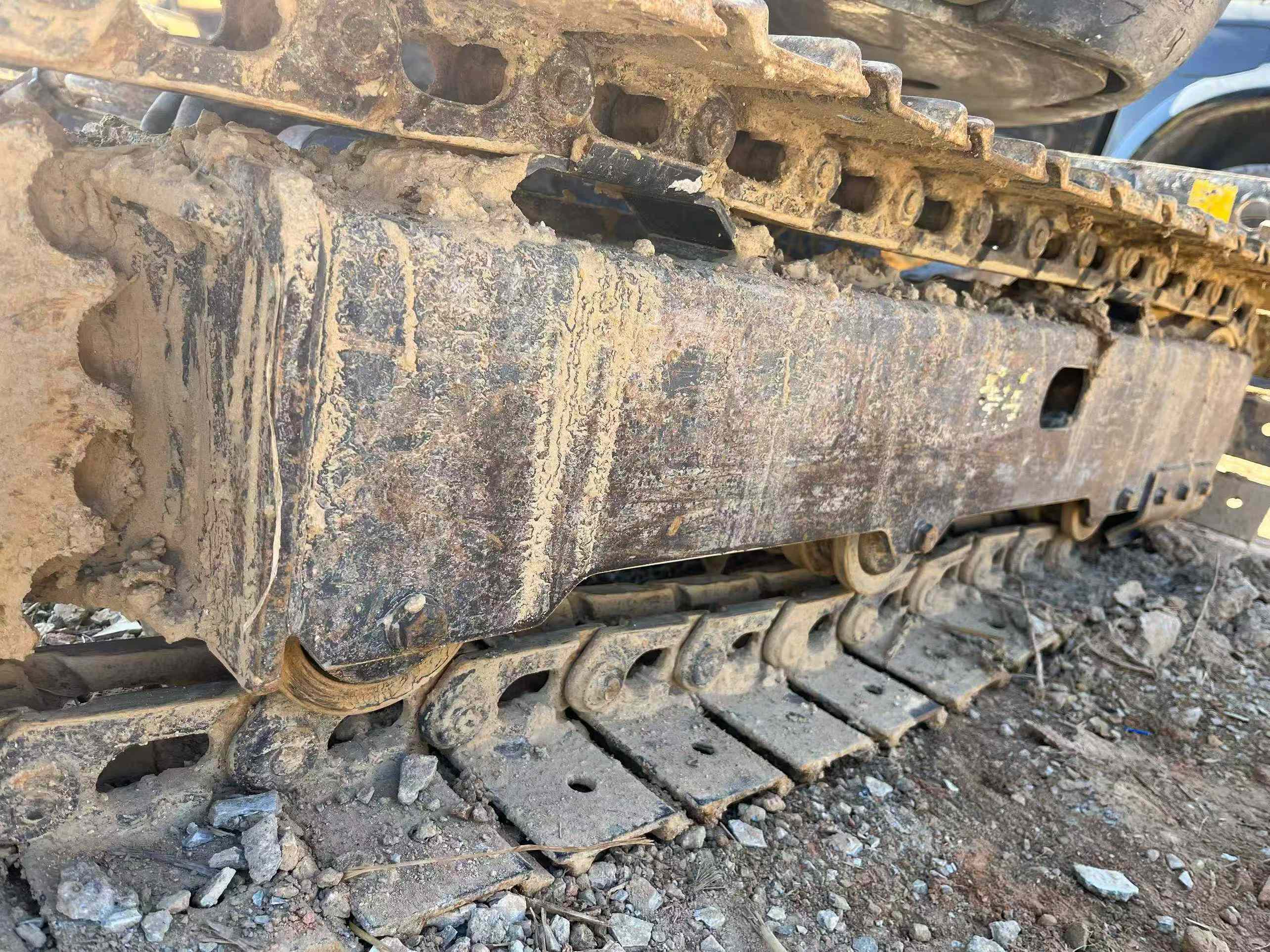

Used XCMG XE15 Excavator 2016 Model / 5

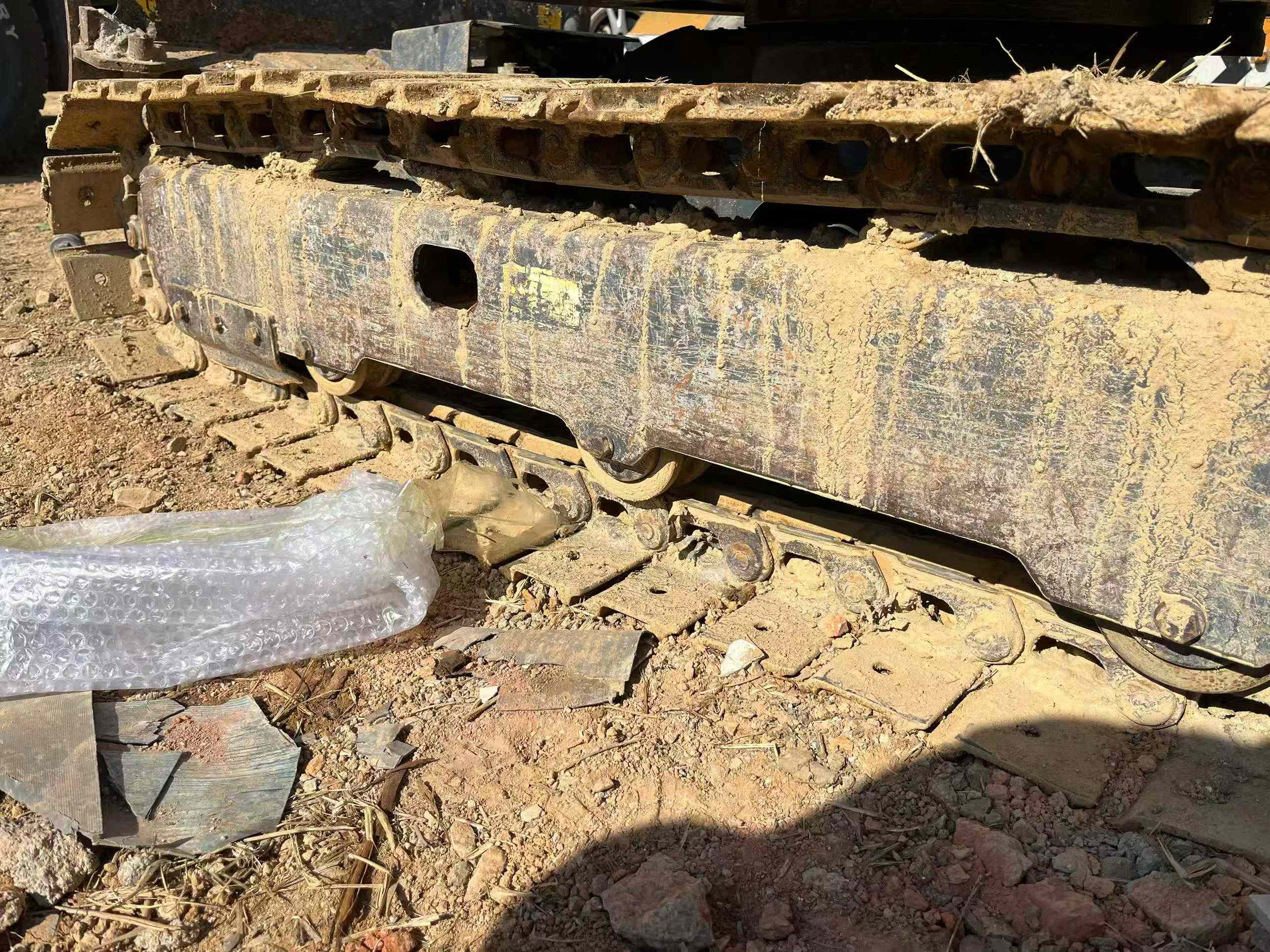

Used XCMG XE15 Excavator 2016 Model / 6

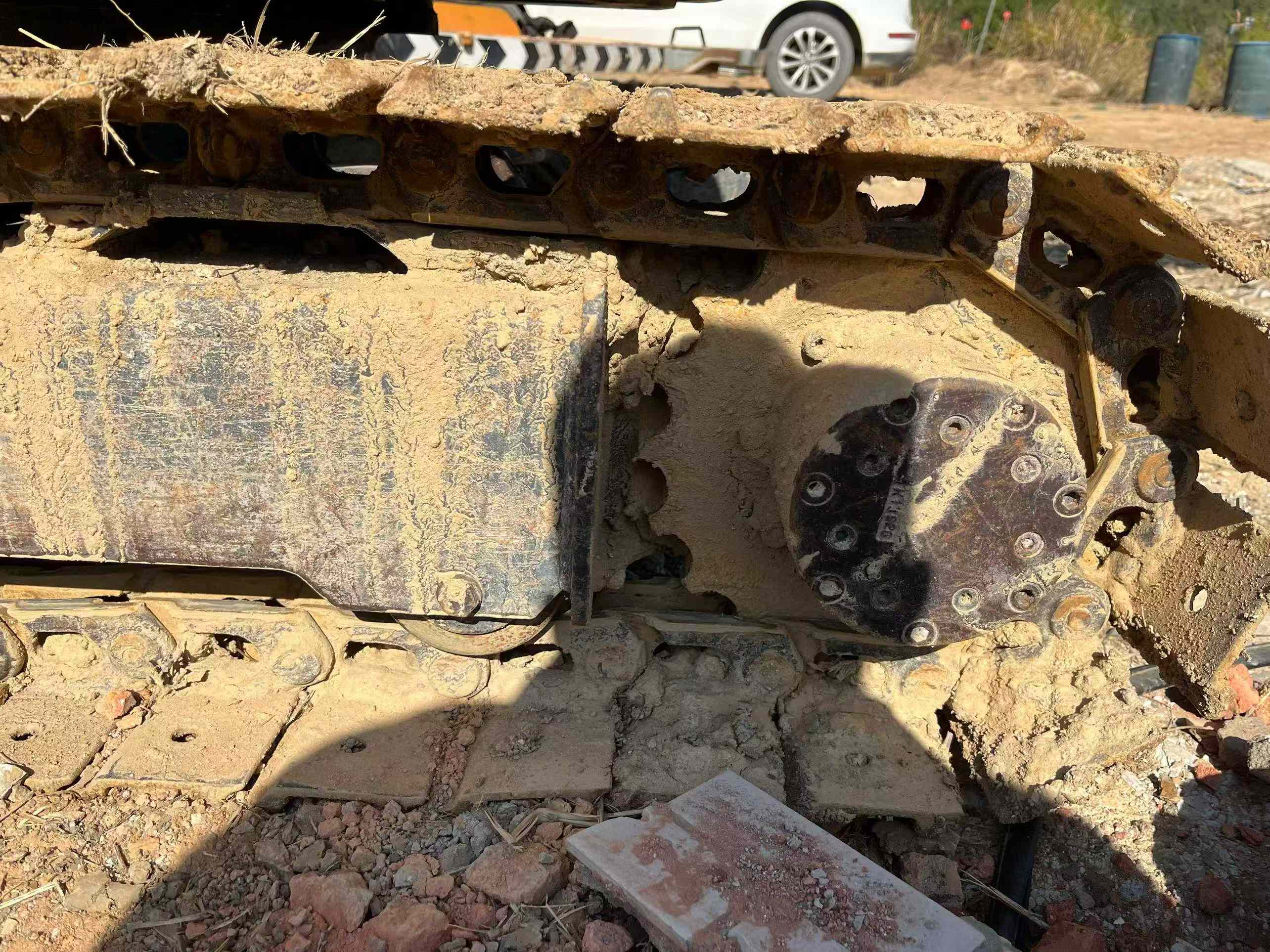

Used XCMG XE15 Excavator 2016 Model / 7

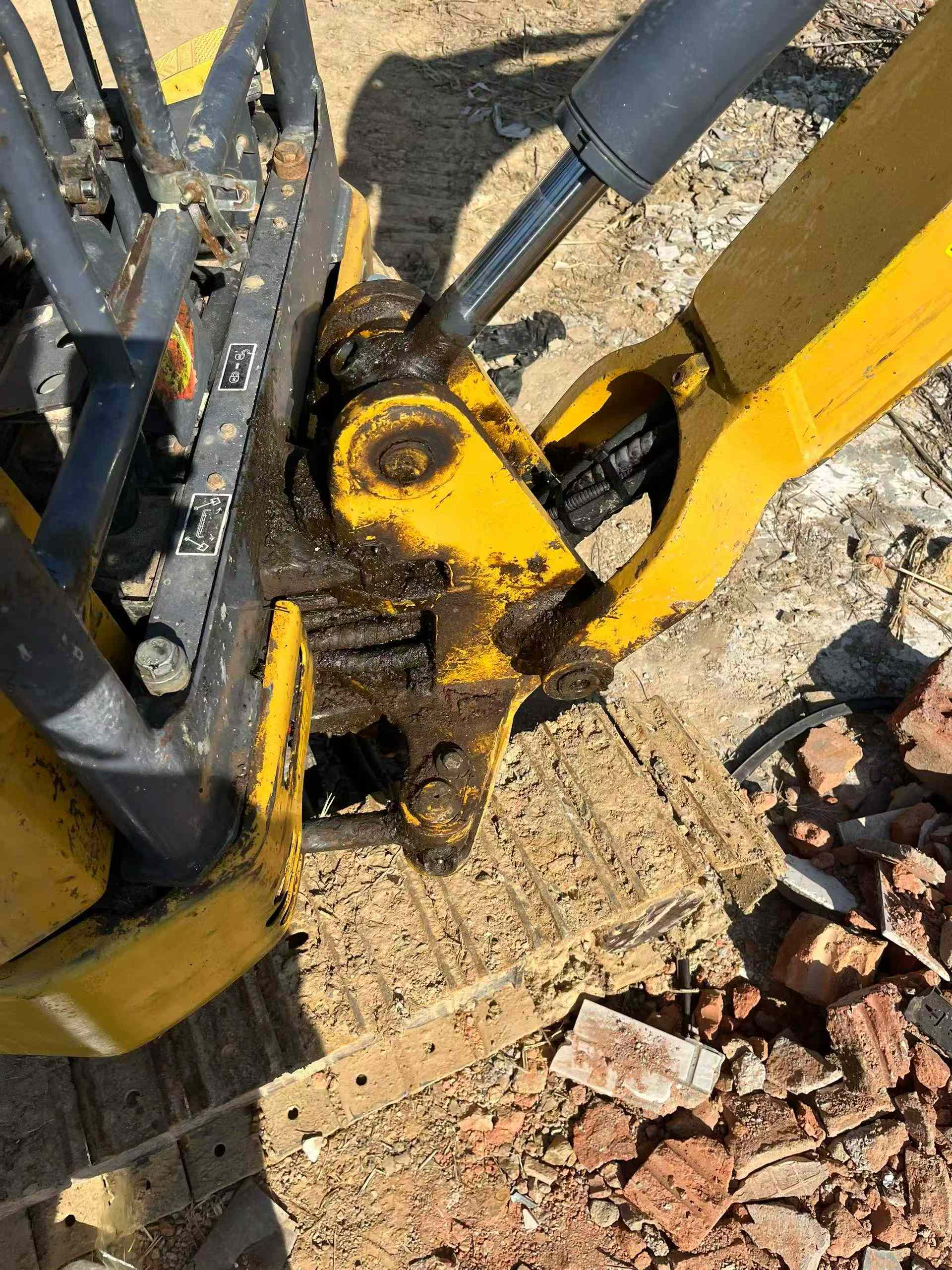

Used XCMG XE15 Excavator 2016 Model / 8

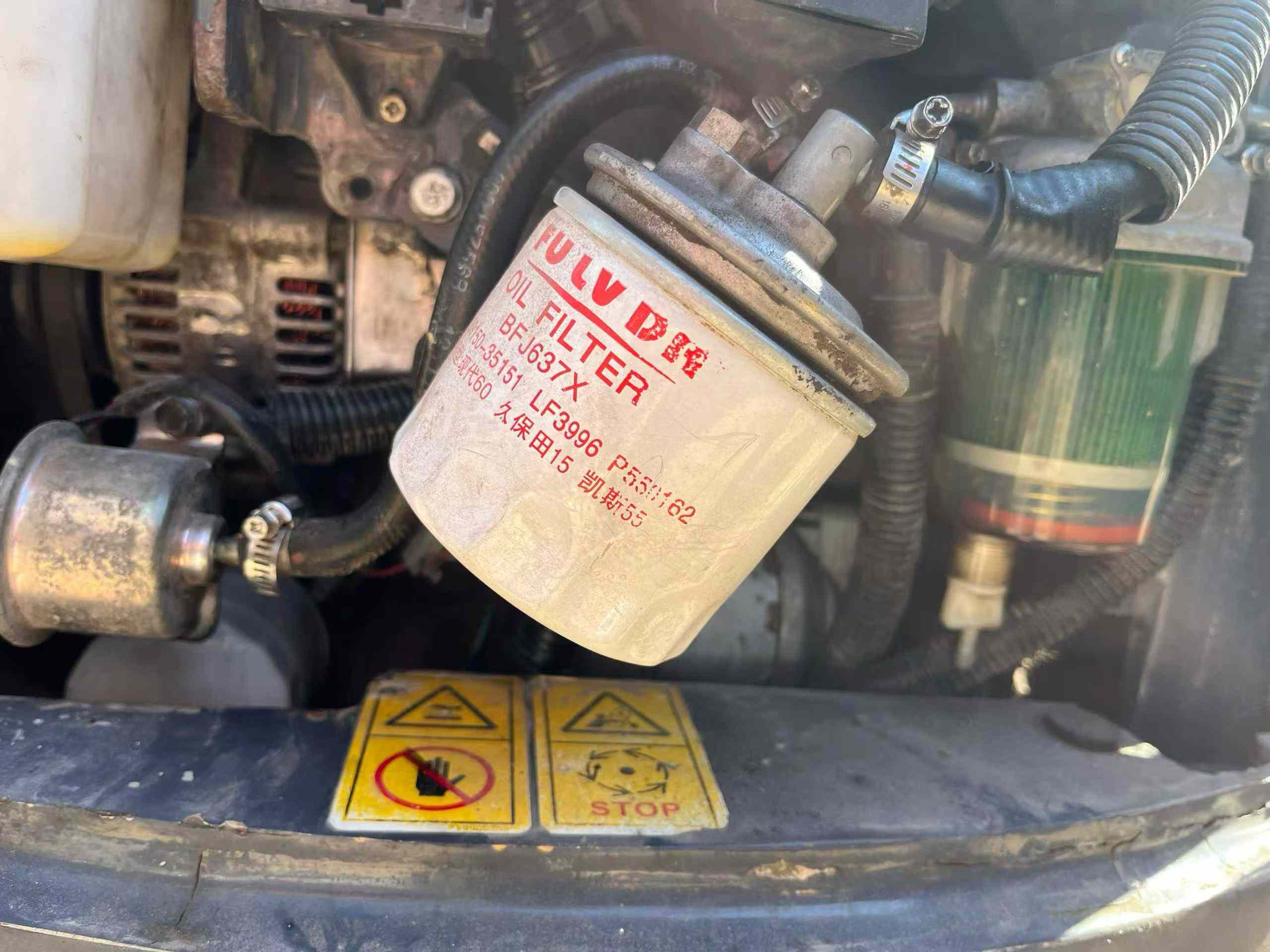

Used XCMG XE15 Excavator 2016 Model / 9
Product Description
SpecificationsValue
No.965894
Tonnage (tons)1
Working weight (kg)1640
Bucket capacity (m³)0.044
Boom length (mm)1690
Rod length (mm)1100
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 3TNV82A
Rated power (kw/rpm)16.5/2200
Cooling modewater-cooling
Number of cylinders (PCS)3
Displacement (L)1.33
Ground specific pressure (Kpa)23.8
Rotation speed (rpm)11
Climbing ability (%)30 °
Bucket digging force (kN)13.9
Rod digging force (kN)8.8
Travel speed (km/h)4.4/2.4
Main overflow set pressure (Mpa)24
Maximum flow of main pump (l/min)2*19.8+14.1
Traveling Hydraulic Circuit (Mpa)21
Rotary Hydraulic Circuit (Mpa)18
Hydraulic crushing pipeline is standardno
Main pump typeJapan Fujikoshi
Pilot pump flow (L/min)3.3
Fuel Tank (L)20
Hydraulic Tank (L)29
Engine Oil changes (L)5.5
Total transport length (mm)3760
Total transport width (mm)1080
Total transport height (mm)2400
Counterweight ground clearance (mm)472
Minimum ground clearance (mm)180
Minimum turning radius of front working device (mm)1675
Back end turning radius (mm)1190
Track gauge (mm)850
Track plate width (mm)230
Track ground length (mm)1217
Maximum digging radius (mm)3915
Maximum digging depth (mm)2320
Maximum excavation height (mm)3615
Maximum unloading height (mm)2480
Maximum vertical digging depth (mm)1520
Dodging plate width × height (mm)1080*225
see more

Description

XCMG 15-ton second-hand excavator - High Efficiency and Multi-functionality, affordable price This 15-ton second-hand excavator from XCMG is a highly sought-after "little expert" in the market. It has won the favor of many users with its outstanding performance and extremely high cost performance. The total working time of this machine is 3,000 hours, and it is in the best state of mechanical performance. Whether it is urban infrastructure construction, farmland water conservancy or mining, it can handle it with ease. In terms of the power system, this machine is equipped with a high-quality engine that meets the National III emission standards. It not only has strong power but also excellent fuel economy, significantly reducing operating costs. Meanwhile, this engine also features excellent low-temperature starting performance. Even in the cold winter, it can quickly enter the working state, ensuring an all-year-round working efficiency. The hydraulic system adopts advanced negative flow control technology, making the overall operation of the machine more stable and smooth, and the response speed faster. Whether it is excavation, loading or crushing operations, precise control can be achieved, which greatly improves work efficiency

Overview

No.965894

Brand Name:

XCMG

Model Number:

XE15

Year:

2016

Location:

Zhejiang China
