Product Description
Engineered for precision work in confined spaces, this 2024 XCMG XE15 mini excavator delivers exceptional maneuverability with its compact 1080mm transport width and 1675mm minimum turning radius. Operating at 1640kg working weight, the machine provides optimal stability while maintaining agility across diverse terrain conditions.
Key operational advantages include:

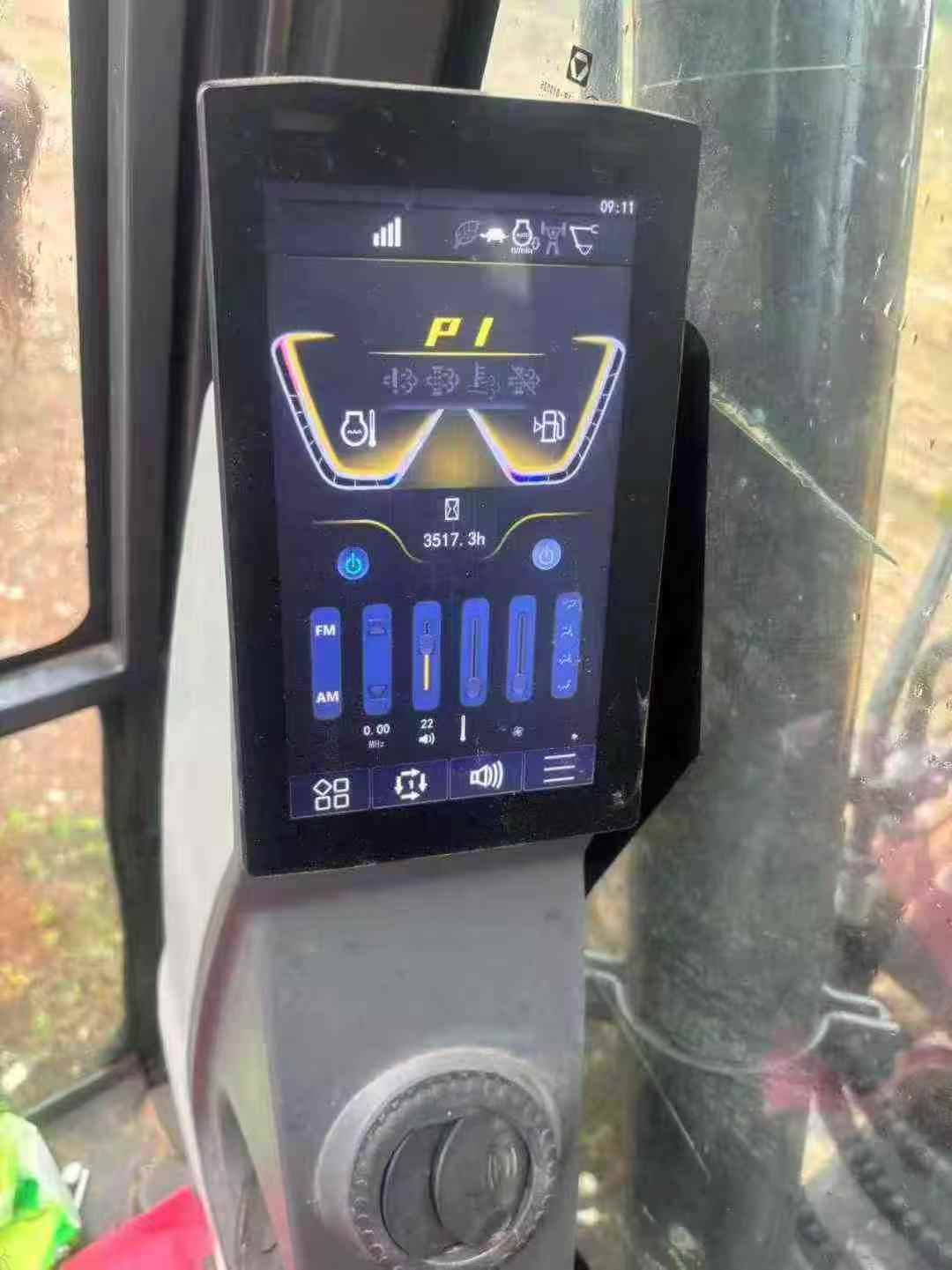

- Enhanced visibility through strategically positioned cabin design
- Responsive hydraulic controls with 24 MPa main overflow pressure
- Reliable Yanmar 3TNV82A engine producing 16.5kW at 2200 RPM
- Impressive 30° climbing capability for challenging grade work
- Precise digging performance with 13.9kN bucket force and 2320mm maximum depth

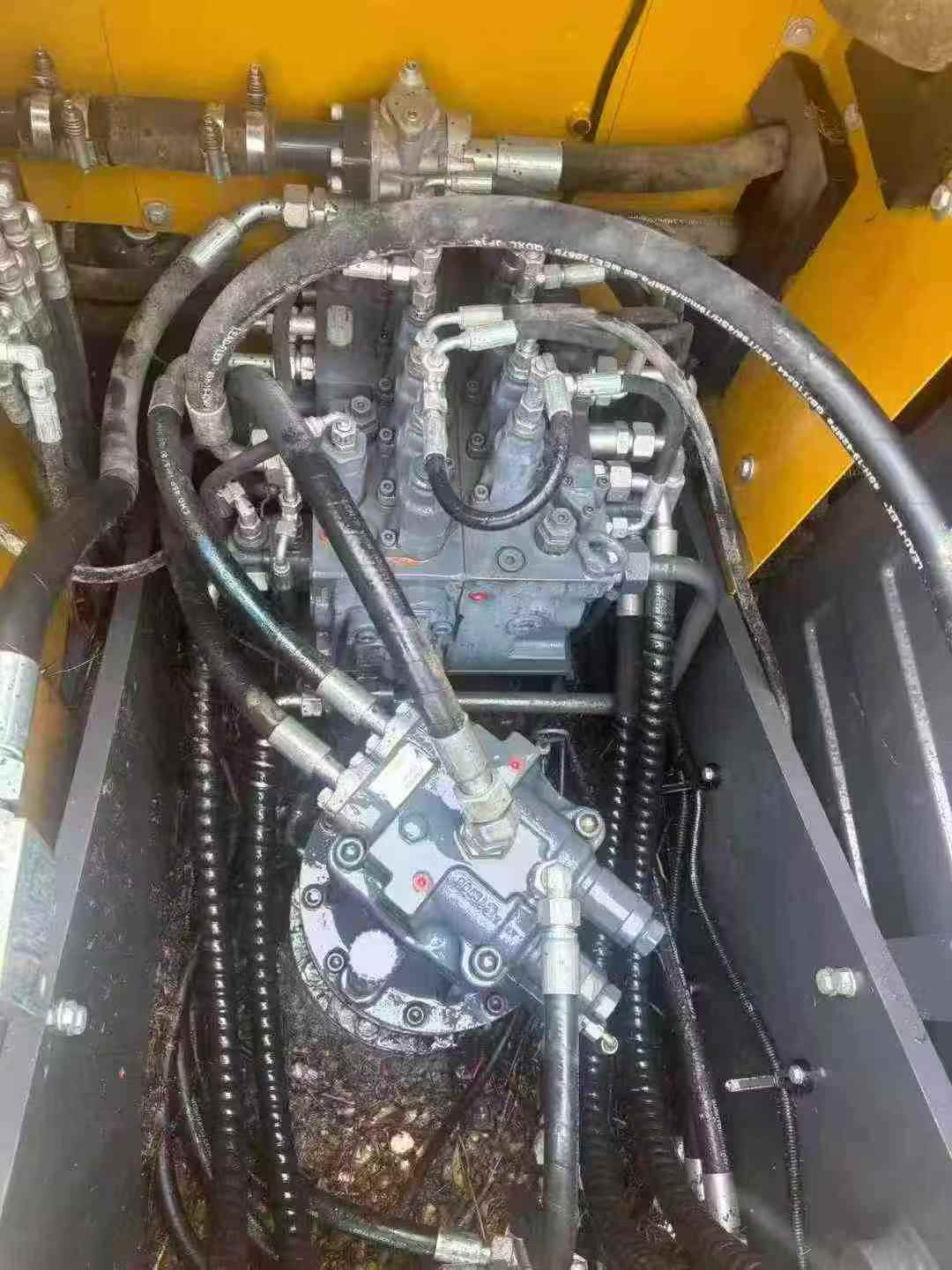

Located in Huizhou, Guangdong, this unit features Japan Fujikoshi main pump technology and water-cooling system for consistent performance. With 4.4km/h travel speed and 11 RPM rotation, operators benefit from smooth, controlled movements essential for detailed excavation tasks. Dual-speed travel and low ground pressure of 23.8 KPa minimize surface damage while maximizing productivity.
| Specifications | Value |
|---|---|
| No. | 986637 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
