2016 XCMG XE15U

1/9
Used XCMG XE15U Excavator 2016 Model / 1
Used XCMG XE15U Excavator 2016 Model / 2

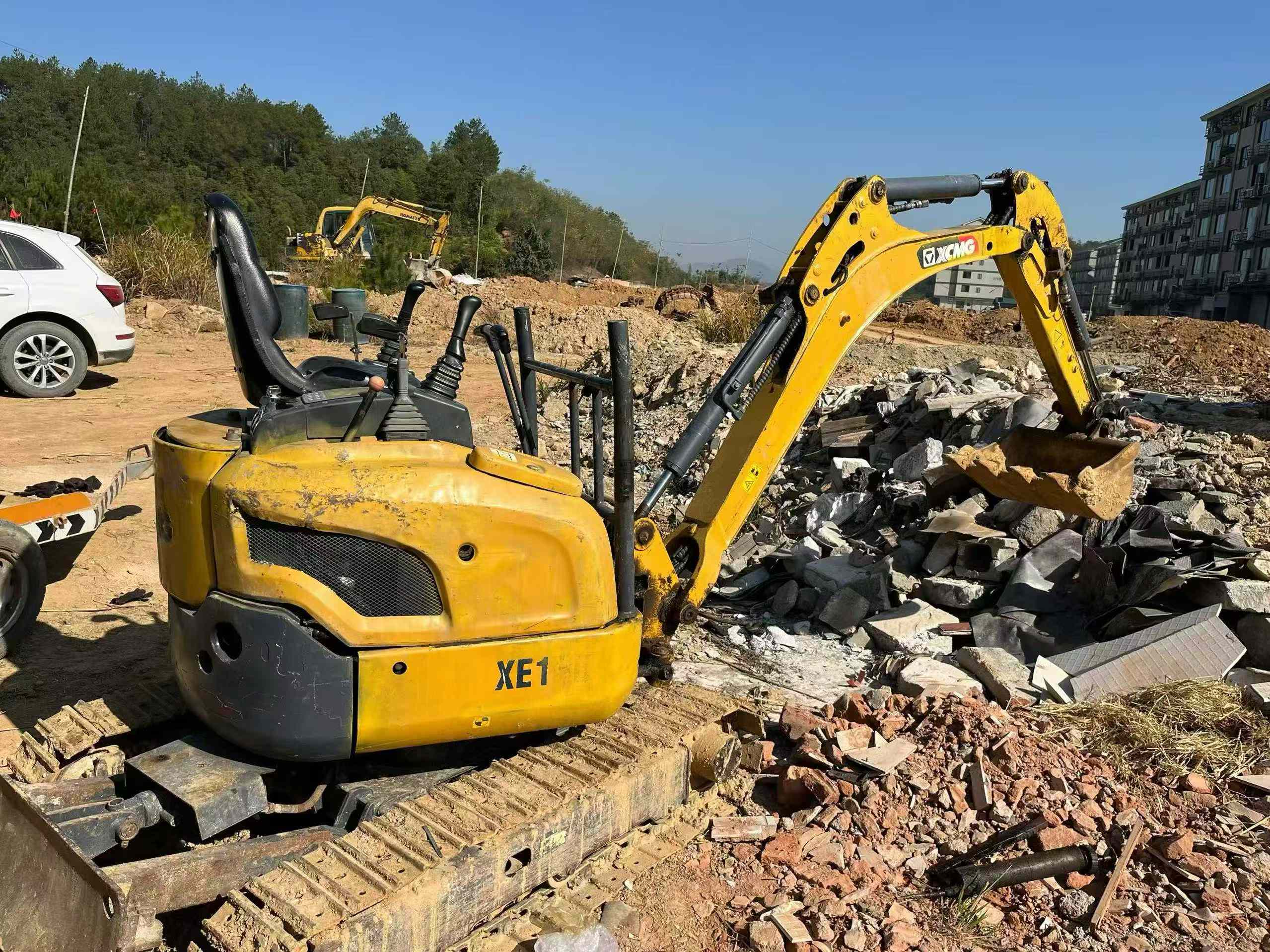

Used XCMG XE15U Excavator 2016 Model / 3

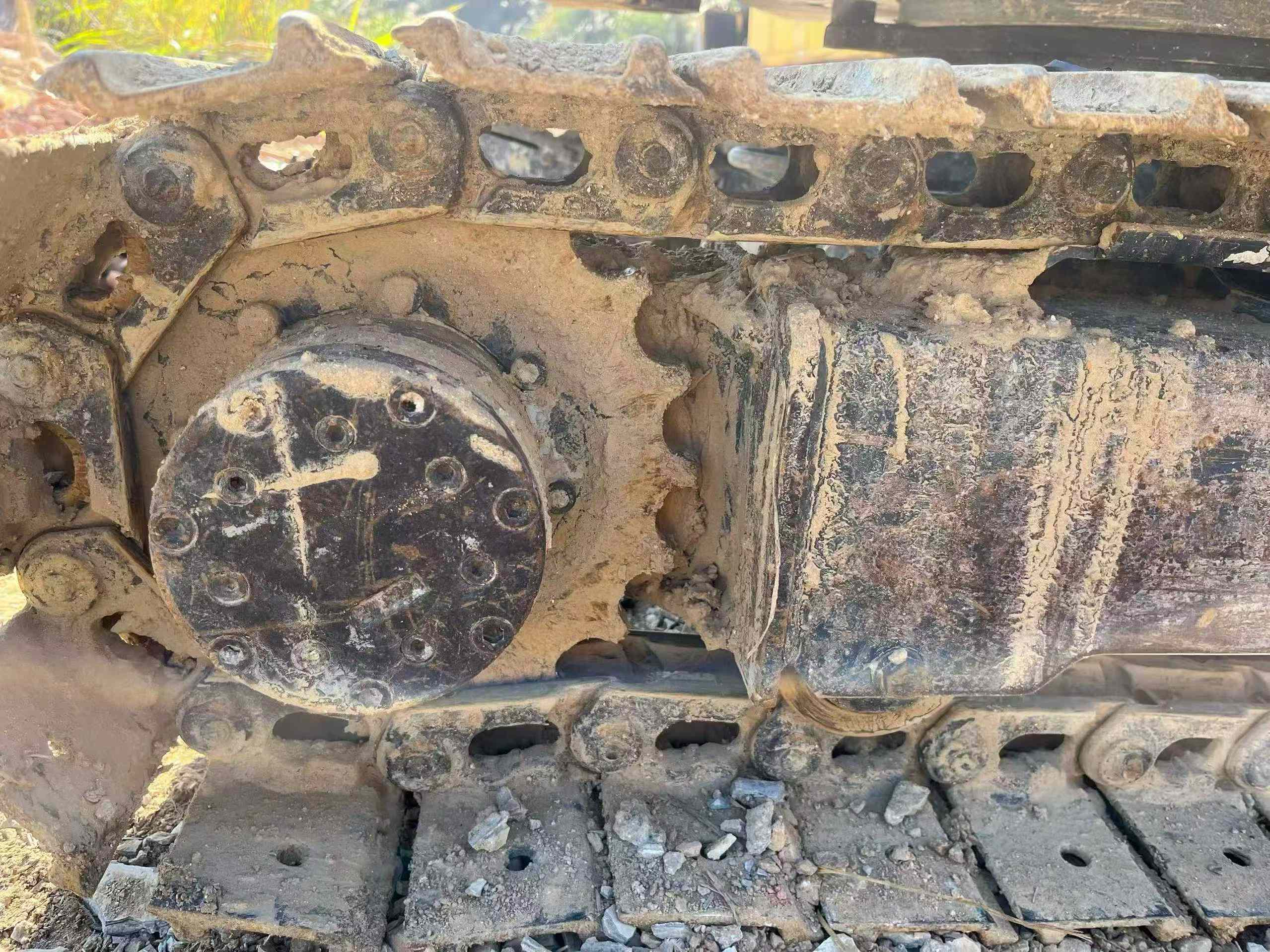

Used XCMG XE15U Excavator 2016 Model / 4

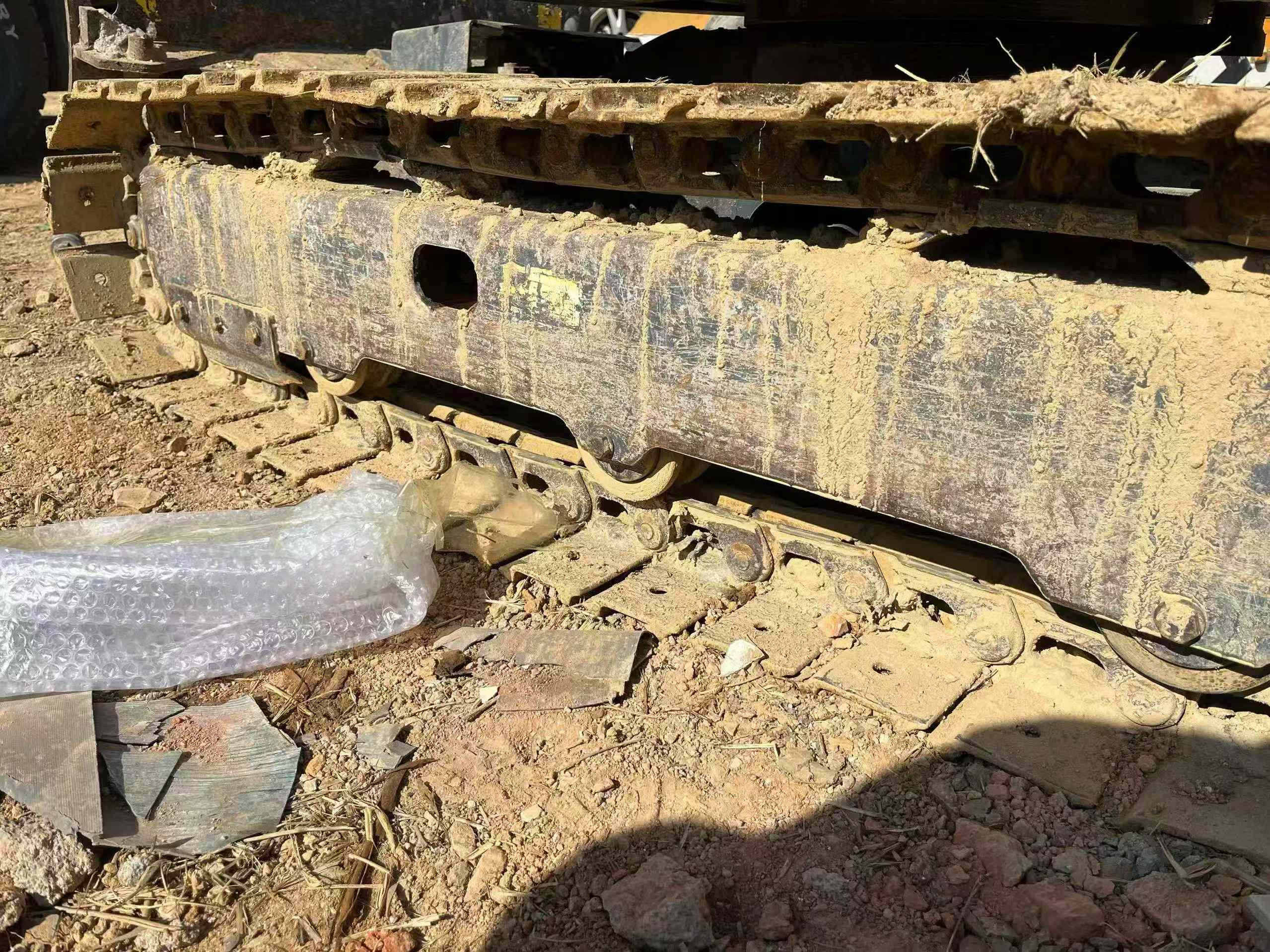

Used XCMG XE15U Excavator 2016 Model / 5

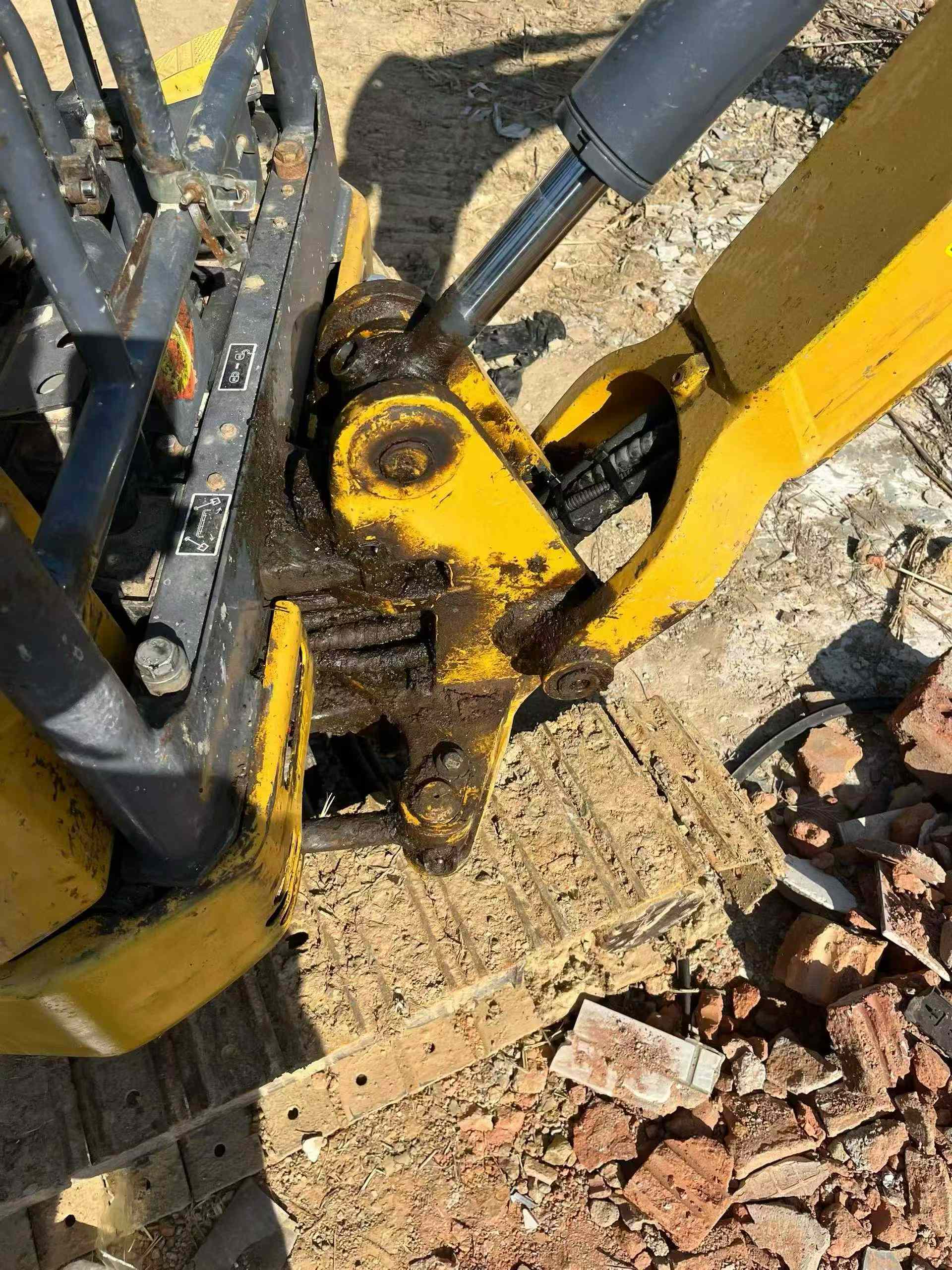

Used XCMG XE15U Excavator 2016 Model / 6
Used XCMG XE15U Excavator 2016 Model / 7

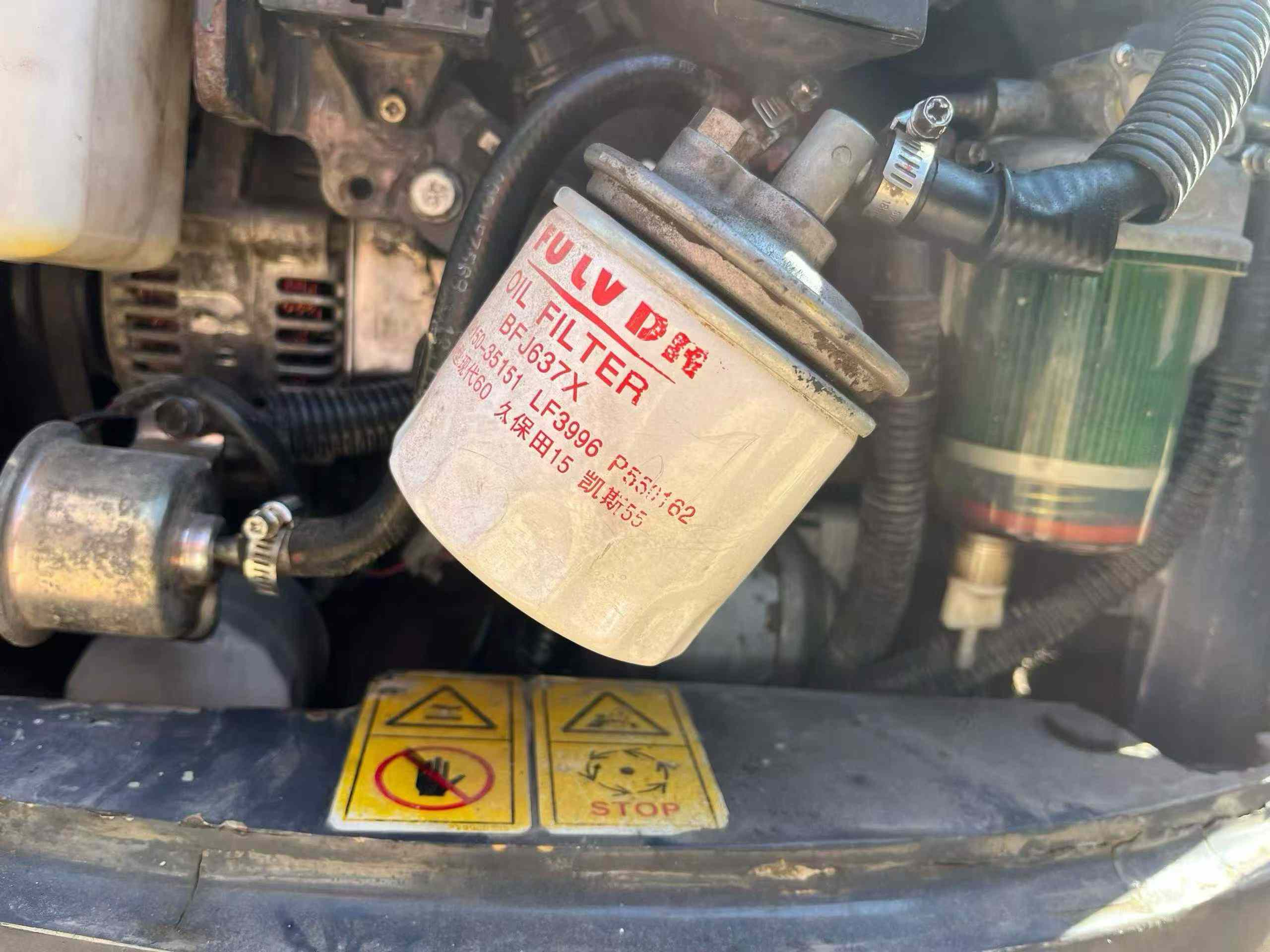

Used XCMG XE15U Excavator 2016 Model / 8

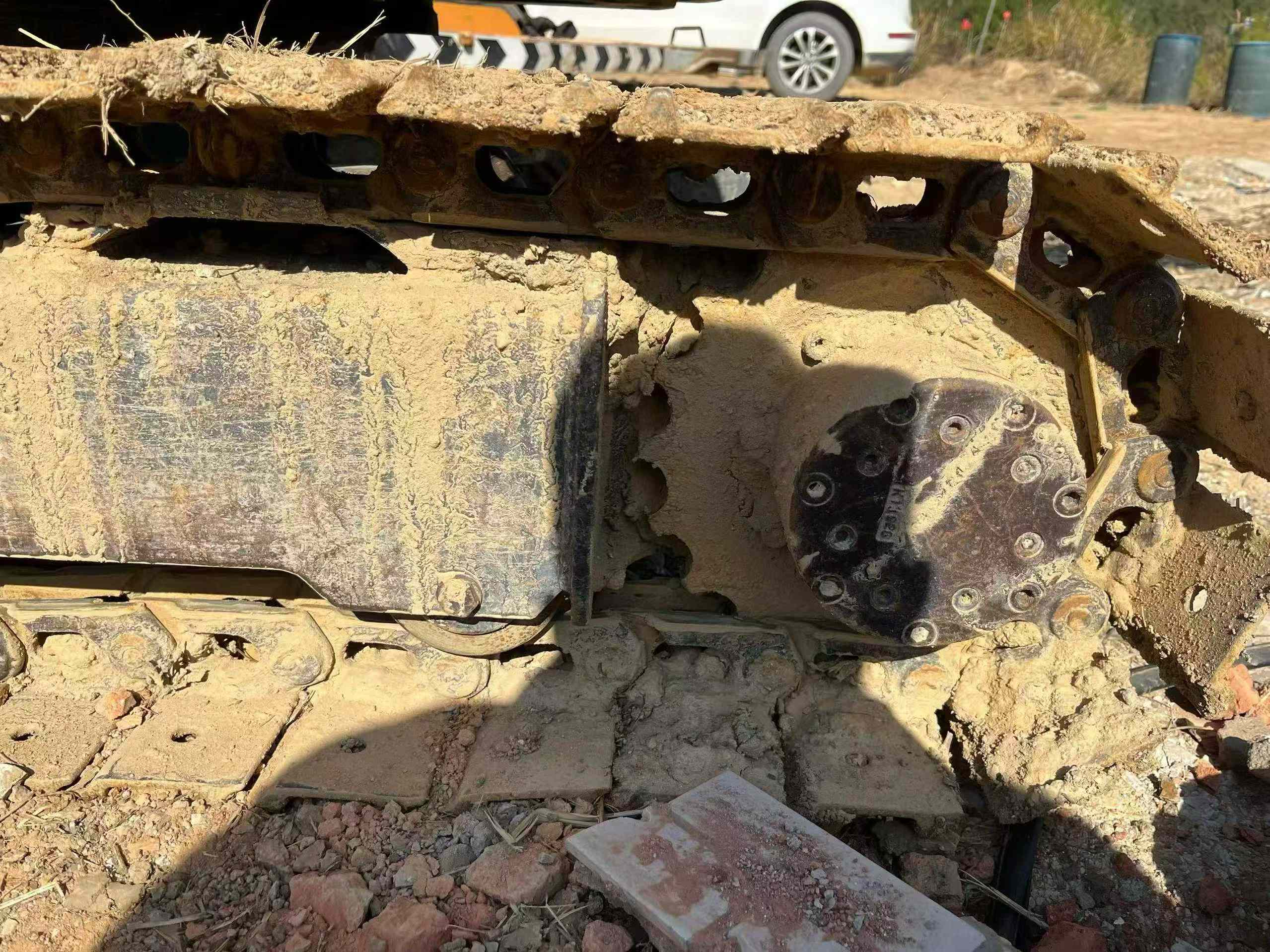

Used XCMG XE15U Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 High-end second-hand XCMG XE15U excavator, ready for immediate use, no additional preparation required. The total working time of this device is only 1,200 hours, ensuring its good mechanical condition and long service life. In terms of power, this excavator is equipped with the highly efficient and energy-saving Yanmar 3TNV88 engine, with a maximum output power of up to 14.7 kilowatts. It features strong power performance and excellent fuel economy, enabling it to easily handle various complex working environments. In addition, its advanced electronic control system can achieve precise control, further enhancing work efficiency. In terms of the hydraulic system, this machine adopts a high-quality combination of variable piston pumps and hydraulic motors, ensuring smooth operation and rapid response of the entire machine. Meanwhile, its unique load-sensitive technology makes the operation more stable and effortless, significantly enhancing the construction accuracy and safety. As a compact multi-functional excavator, XCMG XE15U also features many highlights, such as a spacious and comfortable cab design and an easy-to-maintain structural layout, making it an indispensable helper in urban infrastructure con

SpecificationsValue
No.976897
Tonnage (tons)1
Working weight (kg)1795
Bucket capacity (m³)0.044
Boom length (mm)1828
Rod length (mm)950
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD782-E3B-CBH-1
Rated power (kw/rpm)9.8/2300
Maximum torque (N.m)44.5/1800
Number of cylinders (PCS)3
Displacement (L)0.778
Ground specific pressure (Kpa)28.5
Rotation speed (rpm)9.5
Climbing ability (%)30
Bucket digging force (kN)16
Rod digging force (kN)10
Maximum tractive force (kN)15.6
Travel speed (km/h)3.9/1.9
Maximum flow of main pump (l/min)56.8
Traveling Hydraulic Circuit (Mpa)21.6
Rotary Hydraulic Circuit (Mpa)11
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)17
Hydraulic Tank (L)18
Engine Oil changes (L)3.8
Total transport length (mm)3560
Total transport width (mm)990/1240
Total transport height (mm)2350
Counterweight ground clearance (mm)450
Minimum ground clearance (mm)145
Onboard width (mm)990
Track gauge (mm)760/1010
Track ground length (mm)1270
Maximum digging radius (mm)3900
Maximum digging depth (mm)2290
Maximum excavation height (mm)3475
Maximum unloading height (mm)2415
Maximum vertical digging depth (mm)1750
Bulldozer lift or depth (mm)260/180
Dodging plate width × height (mm)1240 x 258
see more

Overview

No.976897

Brand Name:

XCMG

Model Number:

XE15U

Year:

2016

Location:

Zhejiang China
