HOME>>Brands>>XCMG XE15U

2016 XCMG XE15U

1/9

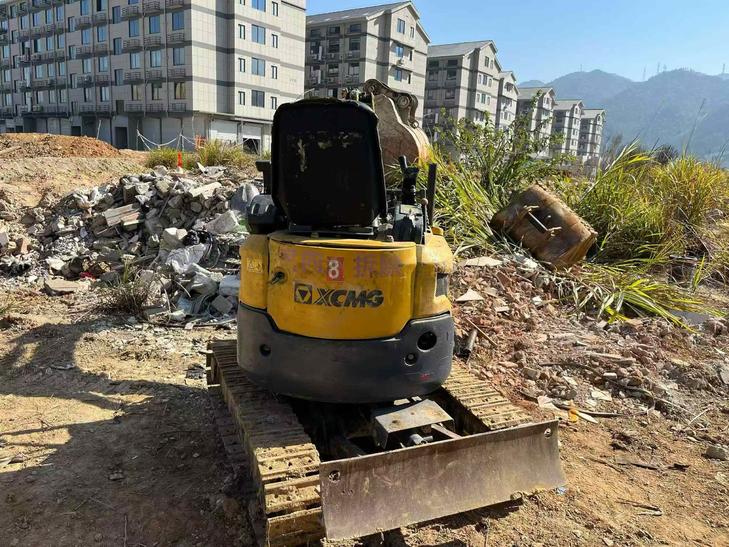

Used XCMG XE15U Excavator 2016 Model / 1
Used XCMG XE15U Excavator 2016 Model / 2
Used XCMG XE15U Excavator 2016 Model / 3
Used XCMG XE15U Excavator 2016 Model / 4
Used XCMG XE15U Excavator 2016 Model / 5
Used XCMG XE15U Excavator 2016 Model / 6
Used XCMG XE15U Excavator 2016 Model / 7
Used XCMG XE15U Excavator 2016 Model / 8
Used XCMG XE15U Excavator 2016 Model / 9

Product Description

There is currently a high-quality second-hand XCMG 15U excavator with a working time of only 1,000 hours. It is in excellent condition and can be put into operation immediately after purchase. This device is equipped with an efficient and reliable engine, model Yanmar 4TNV98-ZS, with a rated power of 12.5 kilowatts /17 horsepower, ensuring strong power support under various working conditions. Its hydraulic system is equipped with a high-performance variable piston pump and hydraulic motor combination, which can achieve rapid response and smooth operation. Whether it is excavation, crushing or loading tasks, it can handle them with ease. In addition, this XCMG 15U excavator is also equipped with an advanced electronic control system that can automatically adjust the matching relationship between engine speed and hydraulic flow, thereby further improving fuel efficiency and reducing noise levels. The spacious and comfortable cab design, combined with a good field of vision layout, enables the driver to maintain a good condition even during long-term operations. The application of sturdy and durable structural components and high-quality materials ensures the long-term stable operation performance of the equipment. For buyers who pursue

SpecificationsValue
No.979331
Tonnage (tons)1
Working weight (kg)1795
Bucket capacity (m³)0.044
Boom length (mm)1828
Rod length (mm)950
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeD782-E3B-CBH-1
Rated power (kw/rpm)9.8/2300
Maximum torque (N.m)44.5/1800
Number of cylinders (PCS)3
Displacement (L)0.778
Ground specific pressure (Kpa)28.5
Rotation speed (rpm)9.5
Climbing ability (%)30
Bucket digging force (kN)16
Rod digging force (kN)10
Maximum tractive force (kN)15.6
Travel speed (km/h)3.9/1.9
Maximum flow of main pump (l/min)56.8
Traveling Hydraulic Circuit (Mpa)21.6
Rotary Hydraulic Circuit (Mpa)11
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)17
Hydraulic Tank (L)18
Engine Oil changes (L)3.8
Total transport length (mm)3560
Total transport width (mm)990/1240
Total transport height (mm)2350
Counterweight ground clearance (mm)450
Minimum ground clearance (mm)145
Onboard width (mm)990
Track gauge (mm)760/1010
Track ground length (mm)1270
Maximum digging radius (mm)3900
Maximum digging depth (mm)2290
Maximum excavation height (mm)3475
Maximum unloading height (mm)2415
Maximum vertical digging depth (mm)1750
Bulldozer lift or depth (mm)260/180
Dodging plate width × height (mm)1240 x 258
see more

Overview

No.979331

Brand Name:

XCMG

Model Number:

XE15U

Year:

2016

Location:

Zhejiang China
