| Specifications | Value |
|---|---|
| No. | 970440 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
Description

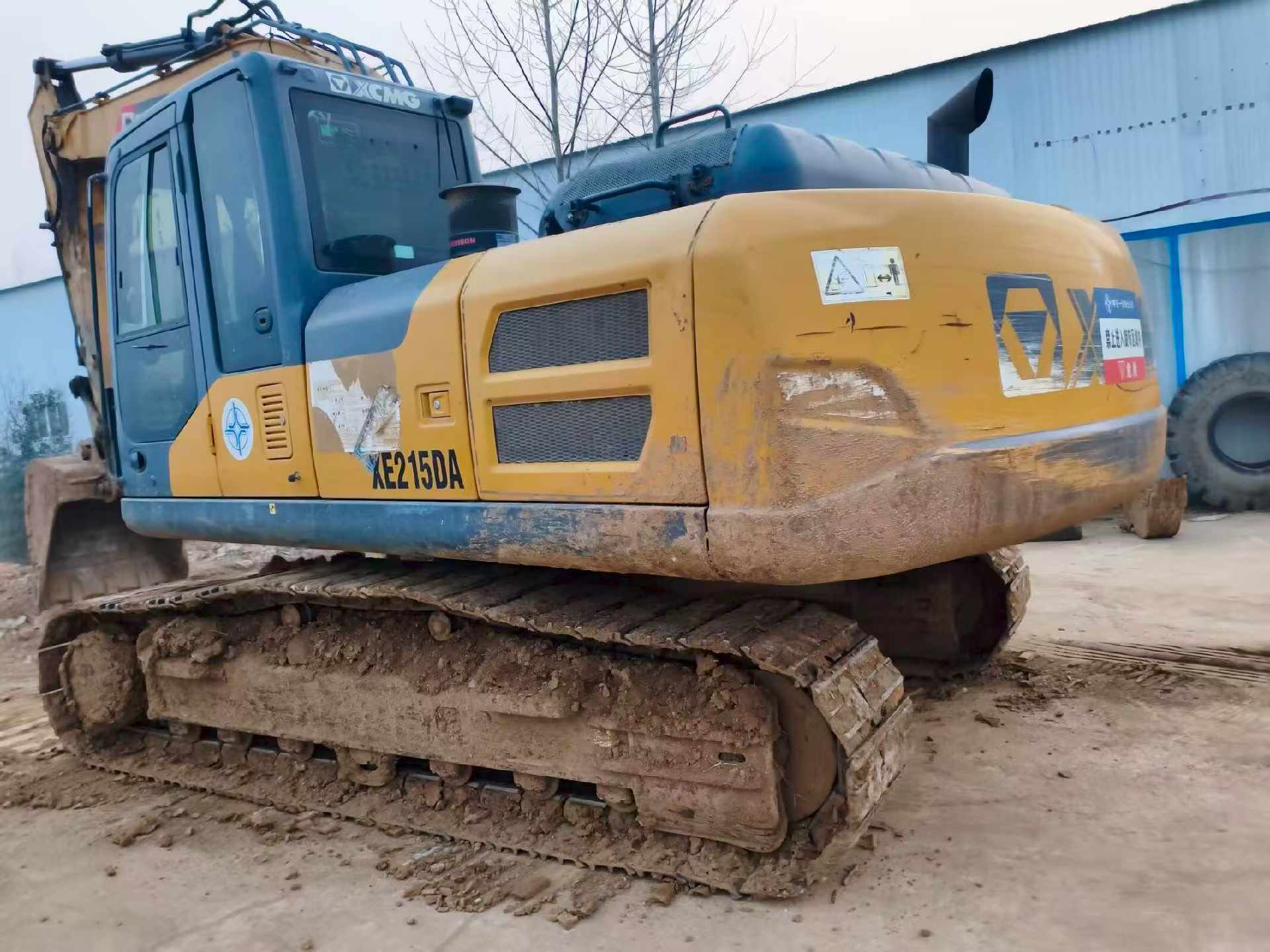

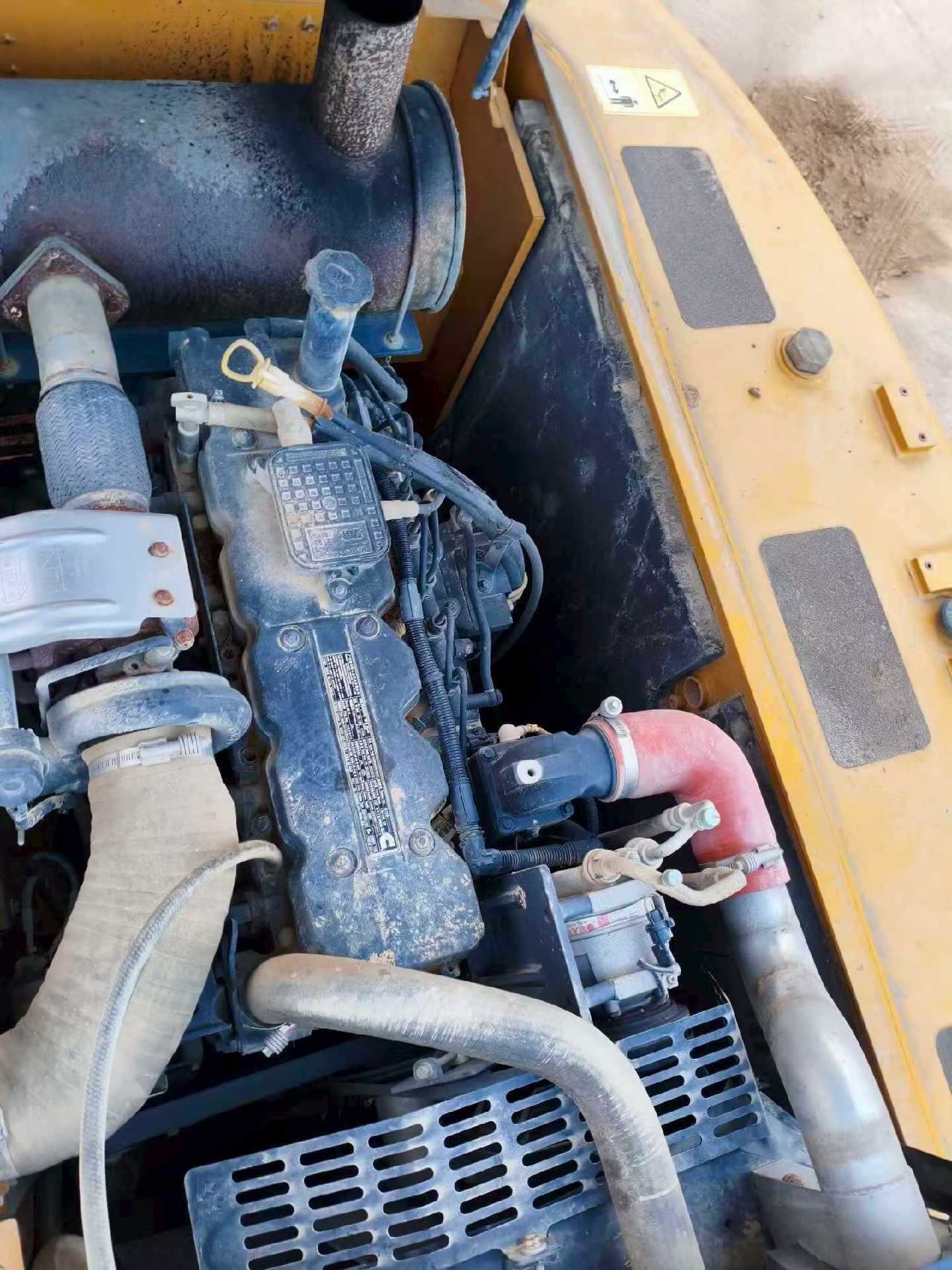

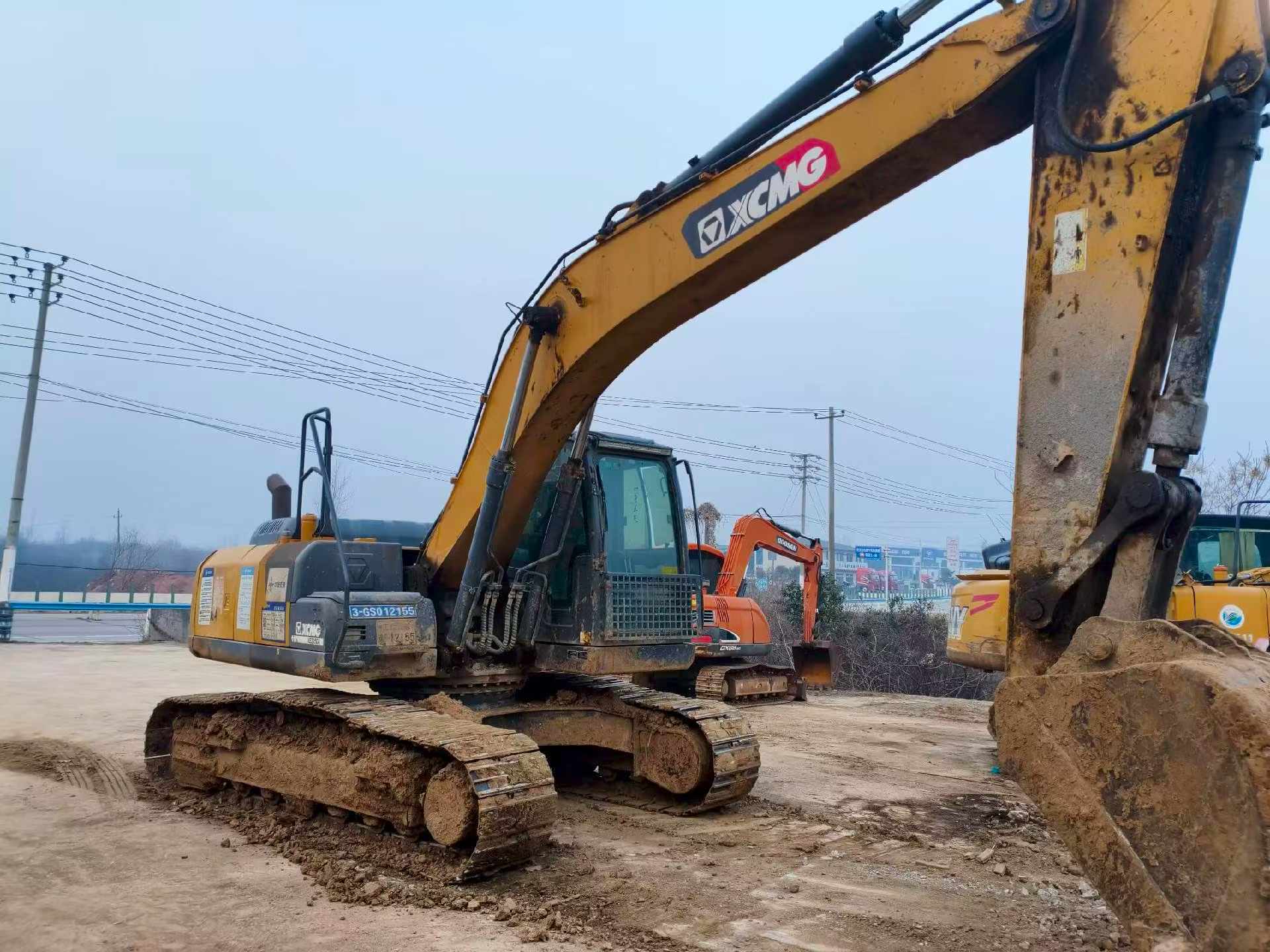

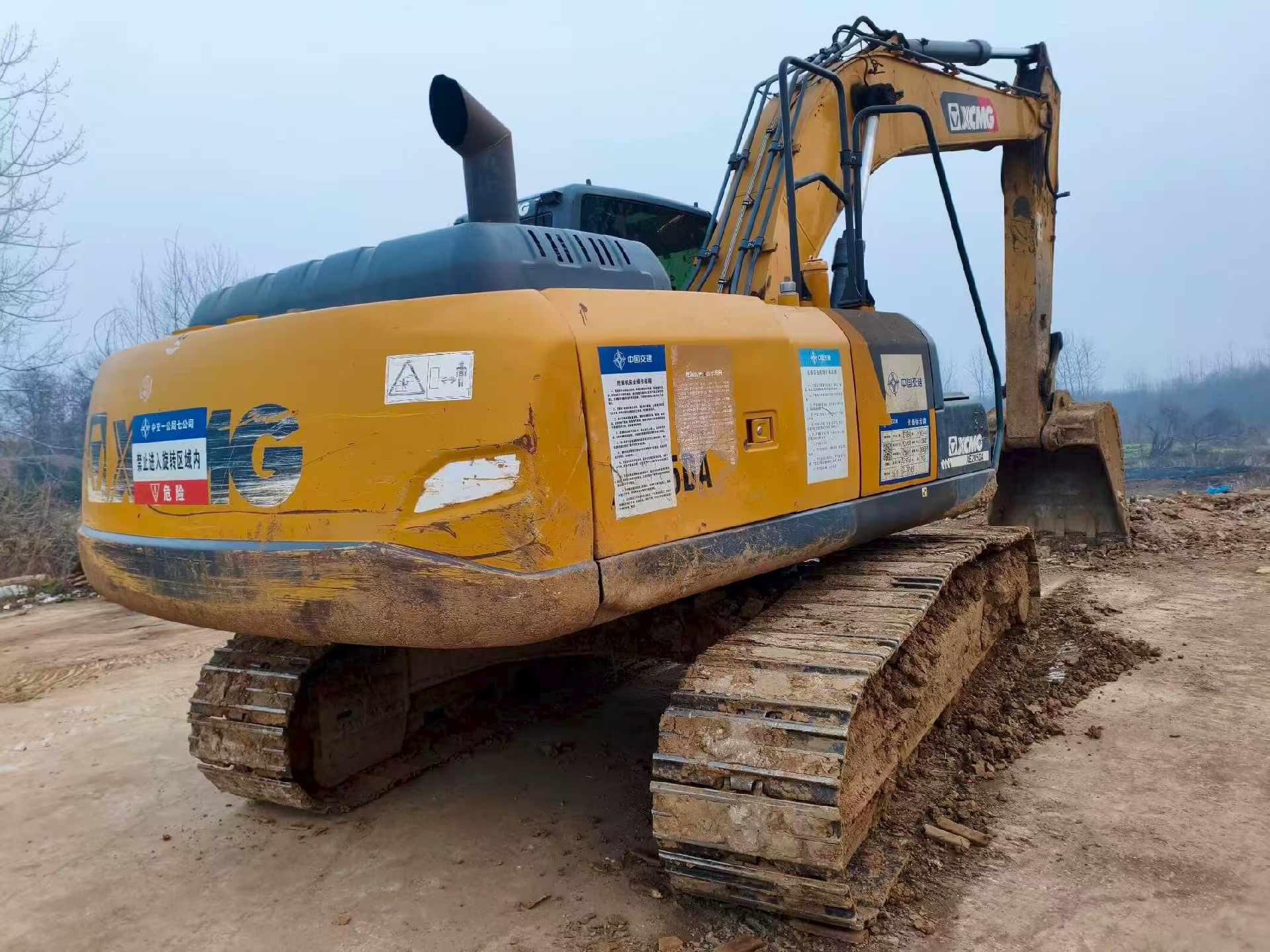

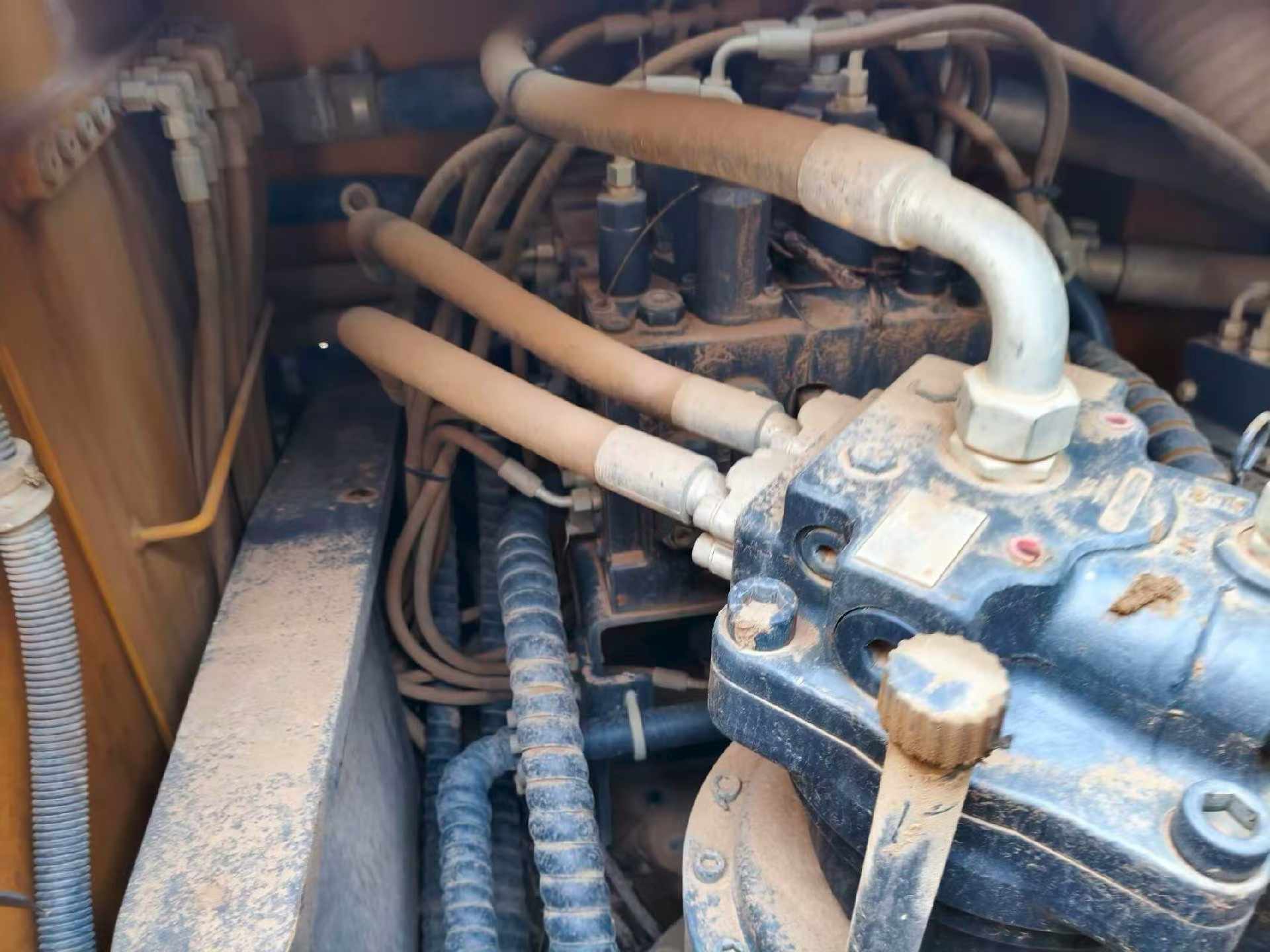

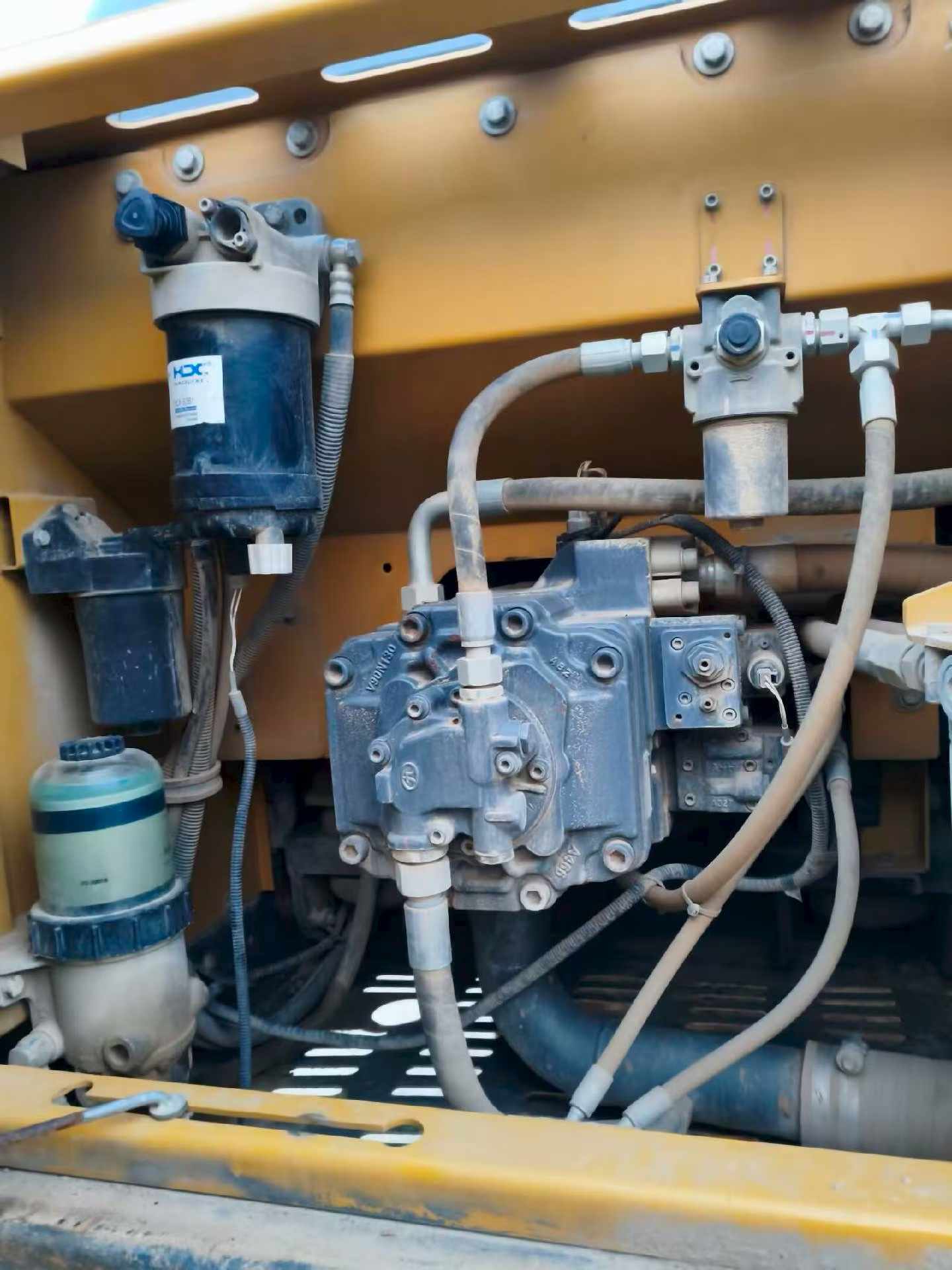

【 Premium Recommendation 】 2021 XCMG XE205DA Pure Earthmoving excavator This second-hand XCMG XE205DA excavator produced in 2021 is a high-efficiency model specially designed for earthwork projects. It has an impressive working record - it has only worked for about 3,000 hours in total, which means it is still in the best condition for use, with extremely high cost performance and a long remaining service life. In terms of power, this aircraft is equipped with a Cummins QSB6.7-C240 engine, which is renowned for its powerful output, low fuel consumption and excellent reliability. With a maximum power of up to 132kW (approximately 180 horsepower), it can easily handle complex and changeable working environments, ensuring the maximization of construction efficiency and economic benefits. The hydraulic system adopts advanced negative flow control technology, which can automatically adjust the pump displacement according to the actual load, achieving precise operation while significantly reducing energy consumption. In addition, its large-capacity fuel tank ensures the demand for long-term continuous operation, reduces the frequency of refueling, and improves work efficiency. As a professional device dedicated to earthwork excavation ta
