Product Description

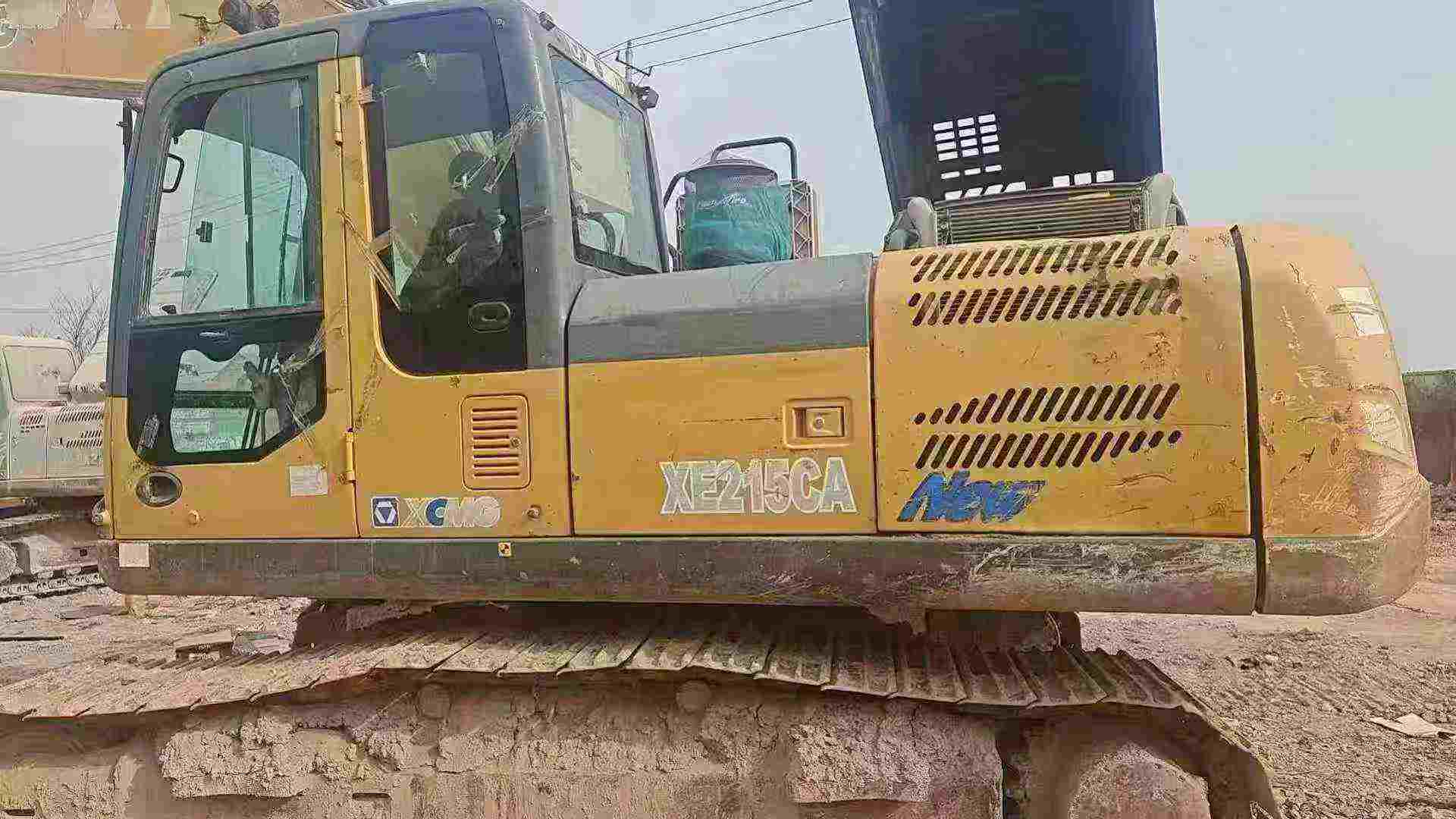

Detailed description of XCMG 215CA second-hand Excavator Dear customer, hello! It is a great honor to recommend to you this second-hand XCMG XE215CA excavator that was purchased in 2016. Since its purchase, this equipment has only been in operation for about 4,000 hours, which is equivalent to an average of less than 800 hours of use per year. It is a high-quality second-hand machine with low frequency of use and in excellent condition, almost meeting the standard for exemption from inspection. This model of excavator is equipped with an advanced Cummins engine, which is powerful, stable and reliable, and can easily meet the operation requirements in various complex working conditions. Meanwhile, its fuel economy is also excellent, ensuring efficient construction while effectively reducing operating costs. In addition, the power system, after professional maintenance and upkeep, is in good operating condition with no fault records. In terms of the hydraulic system, XCMG XE215CA adopts core components provided by internationally renowned brands, ensuring smooth operation and rapid response of the entire machine. Both the digging force and the lifting speed perform outstandingly, making it particularly suitable for heavy-load applicat
| Specifications | Value |
|---|---|
| No. | 971546 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

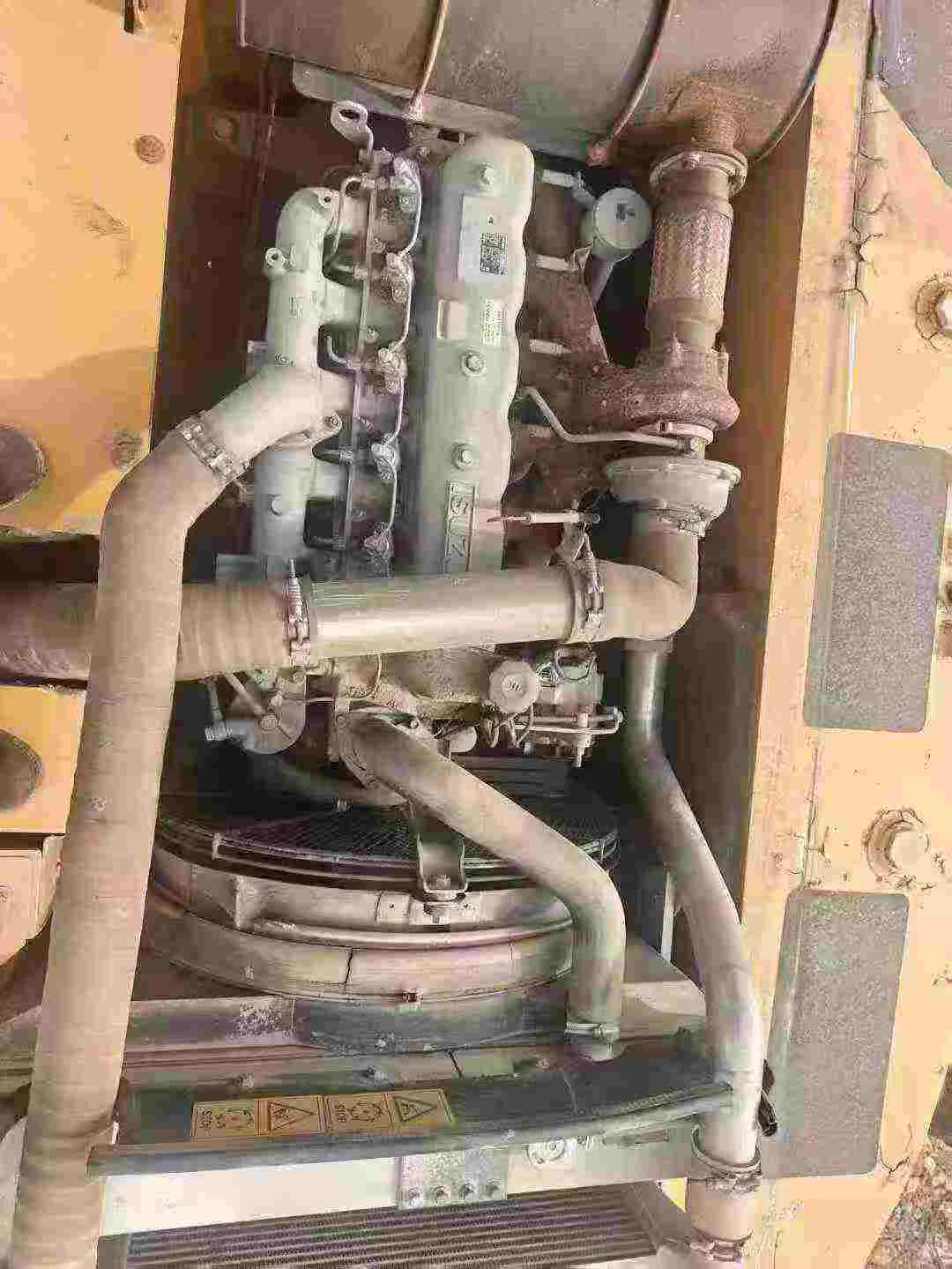

| Engine type | Isuzu CC-6BG1TRP |
| Rated power (kw/rpm) | 128.5/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 637/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 45.5 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 35 or less |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.5/3.3 |
| Maximum flow of main pump (l/min) | 2 x 209 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |

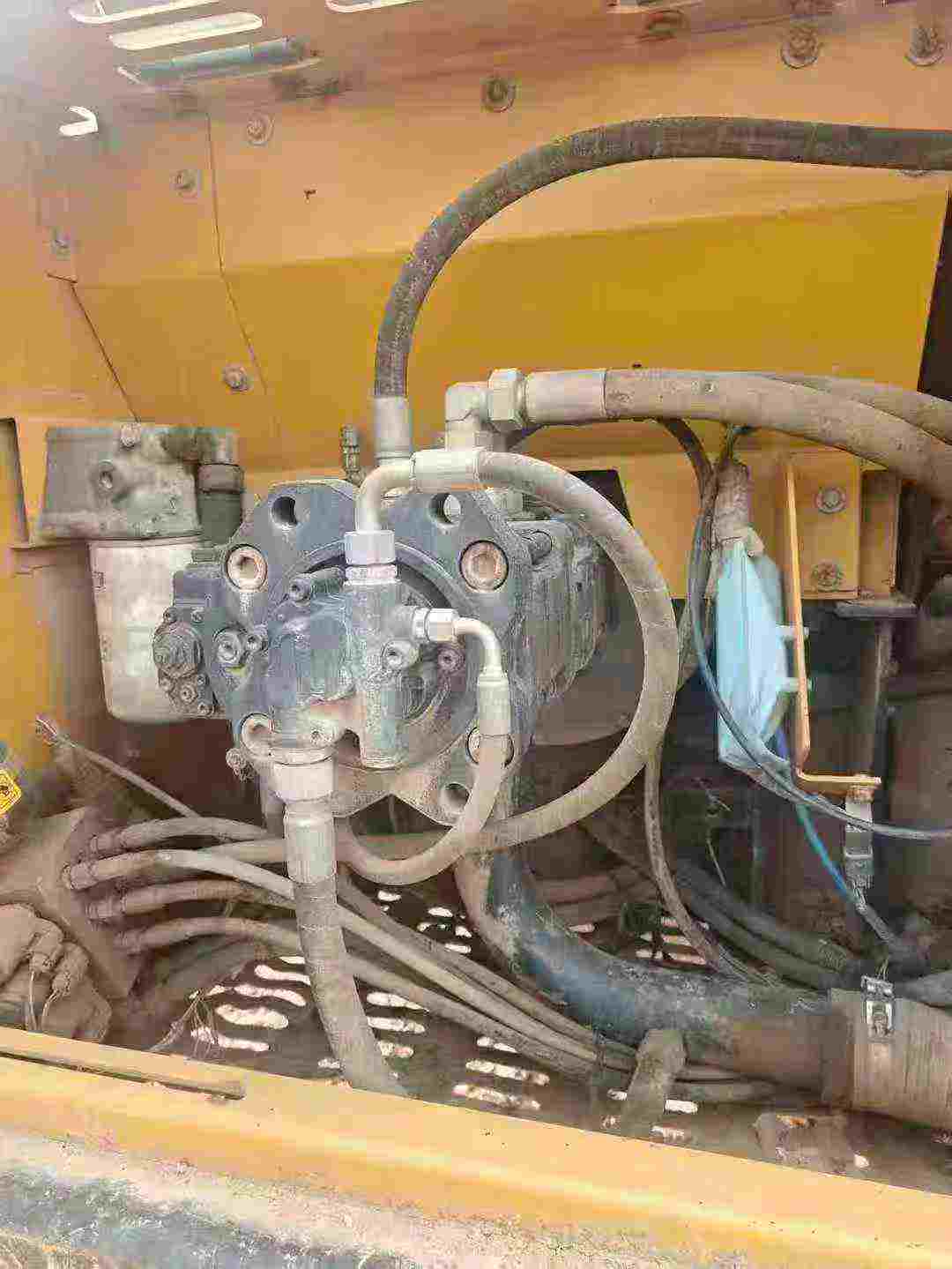

| Main pump type | 2 plunger pumps |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 9565 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2790 |
| Onboard width (mm) | 2710 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4270 |
| Maximum digging radius (mm) | 9925 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5695 |
