Product Description

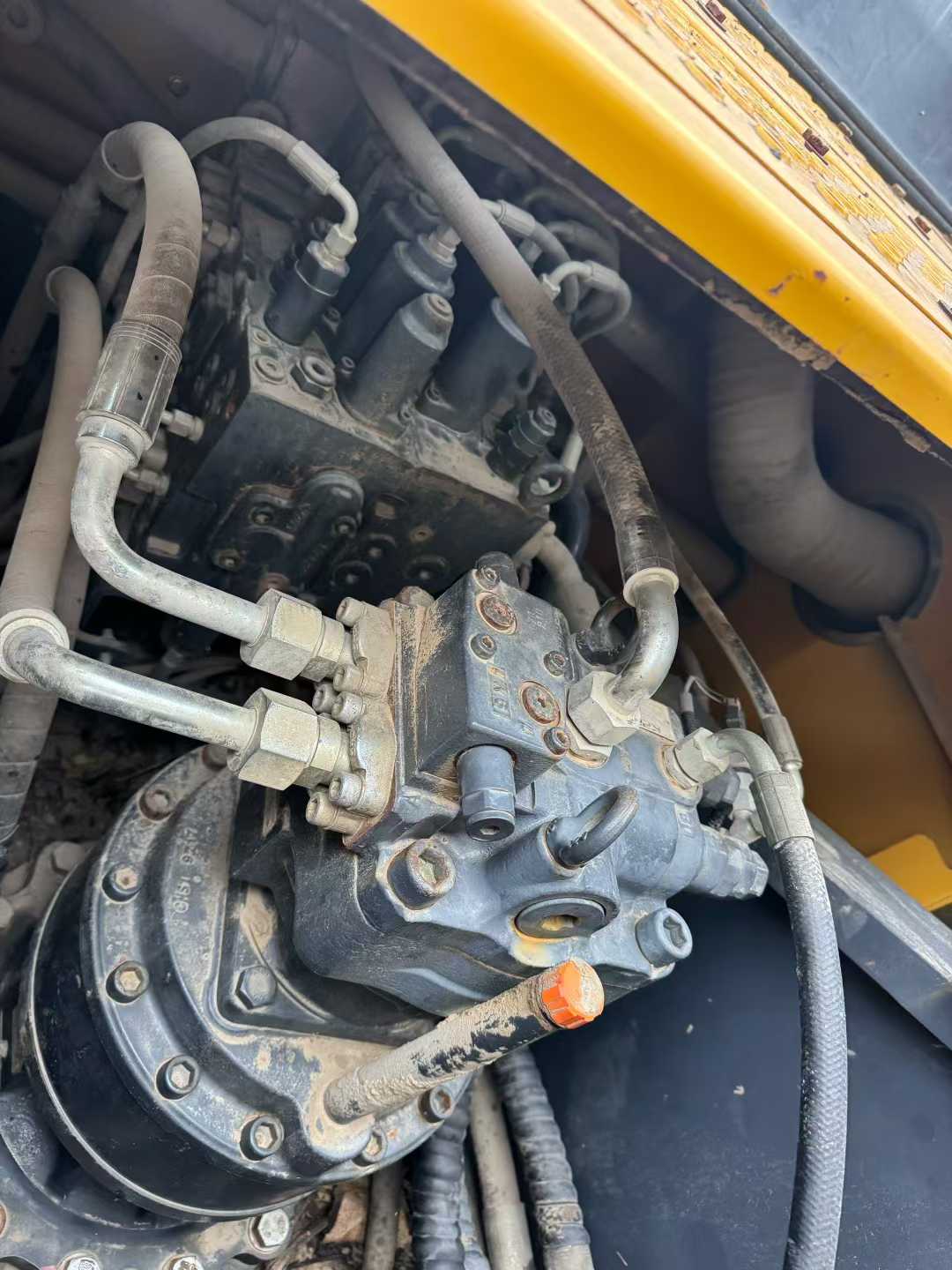

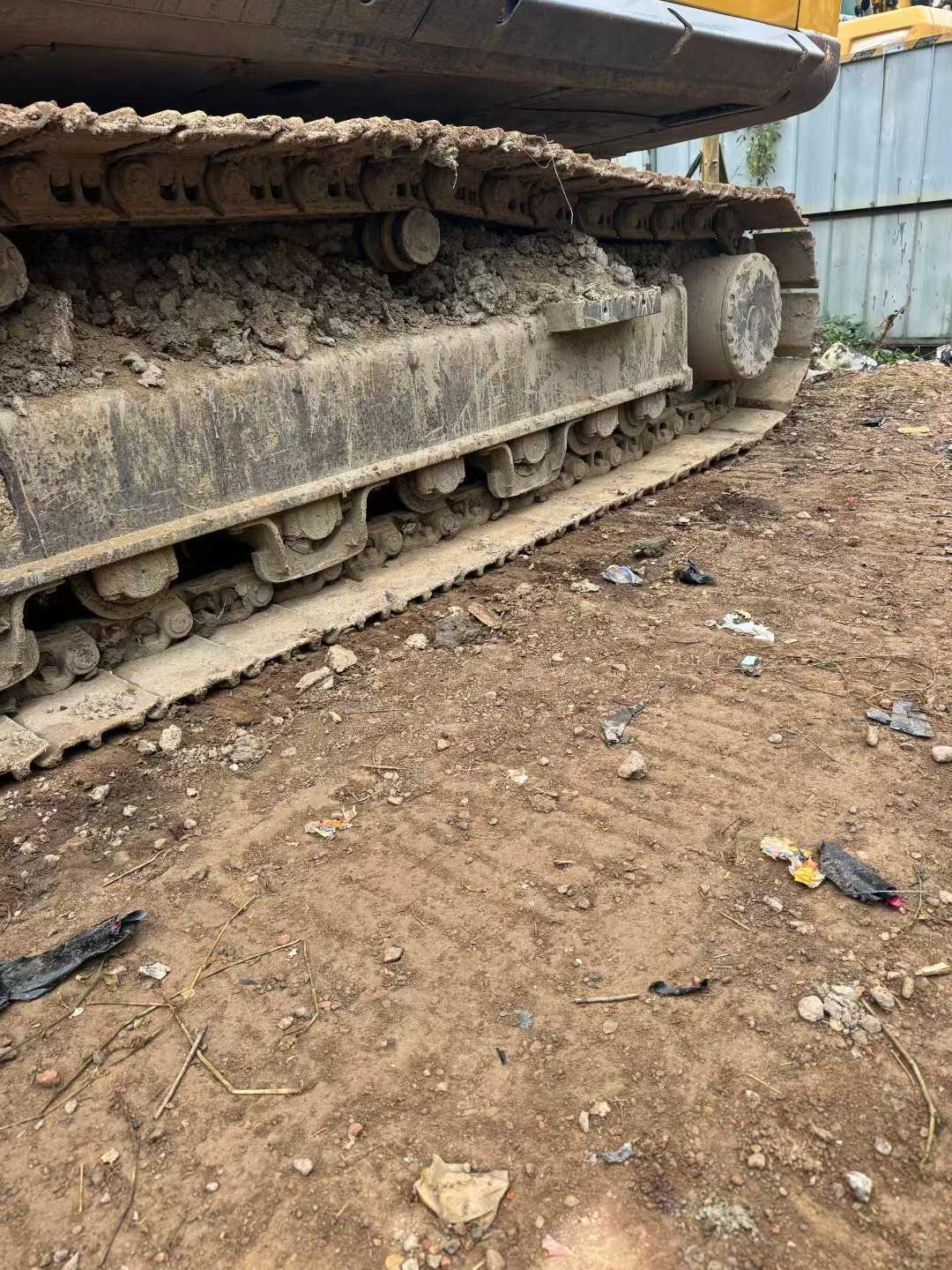

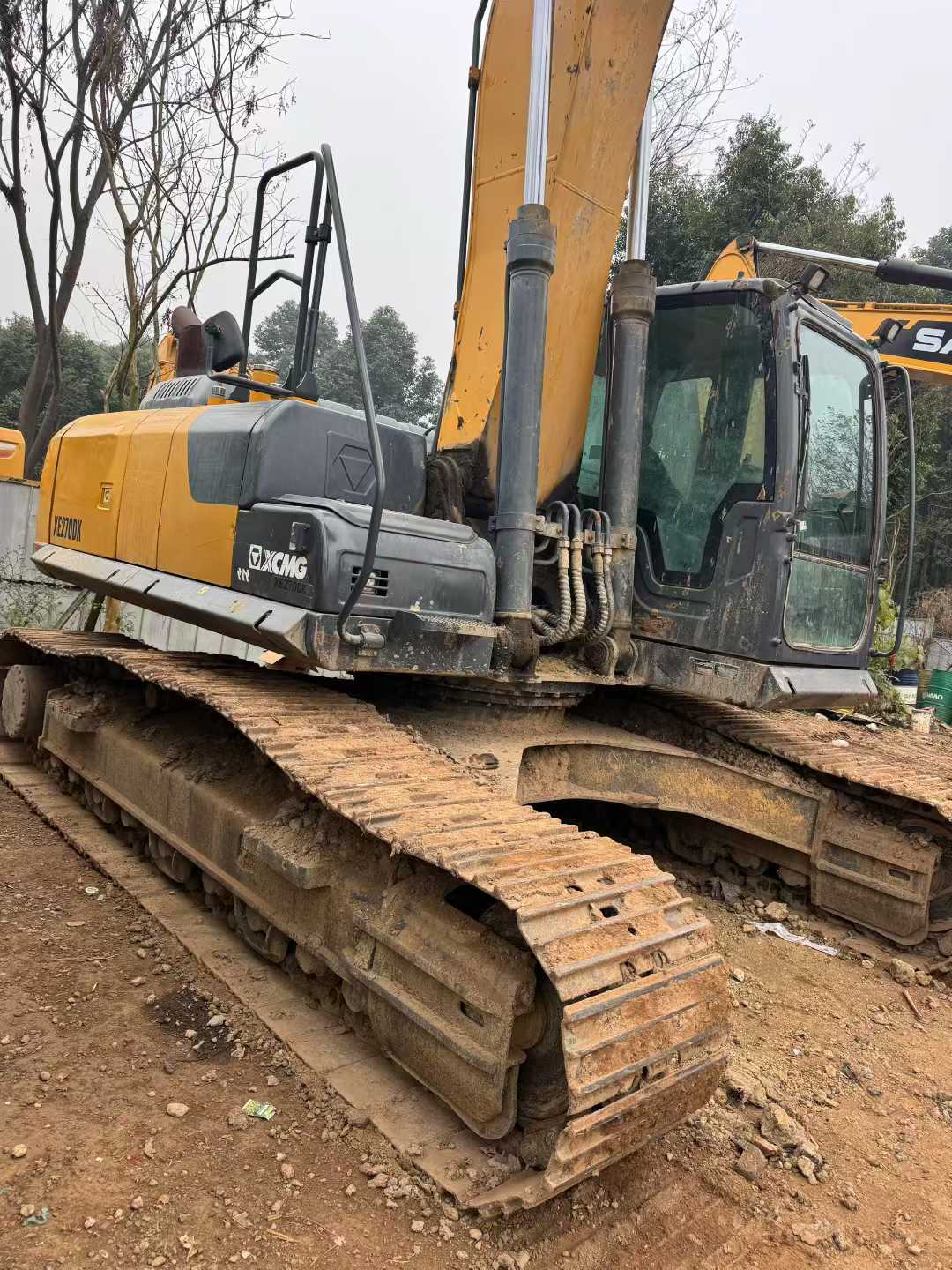

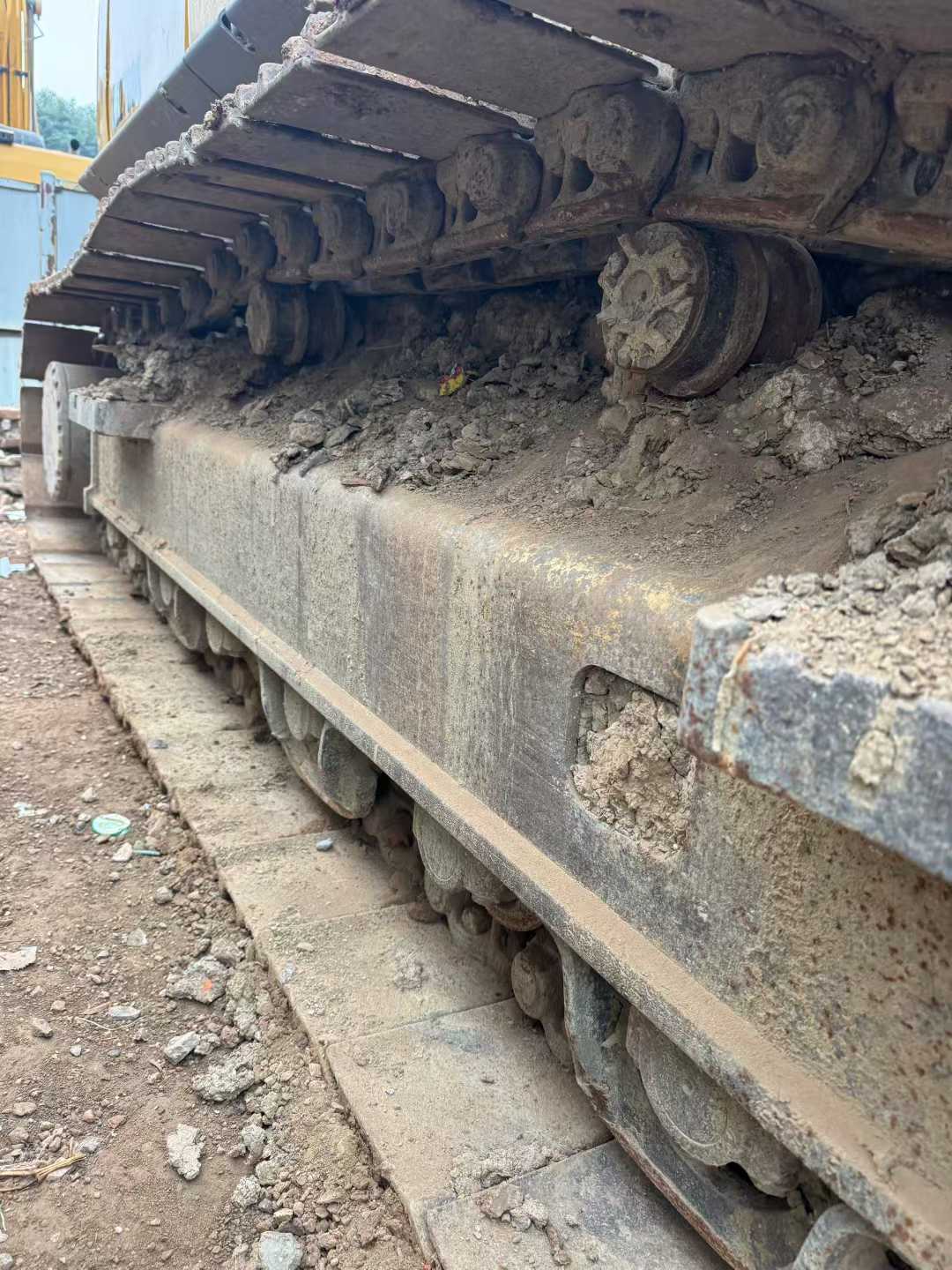

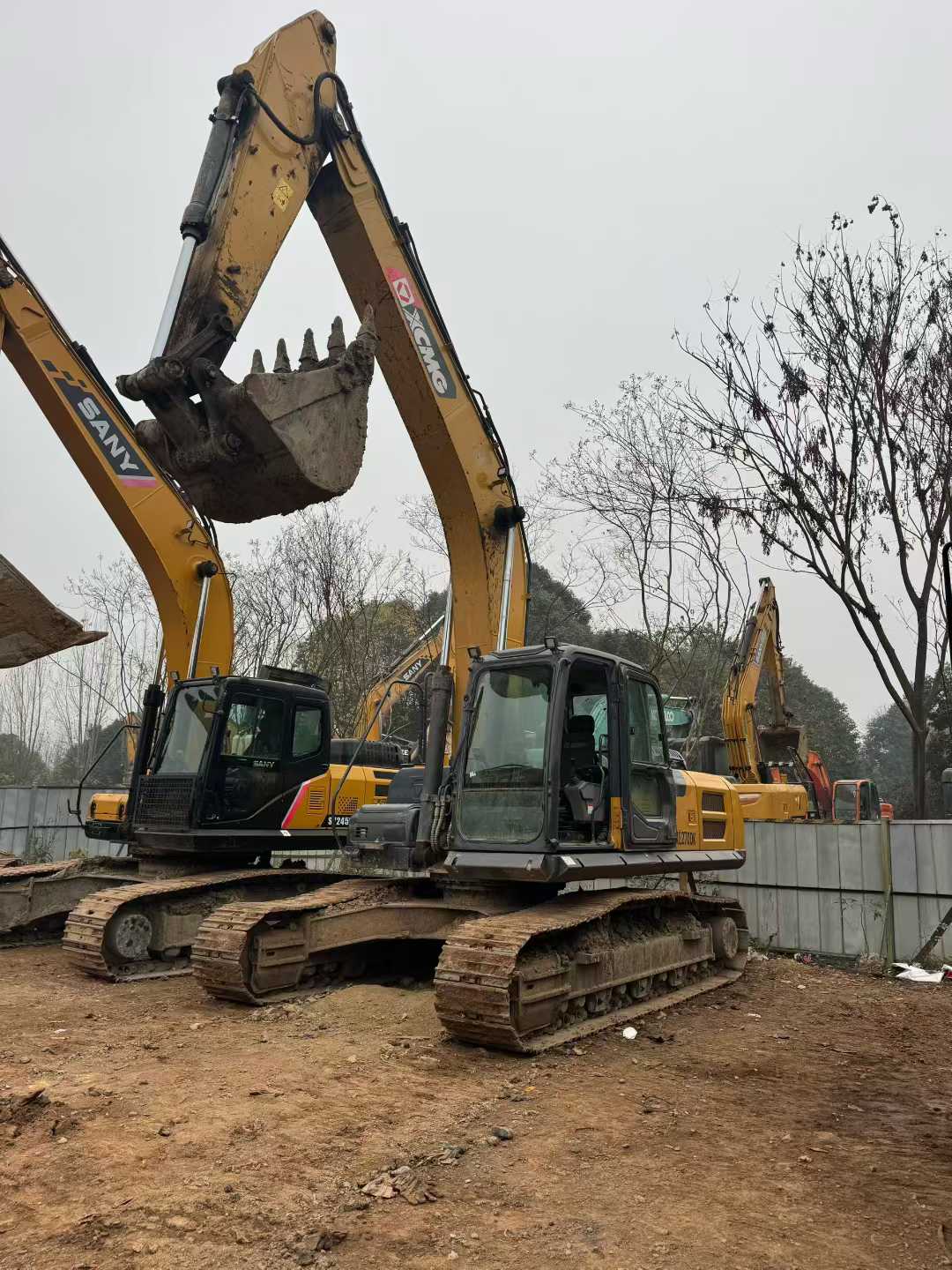

There is currently a second-hand XCMG XE245DK excavator from the end of 2020, specially designed for earthwork projects. It has a working time of only 1,500 hours, outstanding performance and a reasonable price. This equipment is equipped with an efficient Weichai WP10G220E343 engine, with a rated power of 162kW at 2200rpm, ensuring strong power output and excellent fuel economy, making it suitable for efficient operation in various complex working conditions. In terms of the hydraulic system, the XCMG XE245DK is equipped with advanced Kawasaki K3V series main pumps and Rexroth A8VO series motors, providing a stable and responsive operating experience. This hydraulic configuration not only ensures the smoothness of actions such as excavation and loading, but also significantly enhances the overall working efficiency and durability of the machine. In addition, its intelligent control system can automatically adjust power distribution according to the actual load, further optimizing fuel consumption performance. As a professional model dedicated to the field of earthwork construction, XCMG XE245DK is designed with full consideration of operational convenience and maintenance ease. The spacious and comfortable cab, the intuitive and eas
| Specifications | Value |
|---|---|
| No. | 976945 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 0.9-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 56.7 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 199 |
| Travel speed (km/h) | 5.3/3.6 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1062 |
| Minimum ground clearance (mm) | 1062 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6972 |
| Maximum excavation height (mm) | 10048 |
| Maximum unloading height (mm) | 7123 |
| Maximum vertical digging depth (mm) | 5567 |
