Product Description

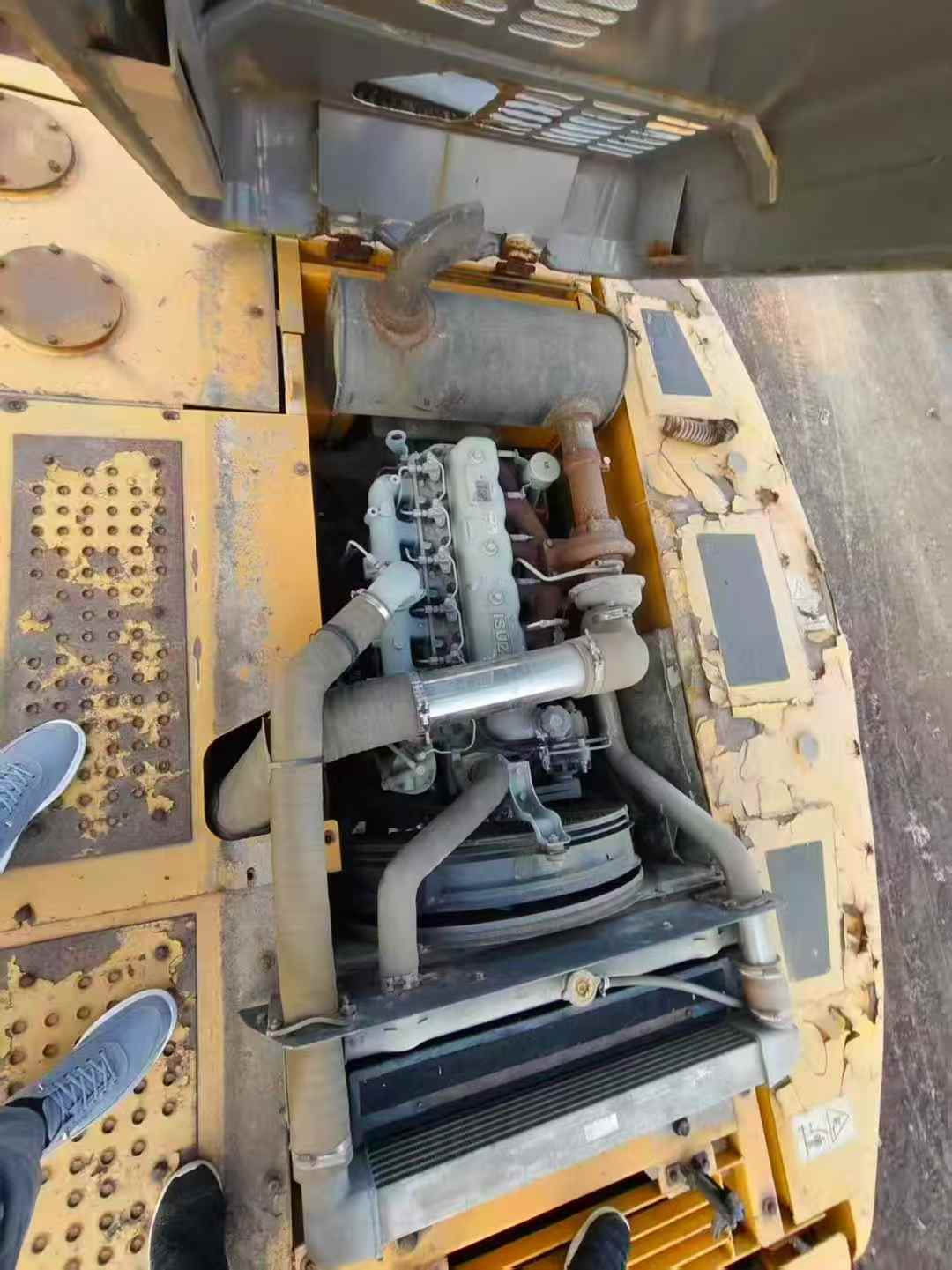

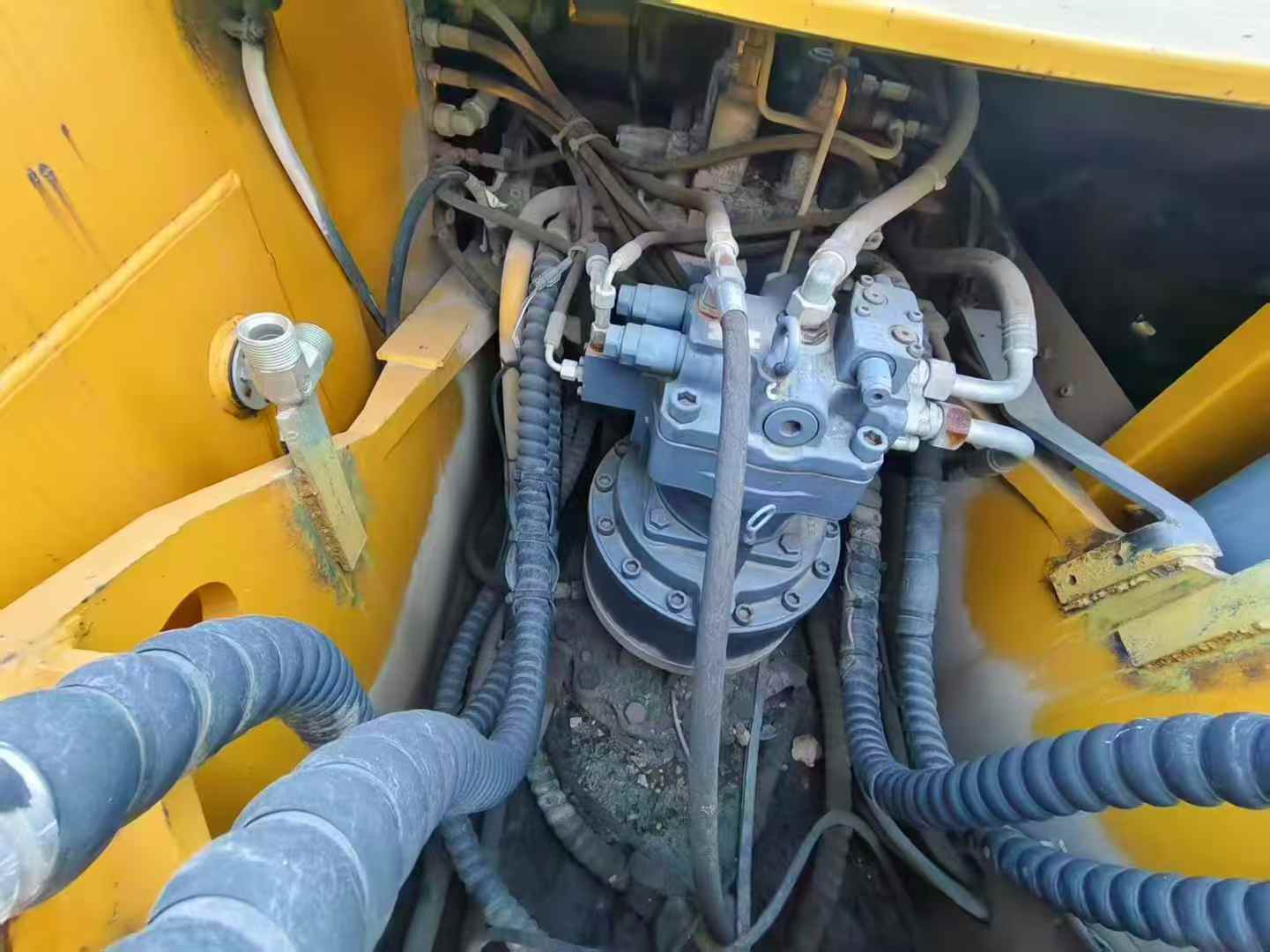

This is a second-hand XCMG XE250 excavator with a working time of only 75,000 hours. It has outstanding performance and is in excellent condition. This excavator is equipped with a high-performance Cummins 6BTAA-9.3C engine, with a power output of 140 kilowatts, ensuring strong power output and efficient operation capacity. In terms of the hydraulic system, imported high-quality hydraulic pumps and motors are adopted, ensuring a stable and reliable operation experience, while also featuring excellent response speed and smoothness. The main advantages of the equipment include: 1. ** High efficiency and Energy saving ** : The advanced power system and optimized hydraulic design enable this machine to maintain high efficiency while reducing fuel consumption and effectively controlling operating costs. 2. ** Strong durability ** : Made of high-quality steel, it has a solid and durable structure. The key components have undergone strict testing and screening to ensure long-term stable operation. 3. ** Easy operation ** : The humanized designed cab offers a wide field of vision and comfortable seats, so you won't feel tired even after long hours of work. Equipped with a multi-functional display screen, it is convenient for the driver to mon
| Specifications | Value |
|---|---|
| No. | 975593 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 24670 |
| Bucket capacity (m³) | 1.1 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU CC-6BG1TRP |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Rotation speed (rpm) | 12.1 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 163 |
| Rod digging force (kN) | 116 |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 31.5 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 231 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Main pump type | Plunger pump ×2 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 10160 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 485 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3842 |
| Maximum digging radius (mm) | 10270 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 9670 |
| Maximum unloading height (mm) | 6795 |
| Maximum vertical digging depth (mm) | 6165 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10090 |
| Maximum effective digging depth (mm) | 6720 |
