| Specifications | Value |
|---|---|
| No. | 962618 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
Description

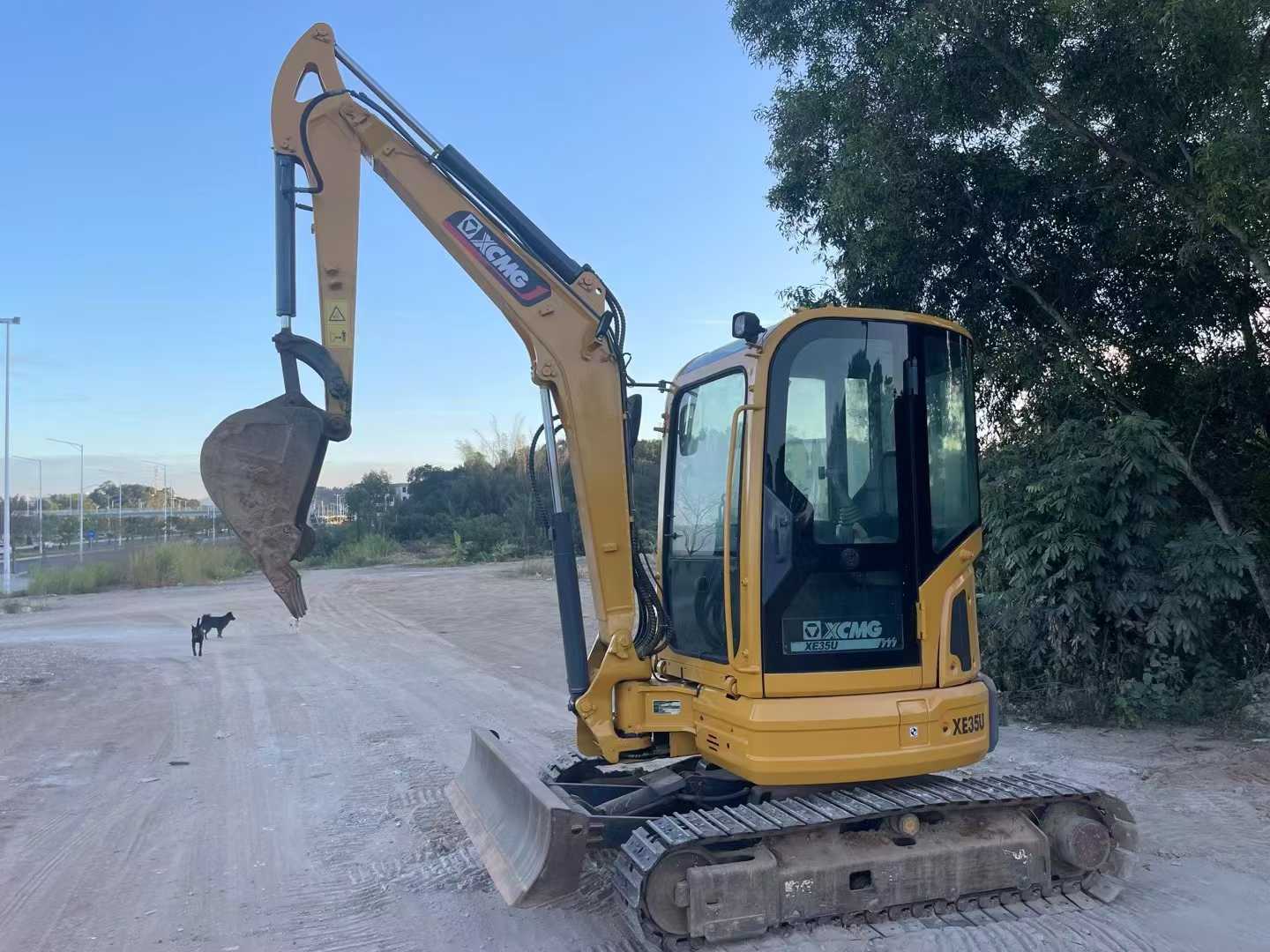

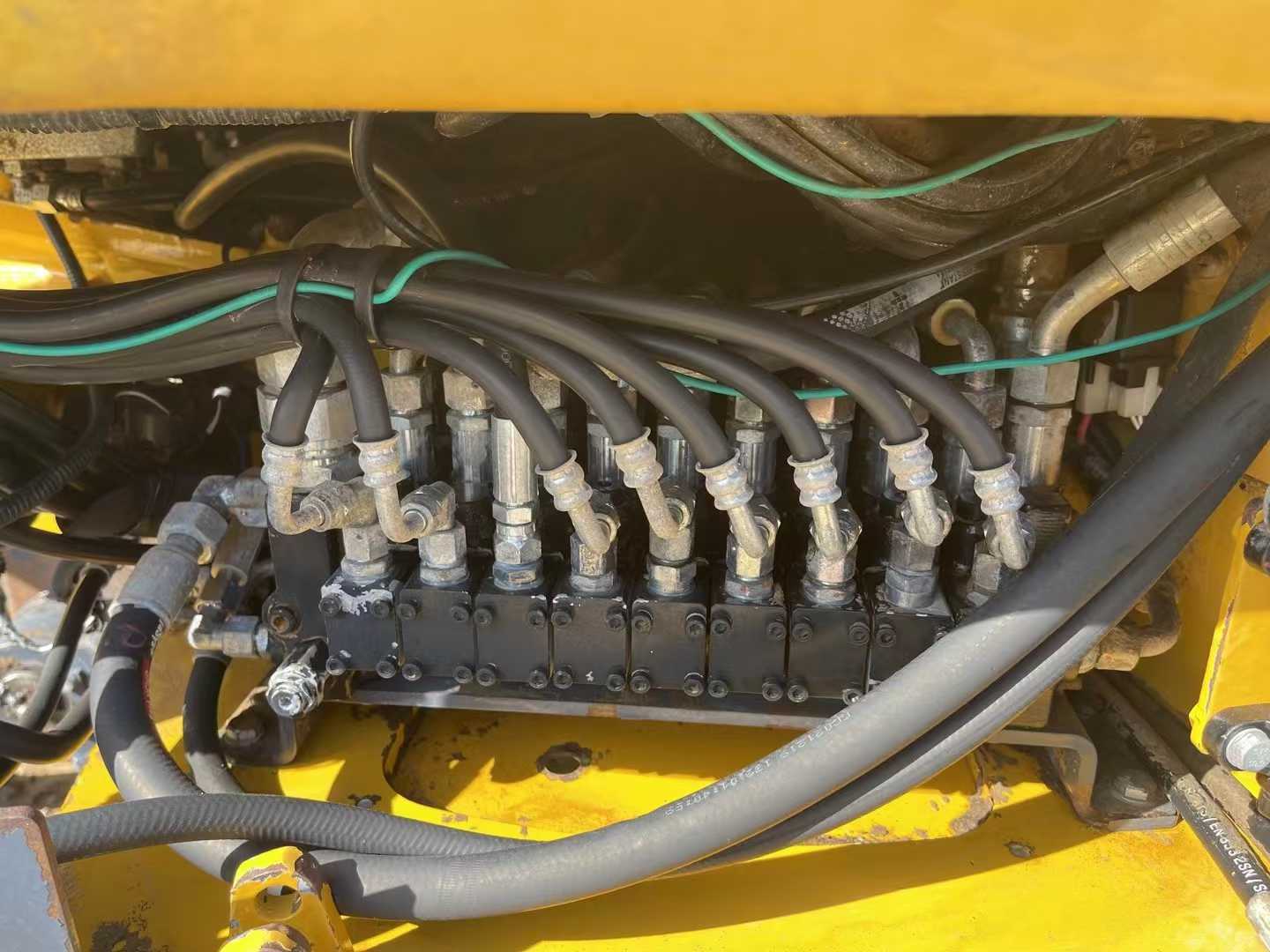

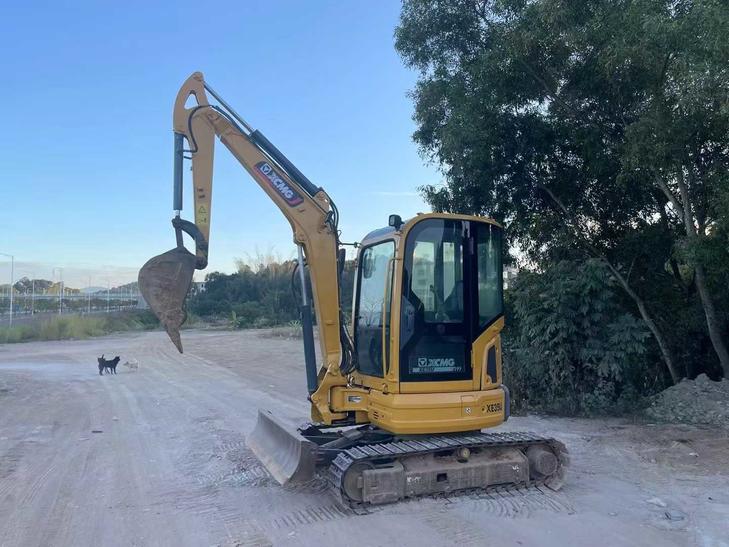

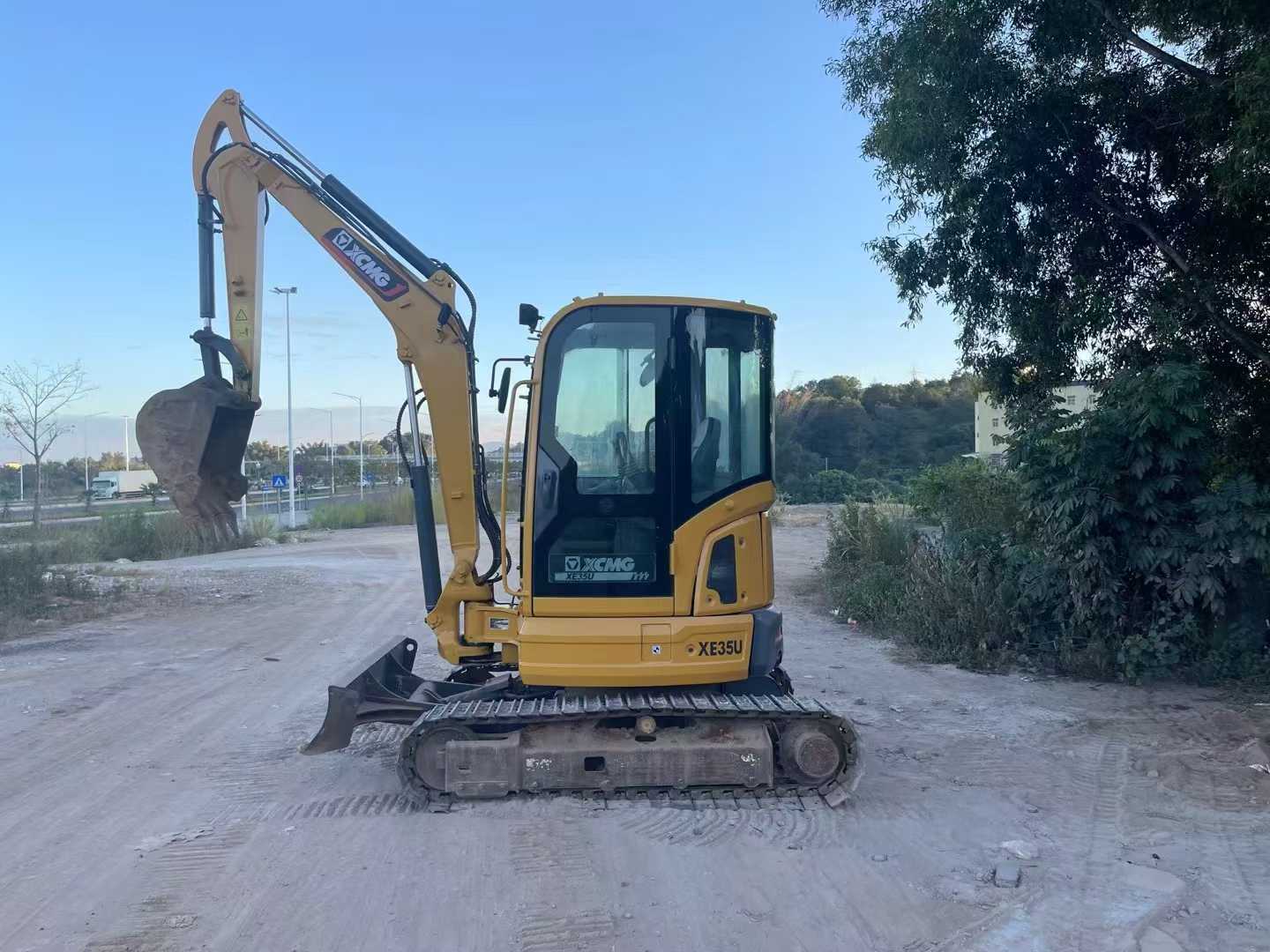

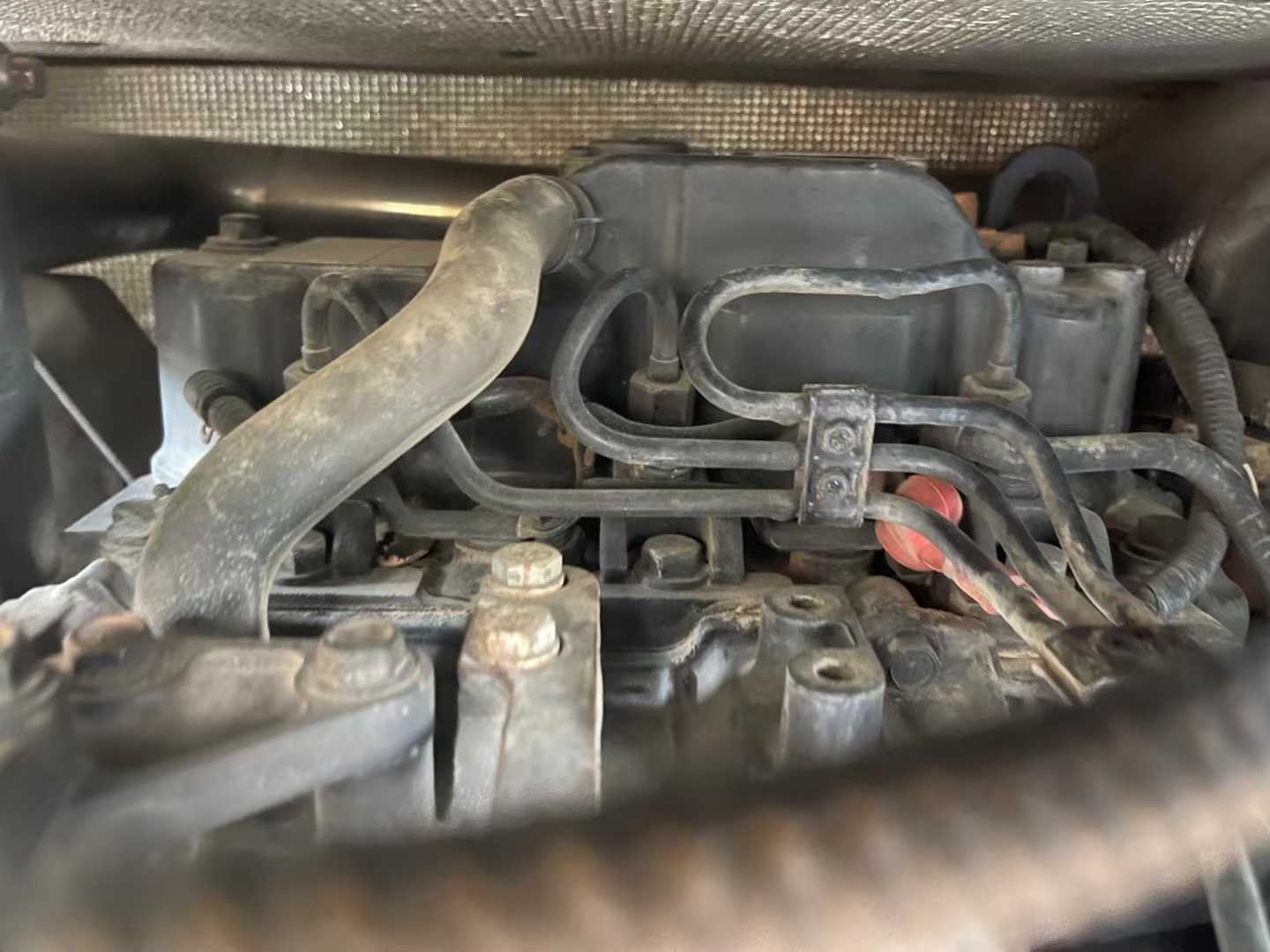

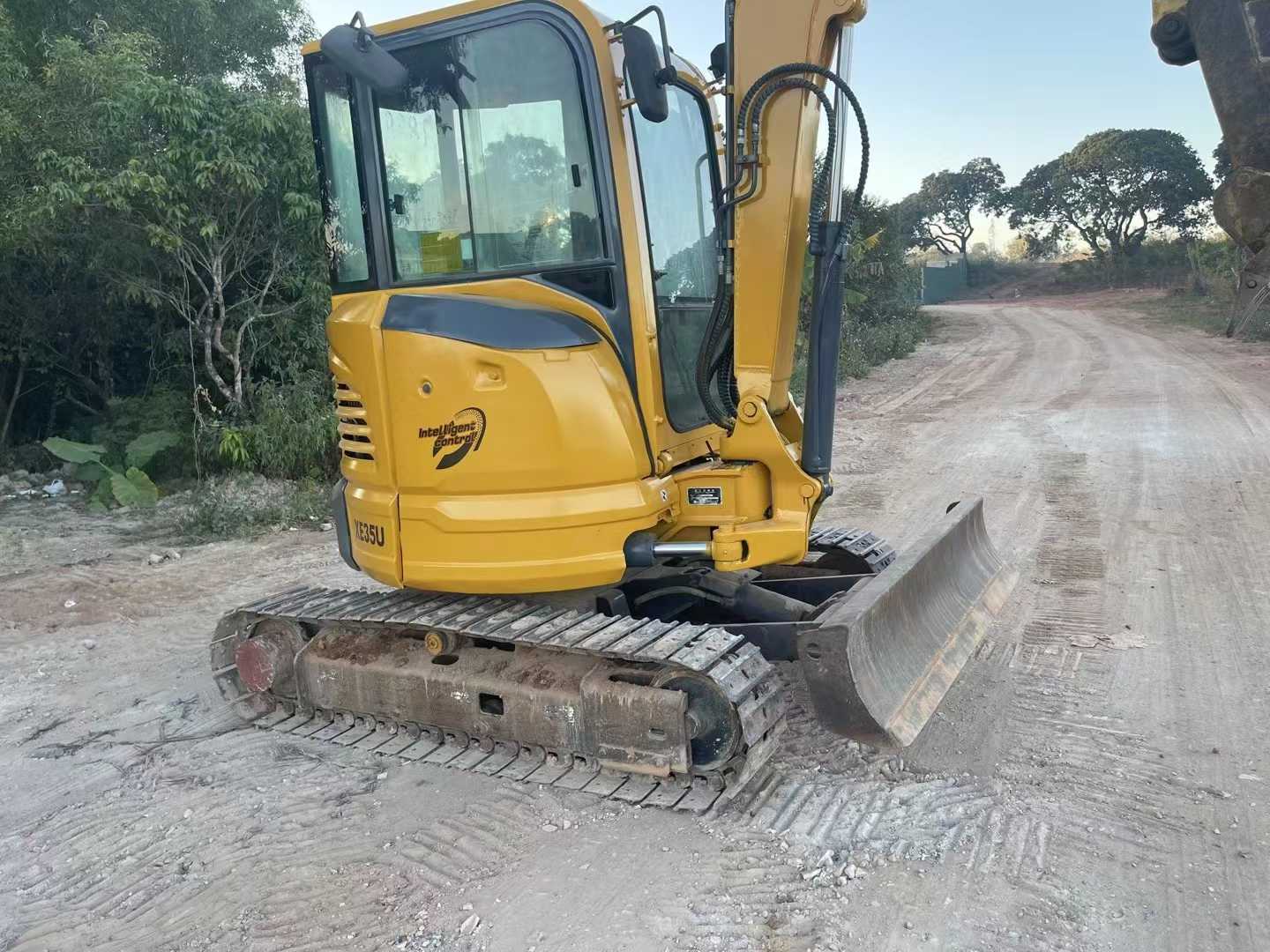

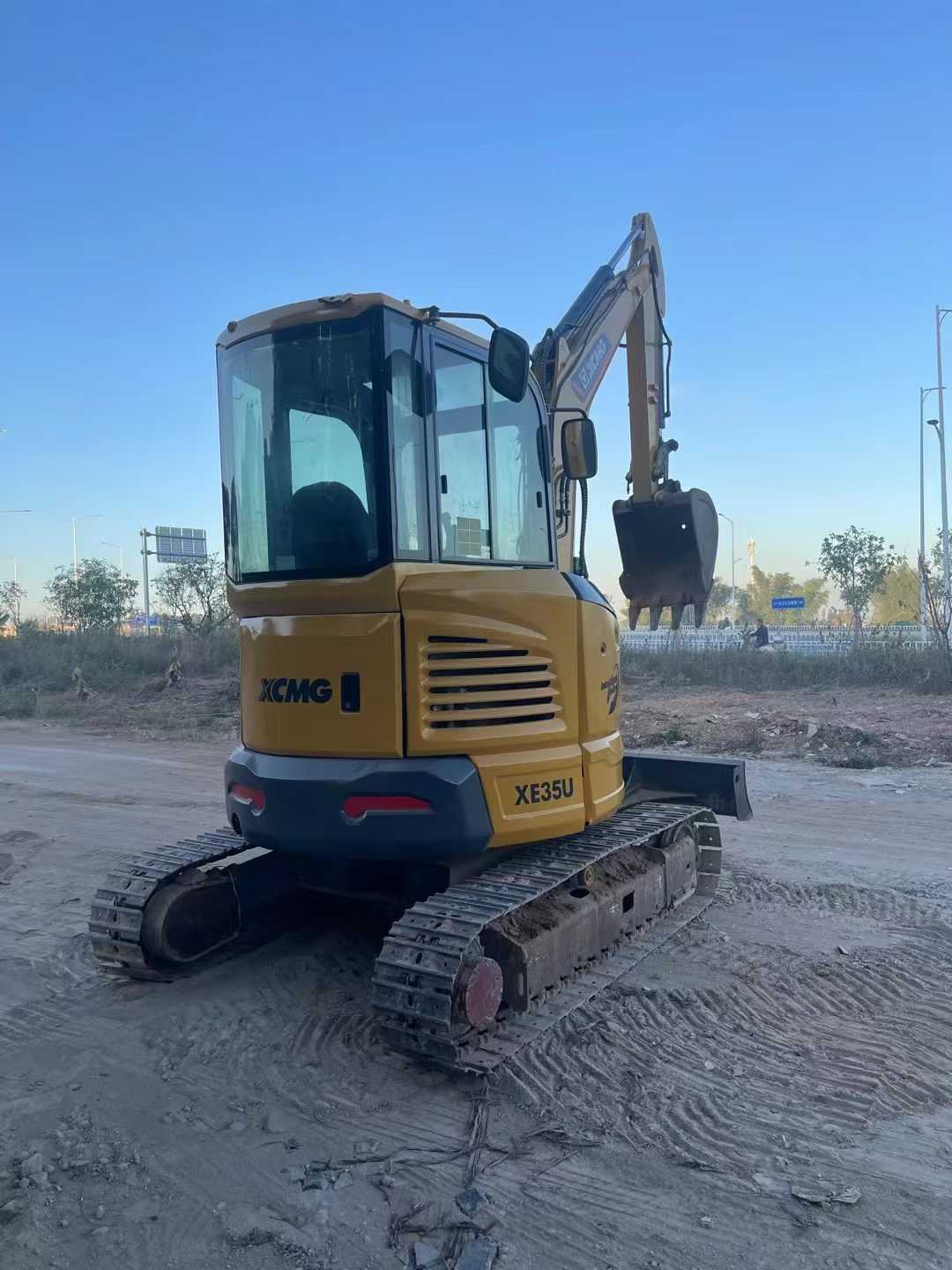

【 Premium Recommendation 】 A second-hand XCMG 35U excavator purchased in 2020 is now on sale with sincerity at a price of over 60,000 yuan. This excavator not only has complete procedures but also is in excellent overall condition. Its appearance is neat and tidy, with almost no signs of use. Since its purchase, the total working hours have only been around 1,800 hours, making it a low-usage device. With proper maintenance, its performance is stable. In terms of power, this excavator is equipped with an imported Yanmar engine, which is renowned for its outstanding fuel economy and powerful output, and can easily handle various complex working environments. More importantly, during the professional tests we conducted, it was found that there was no oil leakage in its core components such as the engine and hydraulic pump, ensuring the reliability and safety of the machine's long-term operation. In terms of the hydraulic system, this XCMG 35U is equipped with a high-performance hydraulic device, which operates flexibly and smoothly. It performs excellently in both digging force and response speed. It is particularly worth mentioning that it is also equipped with a swivel arm function, which greatly expands the working range and flexibil
