| Specifications | Value |
|---|---|
| No. | 964743 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
Description

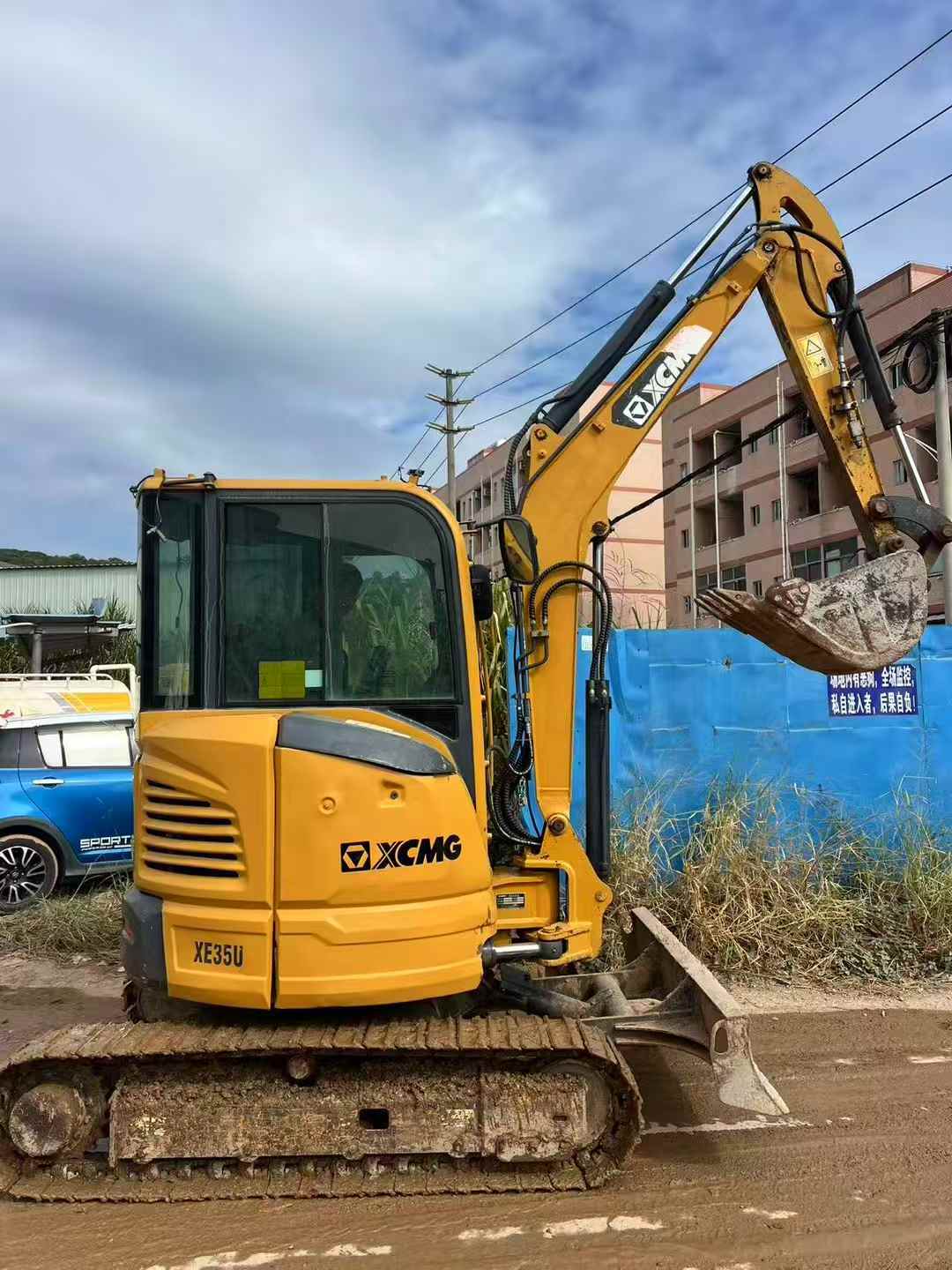

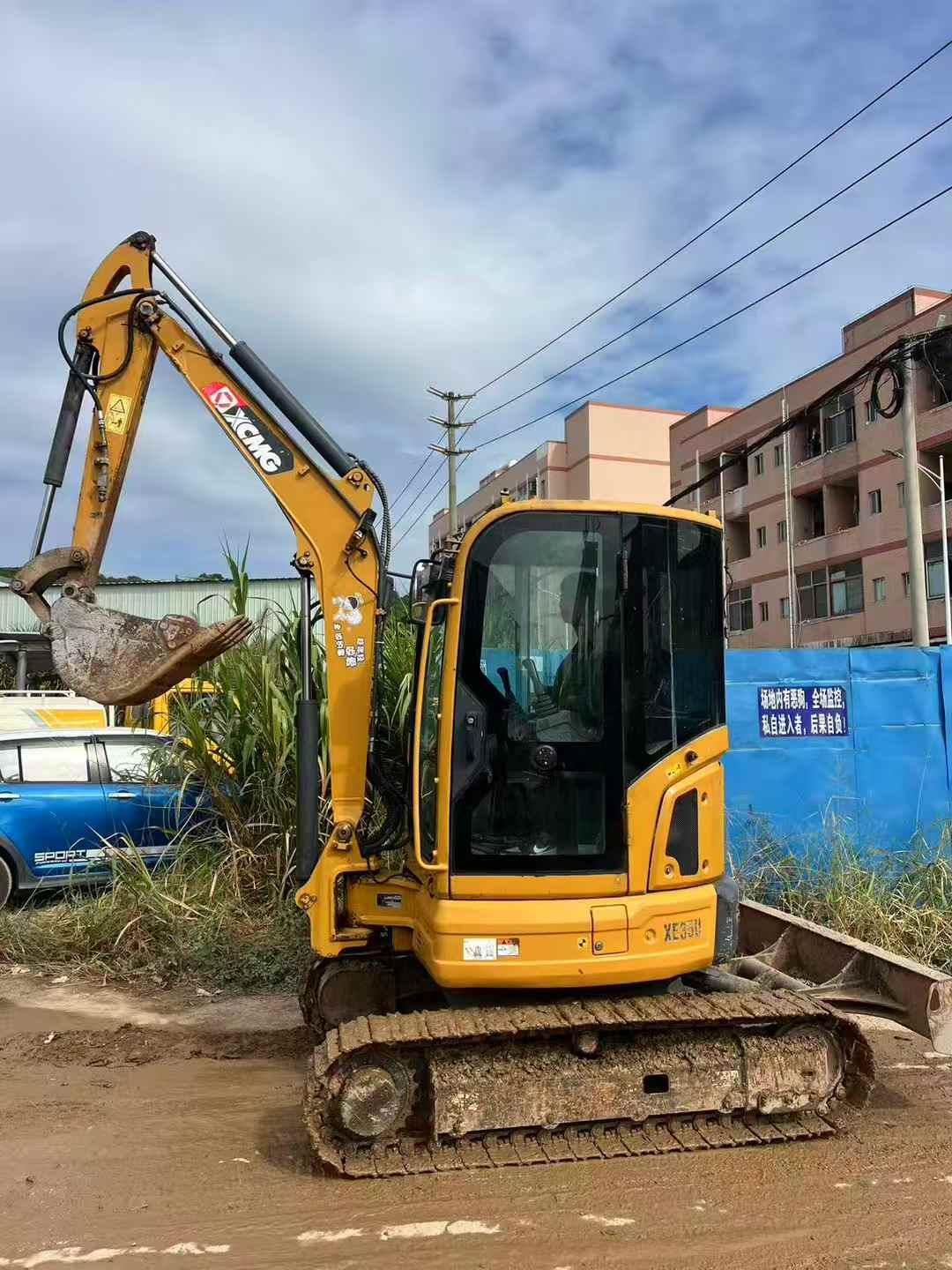

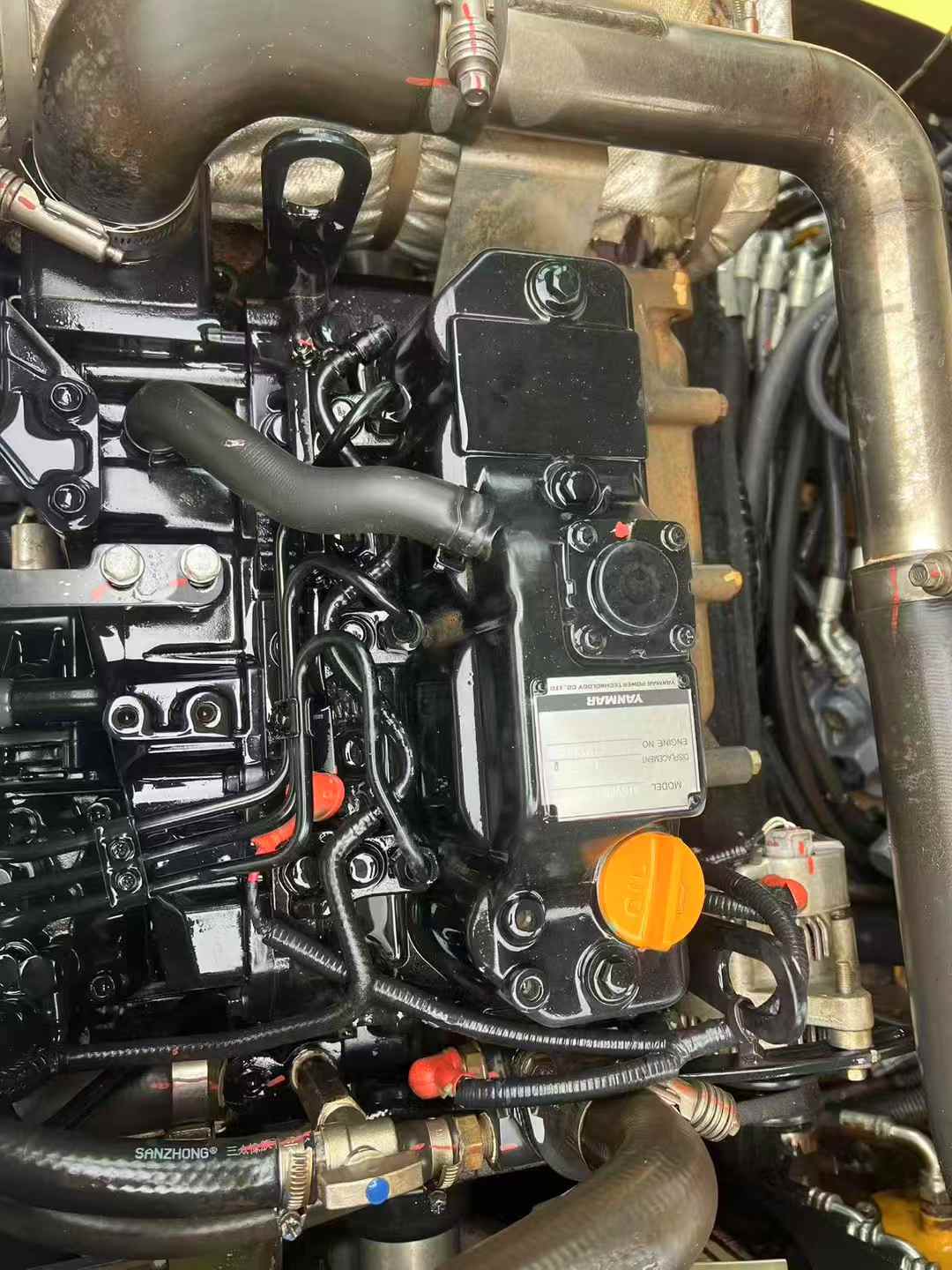

【 Premium Recommendation 】2021 XCMG XE35U second-hand excavator, with outstanding performance and extremely high cost performance! This XCMG XE35U mini excavator was manufactured in 2021 and has only been in operation for 1,200 hours so far, which is far lower than the average usage time of similar equipment. It features outstanding durability and reliability, making it a capable assistant in your engineering projects. In terms of the power system, this excavator is equipped with a high-performance Yanmar engine, which not only has strong power but also excellent fuel economy, enabling it to easily handle various complex working environments. In daily use, whether it is excavation, crushing or loading operations, it performs outstandingly, enabling you to complete tasks efficiently while significantly reducing operating costs. The hydraulic system adopts advanced load sensing technology, ensuring the accuracy and sensitivity of operation, making the entire machine respond quickly, stably and reliably. In addition, its unique energy-saving mode design not only ensures work efficiency but also further reduces fuel consumption and enhances economic benefits. This excavator is highly favored in the market for its outstanding performanc
