Product Description

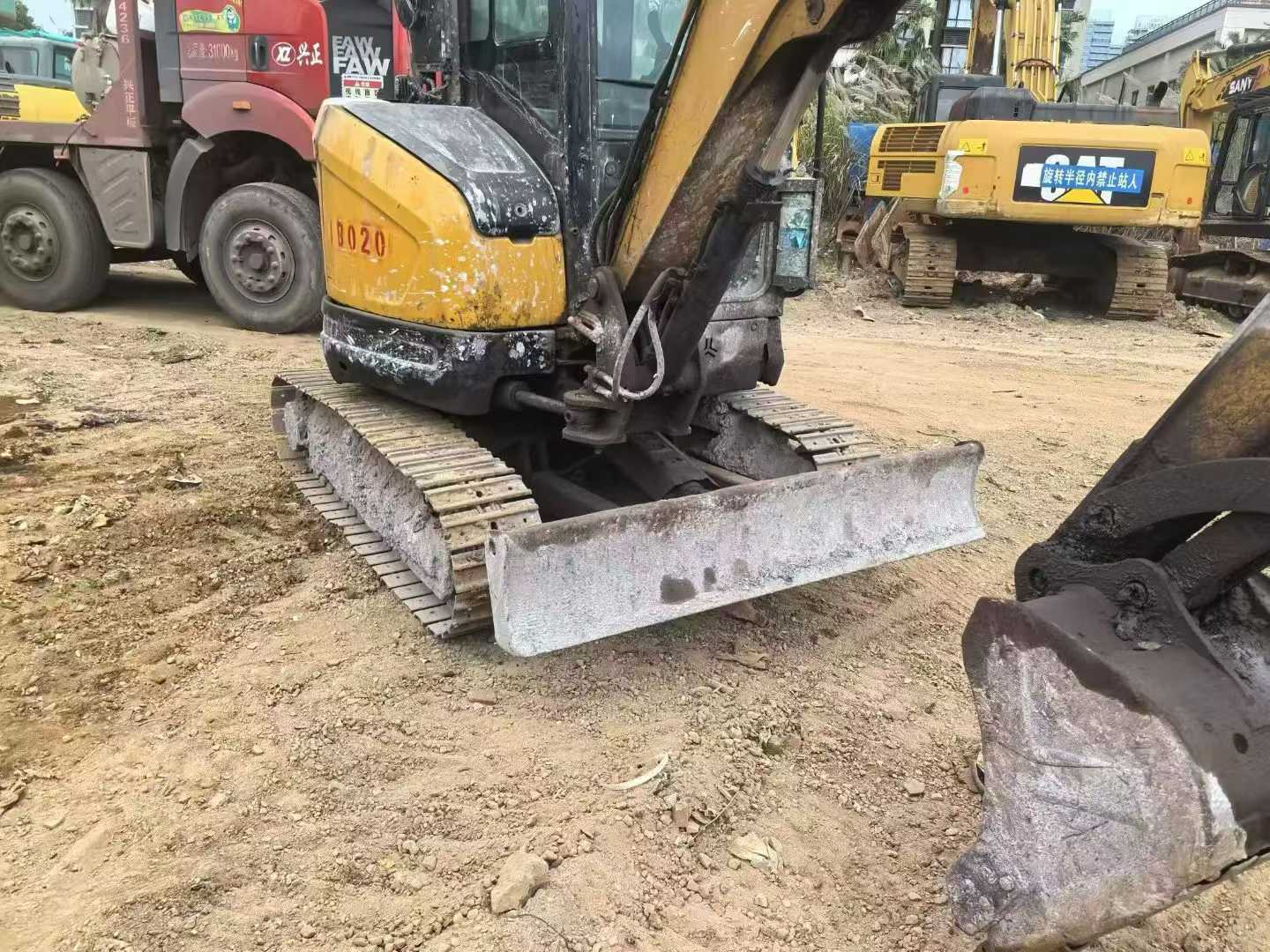

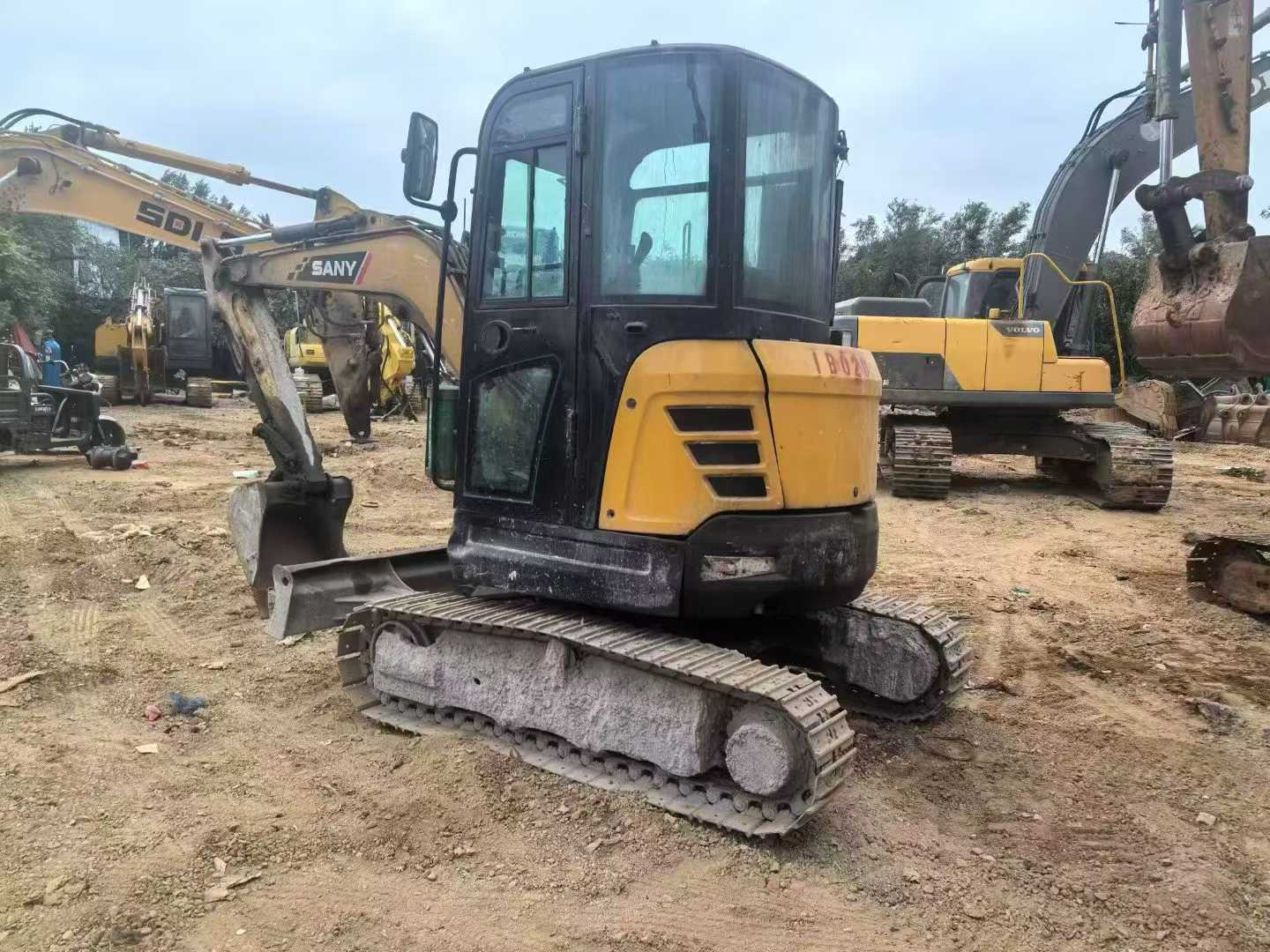

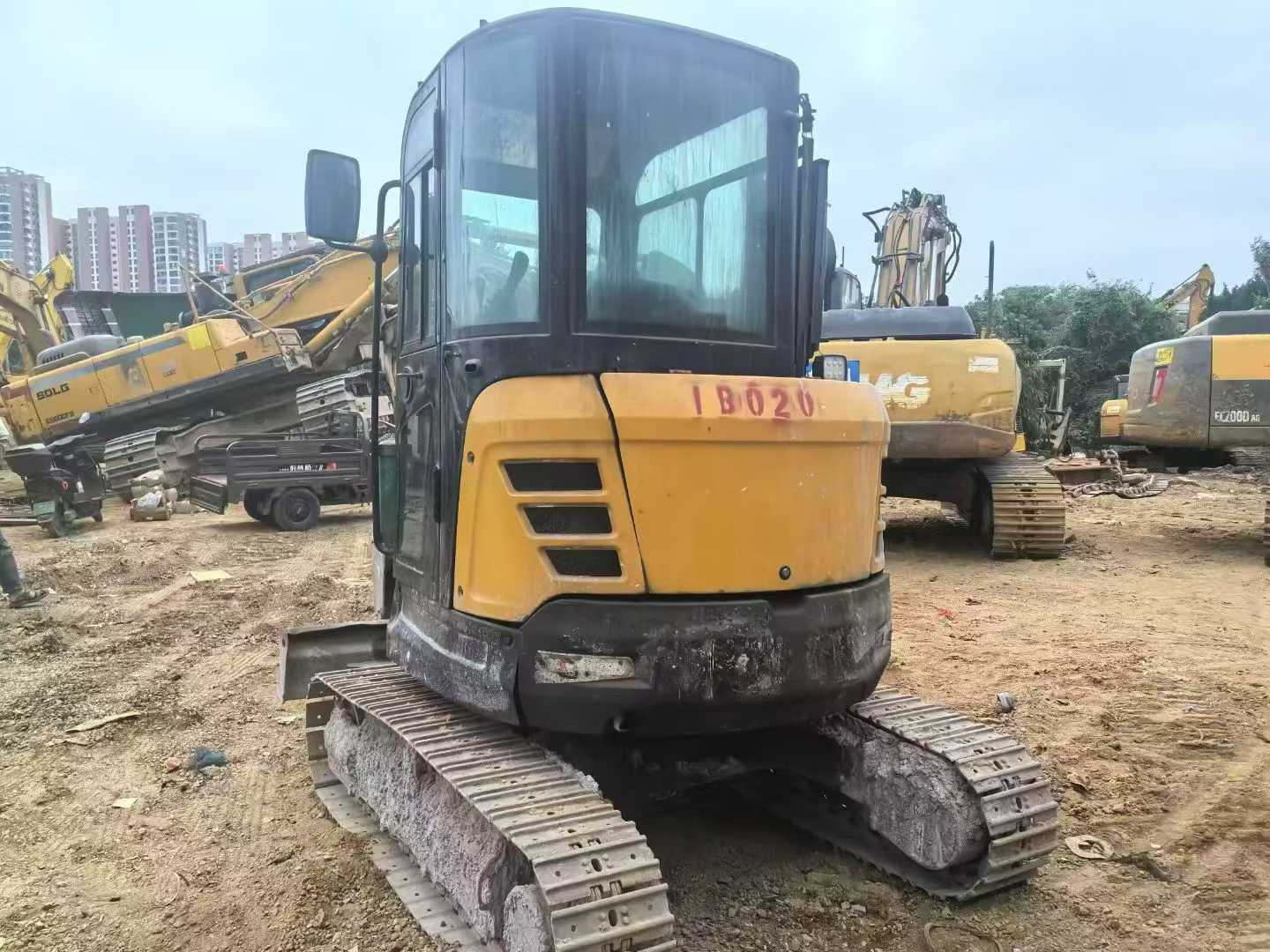

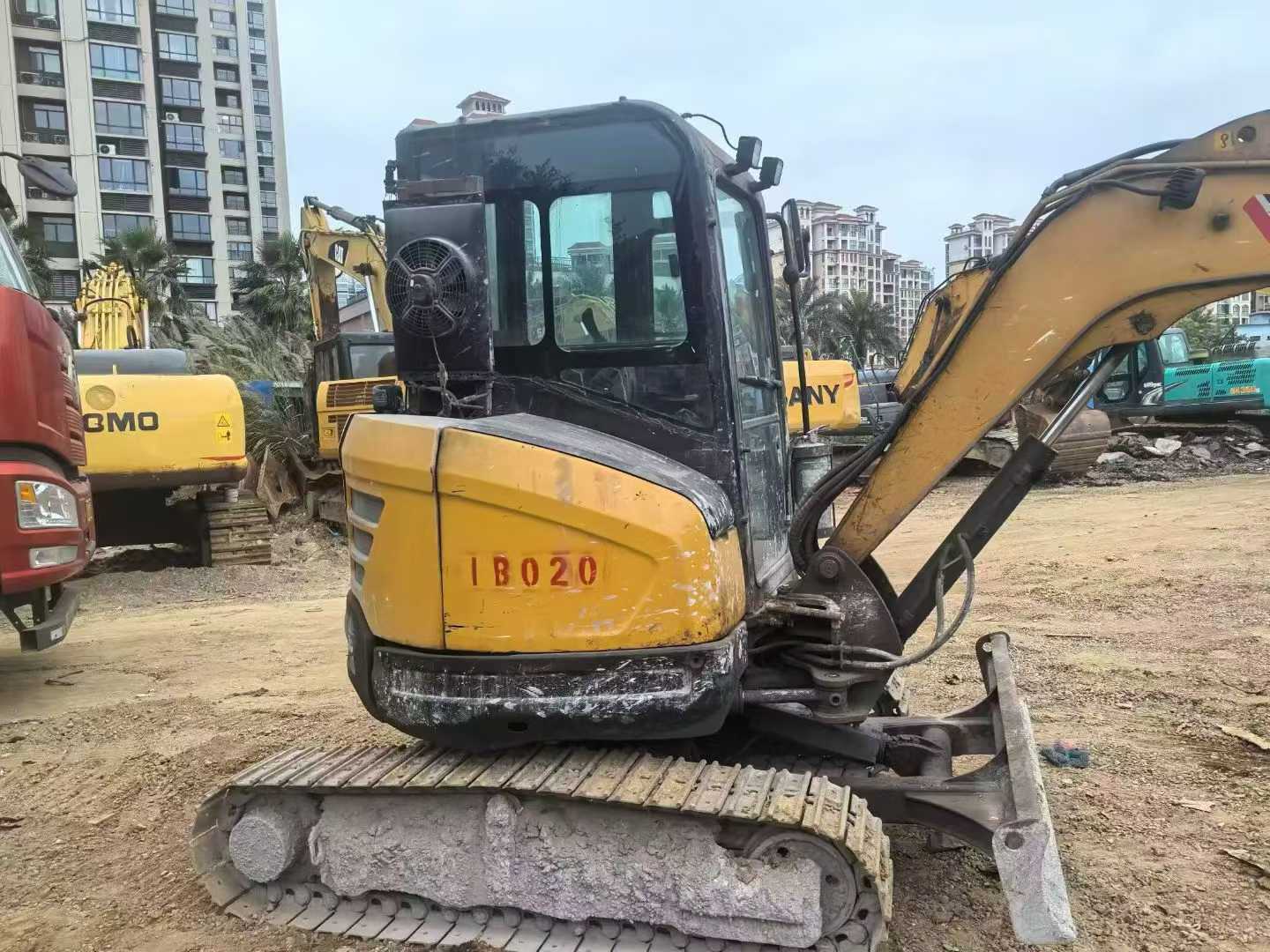

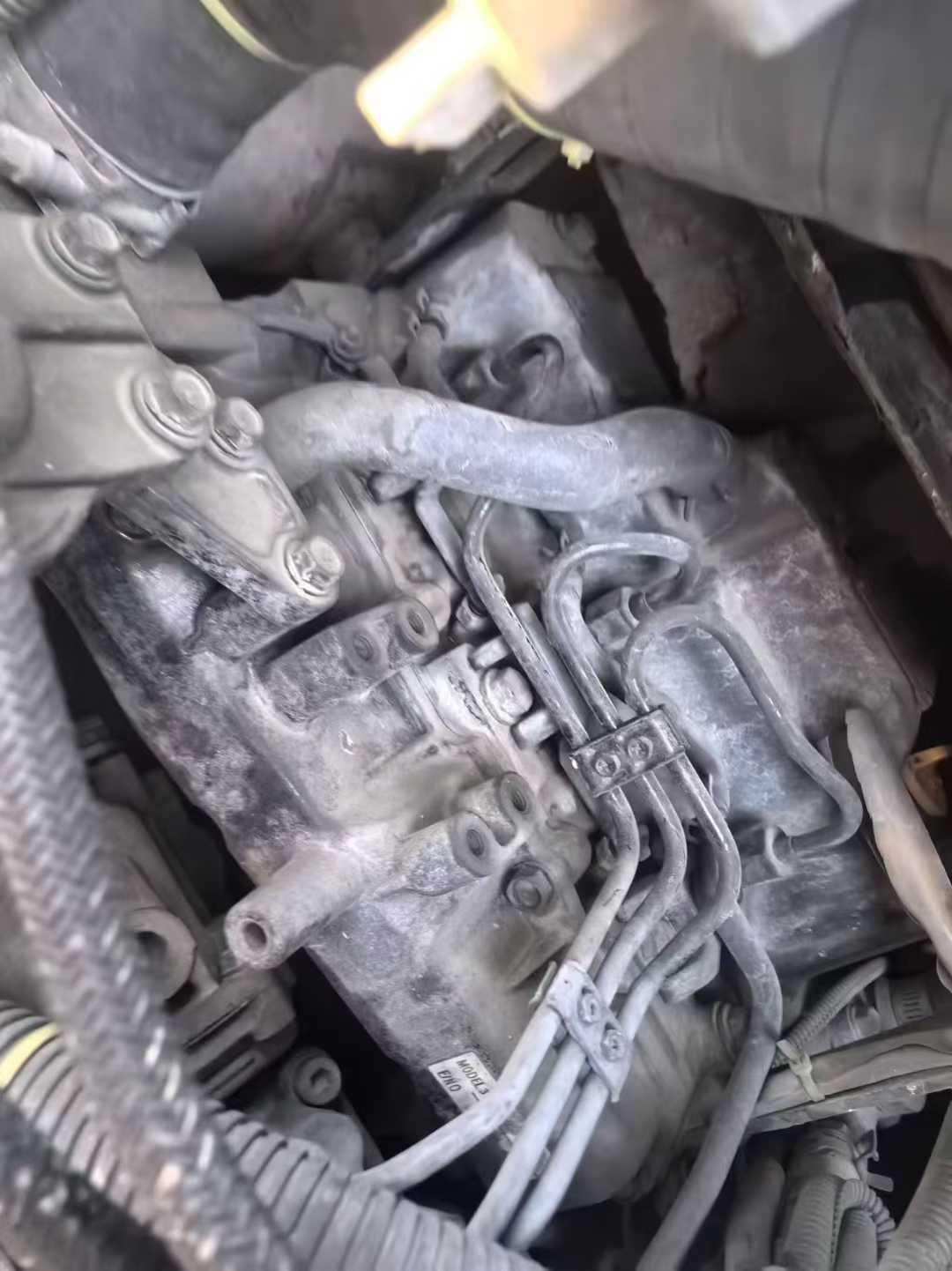

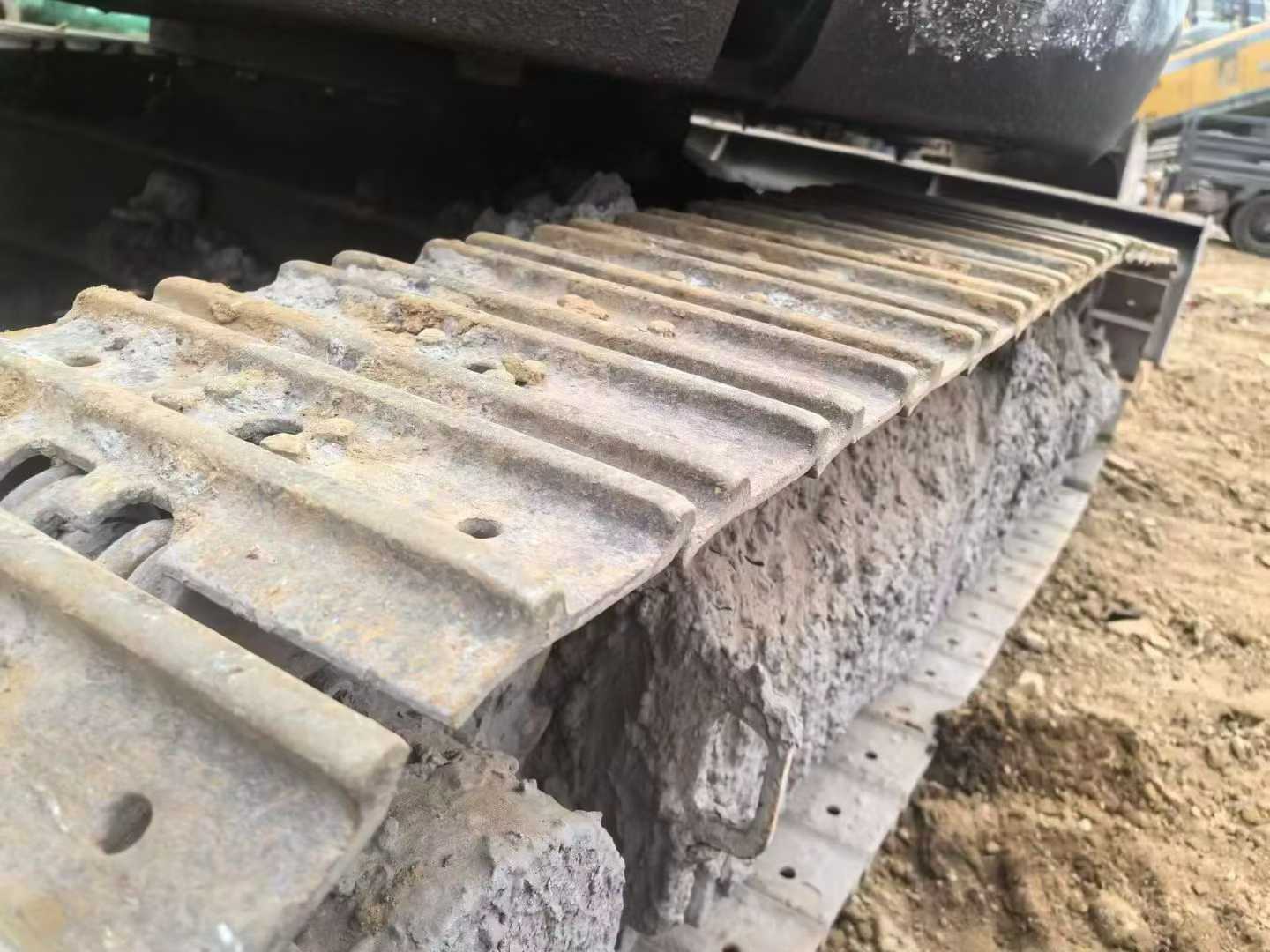

【 Premium Recommendation 】 Second-hand XCMG XE35 excavator, currently priced at 48,000 yuan. This device is equipped with detailed usage records and video materials, with an estimated working time of approximately 2000 hours. It features stable and reliable overall performance and is suitable for various construction scenarios. In terms of power, this machine is equipped with a high-performance engine, model Yanmar 4TNV98T (possibly), with a maximum output power of 17.5 kilowatts, ensuring efficient operation under various complex working conditions. Meanwhile, the low-noise design and excellent fuel economy make this excavator perform exceptionally well in energy conservation and emission reduction. The hydraulic system adopts an advanced main pump configuration, combined with an efficient hydraulic motor, ensuring smooth operation and rapid response. Whether it is excavation, loading or crushing operations, it can handle them with ease, demonstrating outstanding operational flexibility and work efficiency. In addition, XCMG XE35 also has the following significant advantages: - Compact structure, convenient for transportation; The cab is spacious and comfortable, with a wide field of vision. - Convenient for maintenance and upkeep,
| Specifications | Value |
|---|---|
| No. | 978938 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
