Product Description

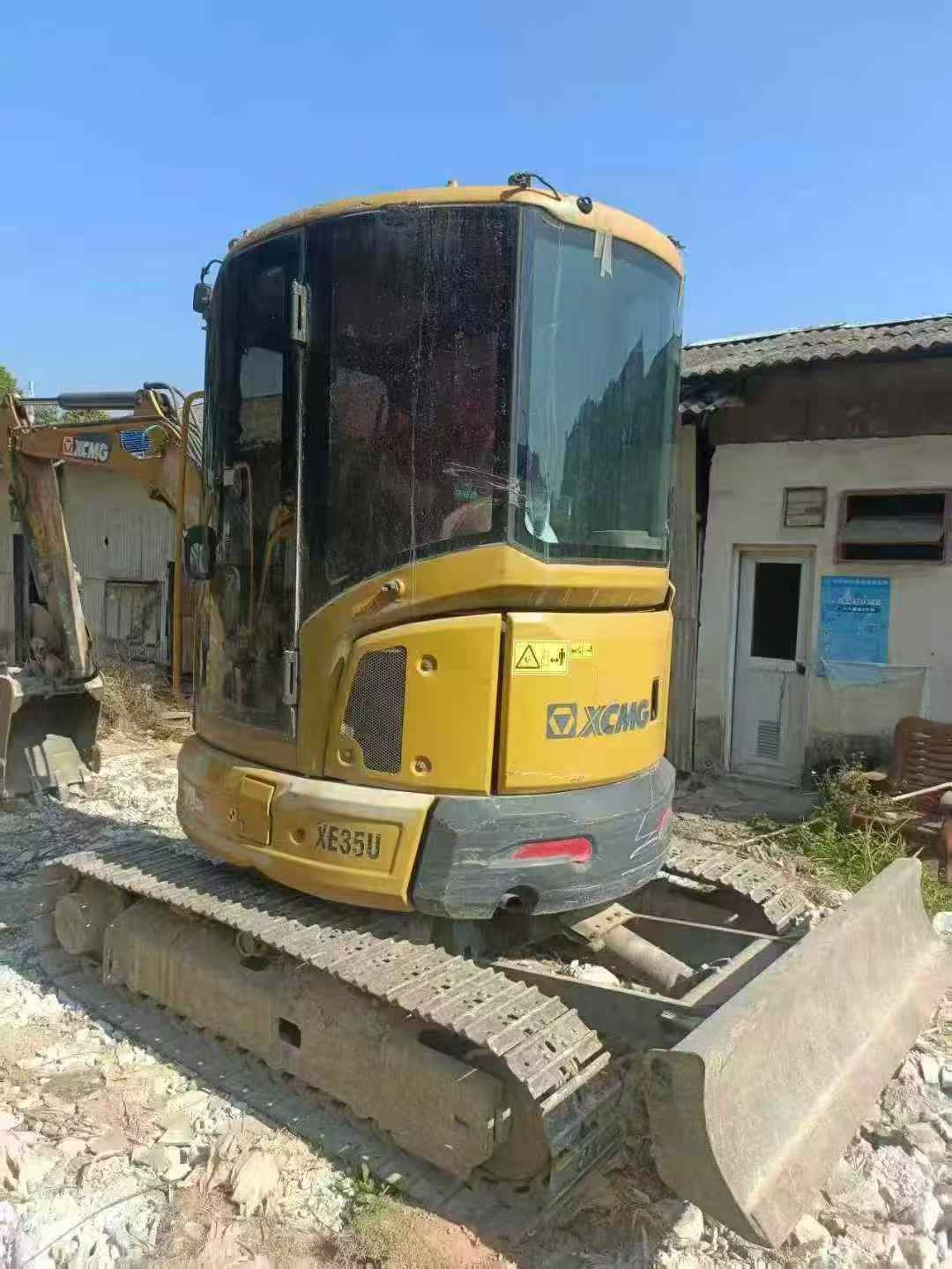

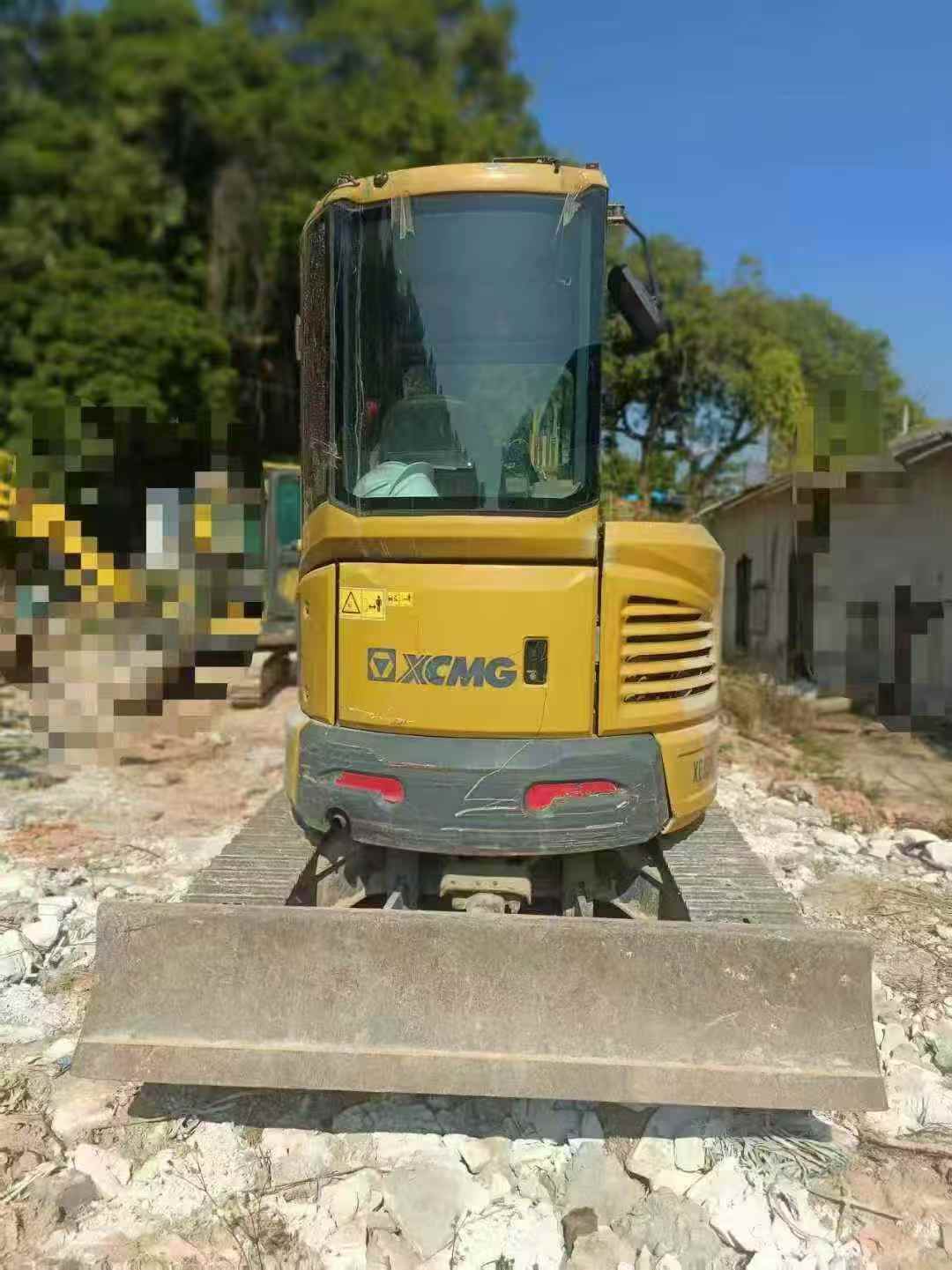

Built for precision and reliability, this 2021 XCMG XE35U compact excavator delivers exceptional operator control in demanding work environments. With its 4-ton operating weight and robust 22.2kW engine, this machine provides optimal balance between power and maneuverability for confined jobsites.

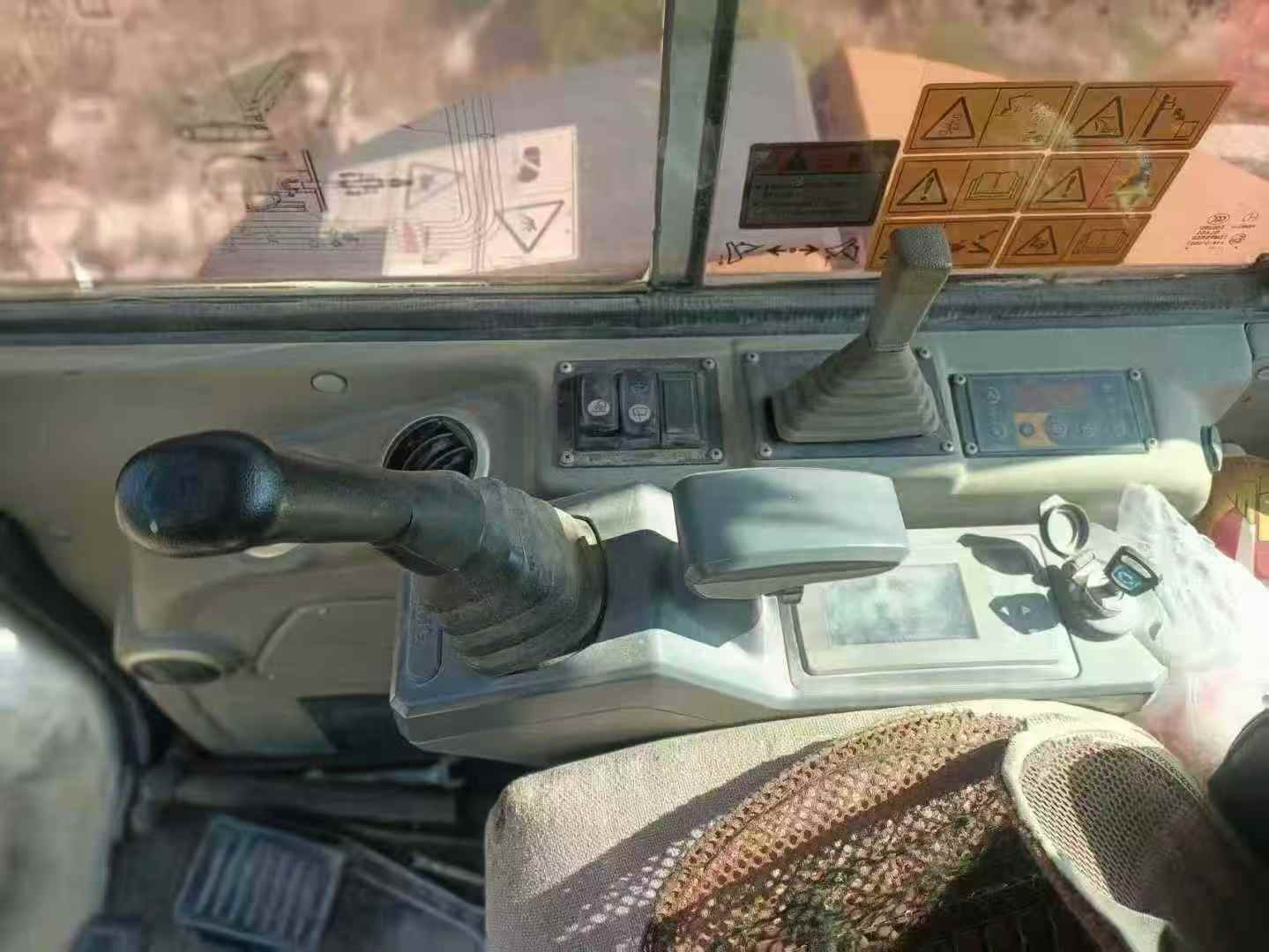

Operators benefit from superior visibility and intuitive handling characteristics that define this model's reputation. Advanced hydraulic systems ensure smooth, responsive controls while maintaining fuel efficiency throughout extended work cycles. The spacious cabin design reduces operator fatigue during long shifts, contributing to increased productivity.
- Maximum digging depth: 3,060mm with 5,300mm reach
- Compact dimensions: 4,970mm length × 1,740mm width
- Powerful digging force: 28.6kN bucket, 20.3kN arm
- Efficient 40L fuel tank with water-cooled engine
- Stable 1,440mm track gauge for enhanced stability
Currently located in Guangdong, China, this well-maintained excavator represents proven XCMG engineering quality. Ideal for construction, landscaping, and utility applications requiring precise material handling and consistent performance in tight spaces.
| Specifications | Value |
|---|---|
| No. | 980875 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

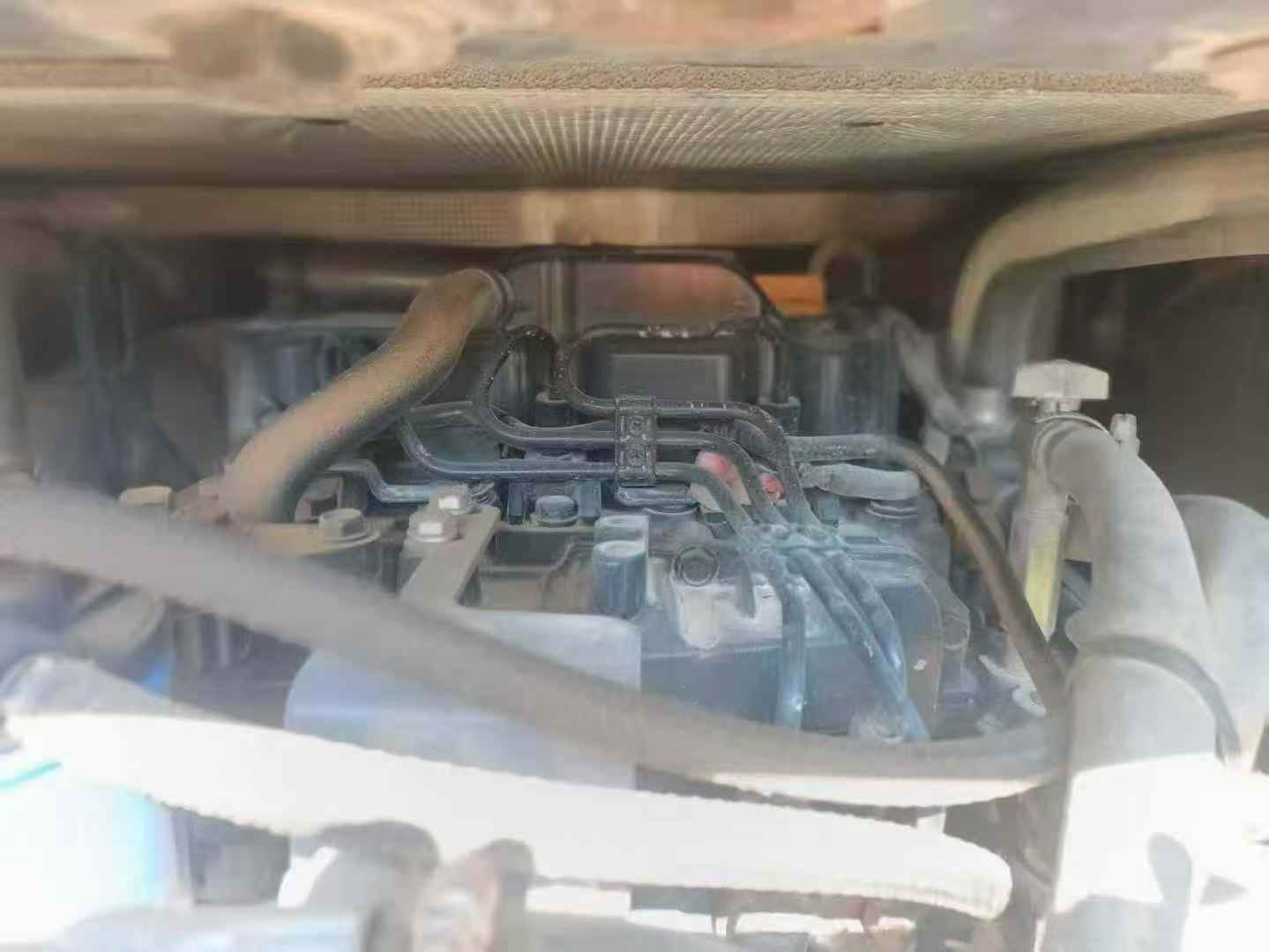

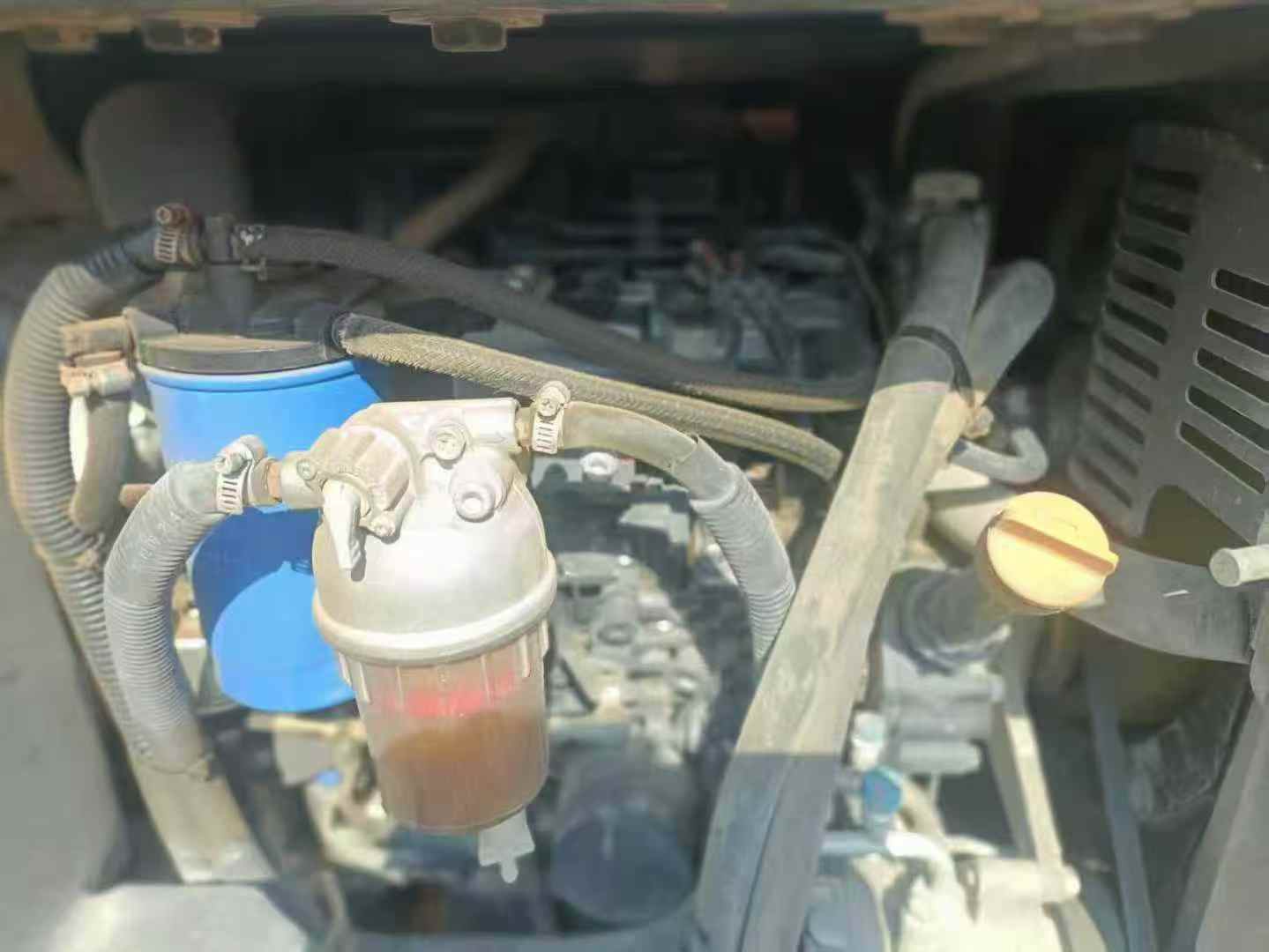

| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |

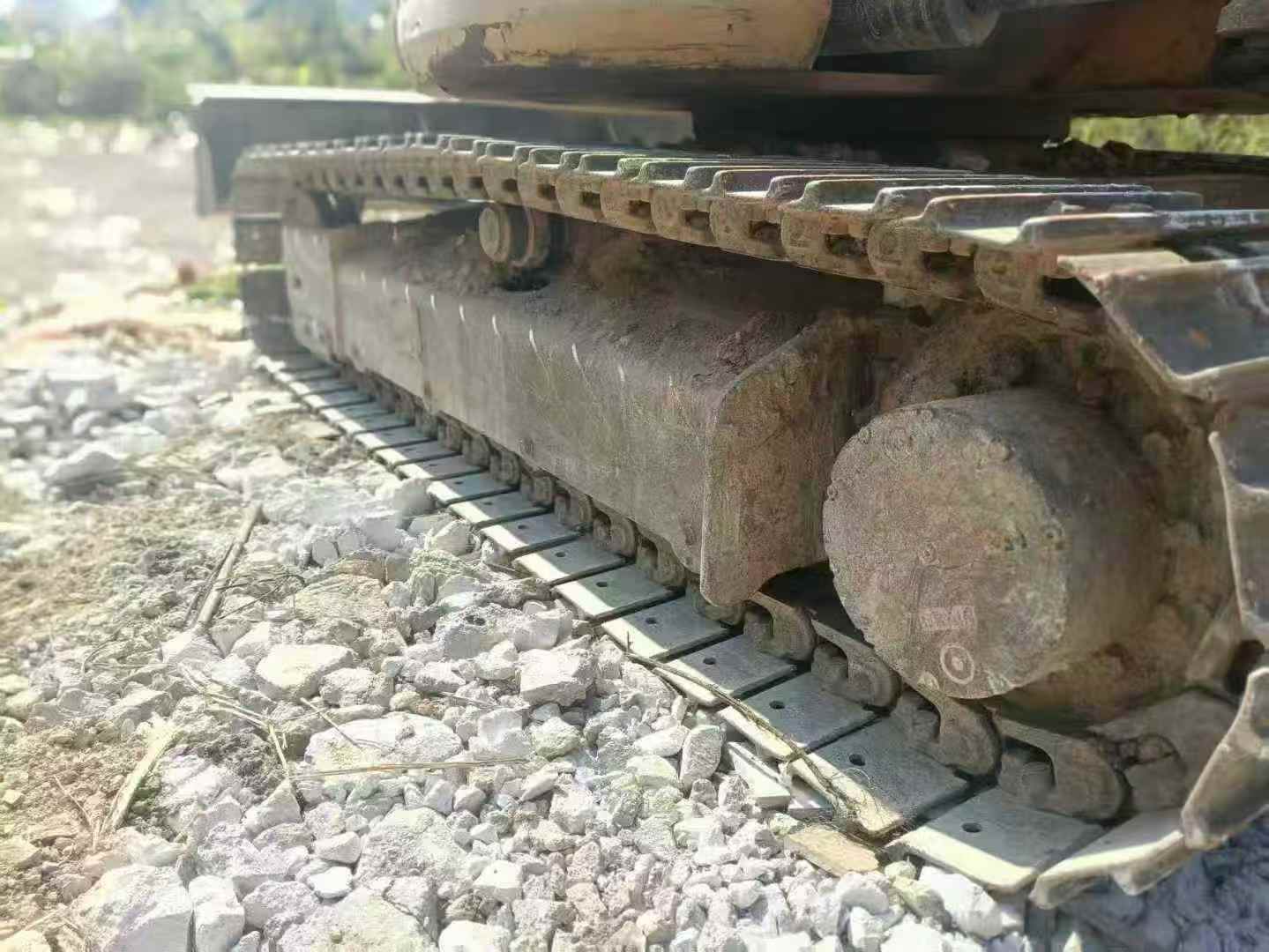

| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |

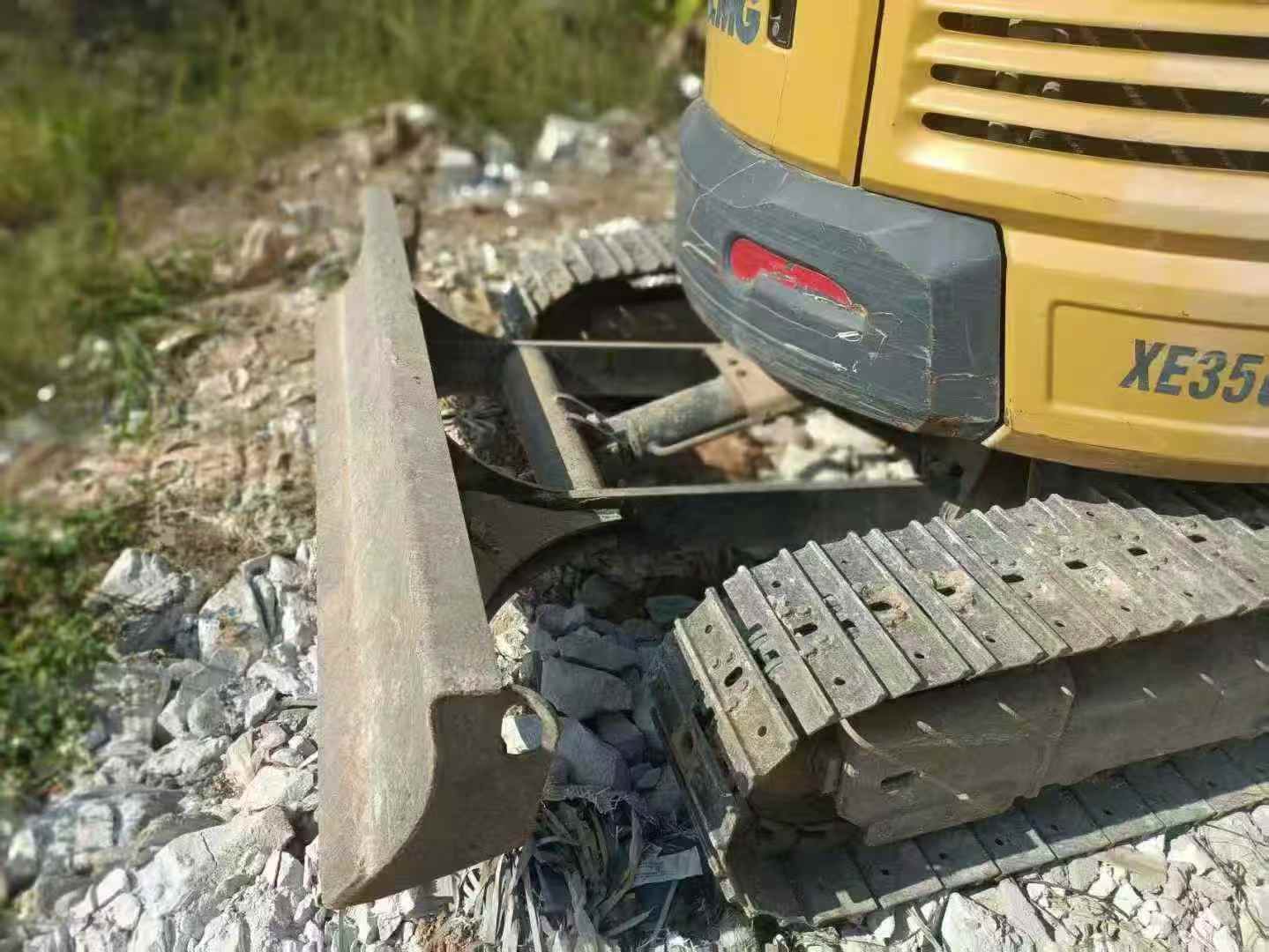

| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
