| Specifications | Value |
|---|---|
| No. | 967196 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.4-1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

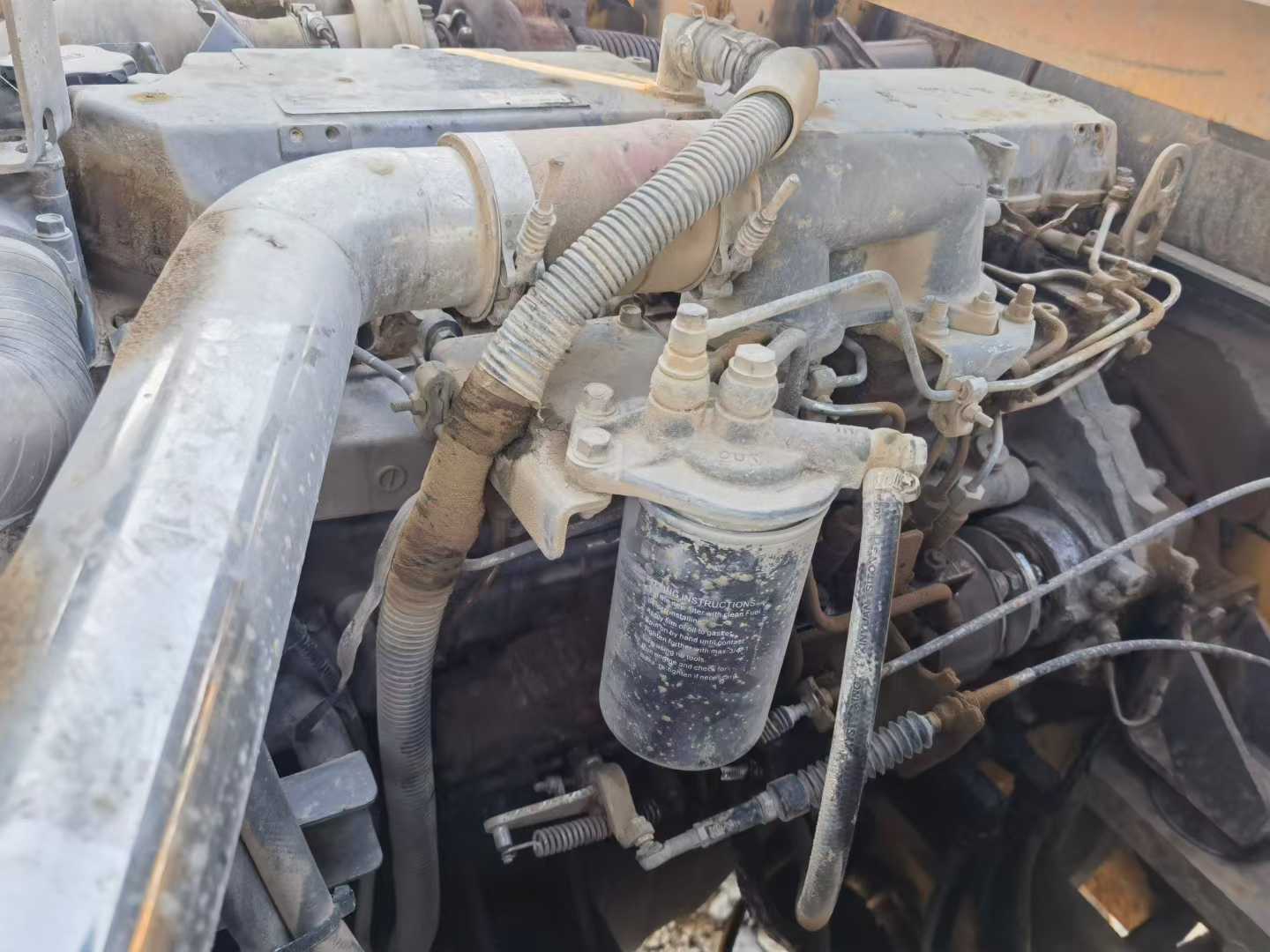

| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection; 4 strokes; Water cooling; Turbocharging; Air to air cold; Maximum torque 872.8/1700N.m |
| Ground specific pressure (Kpa) | 66.6 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 242 |
| Rod digging force (kN) | 207 |
| Travel speed (km/h) | 5.4/3.2 |
| Main overflow set pressure (Mpa) | 31.5/34.3 |
| Maximum flow of main pump (l/min) | 2*320 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Hydraulic crushing pipeline is standard | no |

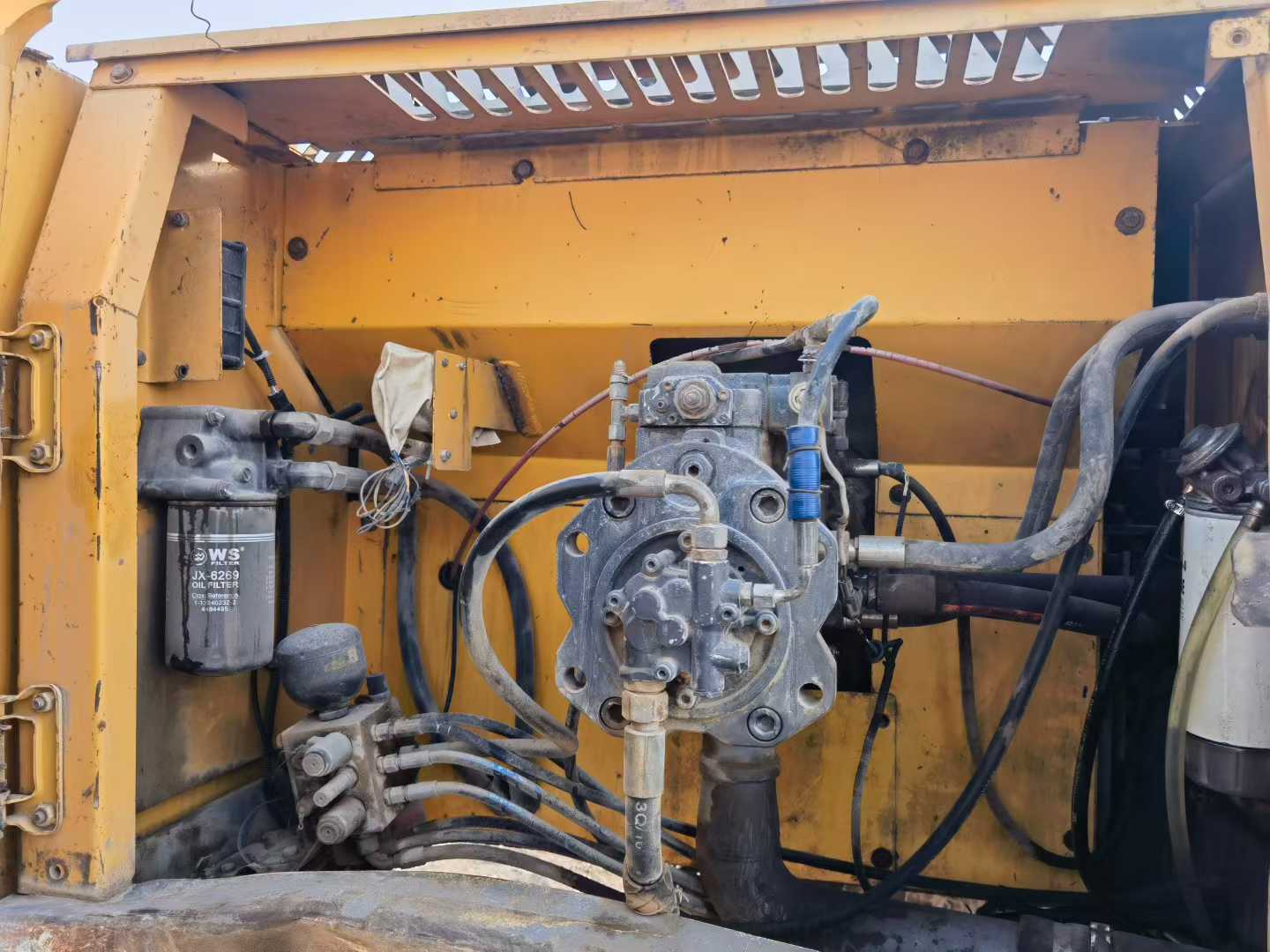

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3350 |
| Counterweight ground clearance (mm) | 1197 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 5070 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6893 |
| Maximum excavation height (mm) | 10379 |
| Maximum unloading height (mm) | 7153 |
| Maximum vertical digging depth (mm) | 6461 |
Description

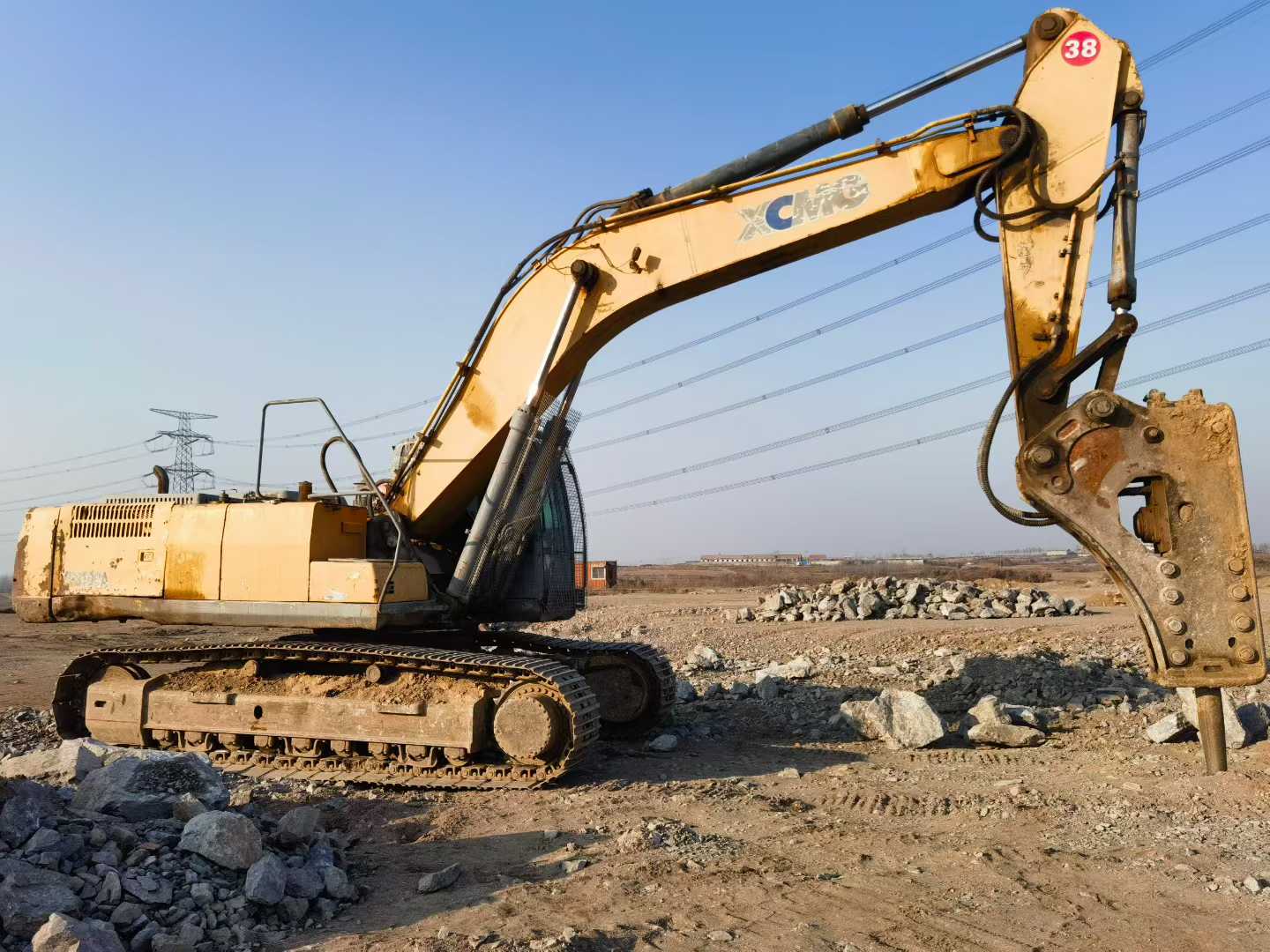

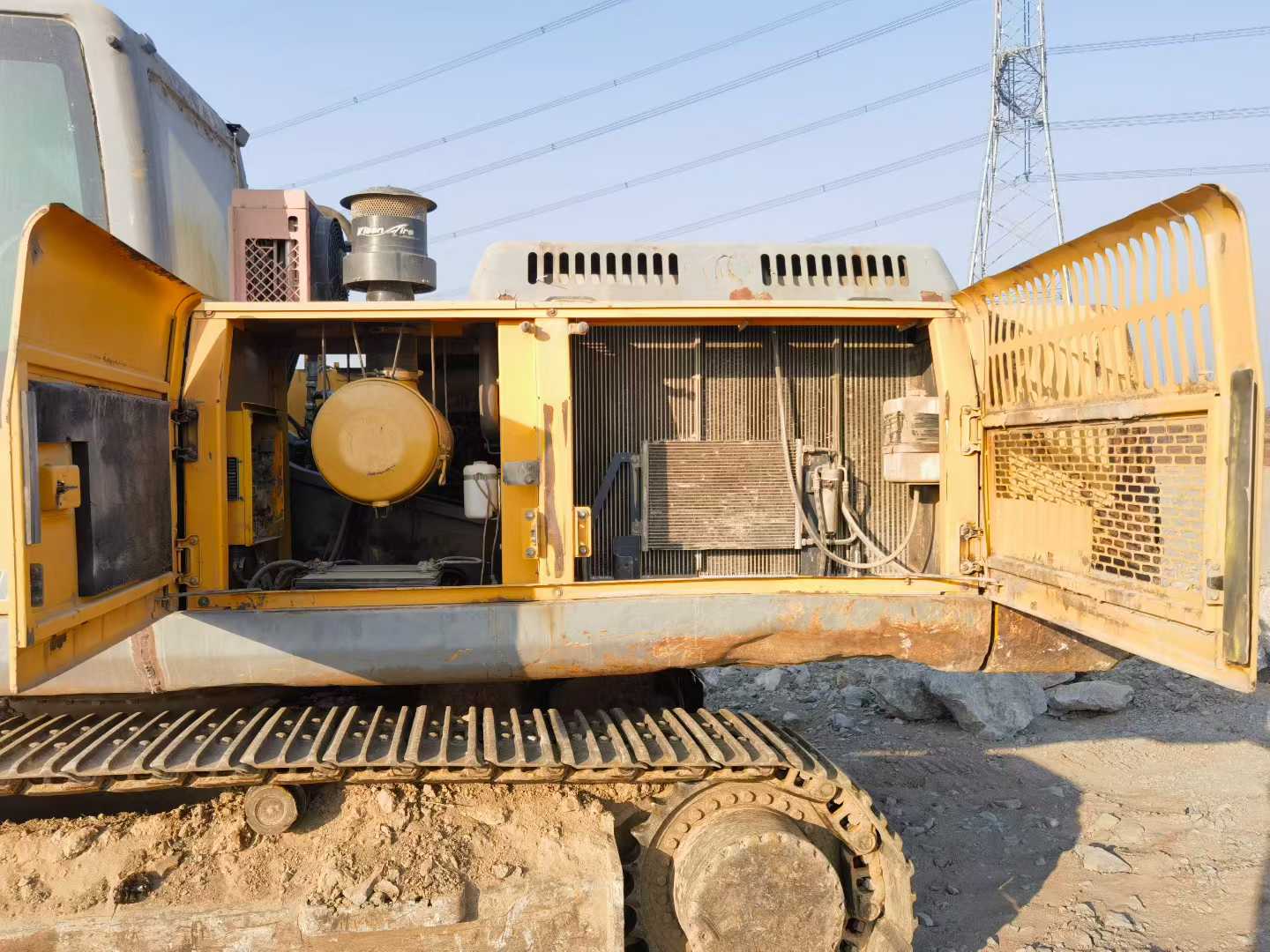

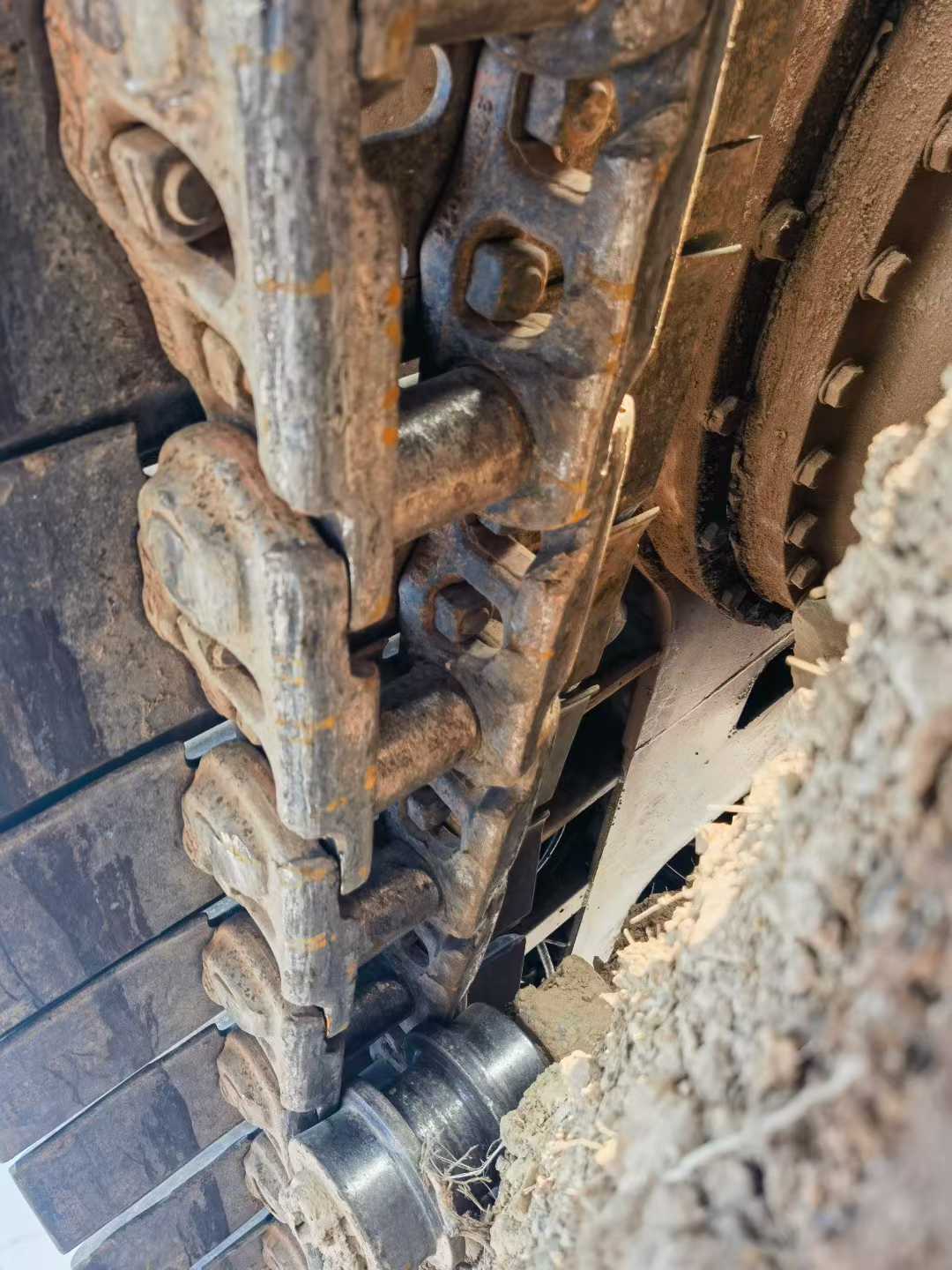

【 Premium Recommendation 】 XCMG XE370CA excavator from 2013, without a bucket configuration, equipped with high-quality breakers of model 175. This equipment is in good overall condition, with a cumulative working time of only 6,000 hours. It is in a relatively young state among similar devices and is suitable for efficient operation requirements in various construction environments. In terms of the power system, this machine is equipped with an imported engine that has been well tested in the market, featuring strong power output and smooth operation performance. It can still maintain stable performance under long-term and high-intensity working conditions, ensuring construction efficiency and quality. Meanwhile, the low fuel consumption design also significantly reduces operating costs, bringing higher economic benefits to users. The hydraulic system is a major highlight of this excavator. It adopts an advanced closed load-sensitive hydraulic control system, which responds quickly and operates precisely. Whether it is fine excavation or heavy-load crushing, it can handle it with ease. In addition, the surface of the chain, after professional maintenance and care, is coated with yellow anti-rust paint, which not only looks beautiful
