2016 XCMG XE40

1/9
Used XCMG XE40 Excavator 2016 Model / 1

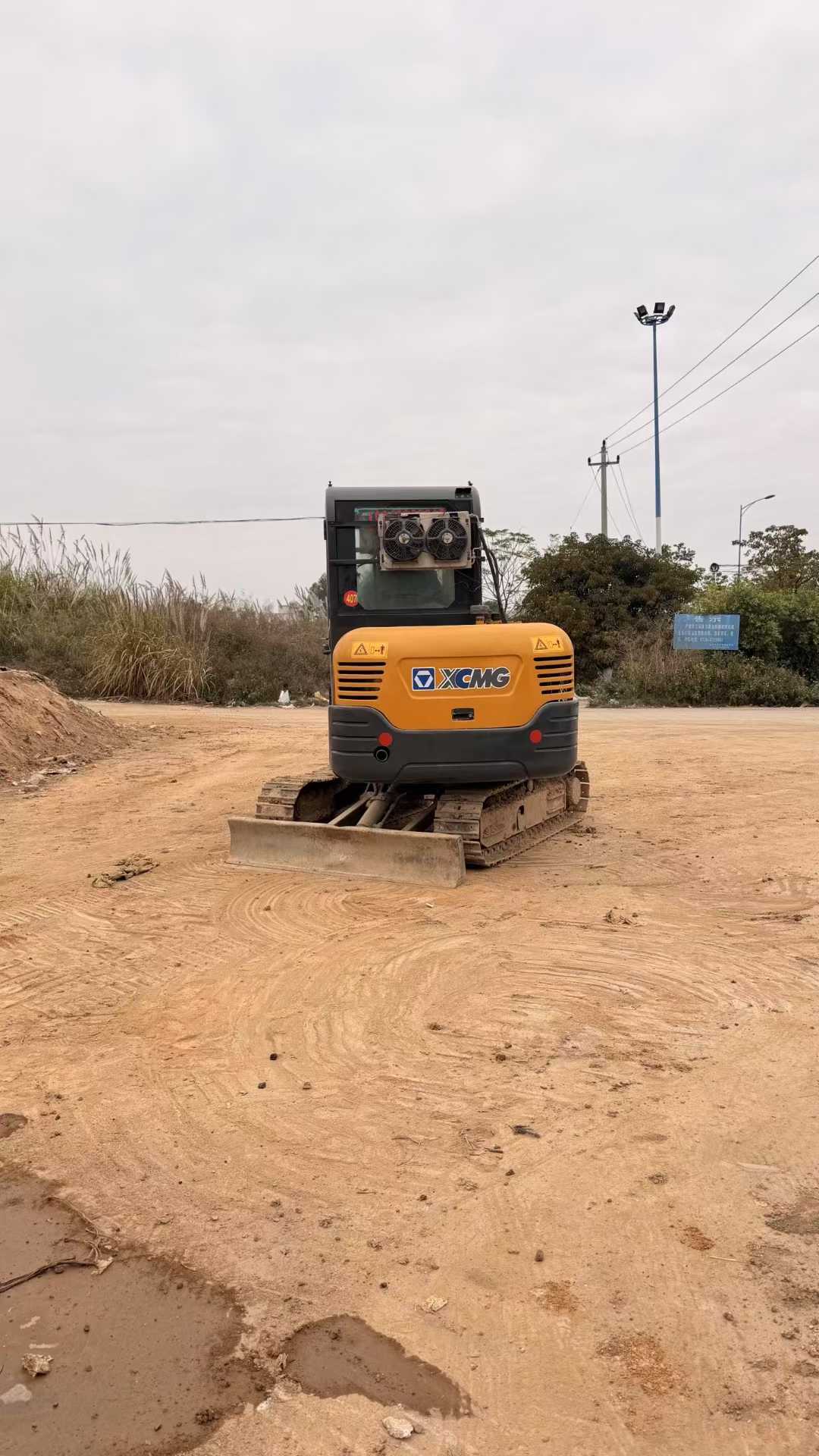

Used XCMG XE40 Excavator 2016 Model / 2

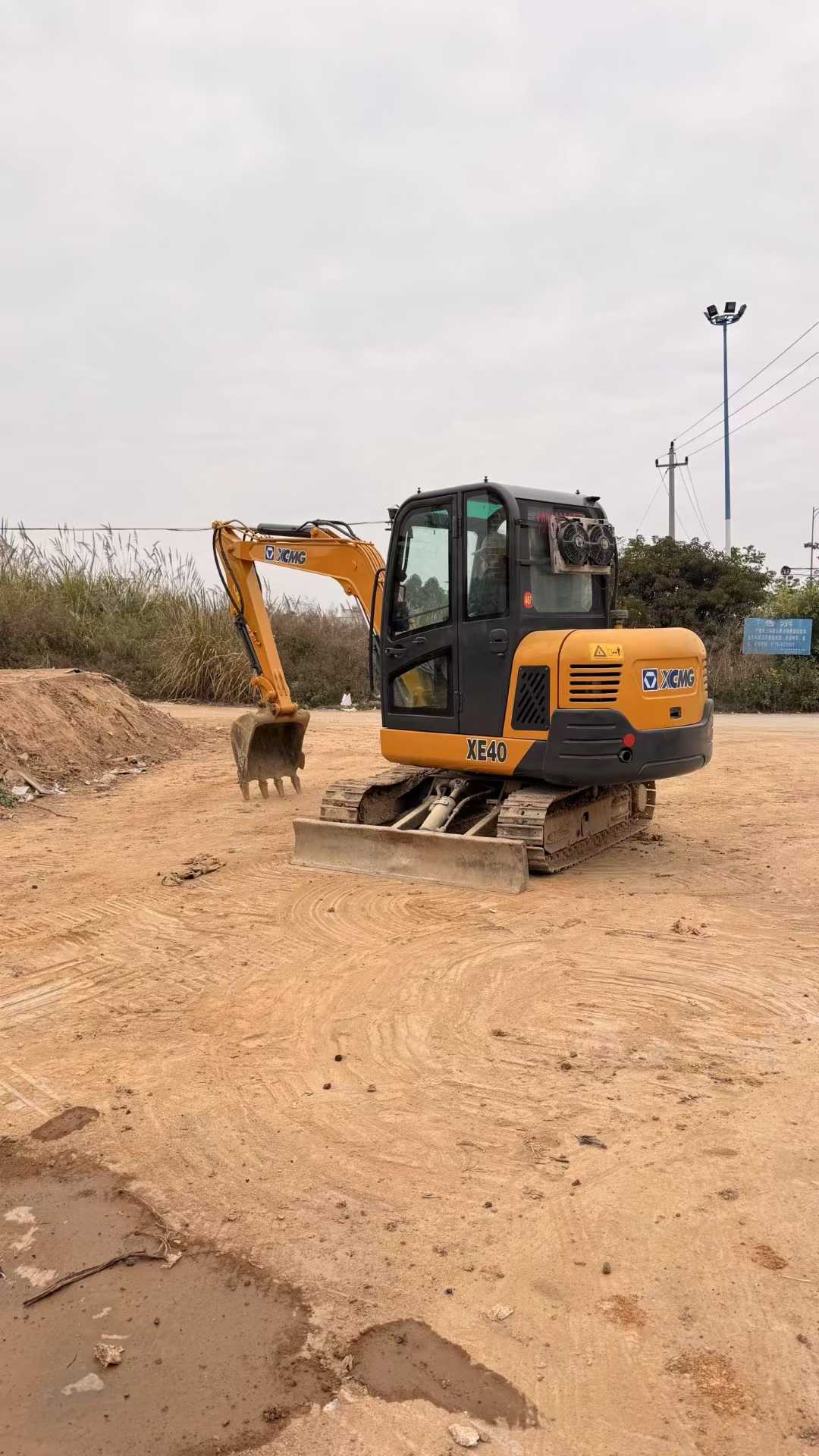

Used XCMG XE40 Excavator 2016 Model / 3

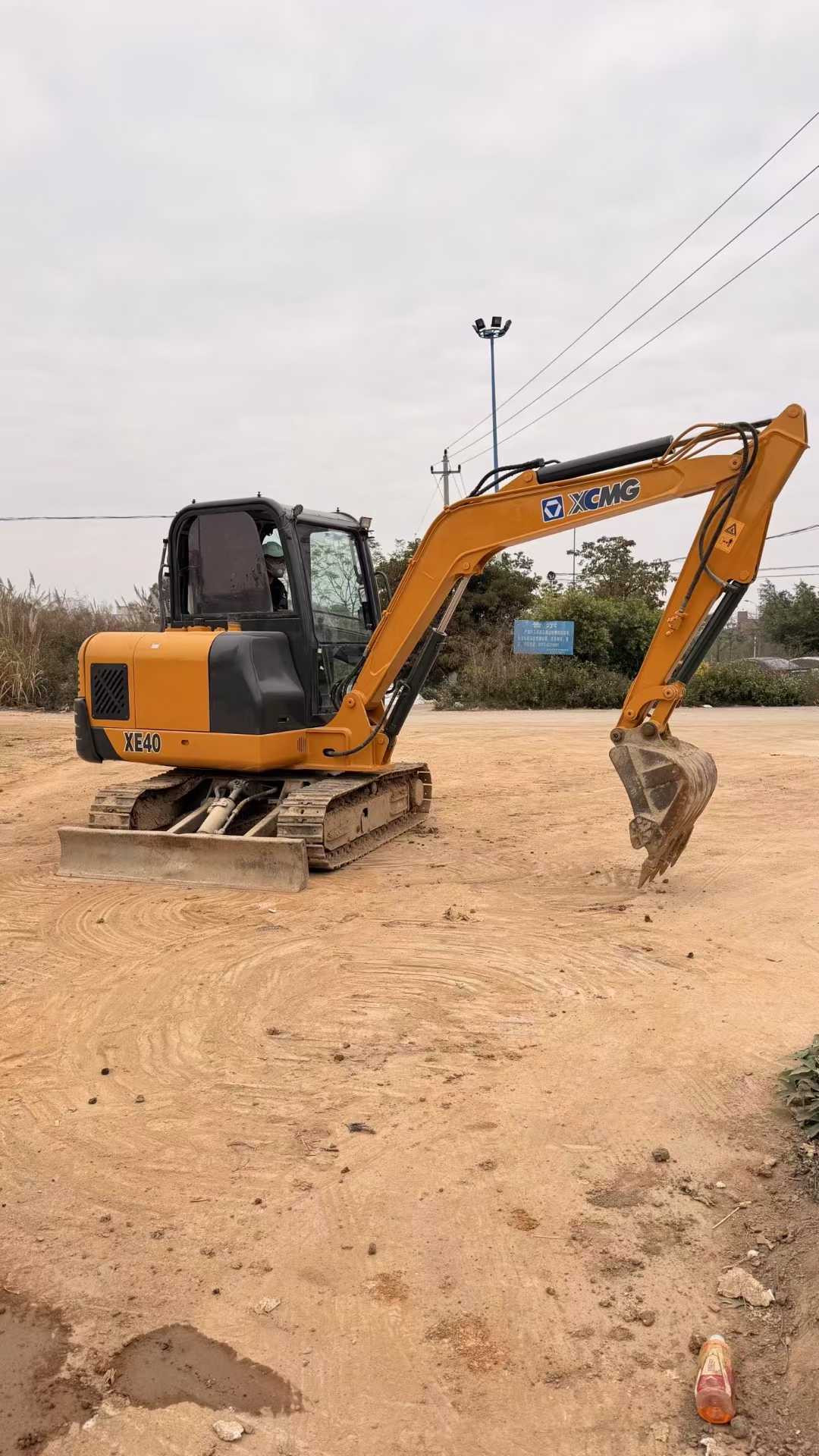

Used XCMG XE40 Excavator 2016 Model / 4

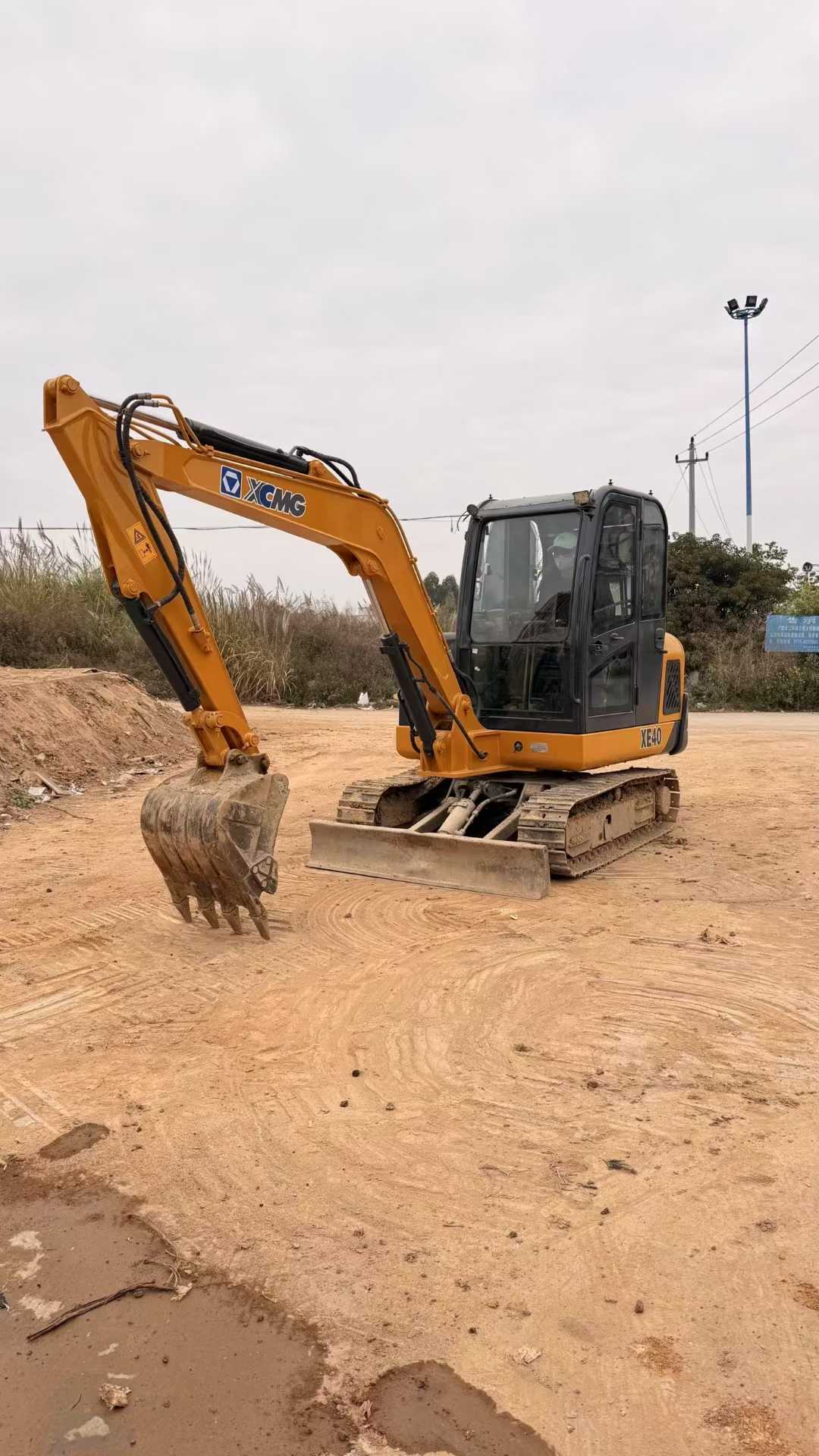

Used XCMG XE40 Excavator 2016 Model / 5

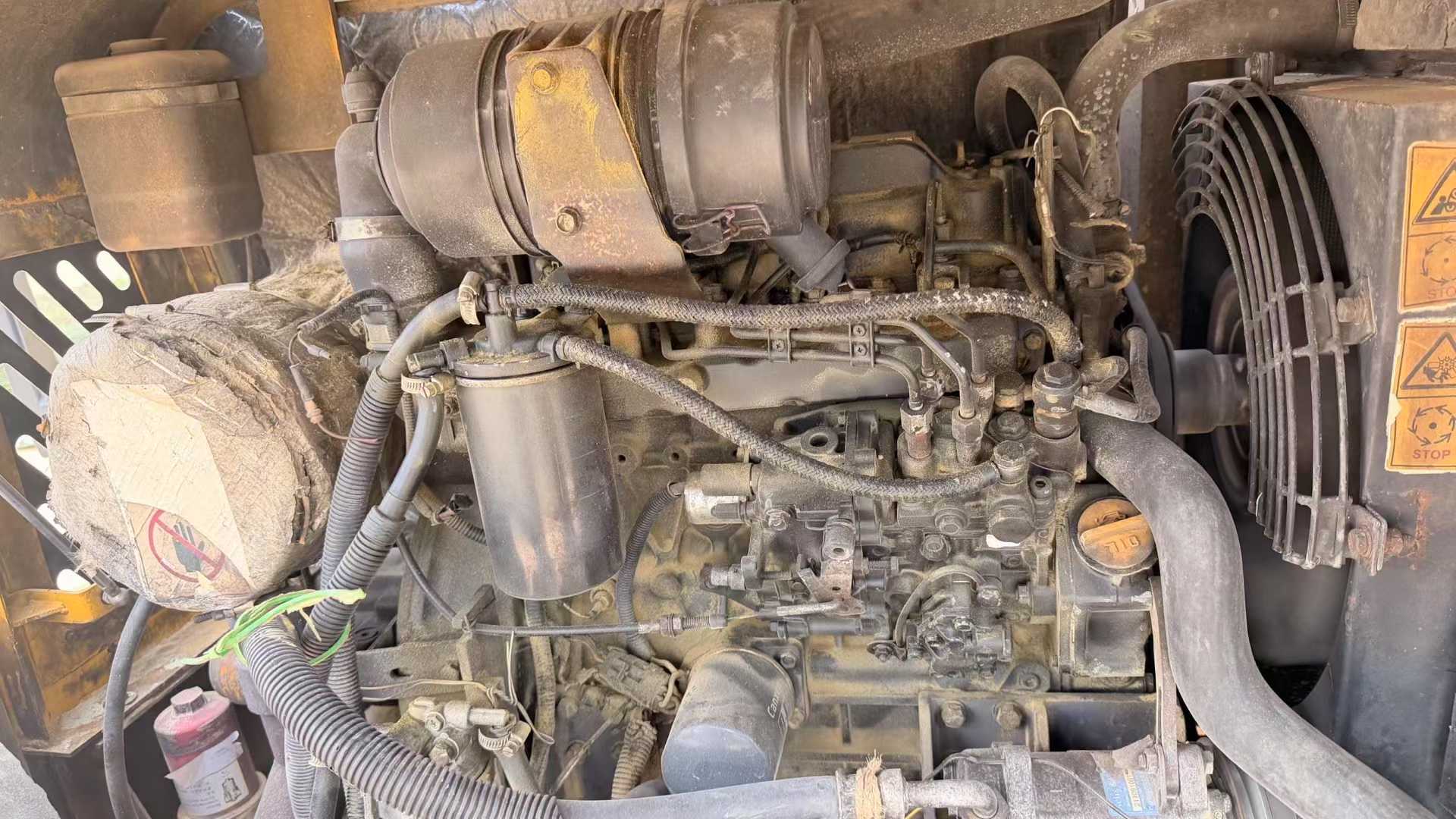

Used XCMG XE40 Excavator 2016 Model / 6

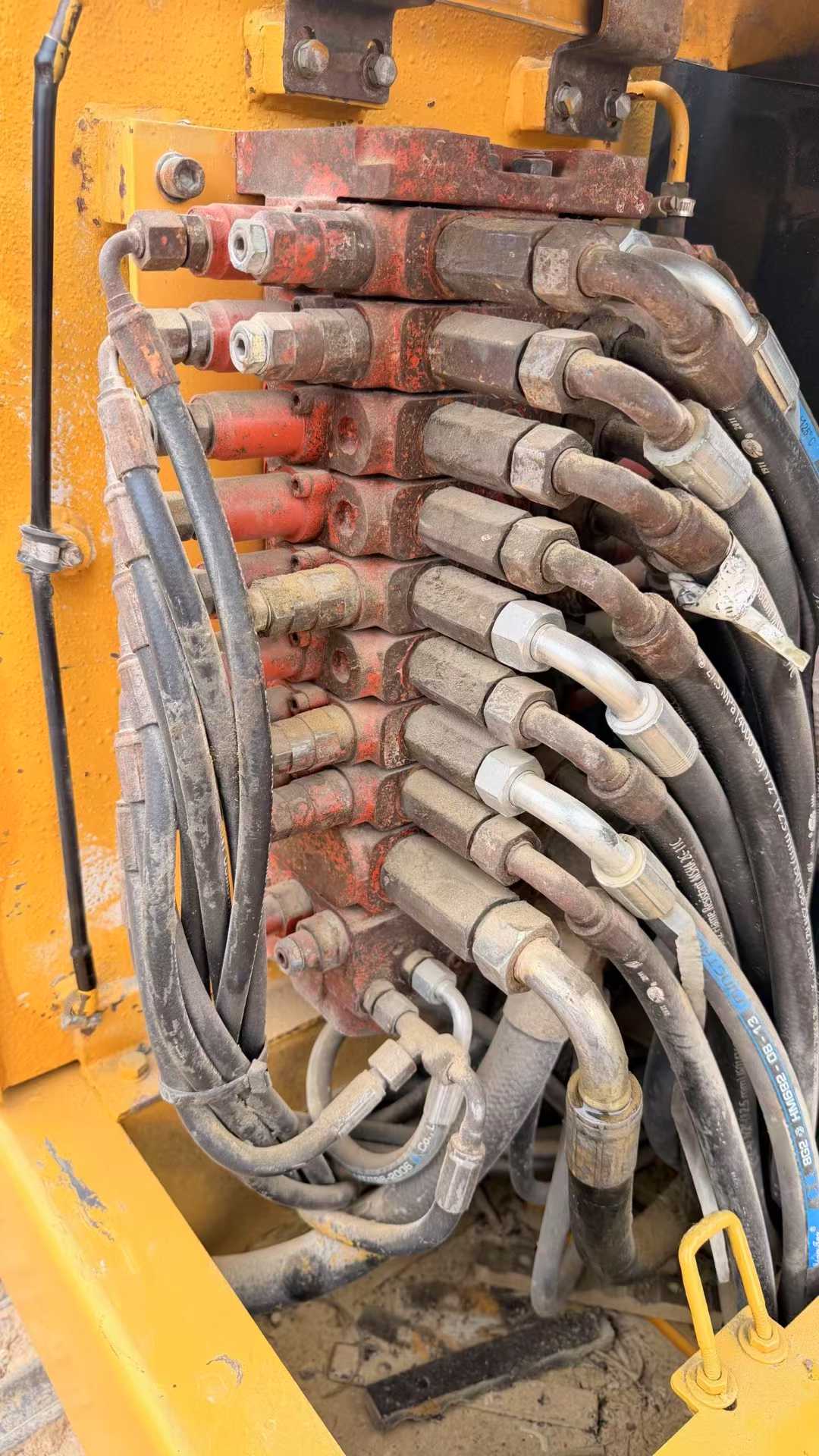

Used XCMG XE40 Excavator 2016 Model / 7

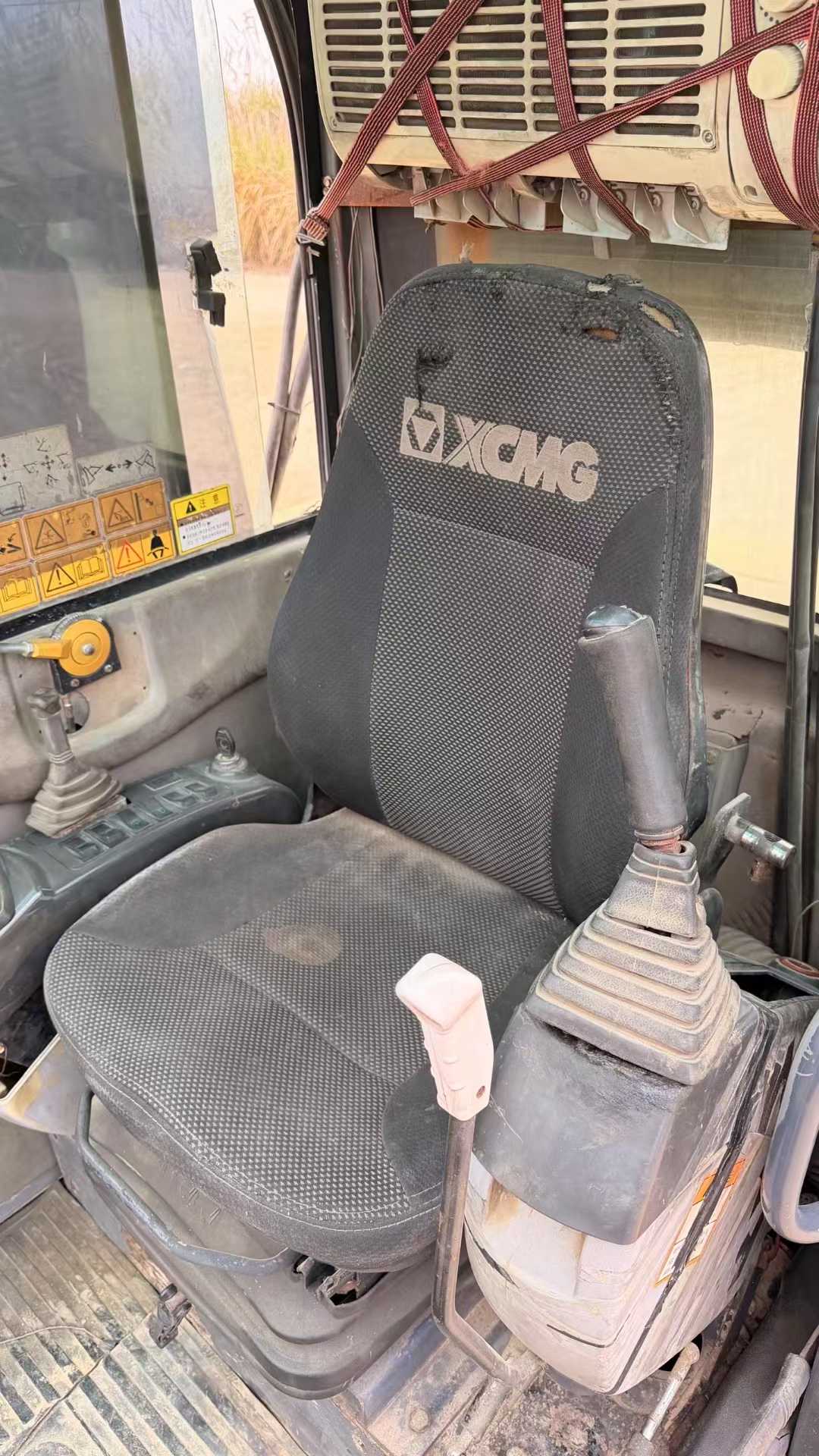

Used XCMG XE40 Excavator 2016 Model / 8

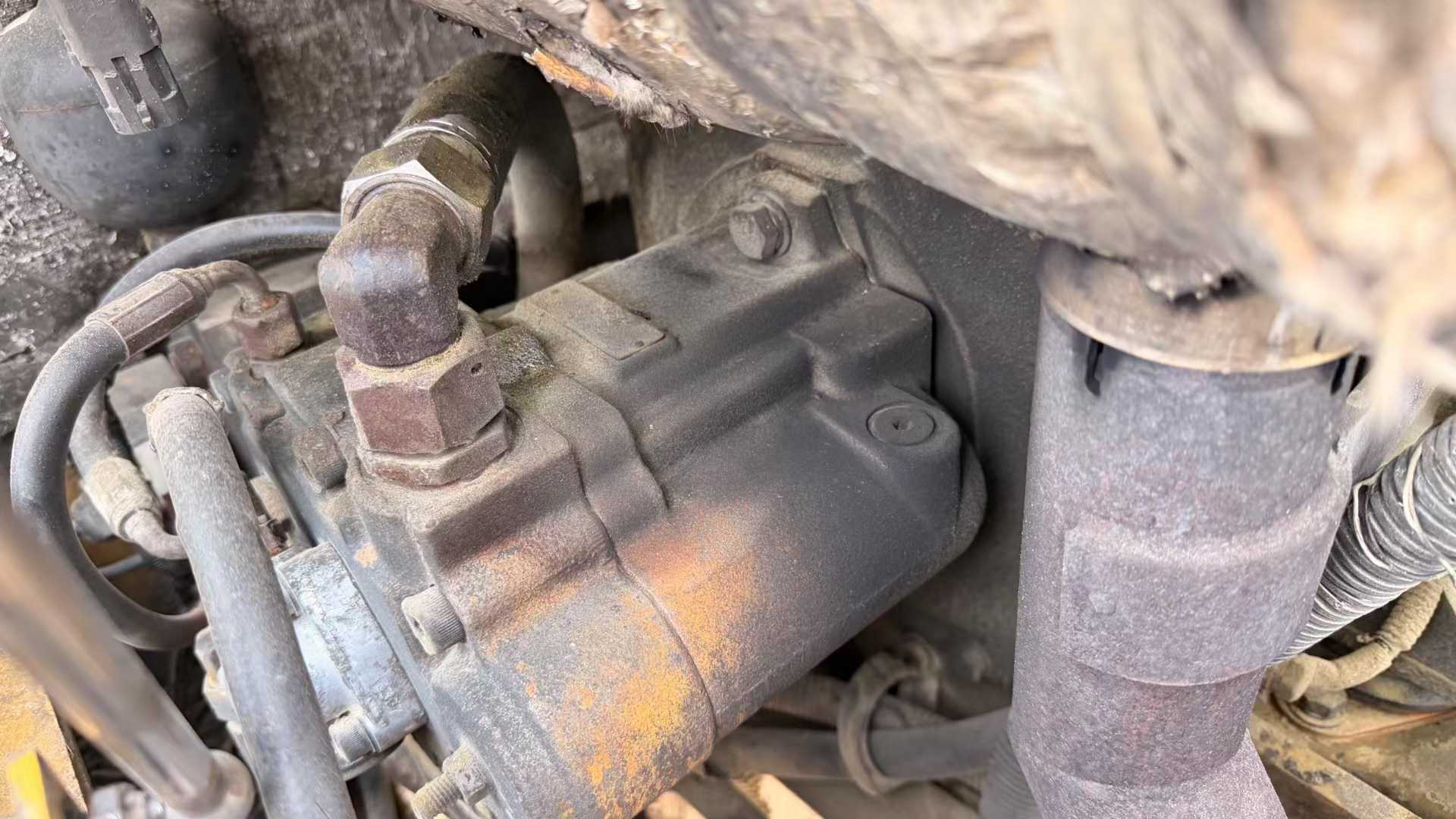

Used XCMG XE40 Excavator 2016 Model / 9

Product Description

There is currently a second-hand XCMG XE40 excavator with a well-maintained appearance, priced at only 48,000 yuan. The equipment is expected to operate for approximately 3,000 hours, with stable and reliable overall performance. In terms of the power system, it is equipped with an efficient and energy-saving engine, which may be of Yanmar or Kubota series, with a power of approximately 24 to 26 kilowatts, capable of meeting the demands of various construction environments. The hydraulic system adopts an advanced combination of hydraulic pumps and hydraulic motors, ensuring the flexibility and stability of the entire machine's operation. Even in complex terrains, it can handle situations with ease. The most outstanding feature of this XCMG XE40 excavator lies in its excellent operating experience and durability. The cab design is humanized, with a wide field of vision, reducing the fatigue caused by long-term operation. Meanwhile, the robust body structure and the key components that have undergone strict testing enable this machine to maintain a good operating condition even under harsh working conditions. In addition, we also provide detailed video materials and high-definition pictures for your reference, allowing you to have a mor

SpecificationsValue
No.974529
Tonnage (tons)4
Working weight (kg)4050
Bucket capacity (m³)0.14
Boom length (mm)2795
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar Yanmar 4TNV88
Rated power (kw/rpm)27.1/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)2.19
Ground specific pressure (Kpa)23.6
Rotation speed (rpm)13.5
Climbing ability (%)30 °
Bucket digging force (kN)23.2
Rod digging force (kN)19.3
Travel speed (km/h)4.2/2.6
Main overflow set pressure (Mpa)21
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*110+11
Traveling Hydraulic Circuit (Mpa)21
Rotary Hydraulic Circuit (Mpa)21
Hydraulic crushing pipeline is standardno
Main pump typeJapan Fujikoshi variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)65
Engine Oil changes (L)7.4
Hydraulic System (L)70
Total transport length (mm)5455
Total transport width (mm)1650
Total transport height (mm)2440
Counterweight ground clearance (mm)578
Minimum ground clearance (mm)350
Minimum turning radius of front working device (mm)2385
Back end turning radius (mm)1490
Track gauge (mm)1335
Track plate width (mm)300
Track ground length (mm)1721
Maximum digging radius (mm)5810
Maximum digging depth (mm)3600
Maximum excavation height (mm)5320
Maximum unloading height (mm)3700
Maximum vertical digging depth (mm)2250
Bulldozer lift or depth (mm)267/365
Dodging plate width × height (mm)1650 x 300
see more

Overview

No.974529

Brand Name:

XCMG

Model Number:

XE40

Year:

2016

Location:

Guangdong China
