Product Description

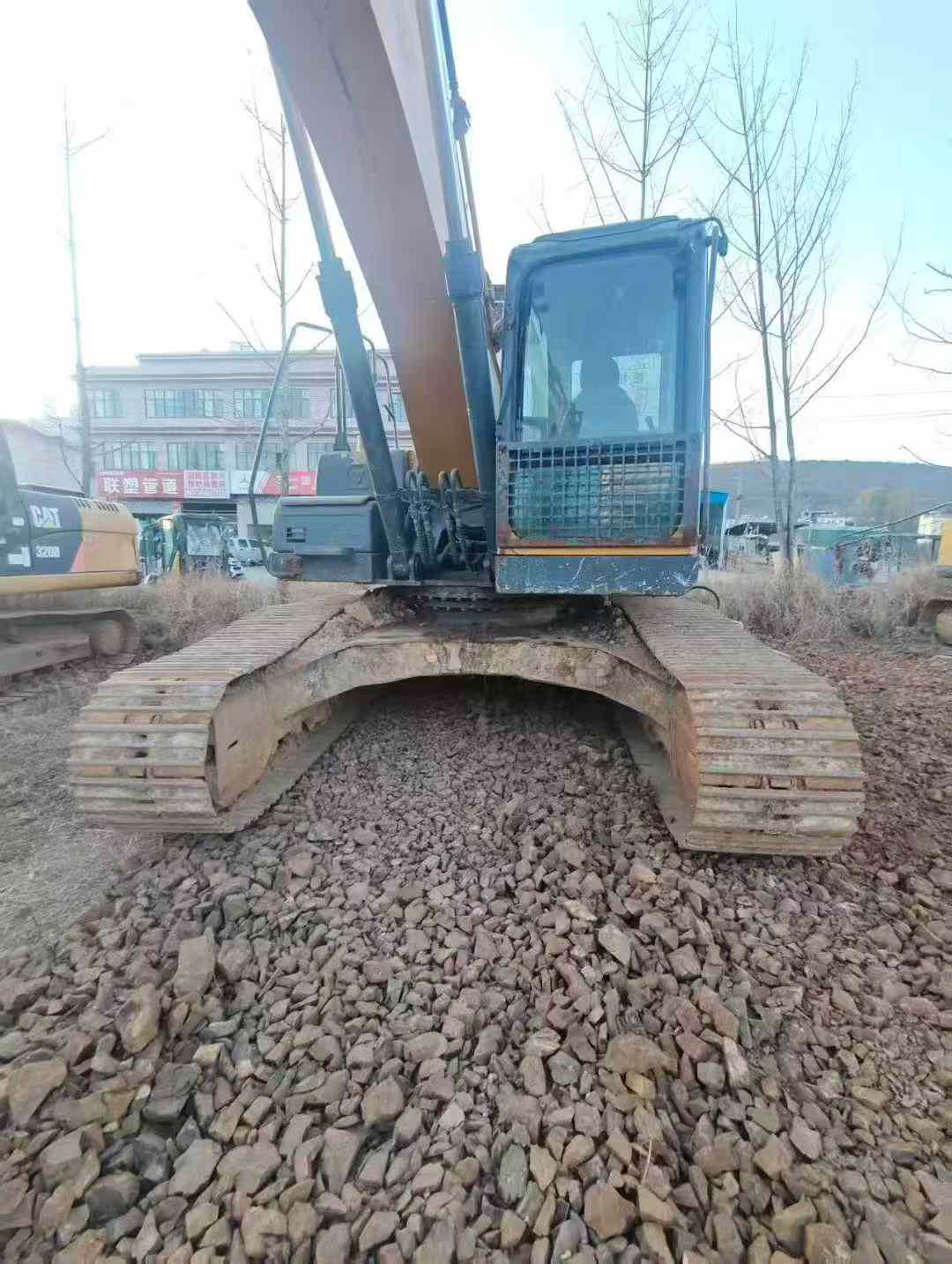

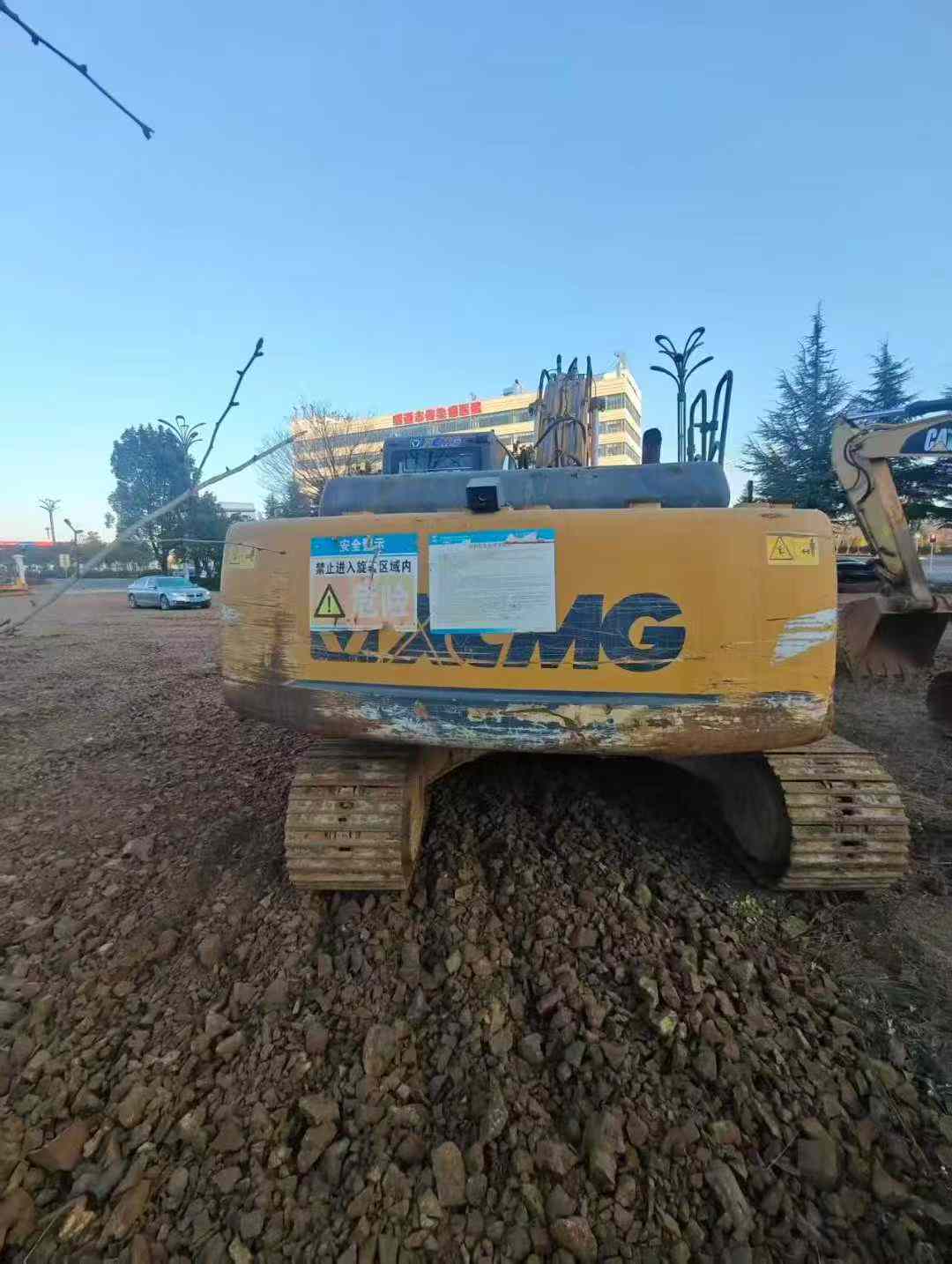

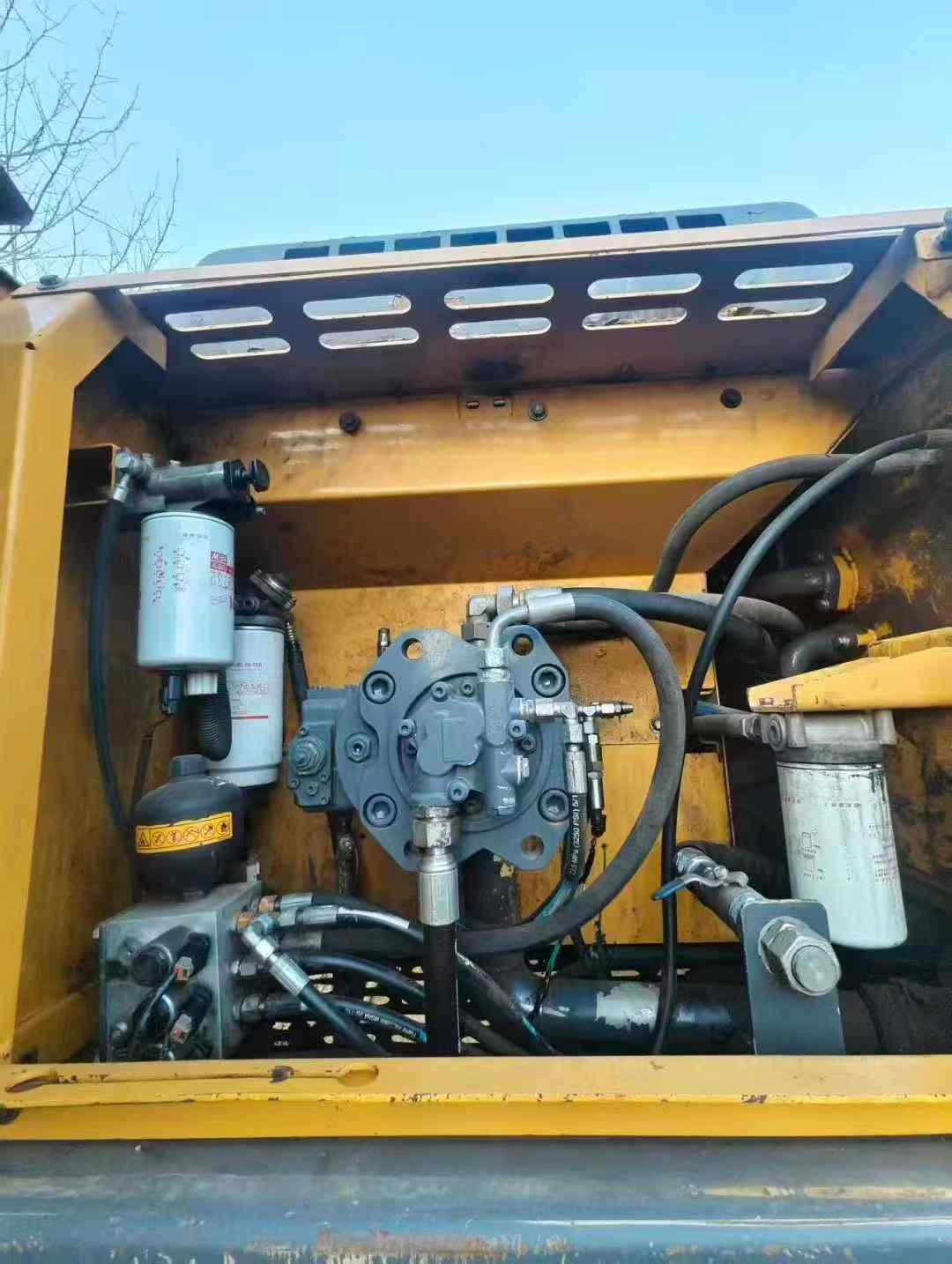

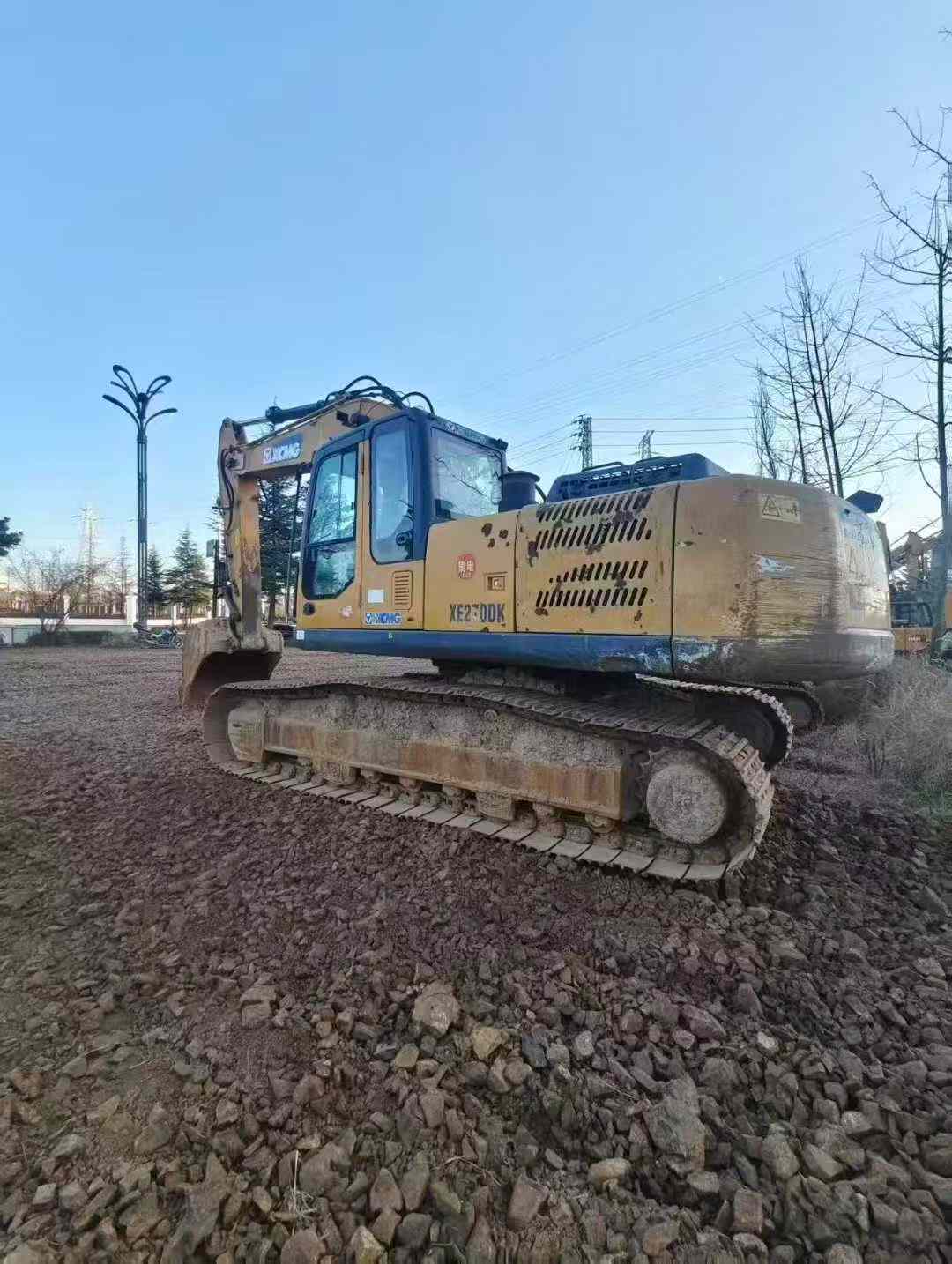

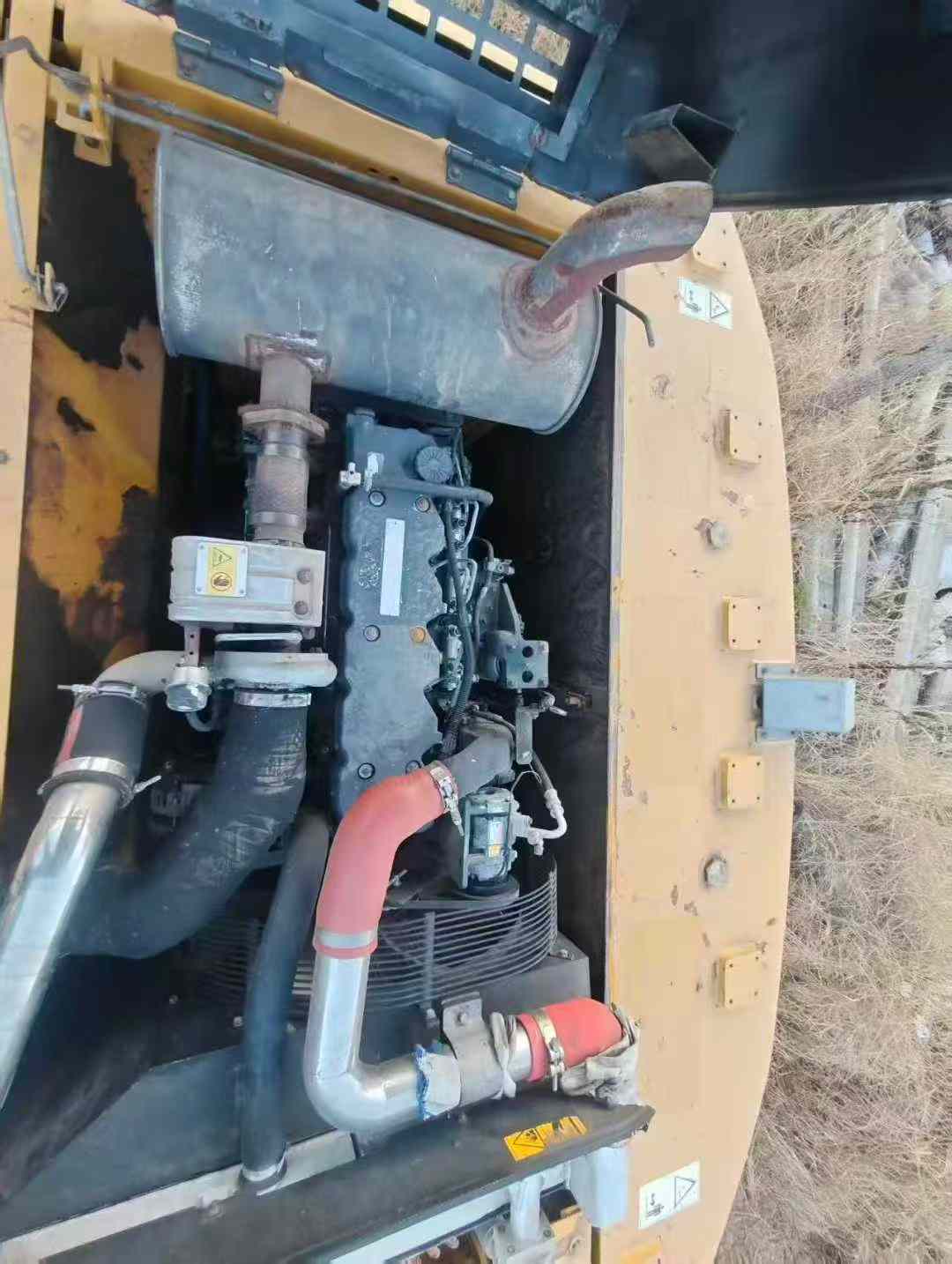

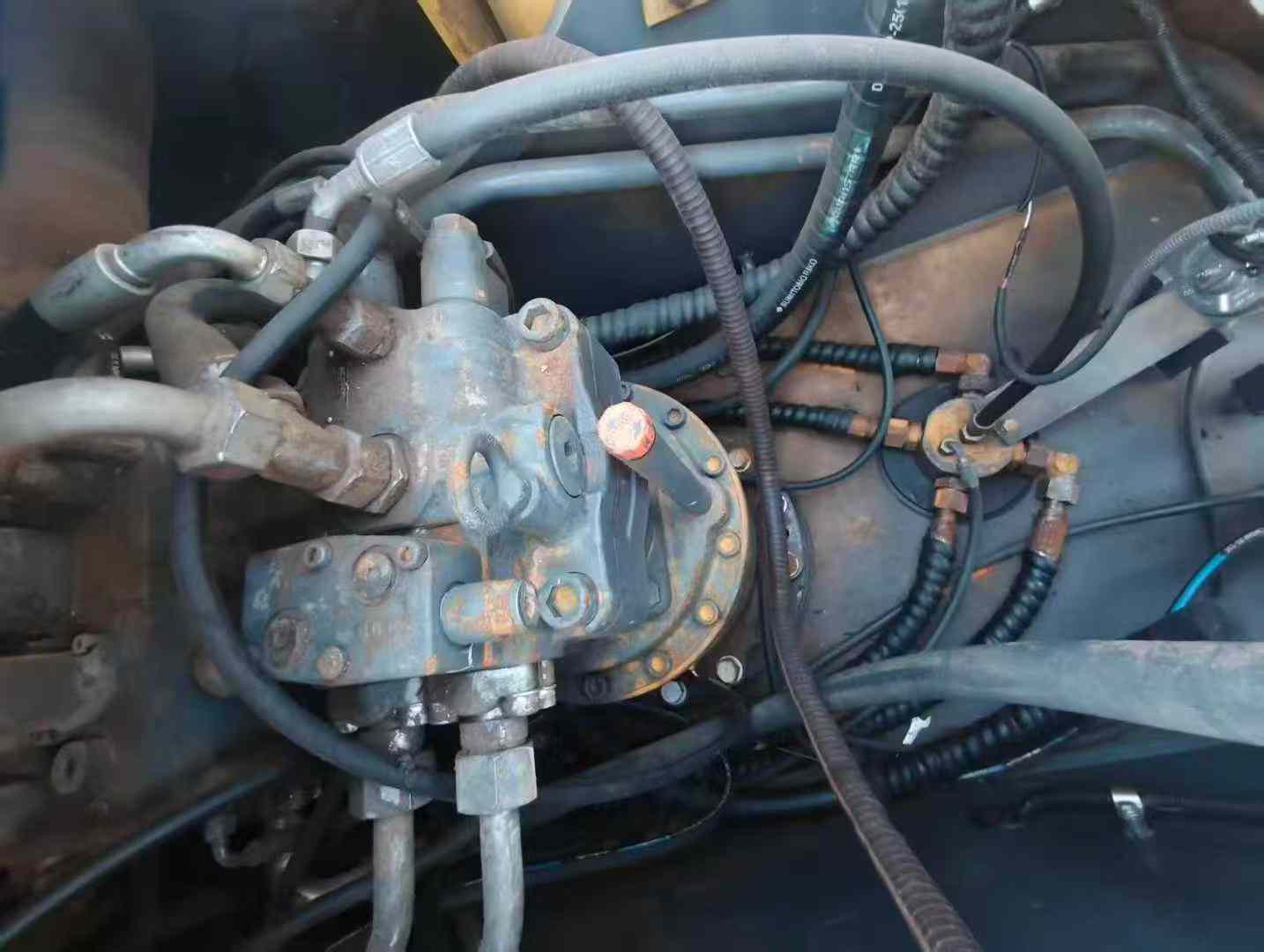

【 Premium Recommendation 】 Second-hand XCMG XE240 excavator, a cost-effective choice We currently have first-hand supply of second-hand XCMG XE240 excavators, with a working time of only 99,000 hours and stable and reliable performance. This machine is equipped with a Weichai WP10G220E343 engine, with a maximum power output of 162kW at 2200rpm. It features strong power and low fuel consumption, ensuring efficient operation under all working conditions. The hydraulic system is equipped with high-quality Kawasaki K5V180DT main pumps and Kawasaki M5X150 walking motors, providing excellent digging force and a smooth operating experience. The main advantages of this excavator include: - High efficiency and energy saving: Advanced electronic fuel injection technology significantly enhances fuel efficiency. - Strong durability: Key components are made of high-quality materials, ensuring a long service life. - Easy maintenance: The design takes into account the needs of daily maintenance, facilitating quick inspection and upkeep. - Comfortable operation: The spacious cab is equipped with an air conditioning system, providing the operator with a good working environment. It is expected that this device will also have the following features:
| Specifications | Value |
|---|---|
| No. | 976140 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4050 |
| Bucket capacity (m³) | 0.14 |
| Boom length (mm) | 2795 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV88 |
| Rated power (kw/rpm) | 27.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.19 |
| Ground specific pressure (Kpa) | 23.6 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 23.2 |
| Rod digging force (kN) | 19.3 |
| Travel speed (km/h) | 4.2/2.6 |
| Main overflow set pressure (Mpa) | 21 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*110+11 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 21 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 65 |
| Engine Oil changes (L) | 7.4 |
| Hydraulic System (L) | 70 |
| Total transport length (mm) | 5455 |
| Total transport width (mm) | 1650 |
| Total transport height (mm) | 2440 |
| Counterweight ground clearance (mm) | 578 |
| Minimum ground clearance (mm) | 350 |
| Minimum turning radius of front working device (mm) | 2385 |
| Back end turning radius (mm) | 1490 |
| Track gauge (mm) | 1335 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1721 |
| Maximum digging radius (mm) | 5810 |
| Maximum digging depth (mm) | 3600 |
| Maximum excavation height (mm) | 5320 |
| Maximum unloading height (mm) | 3700 |
| Maximum vertical digging depth (mm) | 2250 |
| Bulldozer lift or depth (mm) | 267/365 |
| Dodging plate width × height (mm) | 1650 x 300 |
