Product Description

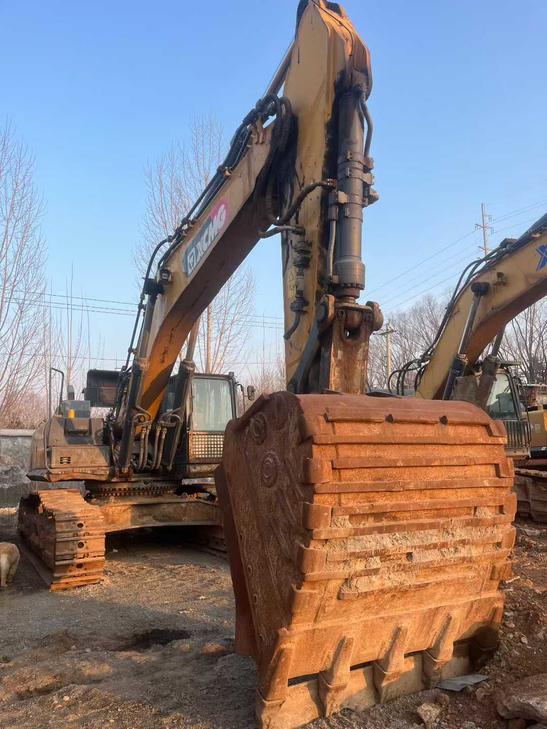

Built for demanding construction environments, this 2020 XCMG XE490D excavator delivers proven performance with 49 tons of operational power. Four years of reliable service demonstrate the robust engineering that makes XCMG machinery a trusted choice across global worksites.
Powered by a QSM111 engine producing 280kW at 2050 rpm, this workhorse maintains consistent productivity through its dual plunger pump hydraulic system. The 2.5m³ bucket capacity and 11,085mm maximum digging radius provide versatile excavation capabilities for large-scale projects.
- 49-ton working weight with 305kN bucket digging force
- 6,985mm maximum digging depth for deep foundation work
- 725L fuel tank capacity for extended operation cycles
- Water-cooled engine with turbocharged performance
- Located in Jinan, Shandong for immediate inspection
This proven excavator combines Chinese manufacturing reliability with field-tested durability. Ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 981052 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100 |
| Bucket capacity (m³) | 2.5 (2.3-3.1) |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSM111 |
| Rated power (kw/rpm) | 280 / 2050 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1898 / 1300 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 305 |
| Rod digging force (kN) | 275 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4 / 3.2 |
| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3705 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Back end turning radius (mm) | 3800 |
| Onboard width (mm) | 3095 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4292 |
| Maximum digging radius (mm) | 11085 |
| Maximum digging depth (mm) | 6985 |
| Maximum excavation height (mm) | 10050 |
| Maximum unloading height (mm) | 6940 |
| Maximum vertical digging depth (mm) | 4400 |
| Maximum excavation radius of stop surface (mm) | 10860 |
