| Specifications | Value |
|---|---|
| No. | 962239 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

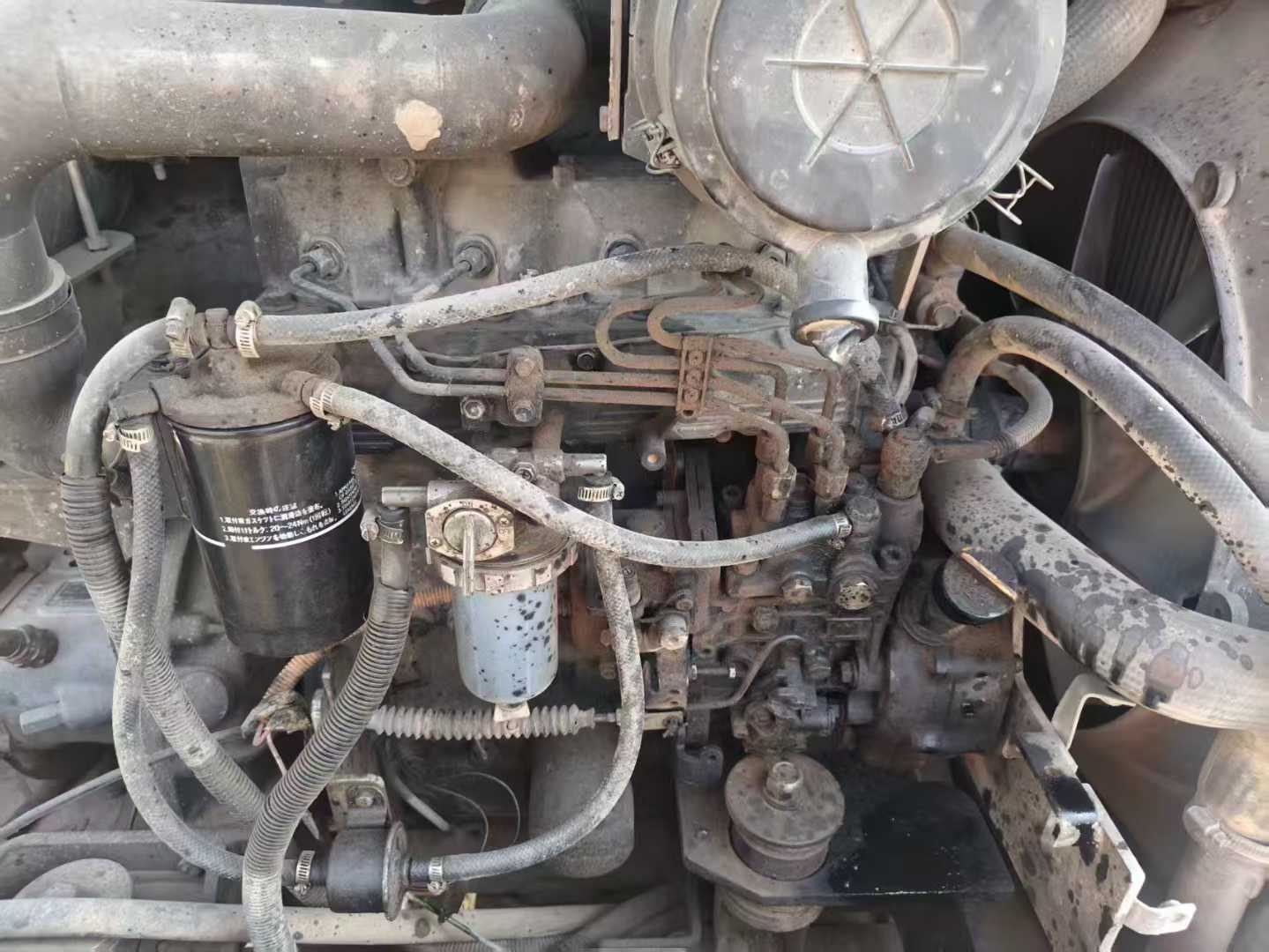

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

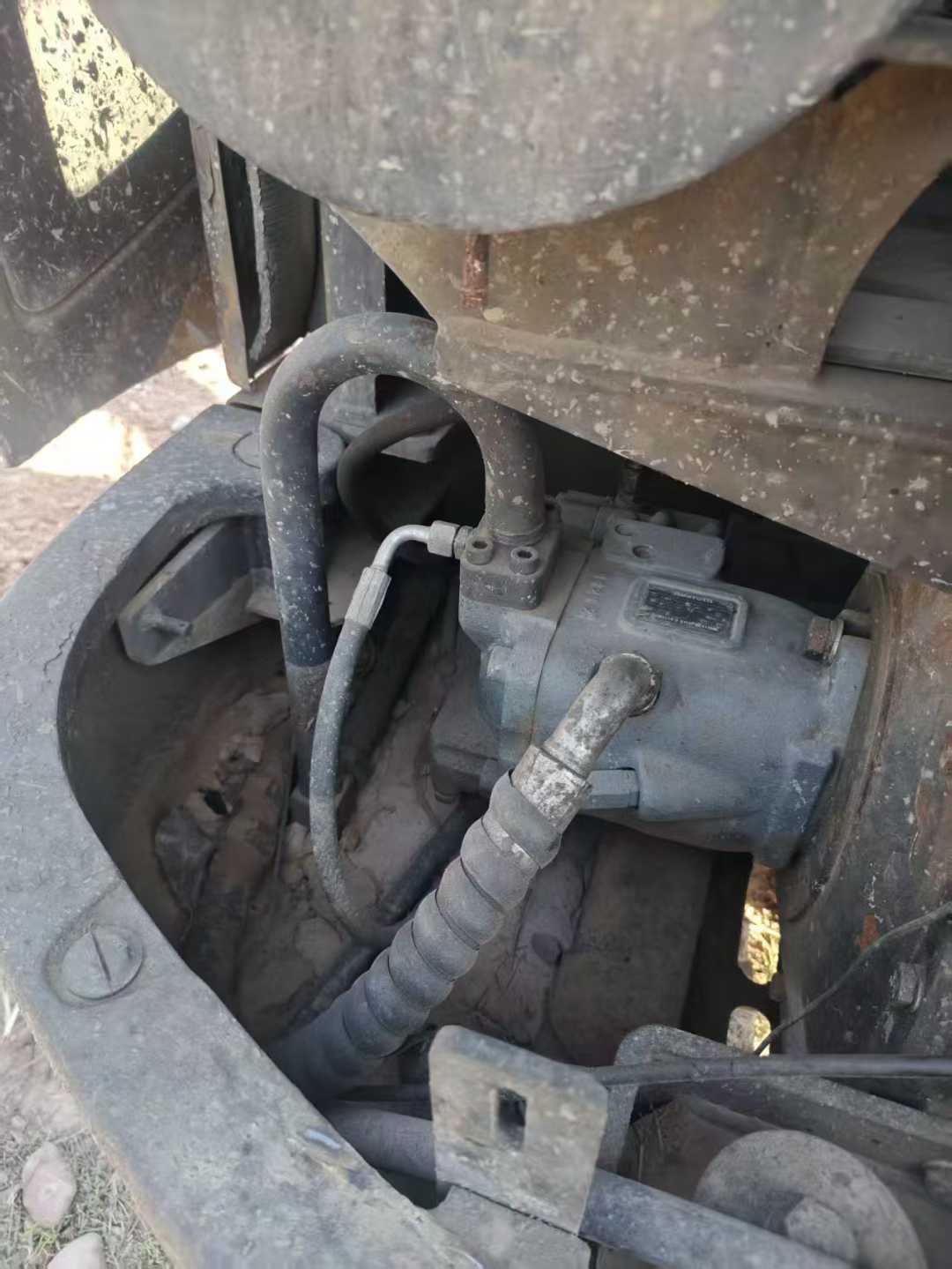

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

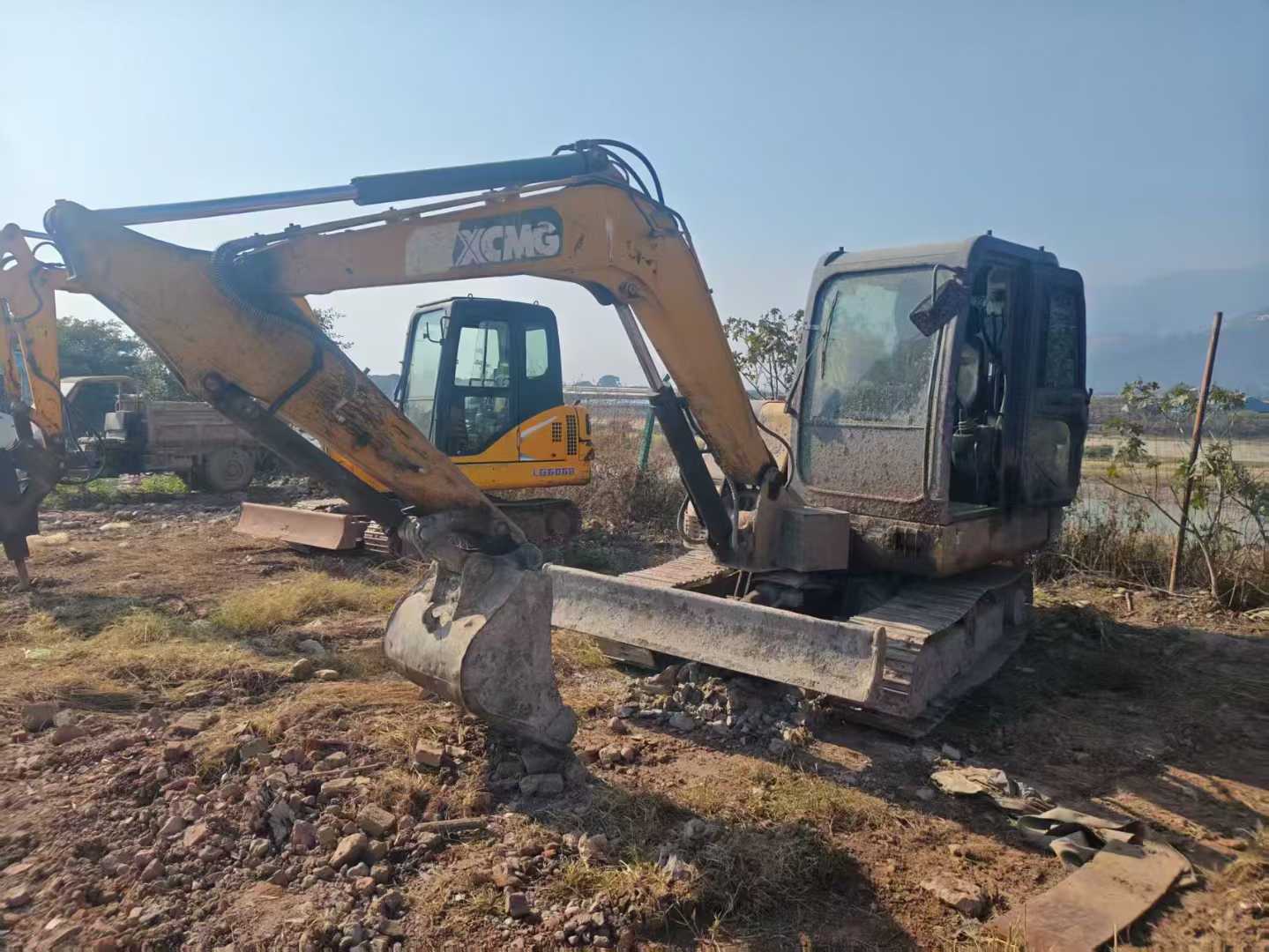

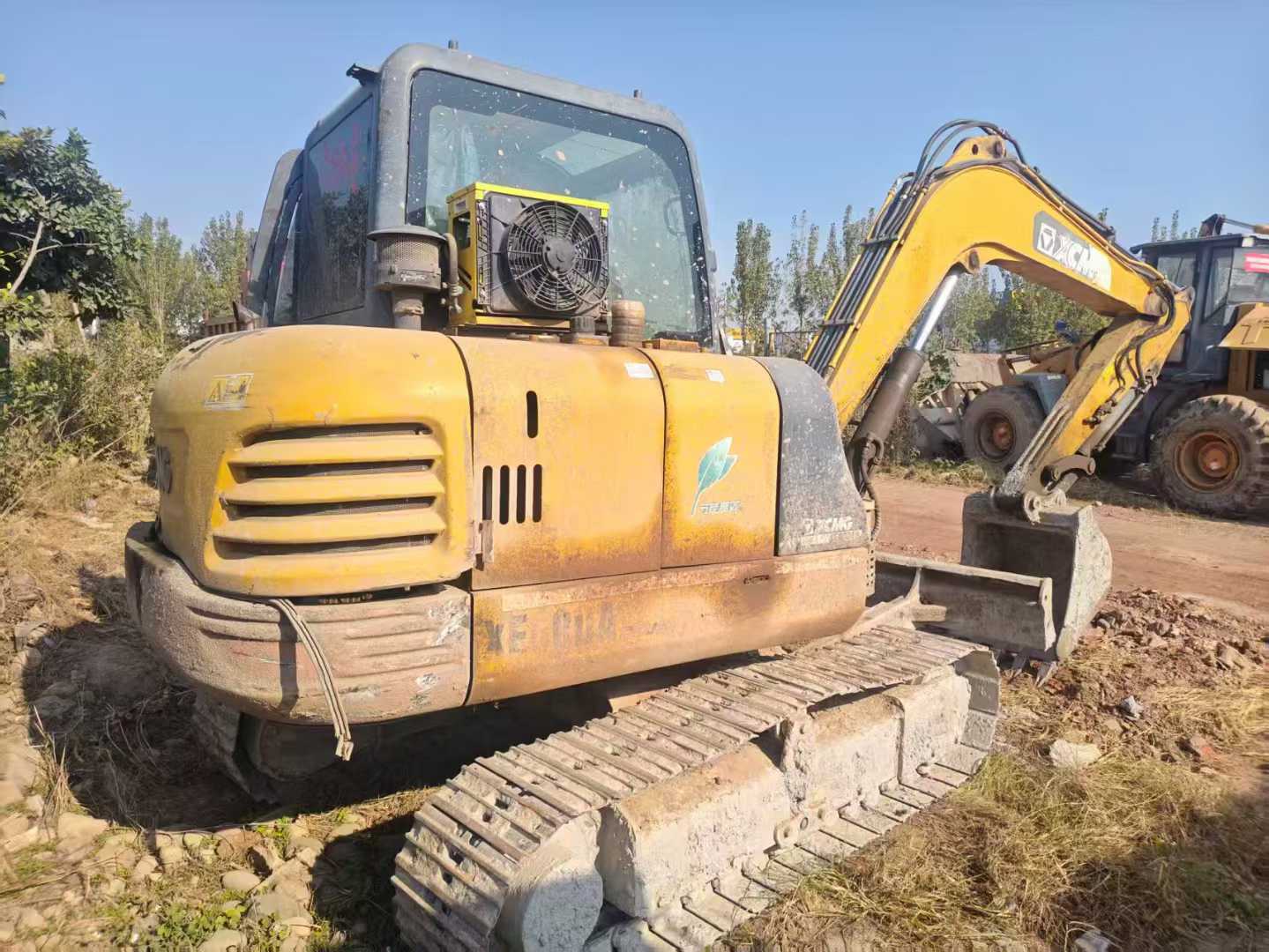

"XCMG XE60 Second-hand excavator This second-hand XCMG XE60 excavator, which was put into use in 2018, has a cumulative working time of only 3,500 hours. With proper maintenance and stable overall performance, it is a rare high-quality second-hand equipment in the market. This machine is equipped with the well-tested Yanmar 4TNV98 four-cylinder direct injection turbocharged engine, which not only has strong power but also good fuel economy, effectively reducing operating costs. In addition, this engine also features low noise and low emissions, meeting environmental protection requirements while providing operators with a more comfortable working environment. In terms of the hydraulic system, XCMG XE60 is equipped with an advanced negative flow control system, ensuring high efficiency and accuracy during operation. Whether it is digging, breaking or leveling the ground, it can handle it with ease, demonstrating outstanding controllability and flexibility. Meanwhile, its unique design makes maintenance simple and fast, greatly reducing downtime and improving work efficiency. The vehicle body structure is sturdy and durable. The cab is spacious and bright with a wide field of vision. It is equipped with an air conditioning system, whi
