| Specifications | Value |
|---|---|
| No. | 962371 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

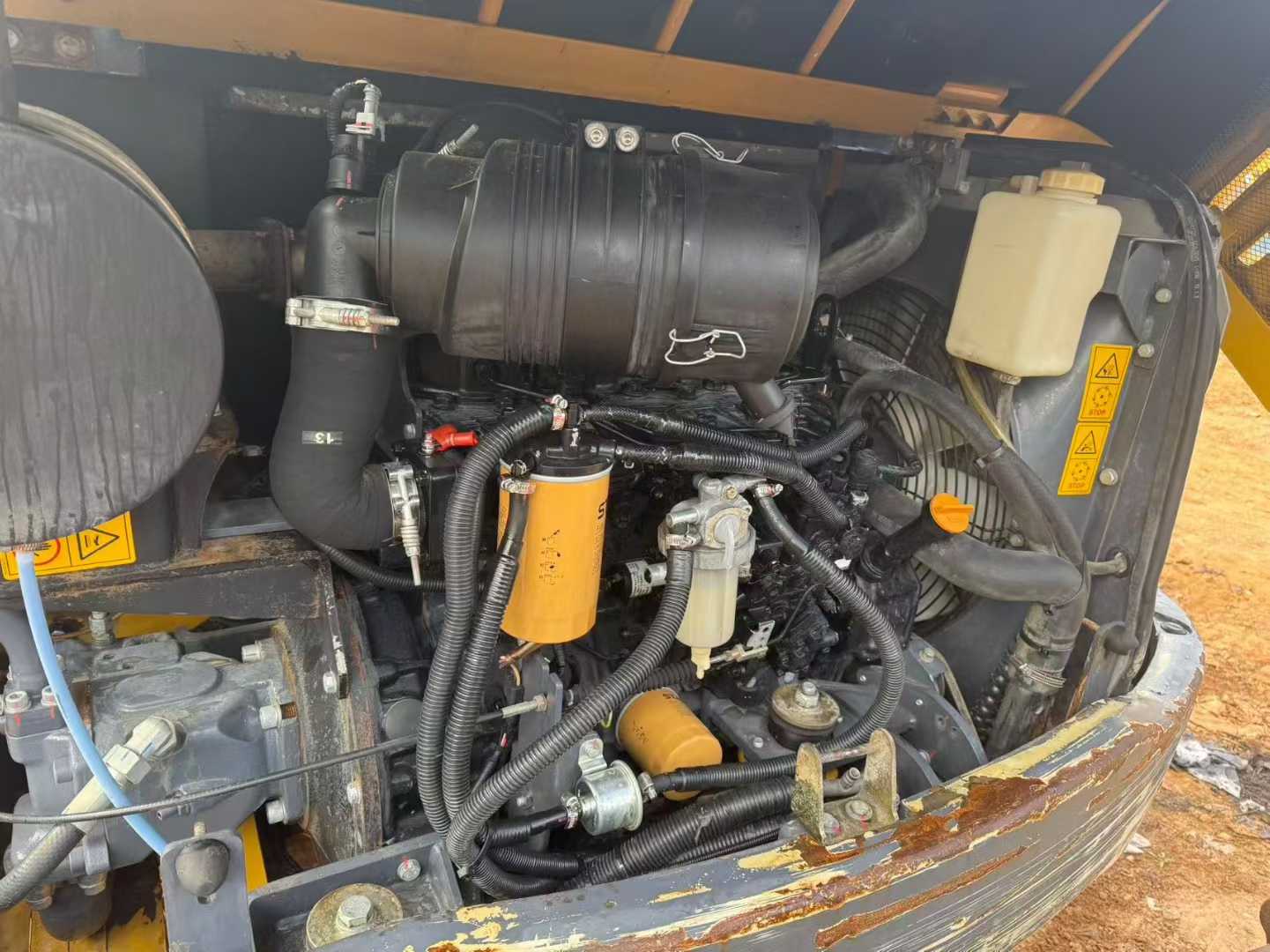

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description
【 Premium Recommendation 】 XCMG XE60D second-hand excavator, manufactured in 2019, has only been in operation for over 60,000 hours. It features outstanding performance and reliable quality. This excavator has been highly praised in the market for its excellent cost performance and durability. The power system adopts the well-tested Yanmar 4TNV98 engine, which features high efficiency, energy conservation, low noise and low emissions, ensuring the stable operation of the machine under various working conditions. The hydraulic system adopts advanced negative flow control technology, making the operation more precise and smooth, with a faster response speed, and greatly improving work efficiency. This machine has undergone comprehensive testing, and all performance indicators have reached or exceeded the factory standards. It can be directly put into use on construction sites without additional maintenance, saving you a lot of time and cost. The appearance is as clean and new as new, and the internal structure is intact. It performs excellently in both excavation force and walking ability, making it highly suitable for the needs of small and medium-sized earthwork projects, municipal construction and other projects. Currently, this dev
