| Specifications | Value |
|---|---|
| No. | 962475 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

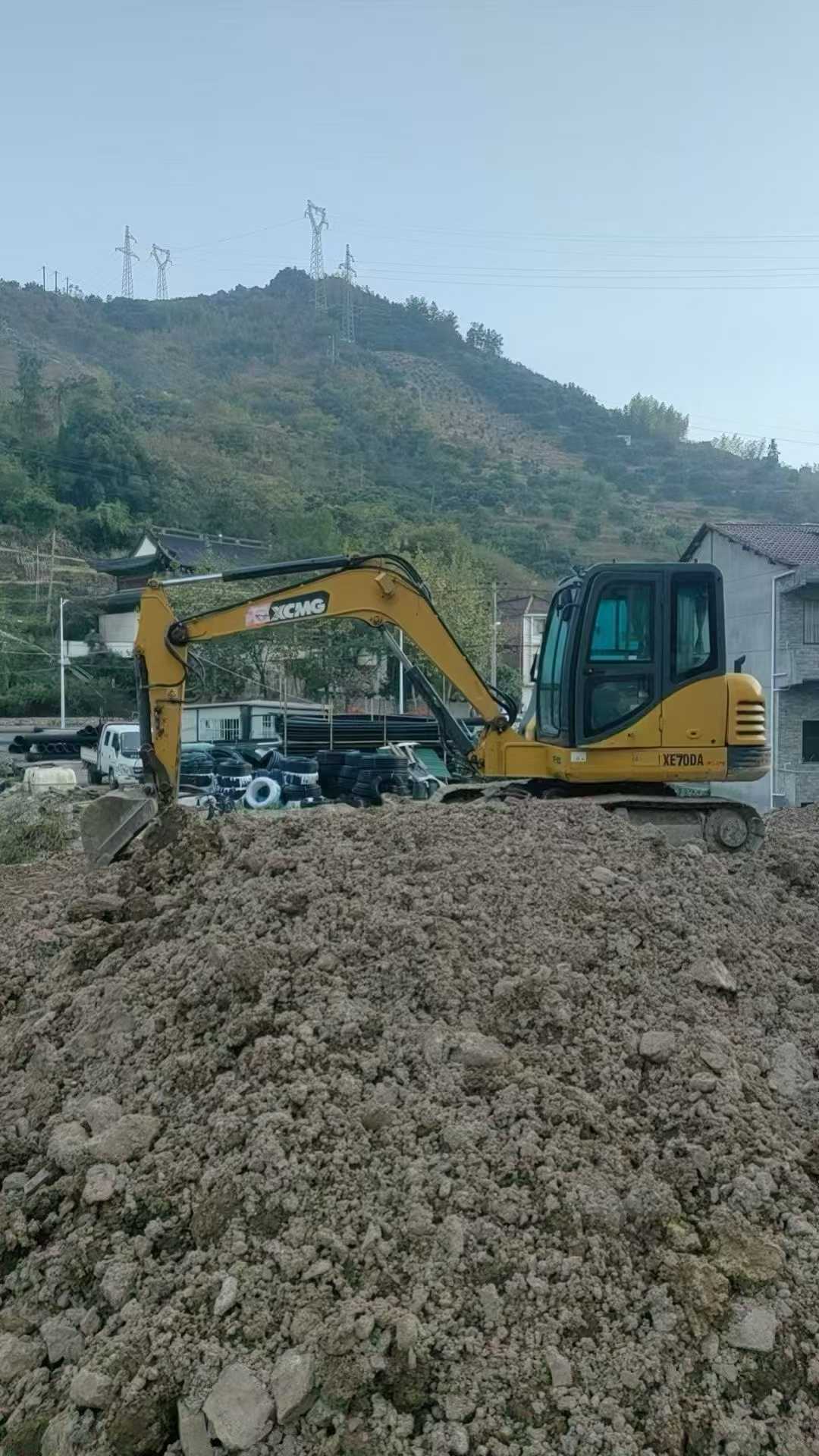

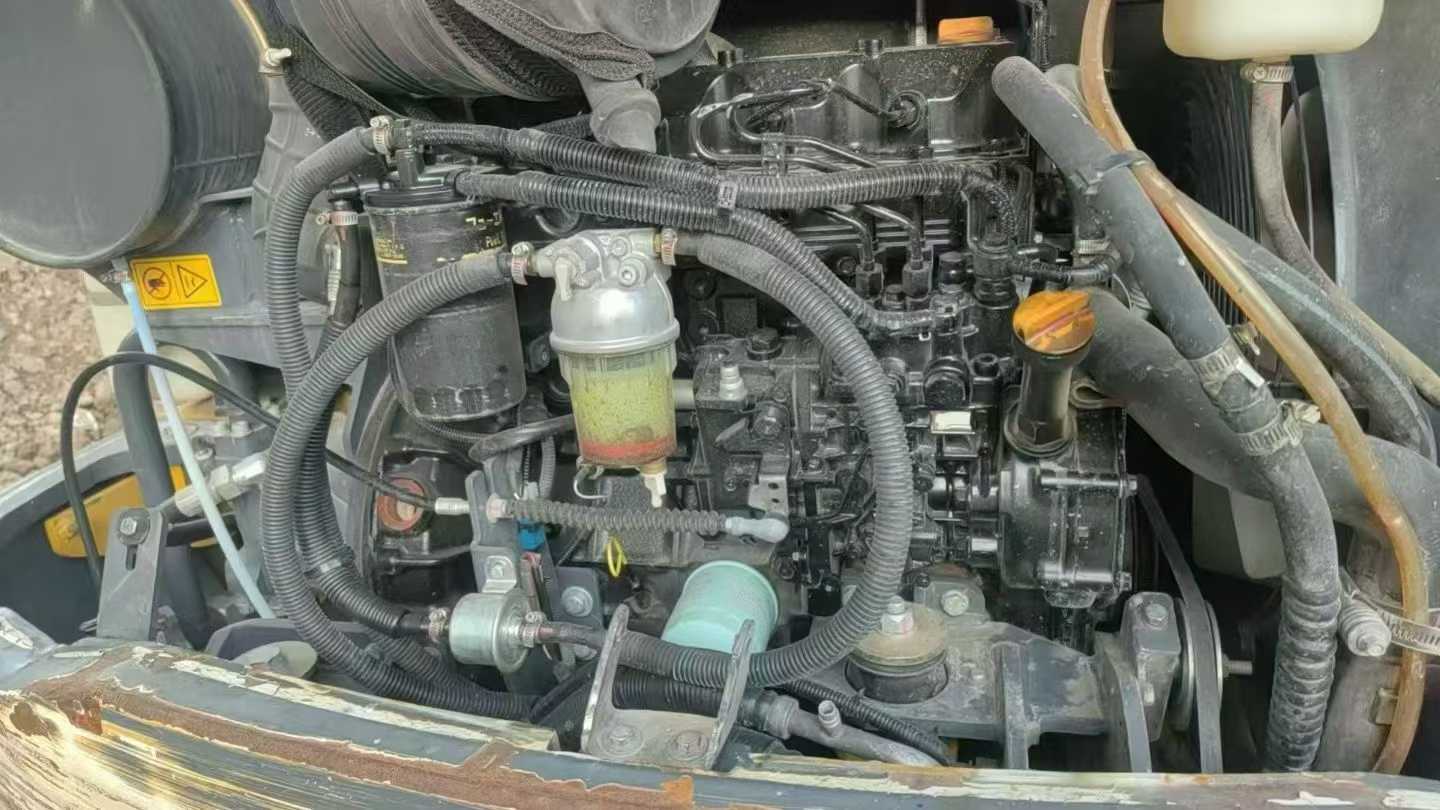

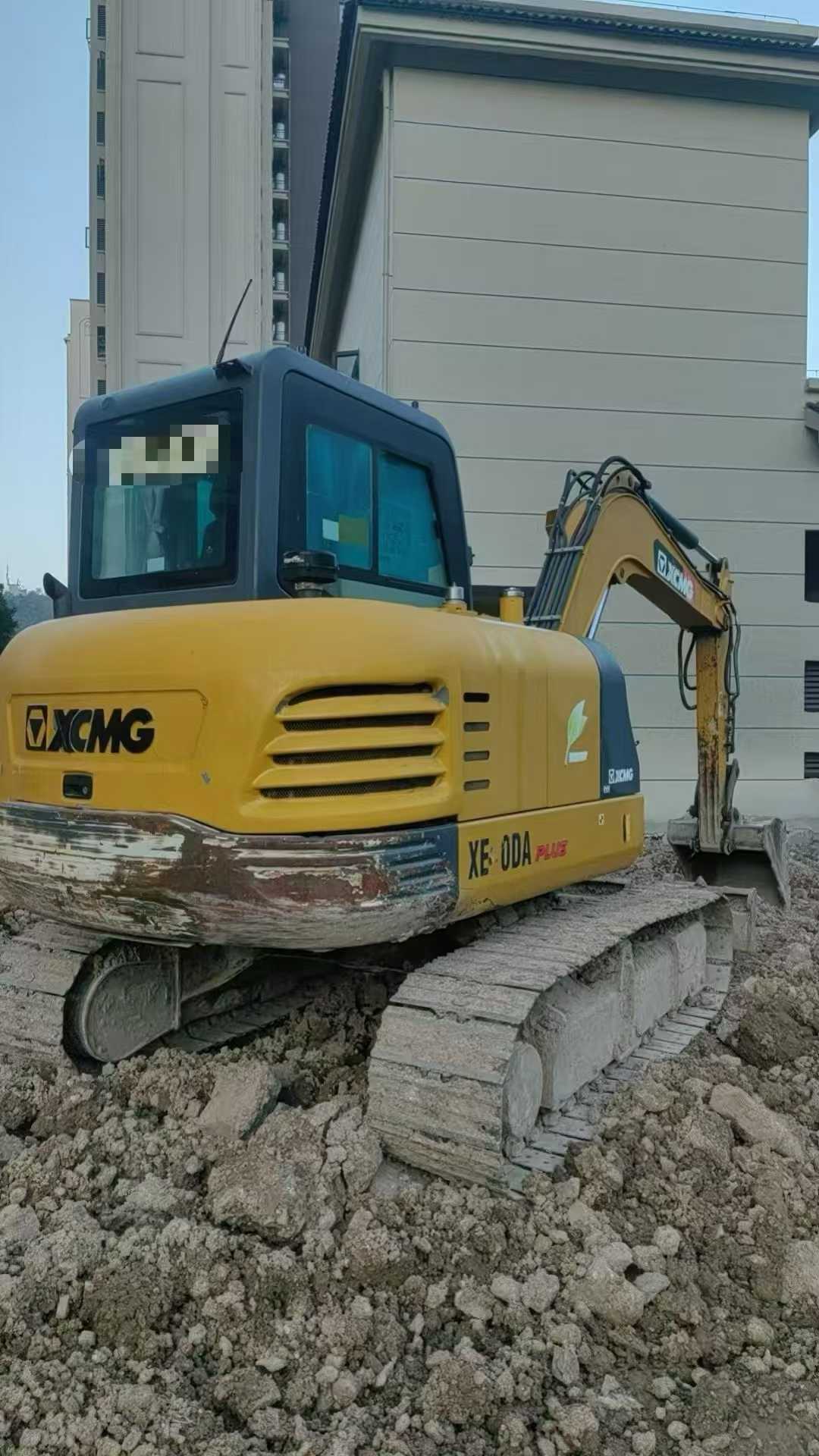

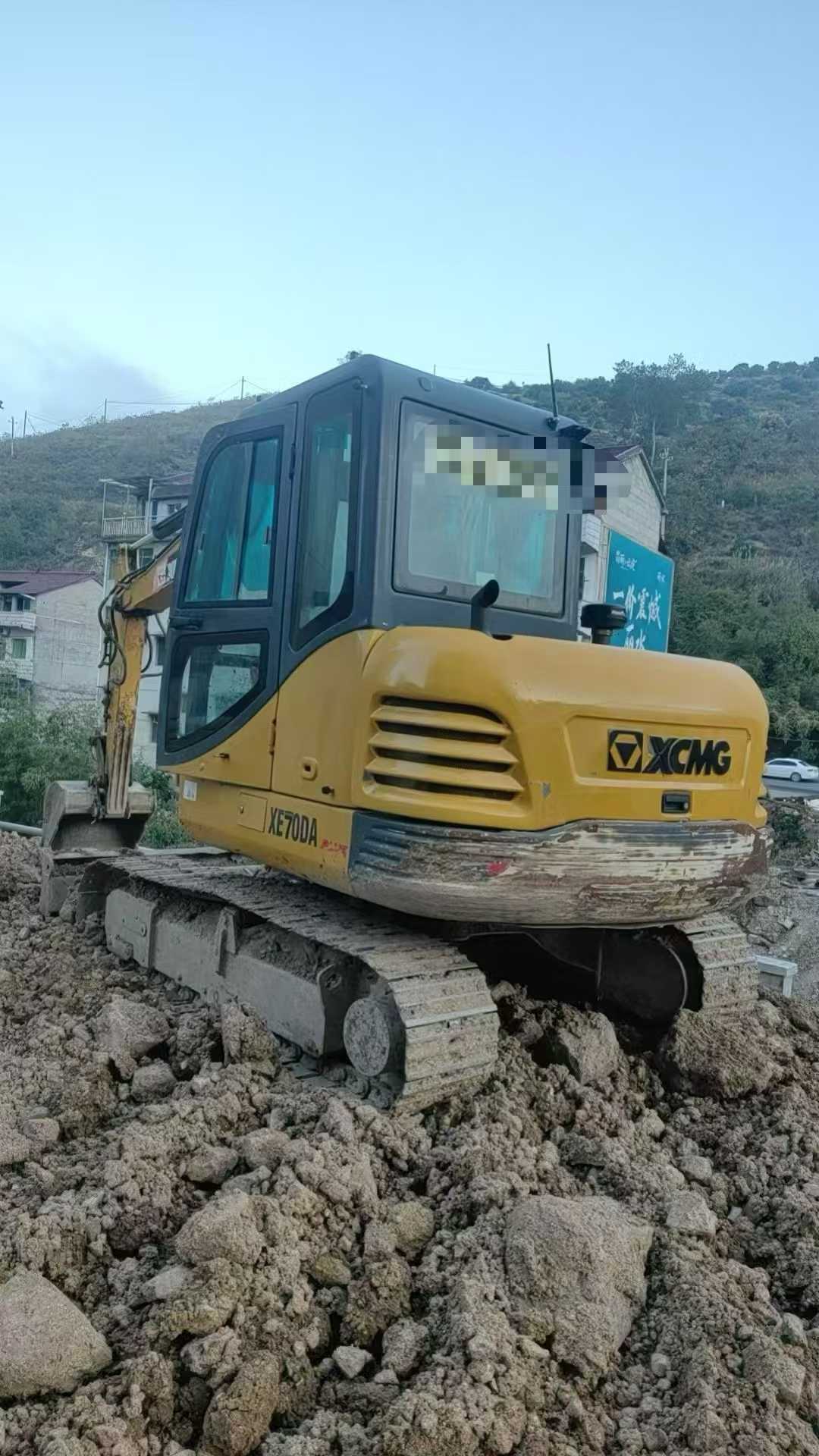

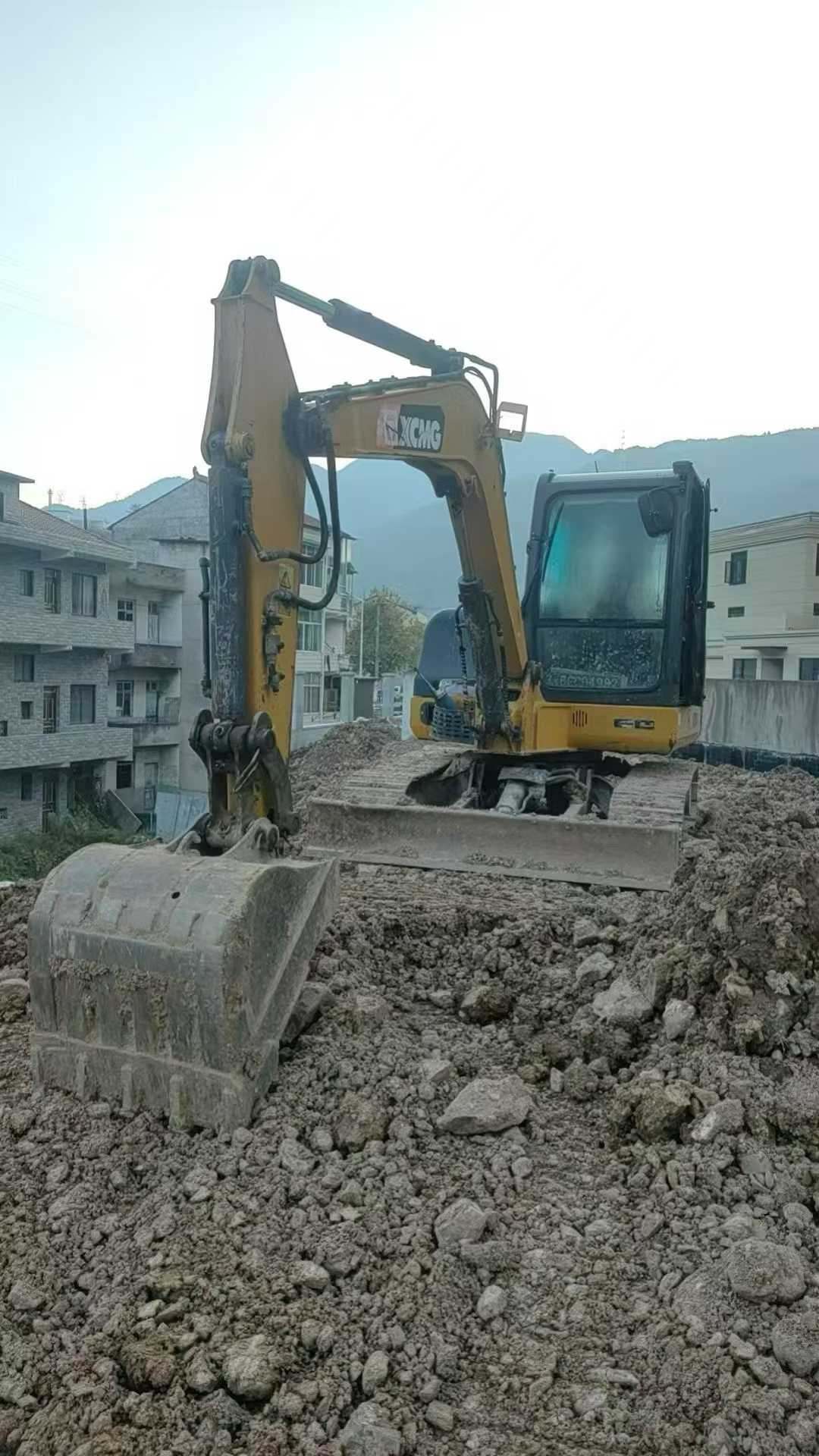

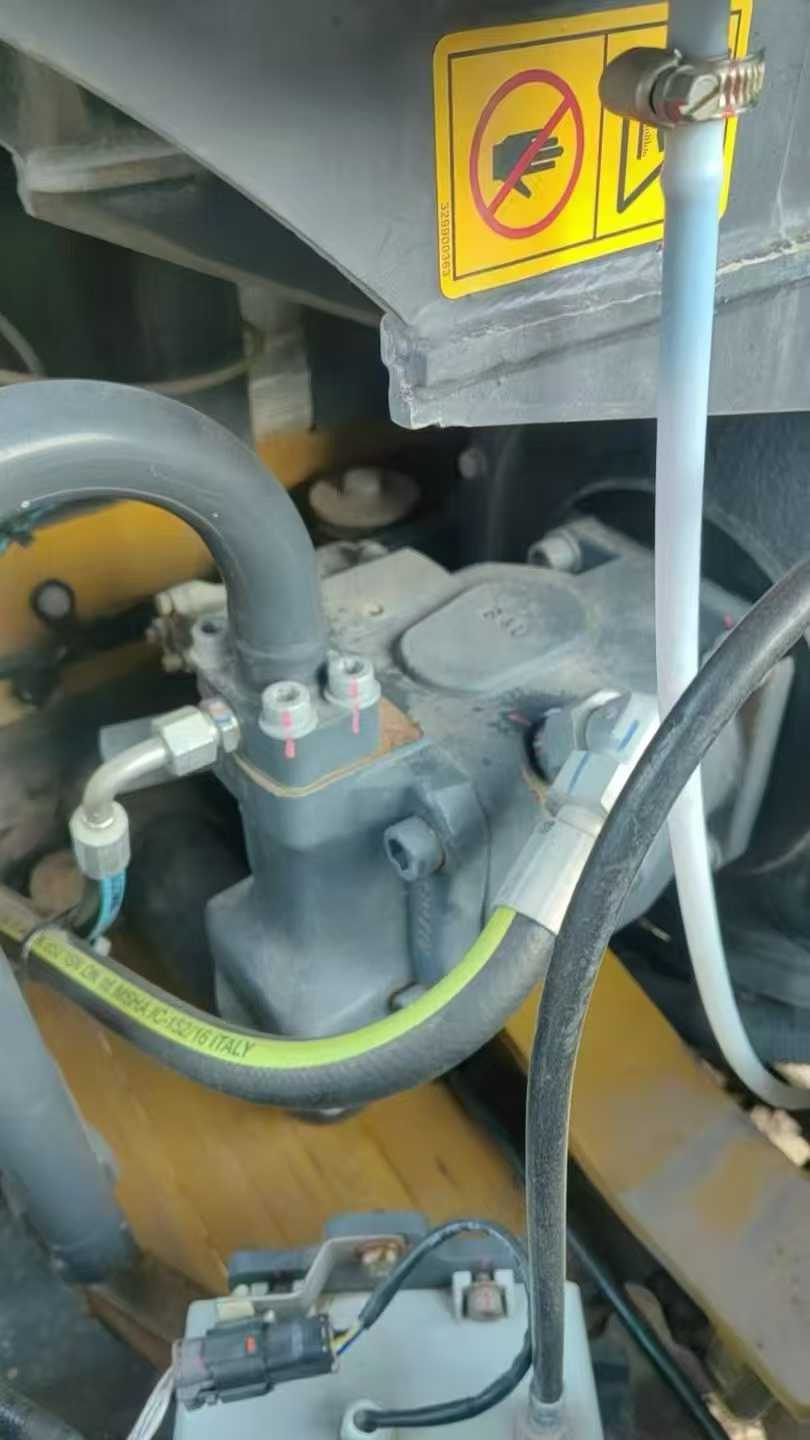

【 Premium Recommendation 】 Second-hand XCMG XE60D excavator from 2022 This second-hand XCMG XE60D excavator from 2022 has a total working time of only 7,800 hours, which is equivalent to an average daily usage of less than 10 hours. For such a young device, its service life and performance condition are both at a very good level. This machine is equipped with a high-quality Yanmar 4TNV98 engine, which is powerful, stable and reliable. Its maximum output power can reach 40.5KW, and it performs well in various complex working conditions. Both its digging force and climbing ability are excellent. In terms of the hydraulic system, it is equipped with imported Kawasaki KPM series main pumps and valve groups, ensuring smooth operation and rapid response of the entire machine, while also featuring excellent energy-saving effects. In addition, this excavator also pays special attention to detailed design, such as the reinforced boom boom structure, which effectively improves the operation efficiency. The spacious and comfortable cab provides the operator with an excellent working environment. In conclusion, this is a second-hand excavator with an extremely high cost performance, especially suitable for small and medium-sized construction si
