| Specifications | Value |
|---|---|
| No. | 962522 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

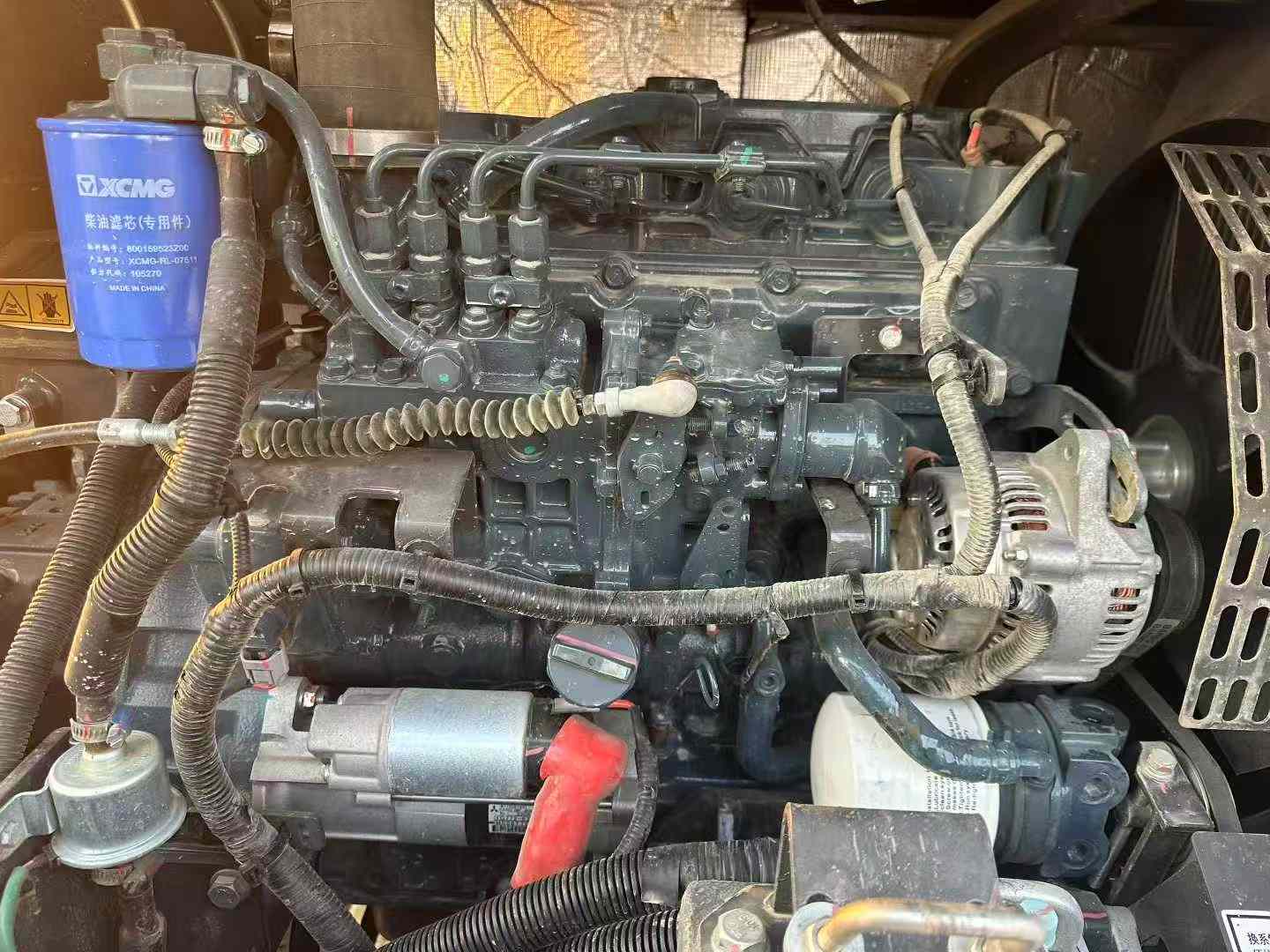

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

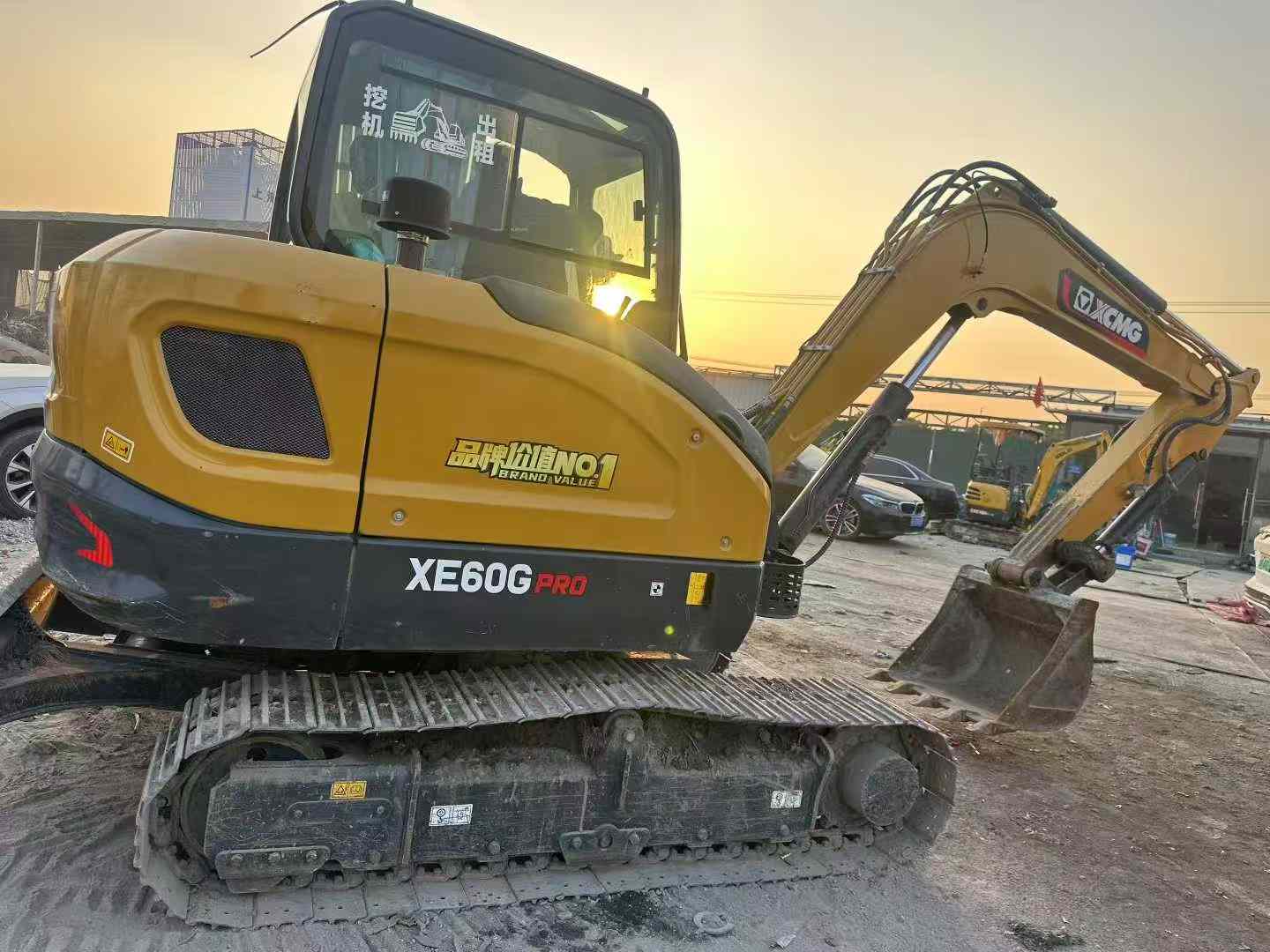

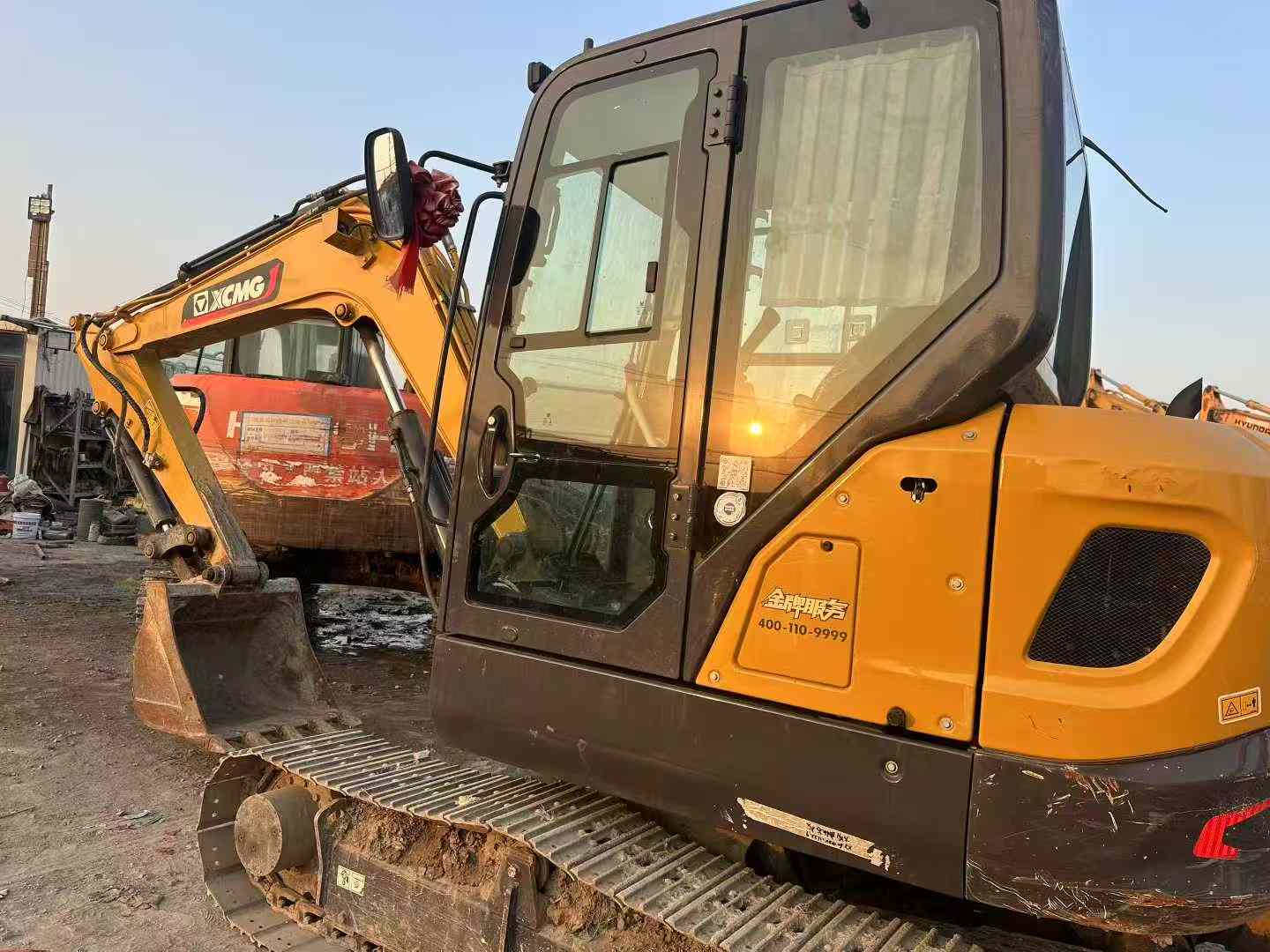

【 Premium Recommendation 】2024 XCMG XE60 excavator, only 1,000 hours on the actual watch, fully painted after removal, in as good condition as new! This XCMG XE60 excavator is the latest model of 2024, with a working time of only 1,000 hours and an extremely low usage frequency, almost in brand new condition. The power system adopts a high-performance engine, ensuring strong power output and excellent fuel economy. Whether it is excavation, loading or other heavy operations, it can handle them with ease and complete tasks efficiently. In terms of the hydraulic system, this excavator is equipped with an advanced hydraulic control system, which is flexible and precise in operation, responds quickly, and greatly improves work efficiency. Meanwhile, the stability and reliability of the hydraulic system have been fully guaranteed, reducing the failure rate and extending the service life. In addition, this excavator has just undergone comprehensive maintenance and upkeep. The removed parts have been re-painted with high-quality paint, presenting a completely new appearance without any scratches or wear marks. The overall condition of the vehicle is excellent and can fully meet all your construction needs. If you are looking for a second-
