| Specifications | Value |
|---|---|
| No. | 962692 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

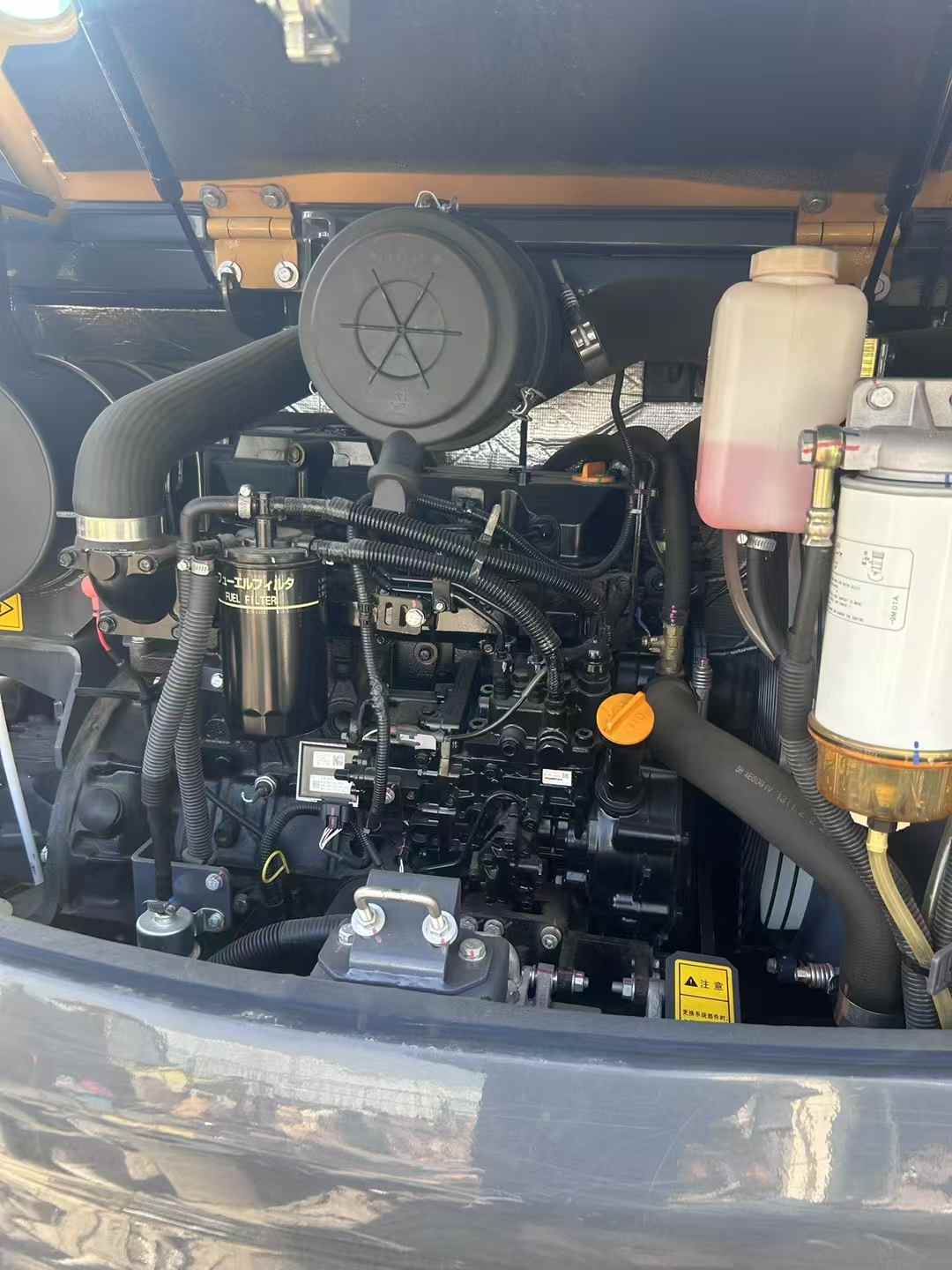

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description
【 Premium Recommendation 】 Second-hand XCMG XE60 excavators in stock for 2023 We are very glad to recommend this second-hand XCMG XE60 excavator from 2023 to you. This machine has only been in use for 1,500 hours since leaving the factory and is almost in brand new condition. It features stable and reliable performance and is highly suitable for the construction needs of medium and small-sized engineering projects. In terms of the power system, this excavator is equipped with an original imported Yanmar engine, which features strong power output and smooth operation performance. The low-noise design not only enhances the operator's working comfort but also reduces the impact on the surrounding environment. In addition, the highly efficient fuel economy enables this equipment to maintain a relatively low operating cost during long-term operation. The hydraulic system is made of components from internationally renowned brands, ensuring smooth operation, rapid response and high-precision control. Whether it is mining or loading tasks, it can handle them with ease, demonstrating outstanding work efficiency and stability. It is particularly worth mentioning its excellent maintenance convenience - all key components are easily accessible
