| Specifications | Value |
|---|---|
| No. | 962707 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

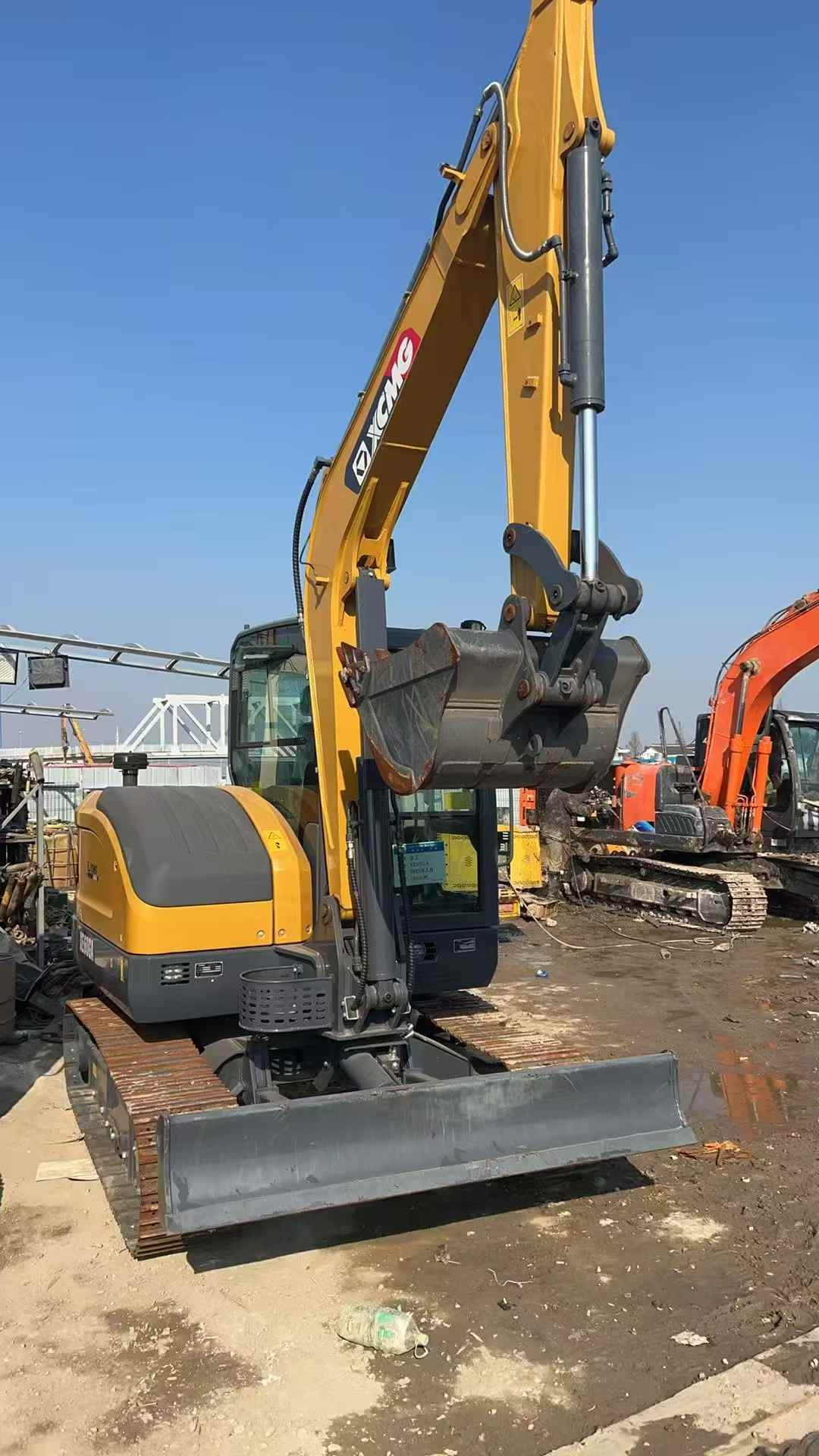

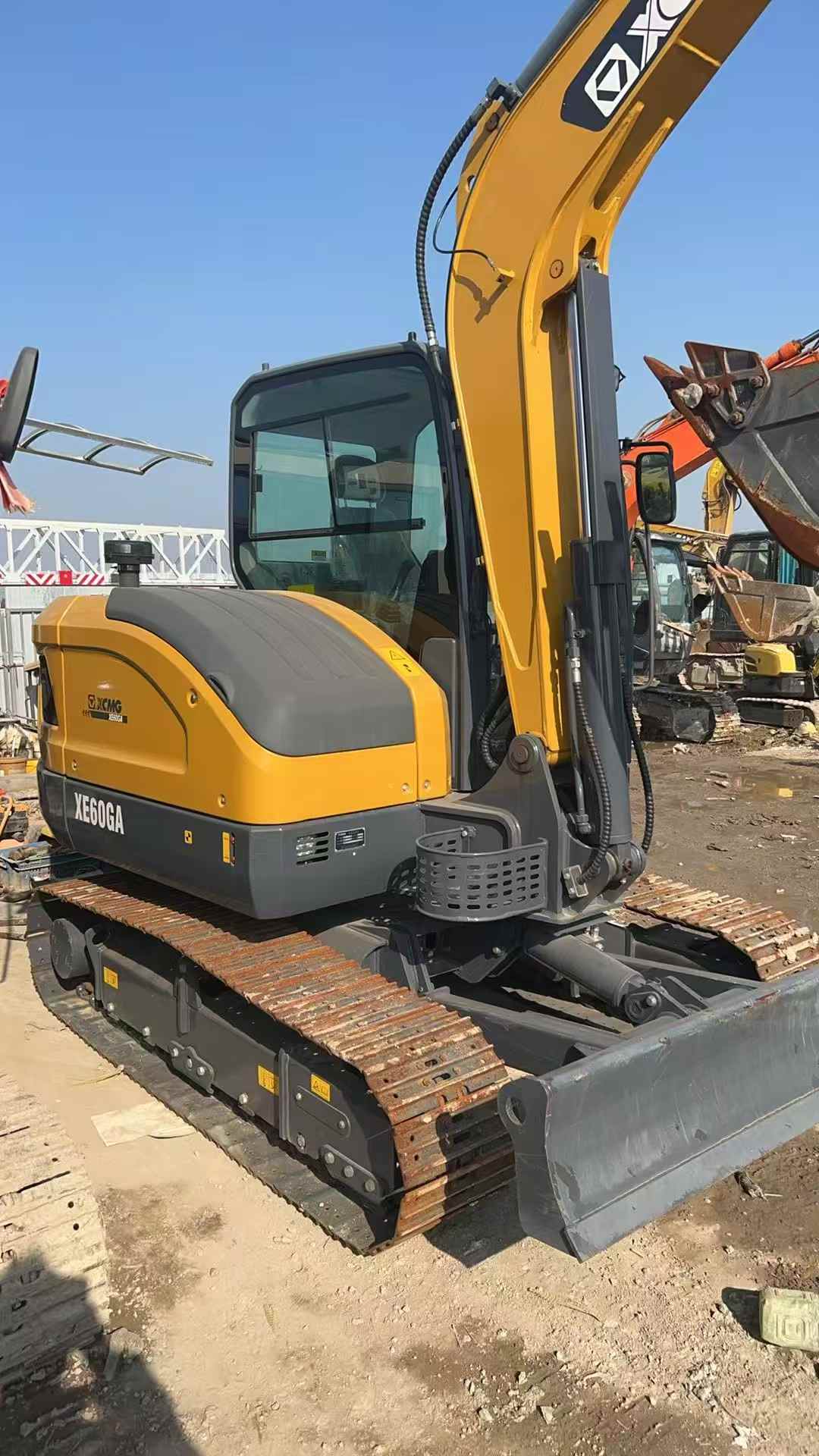

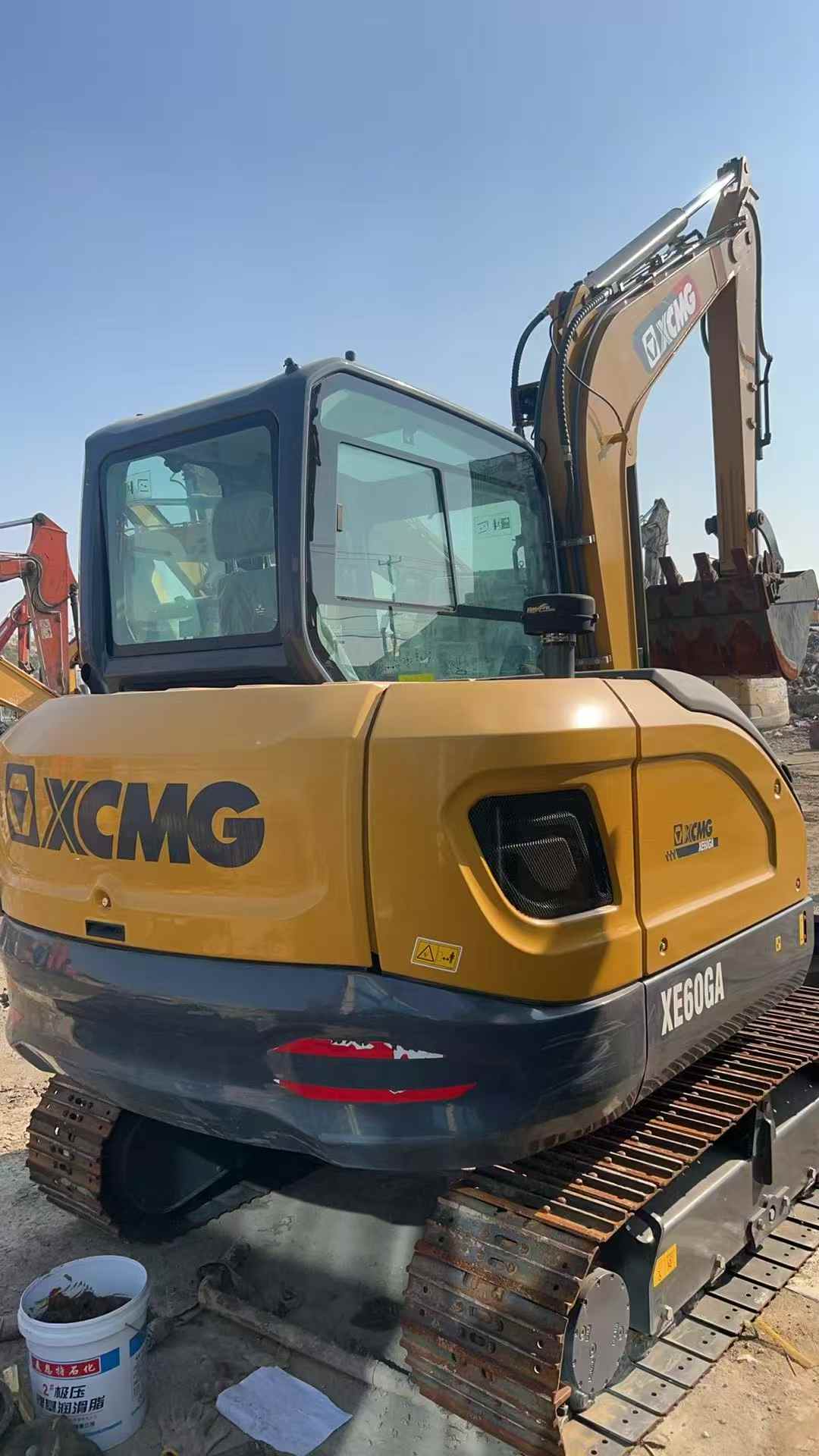

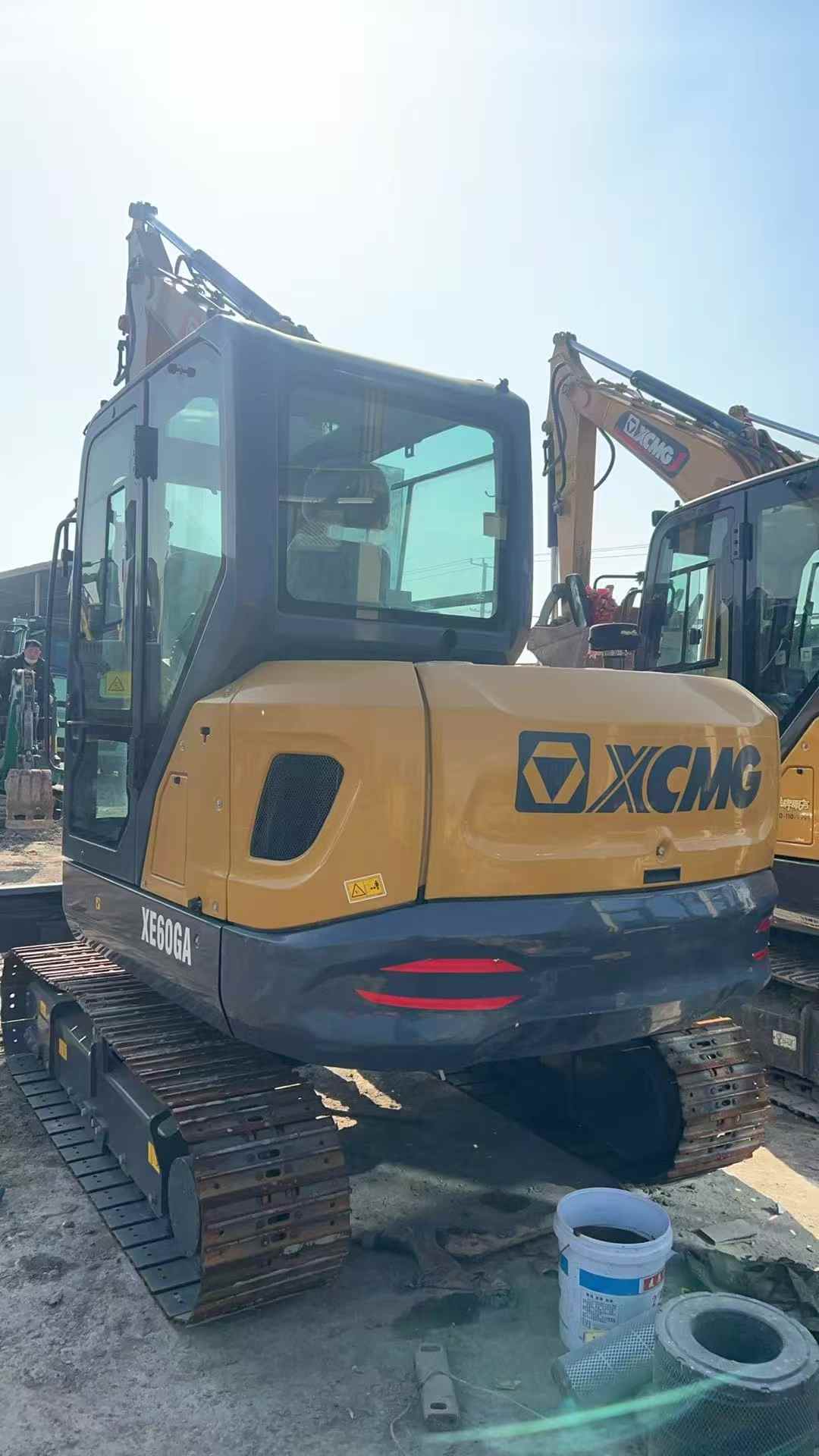

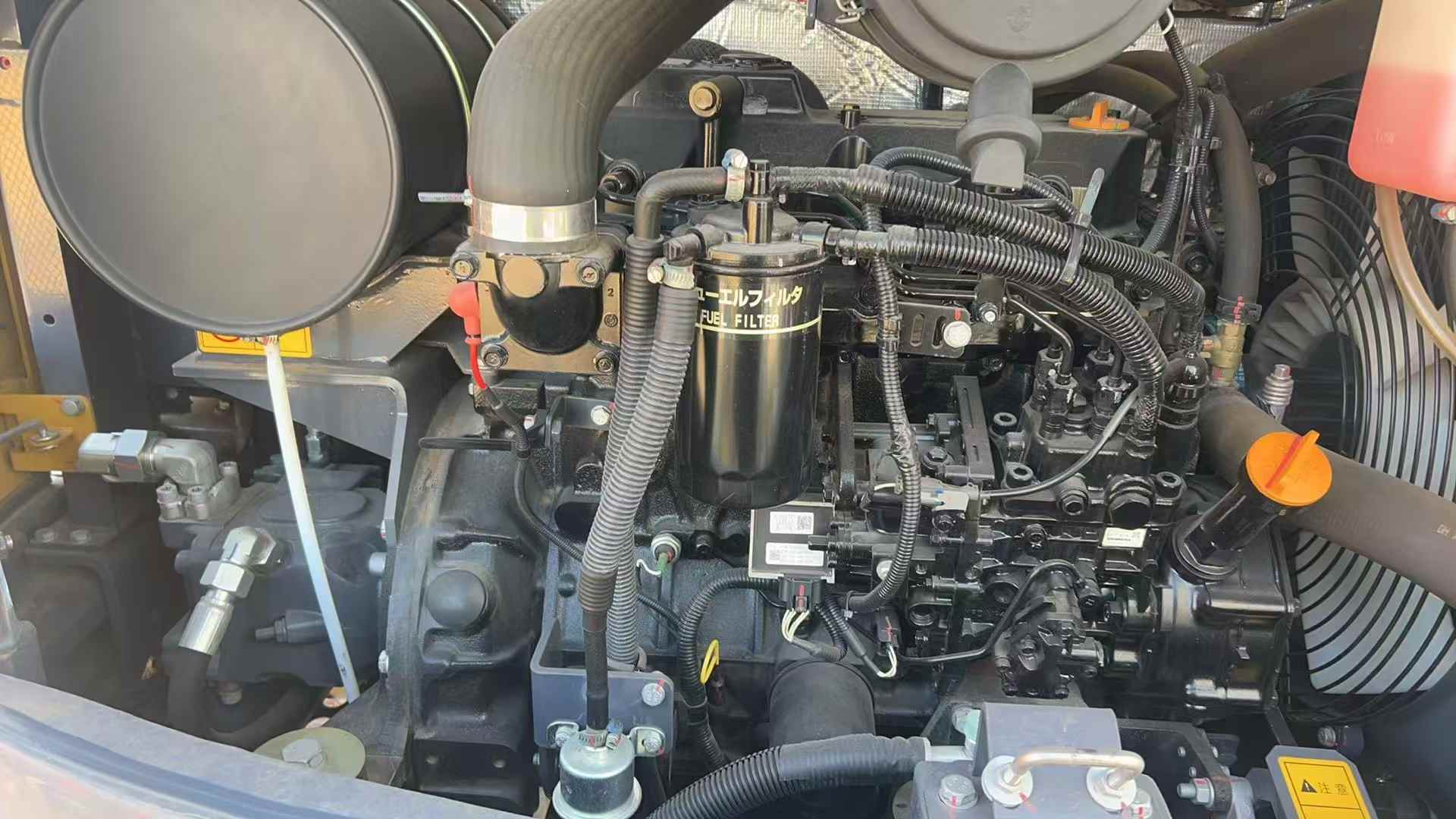

"Premium XCMG 60 Second-hand Excavator This second-hand XCMG XE60D excavator can be regarded as a top-quality choice in the market. It has a working time of only 1,200 hours, which is far lower than the average usage time of similar models. This means that its main components and systems are in the best condition, providing a long-term and reliable operation guarantee for new owners. This aircraft is equipped with the well-tested Yanma 4TNV98-ZS engine. This powerful and efficient four-cylinder direct injection diesel engine not only ensures excellent fuel economy but also provides abundant power output, guaranteeing that it can handle tasks with ease under various complex working conditions. In terms of the hydraulic system, core components of the Kawasaki brand from Japan are adopted, which are renowned for their outstanding stability and sensitivity. Whether it is excavation, loading or crushing operations, precise control and efficient response can be achieved, greatly enhancing work efficiency. In addition, this model of excavator is equipped with an advanced electronic control system, making operation more convenient and intuitive. Even beginners who are encountering it for the first time can quickly get the hang of it. It is
