| Specifications | Value |
|---|---|
| No. | 962962 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

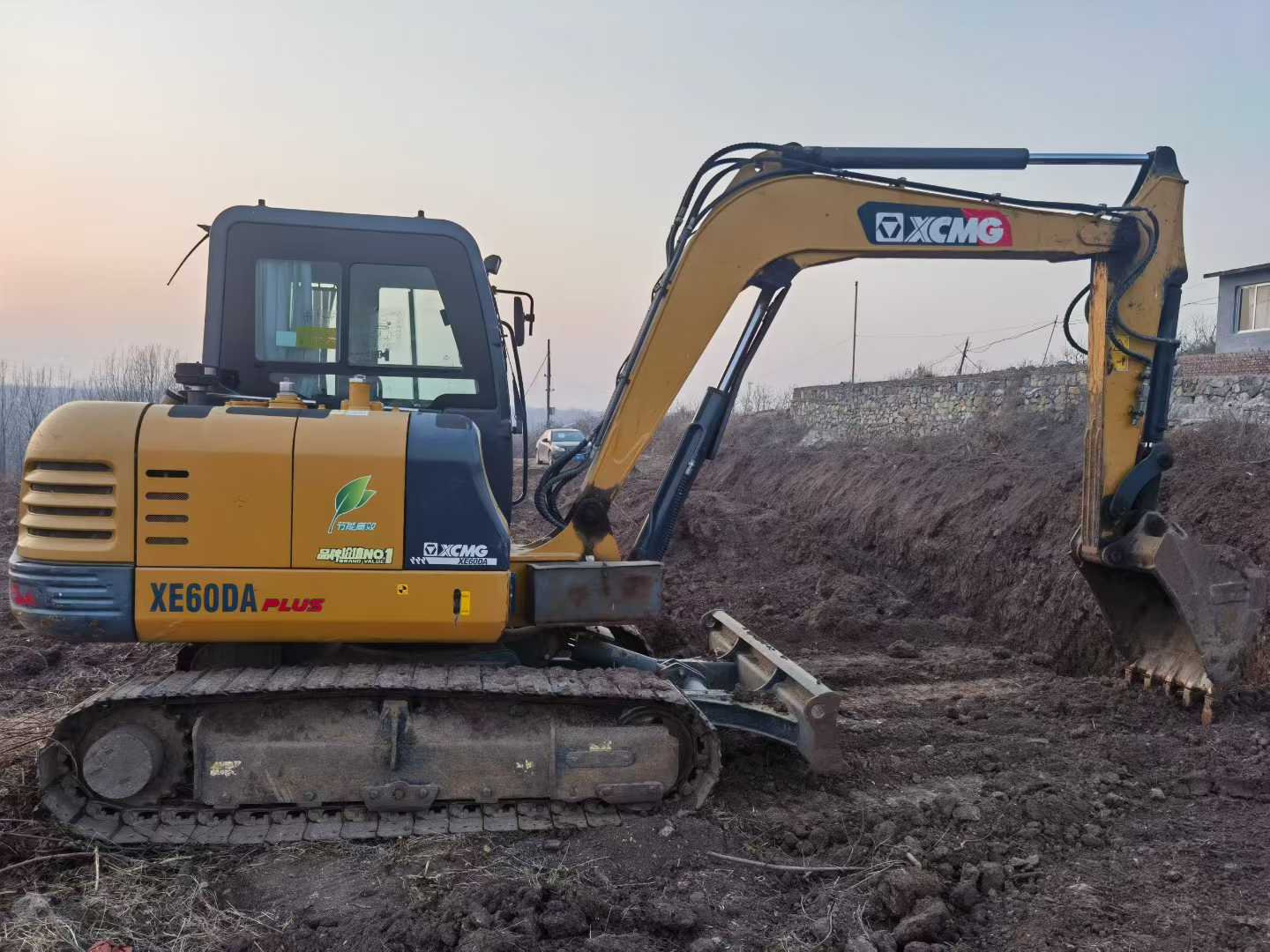

【 Premium Recommendation 】 The XCMG XE60 hydraulic excavator from 2022 is in excellent condition and can be called a masterpiece! Since its manufacture, this excavator has accumulated a working time of only 1,500 hours, which is far lower than the average usage time of similar equipment and is almost in a nearly new condition. Both its appearance and internal performance are well maintained, making it highly suitable for users who have high demands for equipment quality. In terms of the power system, this excavator is equipped with an efficient and energy-saving engine, which not only has strong power and quick response, but also has excellent fuel economy, effectively reducing operating costs. In addition, its advanced emission control technology also makes this excavator more environmentally friendly and in line with the latest emission standards. In the hydraulic system, a high-performance hydraulic pump and motor combination independently developed by XCMG is adopted, ensuring smoothness and accuracy during operation. After being optimized in design, this system not only enhances work efficiency but also significantly extends its service life, reduces maintenance frequency and costs. Overall, this 2022 XCMG XE60 excavator, with
