| Specifications | Value |
|---|---|
| No. | 963095 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

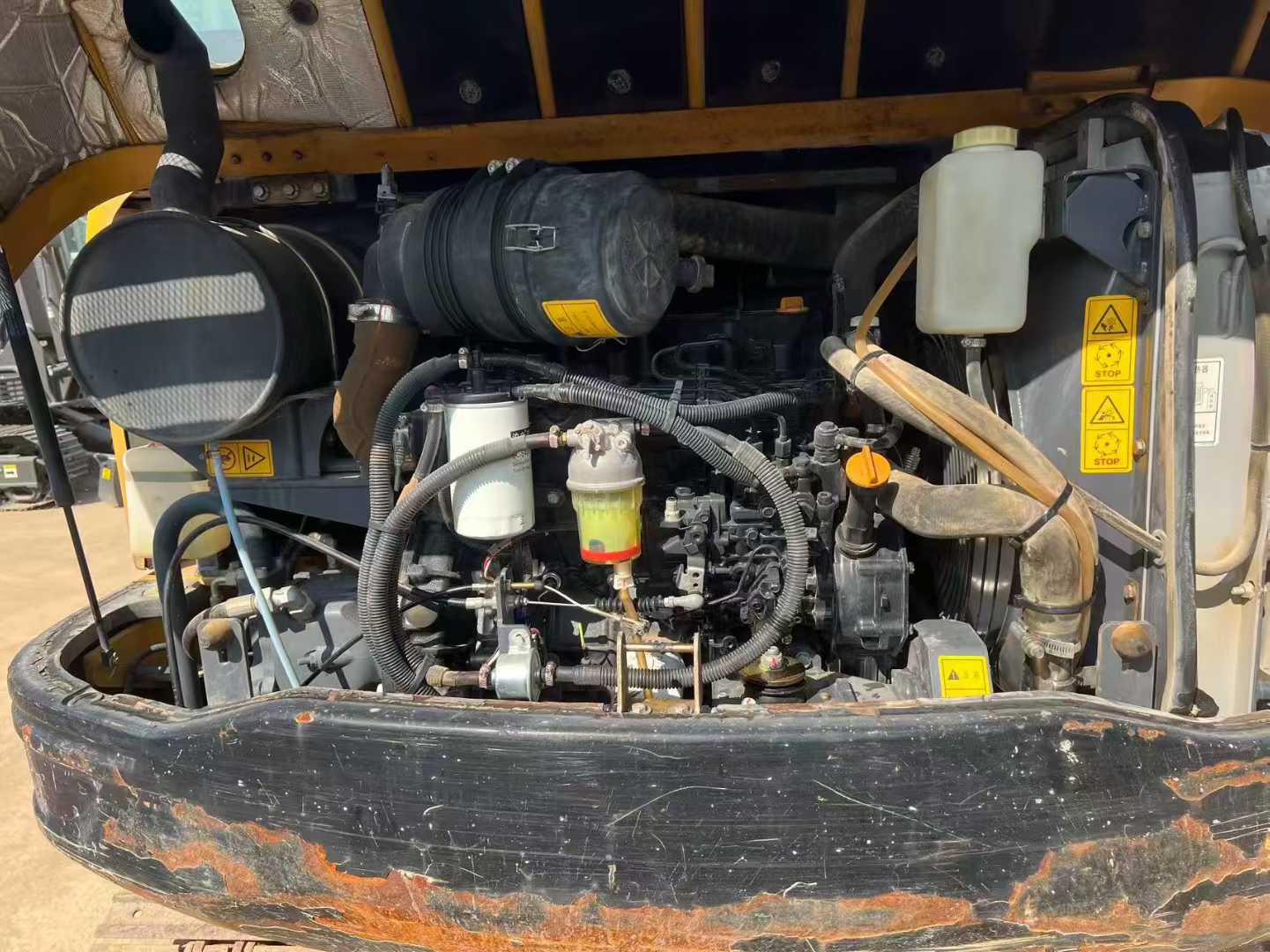

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description
【 Premium Recommendation 】2021 XCMG XE60C second-hand excavator, outstanding performance, ready to use without Inspection! This XCMG XE60C excavator is a product from 2021. Its total working time is only 2,300 hours, which means it is used for less than two hours a day, and it is in very good condition. It not only has a powerful power system, but also is equipped with an advanced hydraulic system, ensuring its efficient operation capability under various complex working conditions. In terms of power, this machine is equipped with the Yanmar 4TNV98-Z engine, which has been well-tested in the market. This engine is renowned for its excellent fuel economy and powerful output, capable of providing a maximum power of up to 40.5kW. It not only meets various construction needs but also effectively reduces operating costs. In addition, an efficient cooling system ensures stable operation even in high-temperature environments. In terms of the hydraulic system, a load-sensitive control system independently developed by XCMG is adopted, featuring fast response and flexible operation. It can handle both fine excavation and heavy loading with ease. More importantly, this system also features an energy-saving mode, which further reduces fuel con
