| Specifications | Value |
|---|---|
| No. | 963156 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

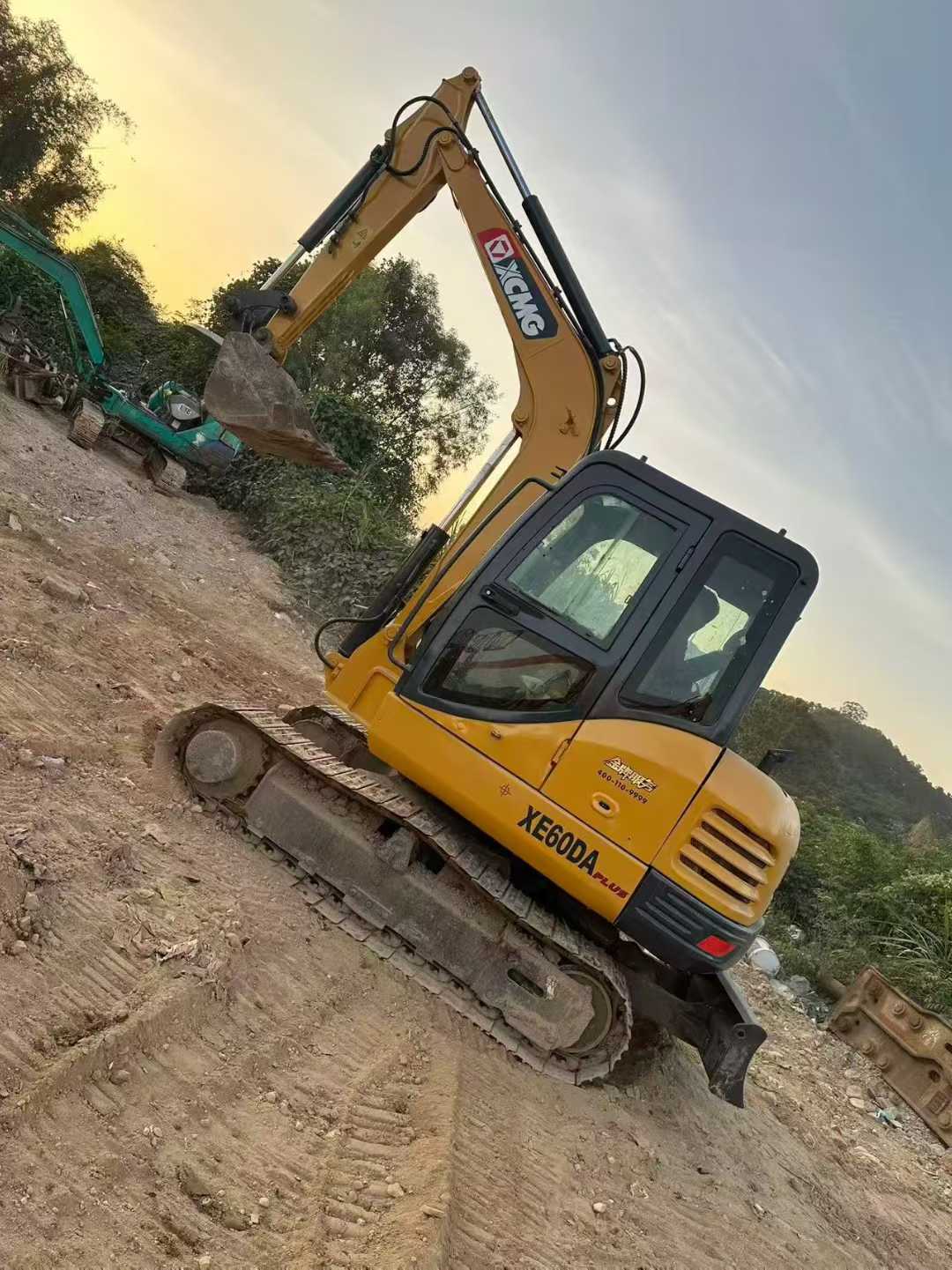

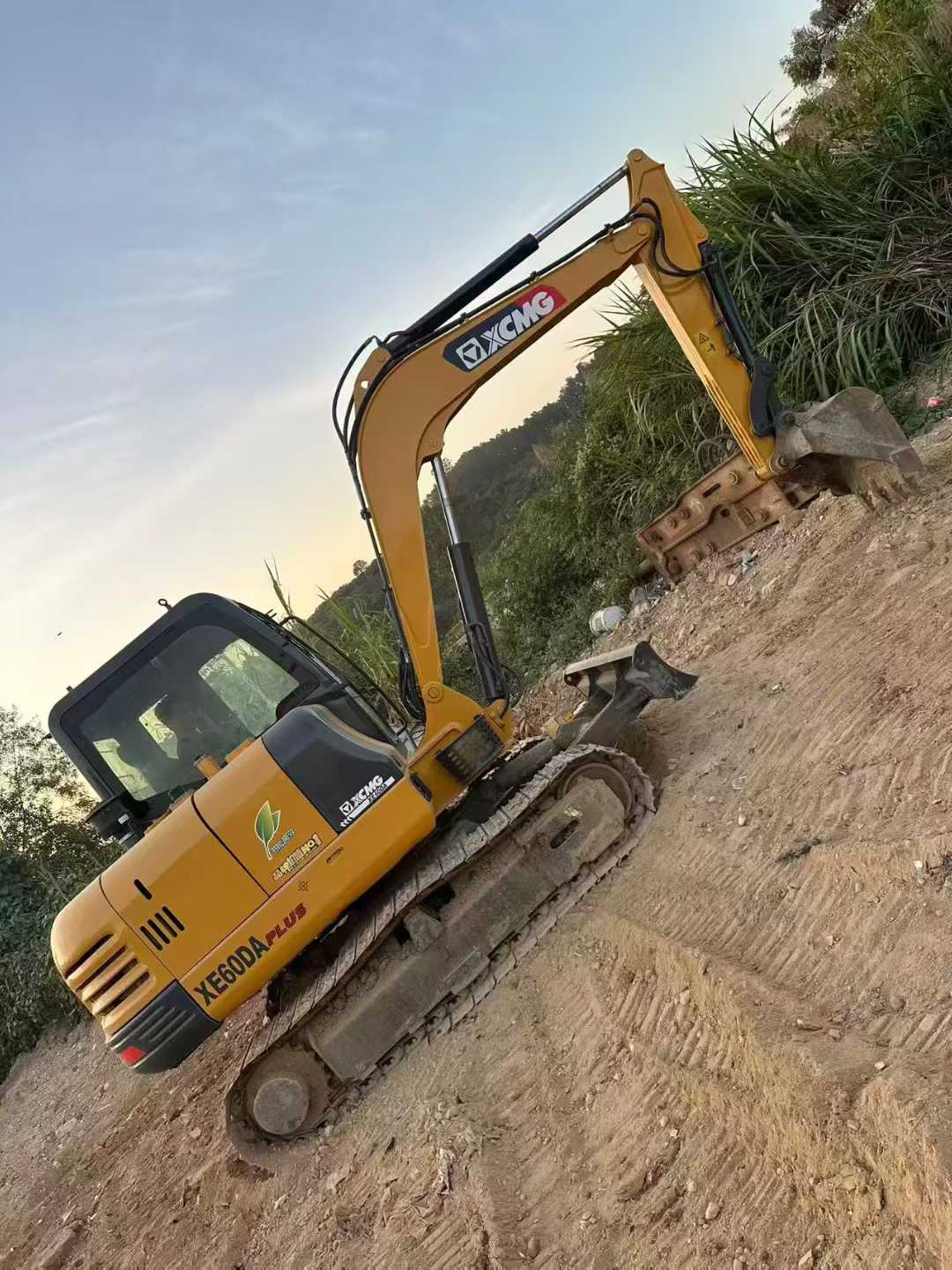

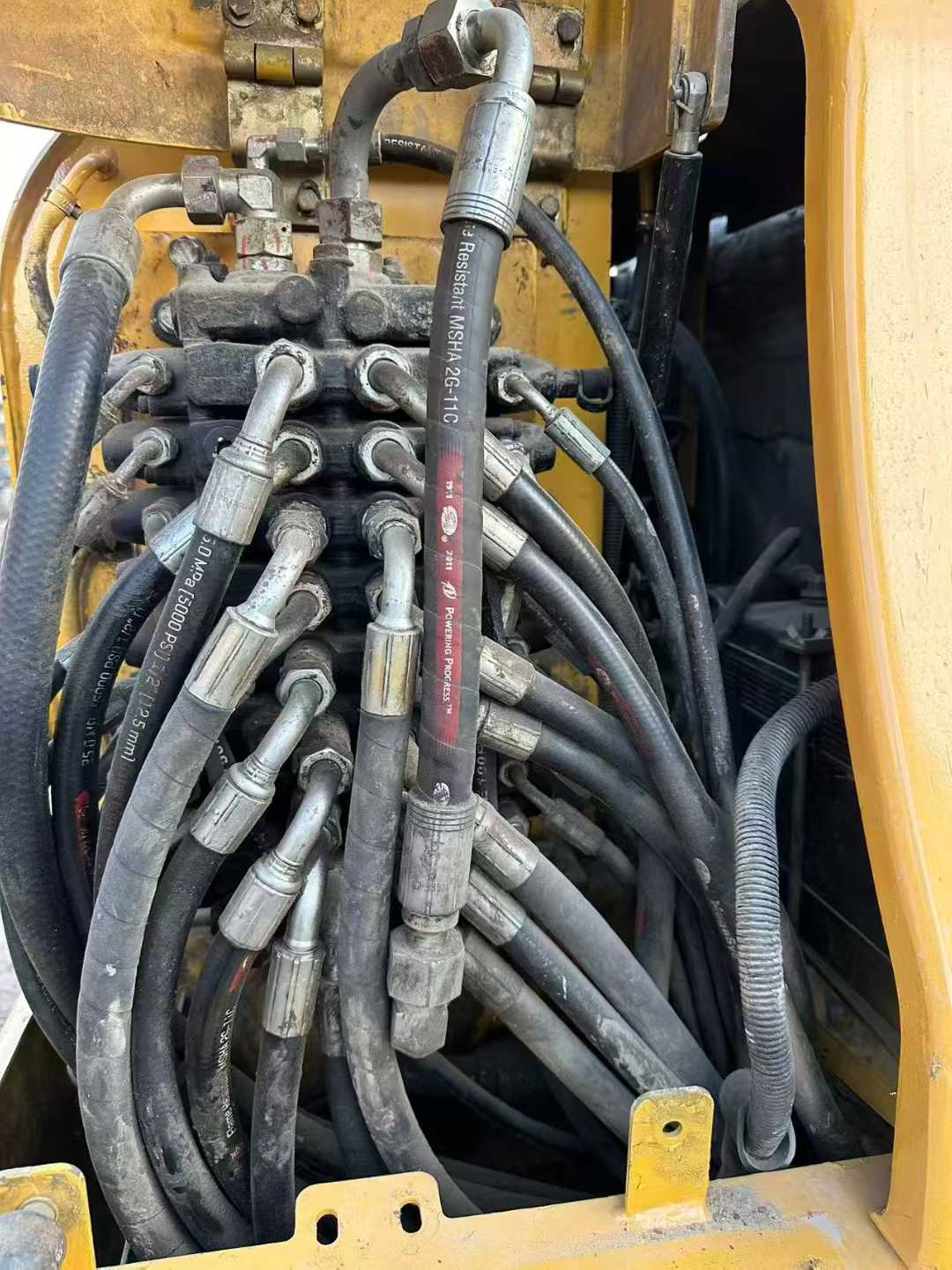

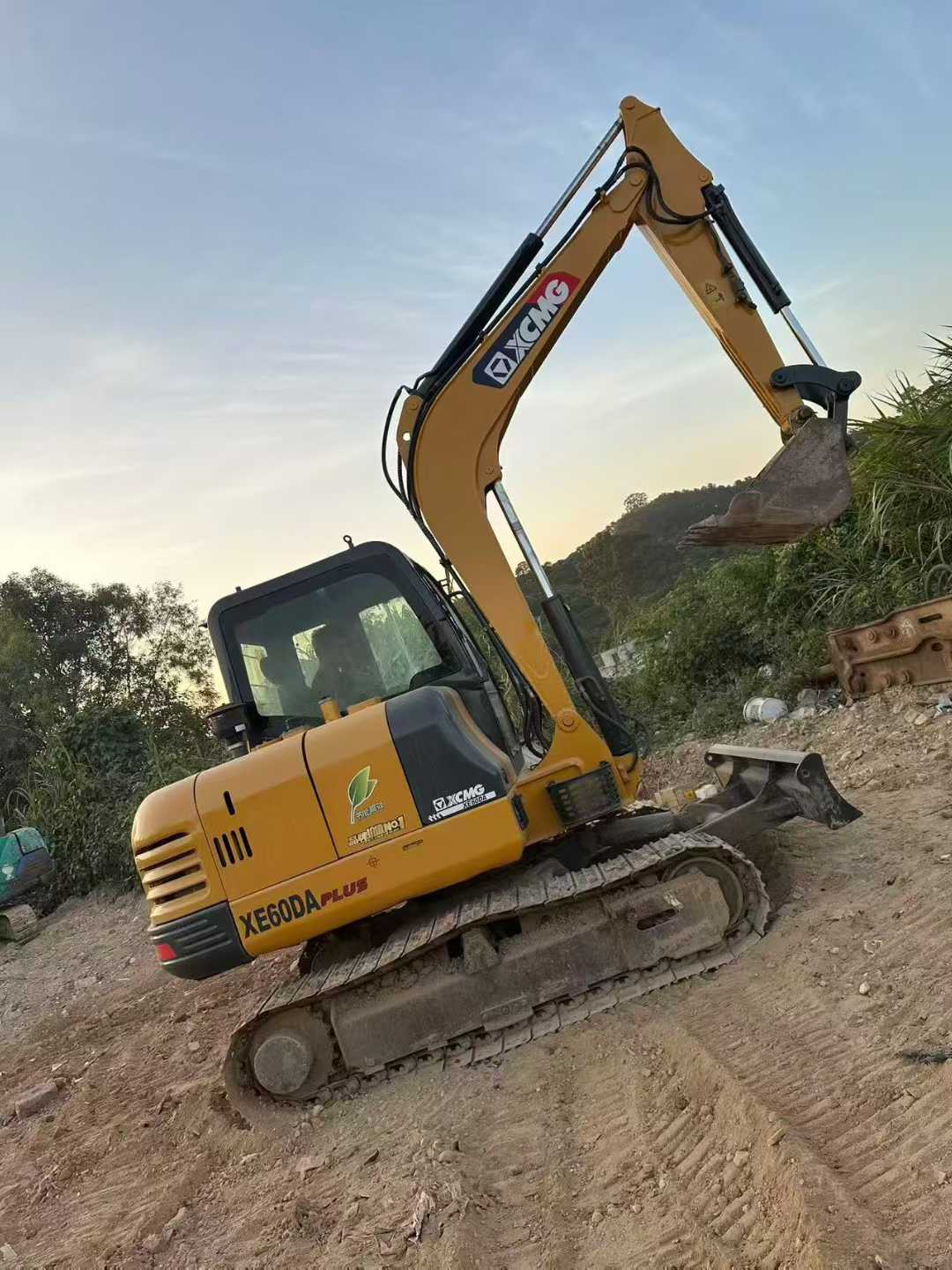

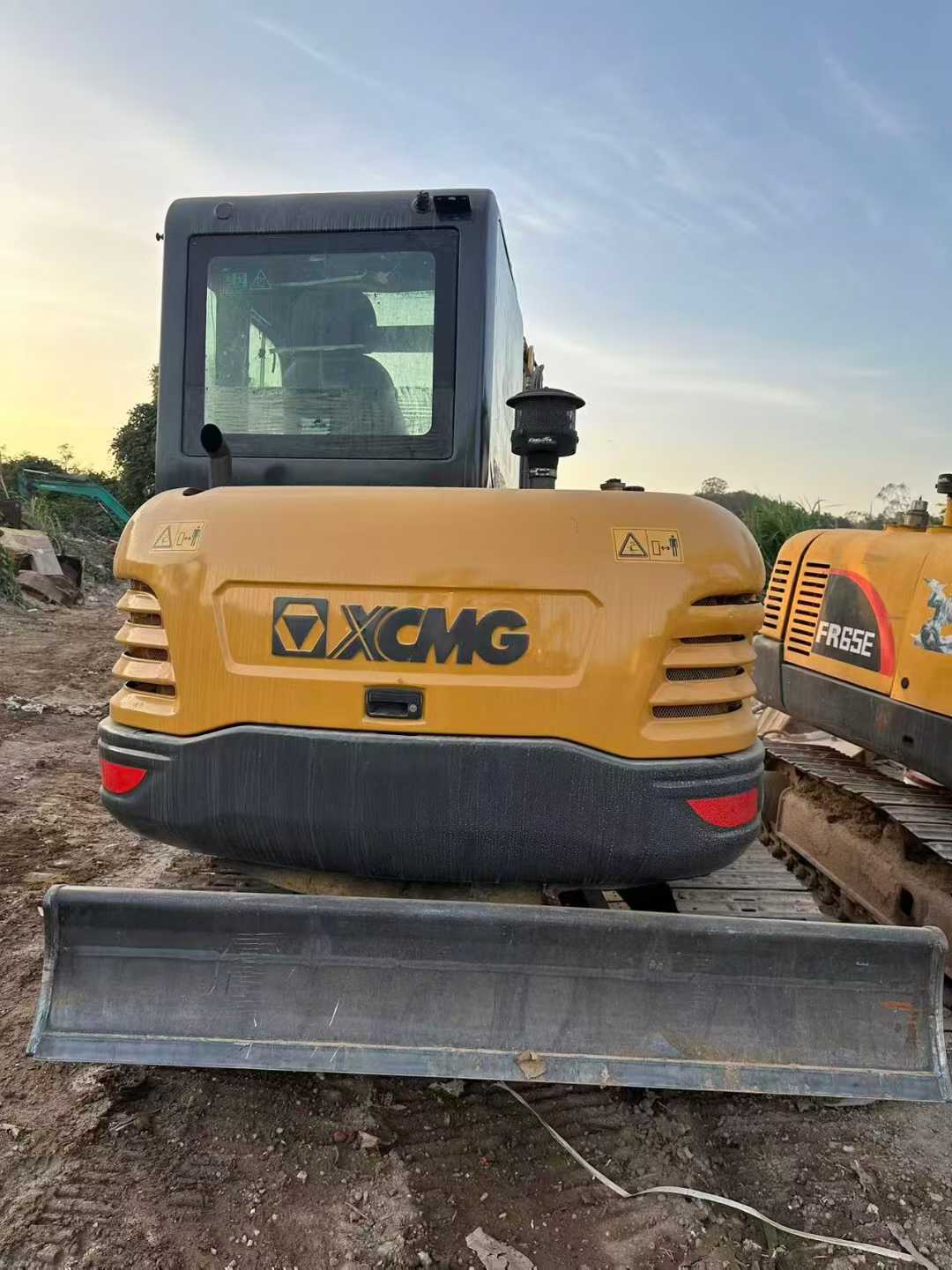

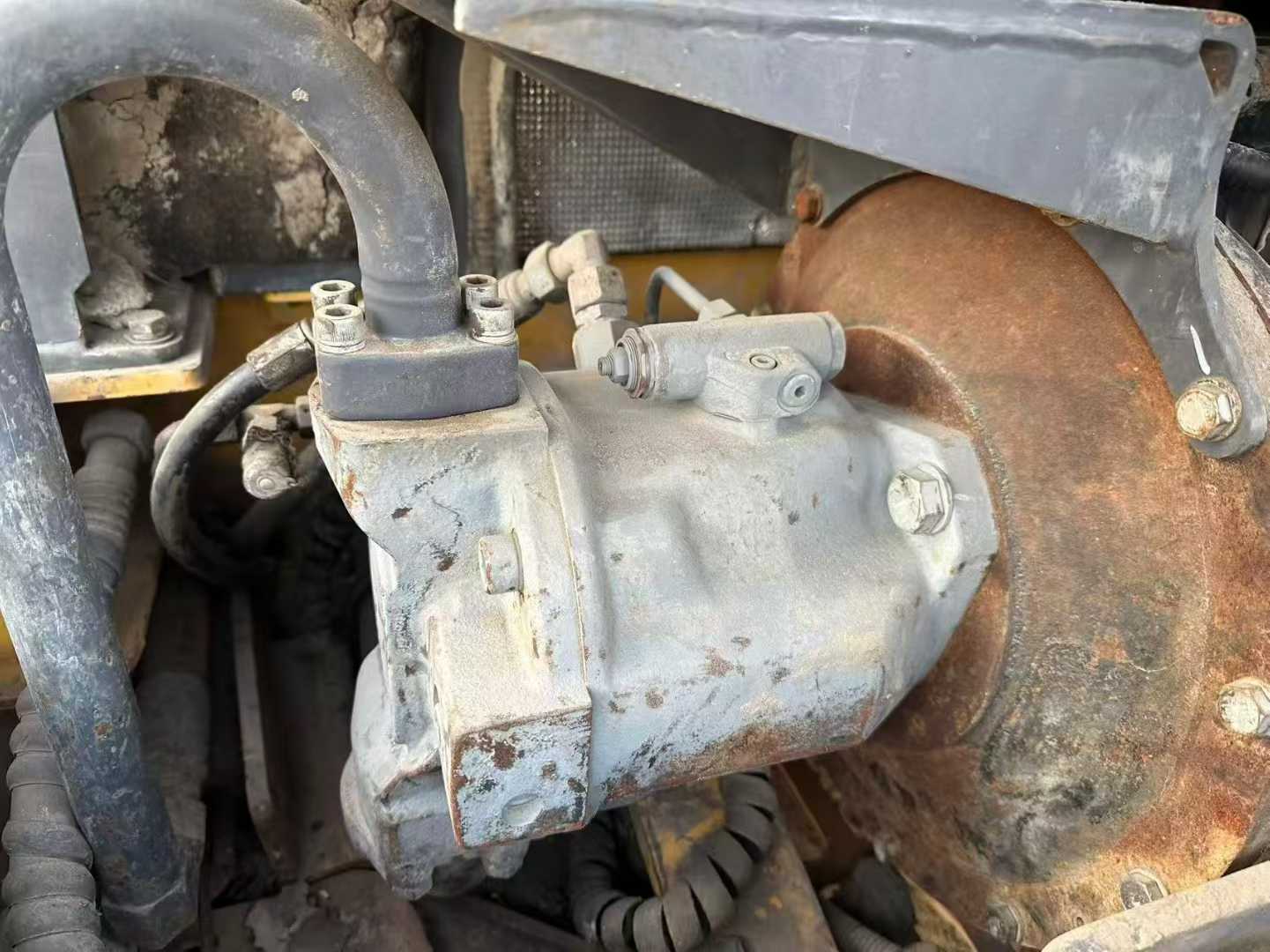

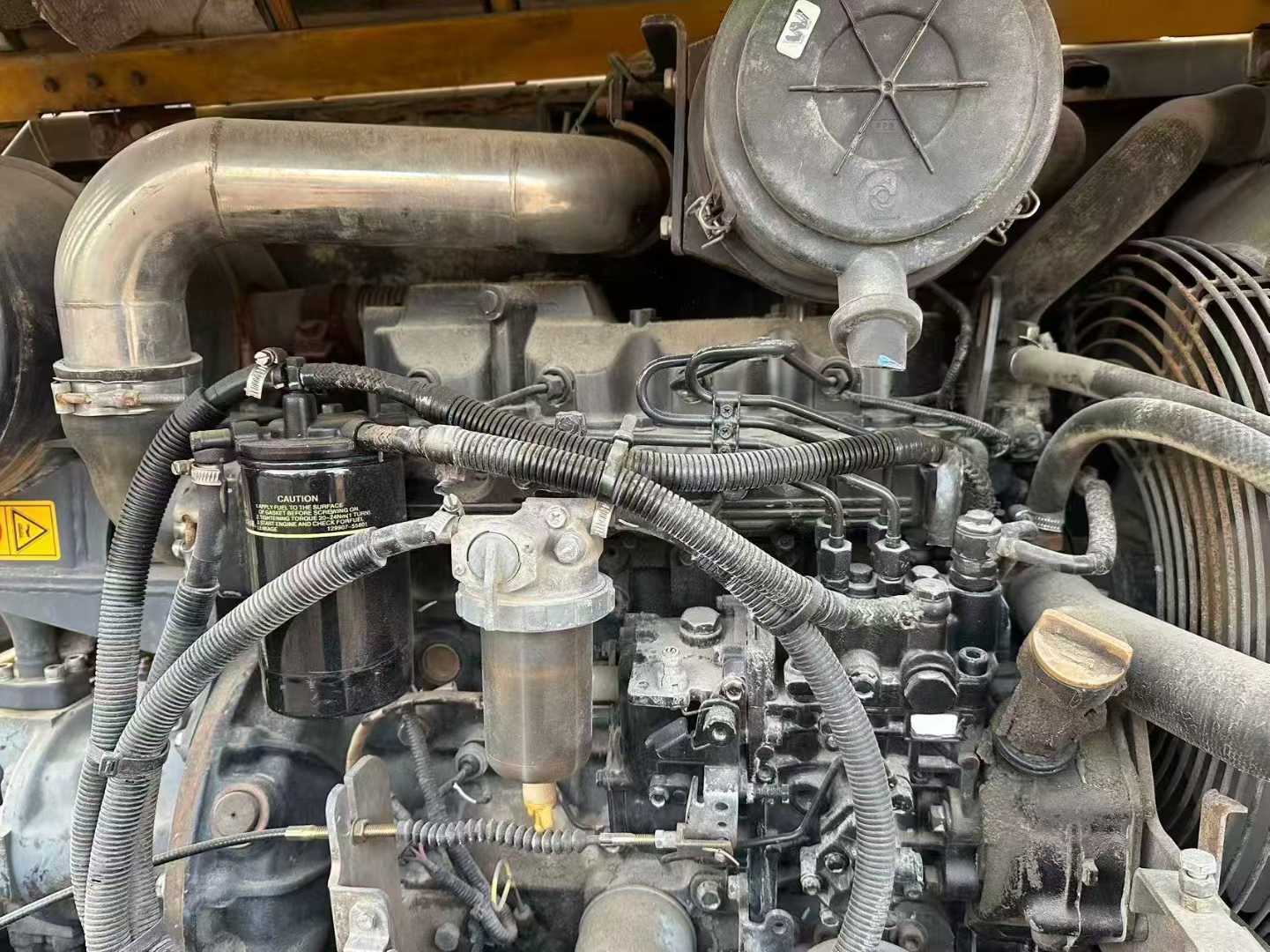

"Premium Second-hand XCMG 60 excavator The XCMG XE60 second-hand excavator we recommend to you is a rare high-quality second-hand device in the market. This machine has a working duration of only 1,500 hours and is in the best condition for use. It maintains an excellent performance both in appearance and performance. The entire machine is well maintained with no major overhaul records, ensuring its long-term and stable operational capacity. "Power System It is equipped with an original imported engine, which is powerful and has good fuel economy. It can perform well even under harsh working conditions. After professional testing, the engine operates smoothly with low noise. All indicators meet the factory standards and can satisfy the daily construction requirements. "Hydraulic System The hydraulic system is independently developed by XCMG, featuring a fast response speed and flexible and precise operation. After a comprehensive inspection and maintenance, the hydraulic pump and all control valves are currently operating normally without any leakage, ensuring an efficient and reliable excavation operation experience. In addition, it is specially equipped with an advanced filtration device, effectively extending the service life of
