| Specifications | Value |
|---|---|
| No. | 963179 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

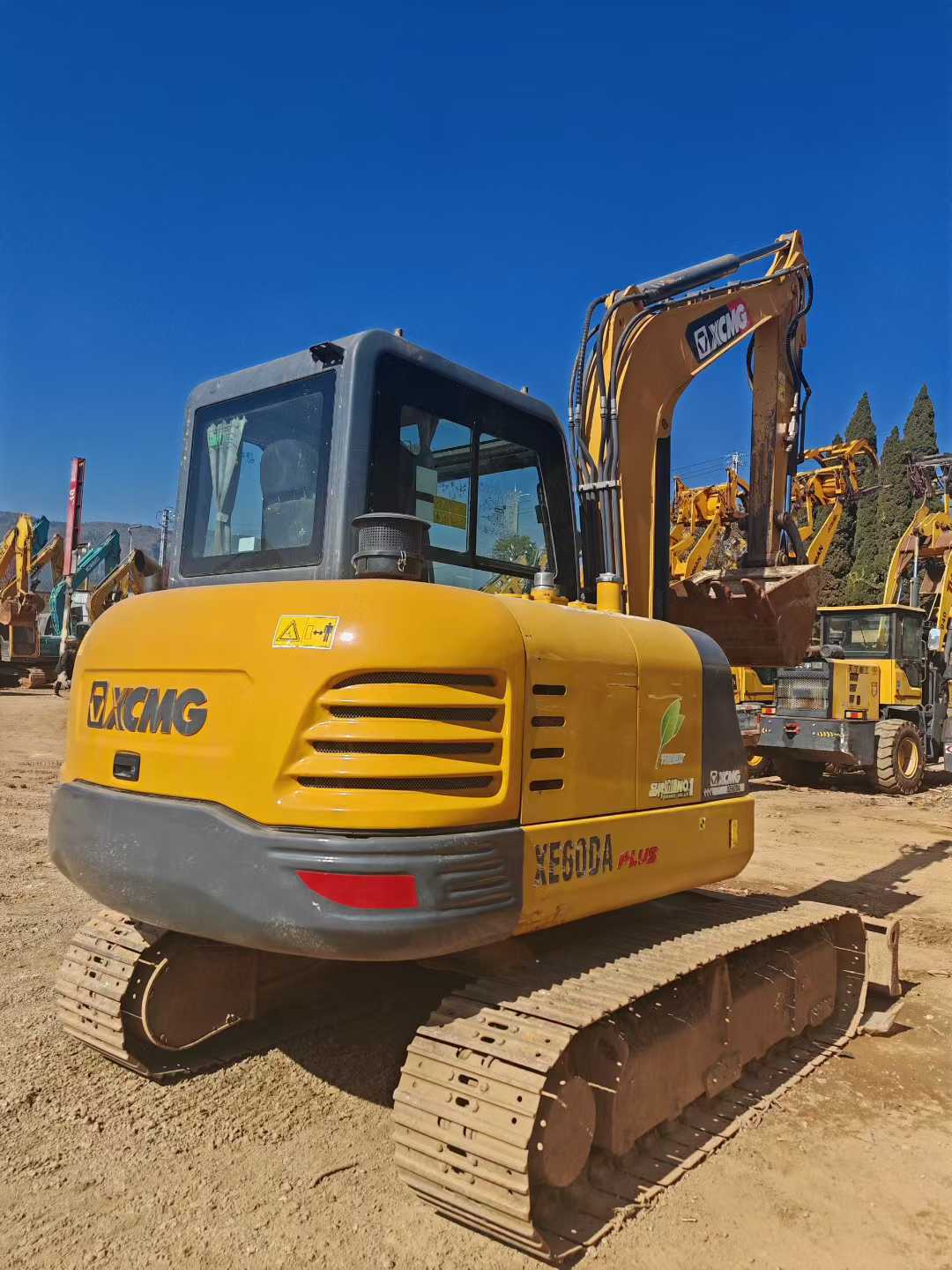

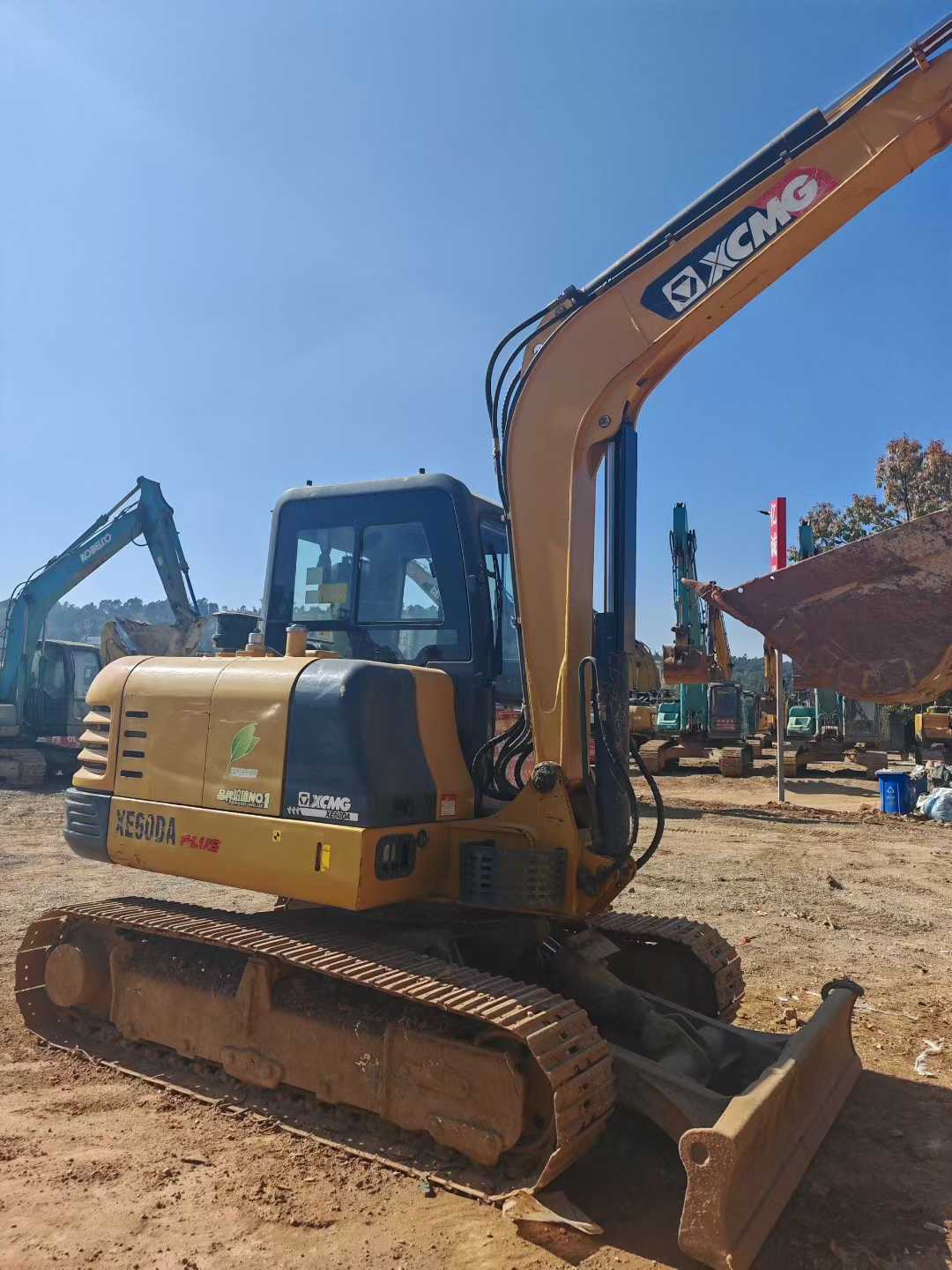

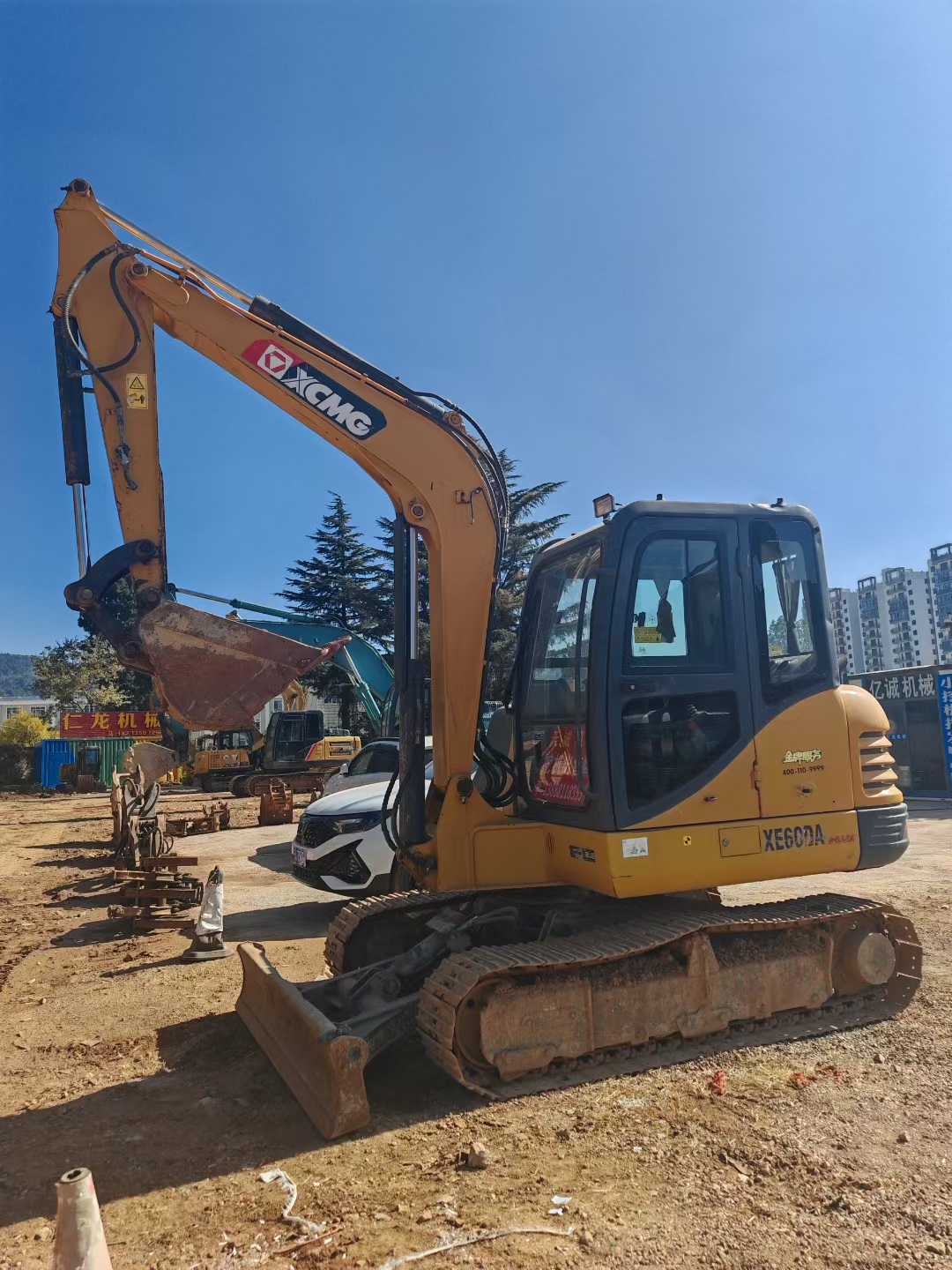

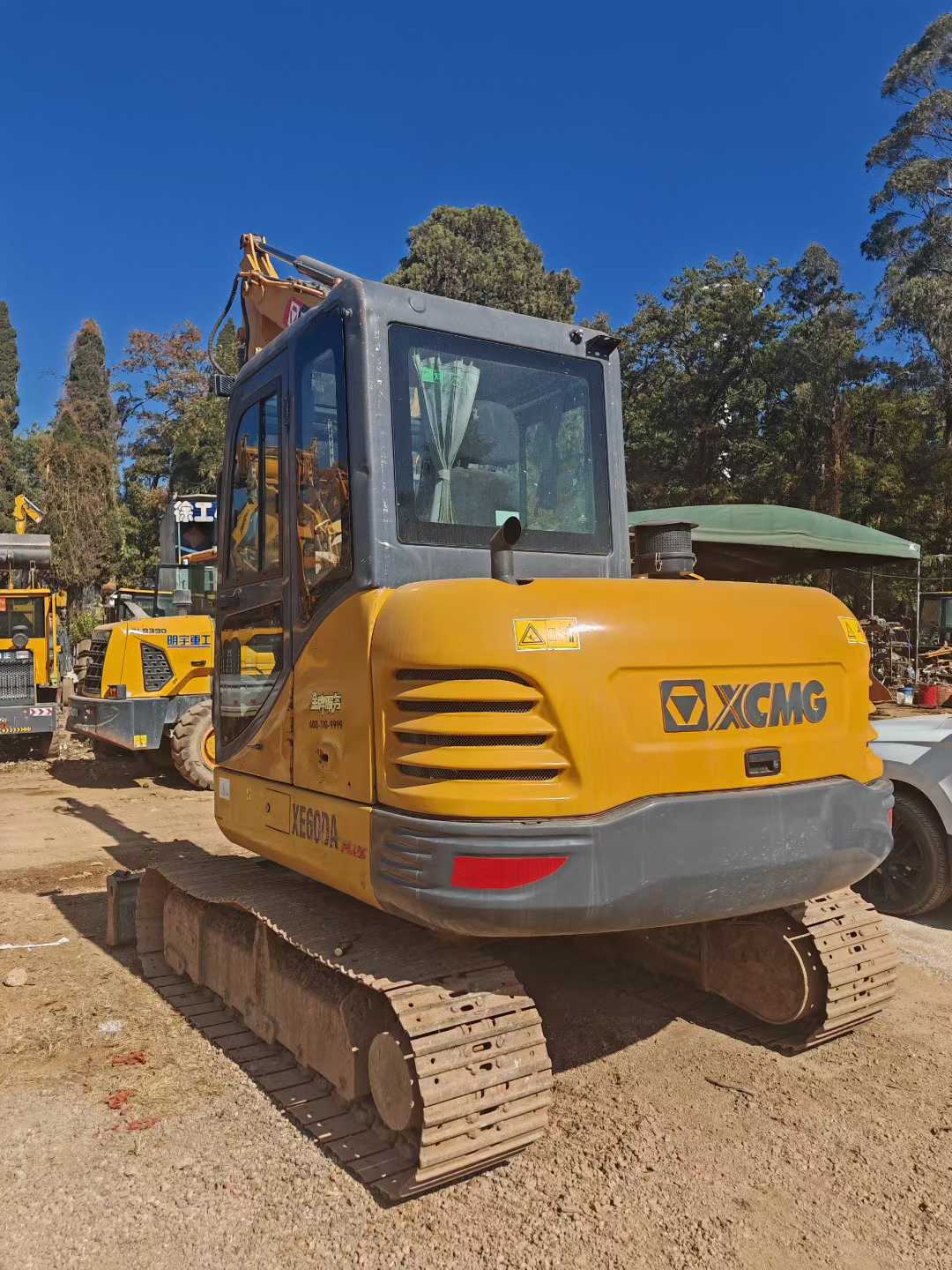

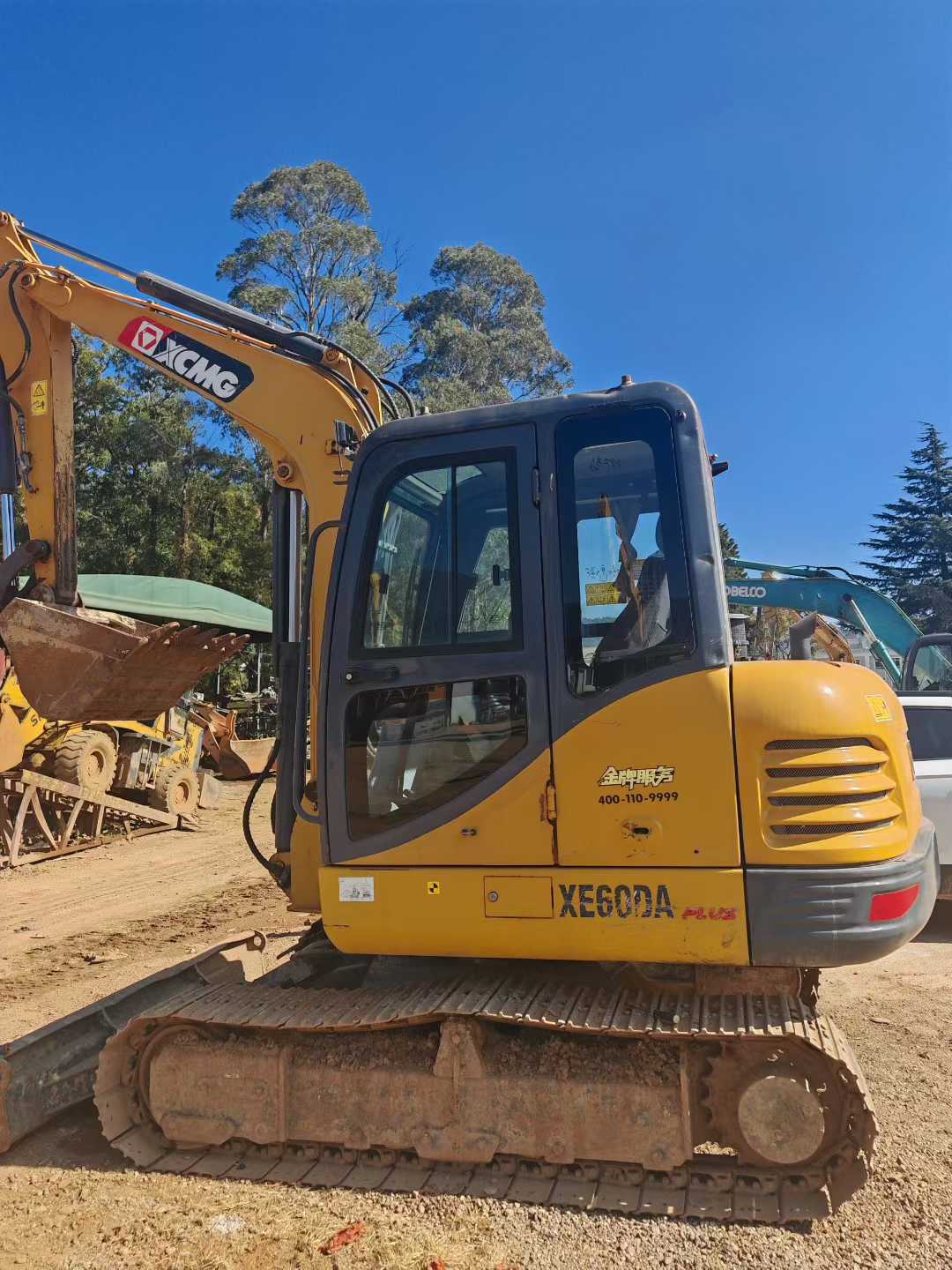

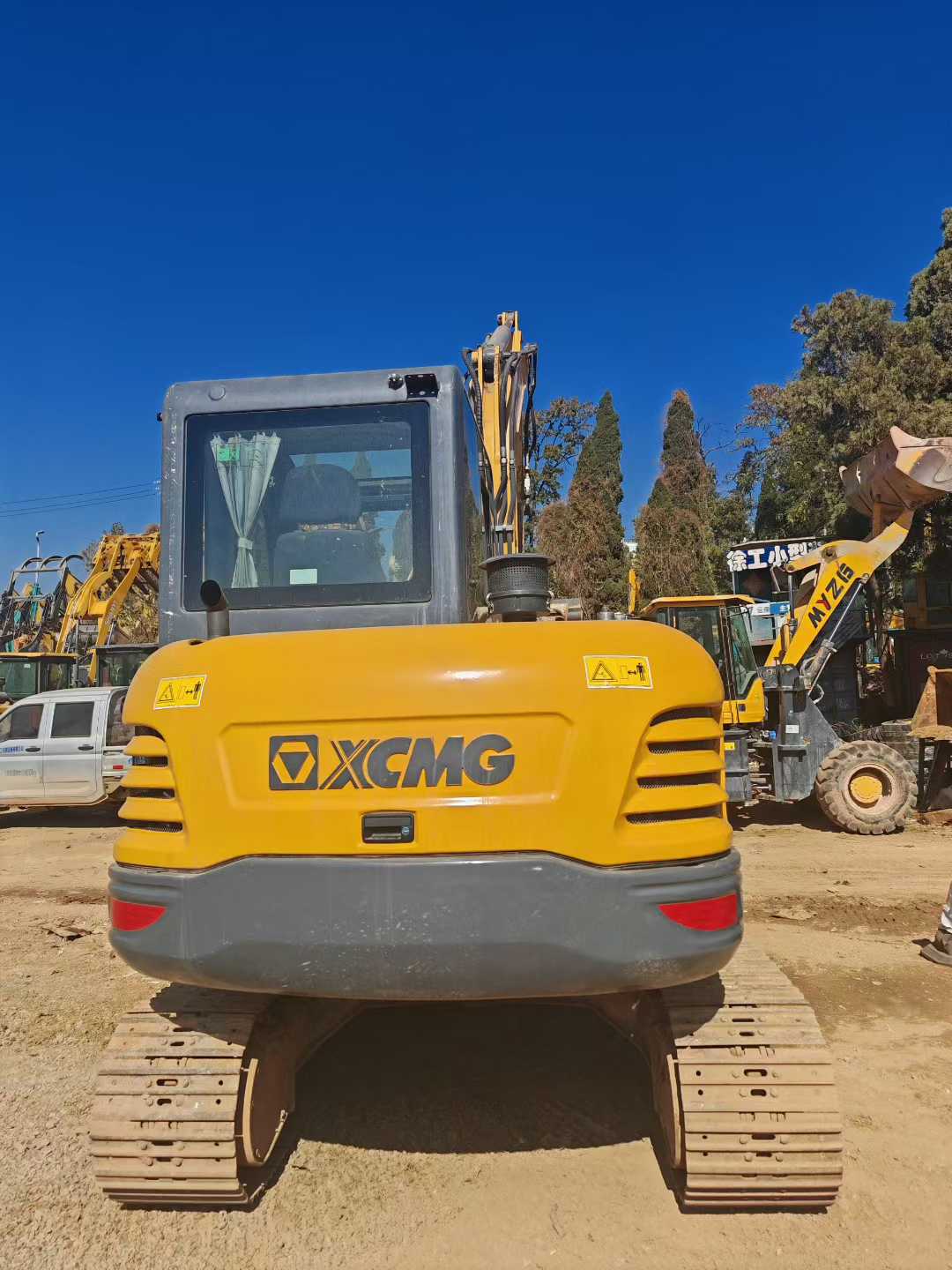

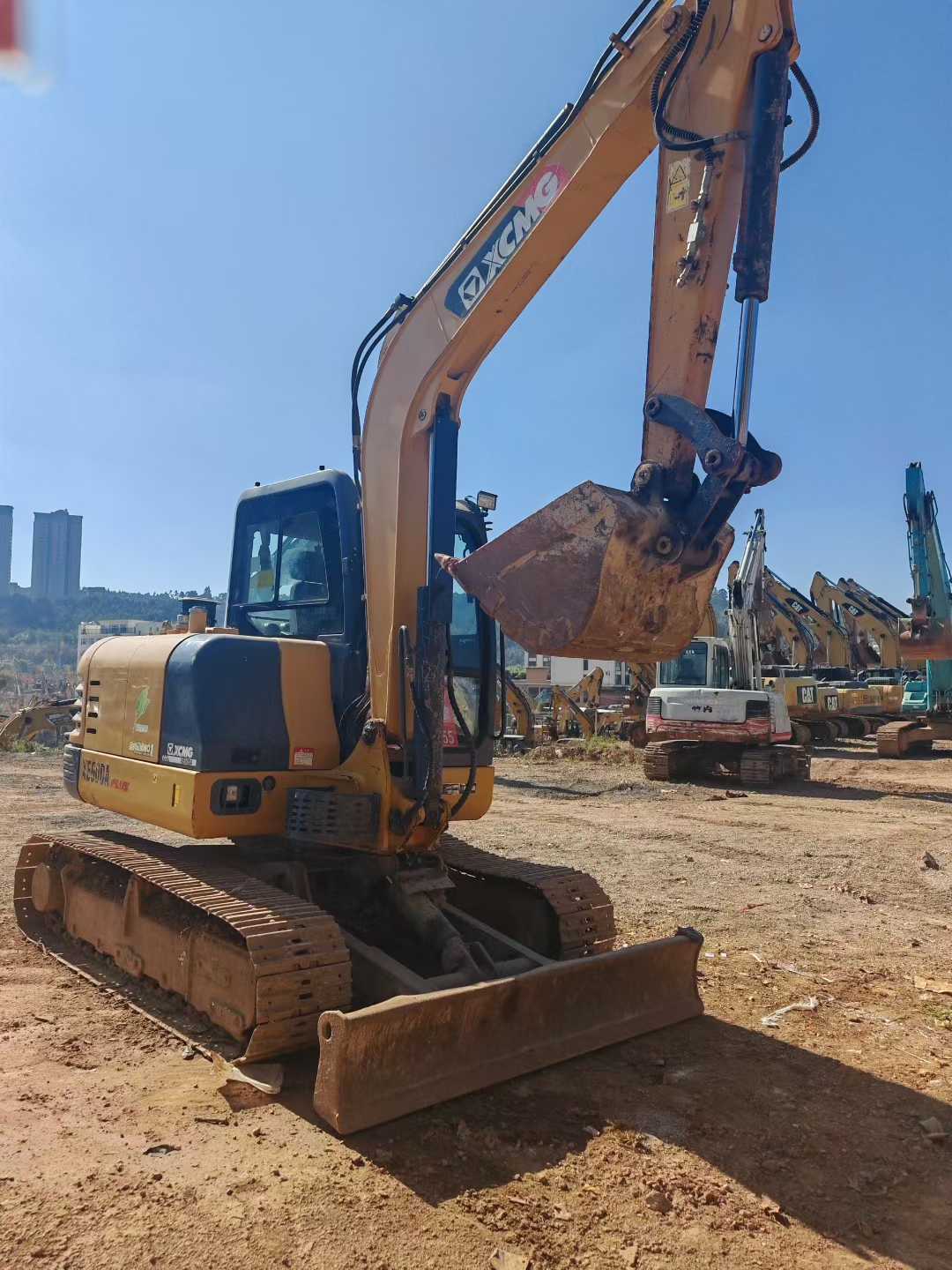

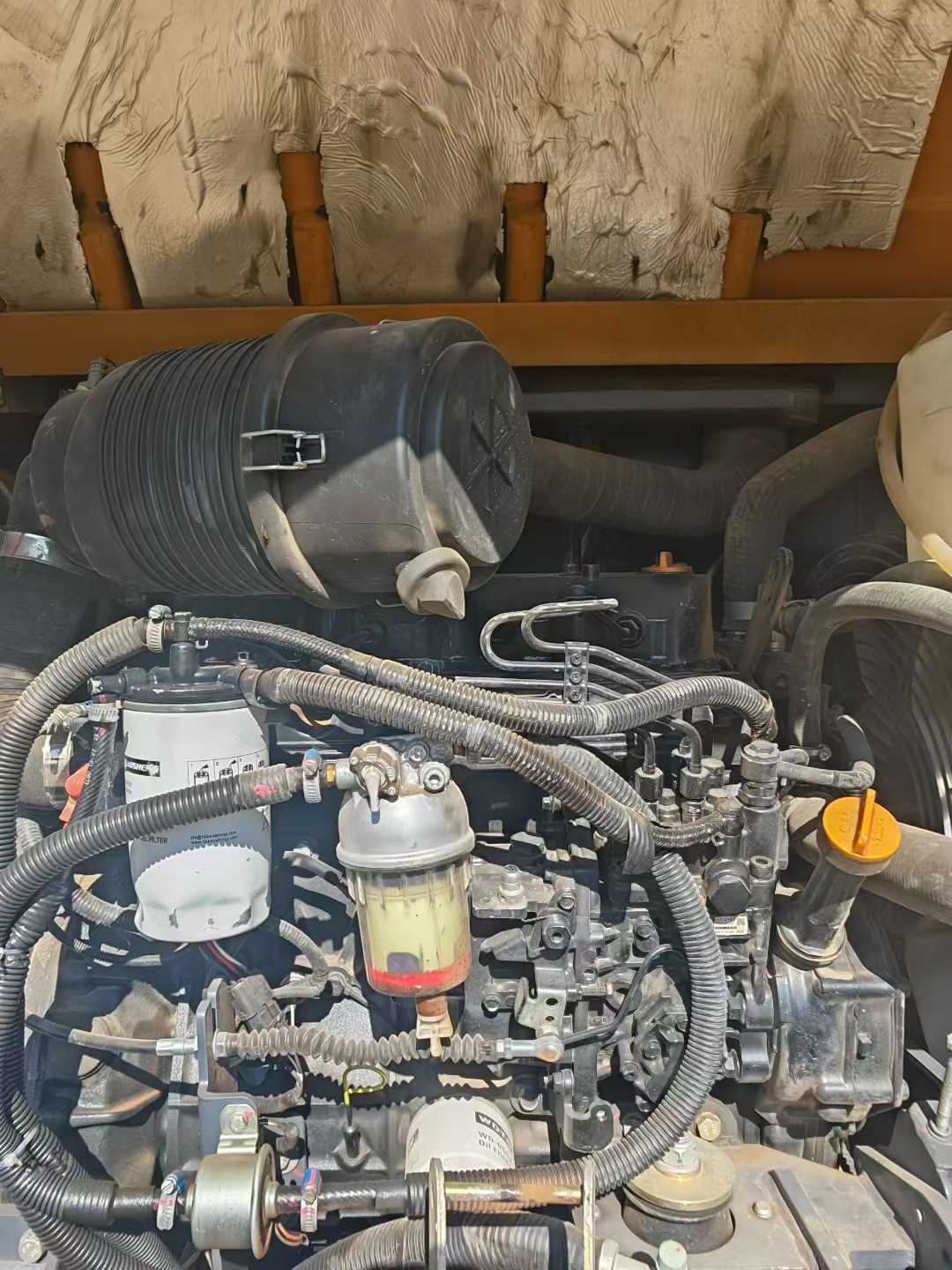

This second-hand XCMG XE60 excavator was produced in 2022 and has only been in operation for over two thousand hours so far. It is a very young machine. XCMG XE60 enjoys a high reputation in the market for its outstanding performance and reliability. This excavator is equipped with a Japanese Yanmar engine, which is renowned for its high efficiency, energy conservation and low noise. It is particularly suitable for use in urban areas or places with high environmental requirements. Yanmar engines not only have strong power but also low fuel consumption and relatively low maintenance costs, making them very suitable for long-term operation. In terms of the hydraulic system, XCMG XE60 adopts an advanced negative flow control system, ensuring smooth and precise operation while significantly enhancing work efficiency. It can perform well in complex working conditions such as excavation, loading and crushing. In addition, this model is also equipped with a reinforced chassis structure, which can maintain good stability and durability even in harsh working environments. Considering its relatively short working hours and excellent configuration, this XCMG XE60 excavator is almost in brand new condition and offers an extremely high cost perfo
