| Specifications | Value |
|---|---|
| No. | 963231 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

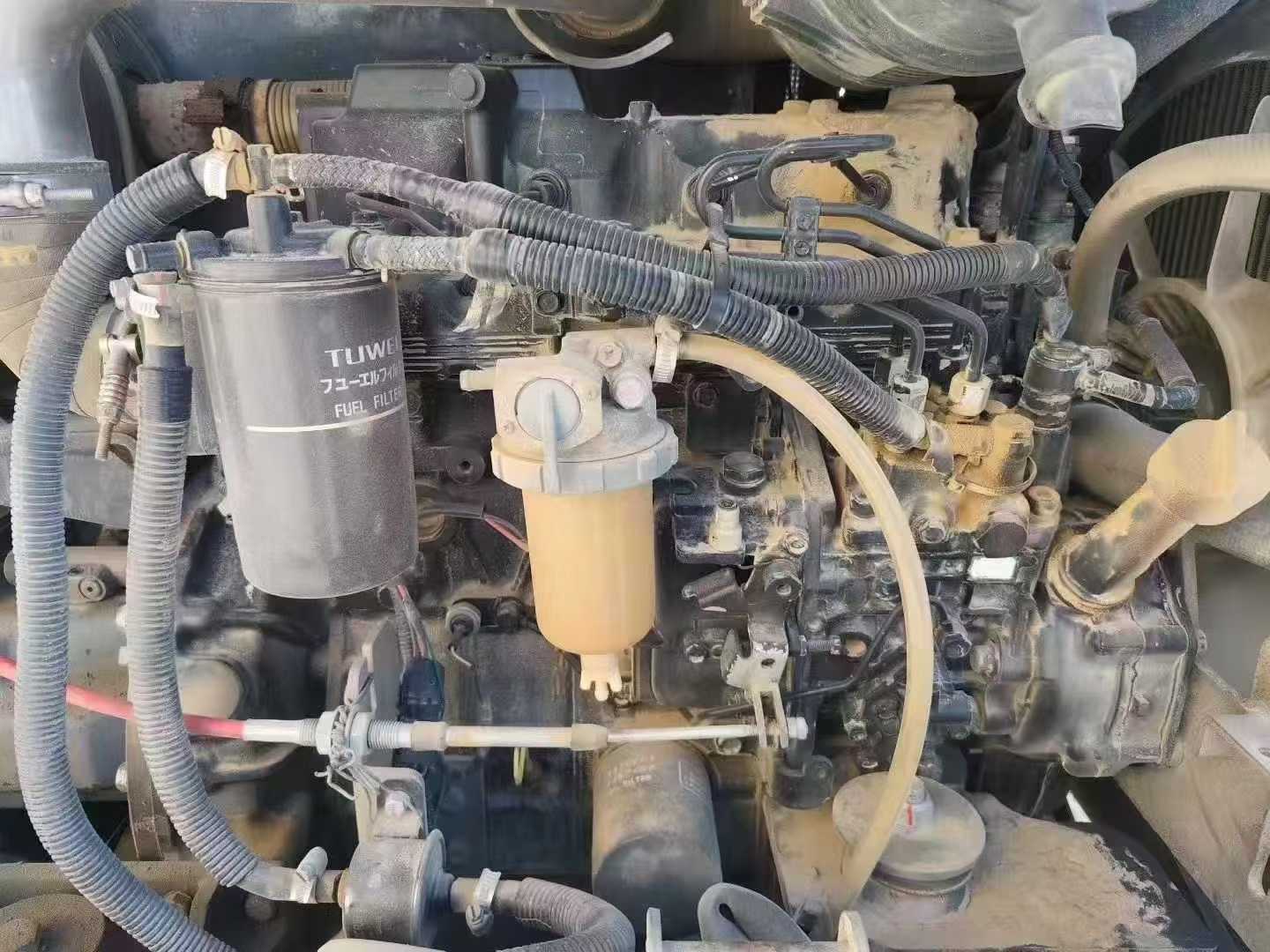

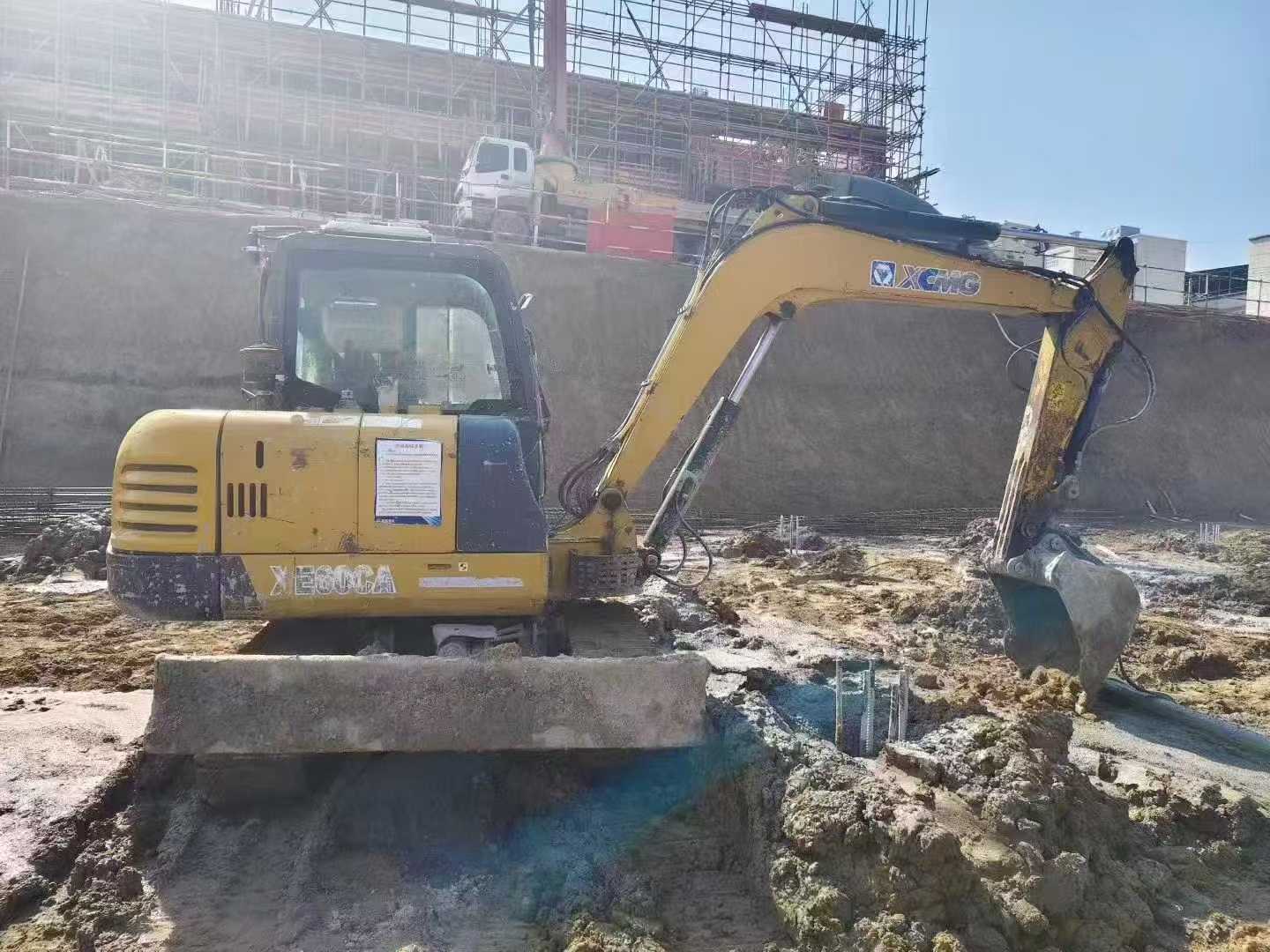

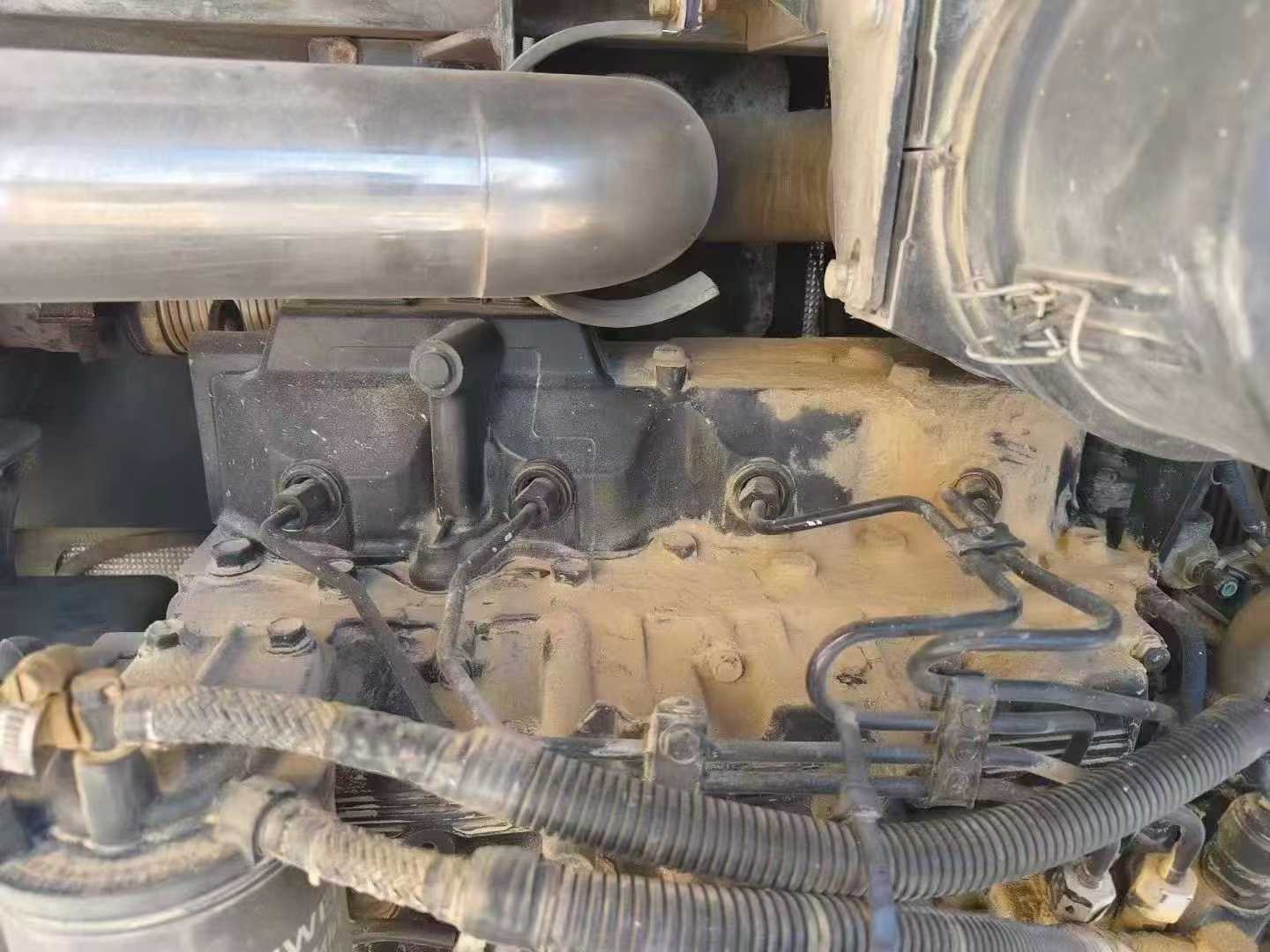

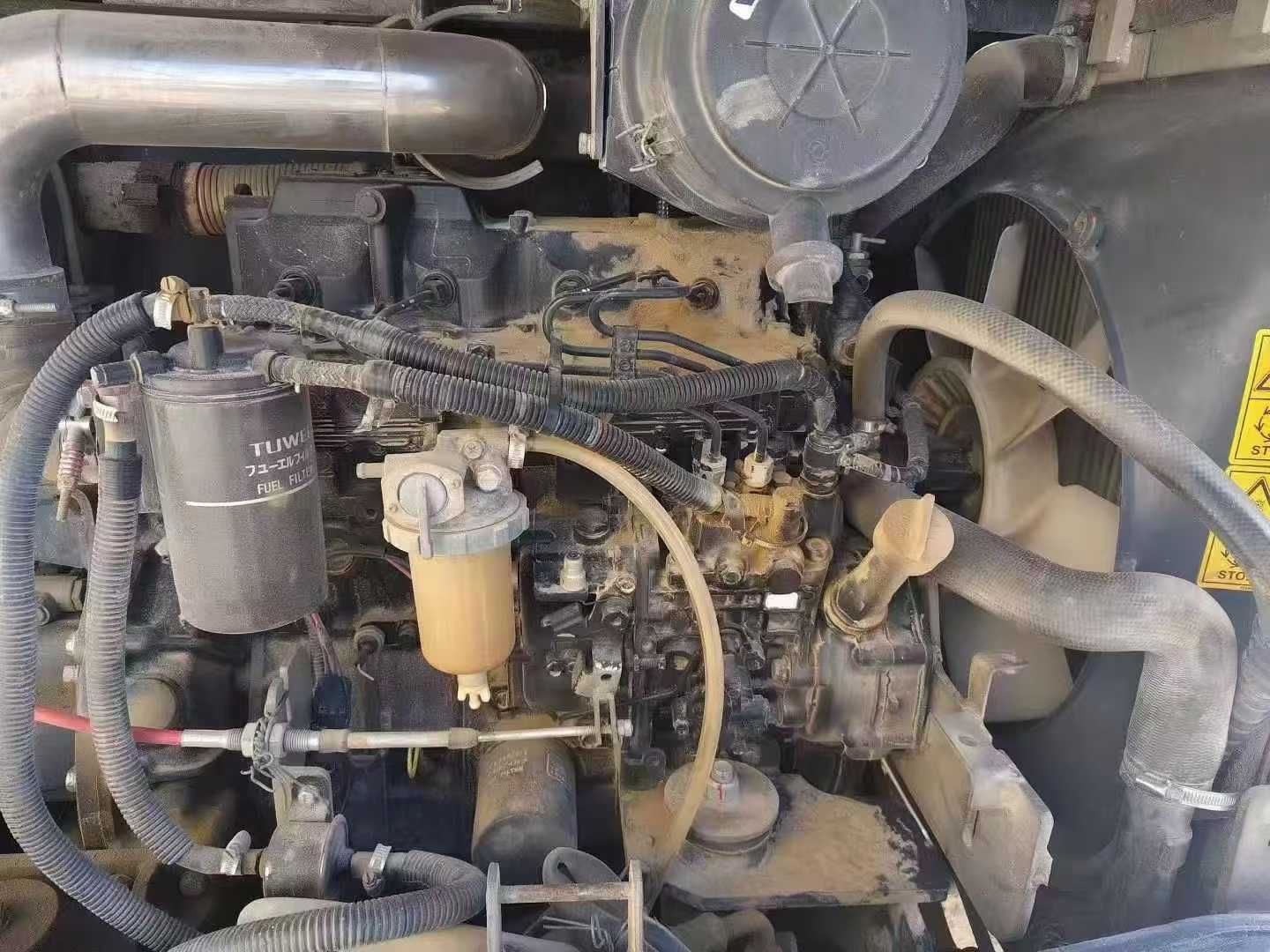

【 Premium Recommendation 】 XCMG XE60 excavator from 2015, priced at just over 30,000 yuan! Since it was put into use in 2015, this XCMG XE60 excavator has maintained a good working condition. The total working time is only about 3,000 hours, which is a very rare usage record among similar second-hand equipment, indicating that it still has a long service life and extremely high cost performance. It is particularly suitable for the operational needs of small-scale projects, municipal construction, and landscaping. In terms of the power system, this machine is equipped with an original imported engine, which is powerful, stable and reliable, and can easily handle construction tasks under various complex working conditions. At the same time, its fuel economy is also excellent, effectively reducing operating costs while ensuring efficient operation. The hydraulic system is a major highlight of this excavator. It adopts advanced negative flow control technology, which not only improves work efficiency but also significantly extends the service life of the hydraulic system. Both the digging force and the slewing force performed extremely well, ensuring high efficiency and safety during the construction process. In addition, this machine
