| Specifications | Value |
|---|---|
| No. | 963267 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

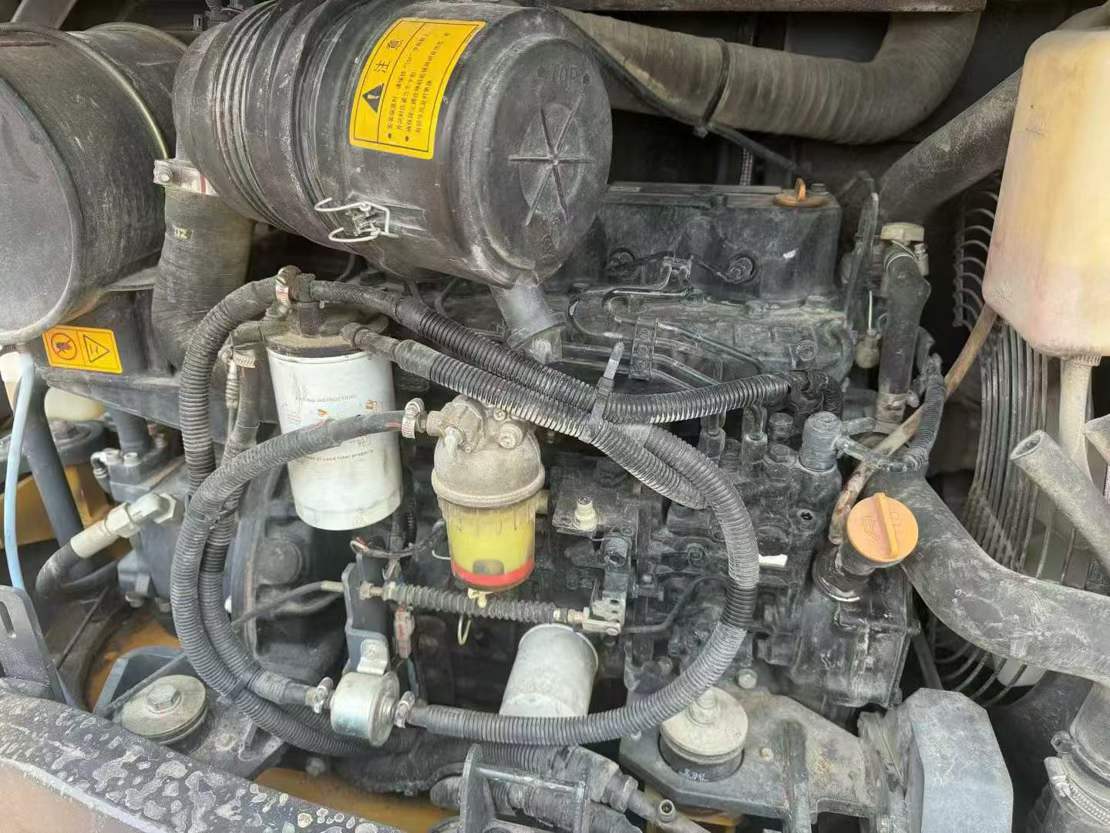

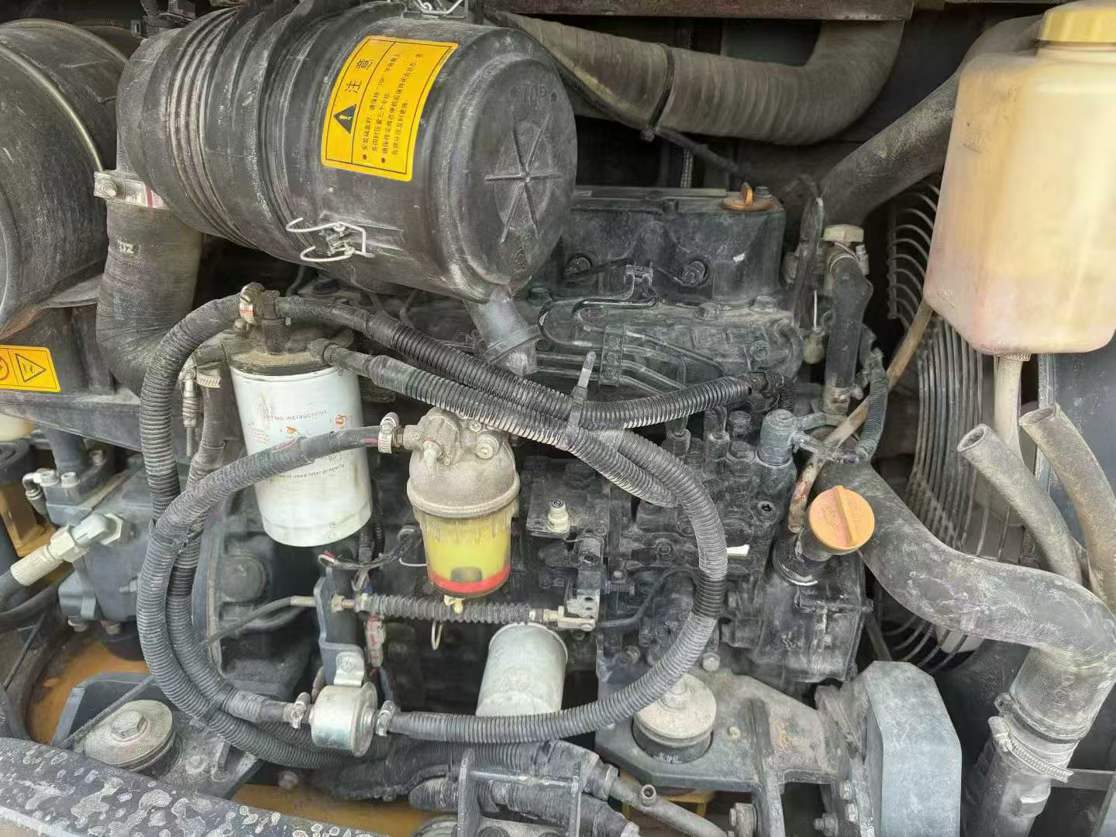

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

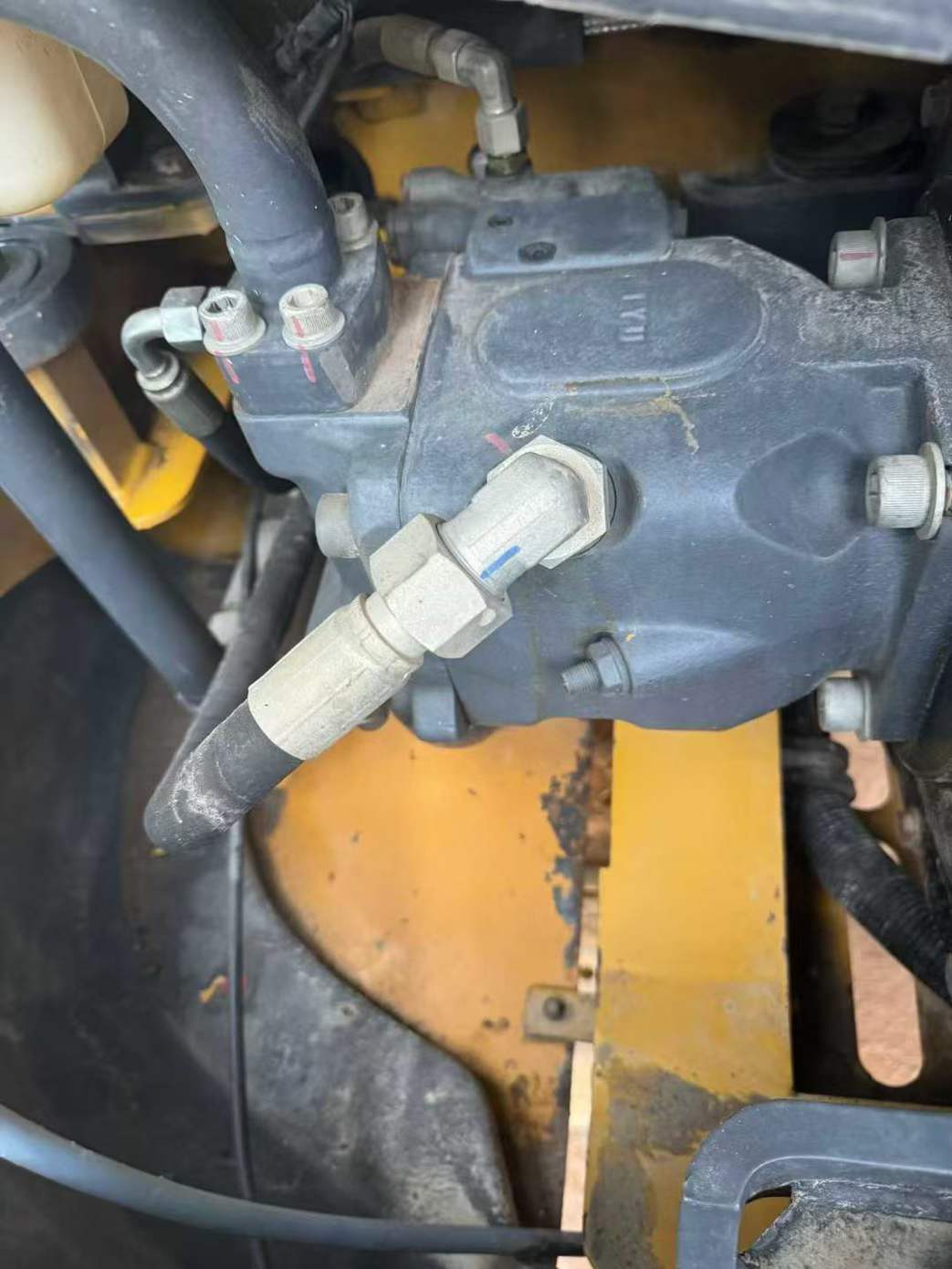

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

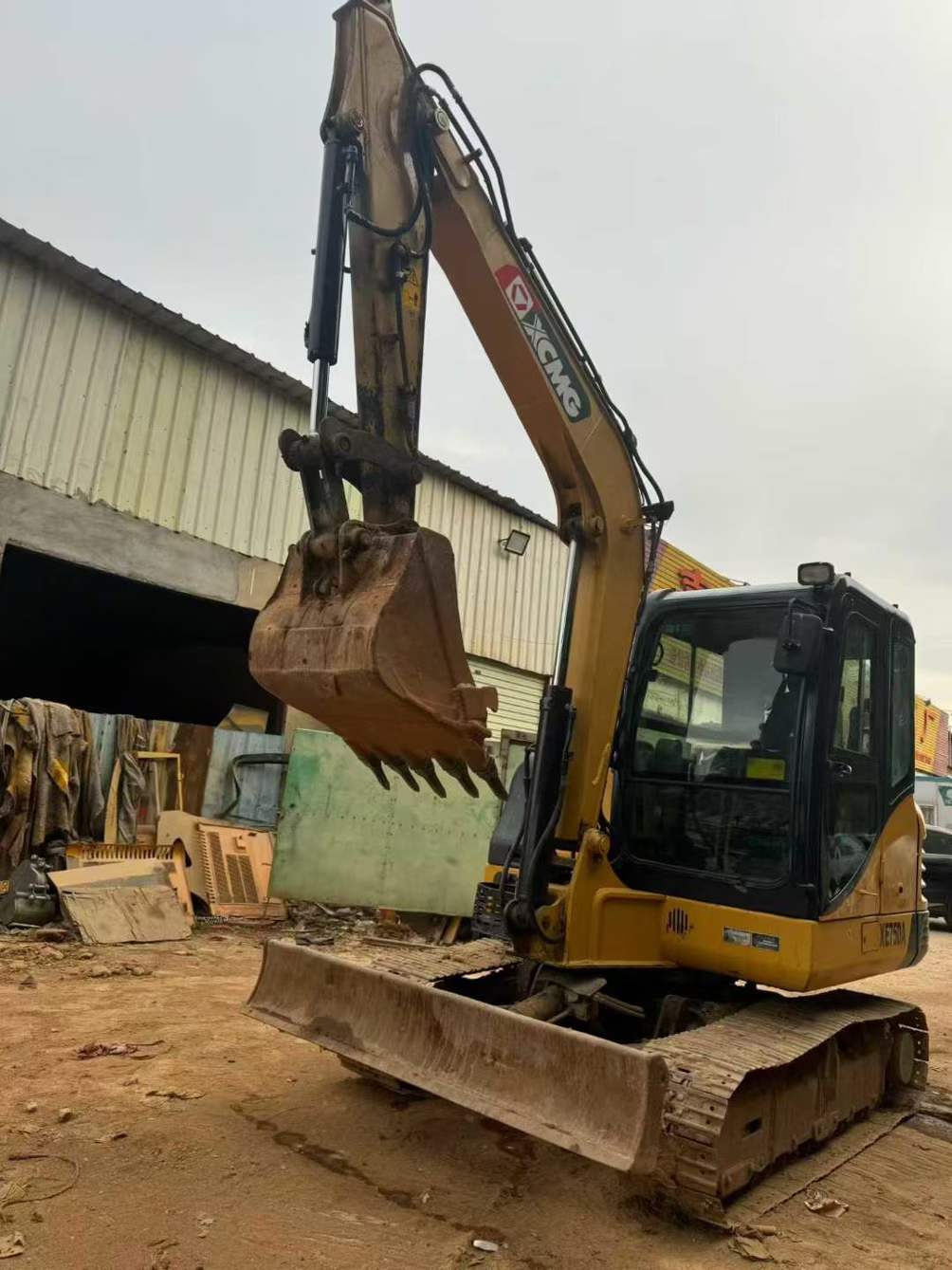

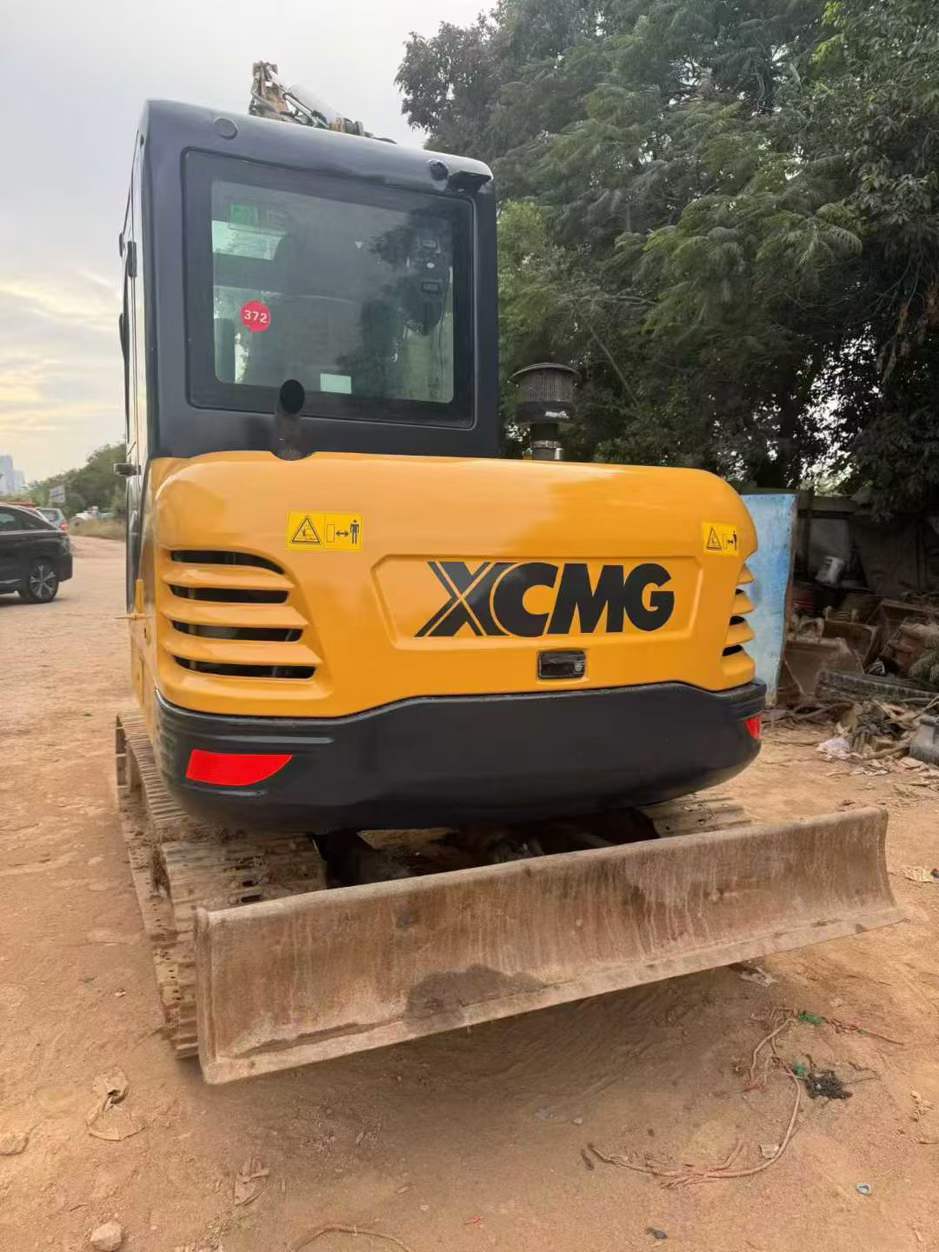

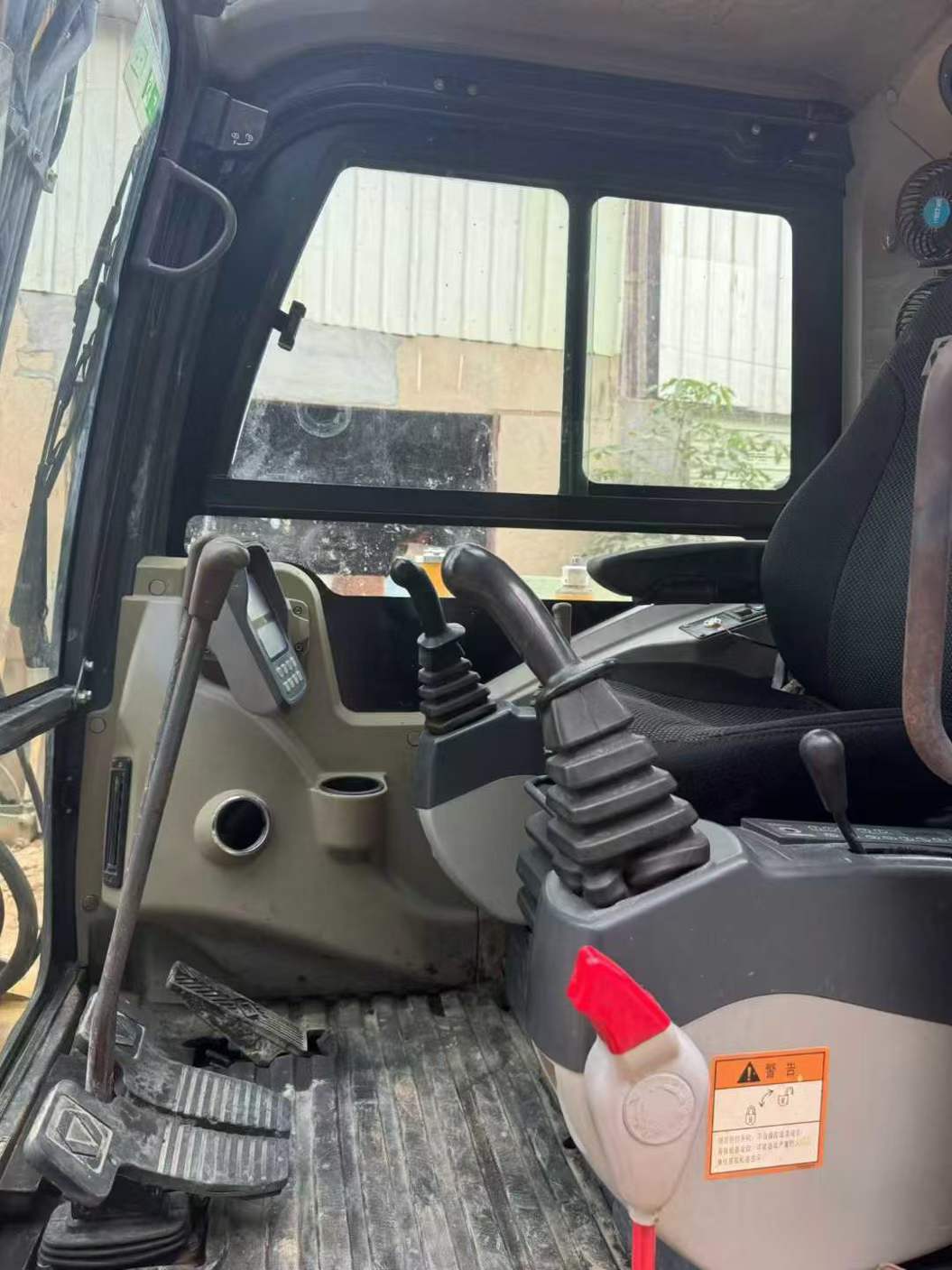

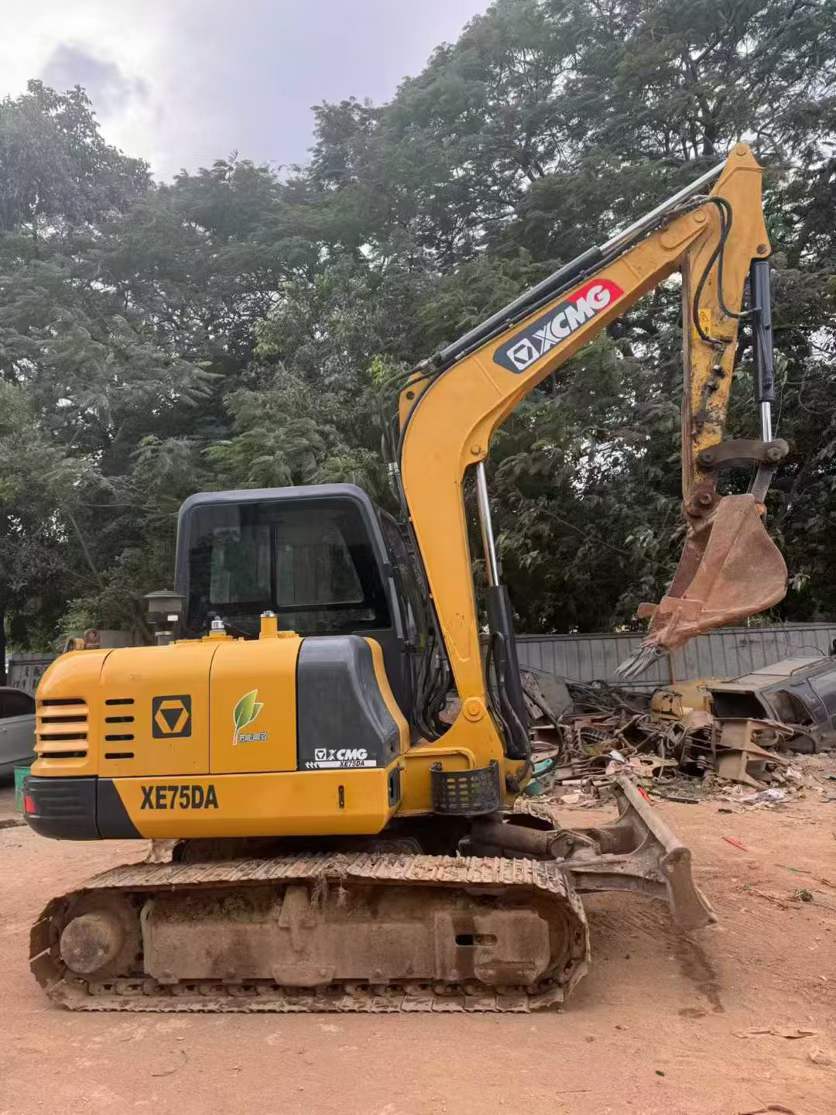

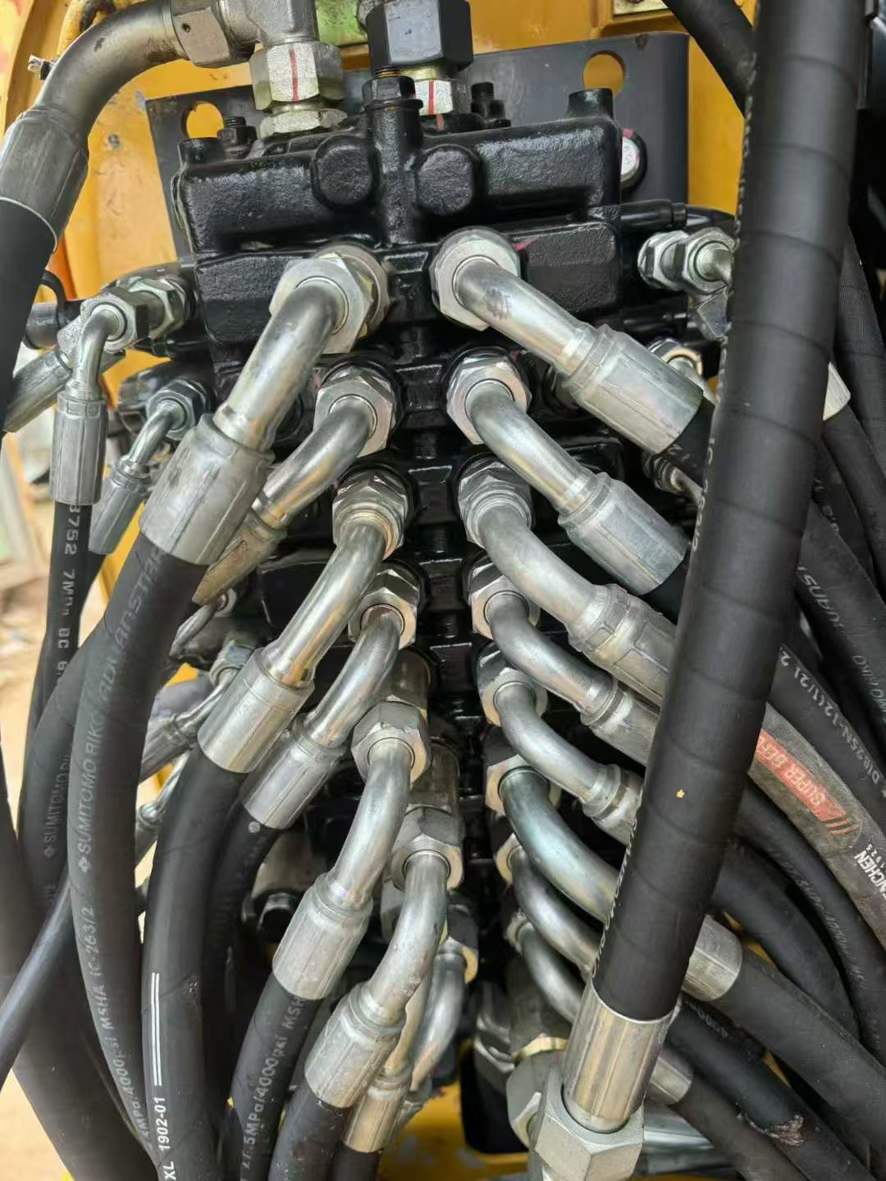

【 Premium Recommendation 】 Second-hand XCMG 60 excavator, 20 years of meticulous maintenance, no inspection required for vehicle condition! This second-hand XCMG 60 excavator has been in the best working condition since it was purchased in 2020. The total working time is only 3,500 hours, which is far lower than the average usage time of similar models, ensuring the overall performance and service life of the machine. Whether it is mining, earthwork or road construction, it can handle them all with ease and demonstrate outstanding work efficiency. In terms of the power system, this excavator is equipped with a high-performance original factory engine. After professional maintenance, it operates smoothly and has strong power. Whether working in plains or mountains, it can provide stable and reliable power support, greatly improving work efficiency. In addition, the original air conditioning system configuration makes the driving environment more comfortable, and it can maintain a good working condition even in the hot summer. The hydraulic system is a major highlight of this excavator. It adopts advanced hydraulic technology, operates flexibly, responds quickly, has a powerful digging force, and can complete various complex operation
