| Specifications | Value |
|---|---|
| No. | 963660 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

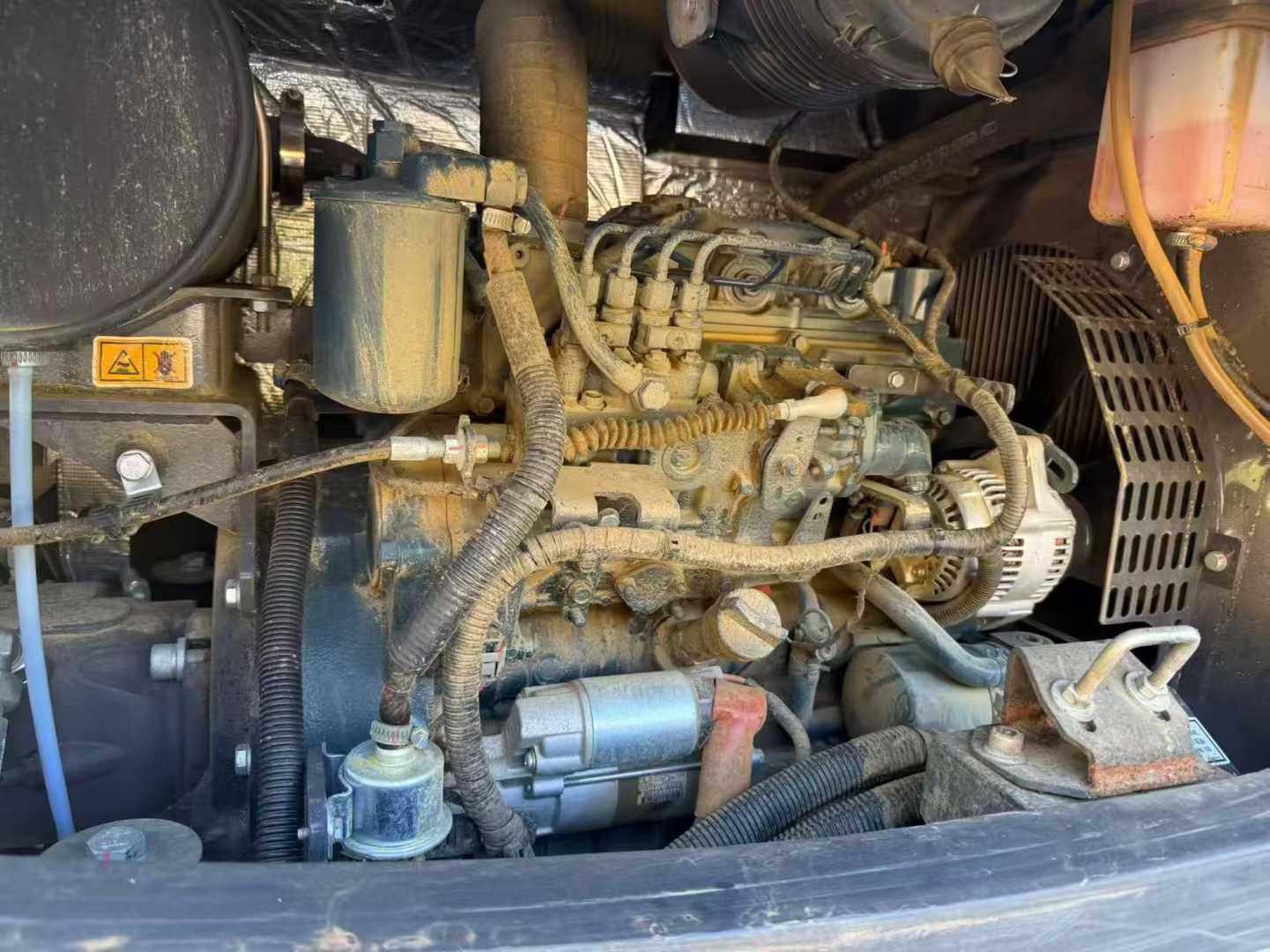

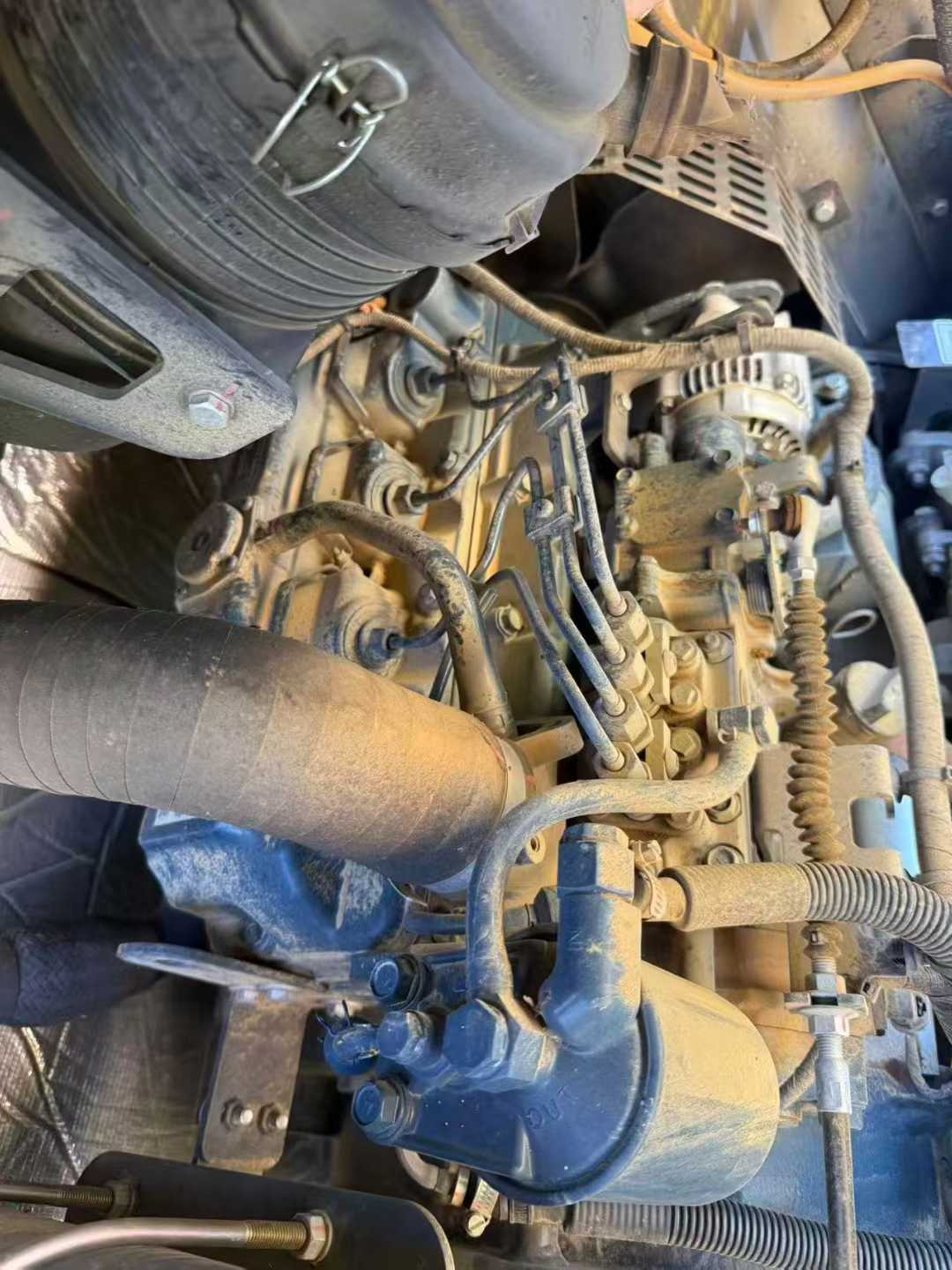

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

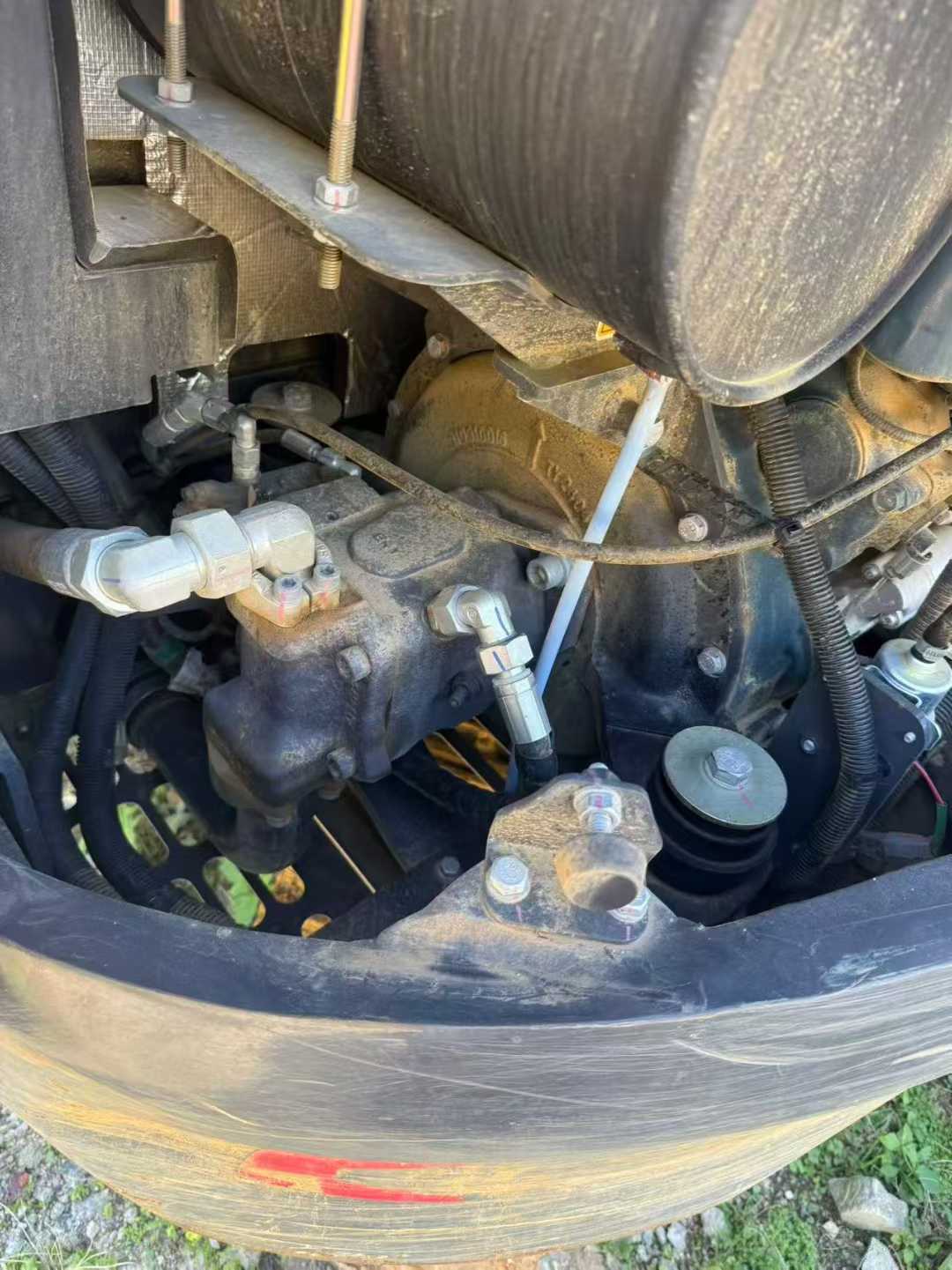

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

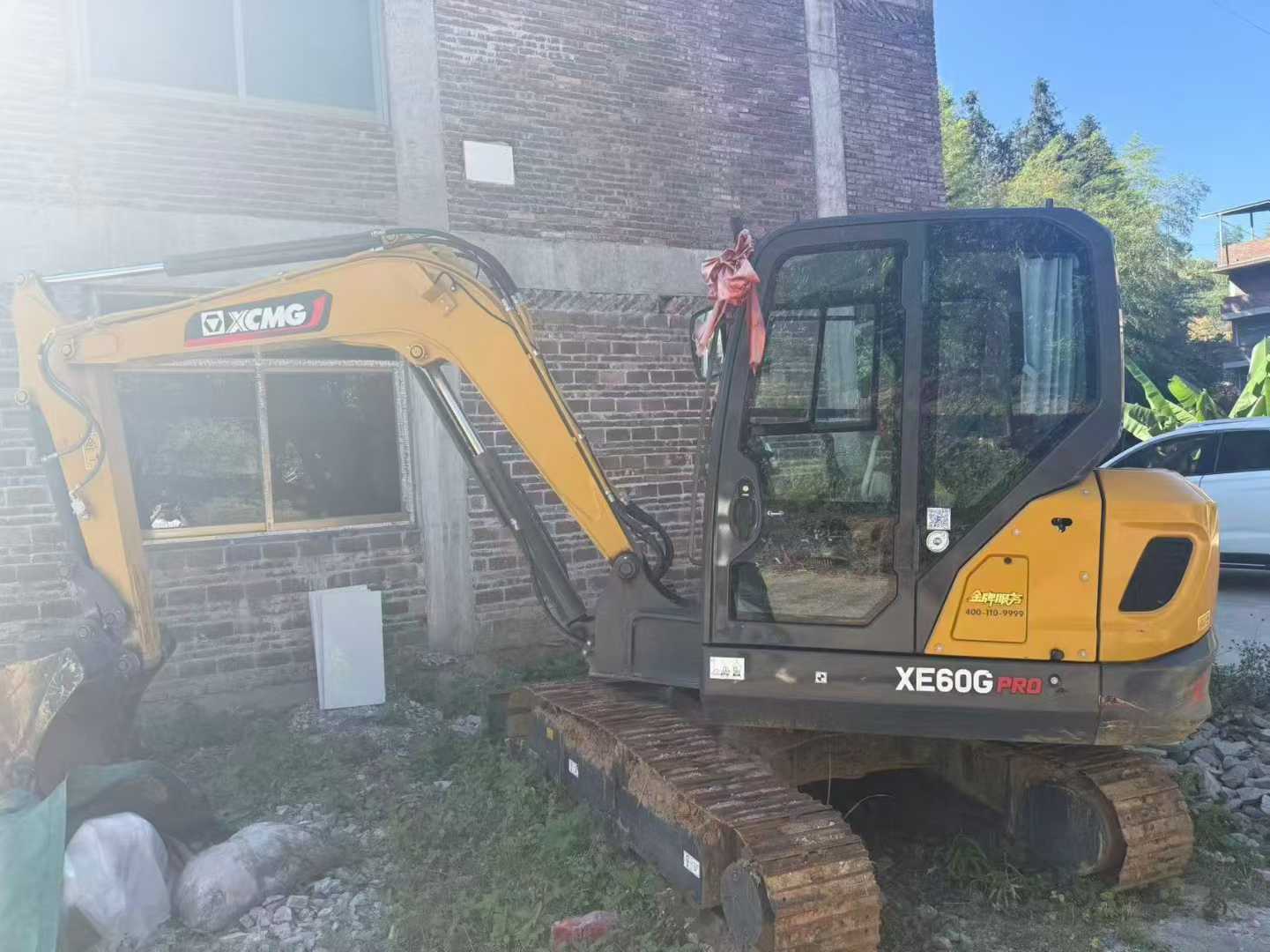

【 Premium Recommendation 】 Second-hand XCMG XE60 excavator for 2024, new quality, discounted transfer! This XCMG XE60 excavator was put into use in early 2024 and has only been in operation for 150 hours so far, almost in brand new condition. As a high-performance mini excavator, it performs outstandingly in various working conditions. Whether it is municipal engineering, landscaping or small-scale earthwork operations, it can handle them with ease. In terms of the power system, this excavator is equipped with an efficient diesel engine, which not only has strong power but also excellent fuel economy. Even under long-term continuous operation, it can maintain stable performance output, ensuring construction efficiency and quality. In addition, the advanced emission control system makes it comply with the latest environmental protection standards, allowing you to enjoy efficient operation while also contributing to environmental protection. The hydraulic system is another major highlight of this excavator. Adopting core components provided by internationally renowned brands and in combination with the intelligent control system independently developed by XCMG, the operation of the entire machine becomes more smooth and precise. Wheth
