| Specifications | Value |
|---|---|
| No. | 963770 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

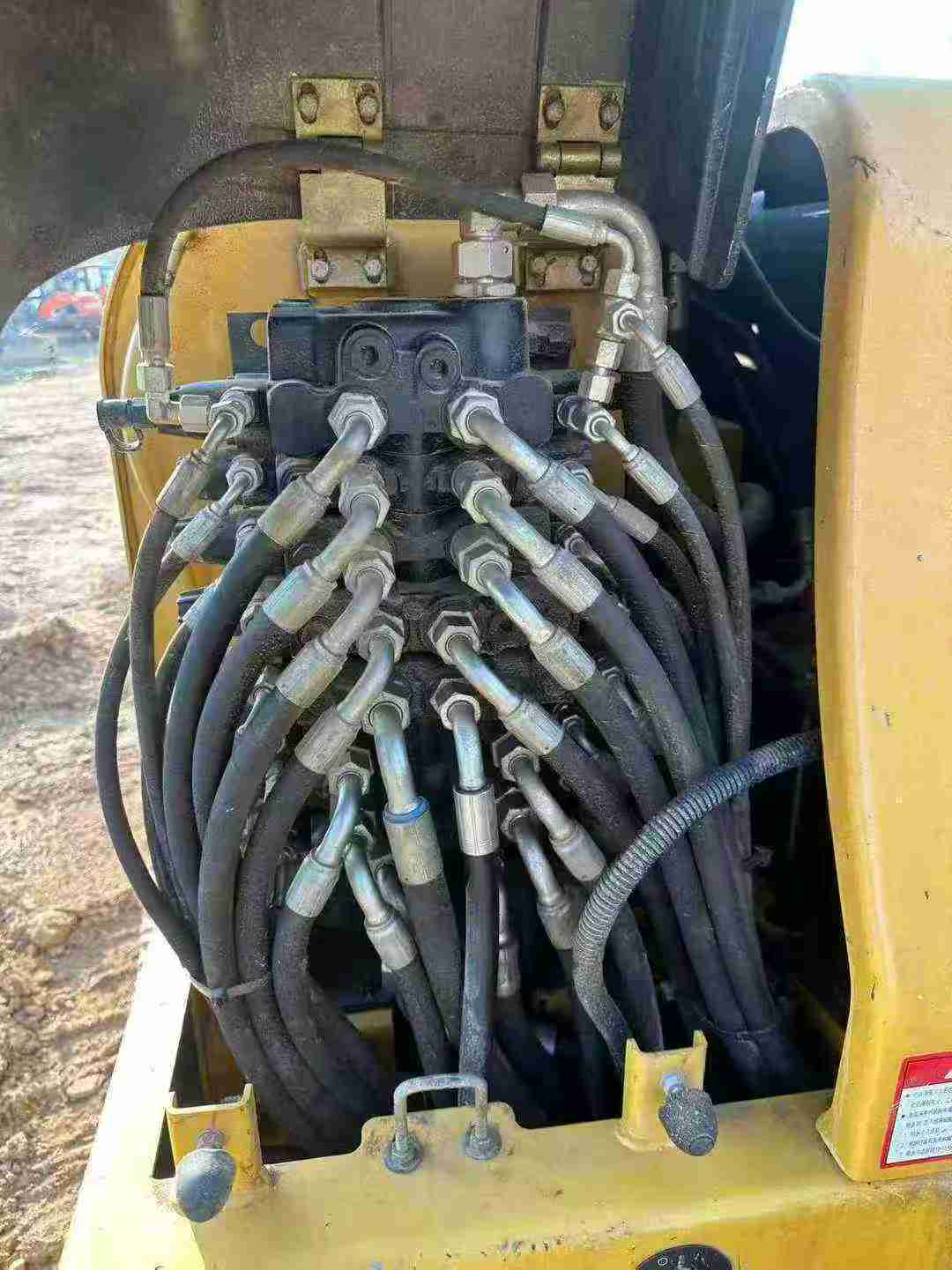

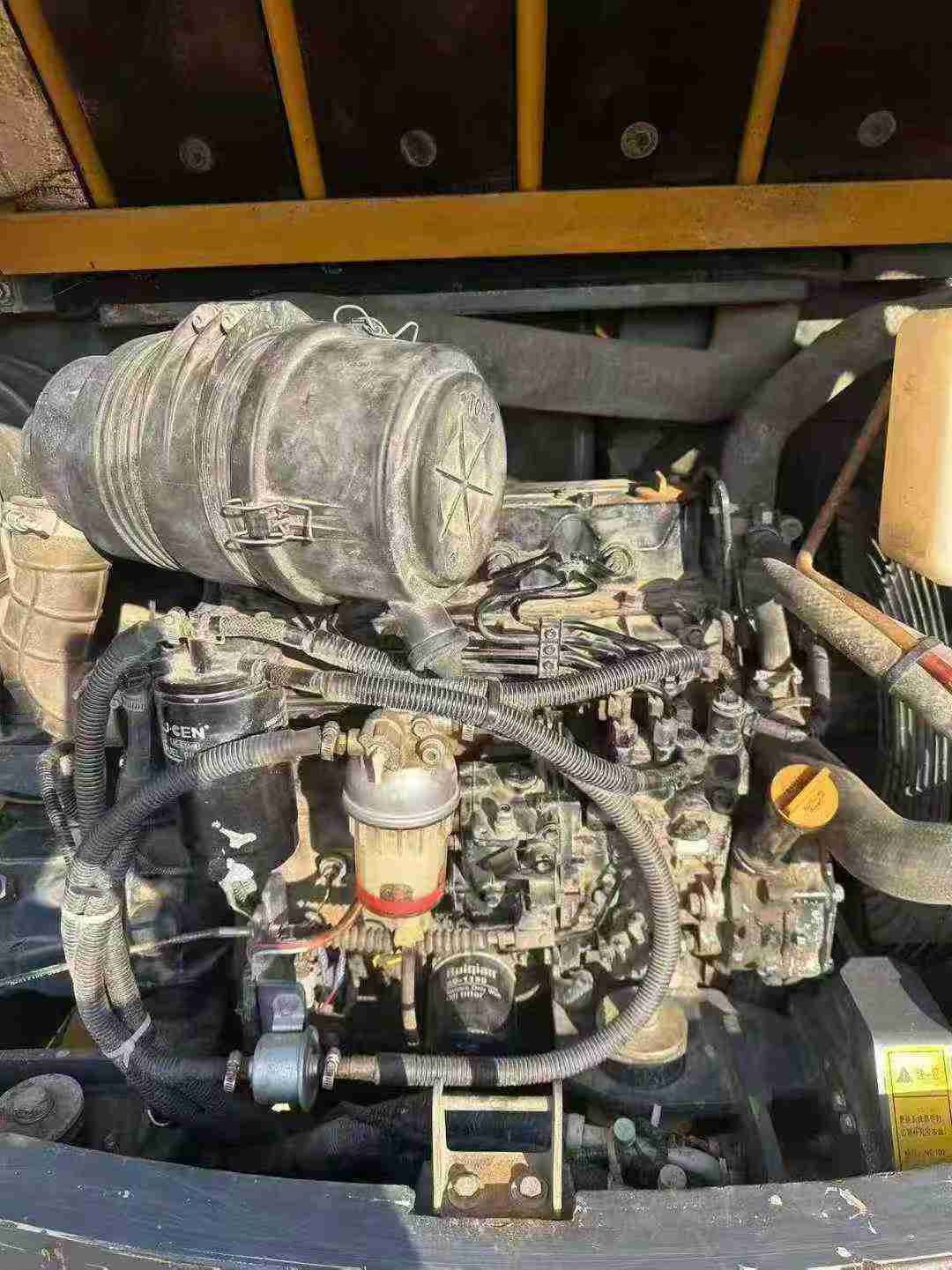

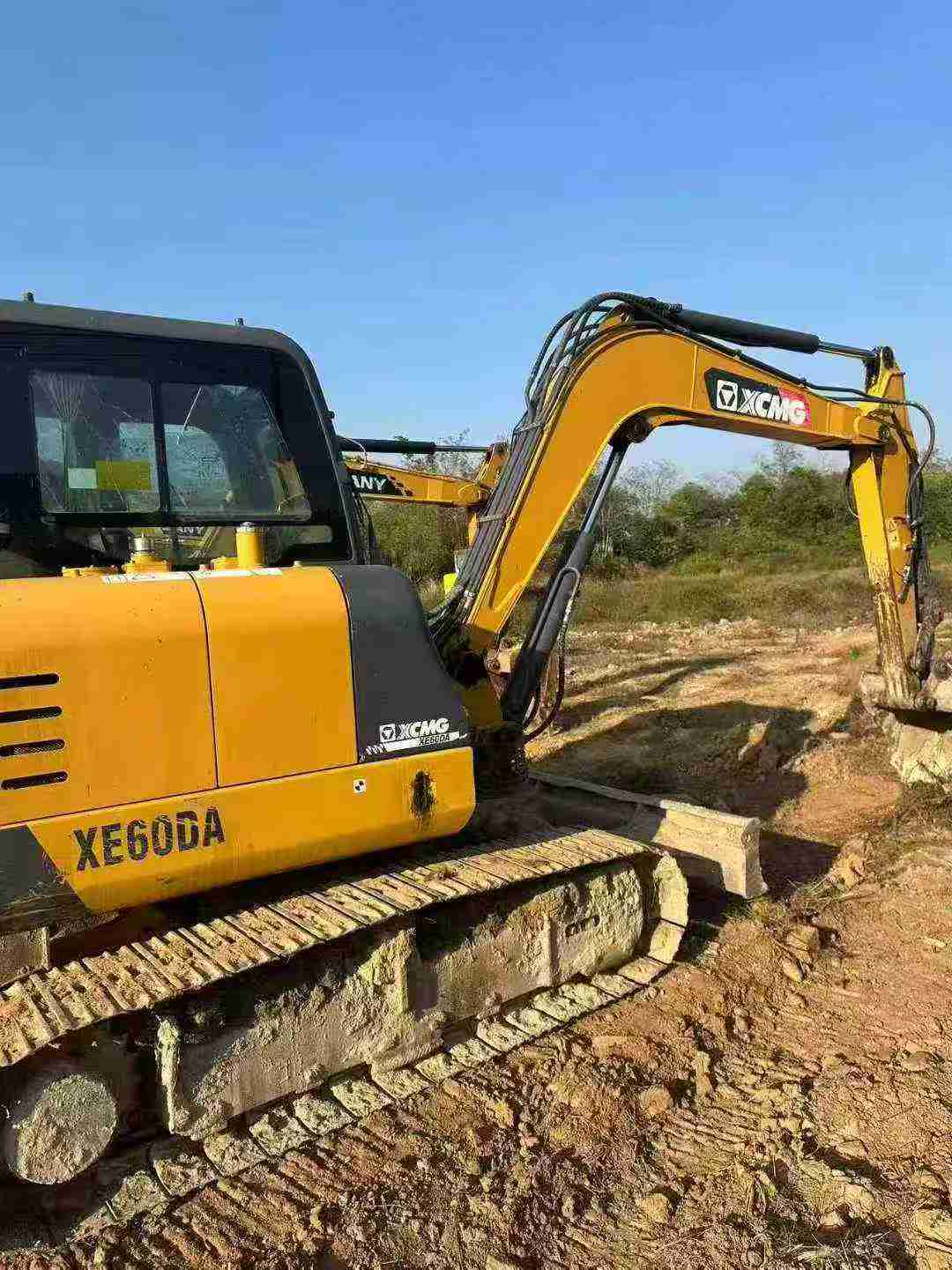

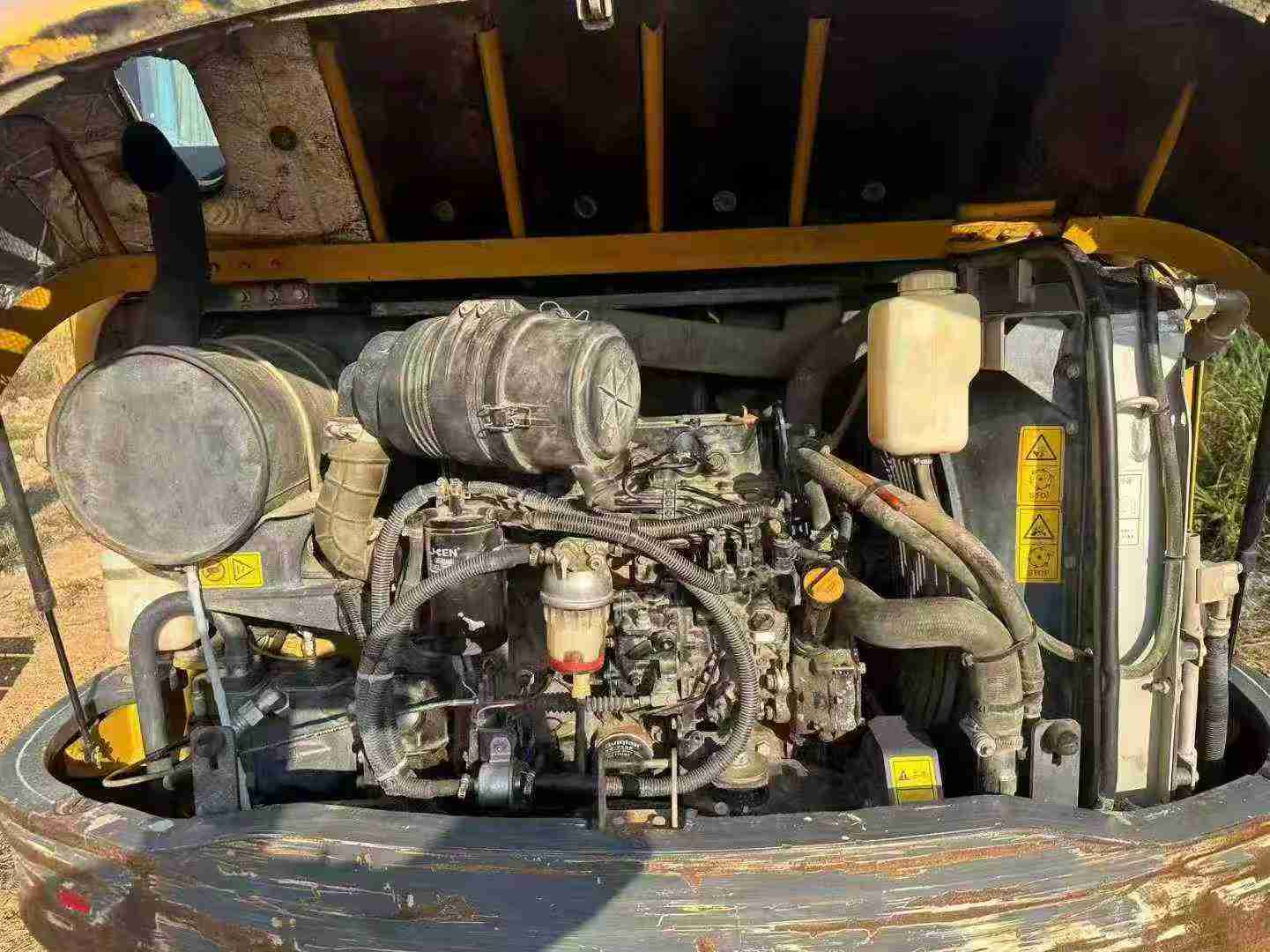

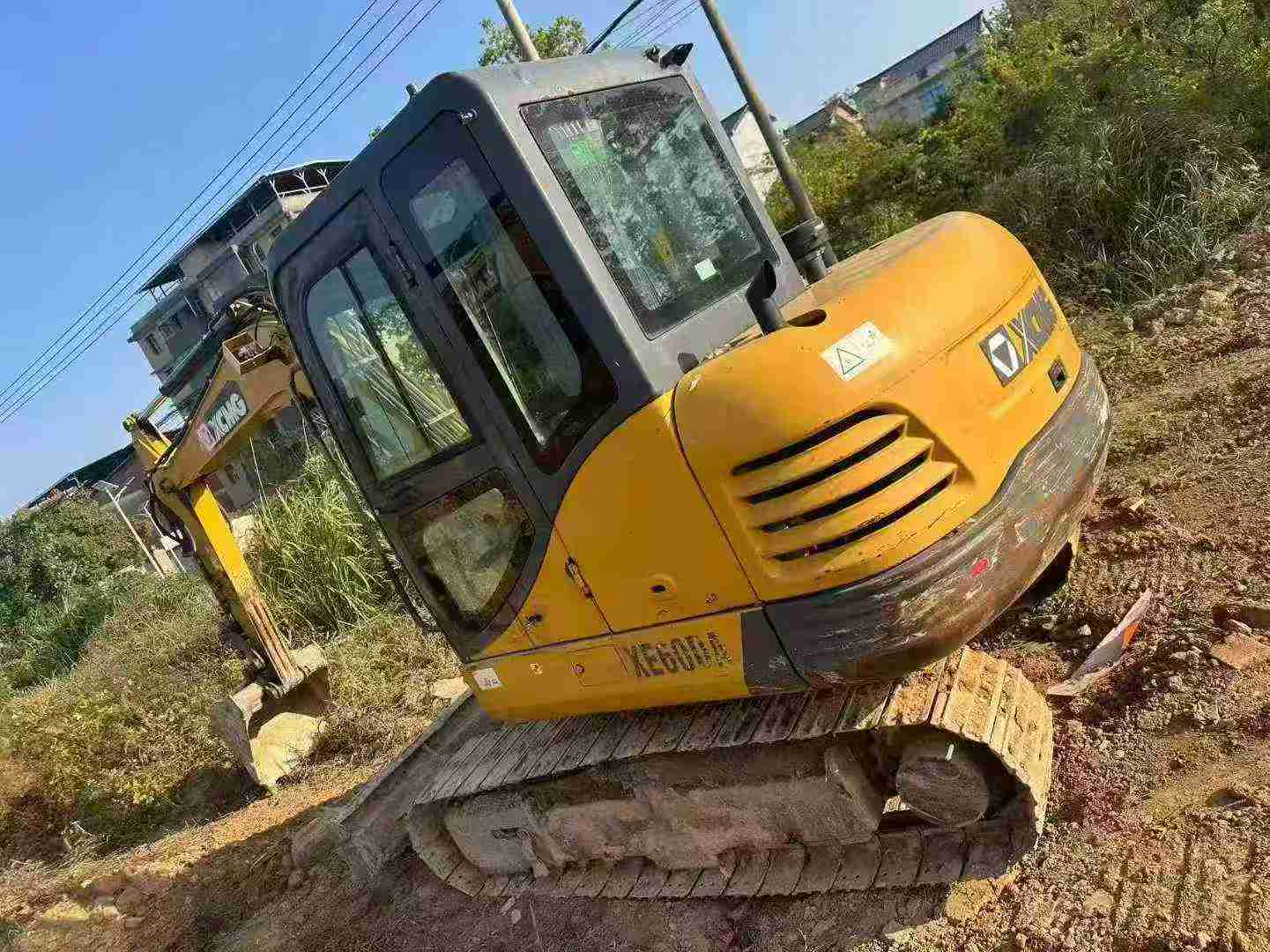

【 Premium Recommendation 】 20-year-old top-quality XCMG XE60D second-hand excavator This 20-year-old XCMG XE60D excavator is a rare masterpiece in the market. Since leaving the factory, it has only worked for 3,500 hours, which is far lower than the average usage time of similar equipment. This means that its main components and structure are in excellent condition, with a long service life and low maintenance costs. In terms of power, this machine is equipped with an original imported Yanmar engine, which is powerful, stable and reliable. Whether facing complex terrains or high-intensity operations, it can handle them with ease. More importantly, this engine has excellent fuel economy, which can effectively reduce operating costs and improve work efficiency. Meanwhile, its emission standards comply with national environmental protection requirements, making it green and environmentally friendly, adding a sense of responsibility and commitment to your engineering projects. The hydraulic system adopts components of internationally renowned brands, ensuring the high operational sensitivity and fast response speed of the entire machine. Advanced load sensing technology enables stronger digging force and smoother movement, maintaining e
