| Specifications | Value |
|---|---|
| No. | 963802 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

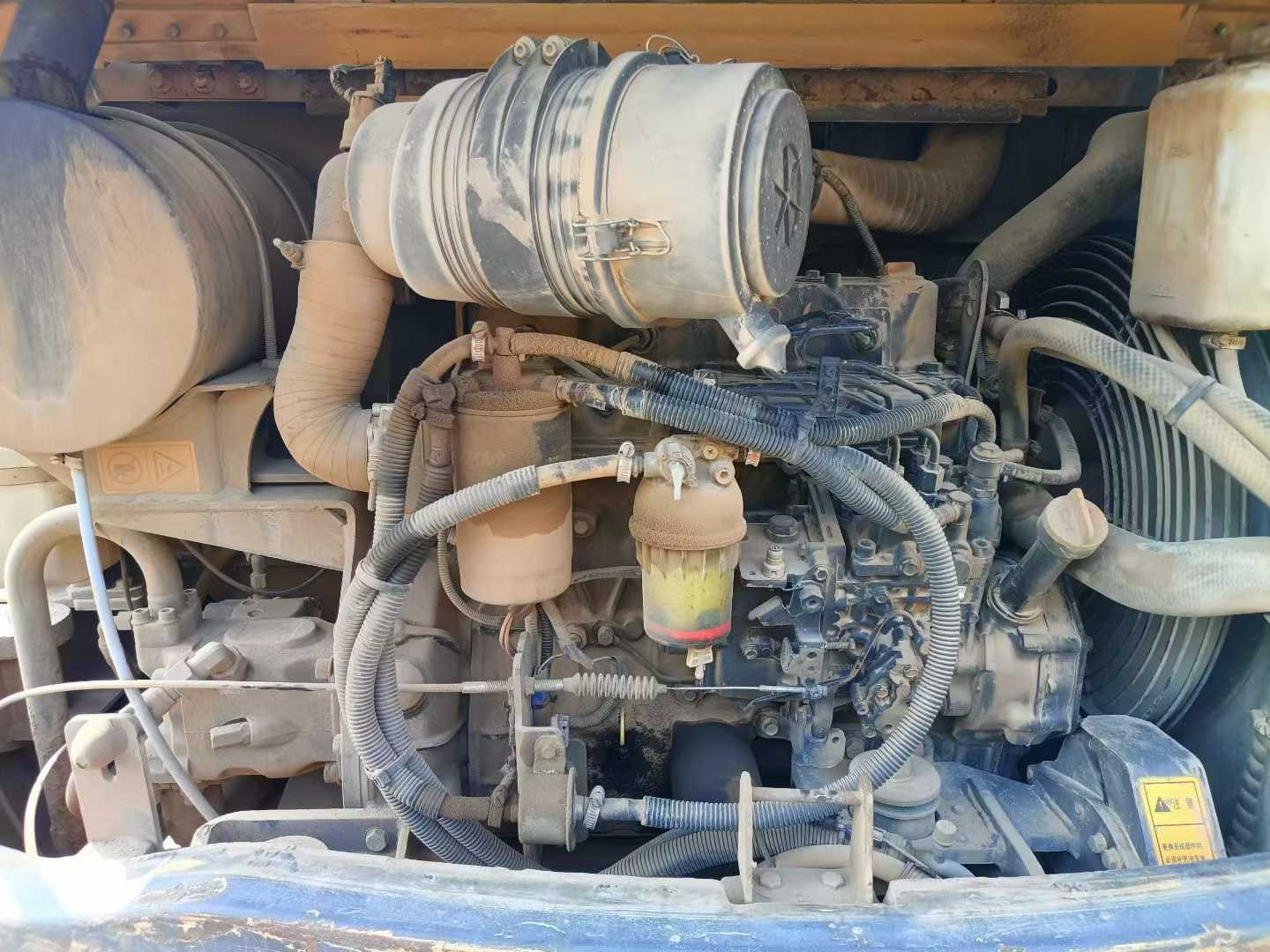

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

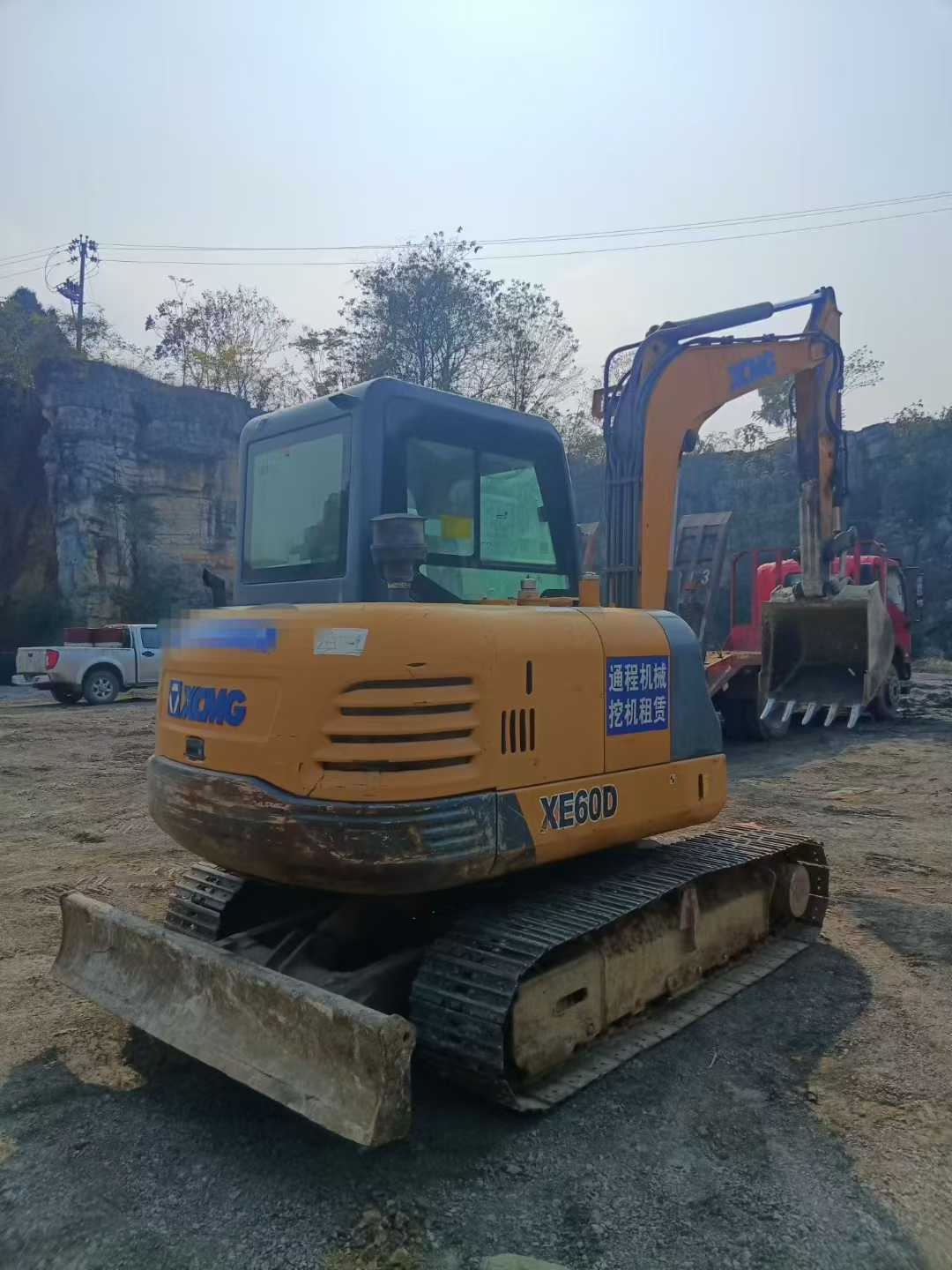

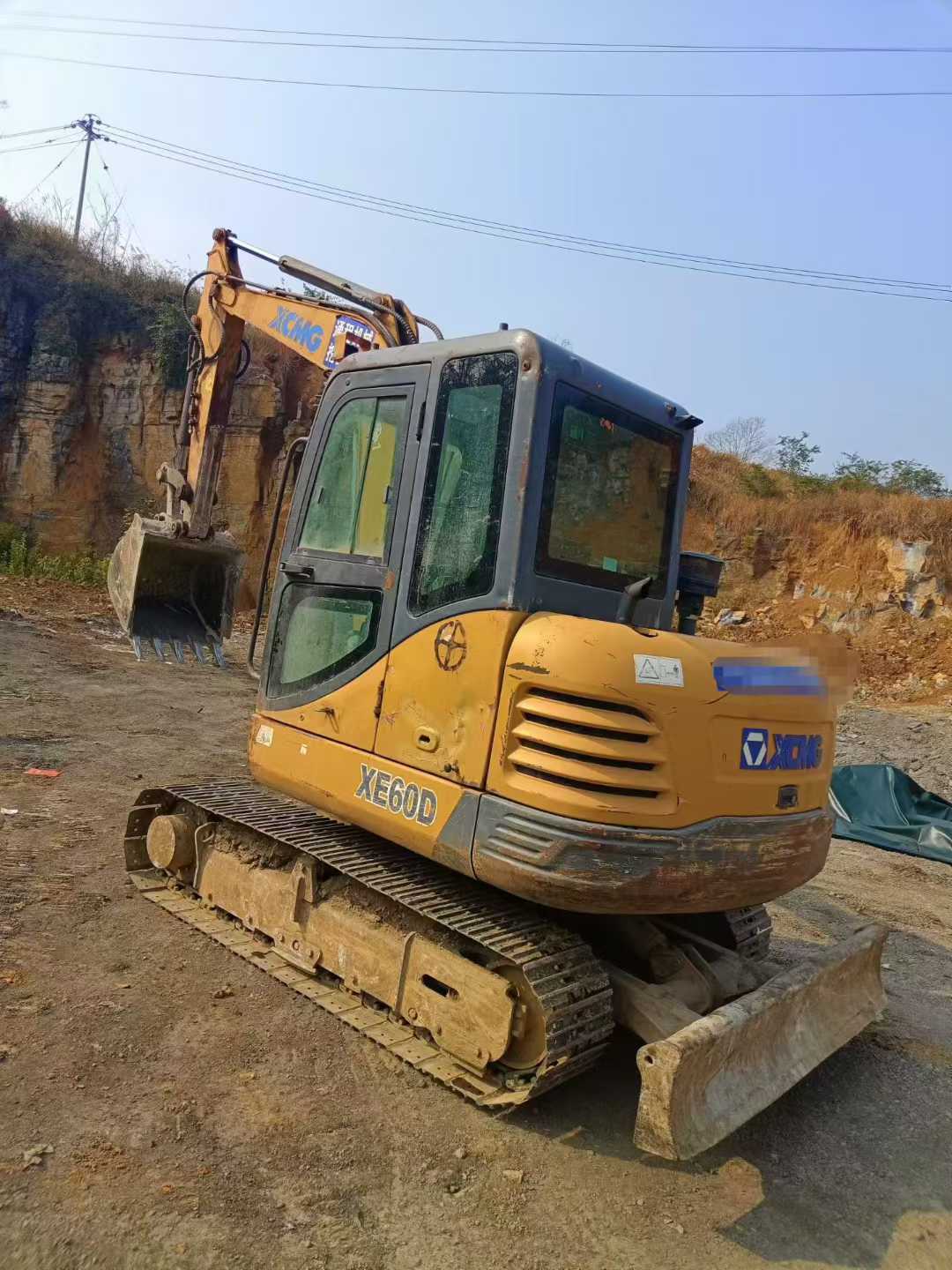

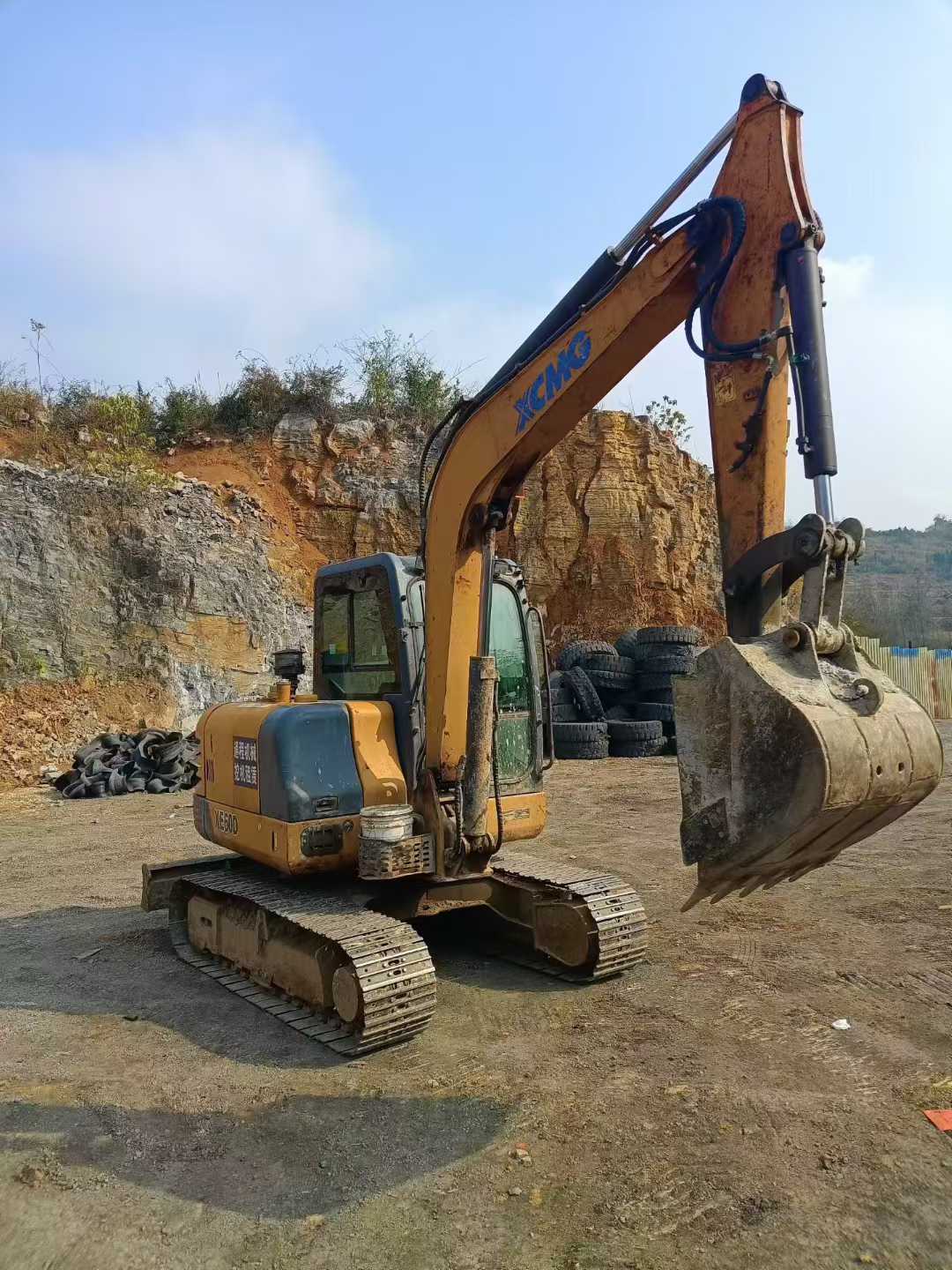

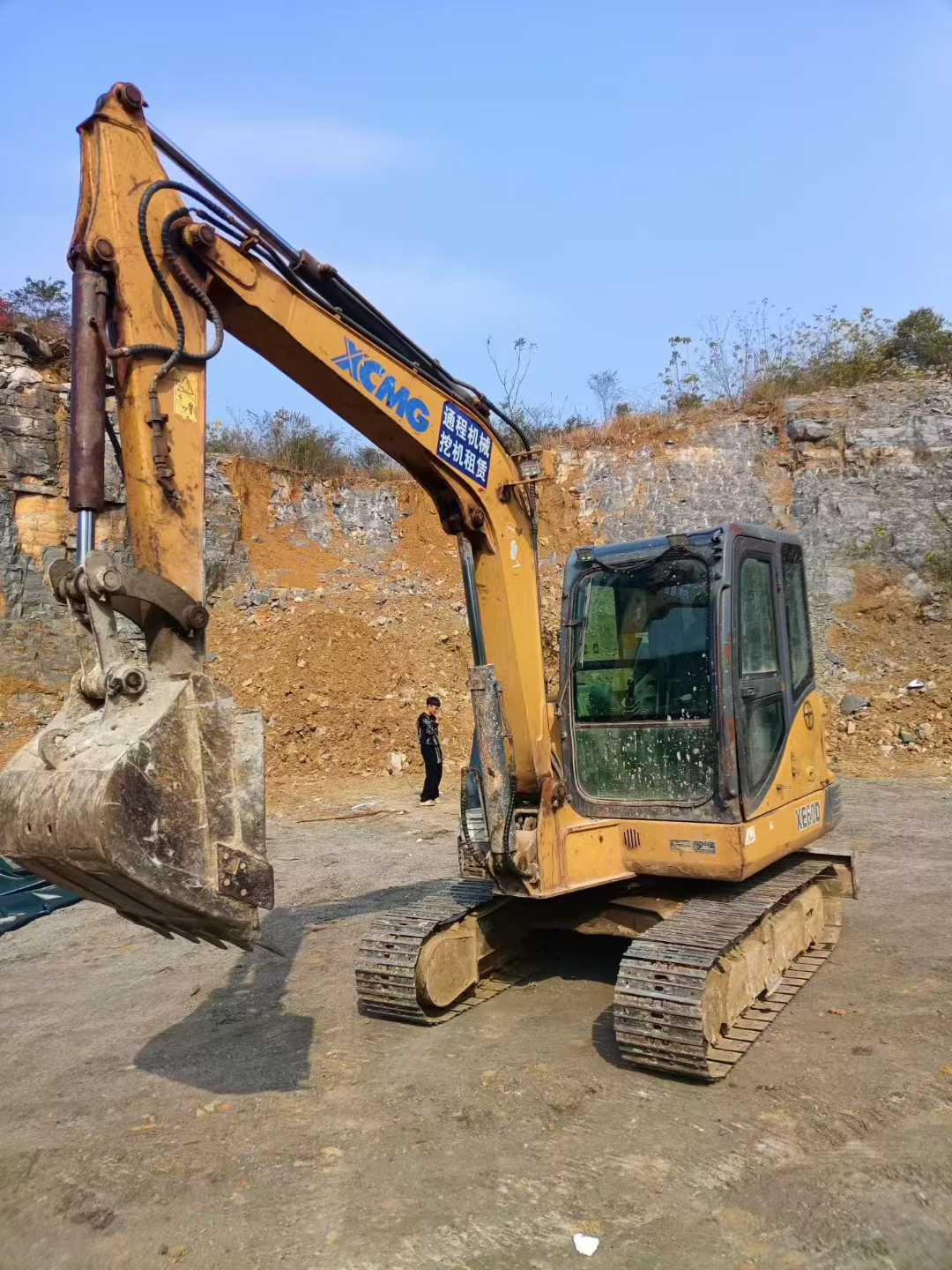

【 Premium Recommendation 】 XCMG XE60 excavator from 2018, with outstanding performance and quality guaranteed. It comes with a breaker and is priced at just over 50,000 yuan! This second-hand excavator is a rare and cost-effective choice in the market, and it is very suitable for the construction needs of medium and small-sized engineering projects. Since its release in 2018, it has accumulated a working time of approximately 3,000 hours. With a moderate usage frequency and proper maintenance, it ensures a good mechanical condition and can meet the requirements of daily high-intensity operations. In terms of the power system, this excavator is equipped with a high-quality engine that meets the National III emission standards. It not only has strong power and a quick response, but also has excellent fuel economy, effectively reducing operating costs. Meanwhile, thanks to the advanced ECU control system, the entire machine operates more smoothly and reliably, and the service life of the equipment is prolonged. The hydraulic system adopts core components of internationally renowned brands and features high efficiency and energy conservation. Both the digging force and the rotation speed perform exceptionally well, especially being able
