| Specifications | Value |
|---|---|
| No. | 963938 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

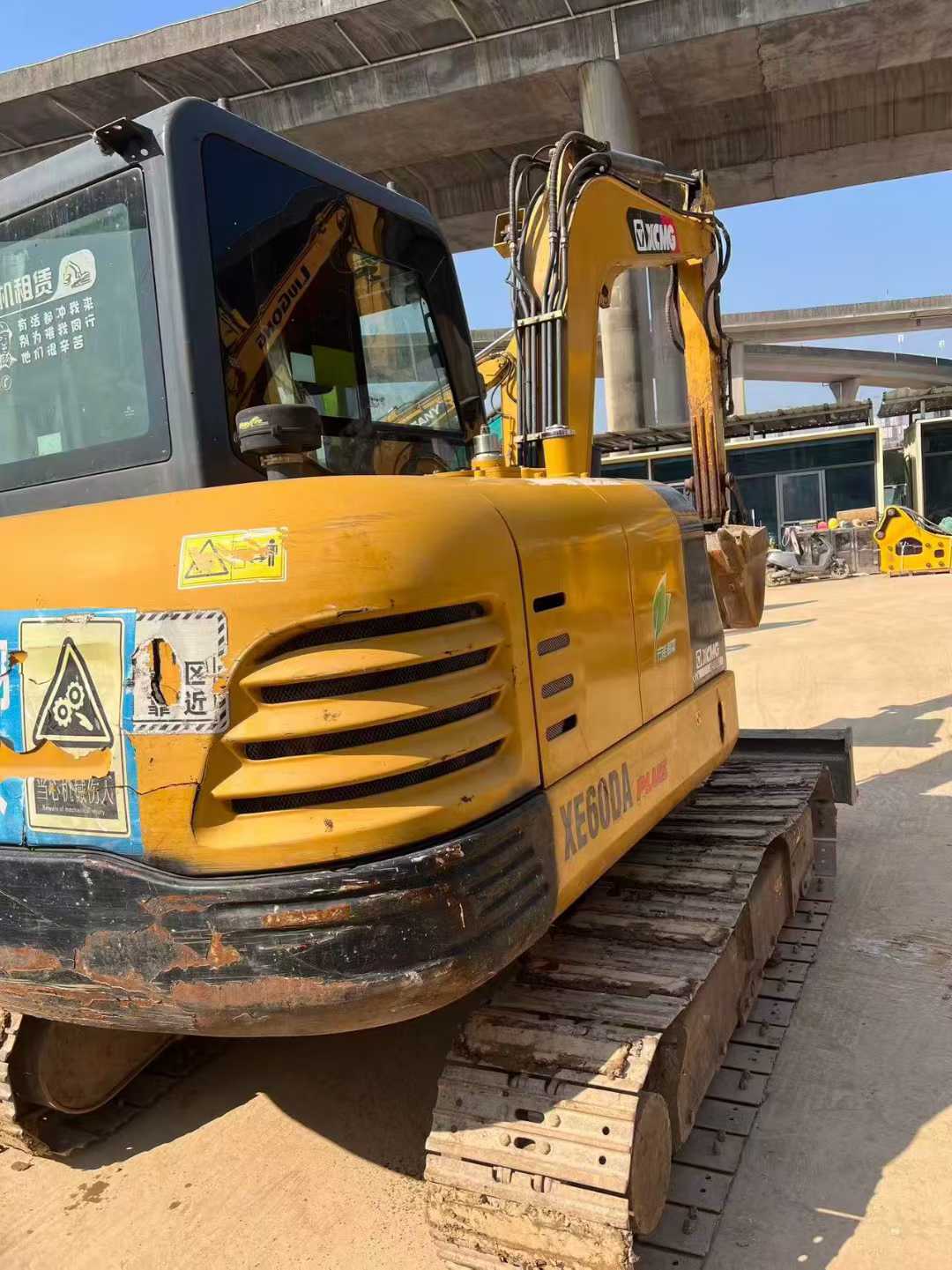

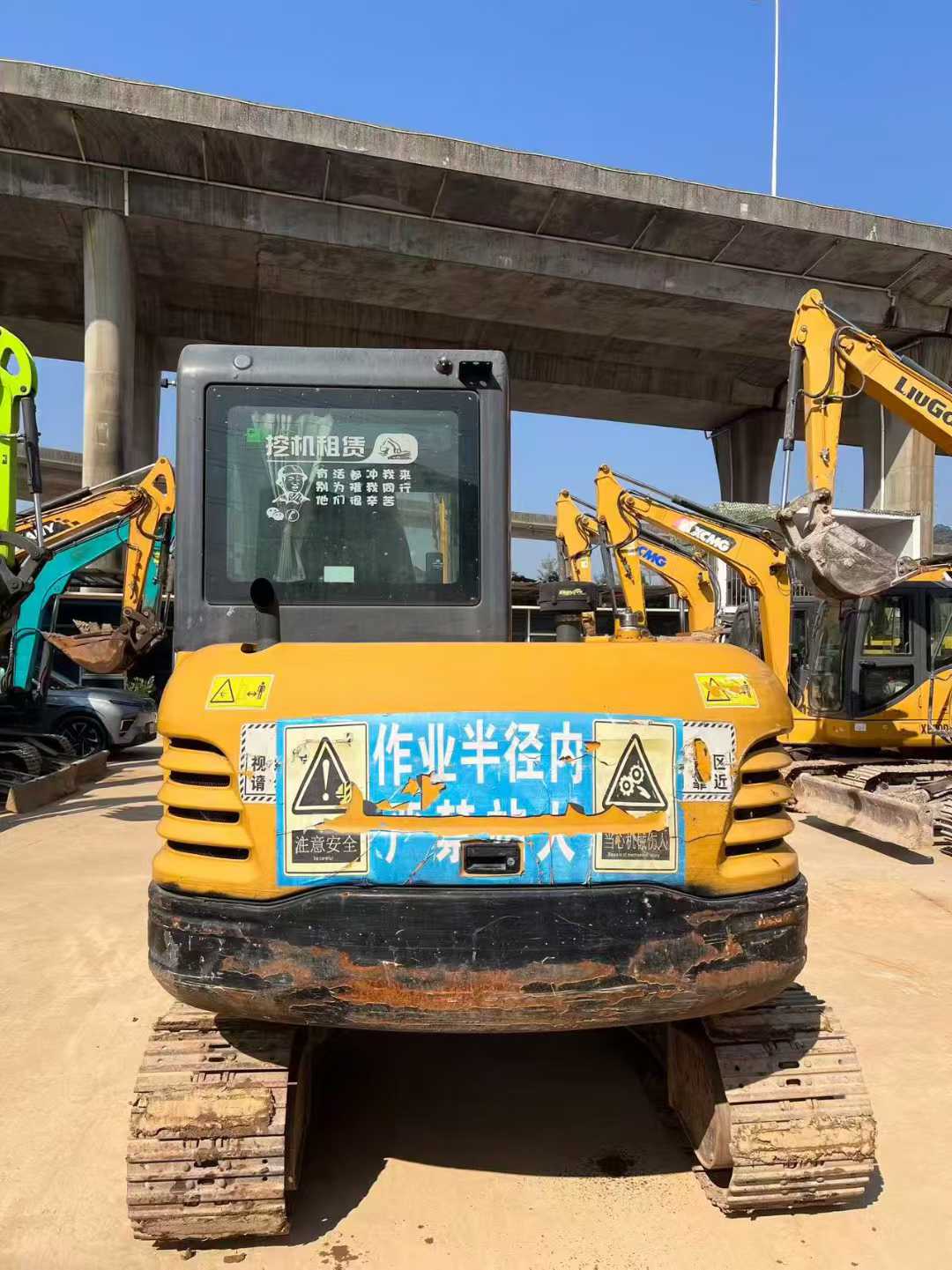

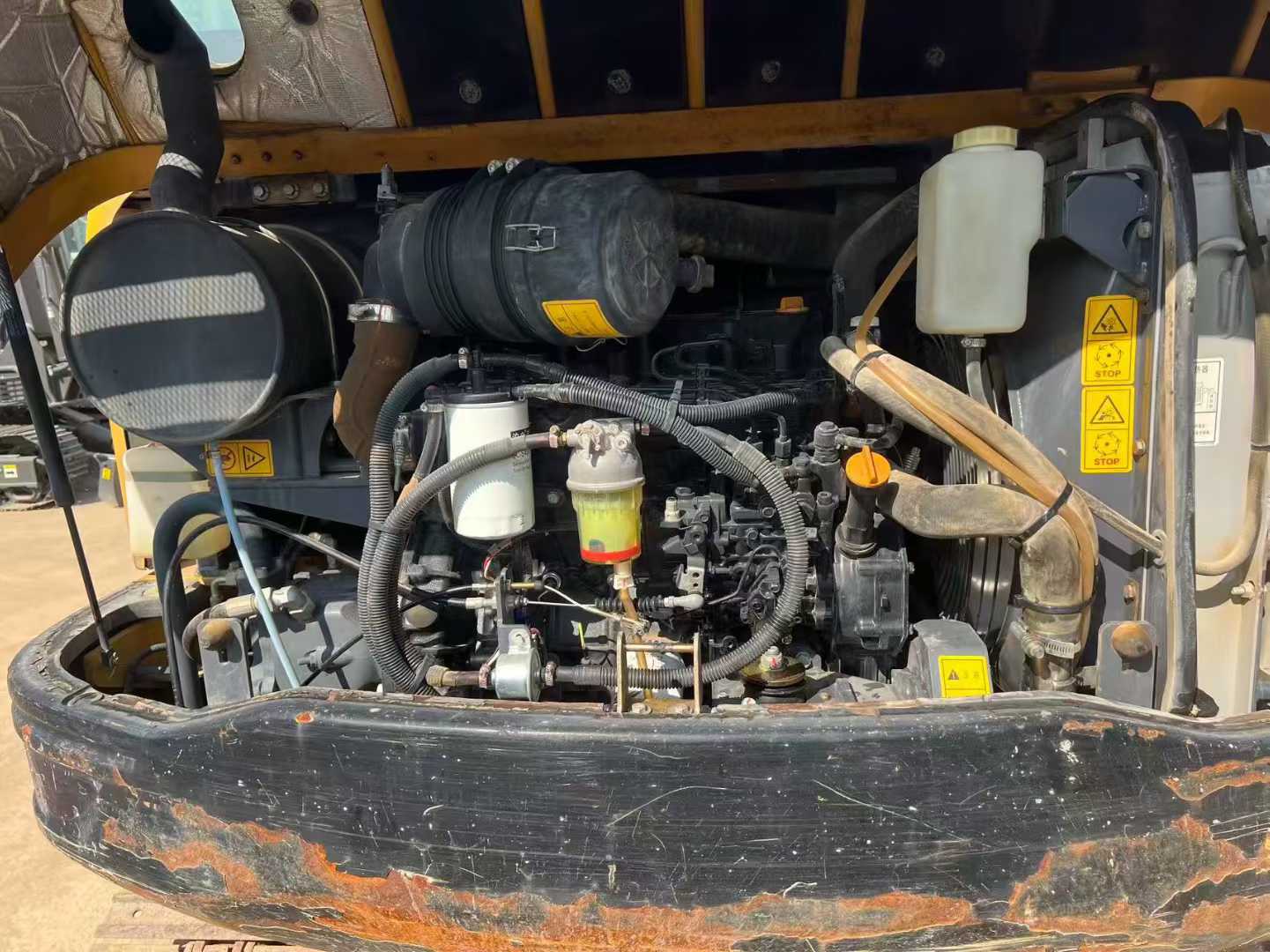

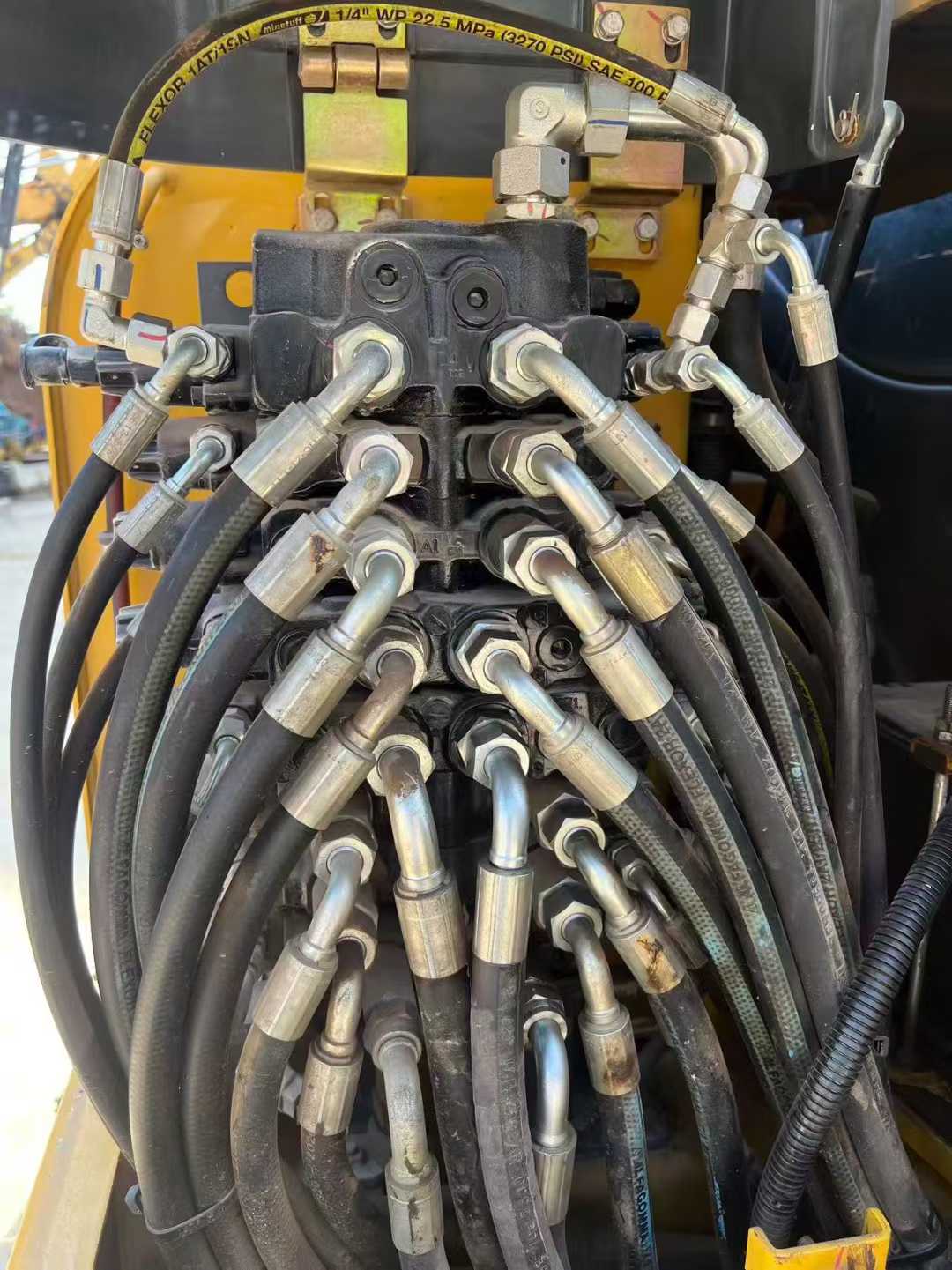

"XCMG XE60D second-hand excavator This XCMG XE60D mini excavator from 2021 has only been in operation for 1,500 hours since its release in 2021. With low usage frequency and proper maintenance, its overall condition is excellent. It is equipped with the original imported Yanmar 4TNV98 engine, which is powerful and stable, and has good fuel economy. It can perform well even in harsh working environments. This engine features low noise and low emissions, meeting national environmental protection standards and providing users with a greener and healthier working environment. In terms of the hydraulic system, advanced negative flow control technology is adopted, ensuring smooth and efficient operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, its unique hydraulic oil cooling system can effectively prevent damage to the equipment caused by high temperatures and extend its service life. The whole machine has a compact structure and a small turning radius, making it particularly suitable for construction needs in narrow urban Spaces. The interior of the cab is luxurious and comfortable, with a wide field of vision. It is equipped with air conditioners, radios and other facilities,
