| Specifications | Value |
|---|---|
| No. | 964056 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

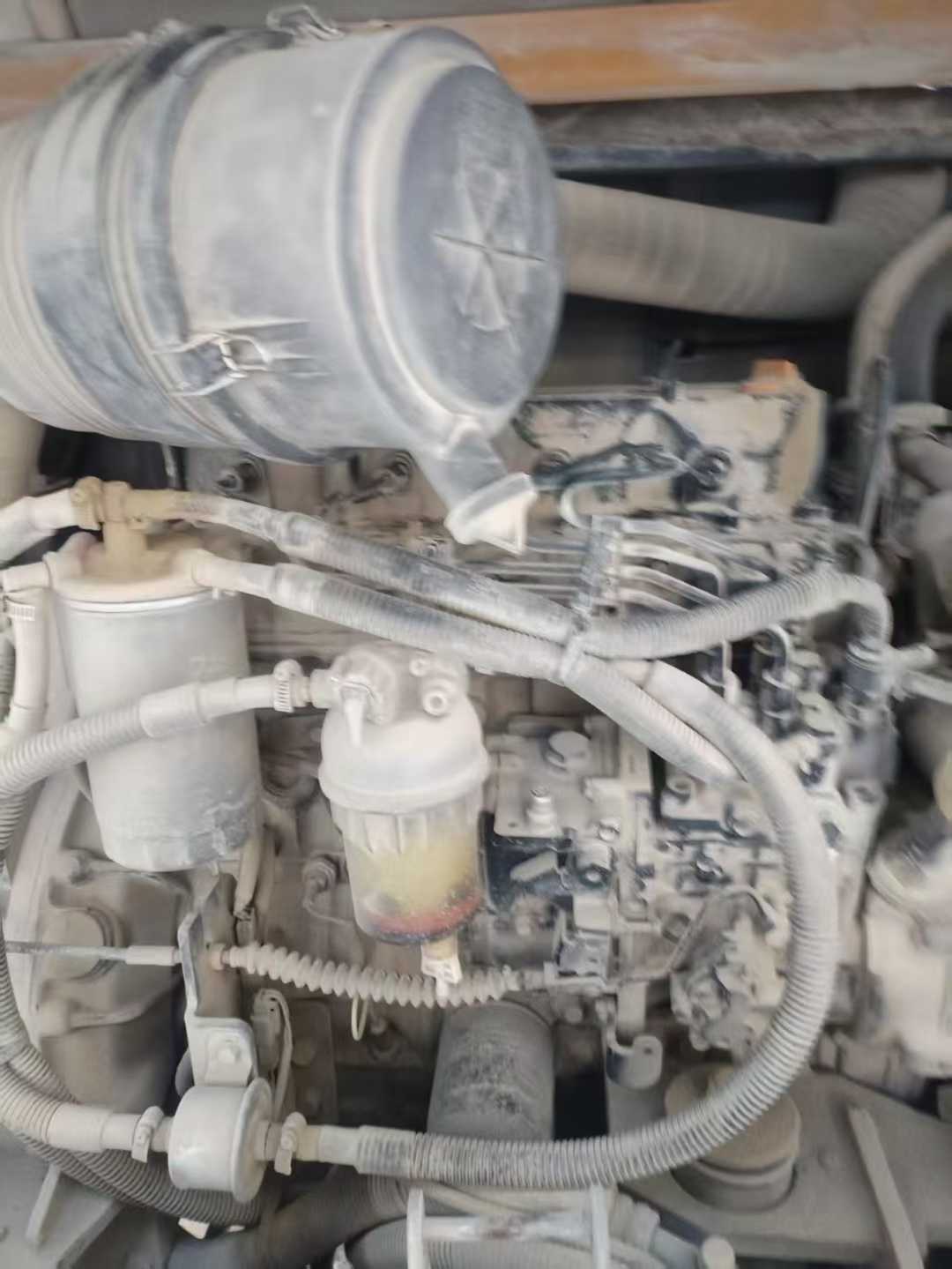

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

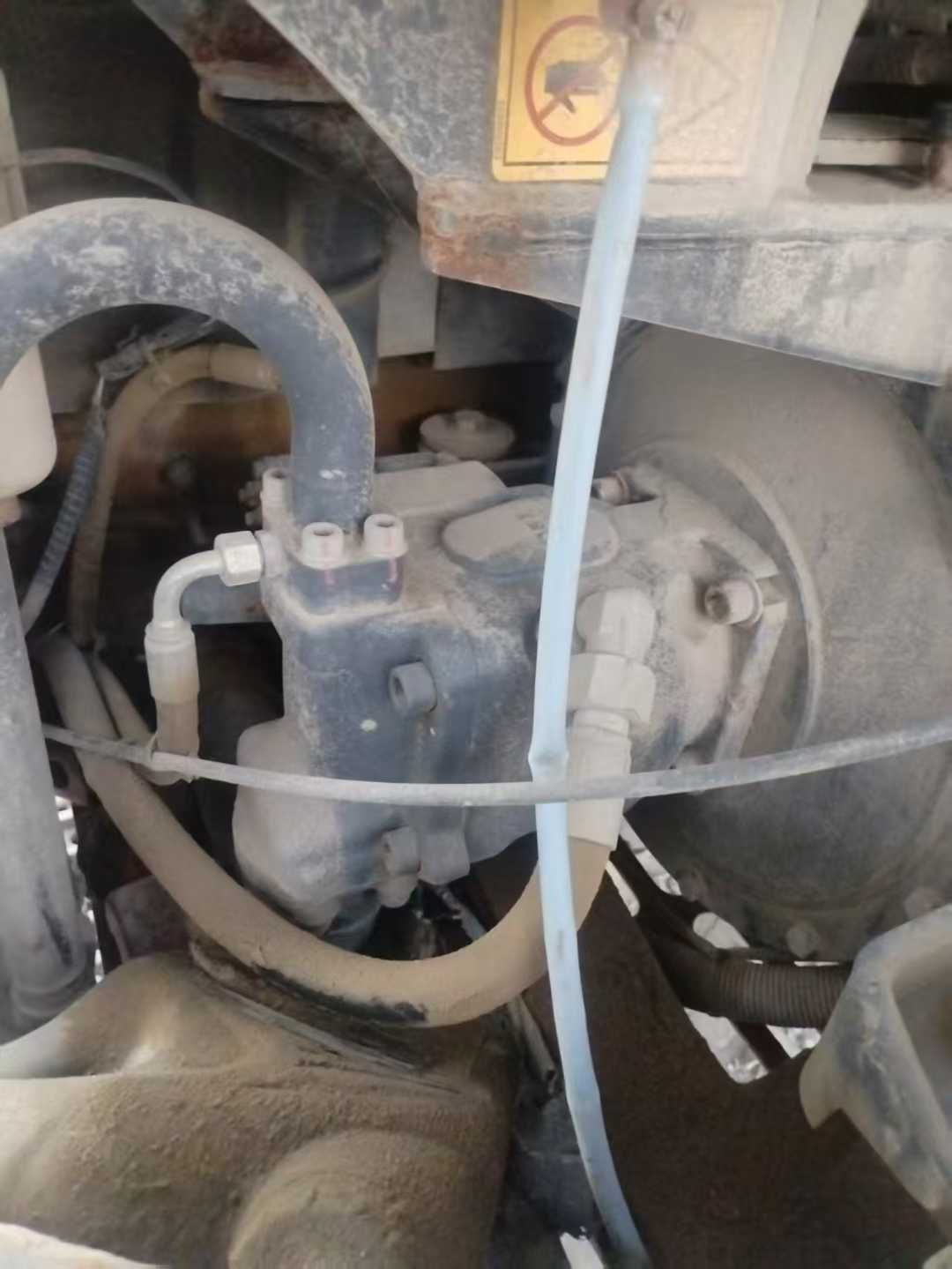

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

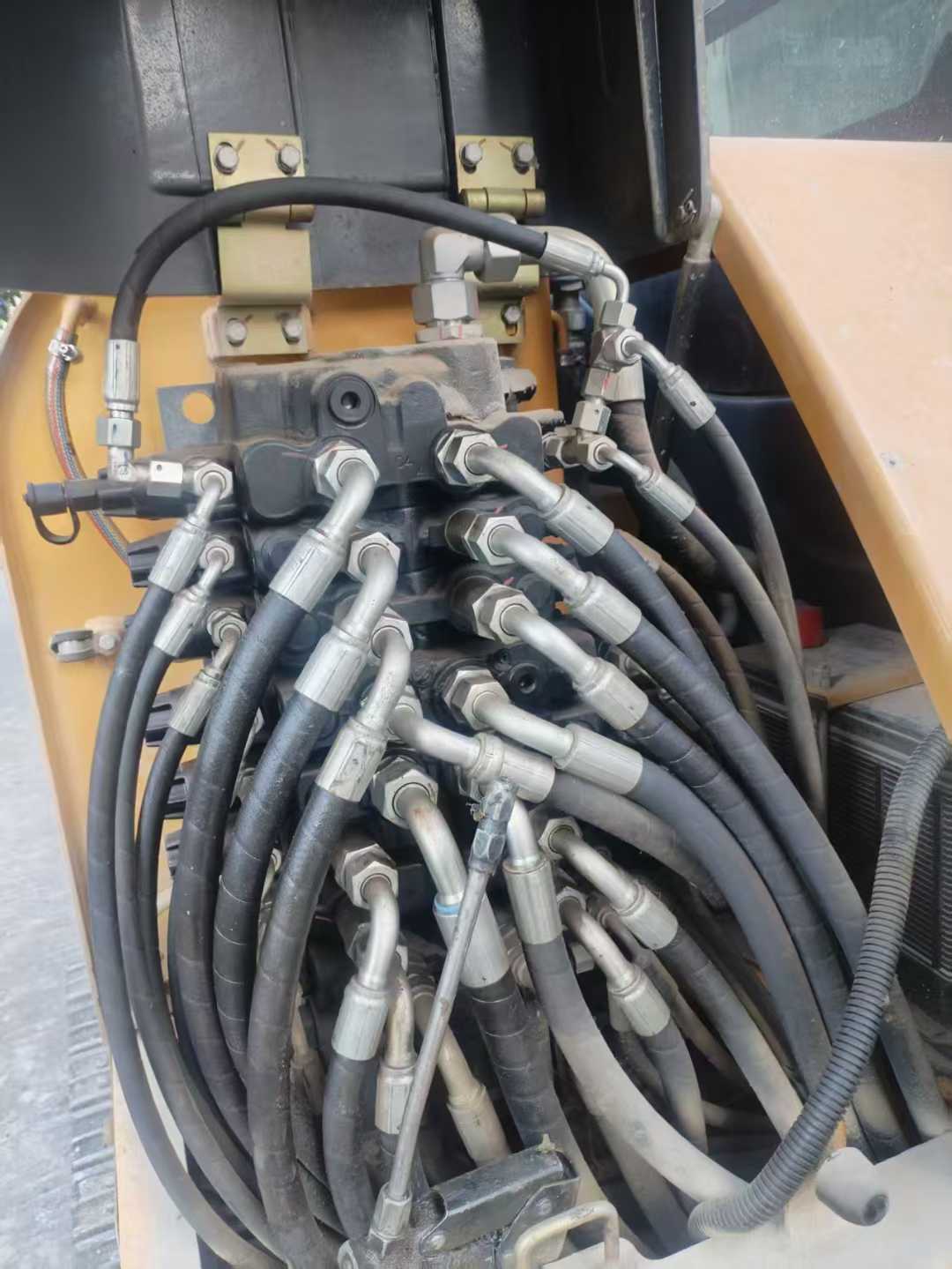

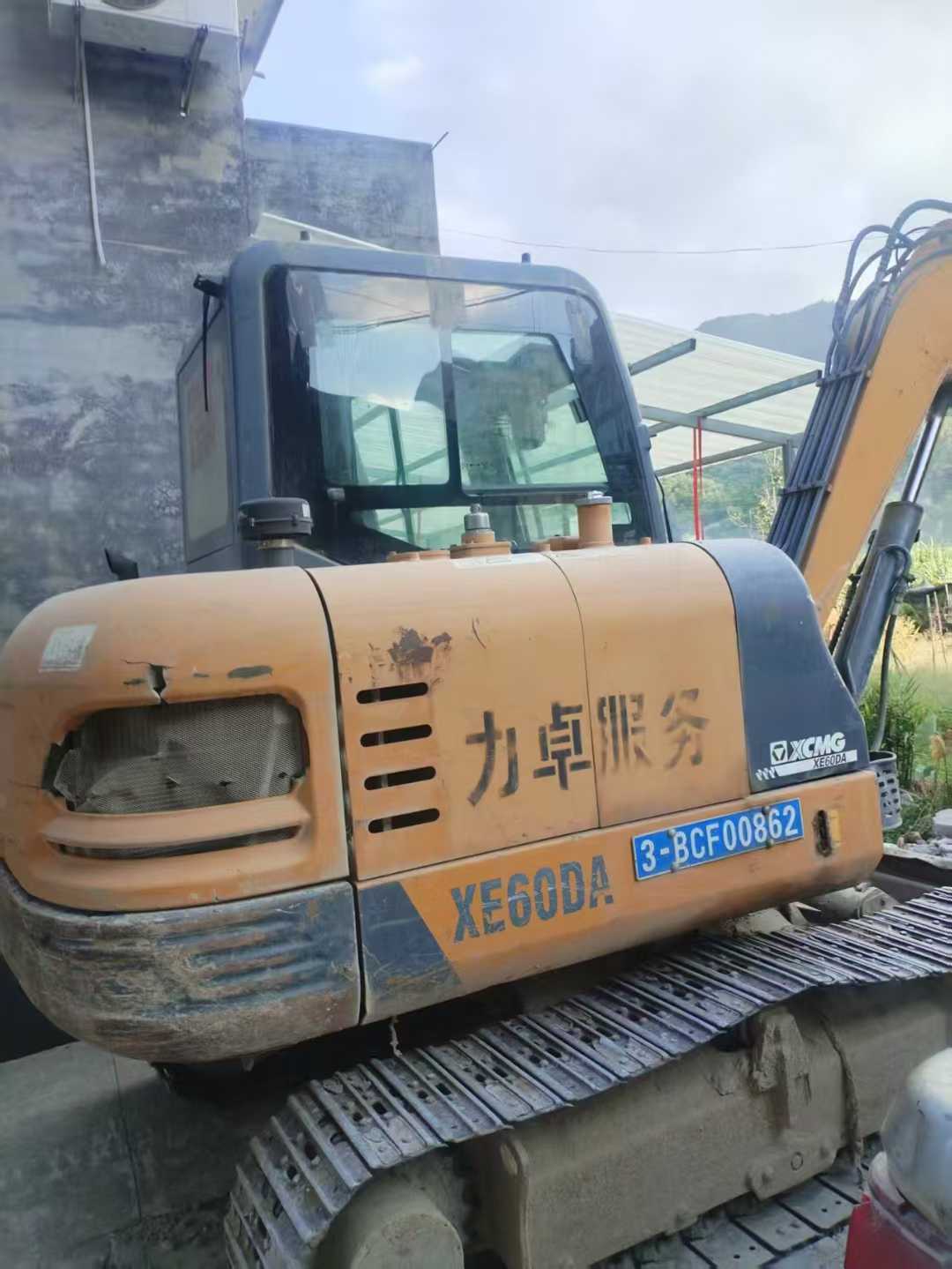

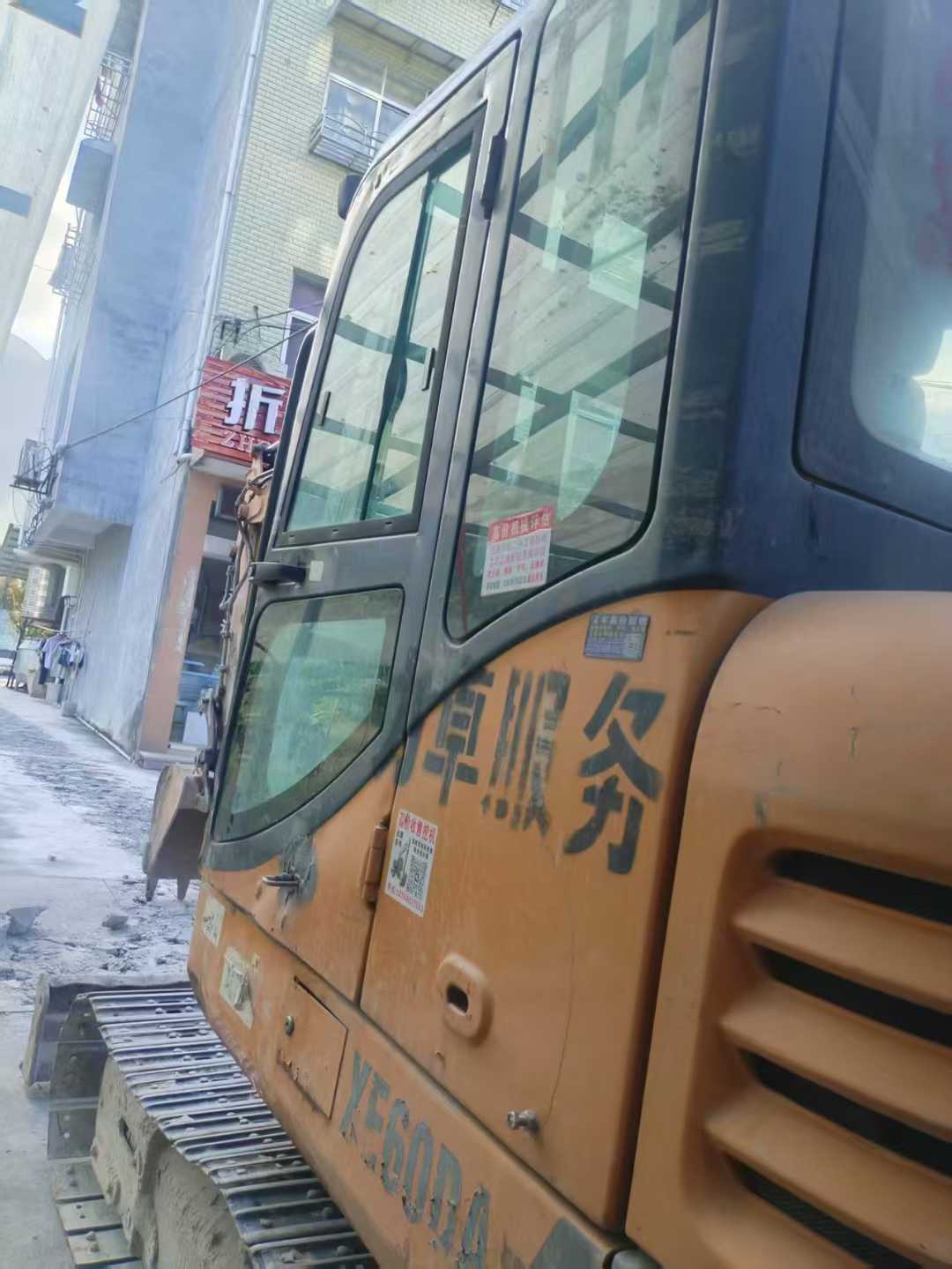

【 Premium Recommendation 】 Second-hand XCMG XE60D excavator, produced in October 2019, only 56,000 yuan! This excavator is not only affordable but also has excellent performance, making it an ideal choice for your construction site. 【 Working Hours The working time of this XCMG XE60D excavator is 1,800 hours, which is of medium to low usage intensity. The mechanical wear is relatively small. With proper maintenance, the overall condition of the vehicle is very good. Whether it's earthwork excavation, site leveling or other small-scale engineering operations, they can all be handled with ease. "Power System It adopts the well-tested Yanmar 4TNV98-Z engine, which features high efficiency and low fuel consumption, as well as excellent stability and reliability. Under various complex working conditions, it can maintain strong power output and smooth operation, ensuring that your construction progress is not affected. "Hydraulic System Equipped with an advanced load-sensitive hydraulic system, it can automatically adjust the flow and pressure according to the actual load, achieving precise control while effectively reducing energy consumption. In addition, its excellent response speed and smooth operation enable drivers to complete vario
