| Specifications | Value |
|---|---|
| No. | 964070 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

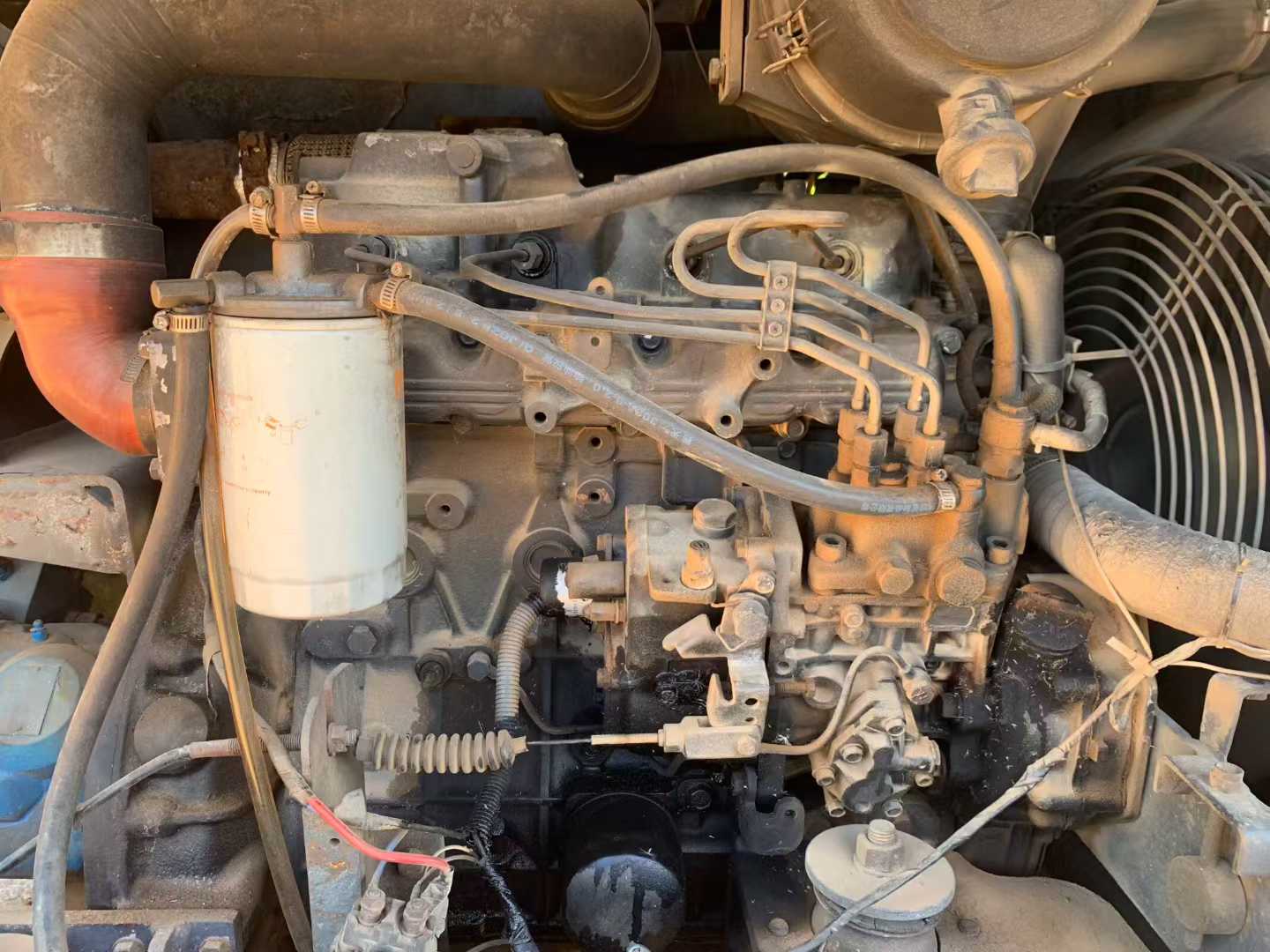

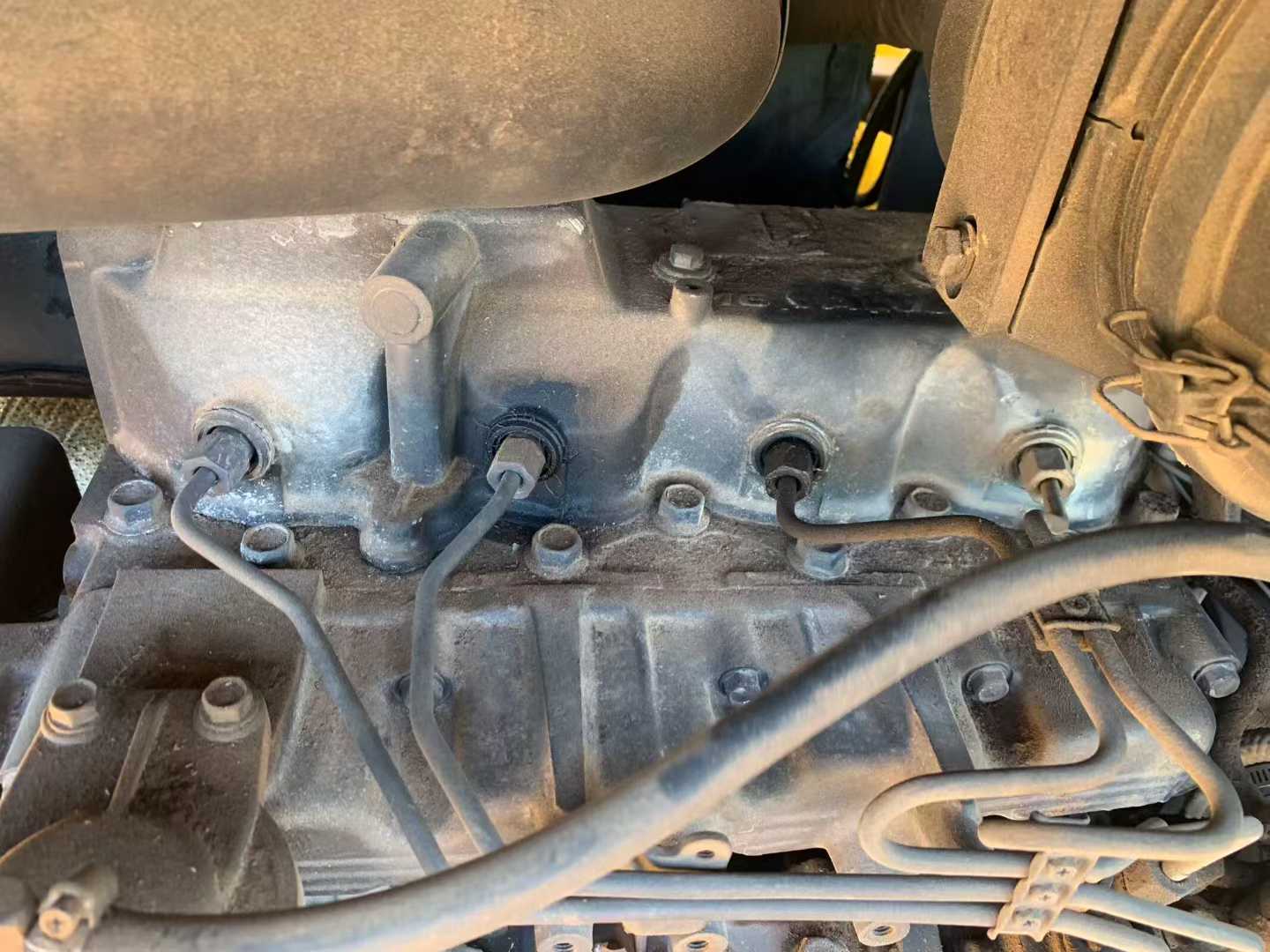

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

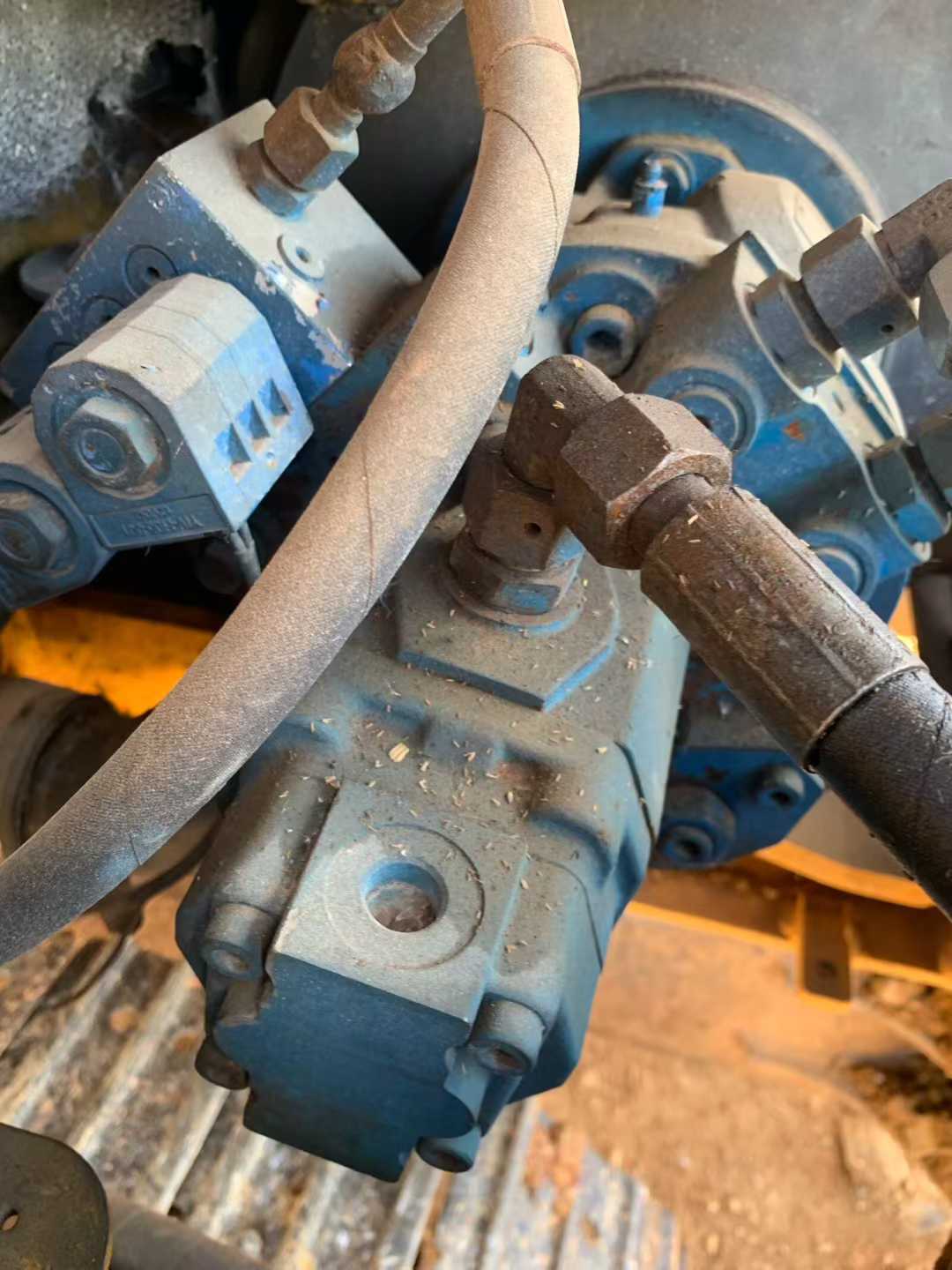

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

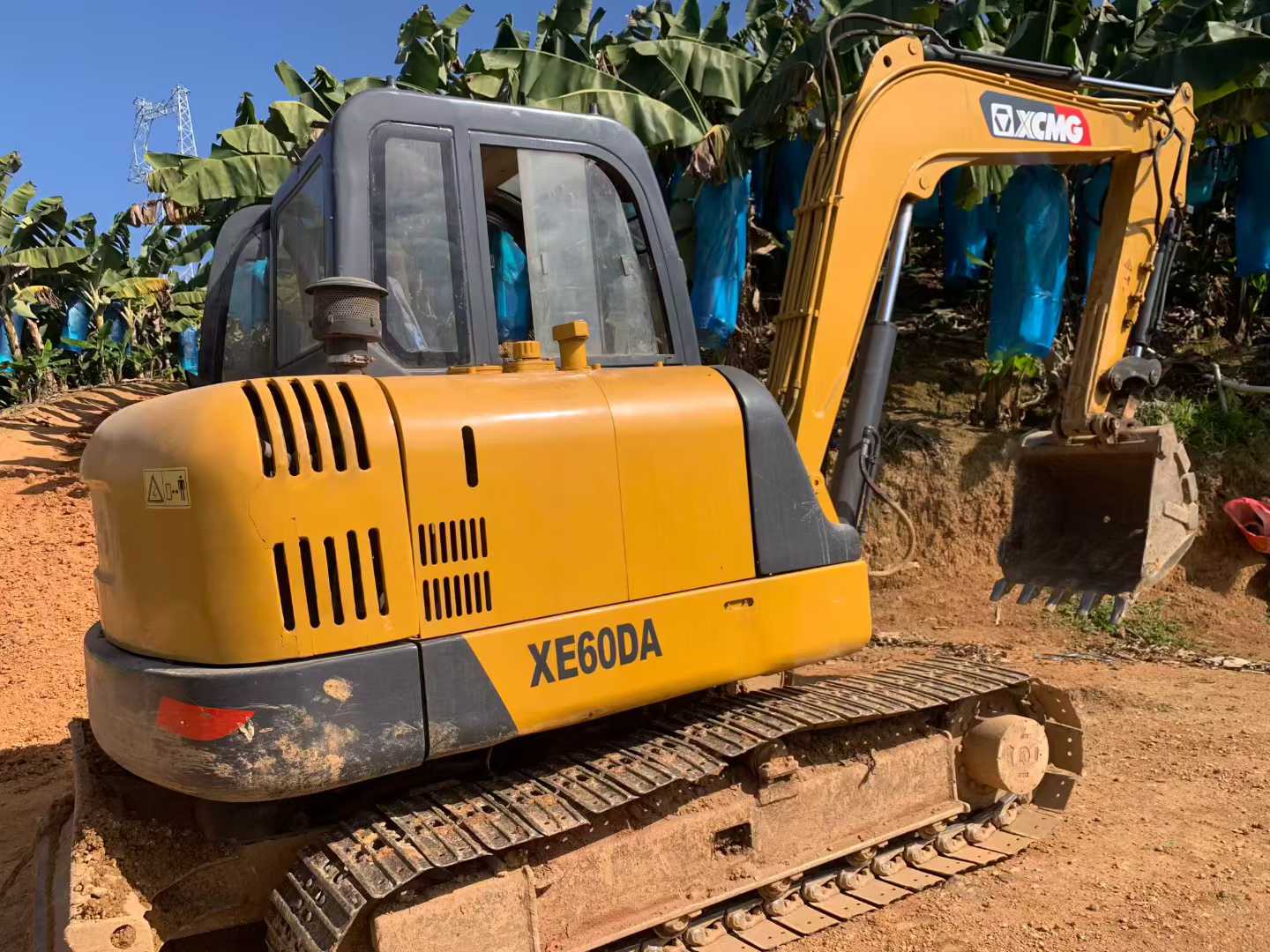

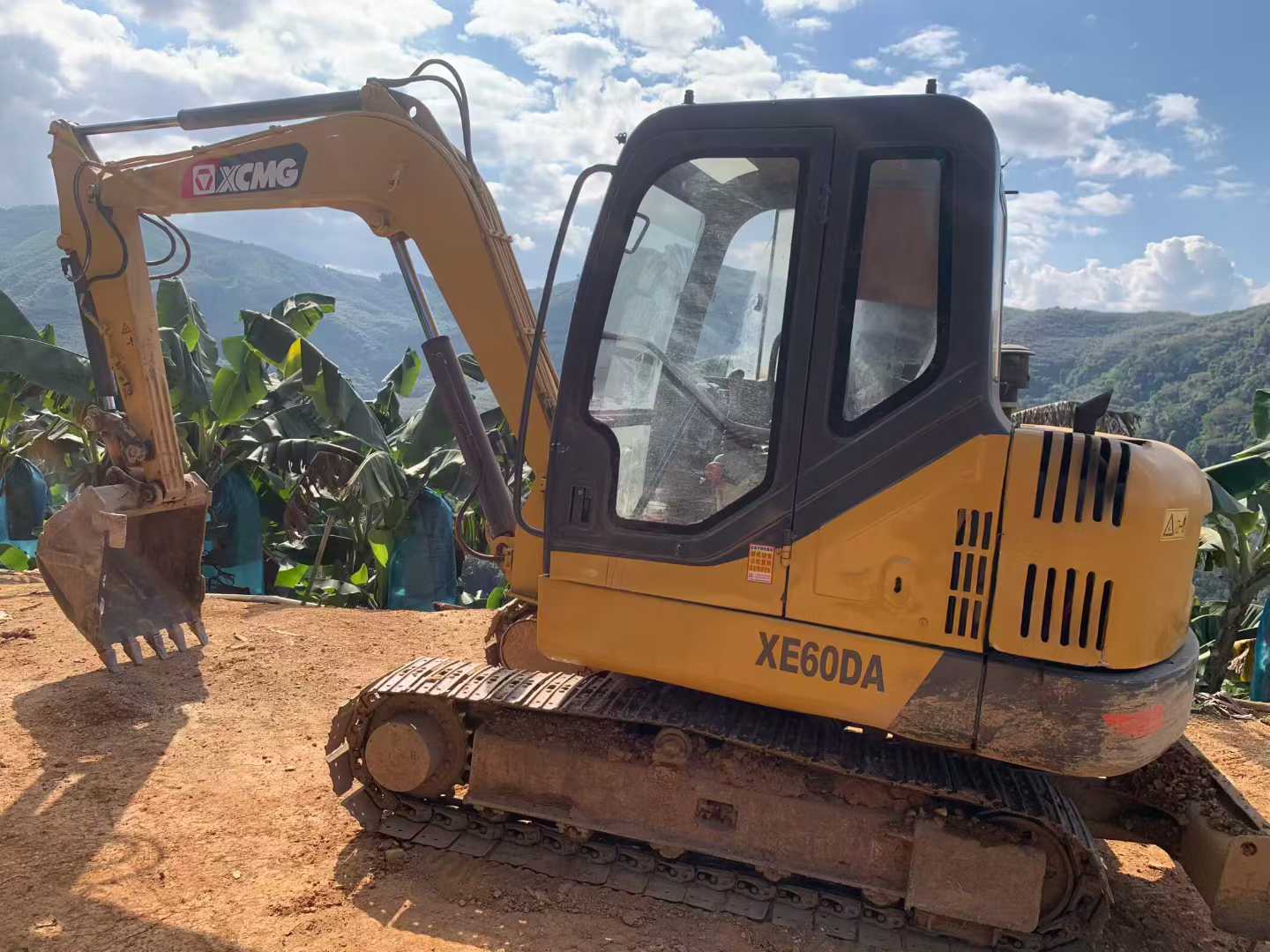

【 XCMG 60 Second-hand excavator, the best choice for cost performance 】 This second-hand XCMG 60 excavator is one of the most popular small excavators in the market. It not only boasts outstanding performance but also is reasonably priced at just over 20,000 yuan, making it highly suitable for small and medium-sized projects as well as personal use. This excavator has a working time of only about 1,500 hours and is in good working condition. The overall mechanical wear is relatively small and it is well maintained. In terms of the power system, the XCMG 60 is equipped with an efficient and energy-saving engine, ensuring strong power output while also taking fuel economy into account. It can handle operations such as excavation, loading and crushing with ease. It can maintain stable operation even in harsh working environments, greatly improving work efficiency. The hydraulic system adopts advanced load-sensitive technology, which can automatically adjust the oil pressure according to the actual working requirements. This not only ensures the flexibility of operation but also reduces energy consumption. In addition, this machine is also equipped with a multi-way valve control system, which makes various complex actions more precise a
