| Specifications | Value |
|---|---|
| No. | 964264 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

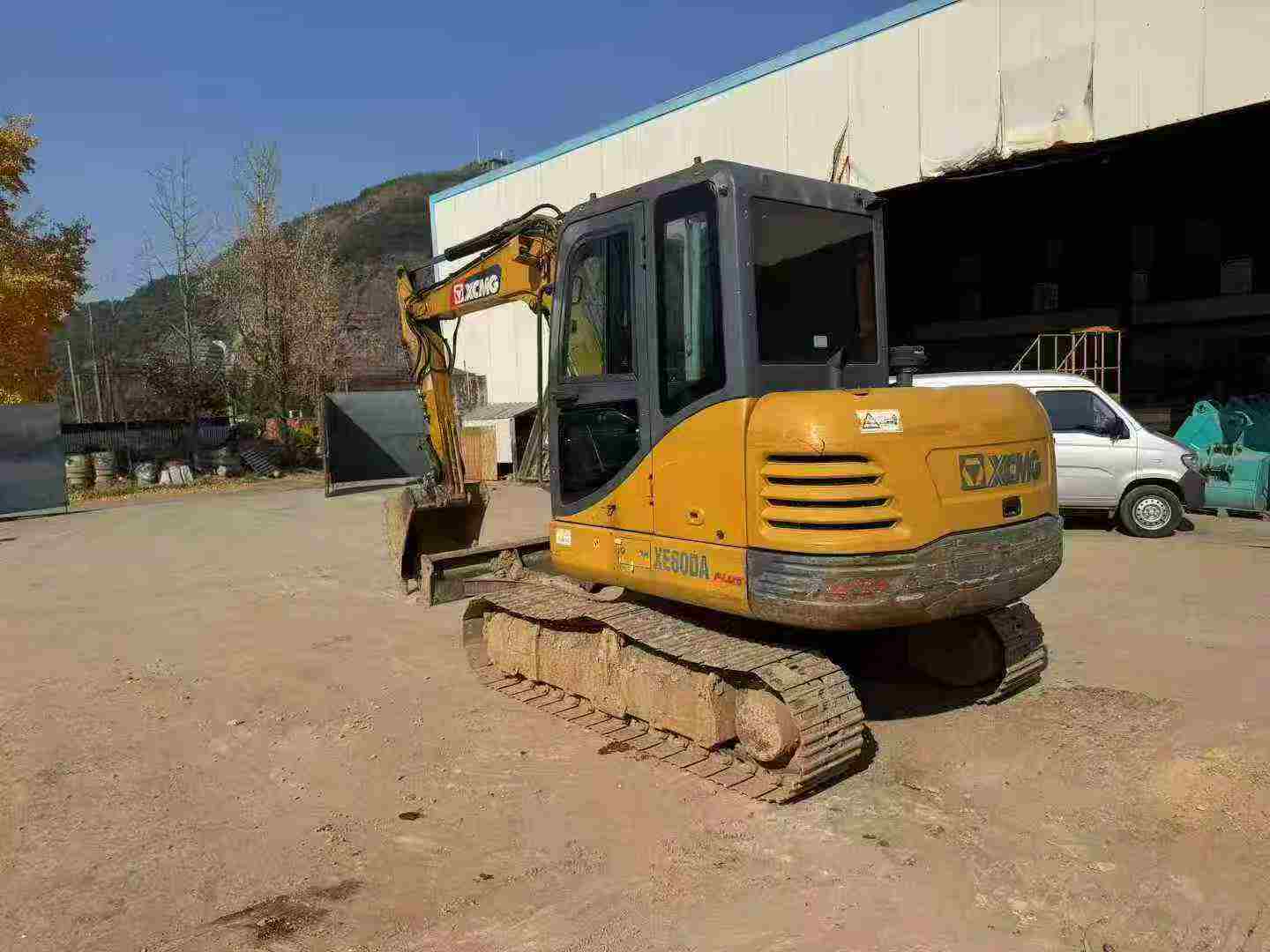

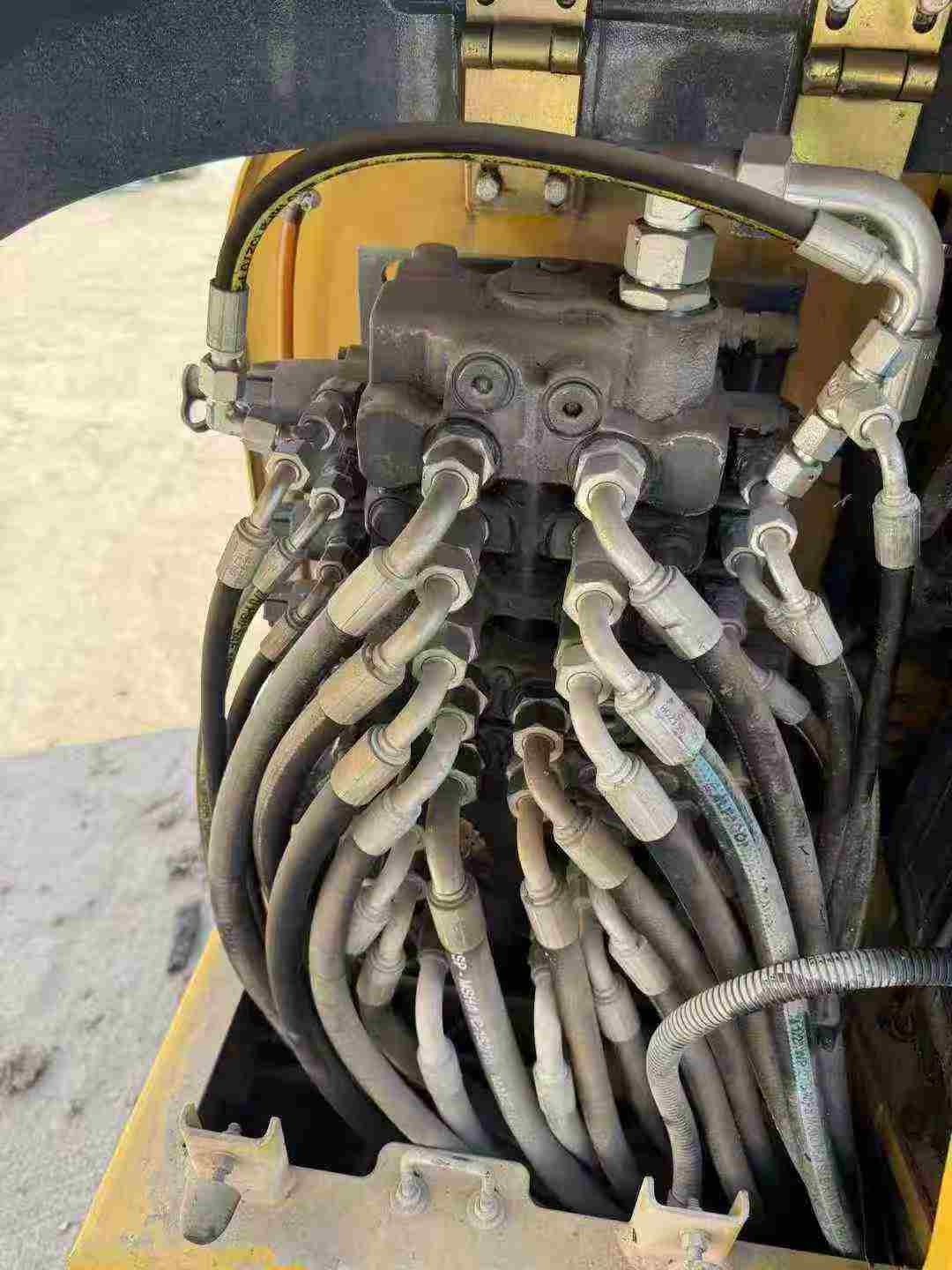

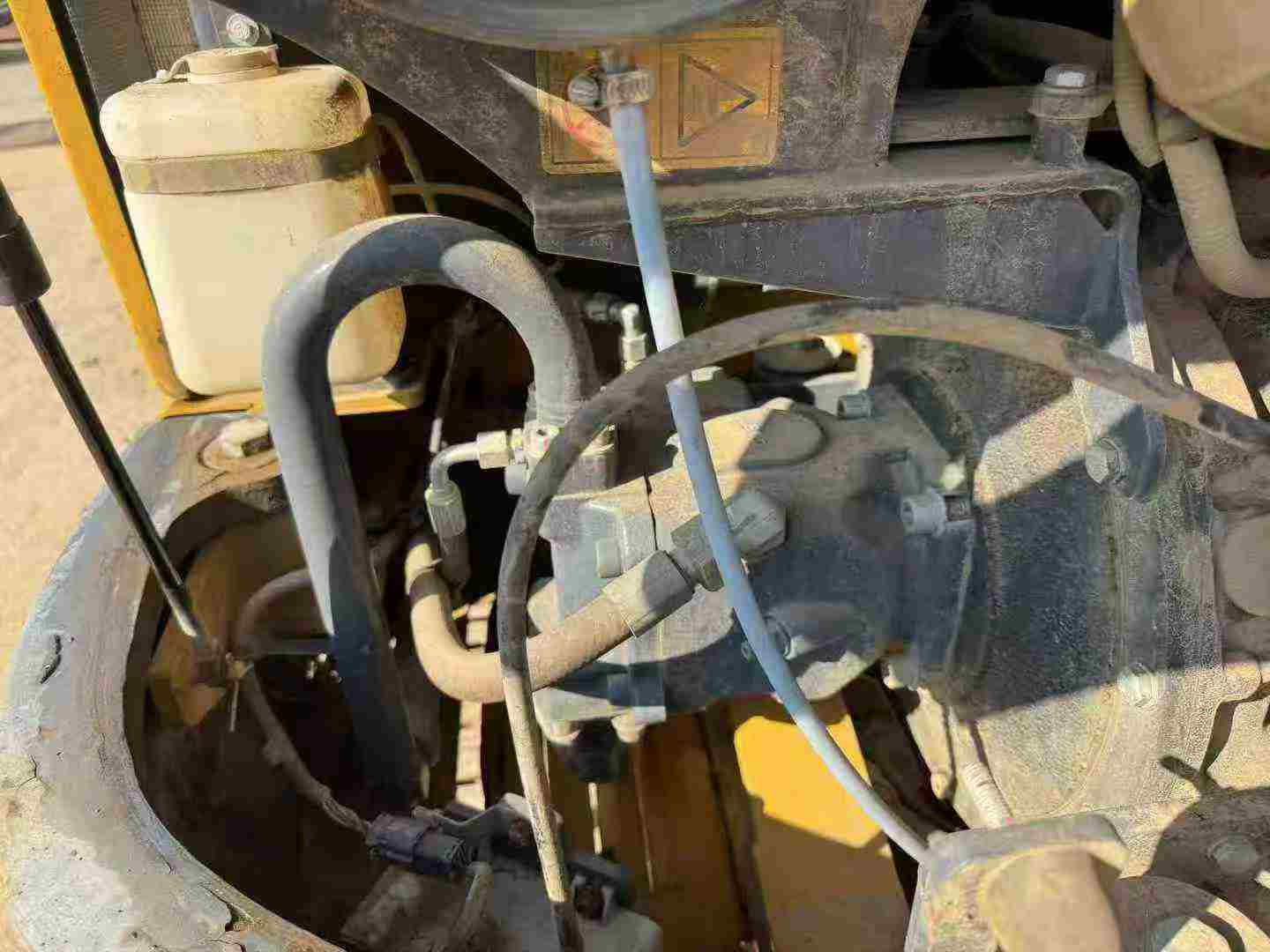

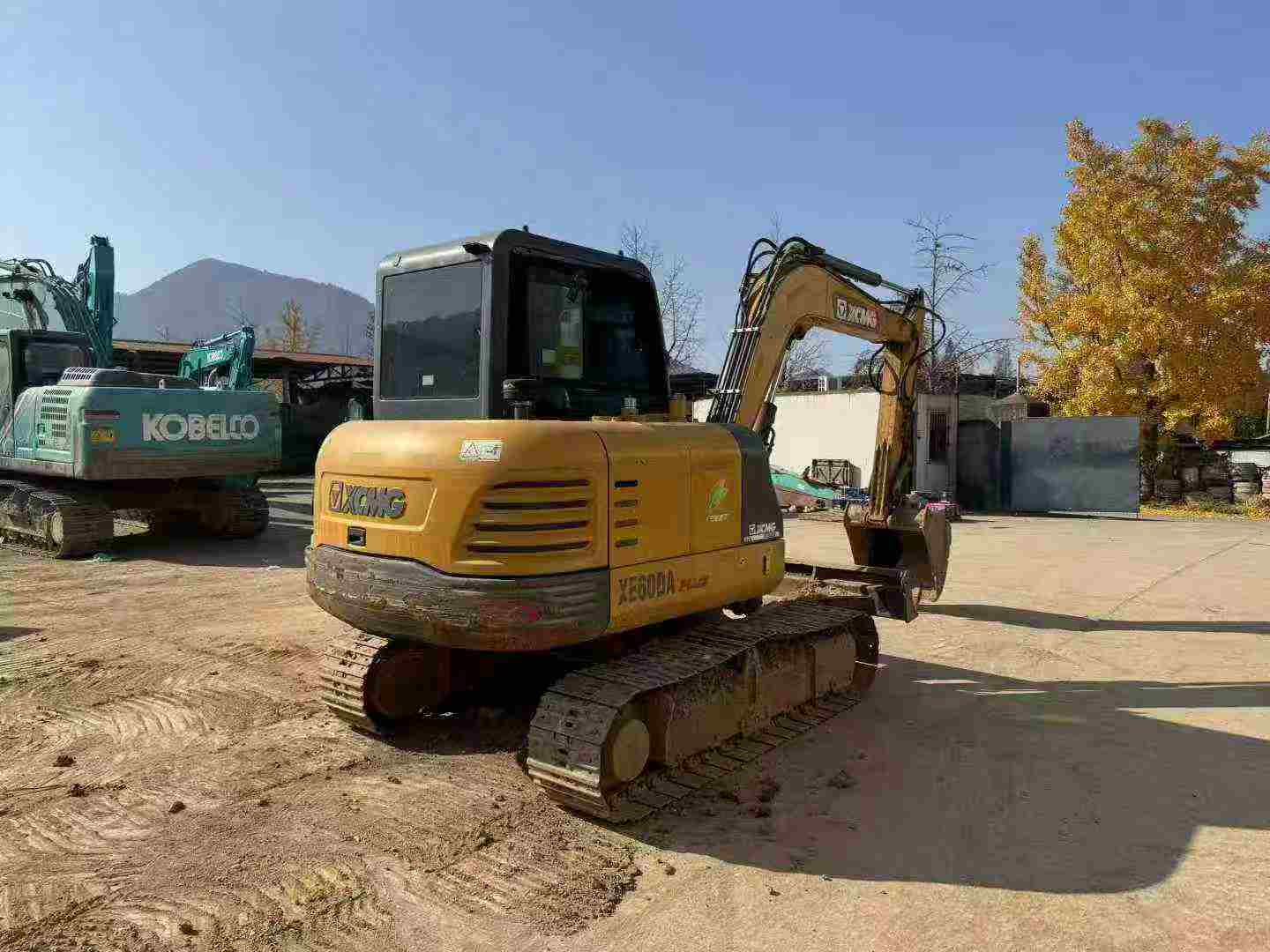

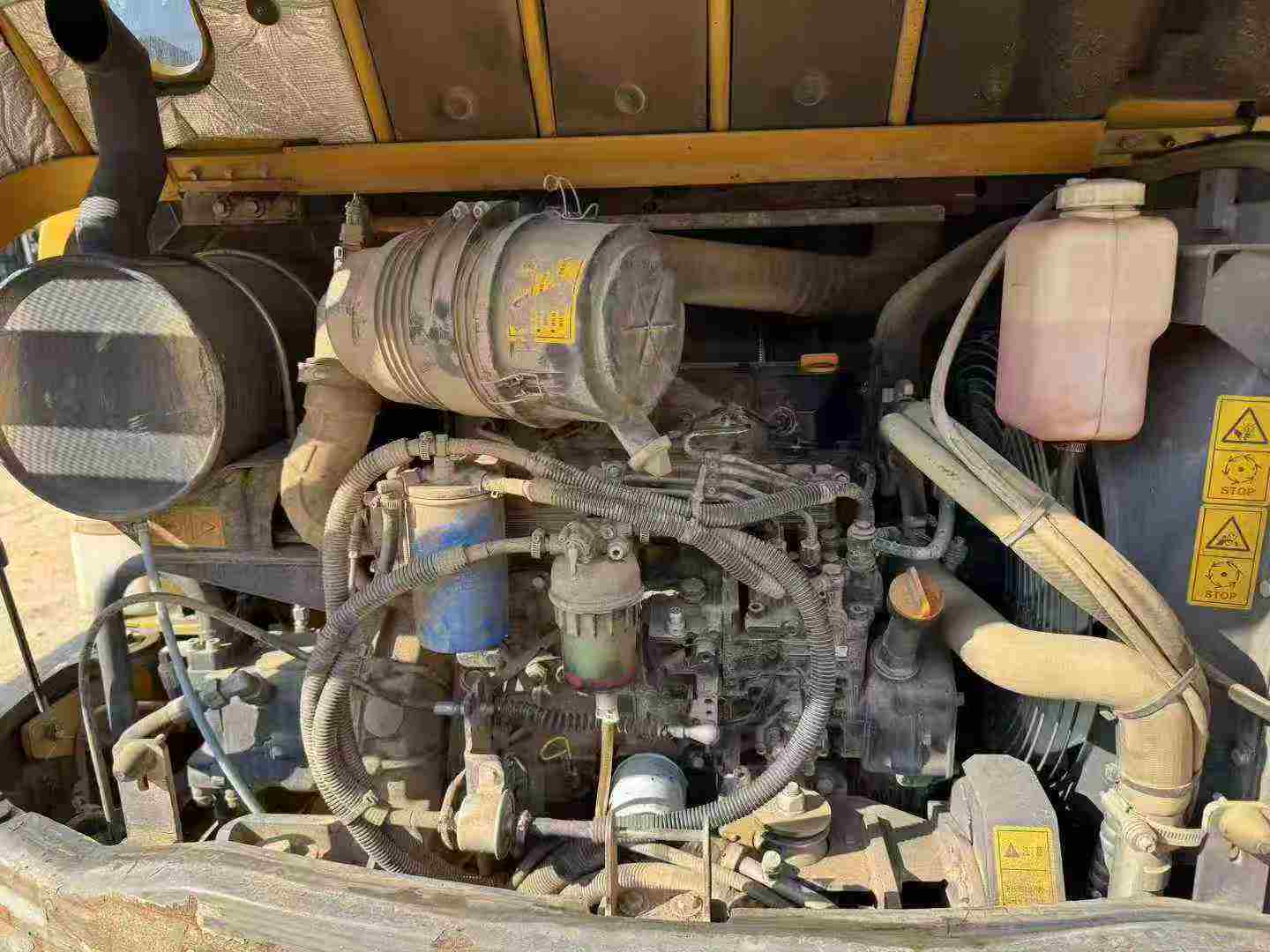

【 Premium Recommendation 】 Second-hand XCMG XE60D excavator, manufactured at the end of 2021, has been in use for only 1,500 hours. It features outstanding performance and reliable quality. This excavator stands out among similar products and is the ideal choice for your construction site. "Power System This excavator is equipped with an original imported Yanmar engine, which is powerful and stable, has good fuel economy and meets the National III emission standards. It can ensure efficient operation even in harsh working environments. After professional testing, the engine is in good condition with no abnormal conditions, ensuring the long-term stable operation of the equipment. "Hydraulic System Equipped with an advanced negative flow hydraulic system, it features a fast response speed and flexible and precise operation. Whether it is excavation, loading or crushing operations, they can all be handled with ease. Both the hydraulic pump and the control valve are well-known brand accessories, ensuring the high efficiency and durability of the entire system. In addition, special protective measures for key components have been strengthened, effectively extending their service life. 【 Exterior and Interior 】 The overall appearance of
