XCMG XE60

2018 XCMG XE60

1/5

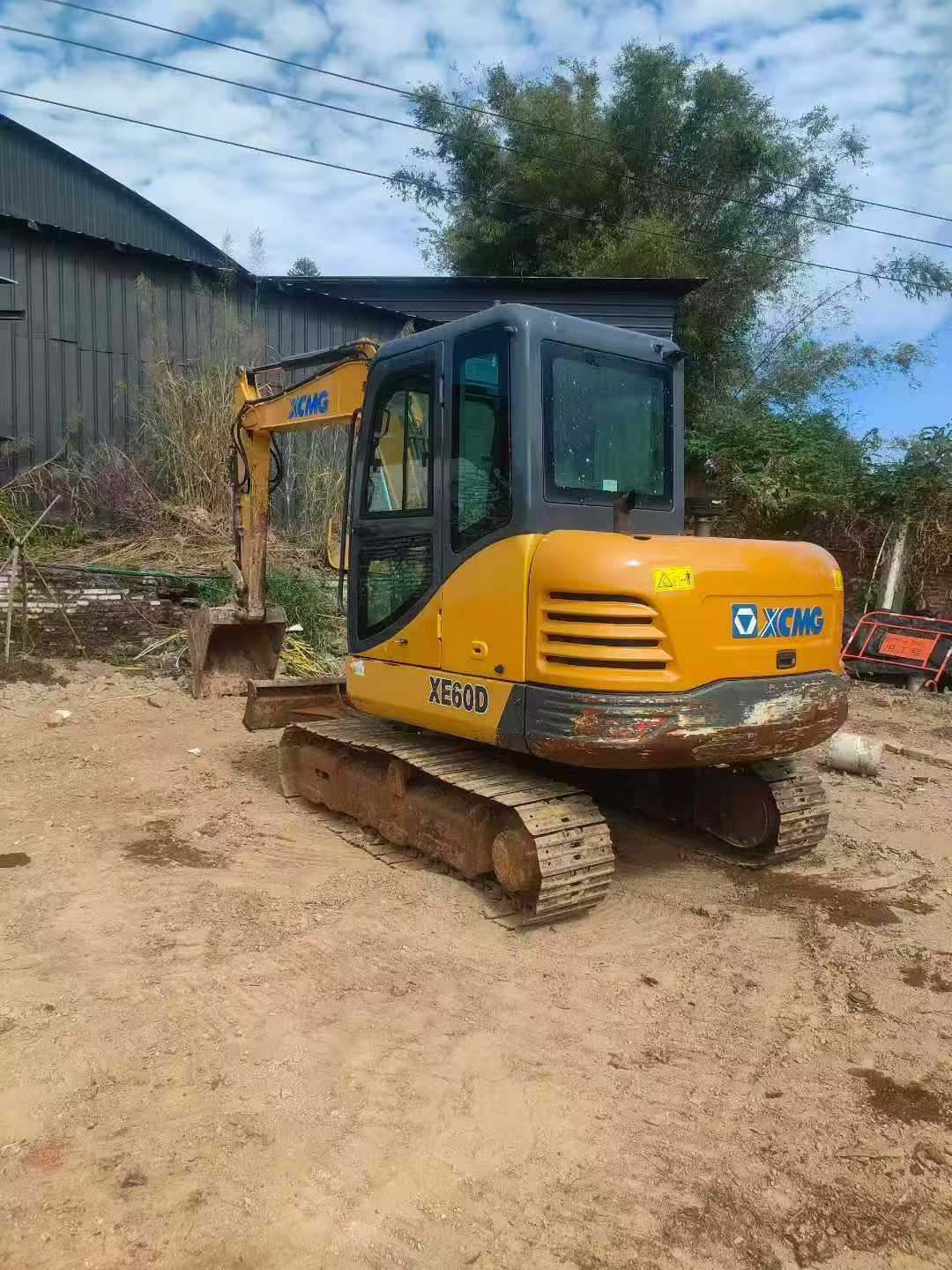

Used XCMG XE60 Excavator 2018 Model / 1

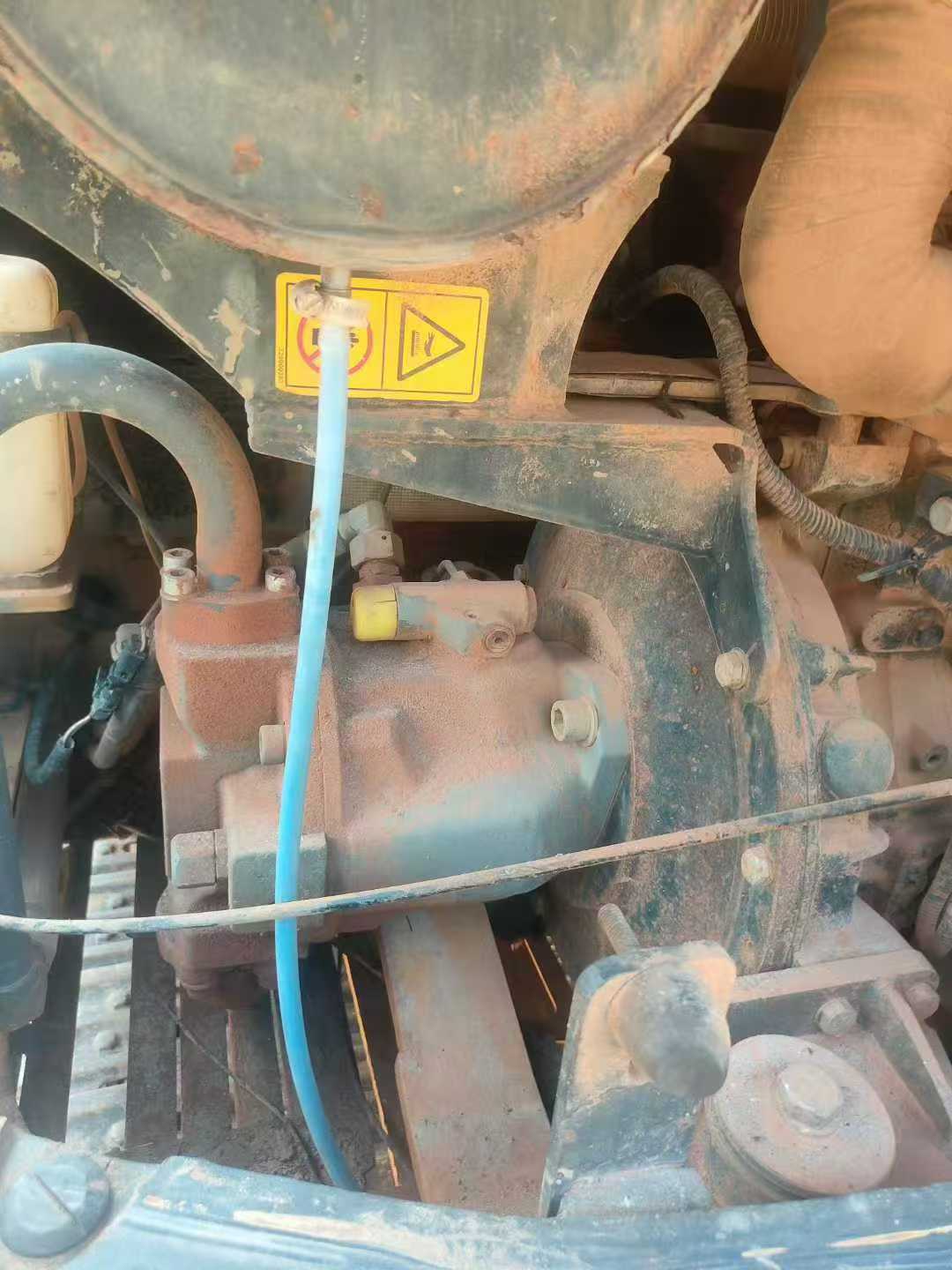

Used XCMG XE60 Excavator 2018 Model / 2

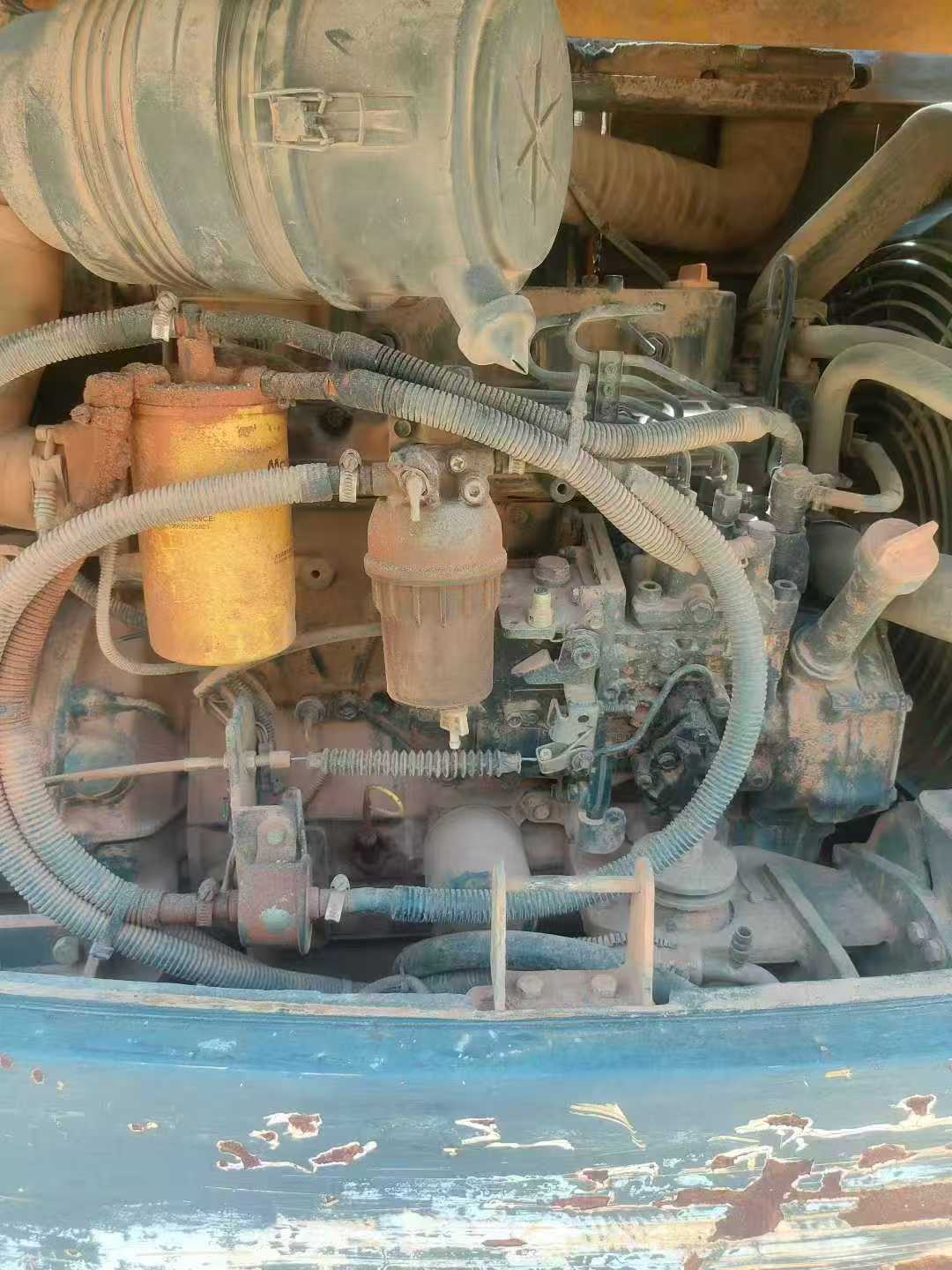

Used XCMG XE60 Excavator 2018 Model / 3

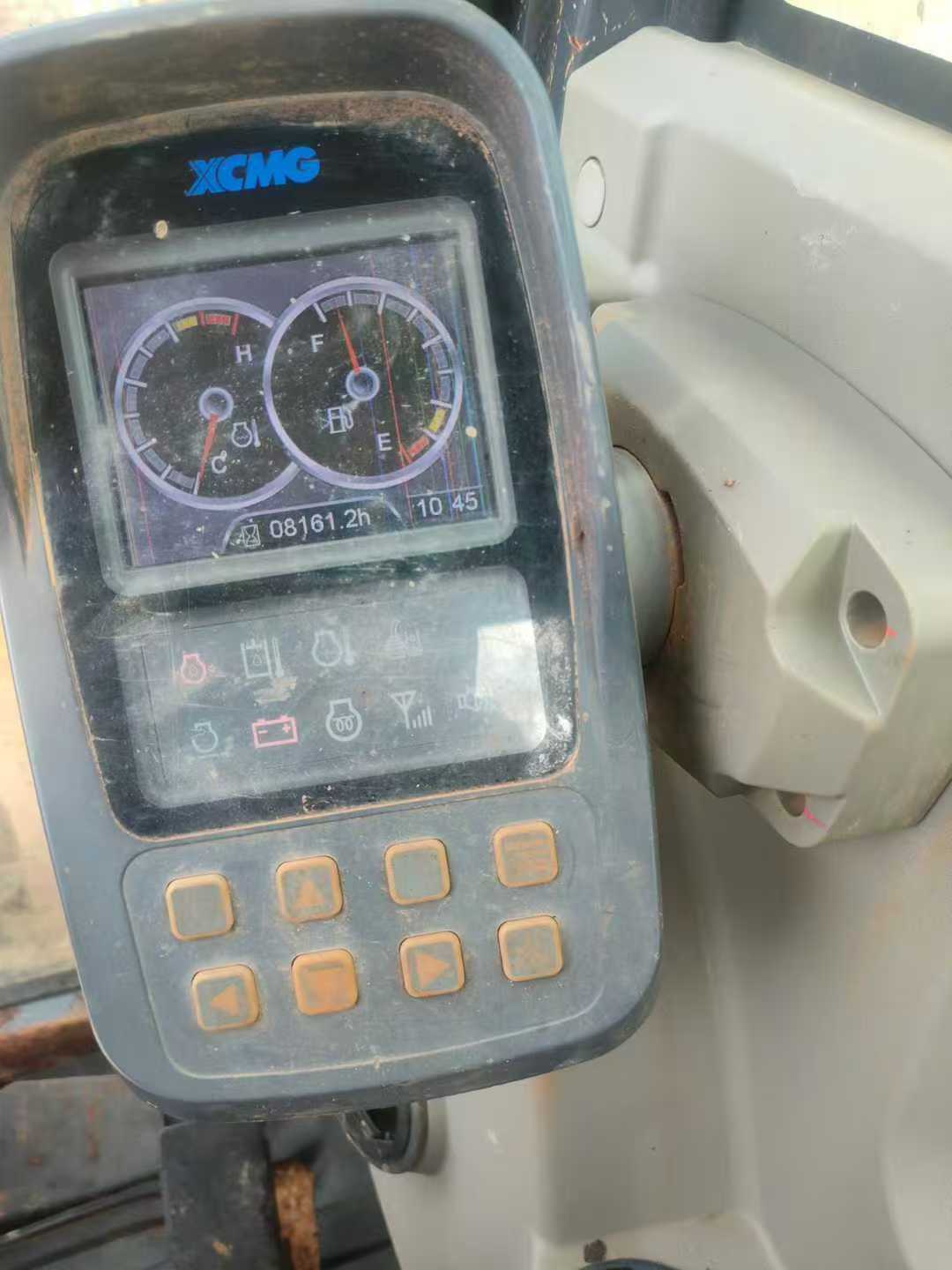

Used XCMG XE60 Excavator 2018 Model / 4

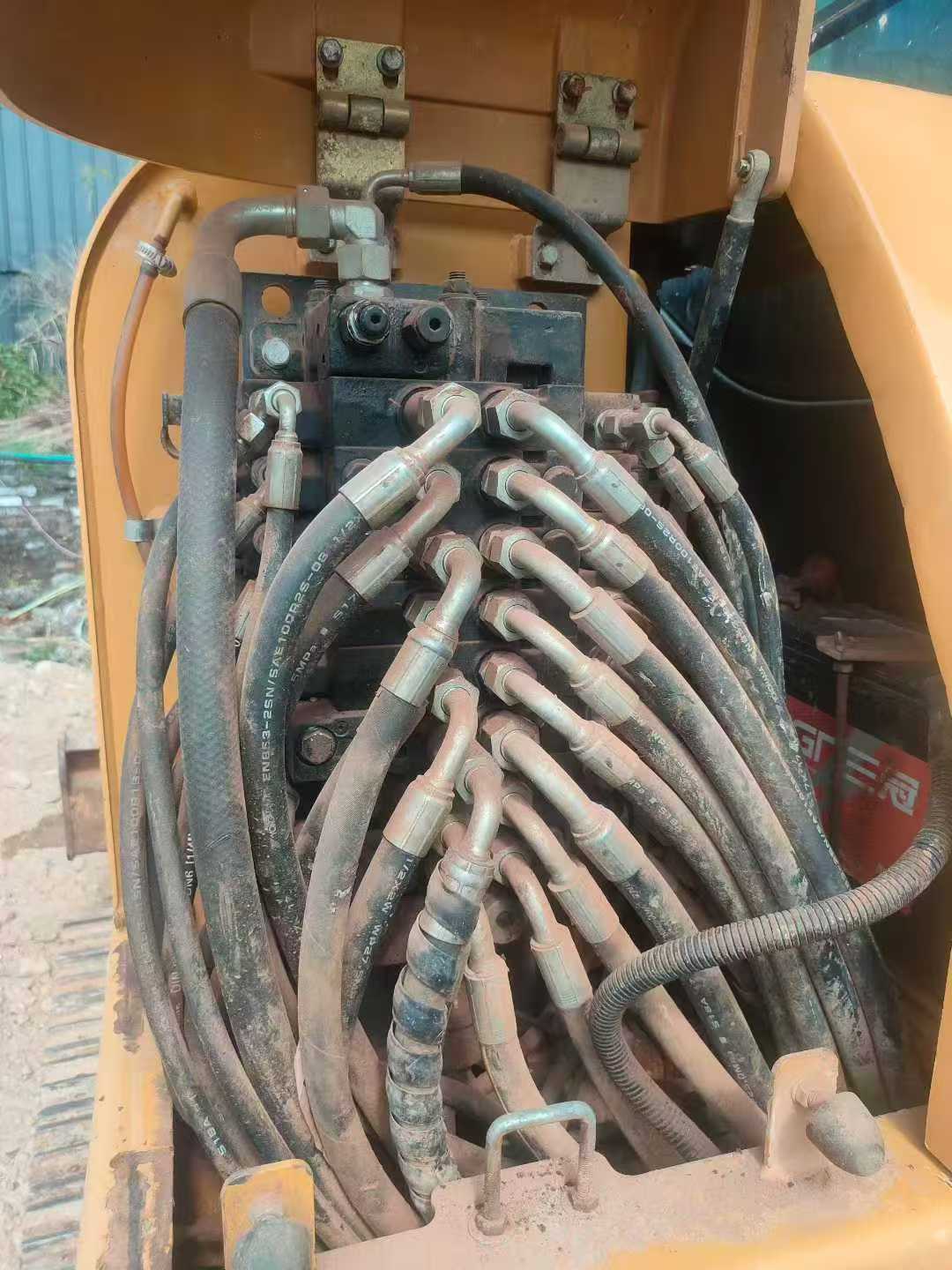

Used XCMG XE60 Excavator 2018 Model / 5
Product Description
SpecificationsValue
No.964744
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Description

【 Premium Recommendation 】 This 2018 XCMG XE60 excavator is a high-quality second-hand construction machinery that is rarely seen in the market. Since leaving the factory, it has only worked for 3,500 hours, far less than the average usage time of similar equipment, which means that its main components are still in the best condition. The engine adopts the Yanmar 4TNV98 model, which has been tested by the market for a long time. It is powerful, stable and reliable. Whether it is flat ground excavation or slope operation, it can handle it with ease. It starts quickly and runs smoothly. Even under long-term high-intensity operation, it can maintain good performance. In terms of the hydraulic system, this machine is equipped with an advanced negative flow control system, ensuring the accuracy and flexibility of operation. Whether it is fine excavation or rapid loading, it can handle it with ease. It is particularly worth mentioning that the "three major components" - namely the engine, the main pump and the slewing mechanism - are all in good condition with no leakage at all. The internal structure is as dry as new. This not only extends the service life of the machine, but also greatly reduces the later maintenance cost. In addition, it

Overview

No.964744

Brand Name:

XCMG

Model Number:

XE60

Year:

2018

Location:

Guangdong China

Are you interested in this machine?

Please contact us

Why should you cooperate with us?

With over 7 years of experience in the construction machinery industry, you can say that we are professional practitioners in the machinery industry. Why cooperate with Global Used Excavator? Because we are only focused on the machinery industry. We have a large amount of first-hand equipment information. We contact direct sellers and there are no middlemen.

How do we work?

Tell us the brand, model, year, and operating hours of the equipment you need. Then we will start looking for the suitable equipment for you globally. It's as simple as that. Once we find the equipment that suits you, we will contact you and we can discuss any further steps.

Advantages when cooperating with us!

You can continue with your work without having to spend time and money traveling around and/or asking dealers and traders for quotes on your own. You don't need to visit multiple web portals to compare, evaluate, and find the mechanical equipment you need. We will do all of this for you! And jointly decide on any further steps.

Providing quality service for our customers!

We can offer a wide range of "additional" quality services. We can help you arrange equipment inspections, repairs, overhauls, painting, hydraulic pump and arm operations, and more.

Here are the ways you can purchase from Global Used Excavator!

Option 1: You can find a machine on our website and tell us which machine it is. We will contact the owner of the machine to obtain more information, pictures, and prices. We will send you a quotation and jointly decide on any further steps.
Option 2: We conduct a search for you. You tell us the brand, model, year, and maximum hours of the machine you need, and we will start serving you. We will send you a quotation and jointly decide on any further steps.
