| Specifications | Value |
|---|---|
| No. | 966274 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

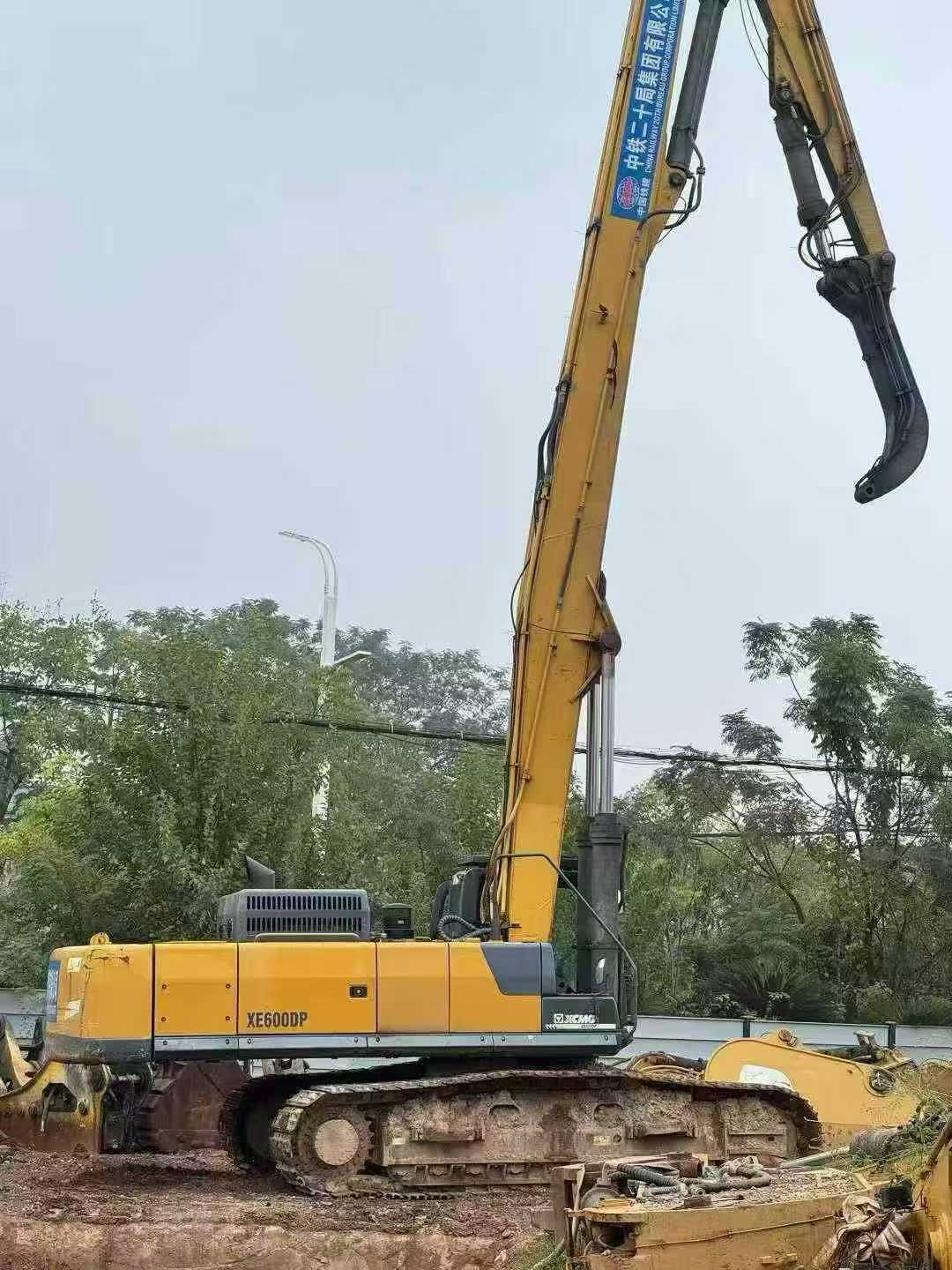

【 Premium Recommendation 】 XCMG 600 Pile Driver in 2021 This XCMG 600 pile driver produced in 2021 is a highly popular high-performance device in the market. Over the past two years, its cumulative working time has only been 1,500 hours, which means it is still in the best mechanical performance state and far from reaching the limit of its service life. Whether from the perspective of appearance or internal structure, this machine is in quite good condition, with almost no signs of wear or damage. This pile driver is equipped with a high-efficiency and energy-saving engine independently developed by XCMG as its power source. It not only provides strong and stable output power but also has excellent fuel economy, significantly reducing operating costs. Meanwhile, the advanced hydraulic system design makes the operation more smooth and precise, with a fast response speed and high working efficiency. It is particularly worth mentioning that this model is equipped with an intelligent control system, which can achieve remote monitoring and fault diagnosis functions, greatly enhancing the convenience and safety of daily maintenance and management. In conclusion, for enterprises that need to carry out high-intensity and long-duration const
