| Specifications | Value |
|---|---|
| No. | 967198 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

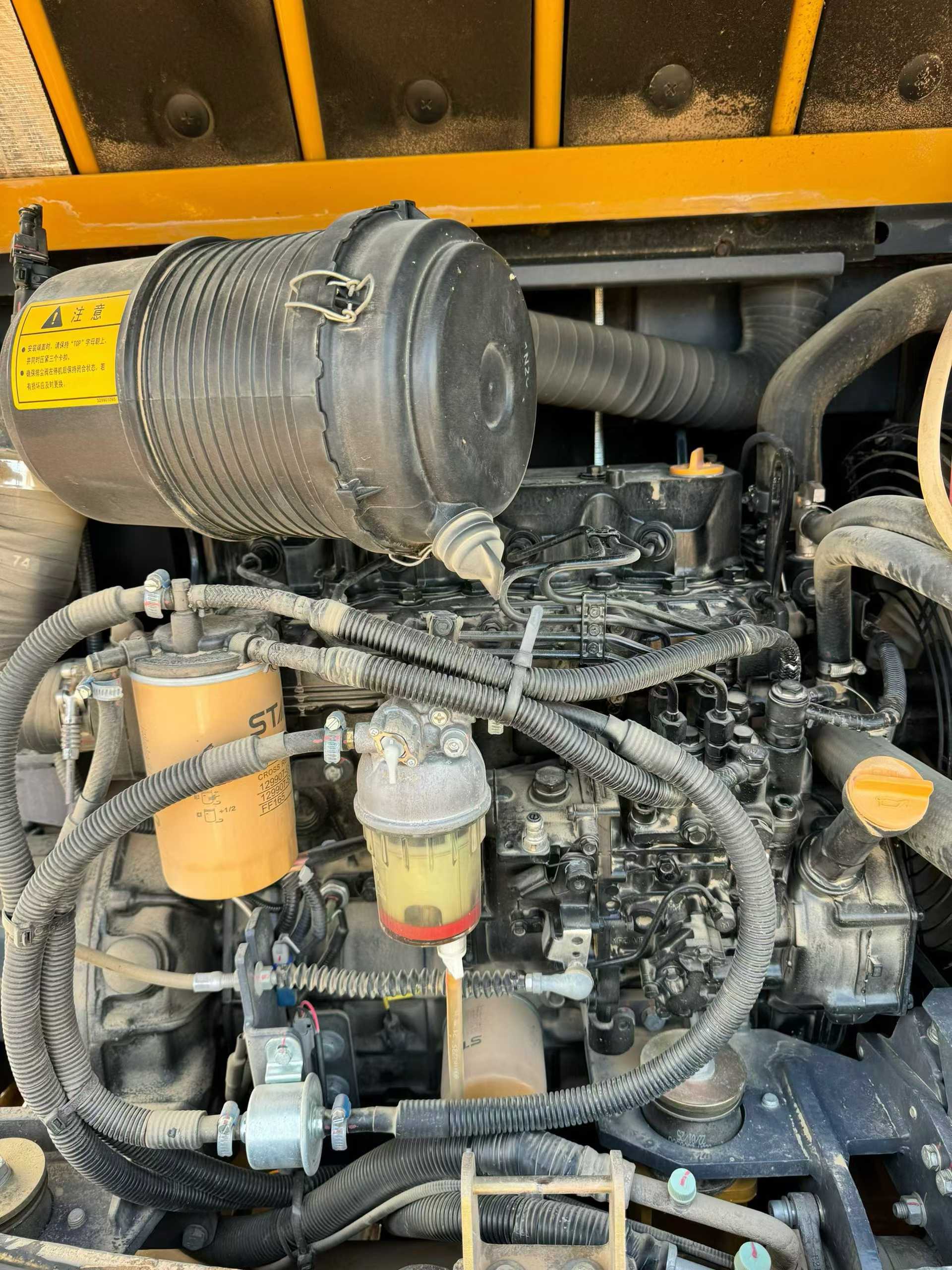

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

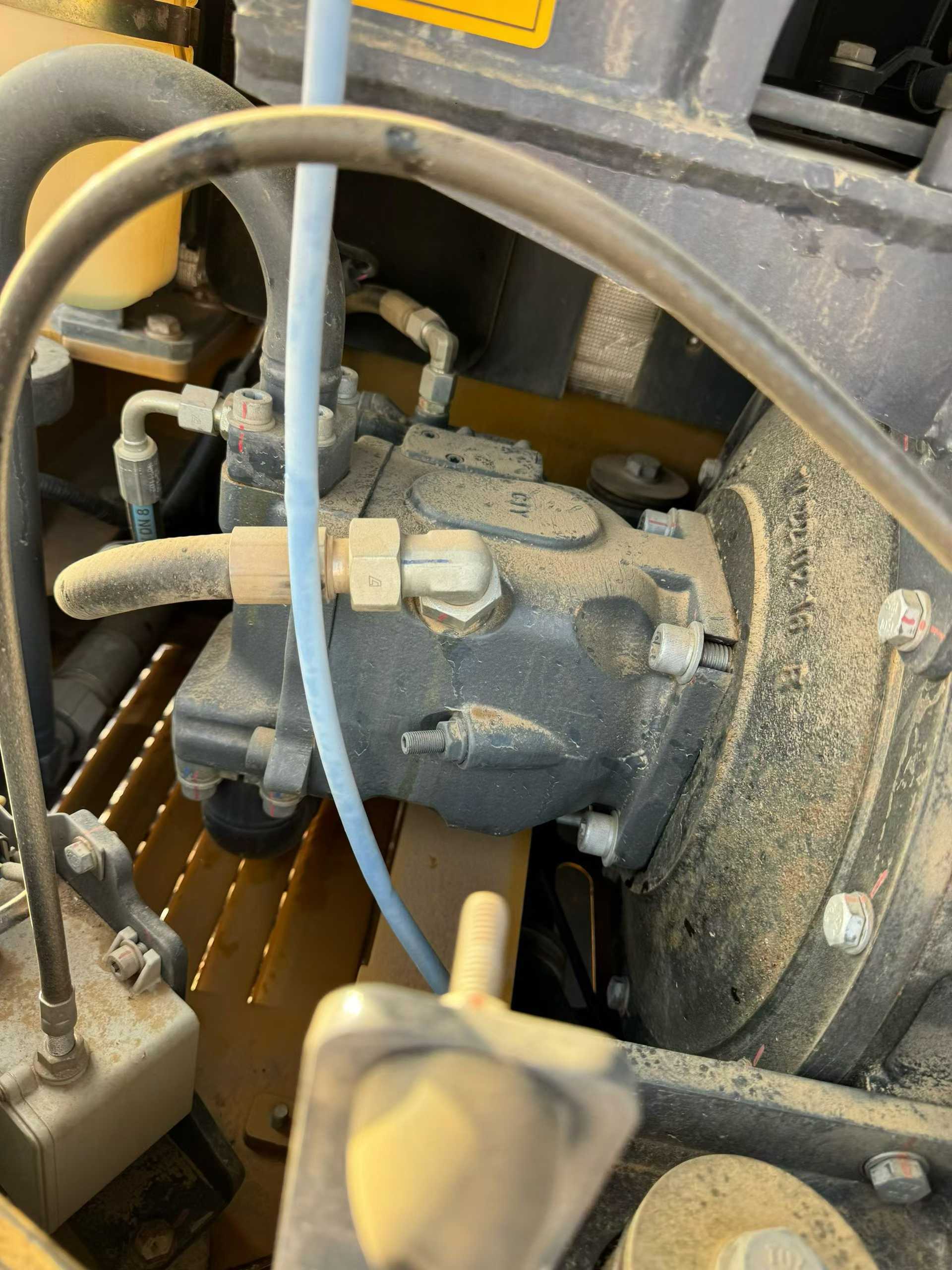

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

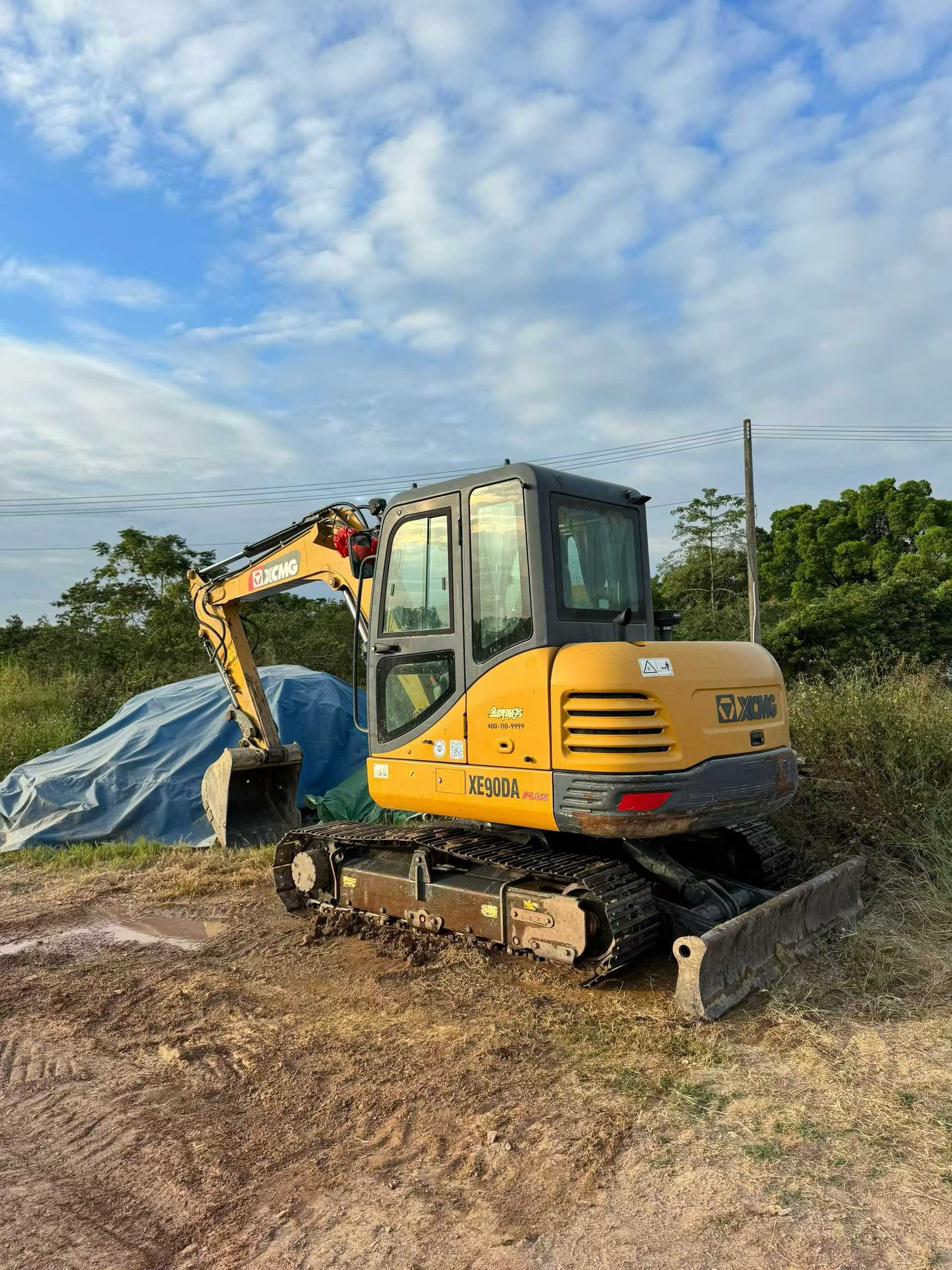

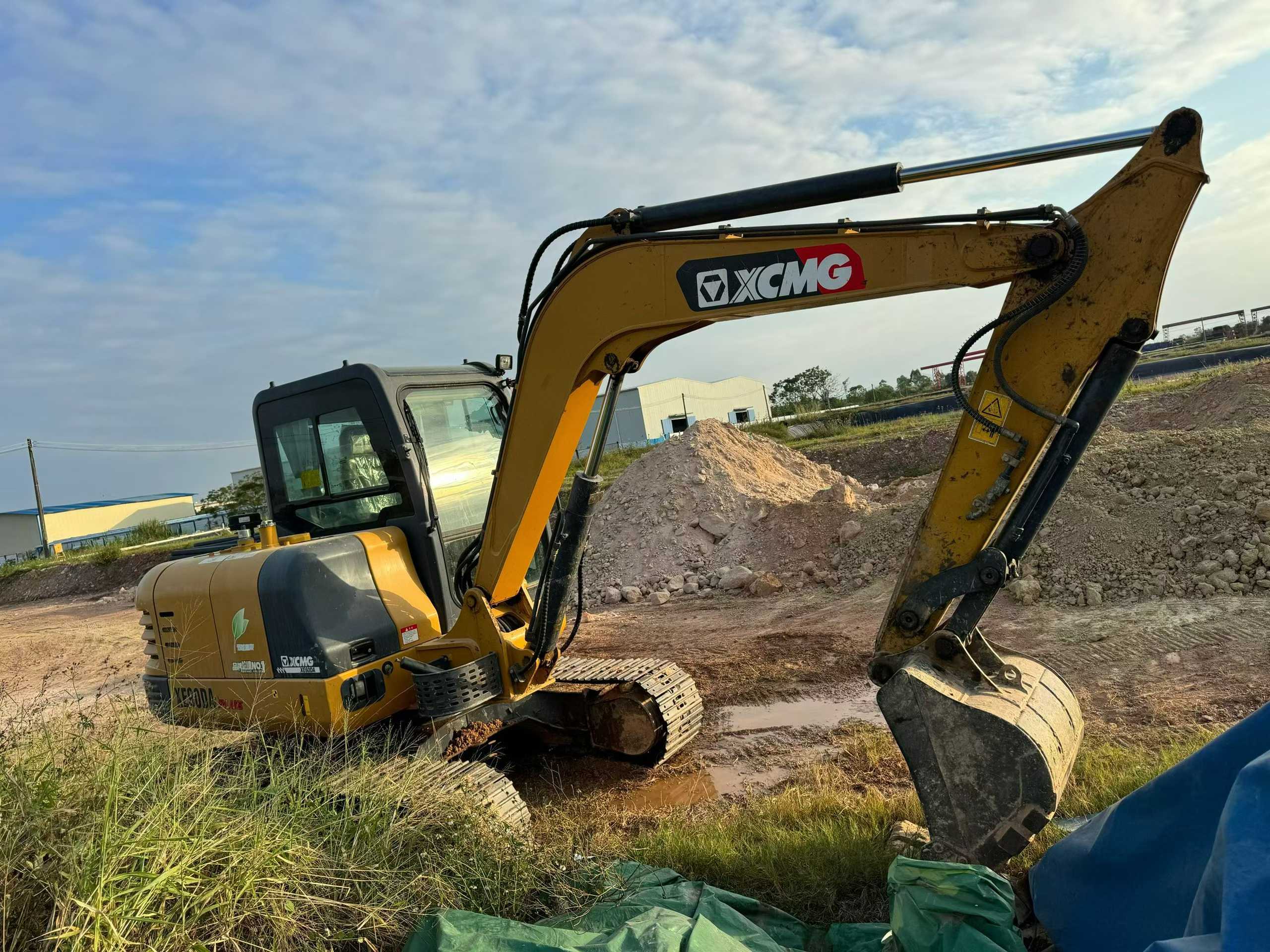

【 Premium Recommendation 】2022 XCMG XE60 Hydraulic Excavator. This is a nearly brand new second-hand excavator that has been in operation for less than 1,000 hours since its manufacture and is in excellent condition. The whole machine has a clean and undamaged appearance, stable and reliable performance, and all the necessary documents and invoices are complete, ensuring a worry-free transaction process. The XE60 model is equipped with a highly efficient and energy-saving engine that meets the National III emission standards. It is powerful, economical and environmentally friendly, and can easily handle the operation requirements in various complex terrains and harsh weather conditions. Its advanced hydraulic system design not only ensures rapid response and precise control, but also significantly enhances work efficiency and reduces fuel consumption. Whether it is tasks such as excavation, loading or crushing, they can all be accomplished with ease. It is particularly worth mentioning that the small bucket and gun hammer accessories equipped with the vehicle make this device more convenient to handle in narrow Spaces or working environments that require precise operation. The small bucket is suitable for fine operations such as clea
