| Specifications | Value |
|---|---|
| No. | 968774 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

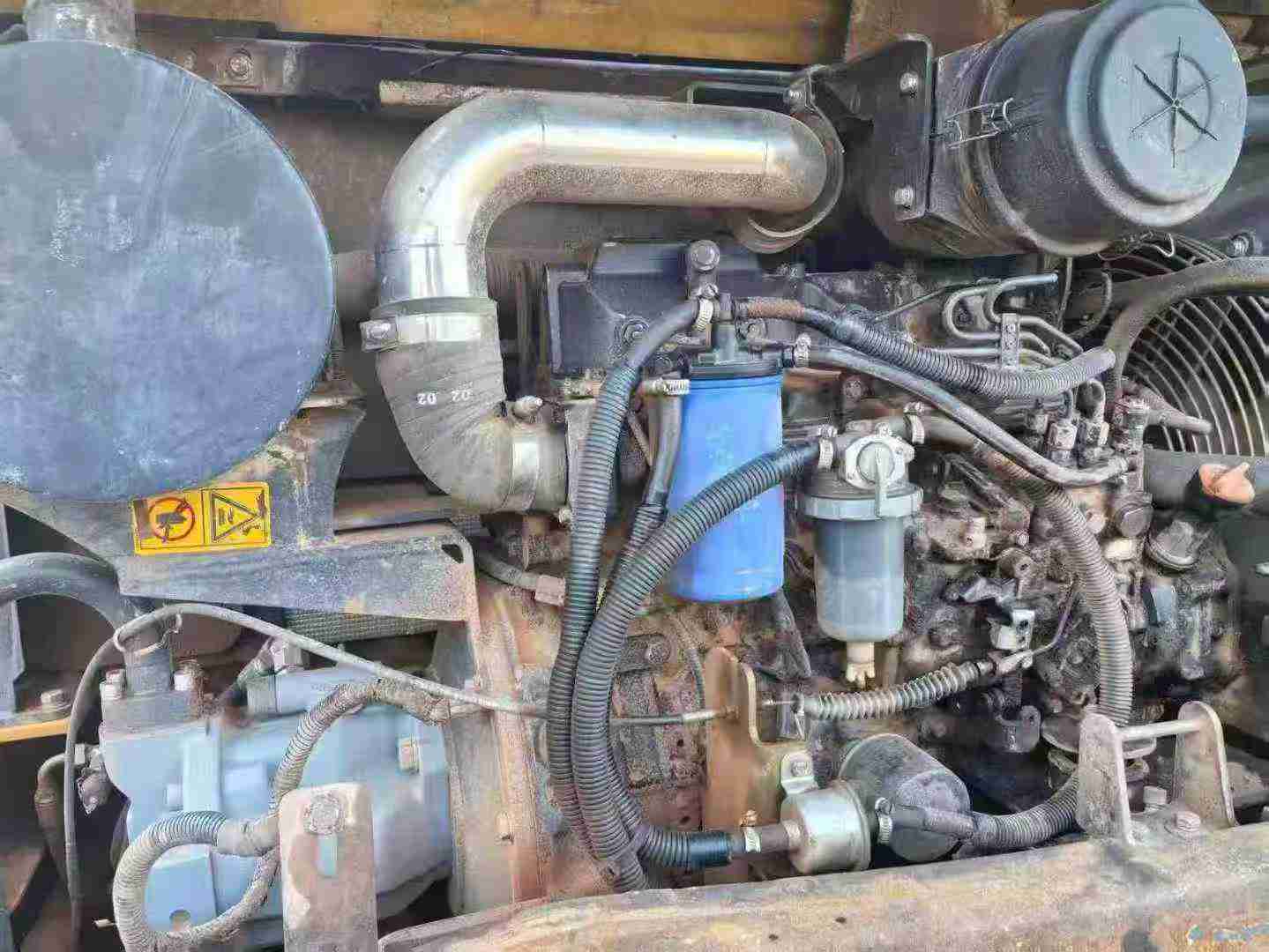

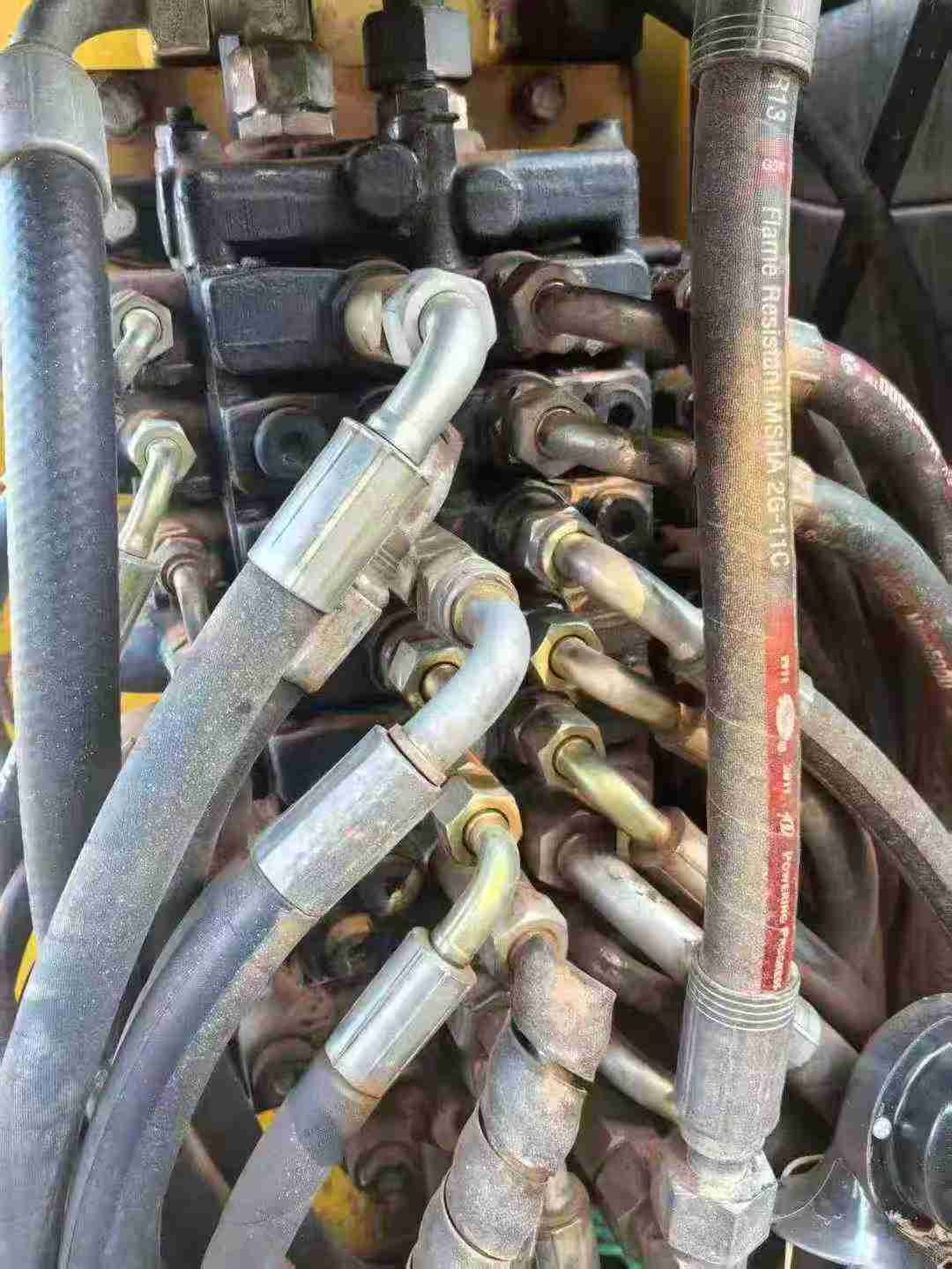

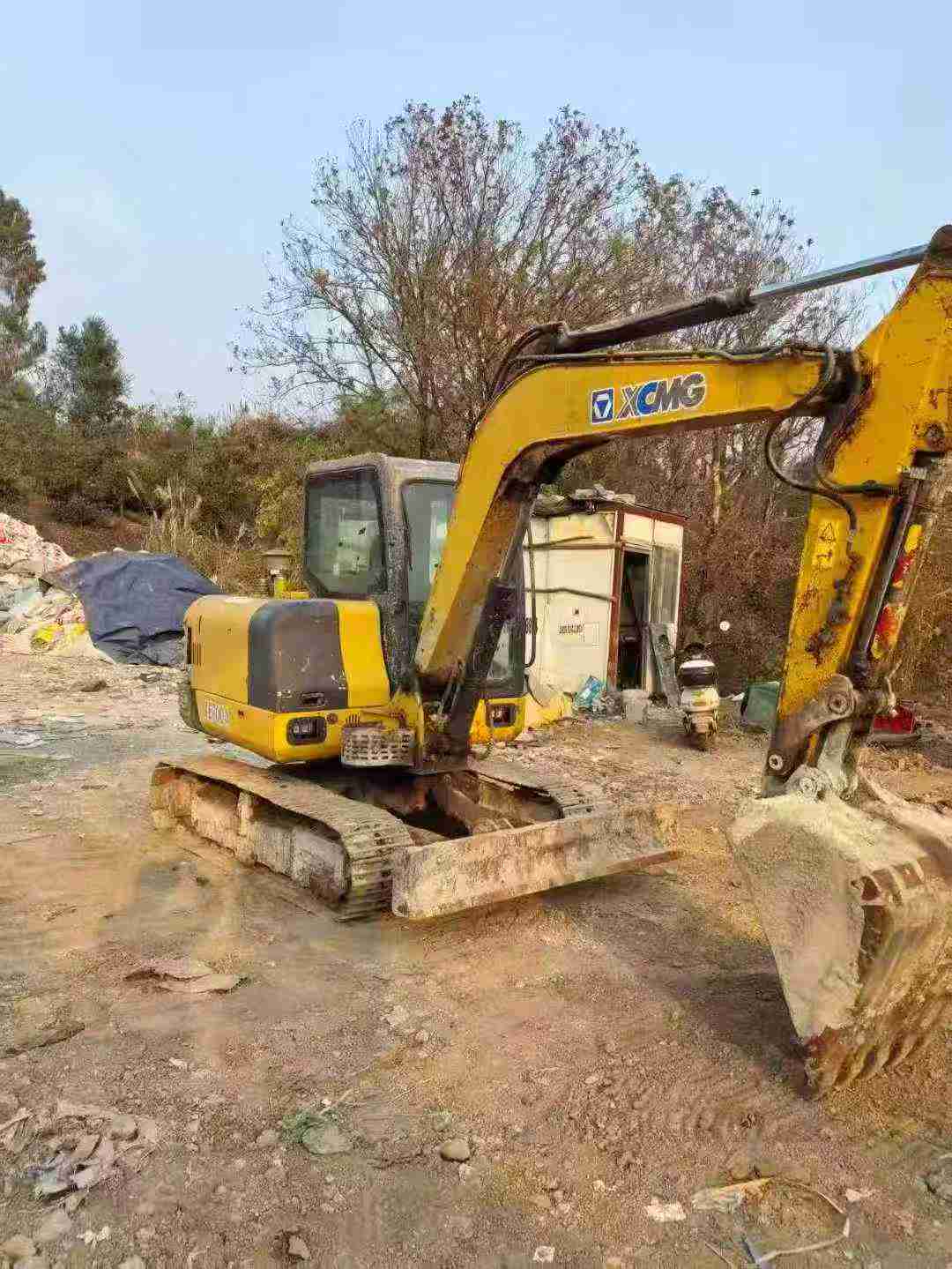

【 Premium Recommendation 】 XCMG XE60 Hydraulic Excavator from 2016, priced at just over 30,000 yuan! This XCMG XE60 excavator is a classic model from 2016, featuring outstanding performance and excellent durability. As a compact excavator, it is not only suitable for narrow space operation environments such as urban construction and road construction, but also widely used in farmland water conservancy construction and landscaping projects. Since its manufacture, the total working time of this equipment has been approximately 2,500 hours. It is in the best working condition, well maintained, and shows almost no obvious wear and tear. In terms of the power system, this machine is equipped with a highly efficient and energy-saving four-cylinder diesel engine, with a maximum power output of 40kW at 2200rpm. It can provide strong and stable output, ensuring reliable operation under long-term high-intensity work. Meanwhile, its low fuel consumption feature helps to reduce operating costs and improve economic benefits. In the hydraulic system, advanced negative flow control technology is adopted, making the operation more precise and sensitive. Whether it is excavation or loading, it can be handled with ease. In addition, it is equipped wi
