| Specifications | Value |
|---|---|
| No. | 968867 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

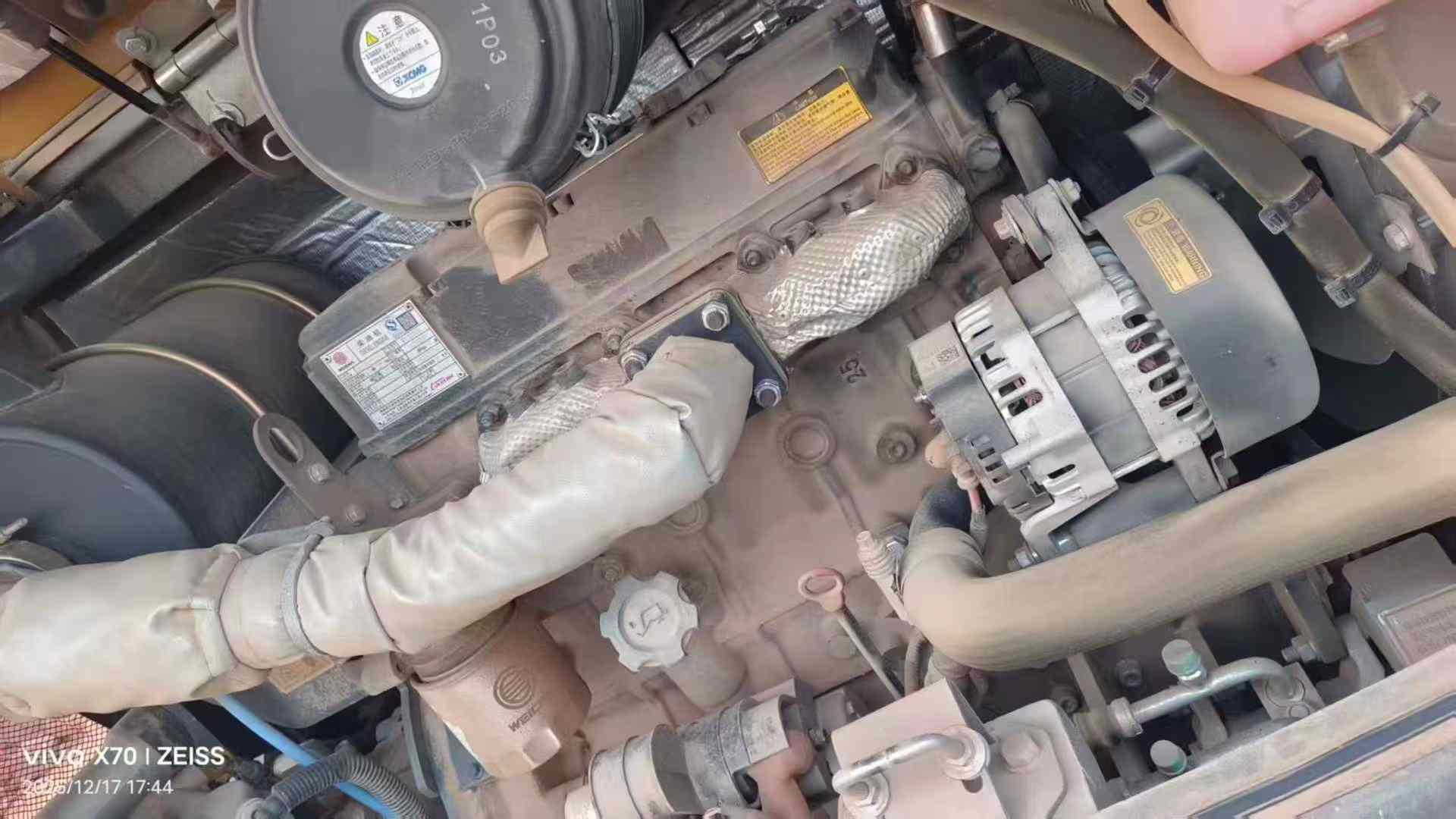

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

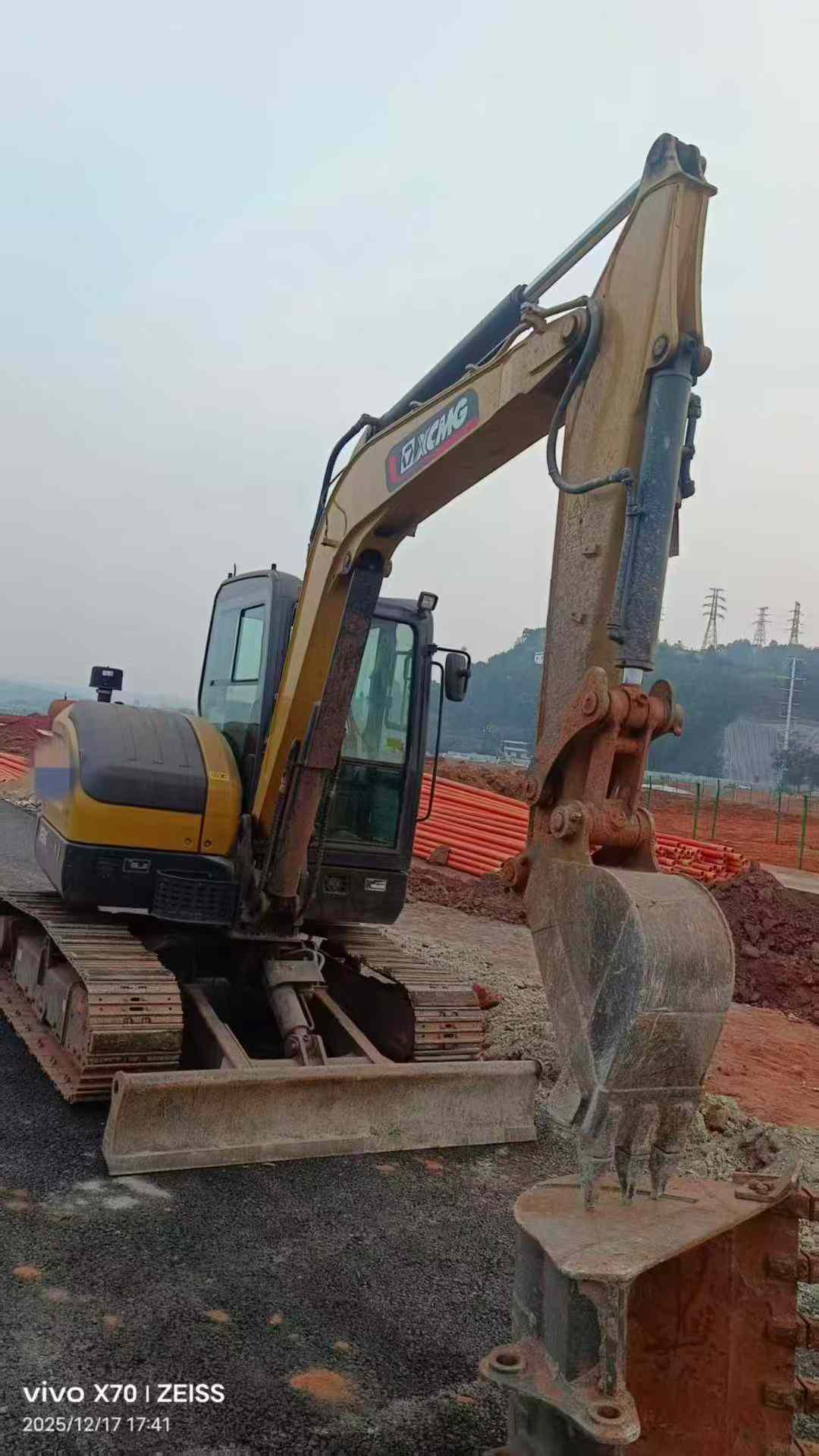

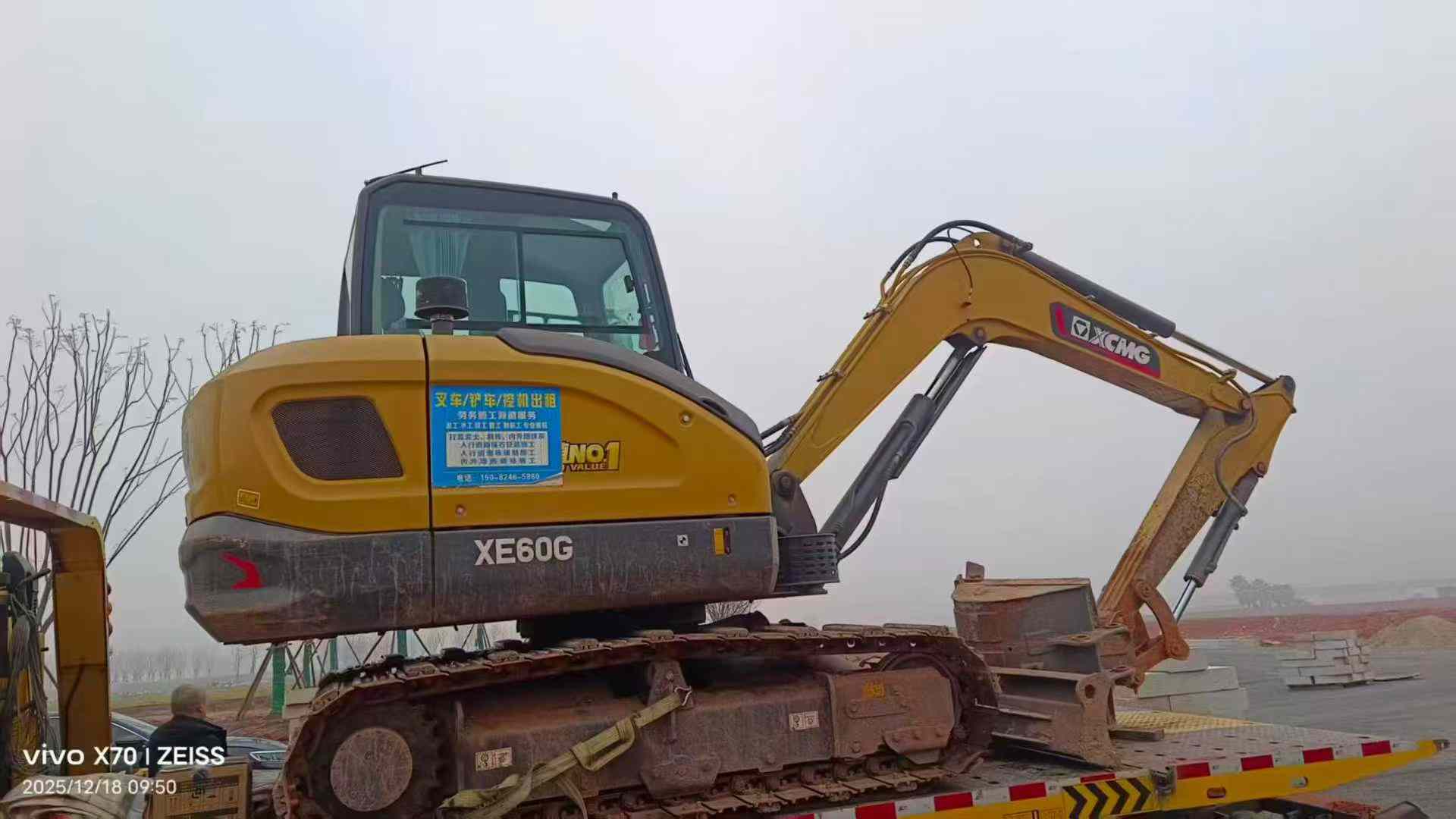

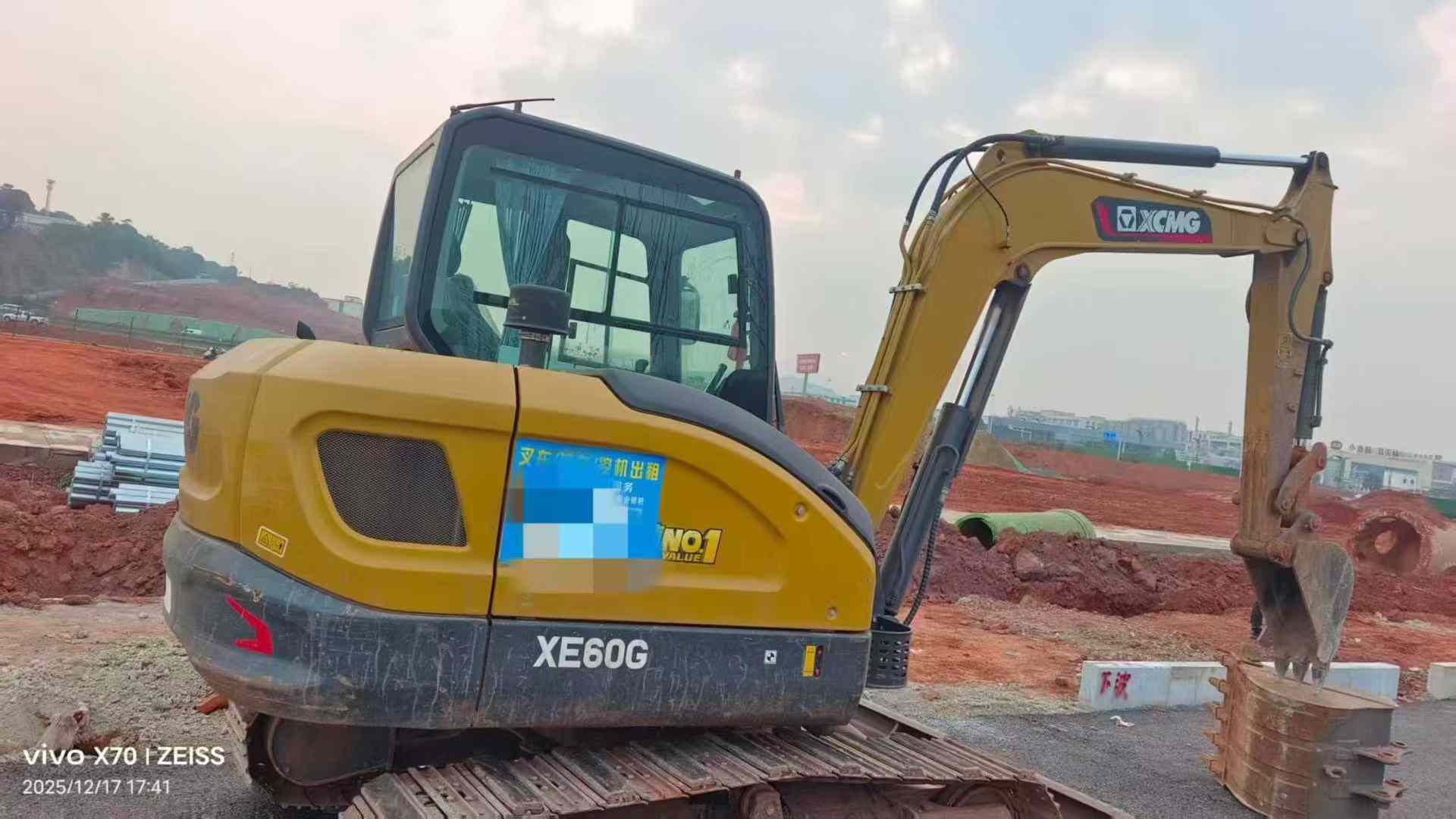

【 Premium Recommendation 】 Second-hand XCMG 60 excavator of National IV emission standard, real vehicle, real watch, 700 hours, slap your thigh slowly! This XCMG 60 excavator that meets the National IV emission standards is a very popular small excavator in the market. It has won the trust of a large number of users with its outstanding performance and reliable quality. The actual working time of this machine is only 700 hours, which is equivalent to just having passed the running-in period. It is in excellent condition and can almost be regarded as a nearly new car. In terms of the power system, this XCMG 60 is equipped with an efficient and energy-saving engine, which not only has strong power but also low fuel consumption and low noise. This engine has been meticulously tuned to provide smooth and continuous power output, capable of handling tasks such as excavation, loading, and other heavy-duty operations with ease. The hydraulic system adopts advanced load sensing technology, ensuring the sensitivity and smoothness of operation. Meanwhile, this hydraulic system has a low maintenance cost and a long service life, which greatly reduces the user's usage cost. In addition, its efficient cooling system ensures the stability of long
