| Specifications | Value |
|---|---|
| No. | 969661 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |

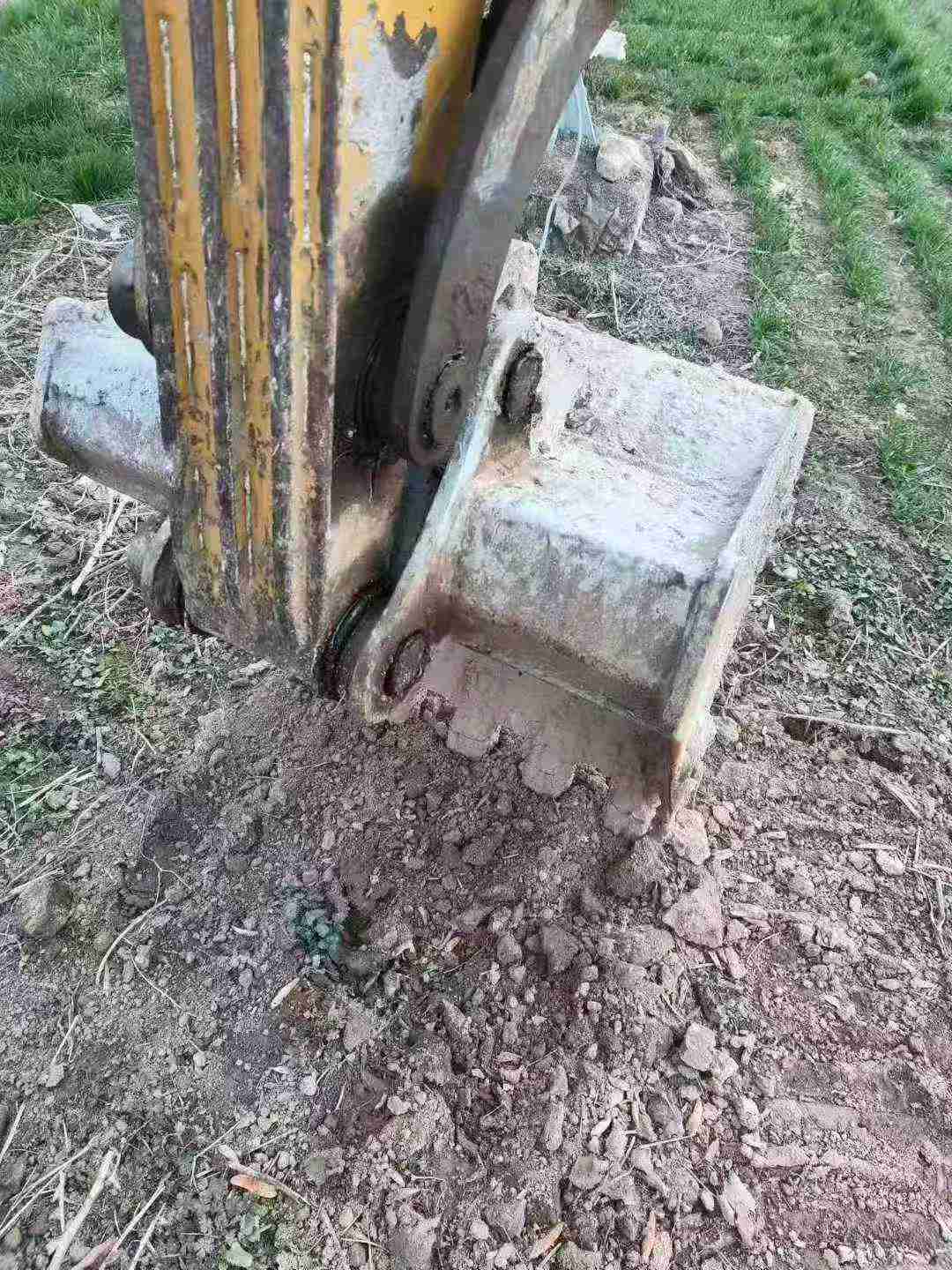

| bucket | backhoe |

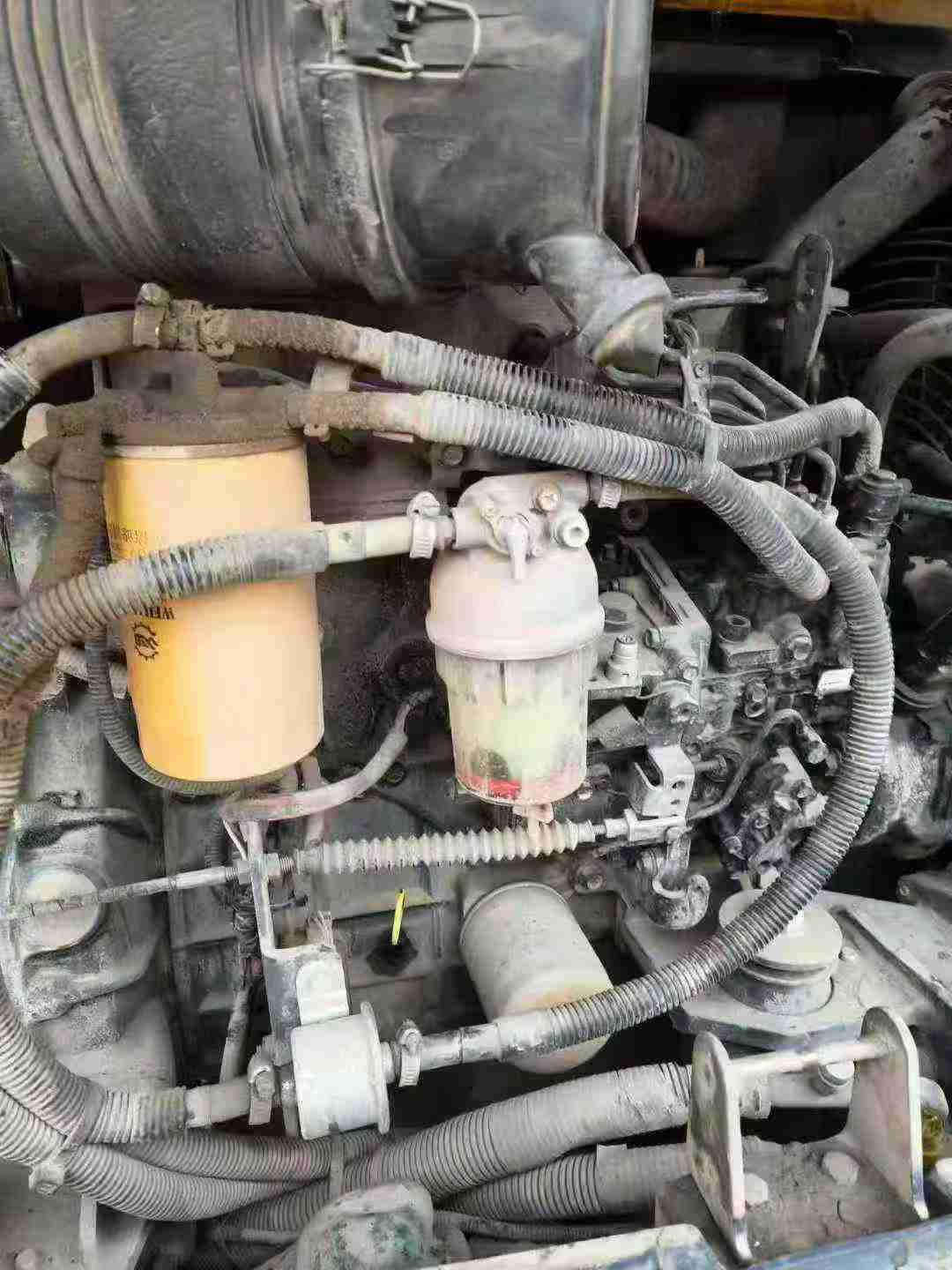

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

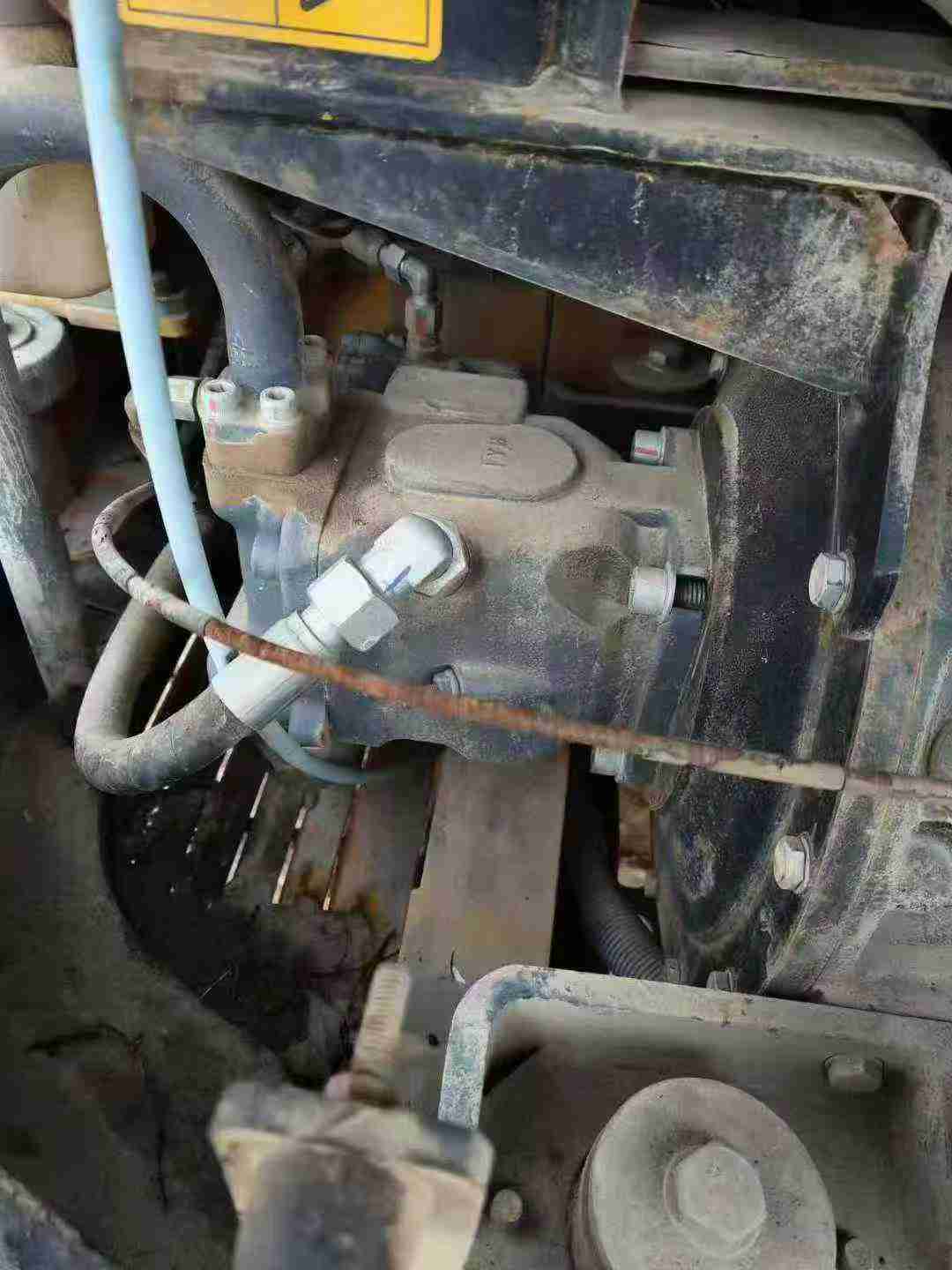

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |

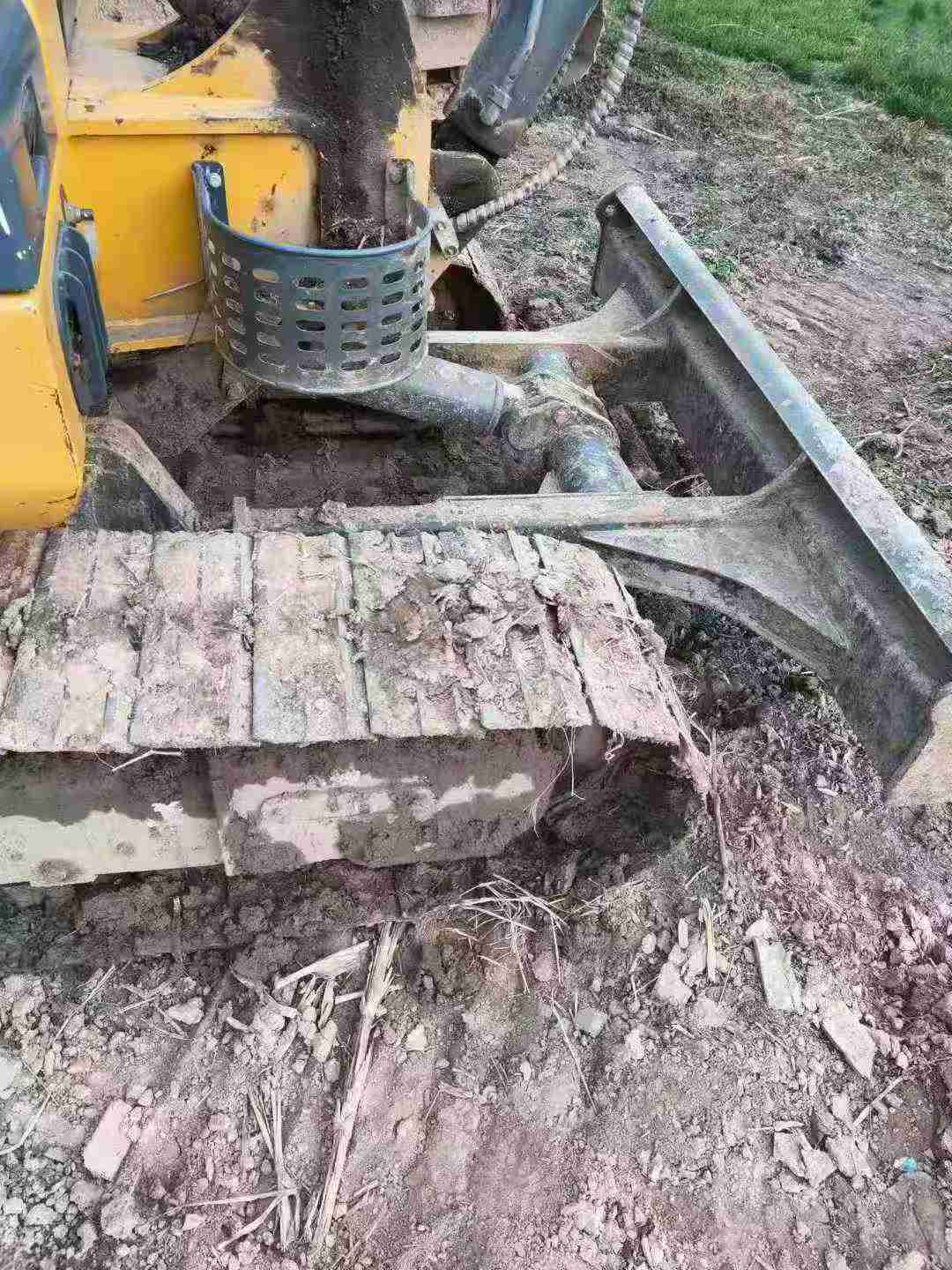

| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

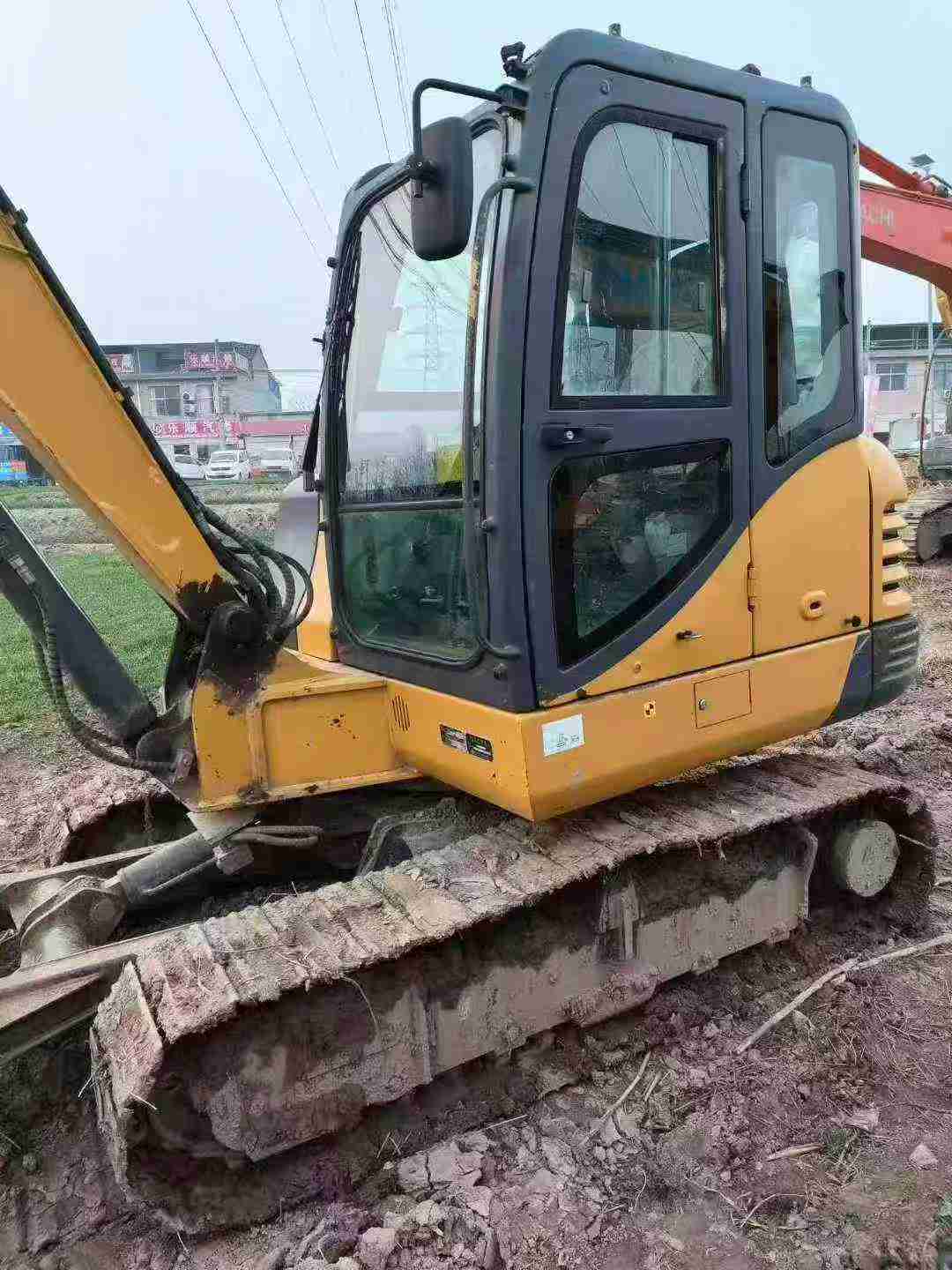

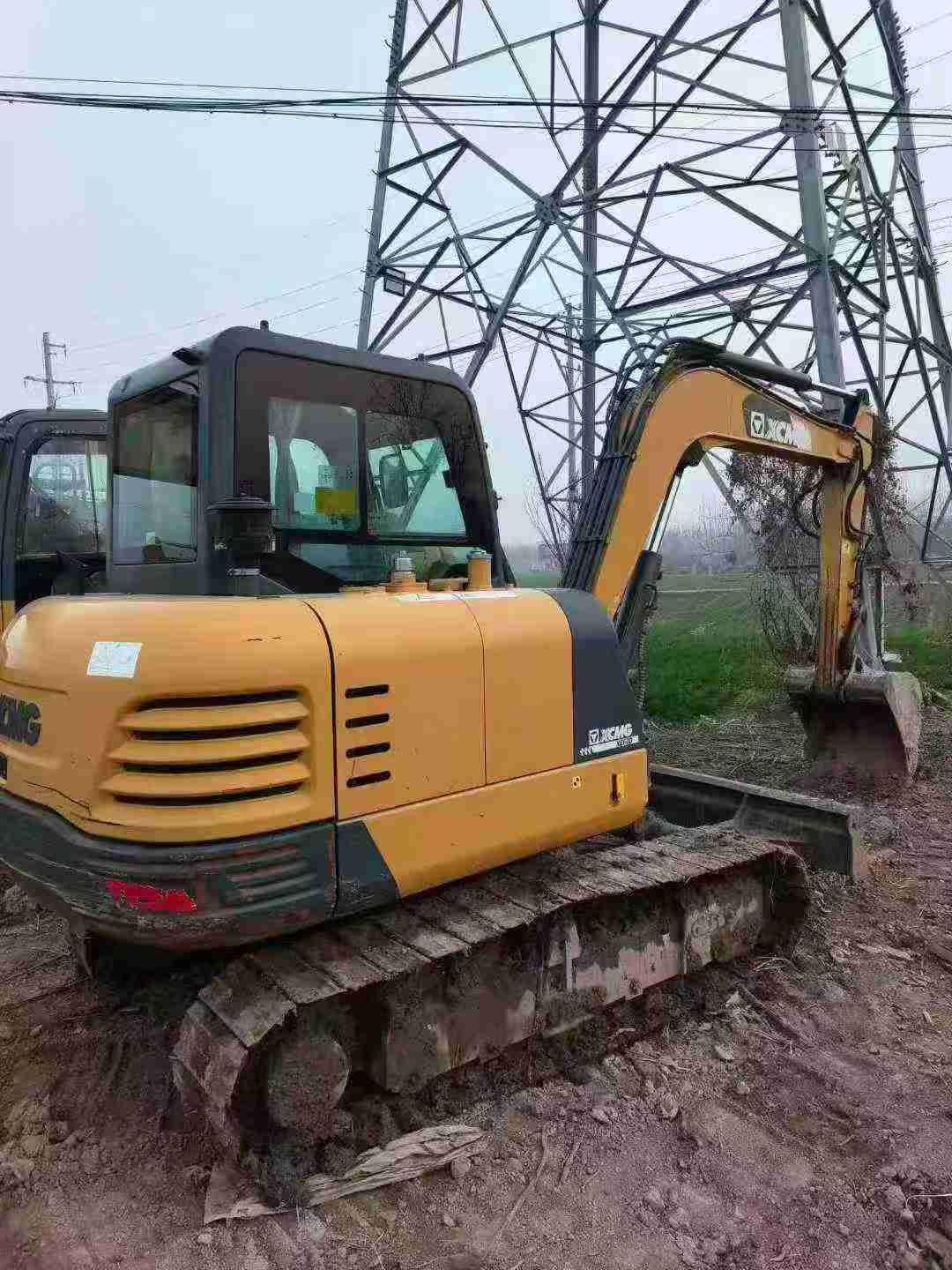

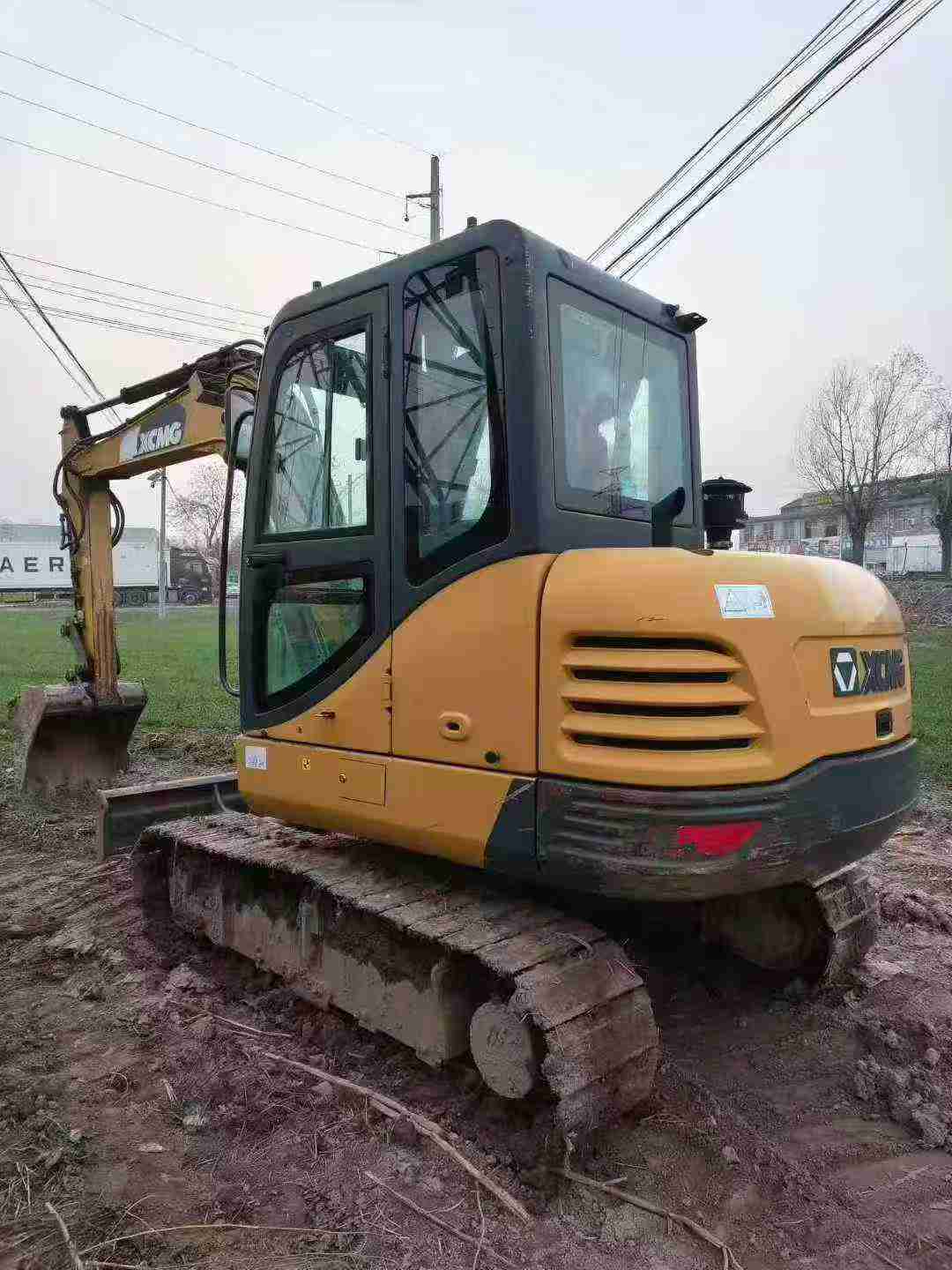

【 Premium Recommendation 】 The XCMG XE60 hydraulic excavator from 2019 is in excellent condition and has outstanding performance. It is your reliable assistant in engineering projects. This excavator has only been in operation for 2,800 hours since it left the factory, which is far lower than the average usage time of similar equipment. It can almost be said to be in a nearly new condition. Its core power system adopts the well-tested Yanmar engine, which is renowned for its outstanding stability and fuel economy. It can ensure continuous and efficient operation under various complex working conditions while reducing daily operating costs. In terms of the hydraulic system, this machine is equipped with an advanced load-sensitive control system, which not only responds quickly and operates precisely, but also maintains good temperature control during long-term operation, effectively extending the service life of the entire hydraulic system. In addition, its structural components are of high strength and wear resistance, enabling it to handle high-intensity working environments with ease. In terms of appearance, this XCMG XE60 is well maintained. The body paint is as smooth as new, with no obvious scratches or rust. The interior of the
