| Specifications | Value |
|---|---|
| No. | 969742 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

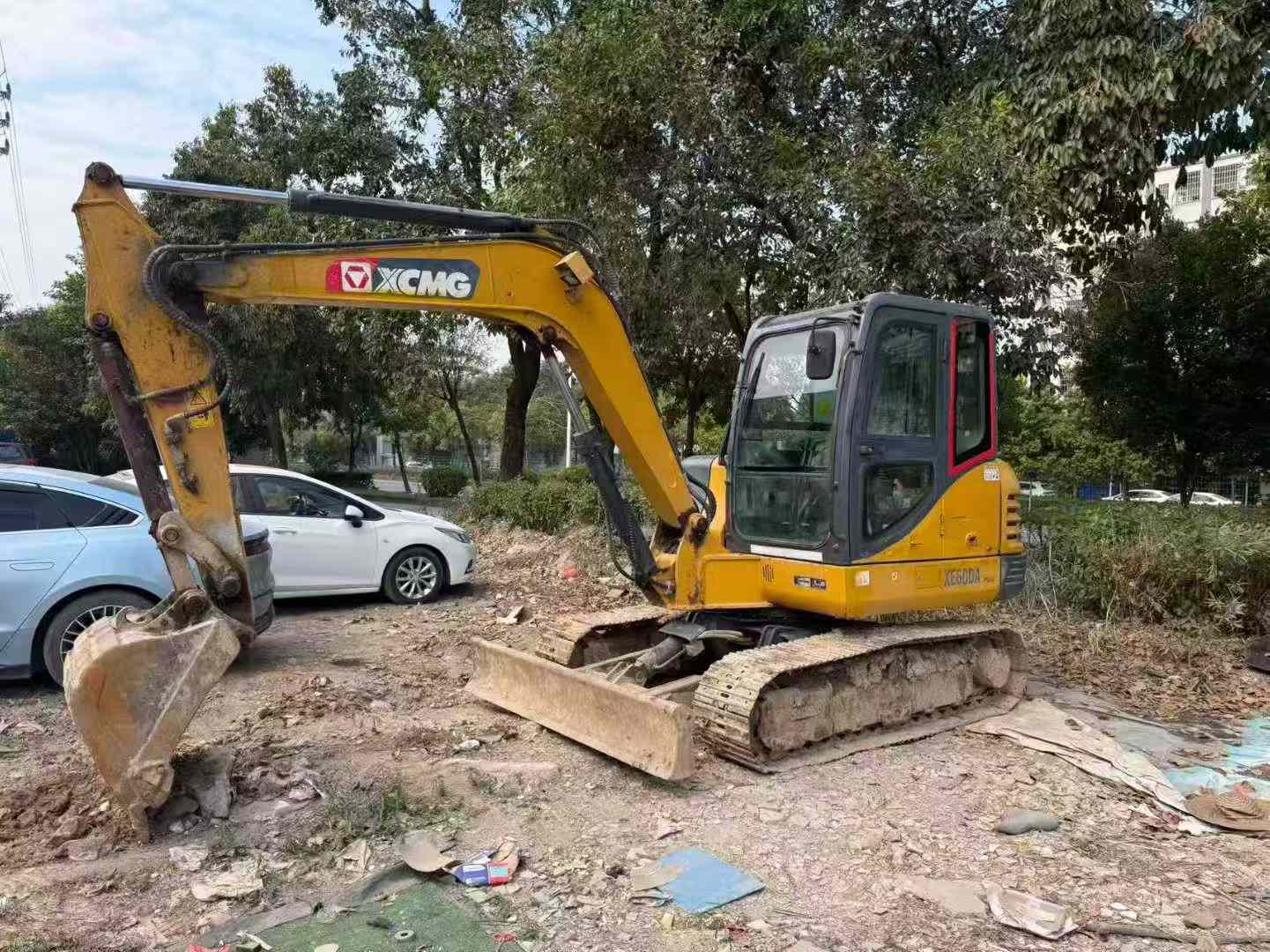

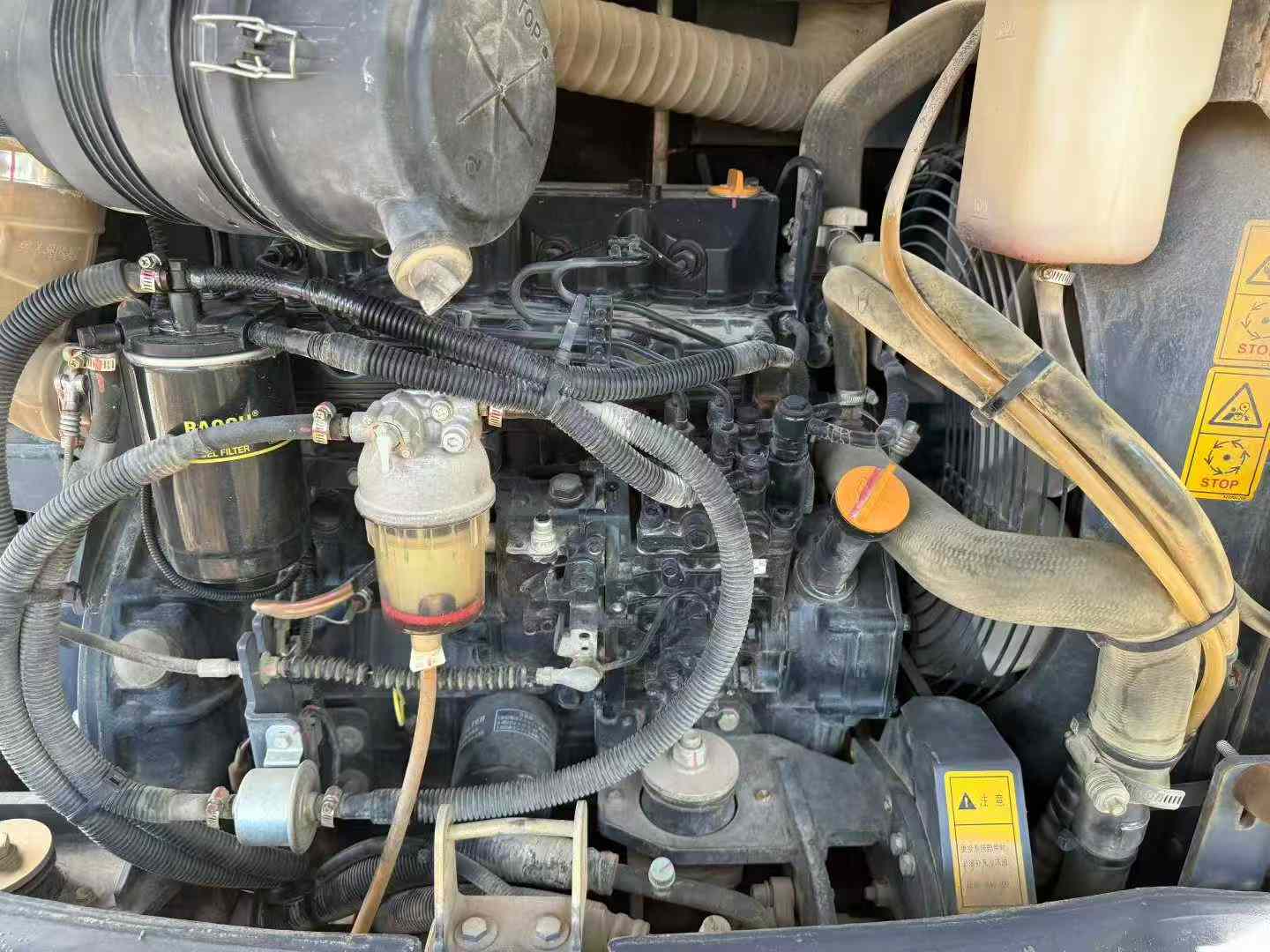

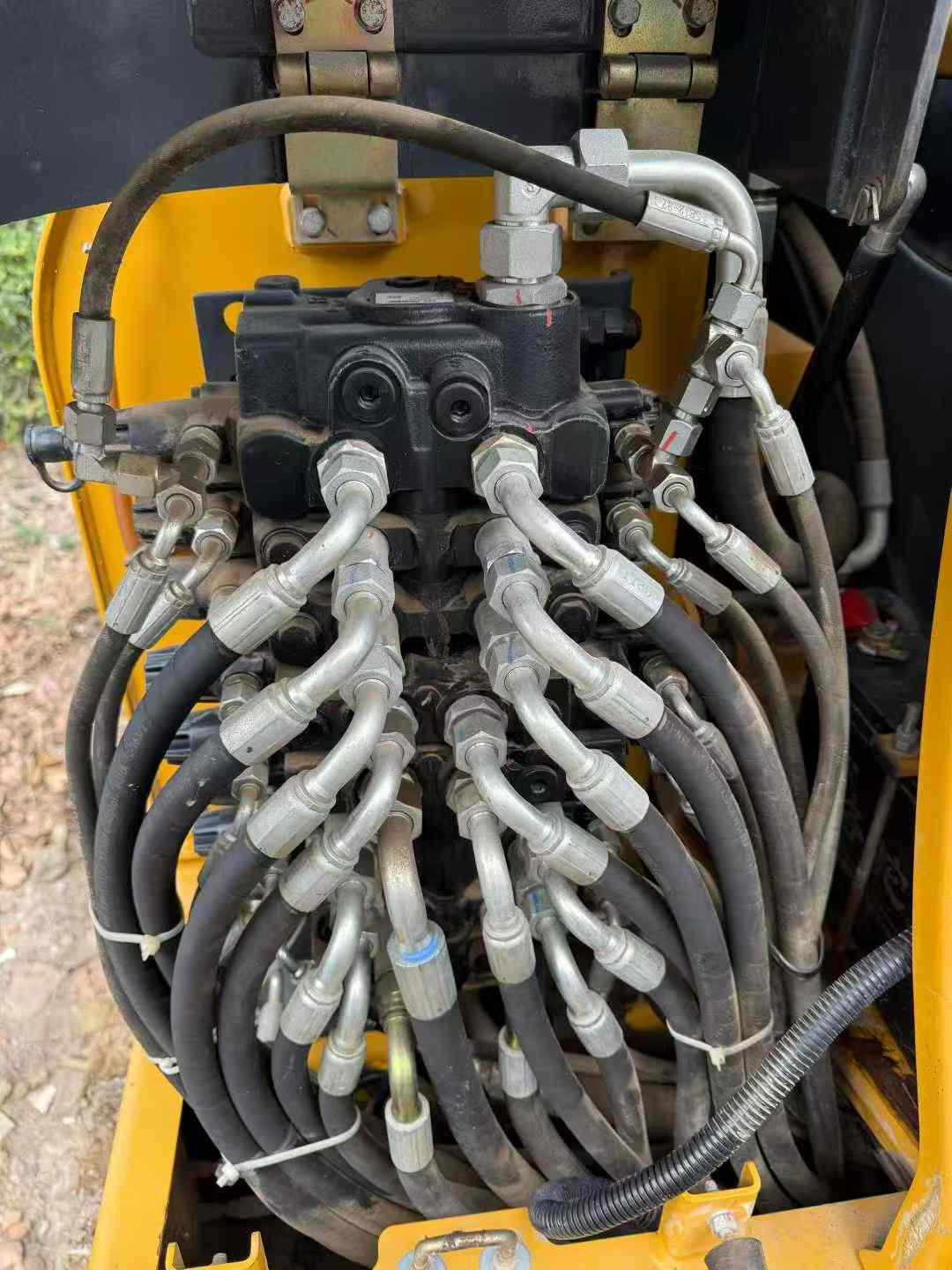

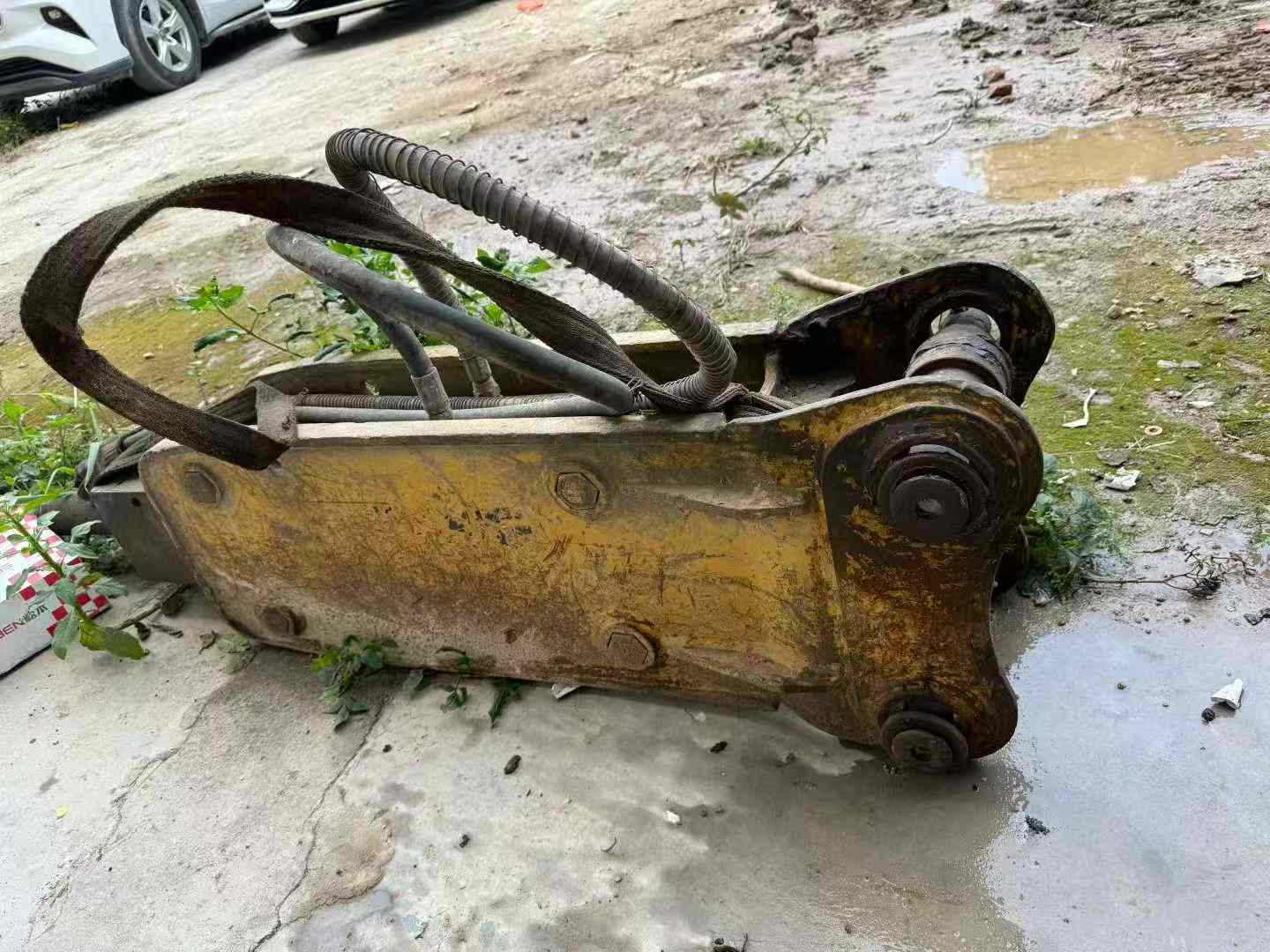

【 Premium Recommendation 】 XCMG XE60D second-hand excavator, 2021 first-hand vehicle source, with original factory breaker, excellent quality and stable performance, is your ideal choice for construction! Since its purchase in 2021, this XCMG XE60D mini excavator has only worked for a total of 1,500 hours. With low usage frequency and proper maintenance, the overall condition of the machine is close to that of a new one. It is equipped with the highly efficient and energy-saving Yanmar 4TNV98 engine, with a maximum power output of 36.4kW at 2200rpm. It is powerful and fuel-efficient, making it particularly suitable for operation in various complex working conditions. Meanwhile, this machine is equipped with an advanced hydraulic system, featuring imported hydraulic pumps and main valves, ensuring smooth and precise operation. It can handle tasks such as excavation, loading, and crushing with ease. It is worth mentioning that the original factory breaker hammer equipped on this machine not only matches the main unit perfectly but also has strong impact force and high efficiency. It can quickly complete the crushing task of hard rocks or concrete, greatly improving work efficiency. In addition, the cab is spacious and comfortable, with
