| Specifications | Value |
|---|---|
| No. | 969785 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

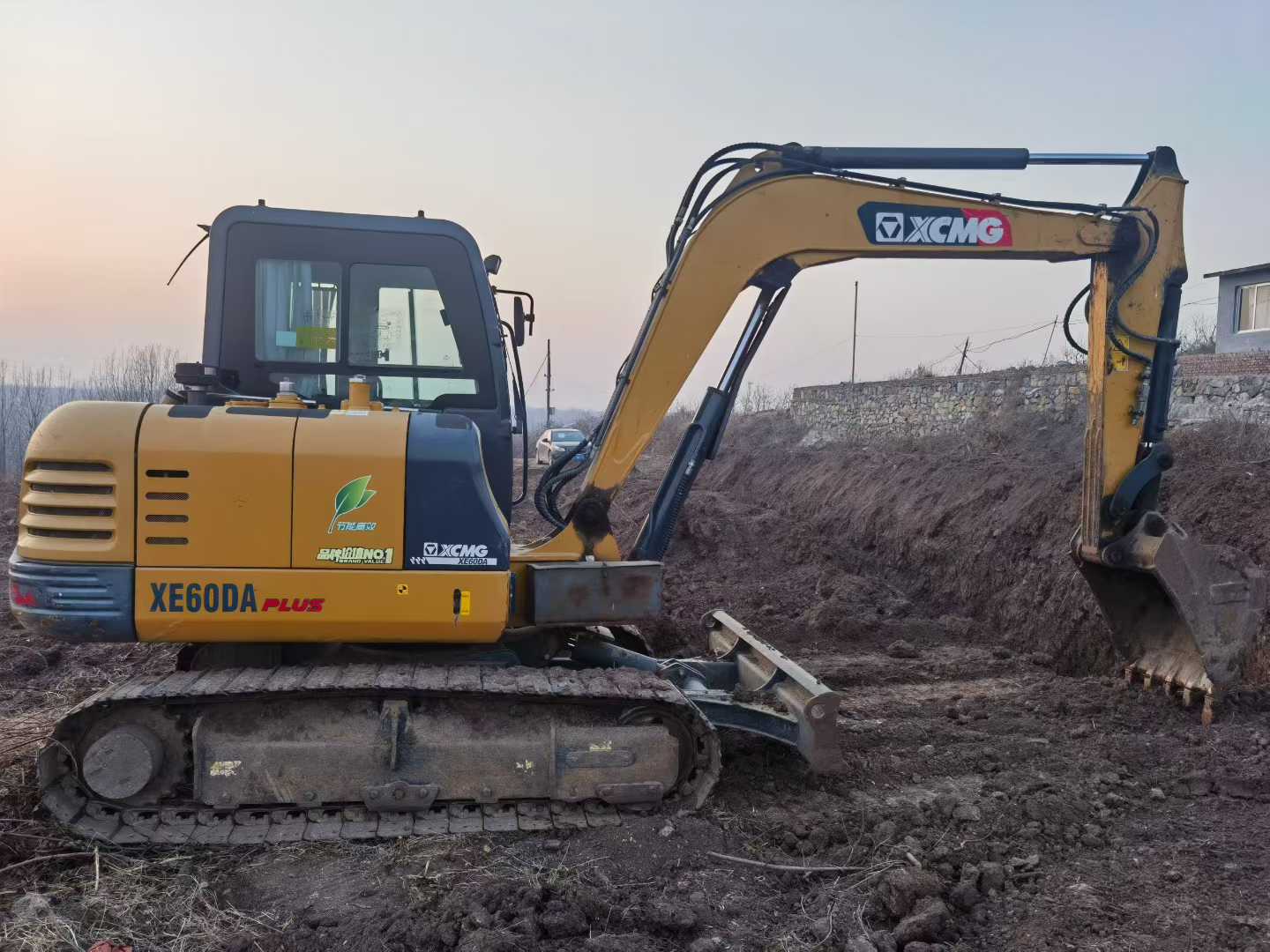

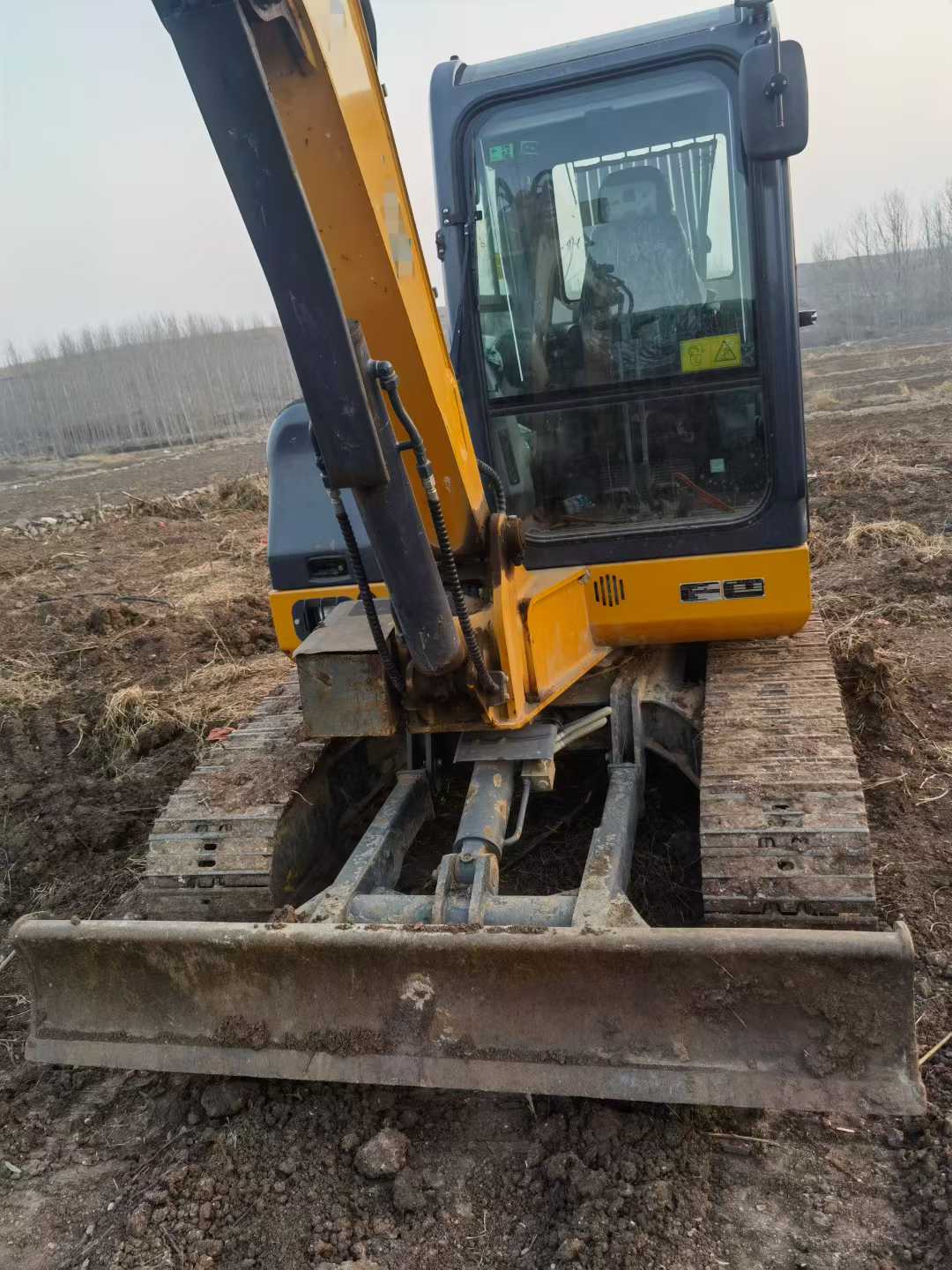

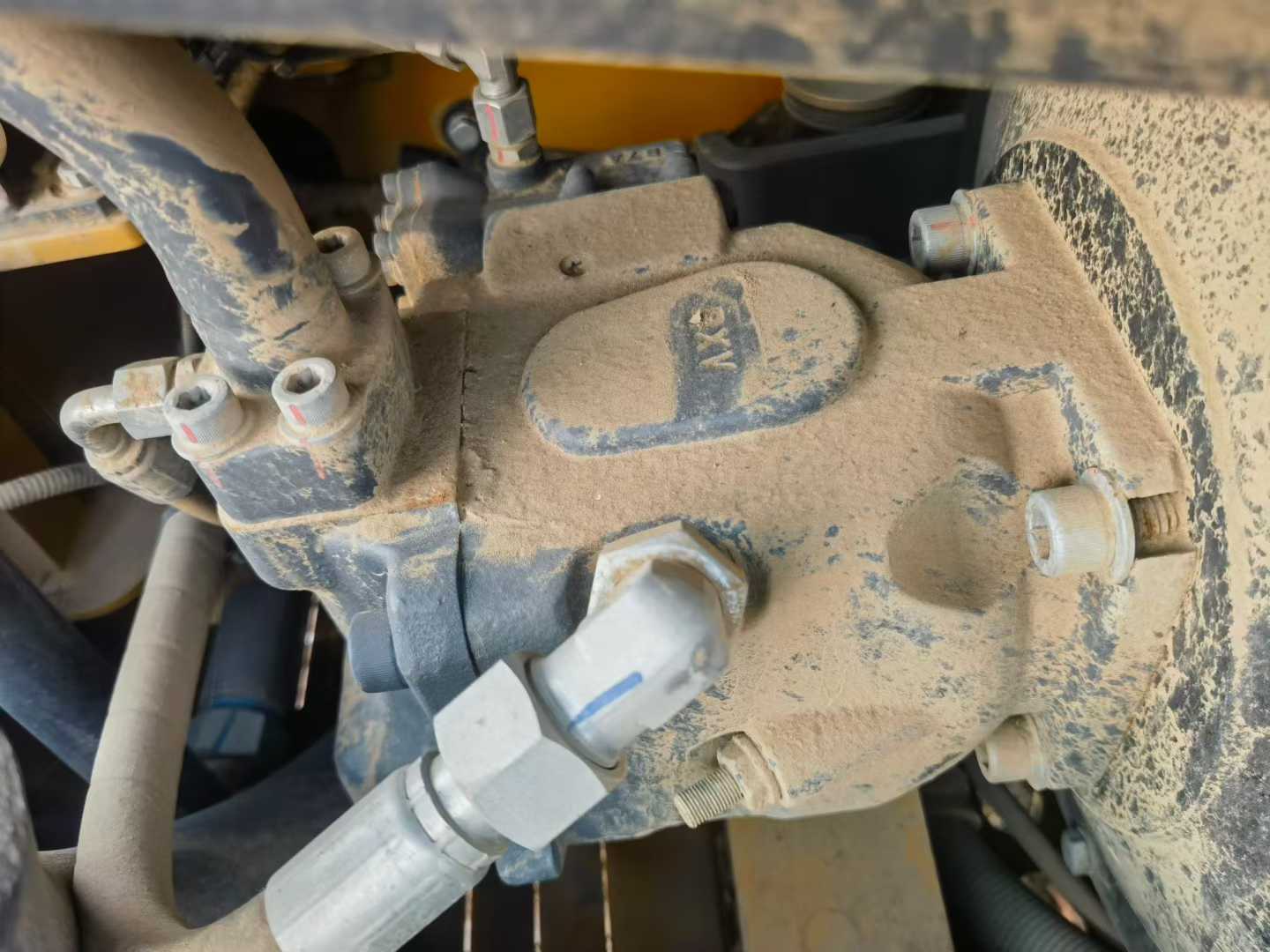

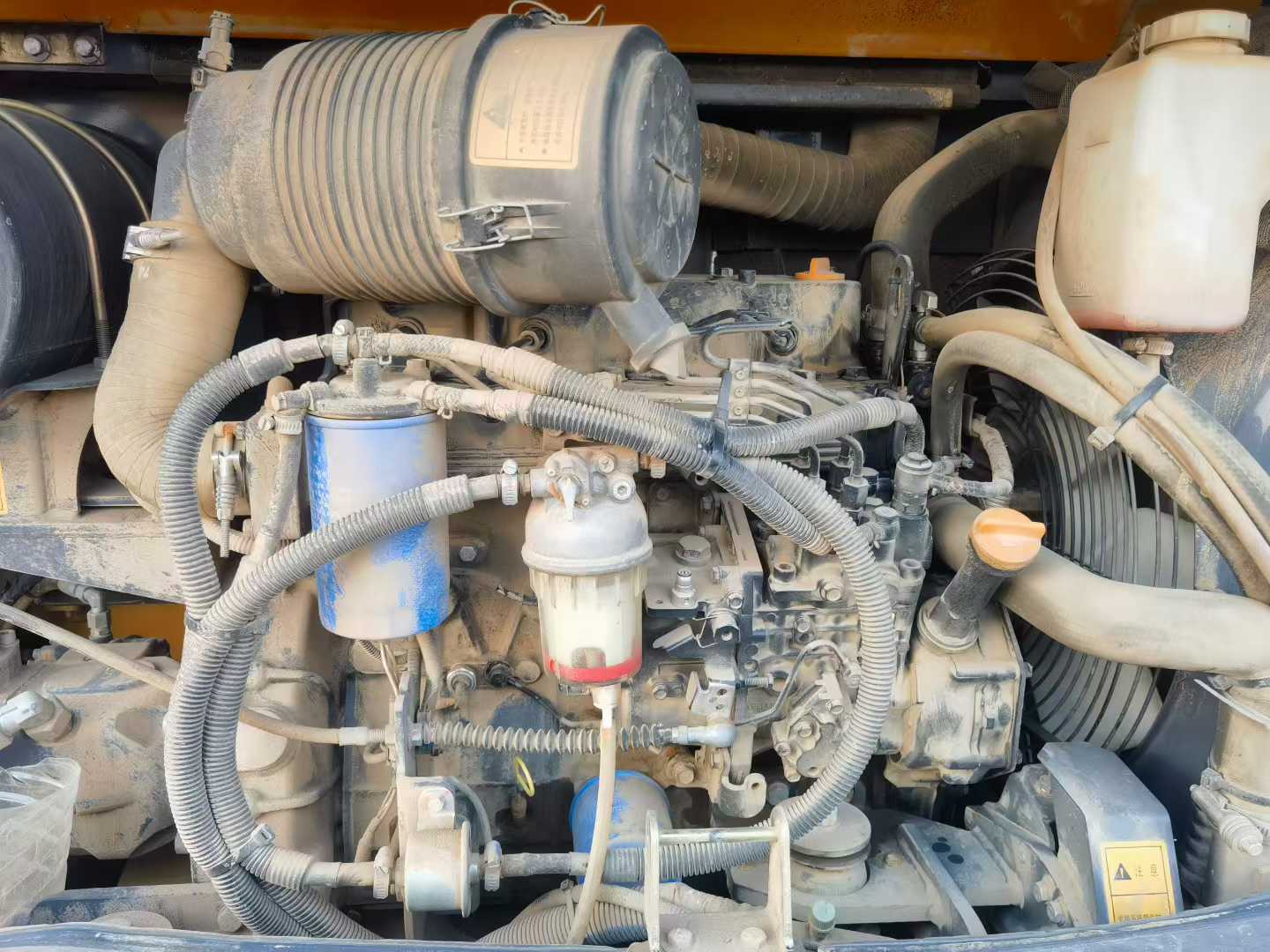

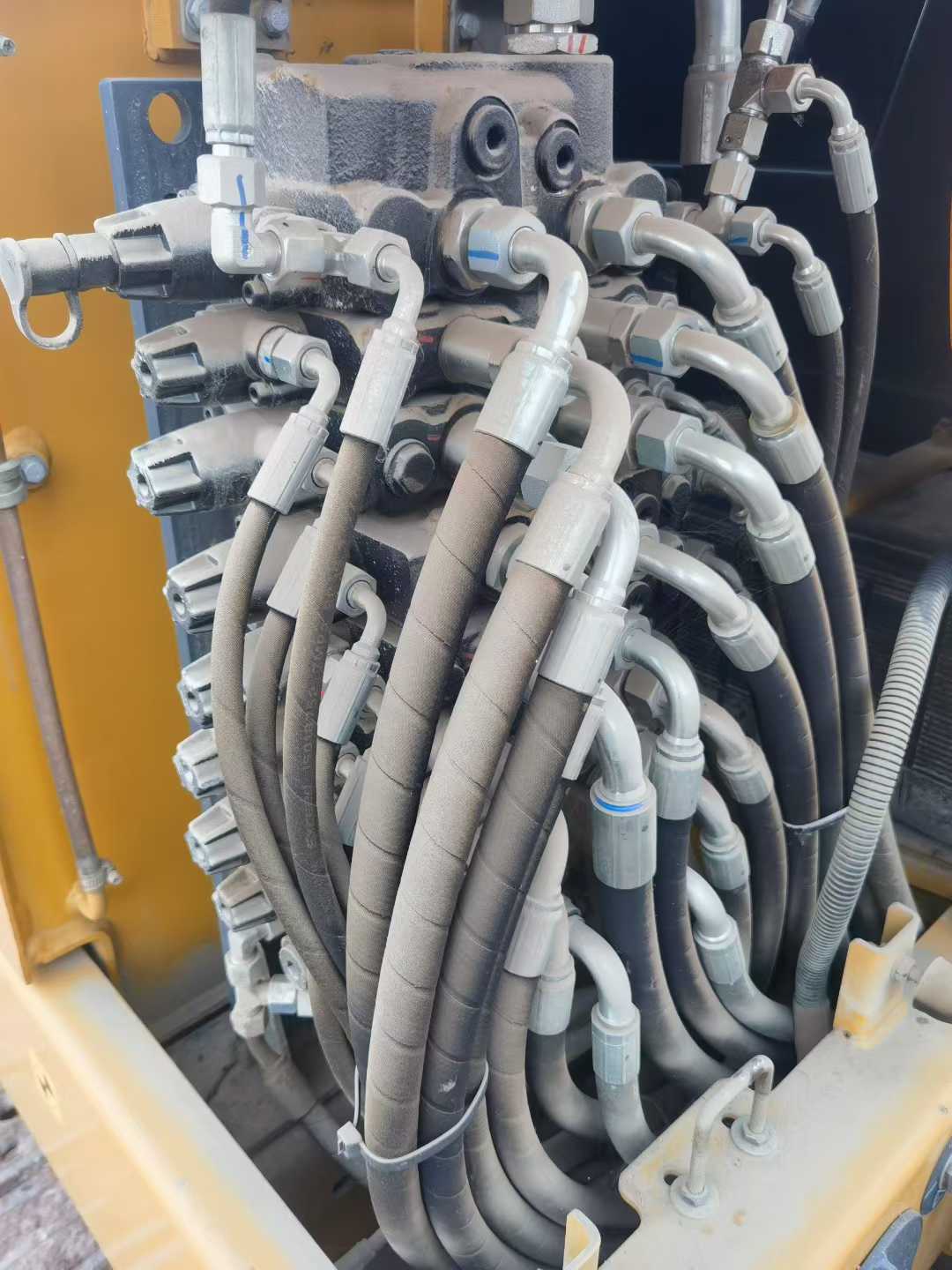

【 Premium Recommendation 】2022 XCMG XE60 excavator, equipped with Yanmar engine, features outstanding performance and extremely high cost performance. This excavator has only been in operation for 2,000 hours. Its overall condition is excellent, it is well maintained, and there is no record of major overhauls. It is suitable for the operation needs of various medium and small-sized projects. 【 Power System 】 This machine is equipped with the original imported Yanmar 4TNV98-ZS engine from Japan. This engine is renowned for its outstanding fuel economy and reliability, with a maximum power output of 35.3kW at 2200rpm. Even in harsh working environments, it can maintain stable output. Additionally, it features low noise and low emissions, meeting the National III emission standards. Environmentally friendly and energy-saving. The hydraulic system is equipped with an advanced negative flow control system, which responds quickly, operates flexibly and can achieve precise control. It can handle both excavation and loading with ease. The main pump is designed as a variable plunger pump, which can automatically adjust the flow rate according to the actual load, improving work efficiency while reducing energy consumption. In addition, this ma
