| Specifications | Value |
|---|---|
| No. | 970234 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

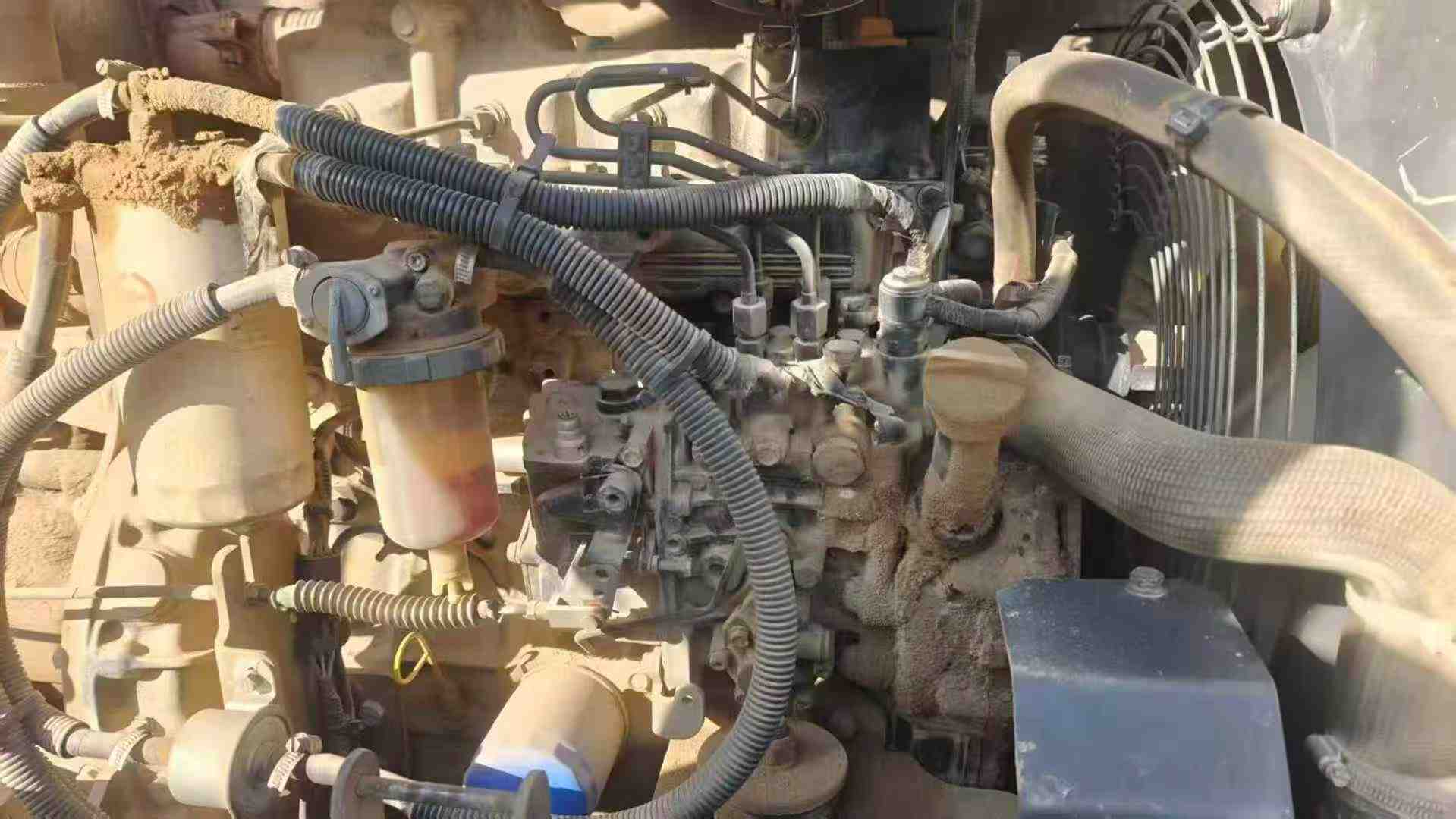

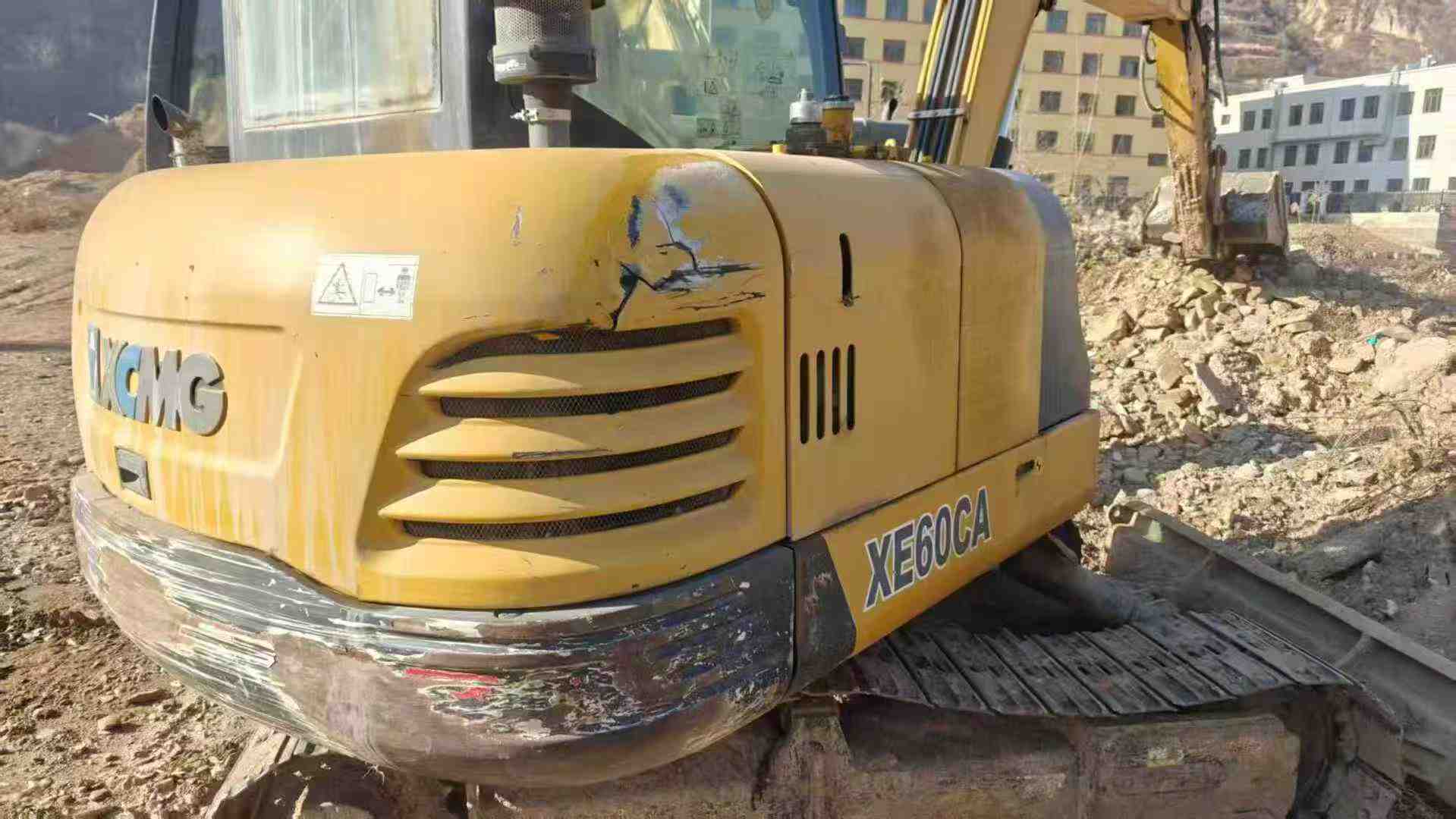

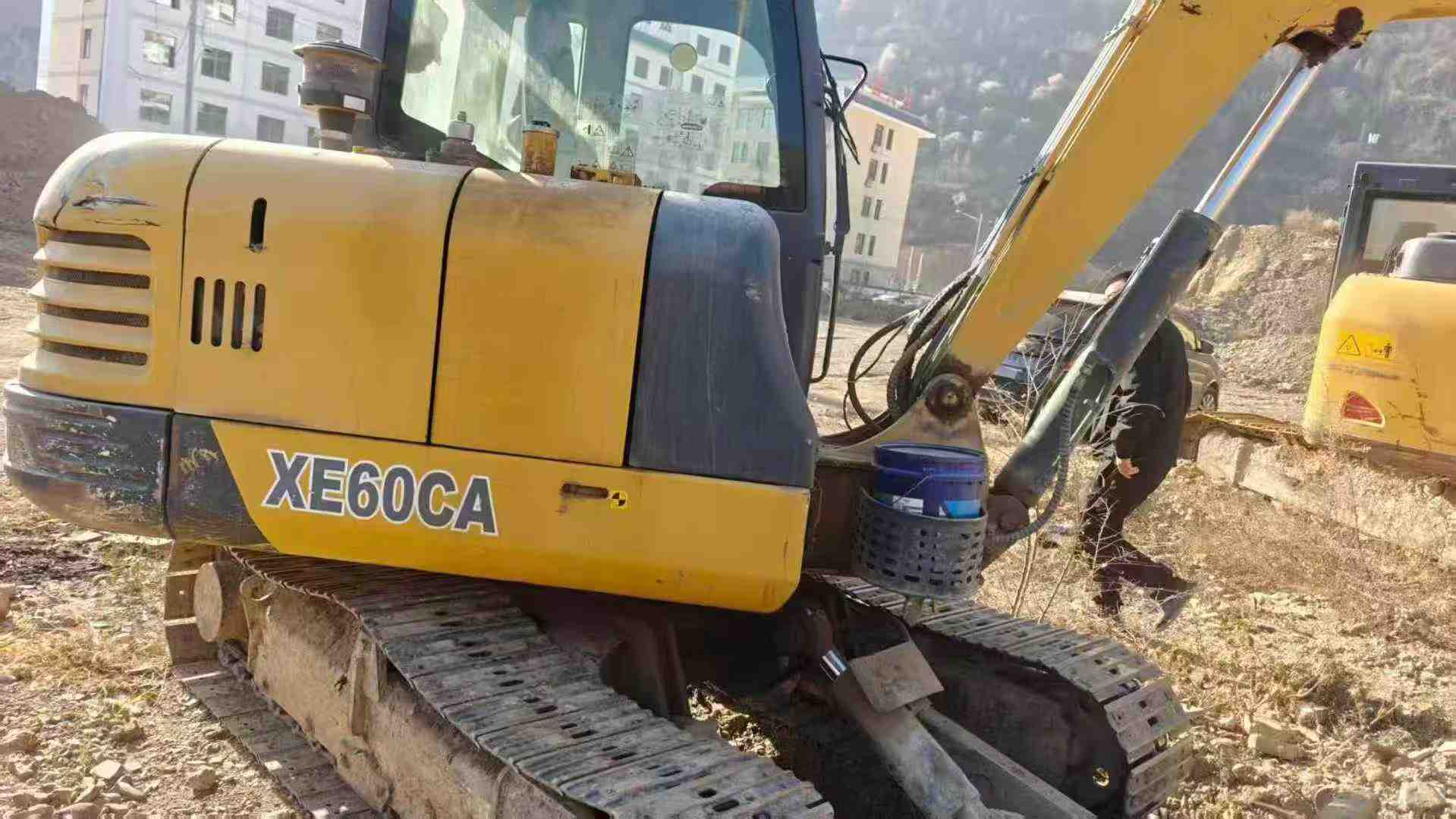

【 Premium Recommendation 】2016 XCMG XE60 Mini Excavator, now priced at only 30,000 yuan! Since this excavator was put into use in 2016, it has accumulated only 1,800 hours of working time. With low usage frequency and proper maintenance, its overall condition is very good. As an economical and practical small excavator, it not only boasts outstanding performance but also offers an extremely high cost-performance ratio. In terms of power, this machine is equipped with a high-quality Yanmar engine, which is powerful, stable and reliable, and can easily meet the operation requirements under various complex working conditions. Meanwhile, it has high fuel efficiency and low operating costs, saving users a considerable amount of expenses. The hydraulic system adopts advanced load-sensitive technology, ensuring that the entire machine operates more flexibly and precisely. Whether it is digging, crushing or leveling the ground, it can complete tasks with ease. In addition, the XE60 is equipped with a spacious and comfortable cab, offering a wide field of vision, so you won't feel tired even after long hours of work. It is particularly worth mentioning that this second-hand XCMG XE60 mini excavator has undergone strict testing and maintenance
