| Specifications | Value |
|---|---|
| No. | 970686 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

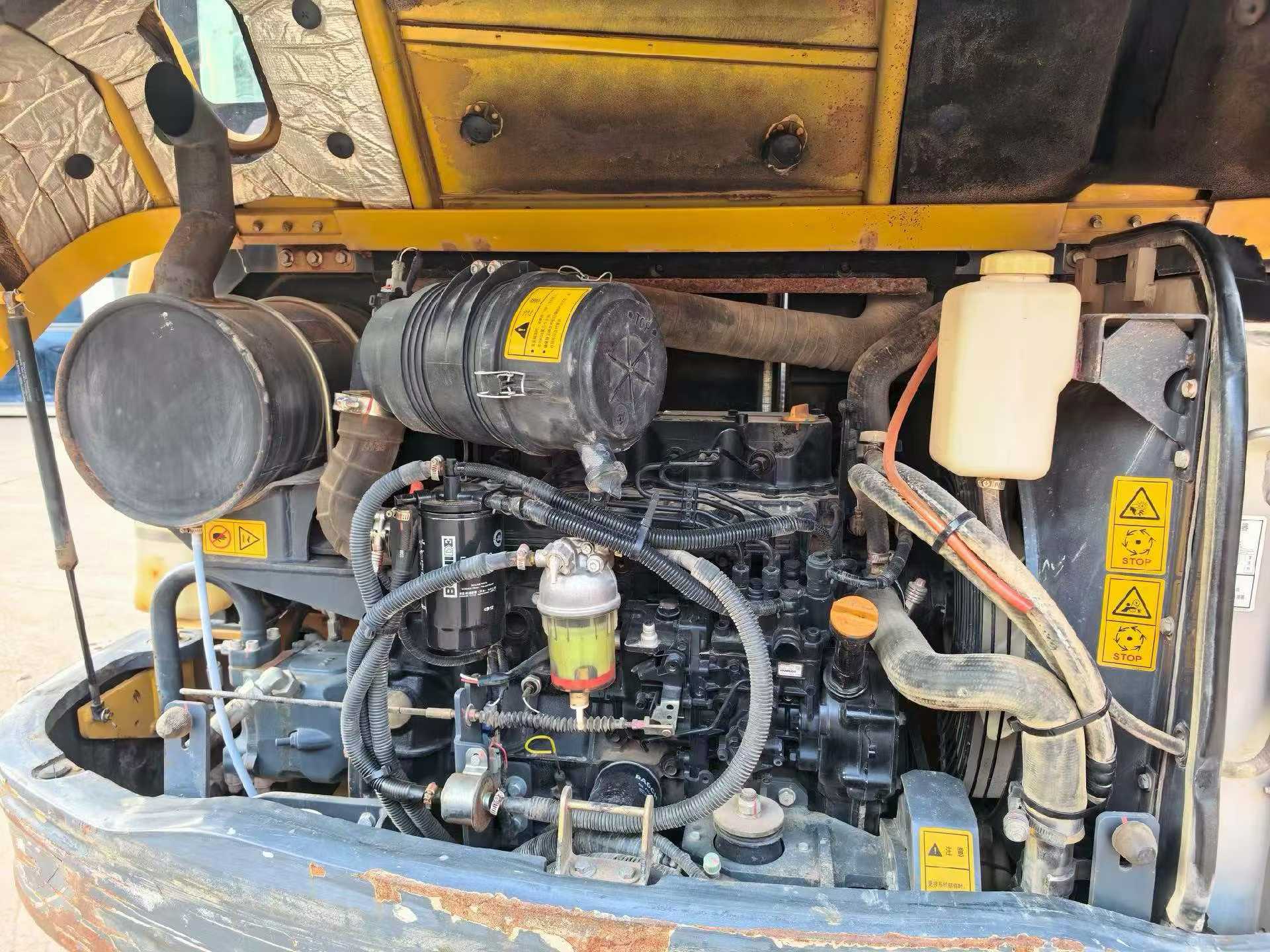

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

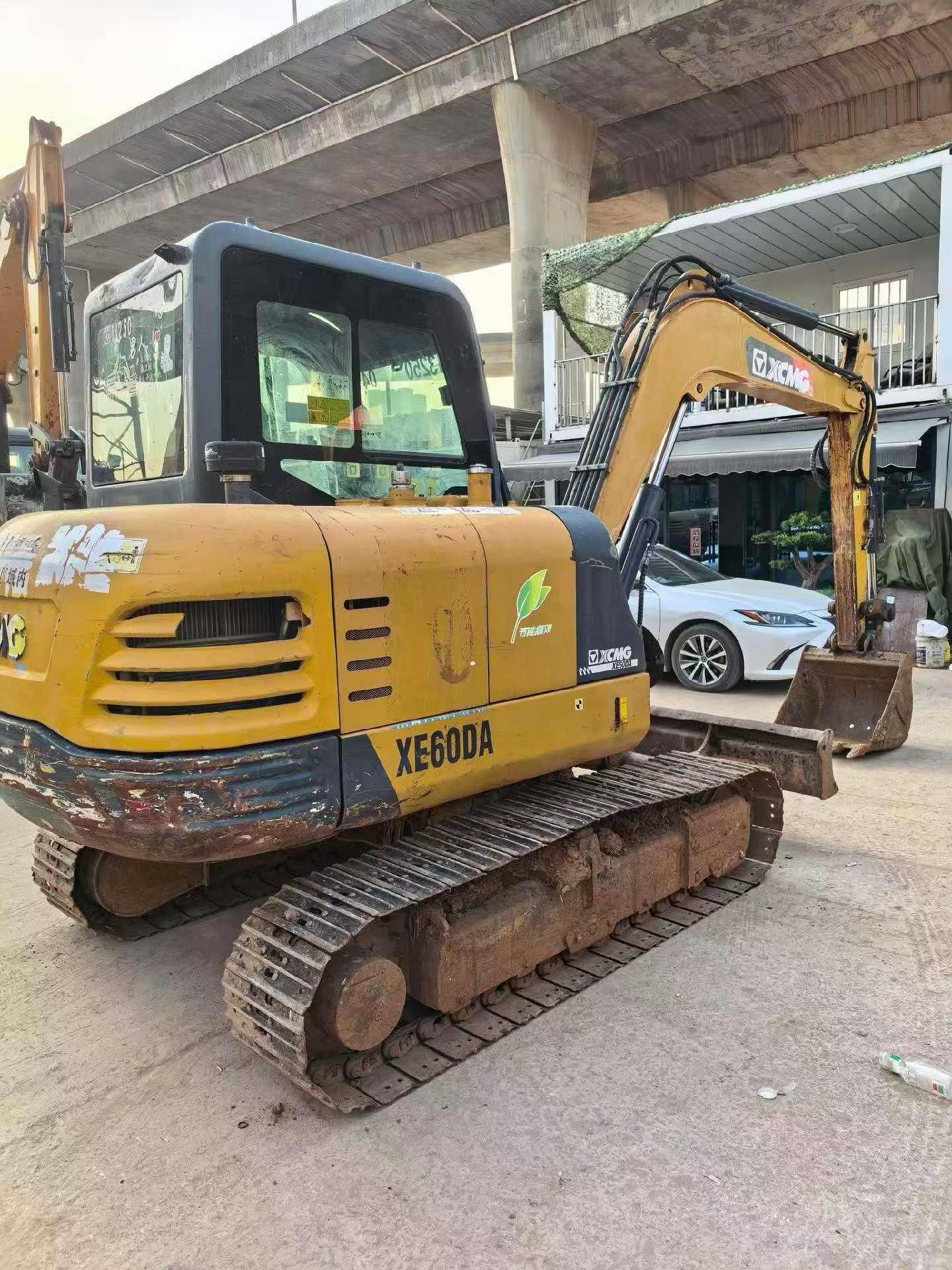

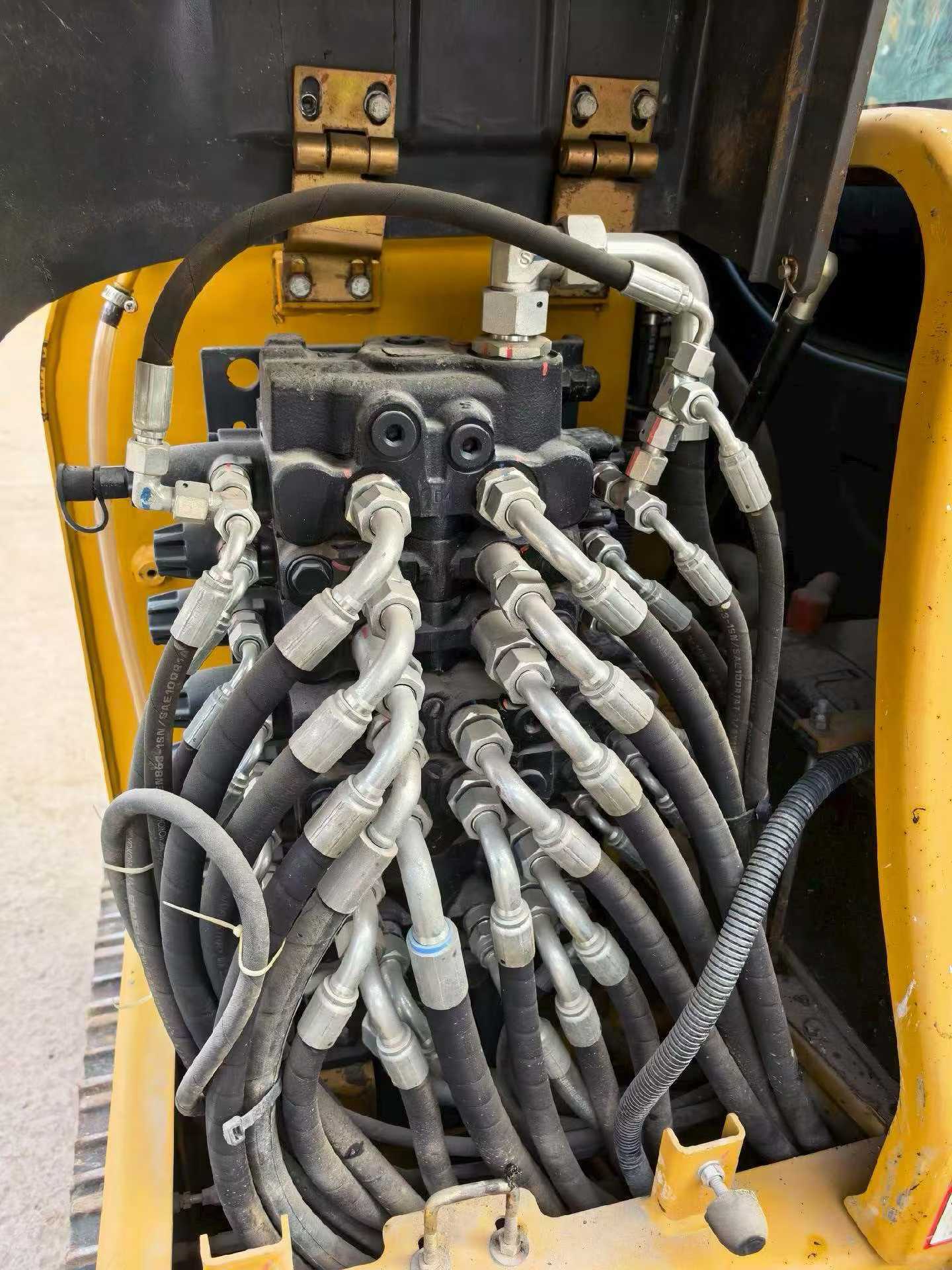

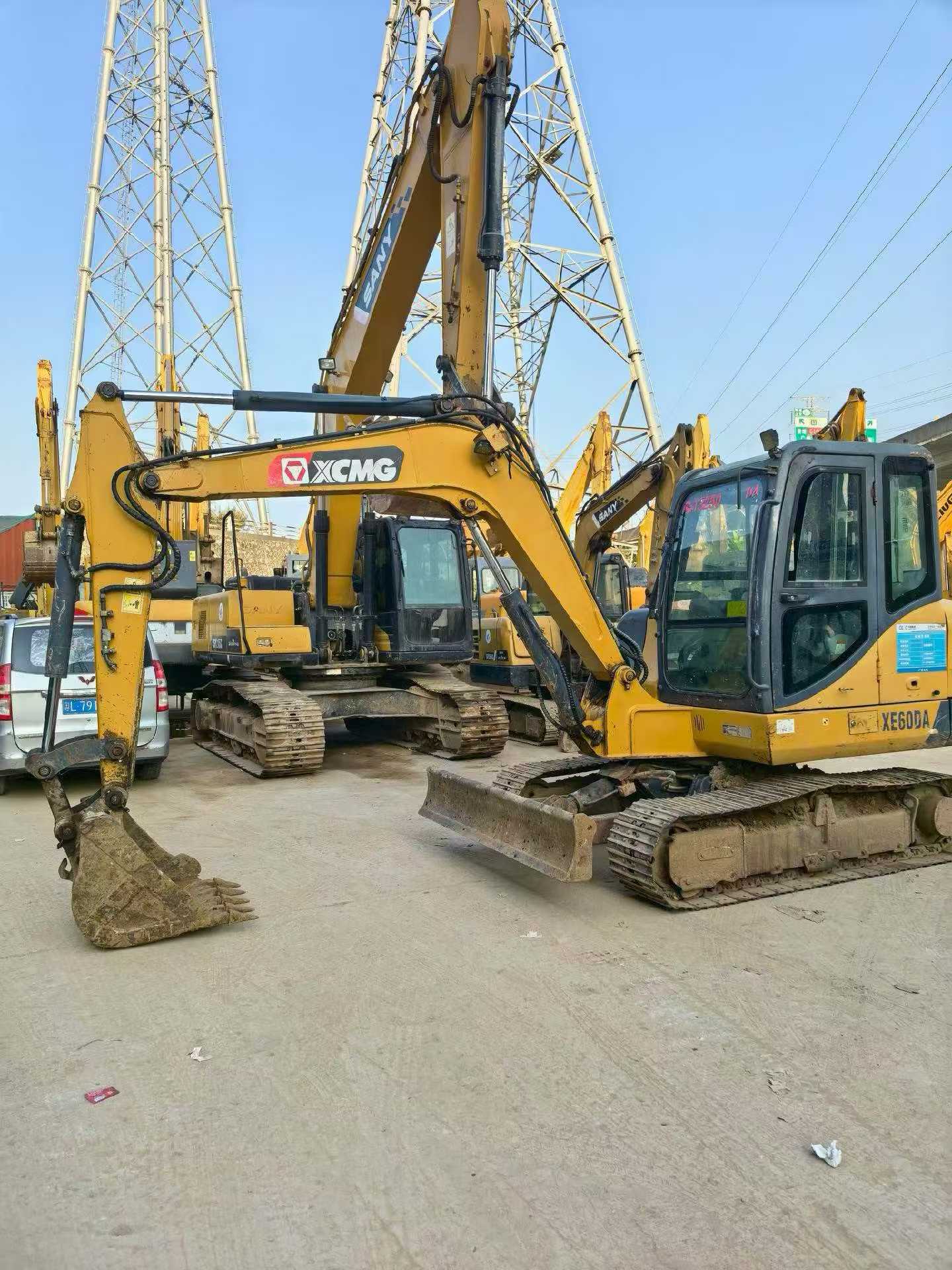

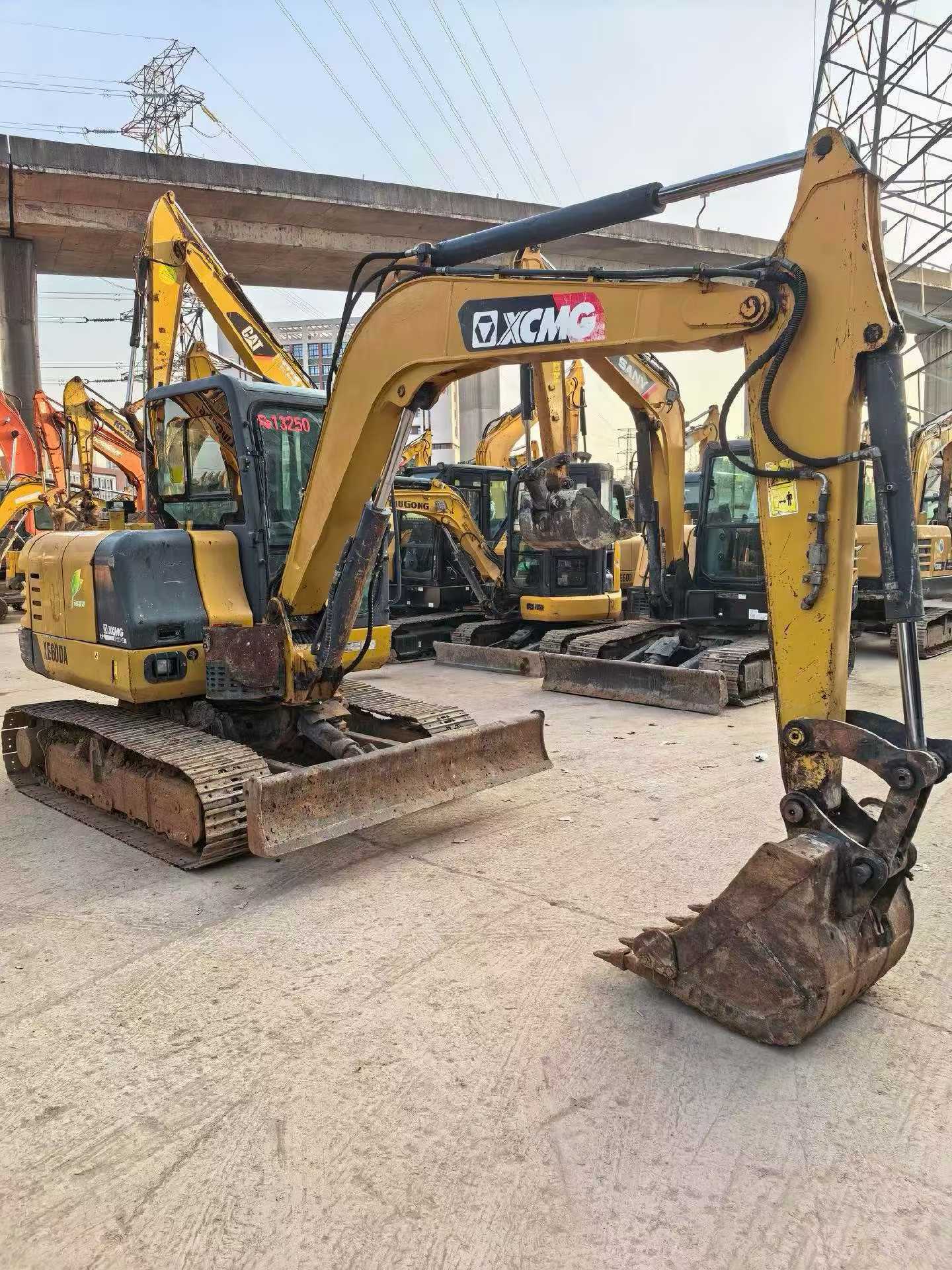

【 Premium Recommendation 】 Second-hand XCMG XE60D excavator from 20 years ago, the ultimate machine just returned from the construction site! This XCMG XE60D excavator was manufactured in 2020 and has only been in operation for 1,800 hours so far. It is well maintained and in excellent condition. It adopts the advanced Sany Heavy Industry power system and is equipped with a highly efficient and energy-saving engine. It not only has strong power but also excellent fuel economy, capable of meeting the operational requirements under various complex working conditions. In actual use, this excavator has demonstrated outstanding performance and reliability. Whether it is excavation, loading or crushing operations, it can handle them with ease. In terms of the hydraulic system, this machine is equipped with high-quality hydraulic pumps and valve groups, ensuring smooth operation and response speed, while also featuring excellent durability and stability. The whole machine has a compact structure and reasonable design. The cab is spacious and comfortable with a wide field of vision, providing an excellent working environment for the operator. In addition, this equipment is also equipped with multiple safety protection devices, such as overlo
