2020 XCMG XE60

1/4
Used XCMG XE60 Excavator 2020 Model / 1

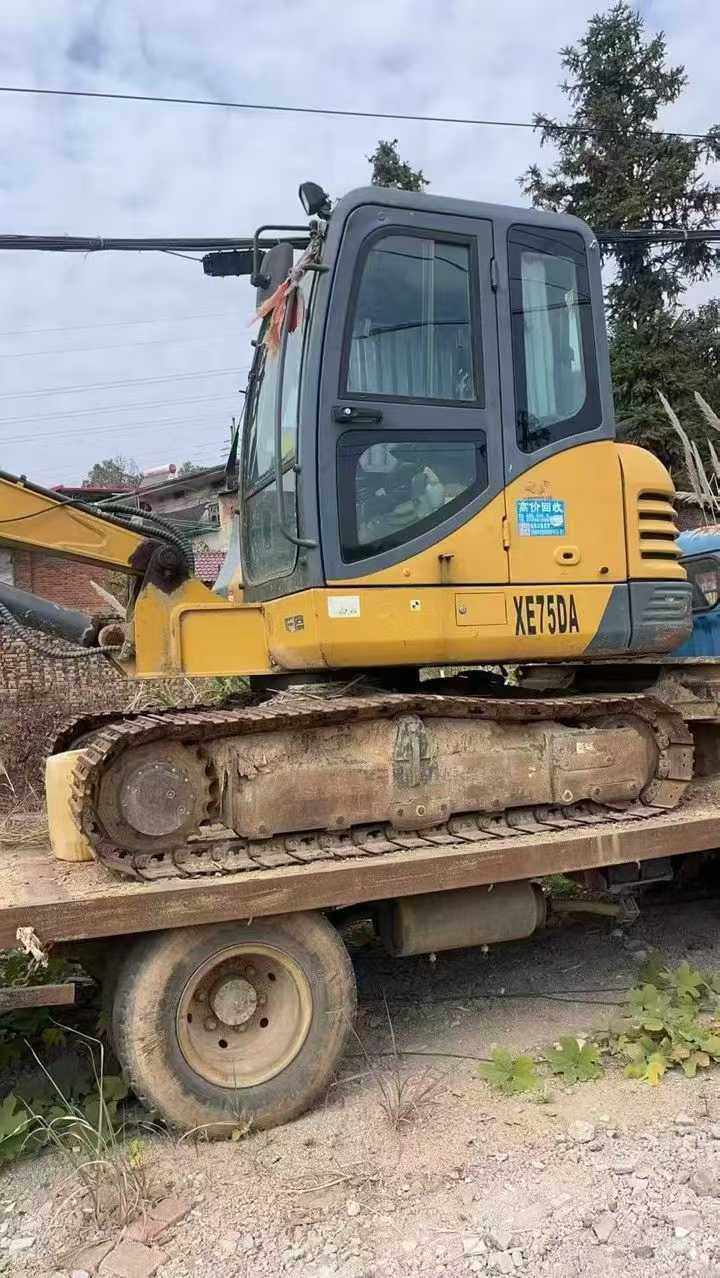

Used XCMG XE60 Excavator 2020 Model / 2

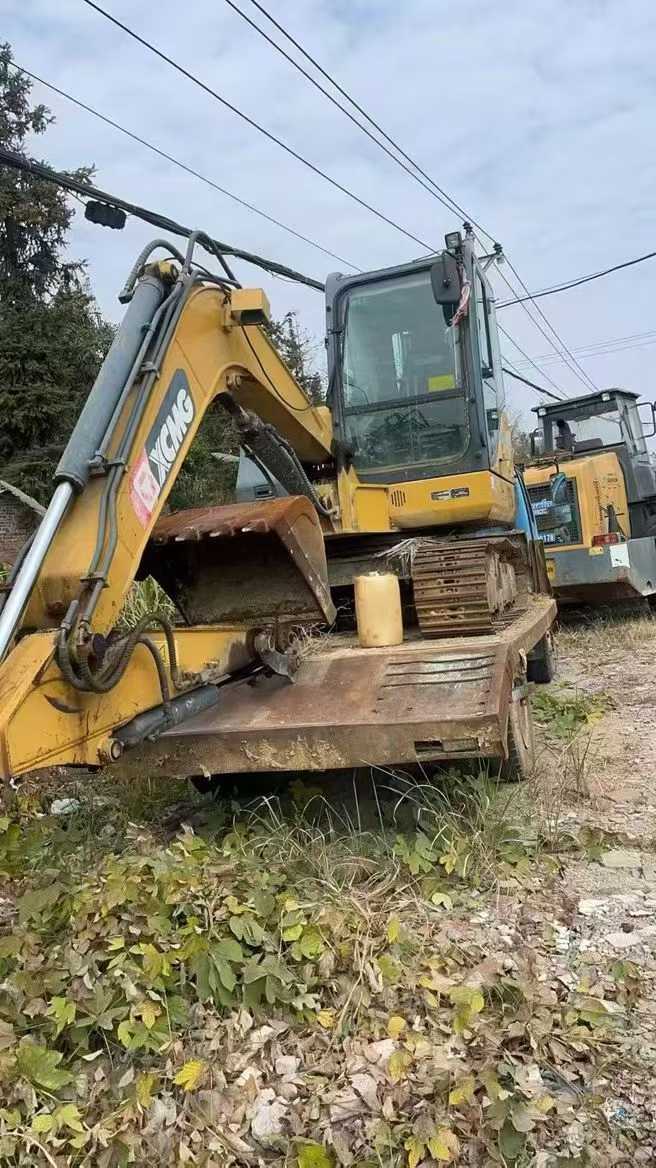

Used XCMG XE60 Excavator 2020 Model / 3

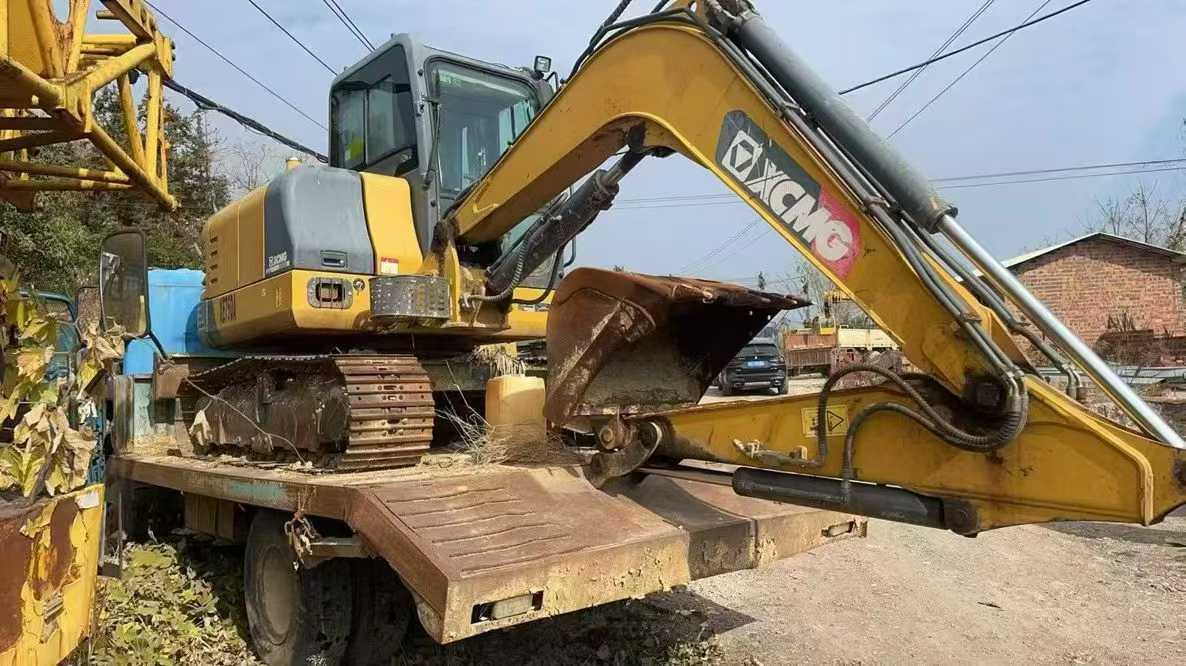

Used XCMG XE60 Excavator 2020 Model / 4

Product Description

【 Premium Recommendation 】 A second-hand XCMG XE60D excavator from 20 years ago, with a total working time of over 3,000 hours, priced at just over 60,000 yuan! This device is an ideal choice for small-scale projects, municipal construction, landscaping and other projects. It boasts outstanding performance and excellent durability, making it one of the most cost-effective second-hand excavators on the market. In terms of the power system, this machine is equipped with an efficient and energy-saving engine, which not only has strong power but also excellent fuel economy. Even under long-term high-intensity operation, it can maintain stable output. In addition, this engine also has excellent low-temperature starting performance, ensuring that it can be quickly put into operation under various harsh weather conditions. The hydraulic system is a major highlight of this excavator. By adopting advanced negative flow control technology, the operation becomes more precise and smooth, and both the digging force and the rotation speed have been significantly improved. Meanwhile, the hydraulic components that have been meticulously maintained have almost no leakage, ensuring the high efficiency and safety of the entire machine's operation. In

SpecificationsValue
No.970941
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.970941

Brand Name:

XCMG

Model Number:

XE60

Year:

2020

Location:

Guangdong China
