Product Description

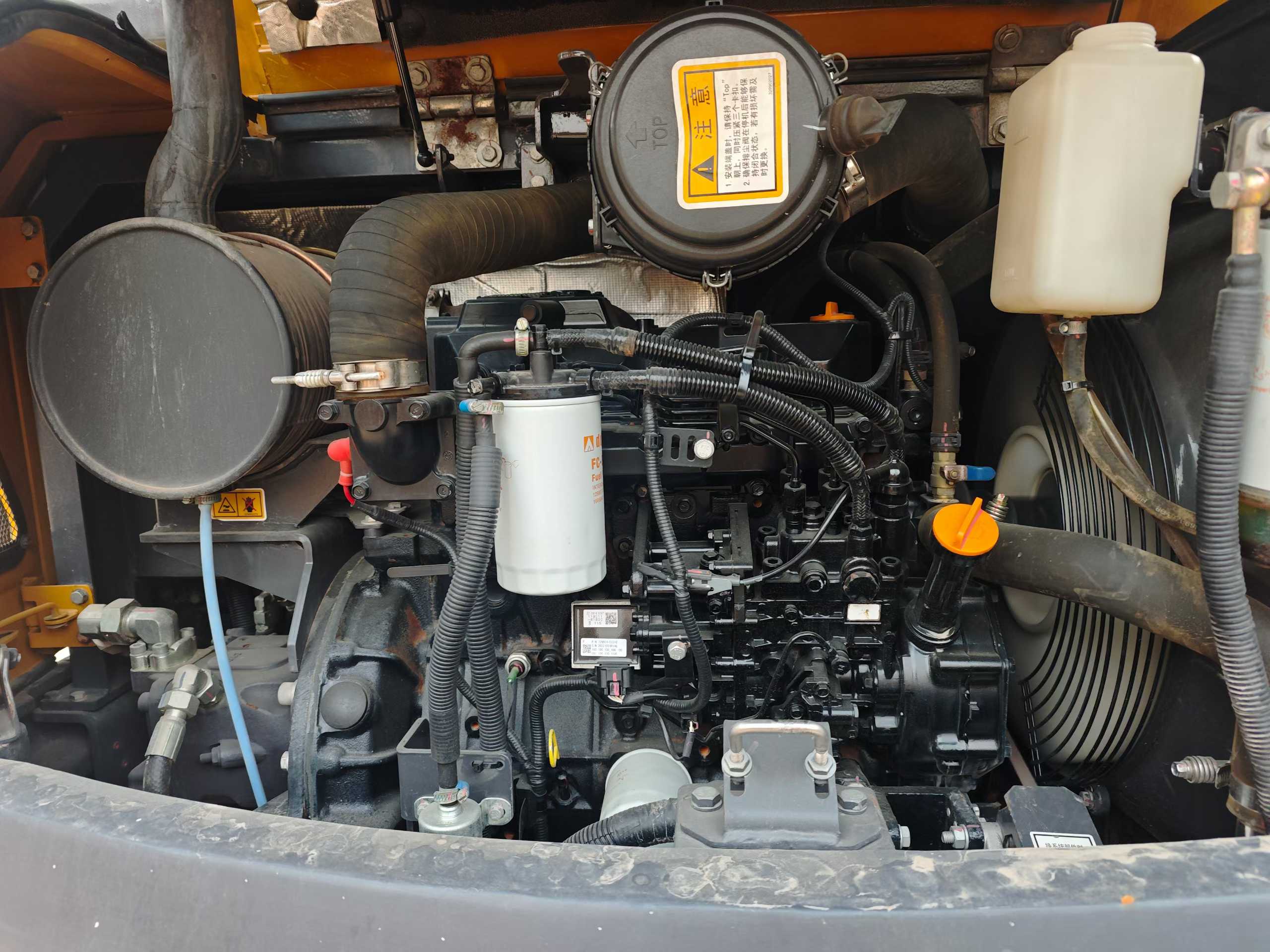

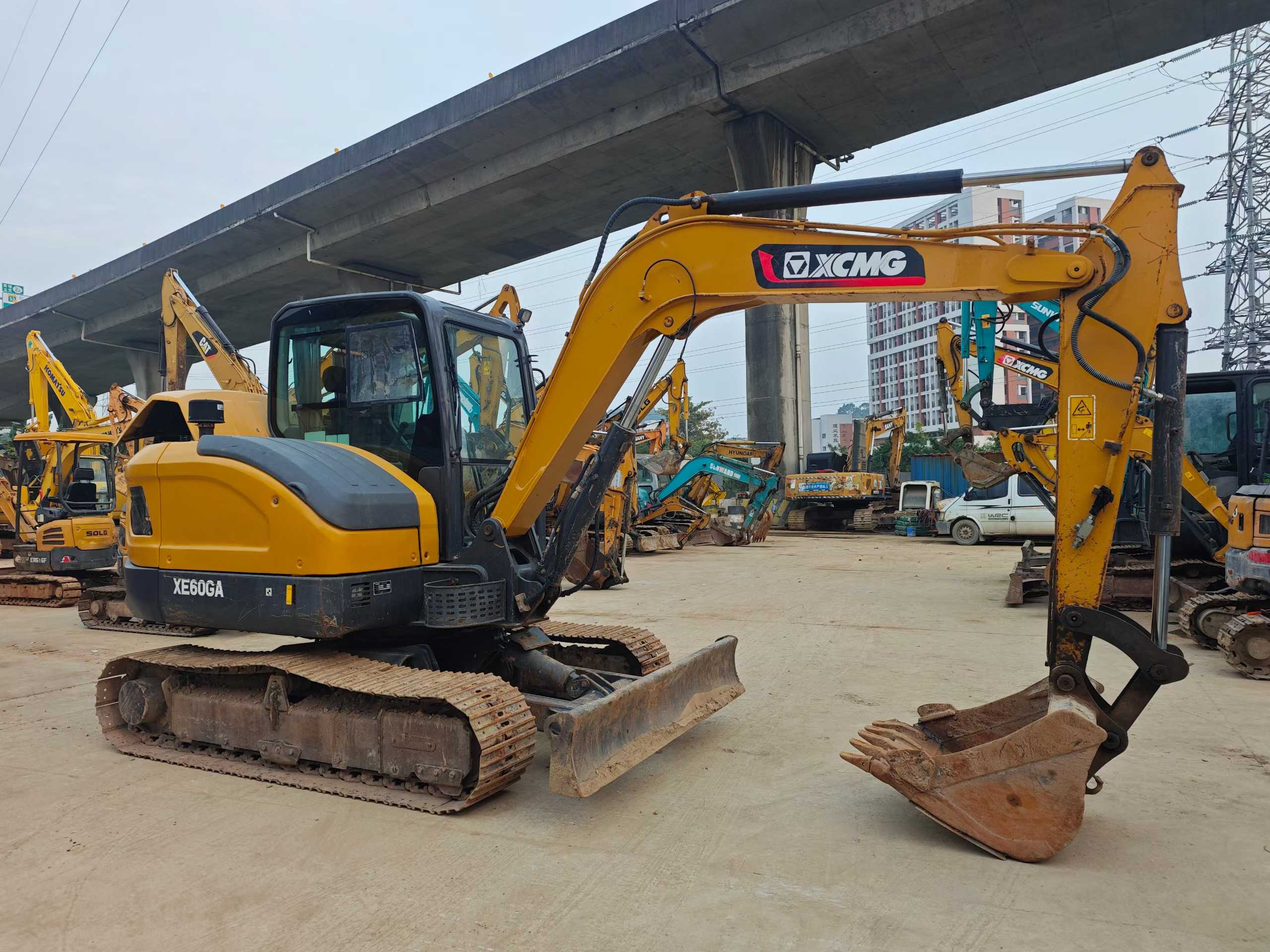

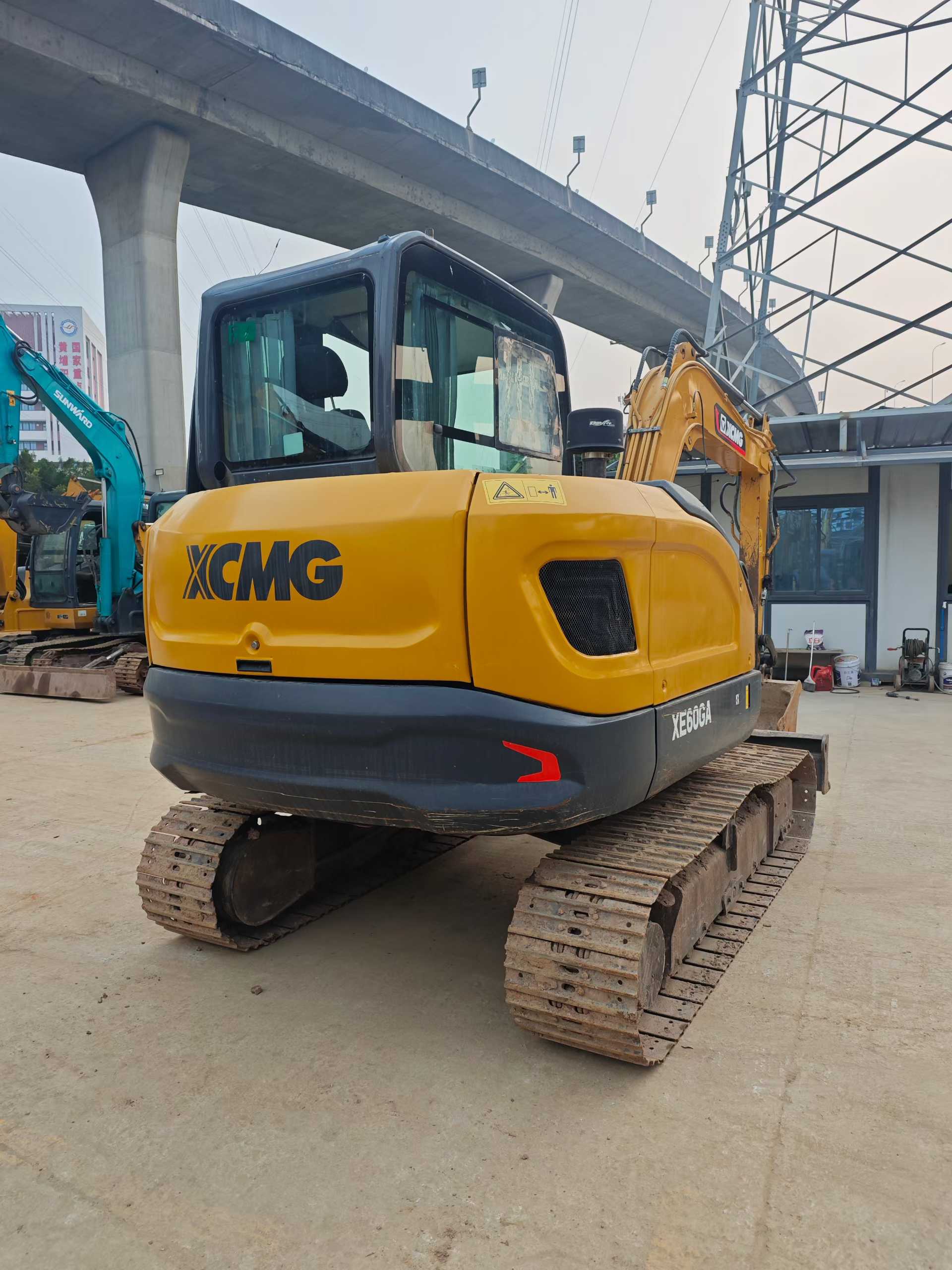

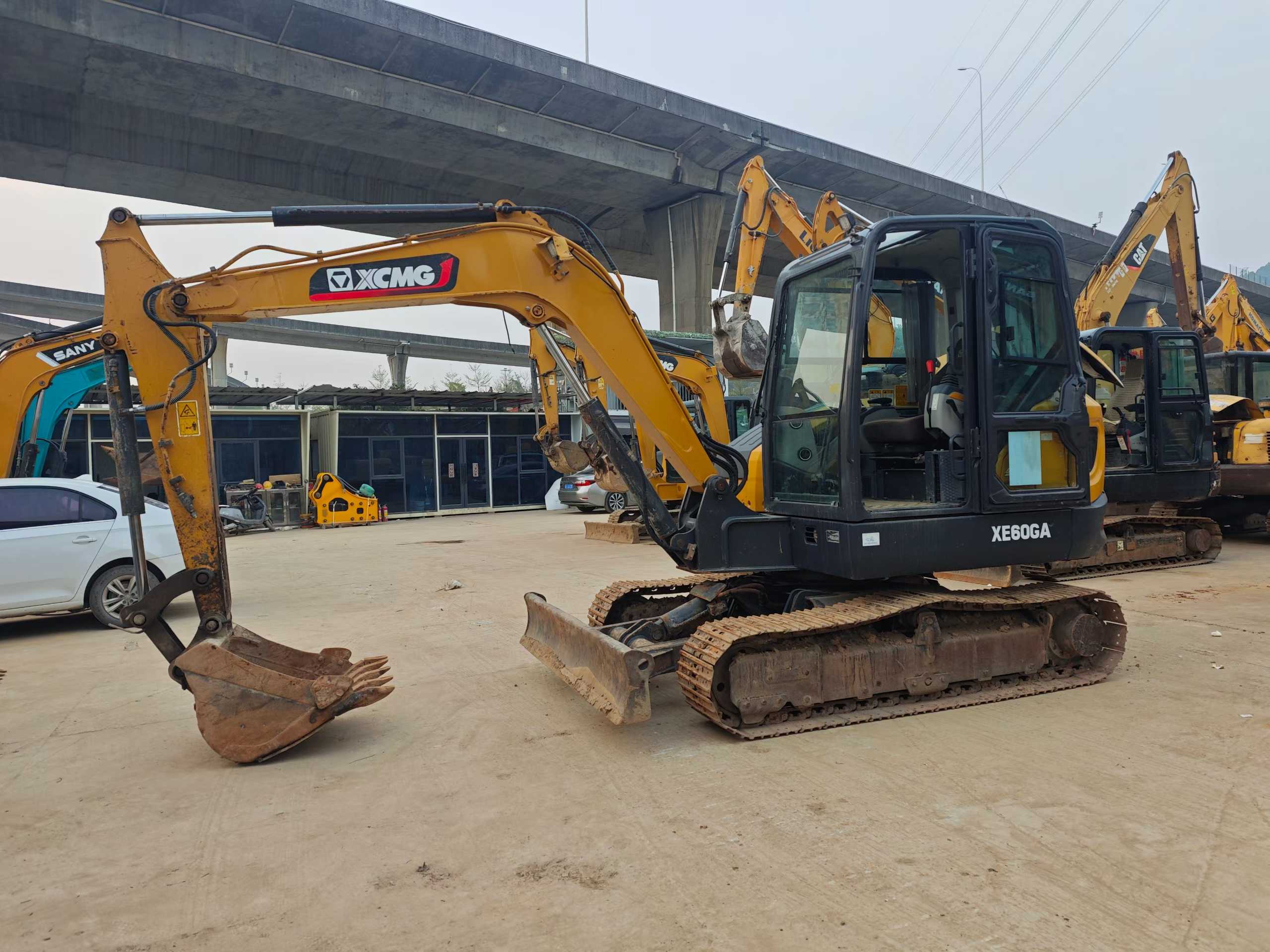

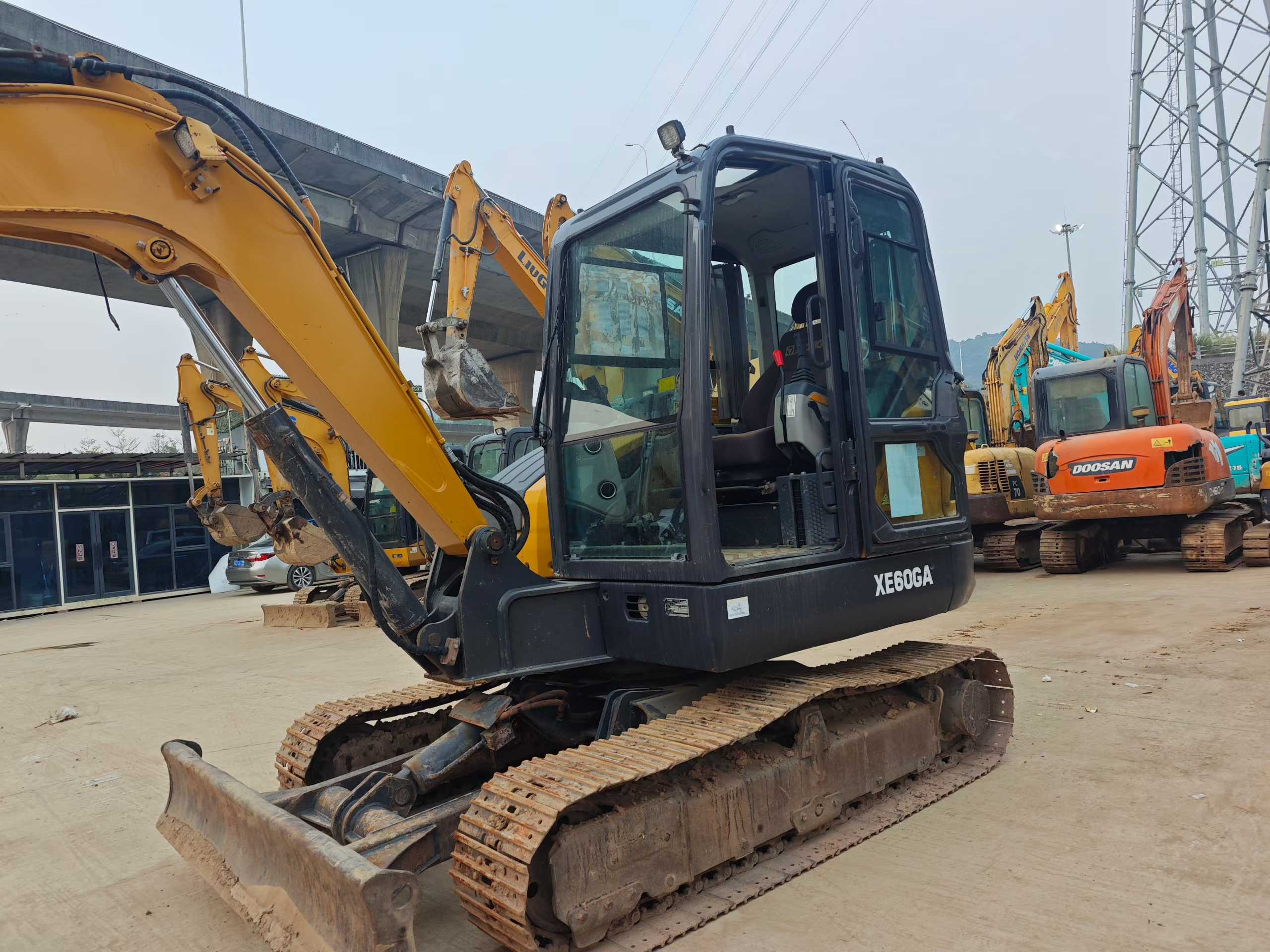

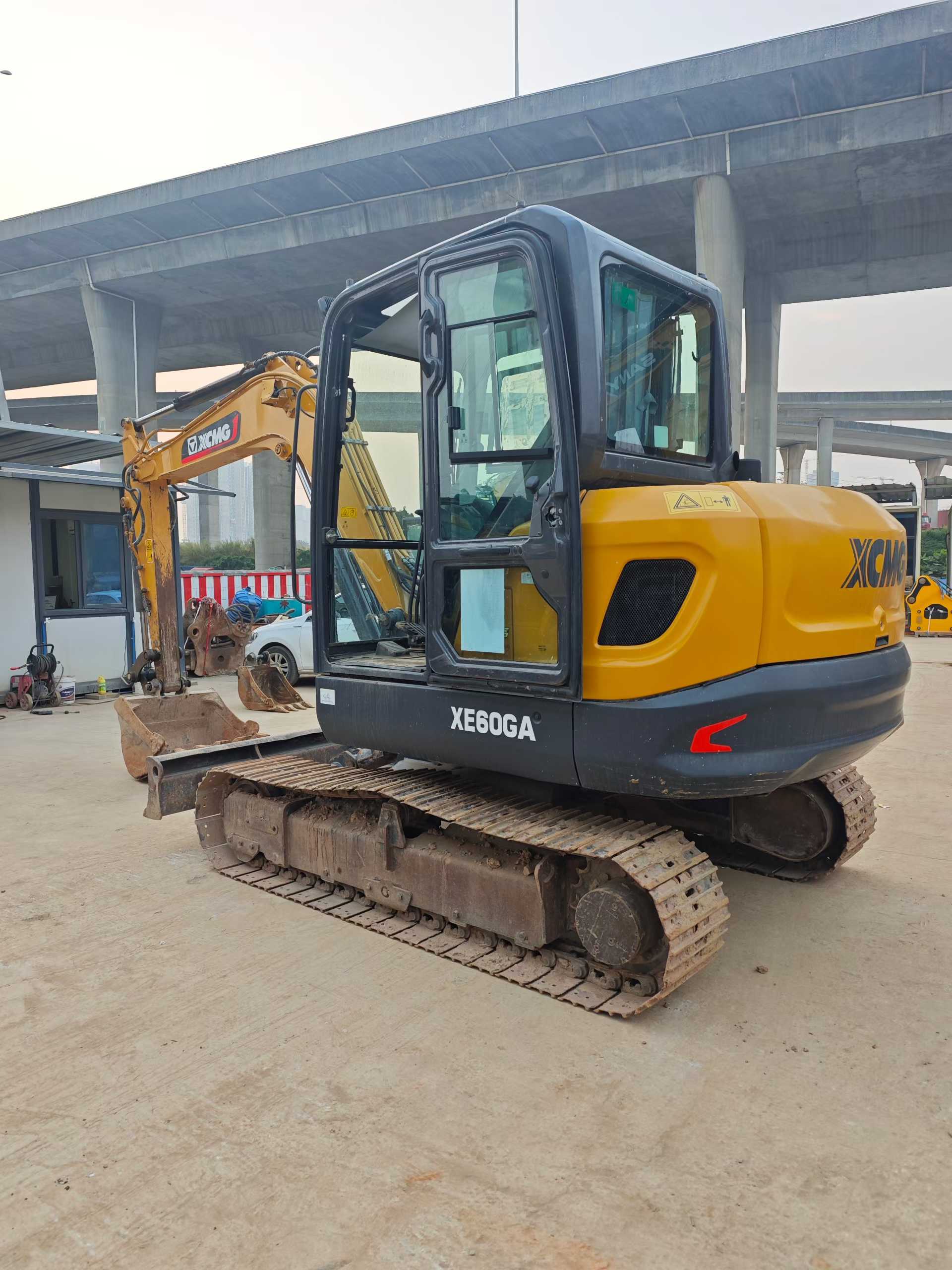

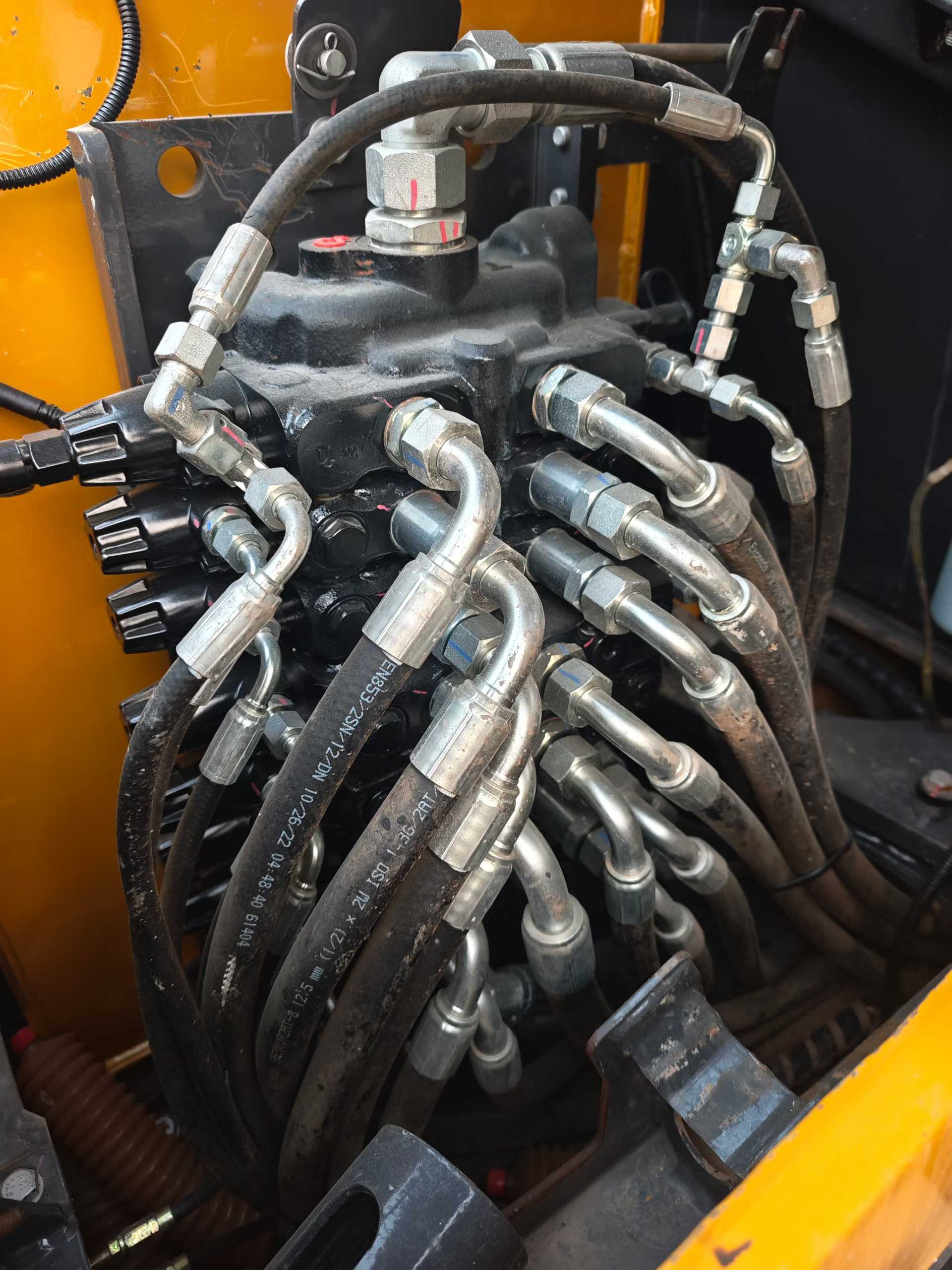

【 Premium Recommendation 】 XCMG XE60 mini excavator with 2023 National IV Emission standards, equipped with Yanmar engine, features outstanding performance and reliable quality. Since its commissioning, this excavator has accumulated only 1,200 hours of working time. The overall condition of the vehicle is excellent and there is no record of major repairs. It is an ideal choice for your construction work. In terms of the power system, this machine is equipped with a Yanmar brand engine from Japan. This engine is renowned for its high efficiency, energy conservation and low noise. While ensuring strong power output, it can also effectively reduce fuel consumption and lower operating costs. In addition, it complies with the national fourth-stage pollutant discharge standards for non-road mobile machinery, has excellent environmental protection performance, and is suitable for various urban and outdoor operation environments. The hydraulic system adopts advanced negative flow control technology, ensuring smooth operation and response speed. It can handle both excavation and loading operations with ease. Meanwhile, the optimized hydraulic circuit design has significantly enhanced the stability and durability of the system, and prolonged
| Specifications | Value |
|---|---|
| No. | 971012 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
