Product Description
【 Premium Recommendation 】 XCMG XE60D excavator of 2023, this equipment can be regarded as the top product in the market. Since leaving the factory, it has only worked for 800 hours and is almost in brand new condition, making it an ideal choice for those who pursue efficient operation and long-lasting durability. This machine is powered by the Yanmar 4TNV98-ZT engine. This engine is renowned worldwide for its outstanding fuel economy and powerful output, ensuring stable and reliable performance under various complex working conditions. Meanwhile, thanks to the advanced electronic control system, this engine also features low emissions and low noise, making it more environmentally friendly and energy-efficient. In terms of the hydraulic system, XCMG XE60D is equipped with a high-performance pump and valve combination provided by internationally renowned brands, ensuring smooth operation and rapid response of the entire machine. Its unique flow distribution technology can effectively enhance work efficiency and reduce energy consumption. In addition, the robust and durable structural design, combined with a user-friendly operation interface, makes this small excavator not only suitable for urban projects such as municipal construction
| Specifications | Value |
|---|---|
| No. | 971125 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

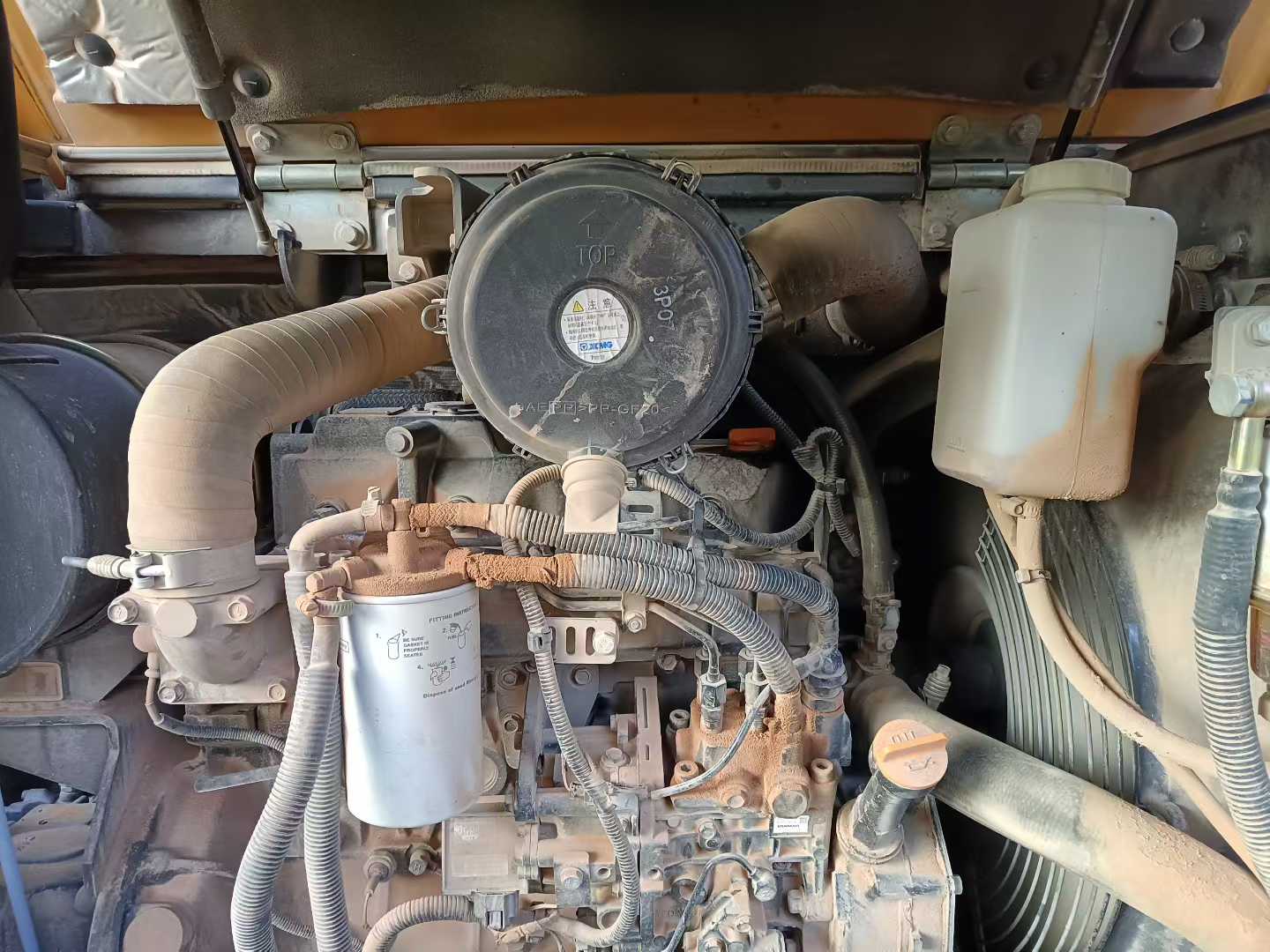

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
