2016 XCMG XE60

1/9
Used XCMG XE60 Excavator 2016 Model / 1

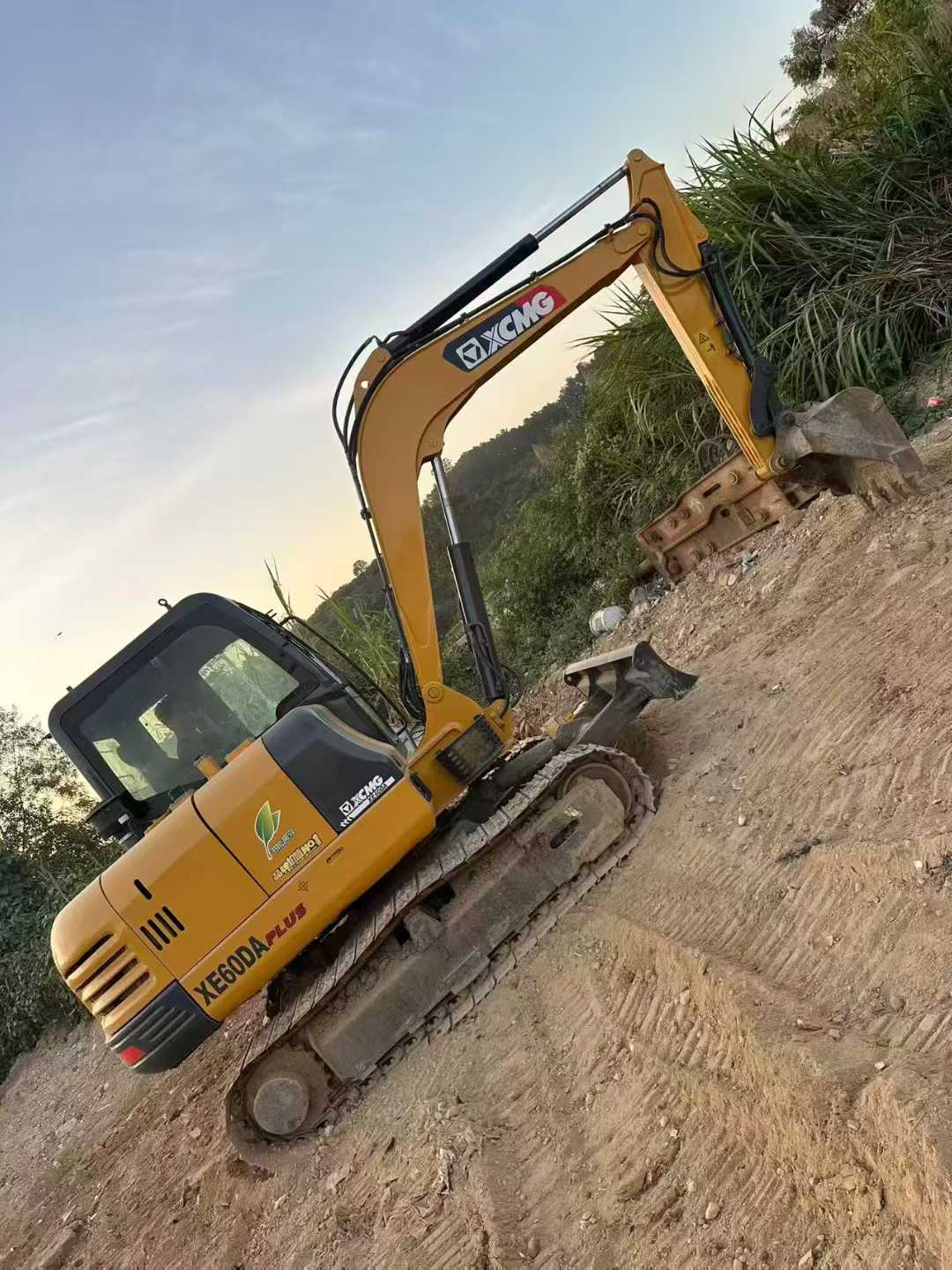

Used XCMG XE60 Excavator 2016 Model / 2

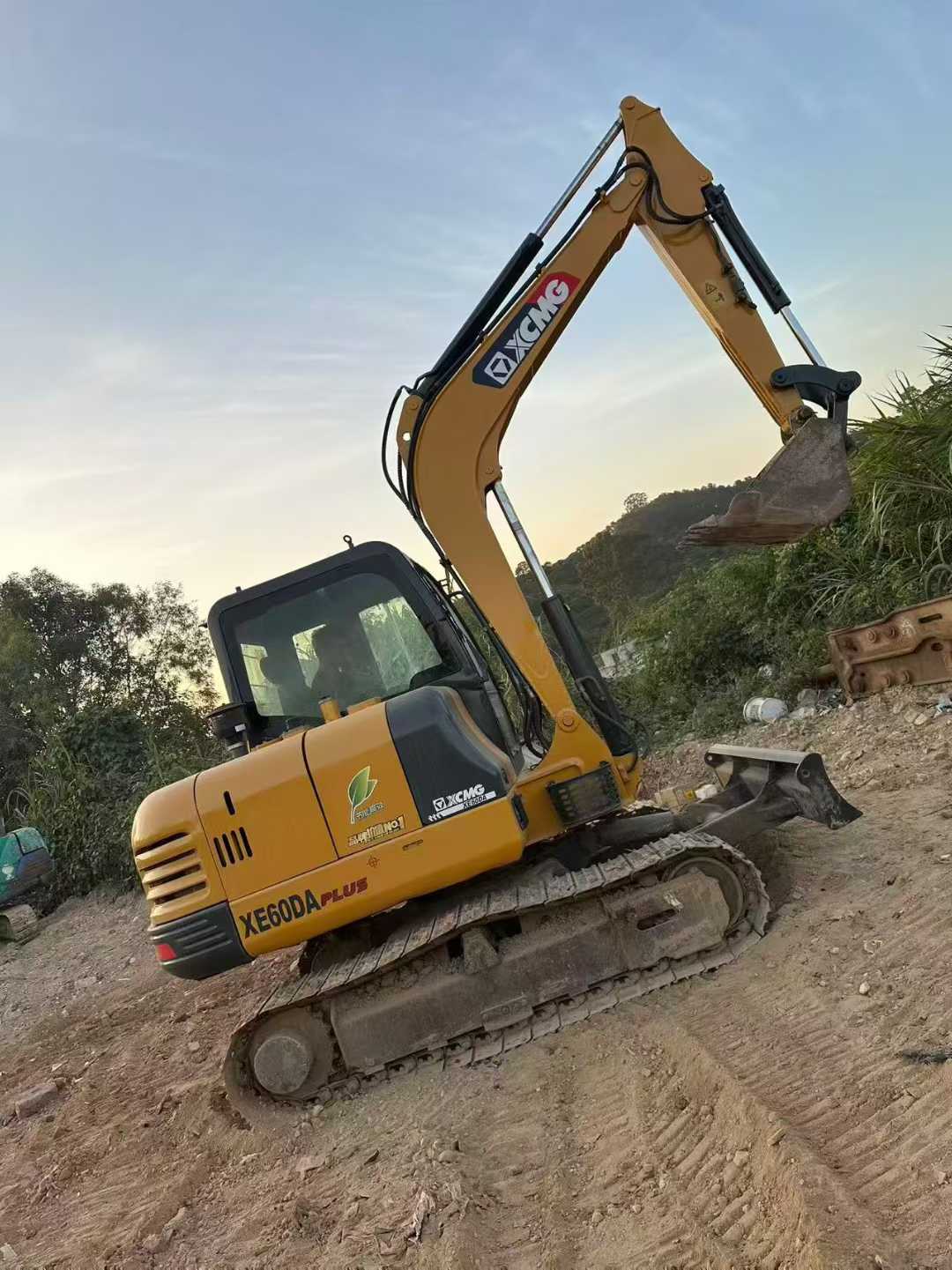

Used XCMG XE60 Excavator 2016 Model / 3

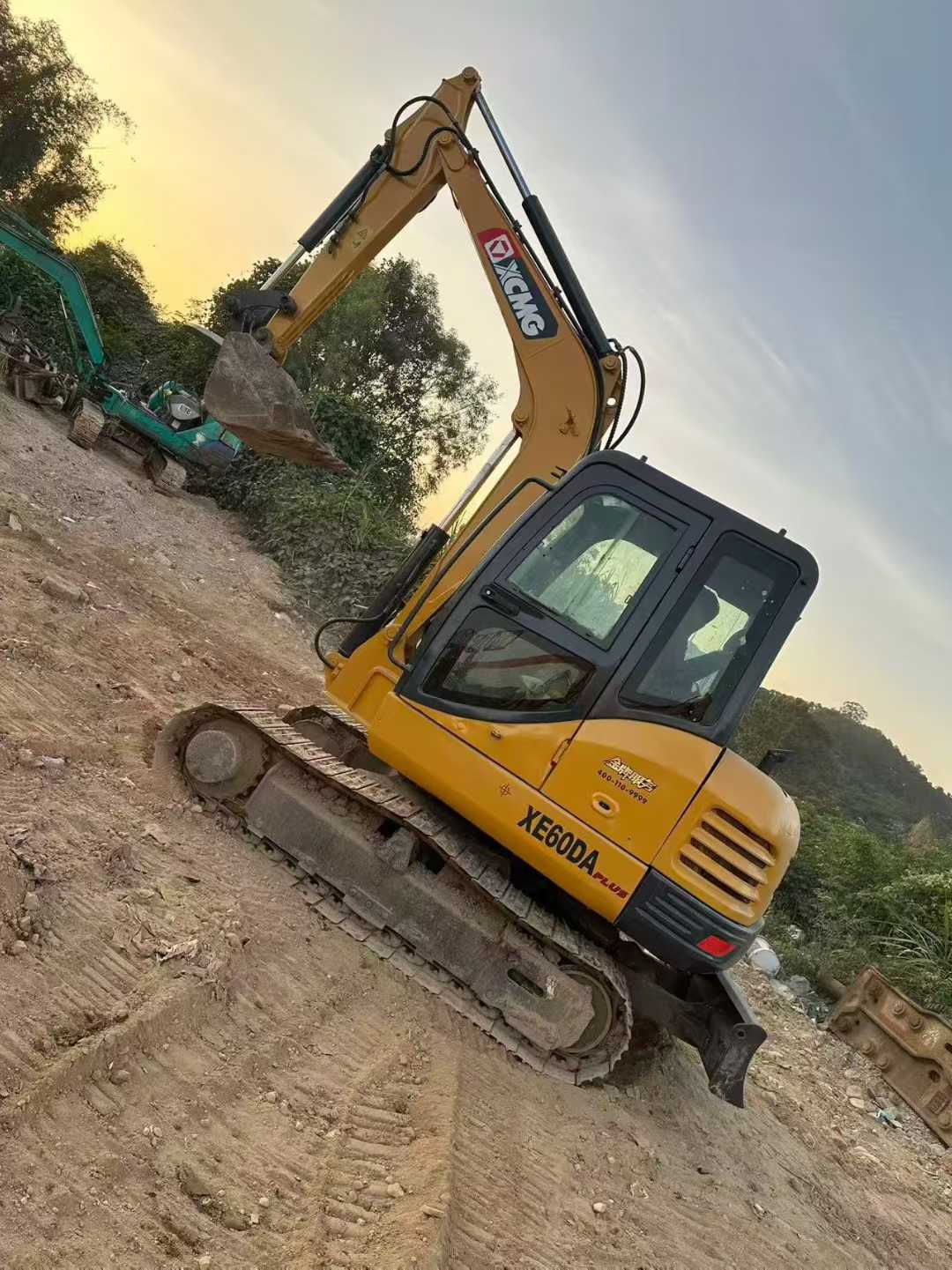

Used XCMG XE60 Excavator 2016 Model / 4

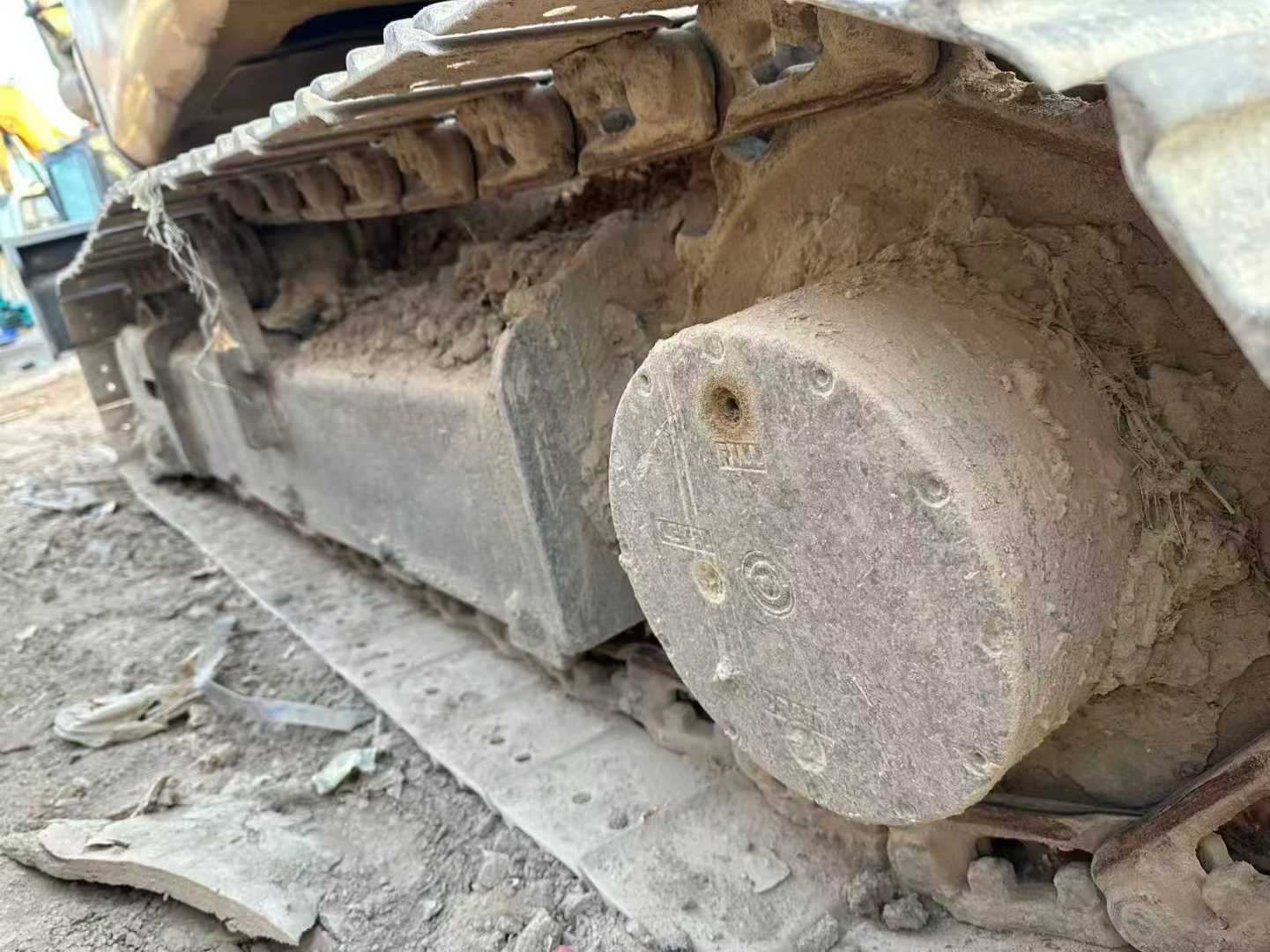

Used XCMG XE60 Excavator 2016 Model / 5

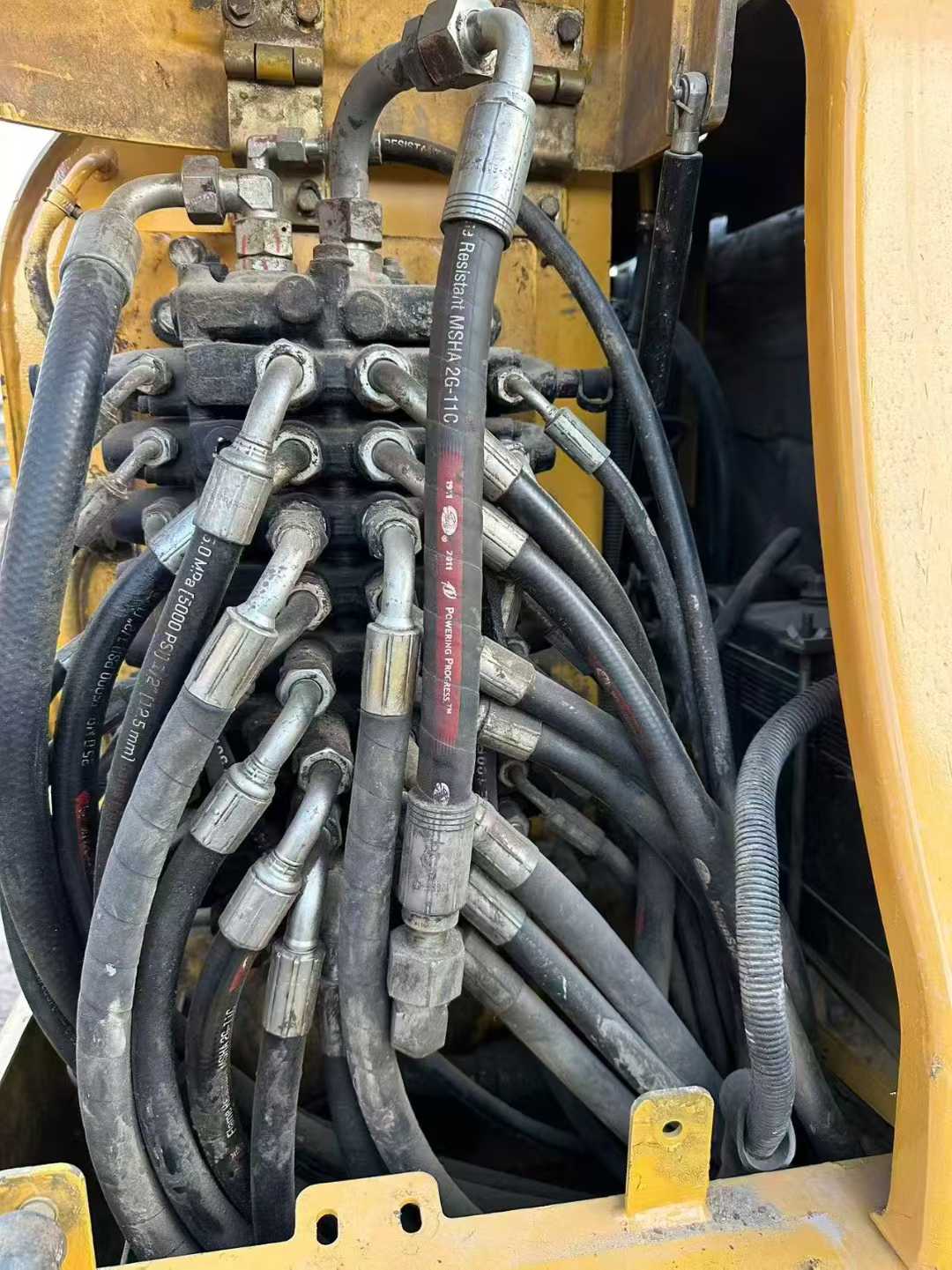

Used XCMG XE60 Excavator 2016 Model / 6

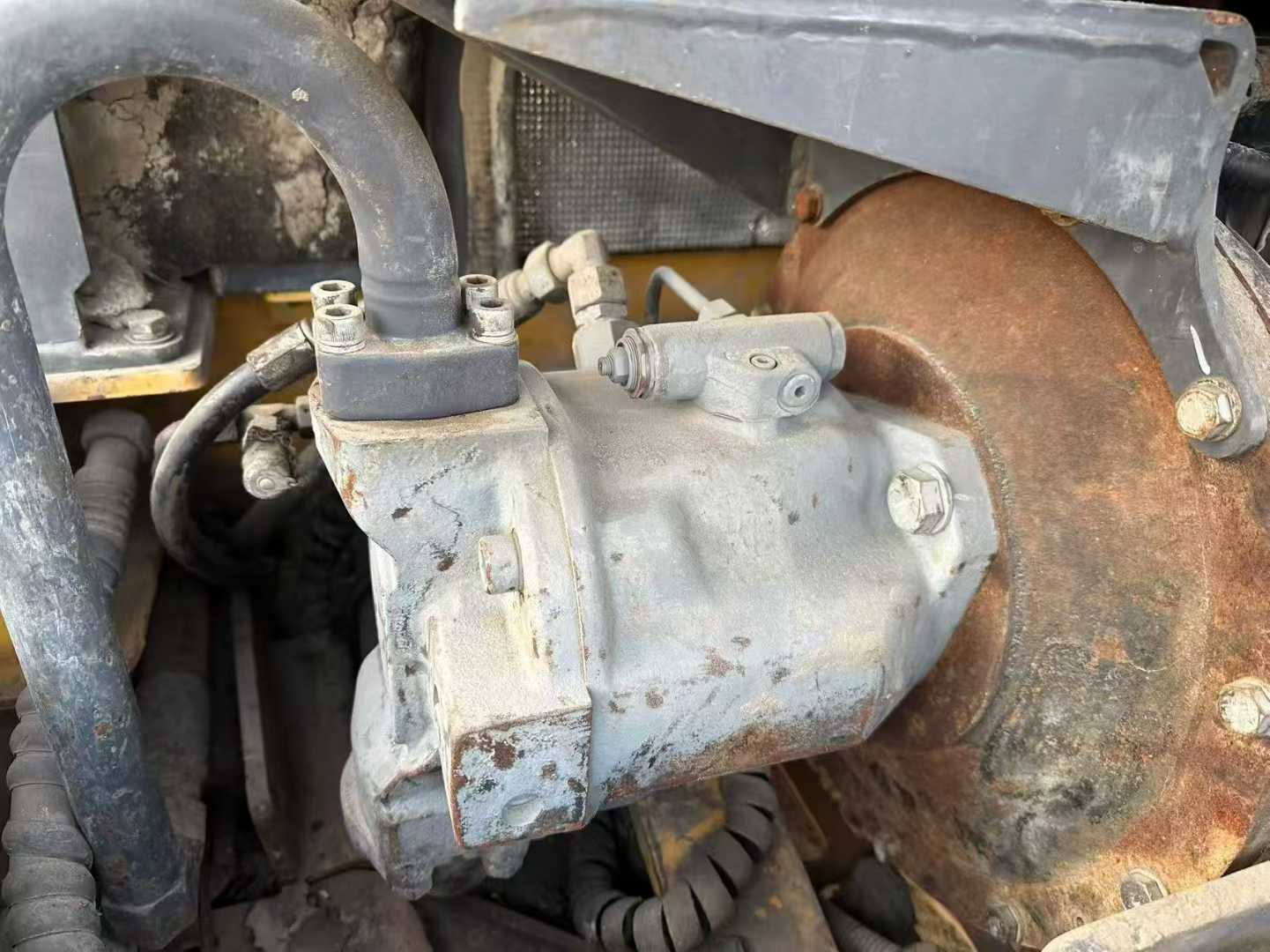

Used XCMG XE60 Excavator 2016 Model / 7

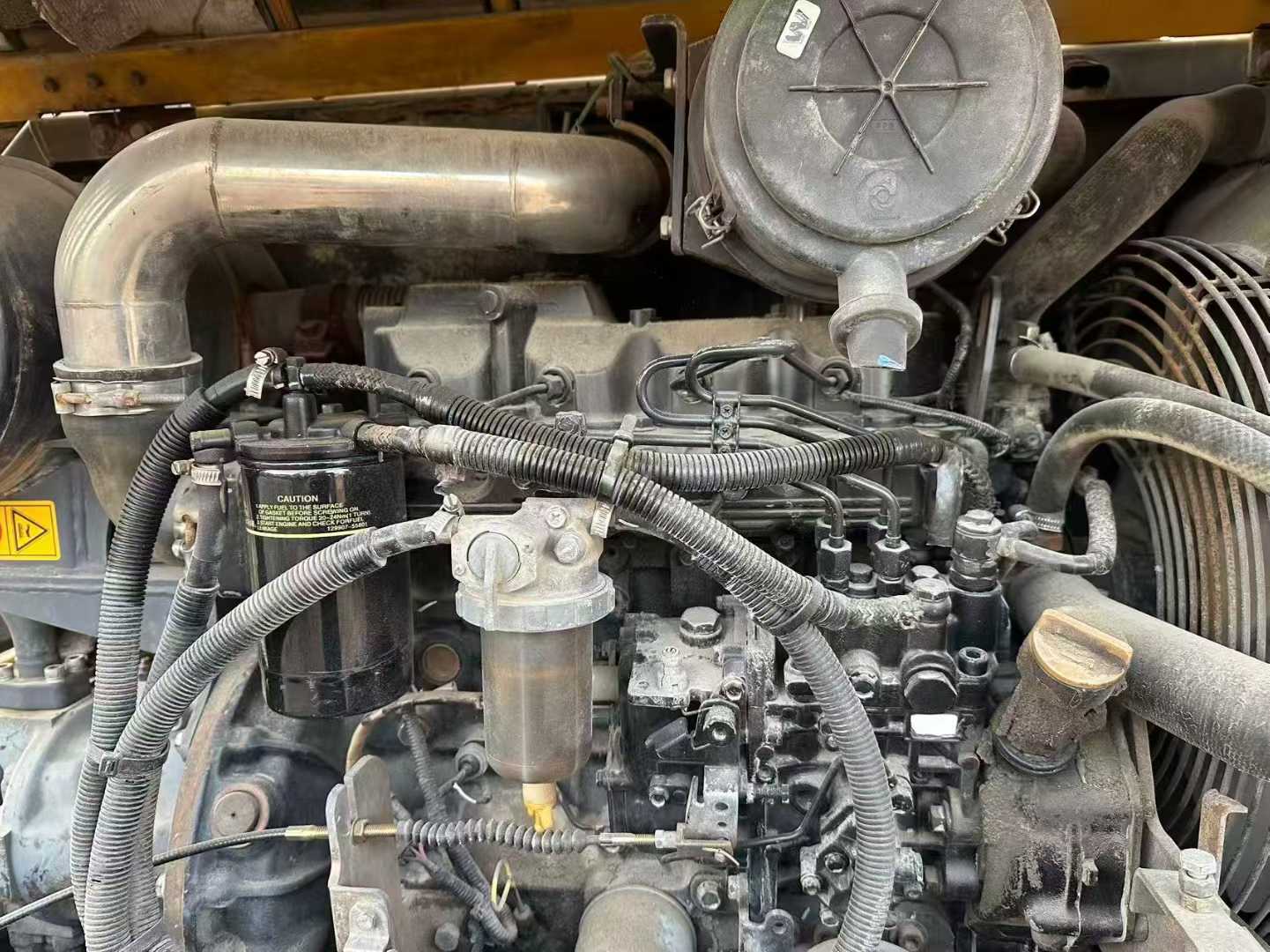

Used XCMG XE60 Excavator 2016 Model / 8

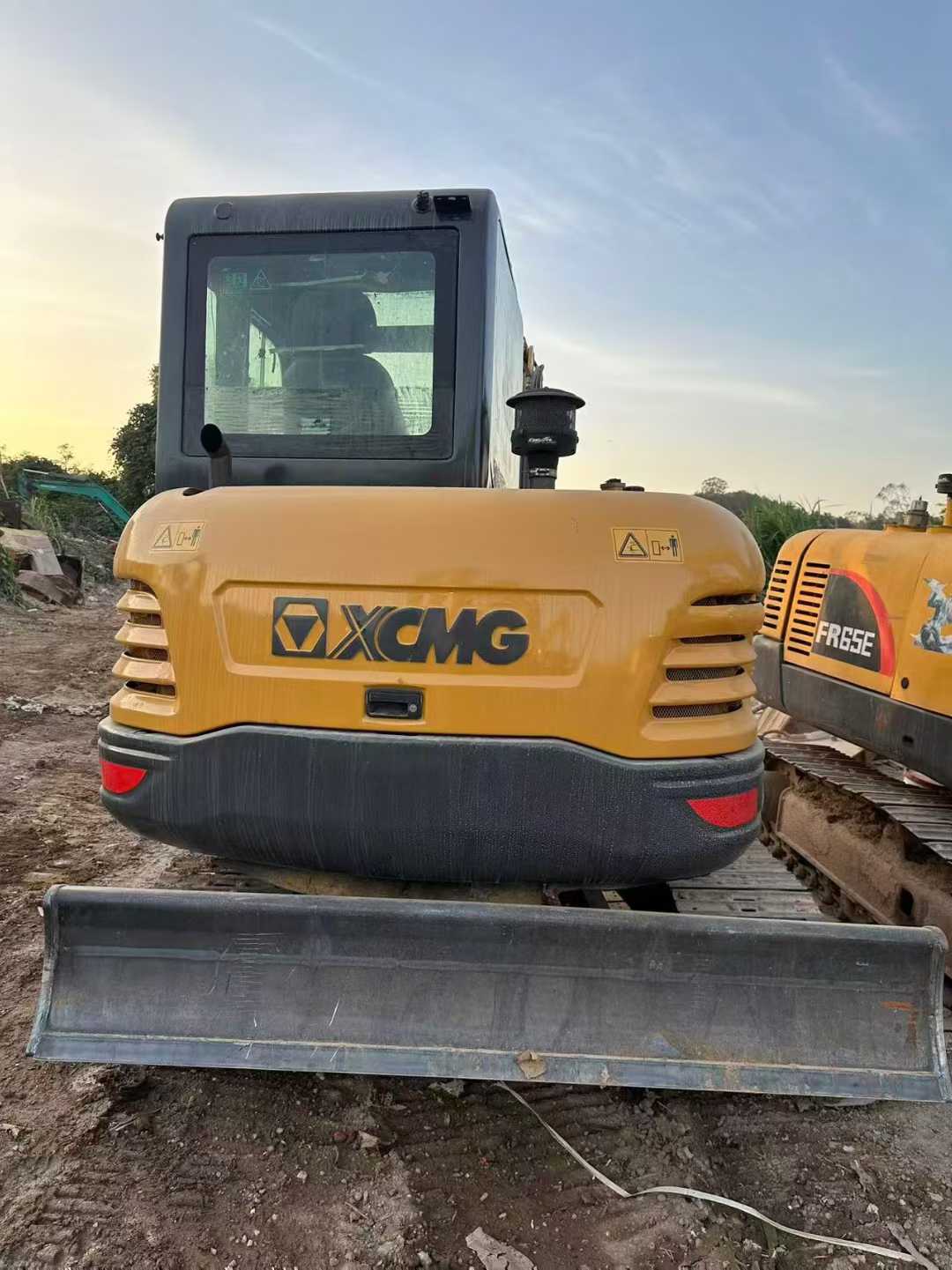

Used XCMG XE60 Excavator 2016 Model / 9

Product Description

"Premium Second-hand XCMG 60 Hydraulic Excavator We recommend this second-hand XCMG 60 hydraulic excavator with extremely high cost performance to you. This equipment not only maintains a good appearance but also has stable and reliable overall performance. It features an outstanding chassis design, which has been inspected and maintained by a professional team, ensuring its excellent performance and durability in various complex terrains. In addition, this machine is also equipped with an original air conditioning system, which can provide the operator with a comfortable and cool working environment even in hot working conditions. Regarding specific parameters: - ** Working Time ** : The cumulative operating time of this machine is approximately 2,500 hours, and it is in the best usage condition. - ** Power System ** : It adopts an efficient and energy-saving engine configuration, which starts quickly, has strong power and good fuel economy, and can meet the needs of long-term continuous operation. - ** Hydraulic System ** : Equipped with an advanced hydraulic control system, it features high response sensitivity and precise, smooth operation. It performs exceptionally well in both excavation force and lifting capacity, making it pa

SpecificationsValue
No.971368
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.971368

Brand Name:

XCMG

Model Number:

XE60

Year:

2016

Location:

Guangdong China
