2016 XCMG XE60

1/9
Used XCMG XE60 Excavator 2016 Model / 1
Used XCMG XE60 Excavator 2016 Model / 2

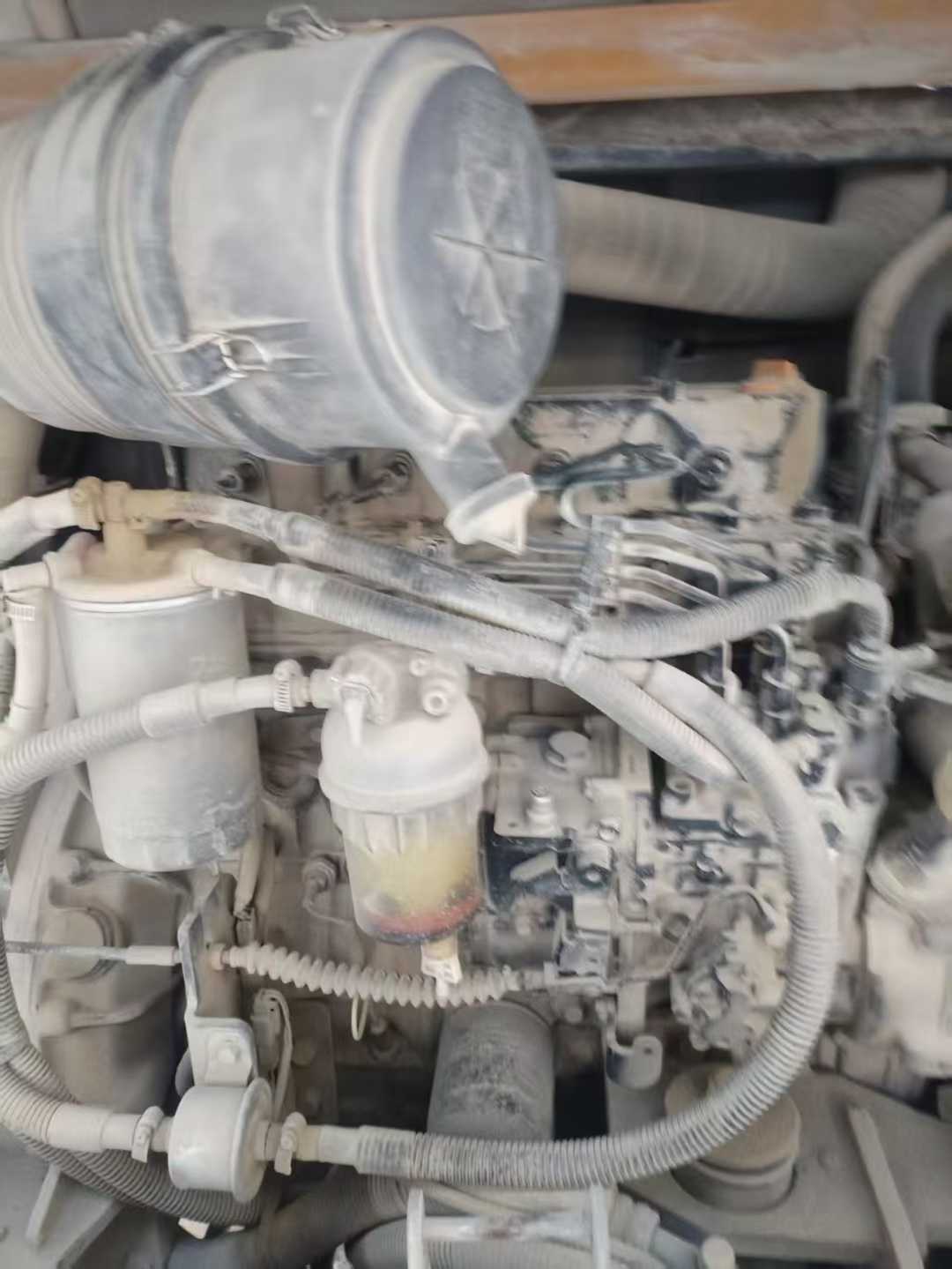

Used XCMG XE60 Excavator 2016 Model / 3

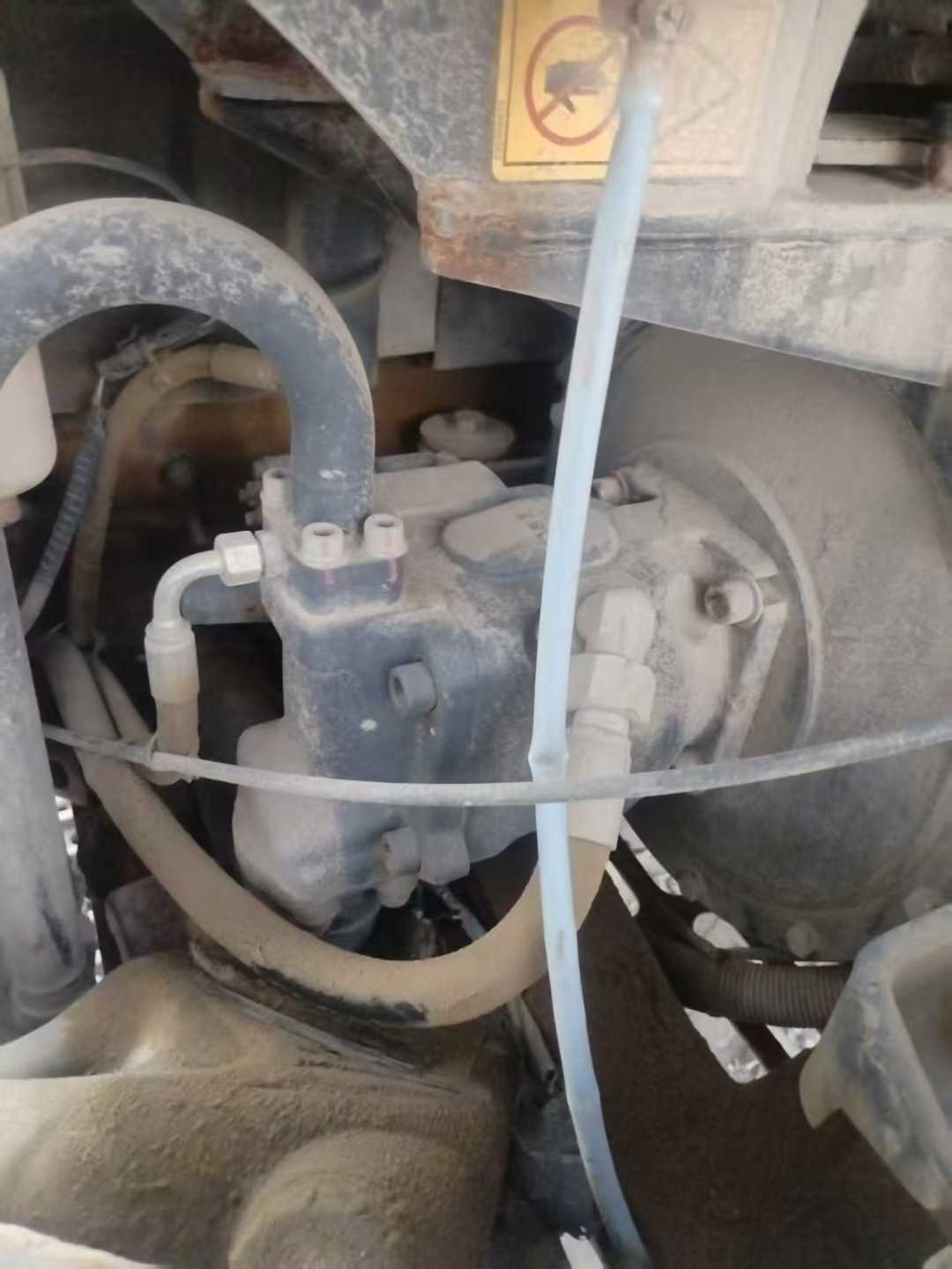

Used XCMG XE60 Excavator 2016 Model / 4

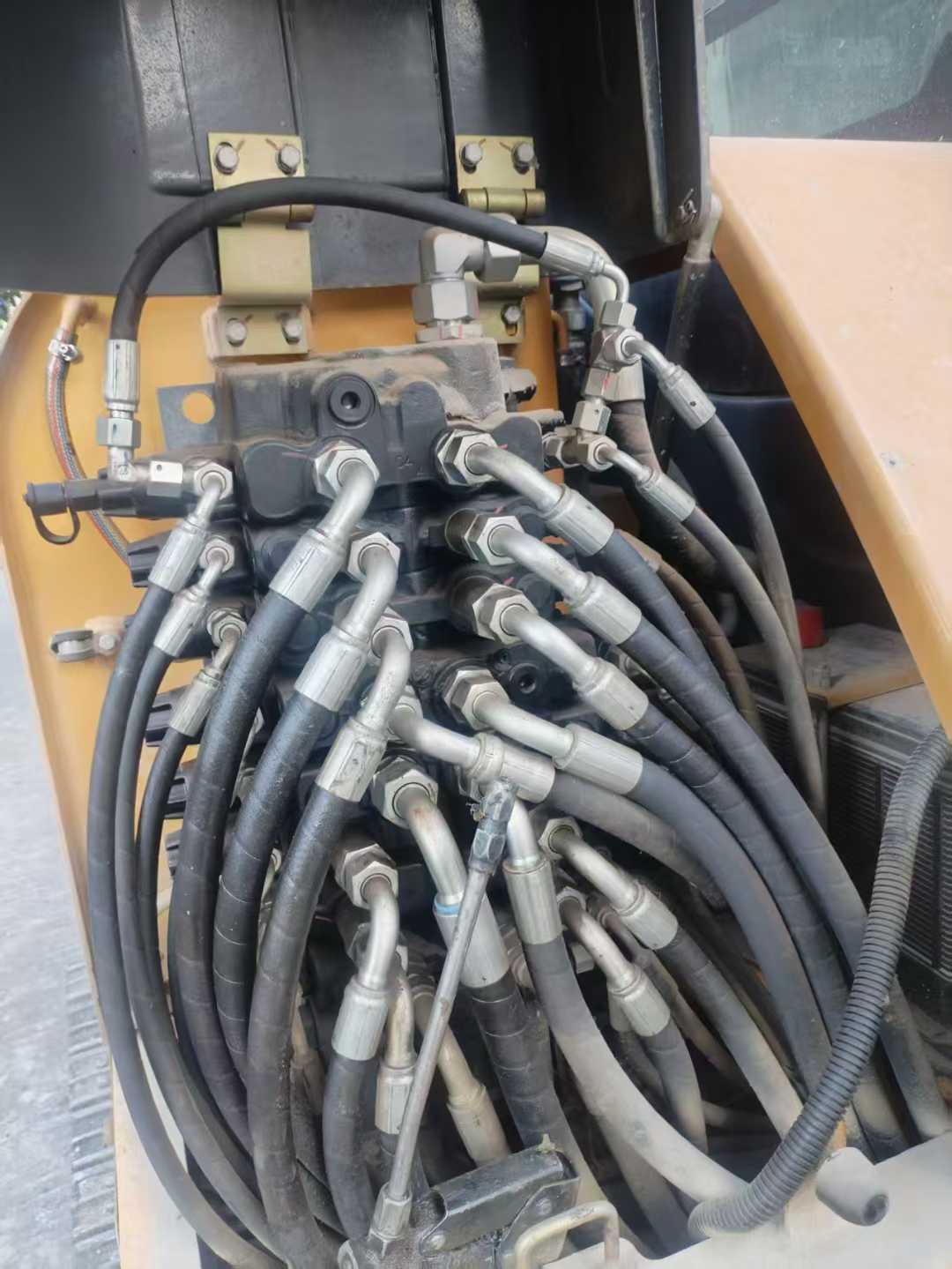

Used XCMG XE60 Excavator 2016 Model / 5

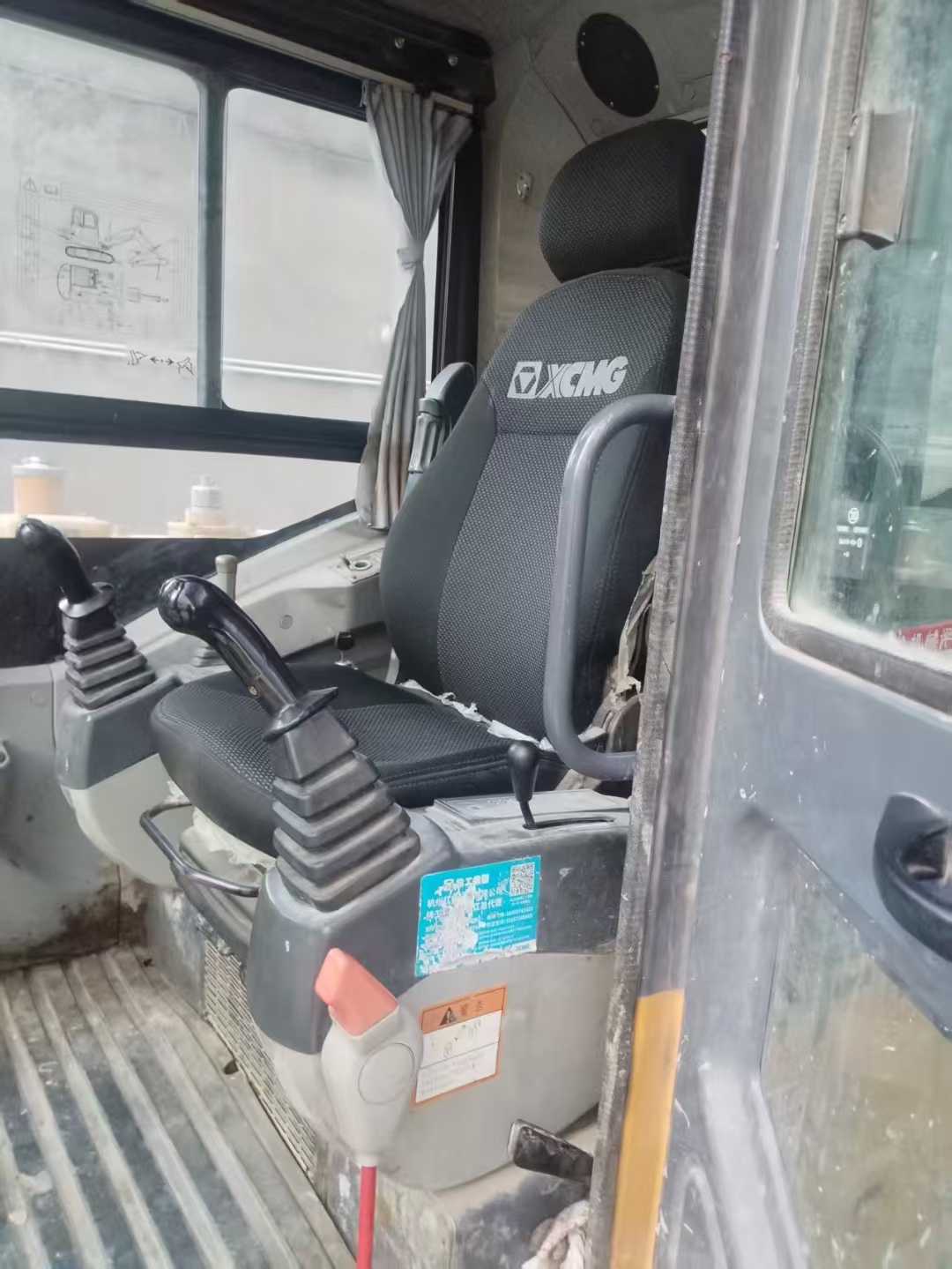

Used XCMG XE60 Excavator 2016 Model / 6

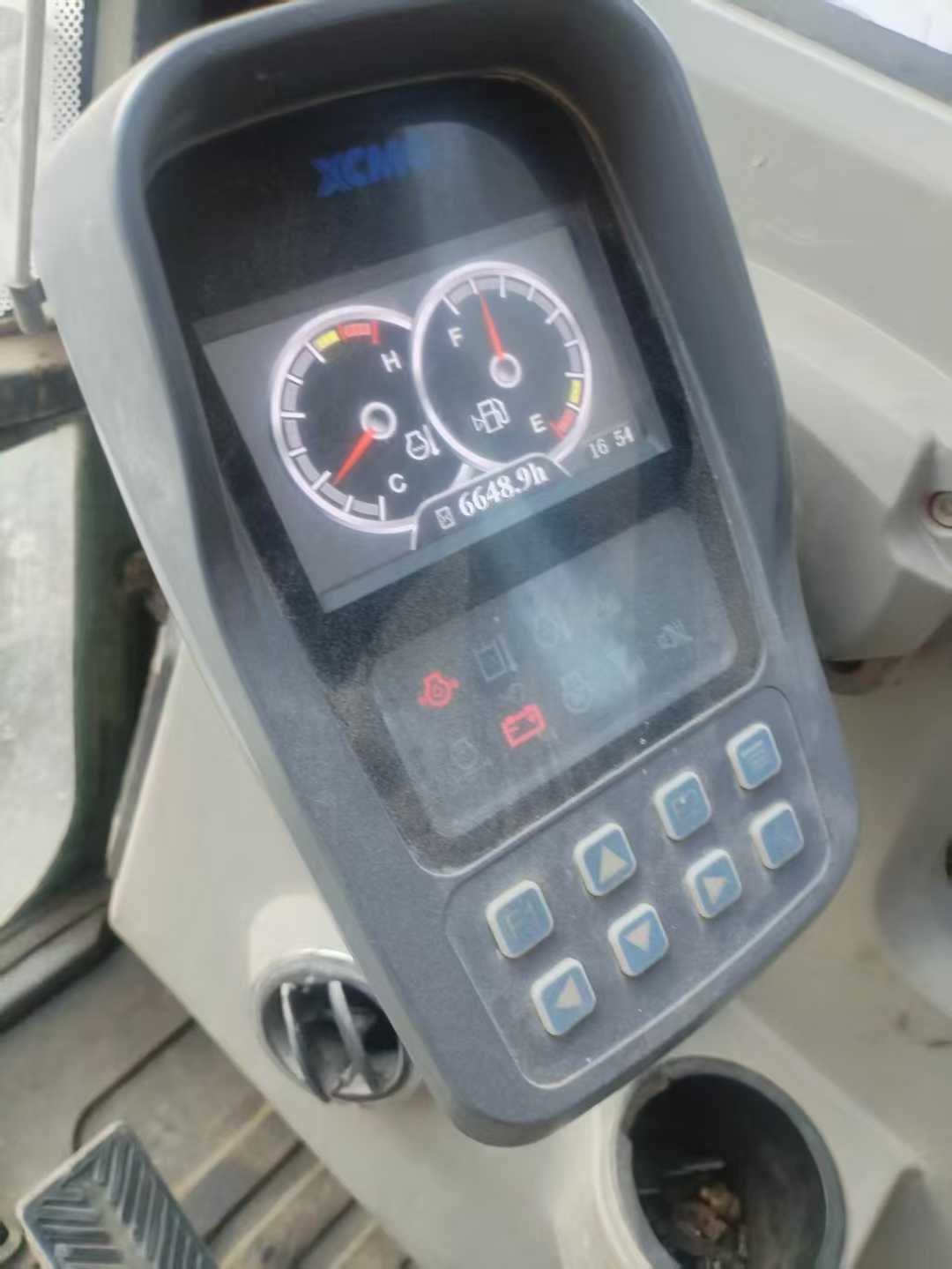

Used XCMG XE60 Excavator 2016 Model / 7

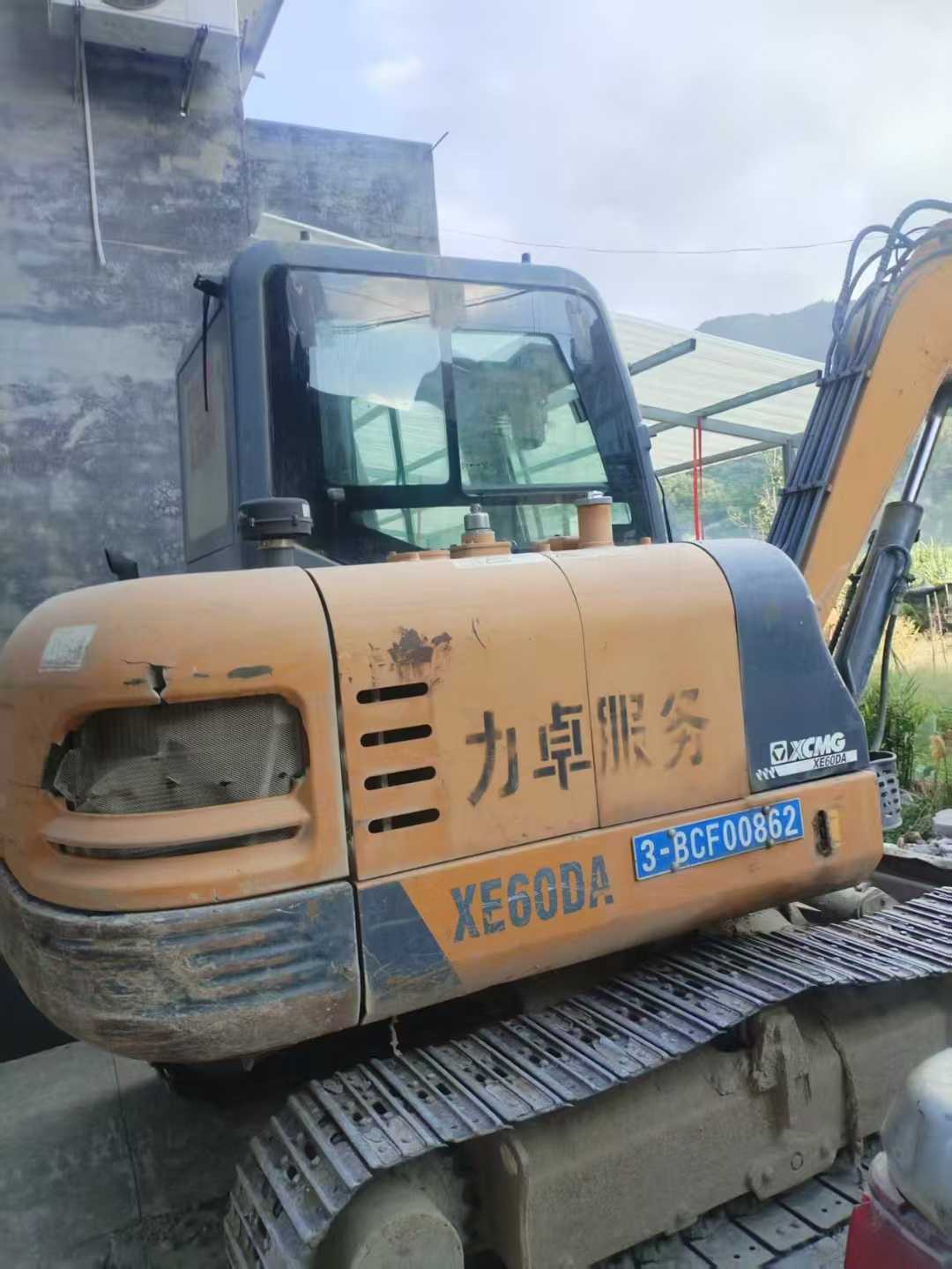

Used XCMG XE60 Excavator 2016 Model / 8

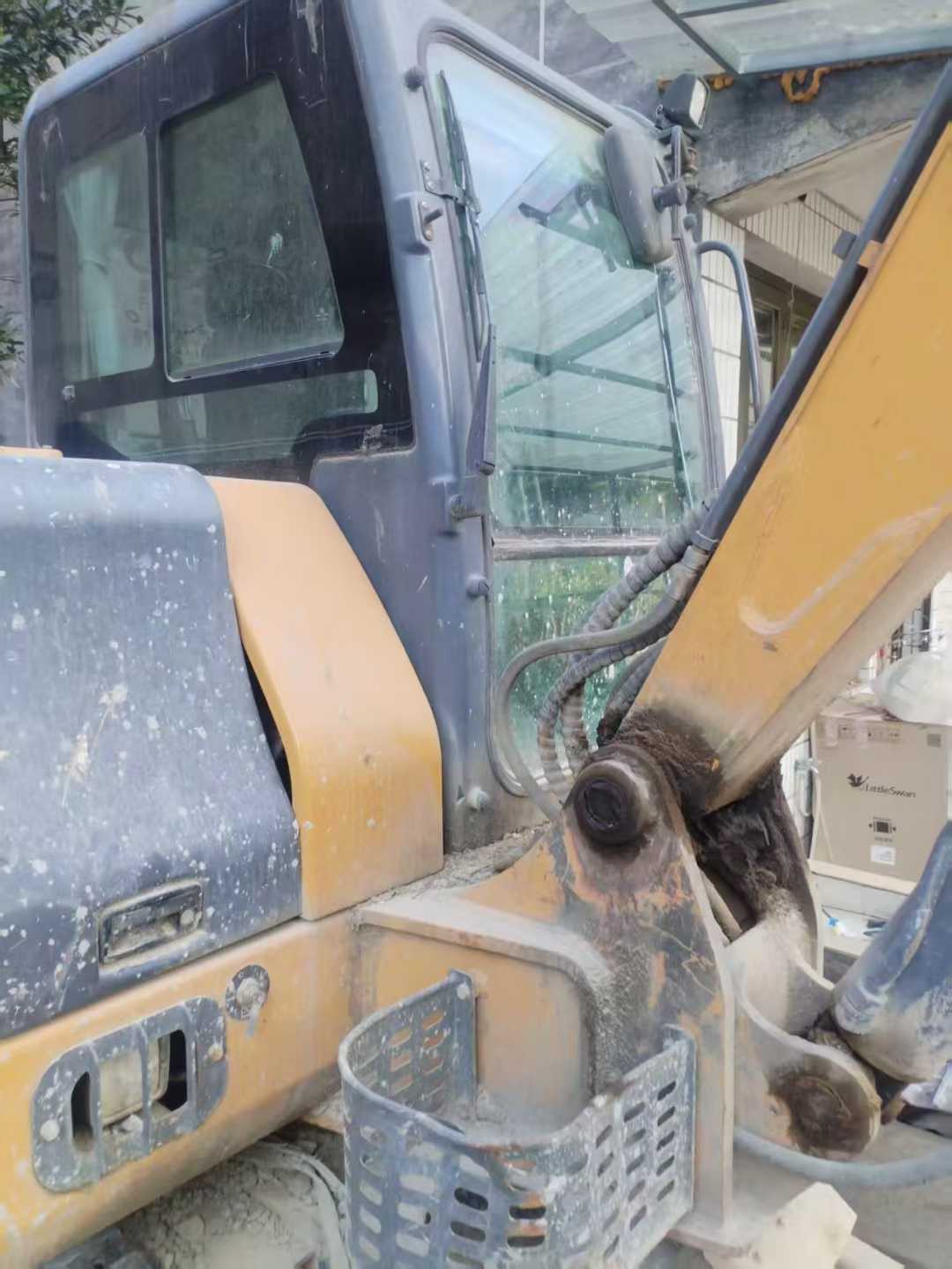

Used XCMG XE60 Excavator 2016 Model / 9

Product Description

"XCMG XE60 Second-hand excavator Dear customer, hello! We currently have a second-hand XCMG XE60 excavator, which is a small excavator with outstanding performance and extremely high cost performance. Since its manufacture, this equipment has accumulated a working time of only 1,200 hours and is in excellent working condition. It is an ideal choice for your engineering operations. "Power System This XCMG XE60 is equipped with a well-known brand engine, featuring strong power output and smooth operation characteristics. It not only meets the operational requirements under various complex working conditions, but also features excellent fuel economy, significantly reducing your operating costs. The engine has undergone professional maintenance, ensuring that it can maintain an efficient and stable working state even under long-term high-load operation. "Hydraulic System Equipped with an advanced negative flow control hydraulic system, it makes the operation more precise and smooth, and the response speed faster. Whether it's mining or loading tasks, they can all be handled with ease. In addition, the efficient heat dissipation design ensures that it can operate continuously even in high-temperature environments without affecting perfor

SpecificationsValue
No.972236
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.972236

Brand Name:

XCMG

Model Number:

XE60

Year:

2016

Location:

Zhejiang China
